uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Maintenance

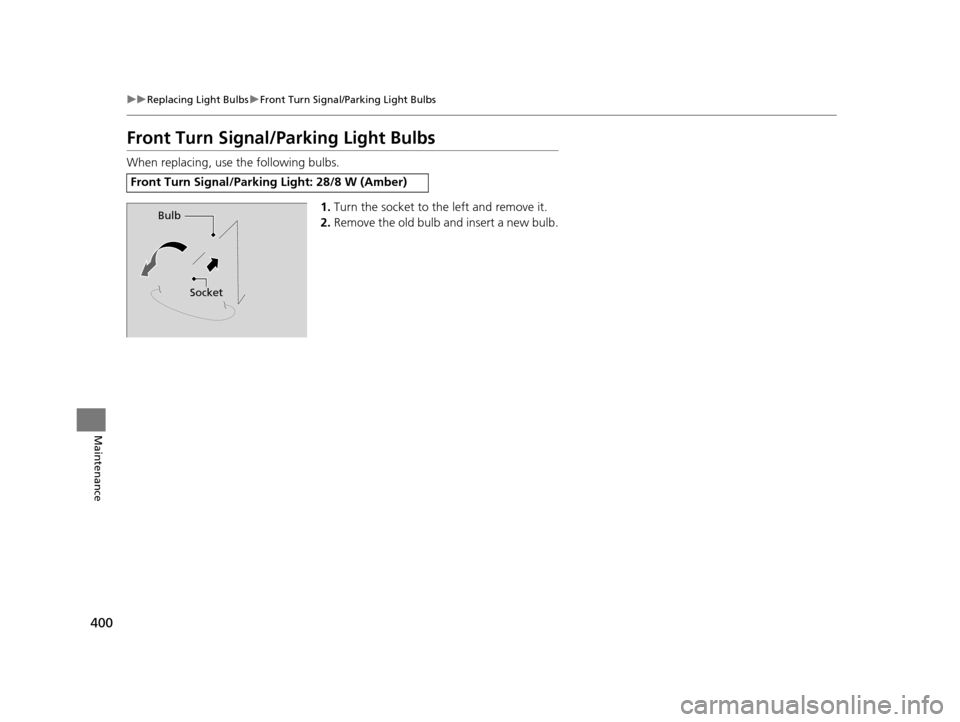

Front Turn Signal/Parking Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket to the left and remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal/Parking Light: 28/8 W (Amber)
Bulb
Socket
15 HR-V GAS-31T7A6000.book 400 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

401
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Continued
Maintenance

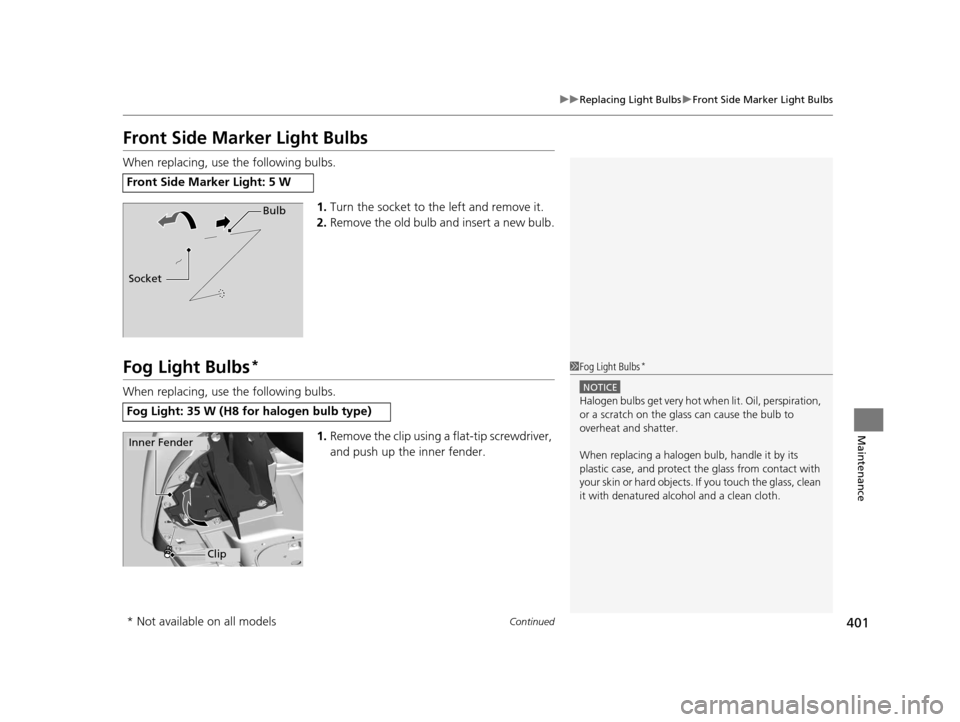

Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket to the left and remove it.
2. Remove the old bulb and insert a new bulb.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clip using a flat-tip screwdriver,
and push up the inner fender.
Front Side Marker Light: 5 W
Bulb
Socket
Fog Light: 35 W (H8 for halogen bulb type)
1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Clip
Inner Fender
* Not available on all models
15 HR-V GAS-31T7A6000.book 401 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Light Bulbs*
402
Maintenance

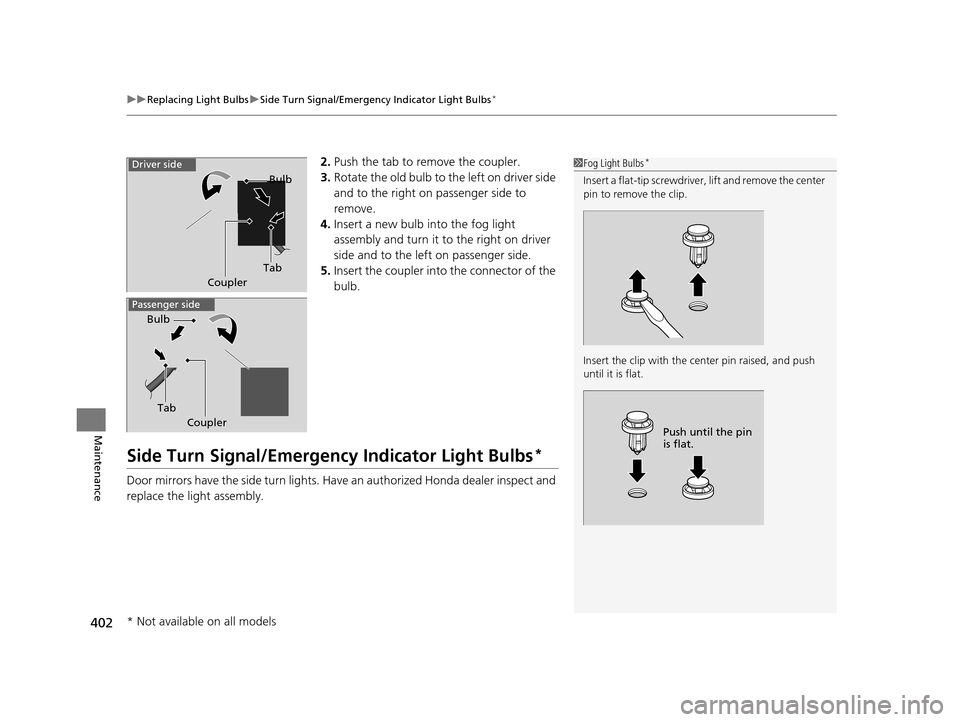

2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left on driver side
and to the right on passenger side to
remove.
4. Insert a new bulb into the fog light
assembly and turn it to the right on driver
side and to the left on passenger side.
5. Insert the coupler into the connector of the
bulb.
Side Turn Signal/Emergency Indicator Light Bulbs*
Door mirrors have the side turn lights. Ha ve an authorized Honda dealer inspect and
replace the light assembly.
1 Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the pin
is flat.
Tab Bulb
Coupler
Driver side
Passenger side
Tab
Bulb
Coupler
* Not available on all models
15 HR-V GAS-31T7A6000.book 402 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

403
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance

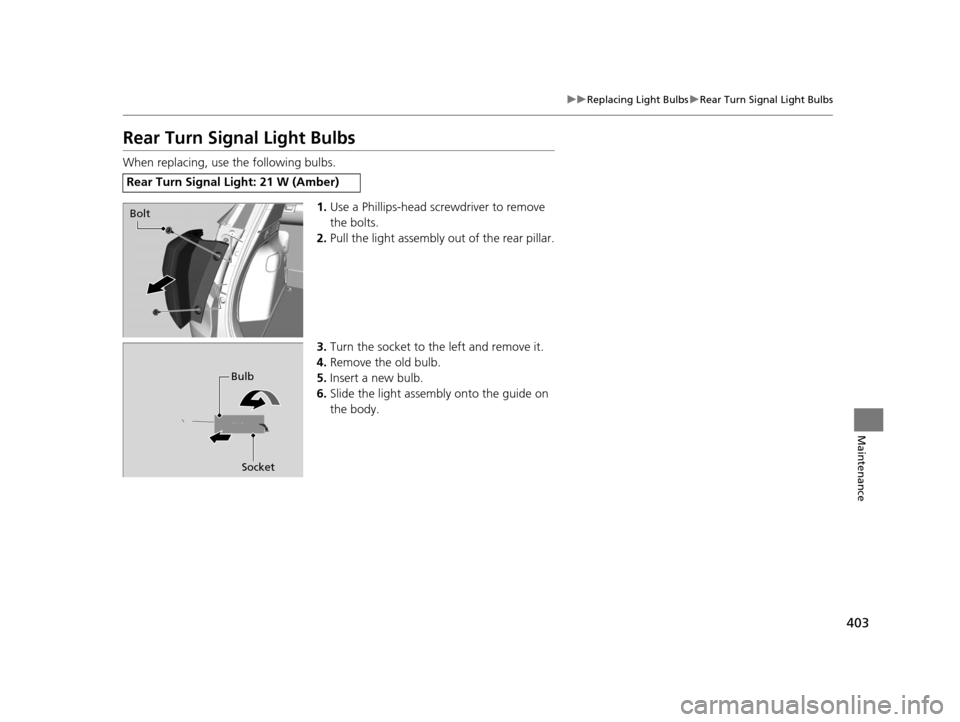

Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket to the left and remove it.
4. Remove the old bulb.
5. Insert a new bulb.
6. Slide the light assembly onto the guide on
the body.
Rear Turn Signal Light: 21 W (Amber)
Bolt
Bulb
Socket
15 HR-V GAS-31T7A6000.book 403 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

404
uuReplacing Light Bulbs uBack-Up Light Bulbs
Maintenance

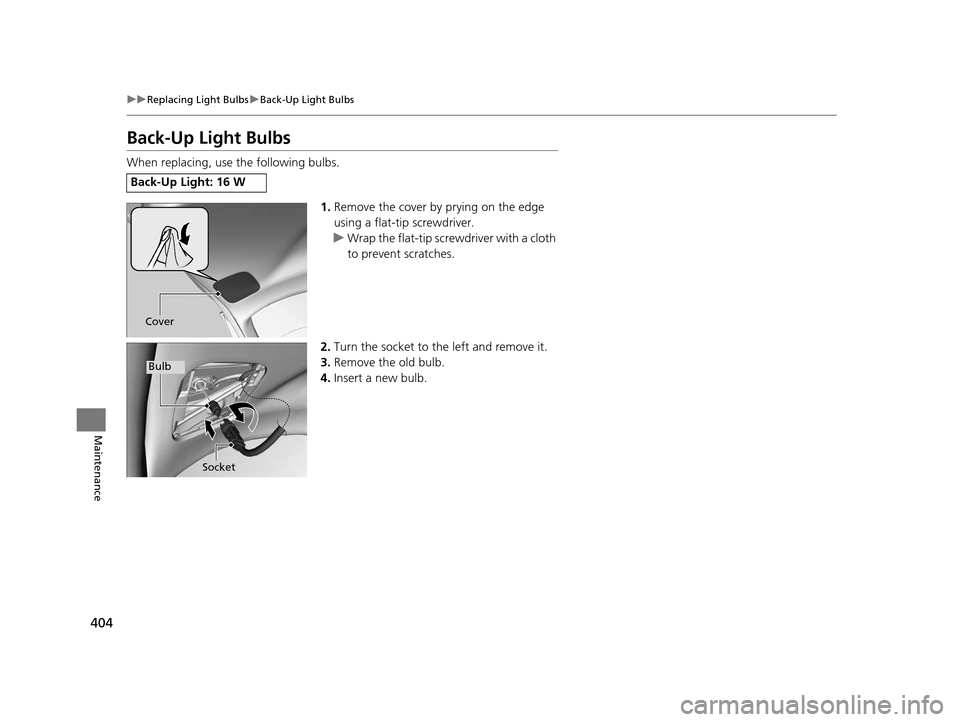

Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket to the left and remove it.
3. Remove the old bulb.
4. Insert a new bulb.
Back-Up Light: 16 W
Cover
Bulb
Socket
15 HR-V GAS-31T7A6000.book 404 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

405
uuReplacing Light Bulbs uBrake/Tail/Rear Side Marker Light Bulbs
Maintenance

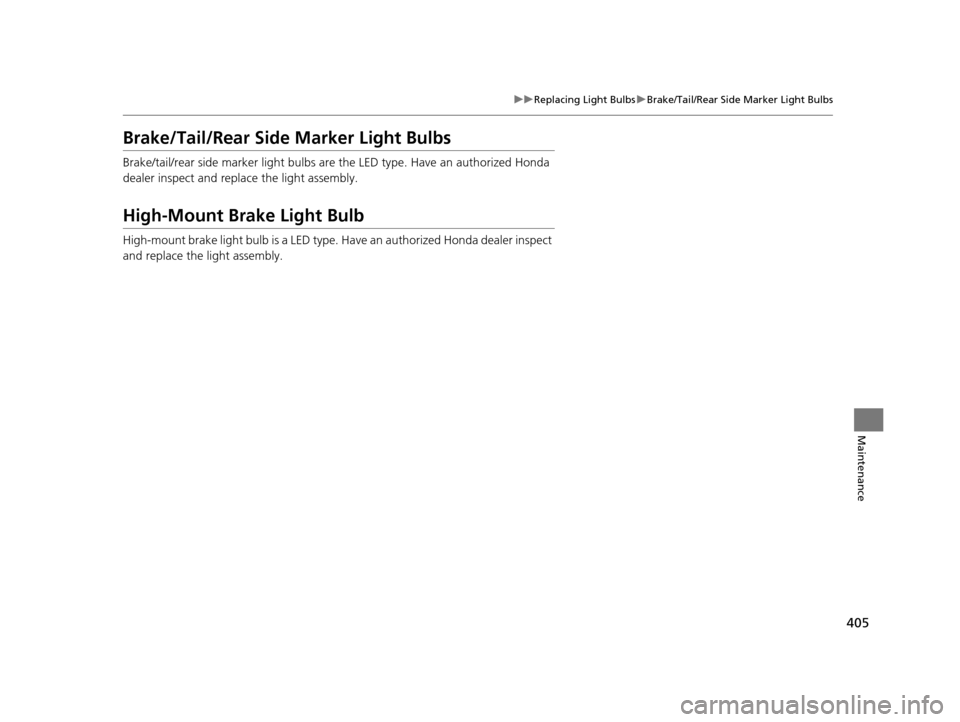

Brake/Tail/Rear Side Marker Light Bulbs
Brake/tail/rear side marker light bulbs are the LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
High-Mount Bra ke Light Bulb
High-mount brake light bulb is a LED type. Ha ve an authorized Honda dealer inspect
and replace the light assembly.
15 HR-V GAS-31T7A6000.book 405 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

406
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance

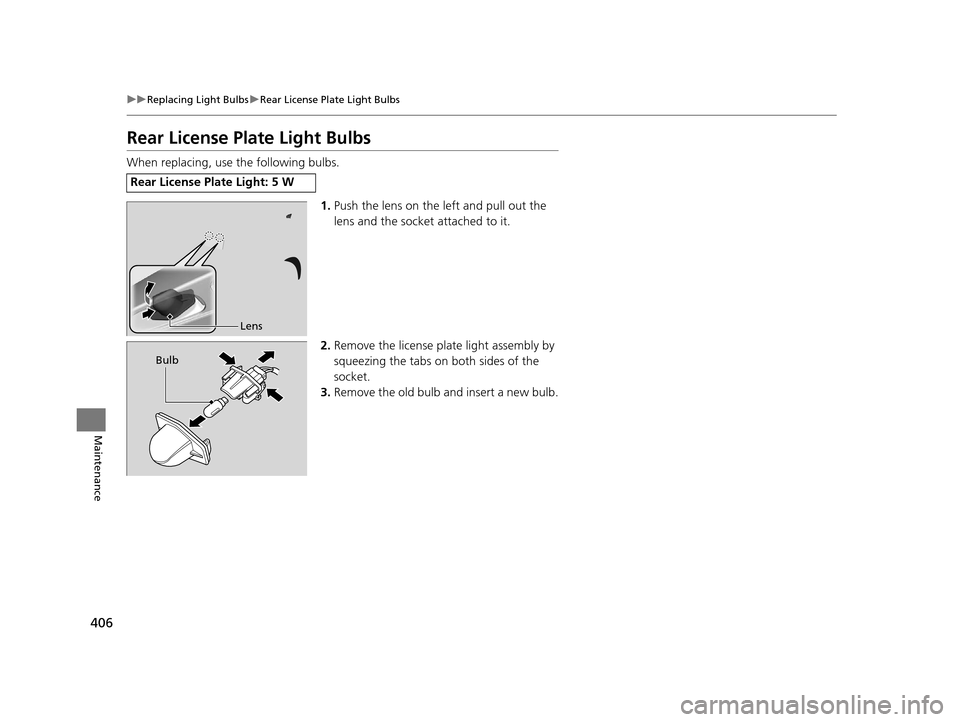

Rear License Plate Light Bulbs
When replacing, use the following bulbs.
1.Push the lens on the left and pull out the
lens and the socket attached to it.
2. Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Lens
Bulb
15 HR-V GAS-31T7A6000.book 406 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

407Continued
Maintenance

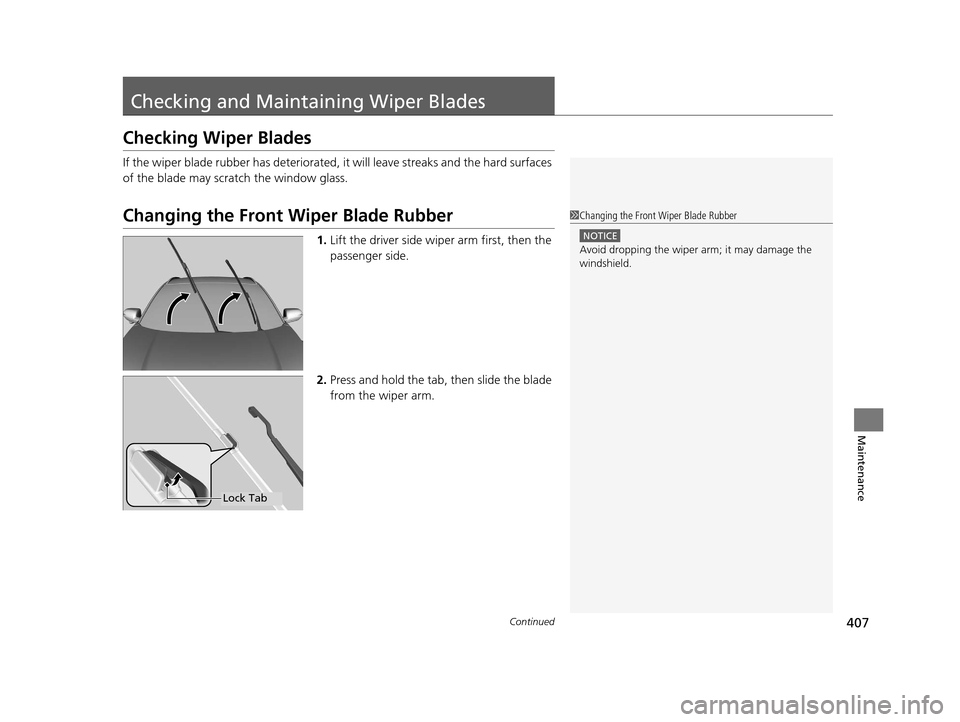

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade
from the wiper arm.
1Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
15 HR-V GAS-31T7A6000.book 407 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

408
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

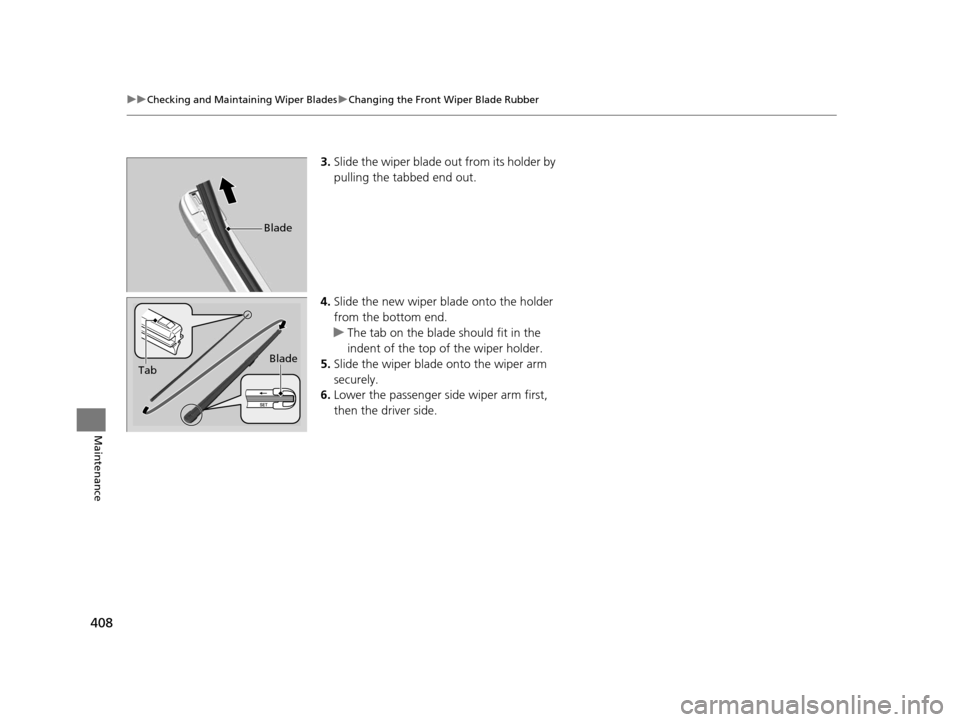

3. Slide the wiper blade out from its holder by
pulling the tabbed end out.
4. Slide the new wiper blade onto the holder
from the bottom end.
u The tab on the blade should fit in the
indent of the top of the wiper holder.
5. Slide the wiper blade onto the wiper arm
securely.
6. Lower the passenger side wiper arm first,
then the driver side.
Blade
Tab Blade
15 HR-V GAS-31T7A6000.book 408 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

409
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Continued
Maintenance

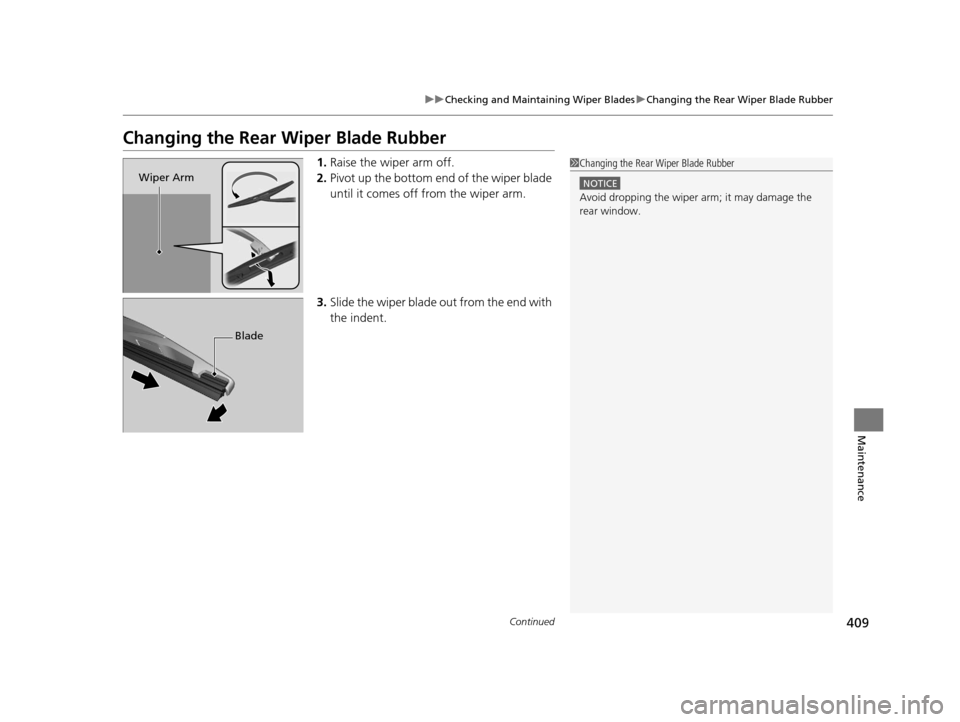

Changing the Rear Wiper Blade Rubber
1.Raise the wiper arm off.
2. Pivot up the bottom end of the wiper blade
until it comes off from the wiper arm.
3. Slide the wiper blade out from the end with
the indent.1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
rear window.
Wiper Arm
Blade
