HONDA HR-V 2016 2.G Owners Manual
Manufacturer: HONDA, Model Year: 2016, Model line: HR-V, Model: HONDA HR-V 2016 2.GPages: 489, PDF Size: 26.59 MB
Page 471 of 489
470
Information

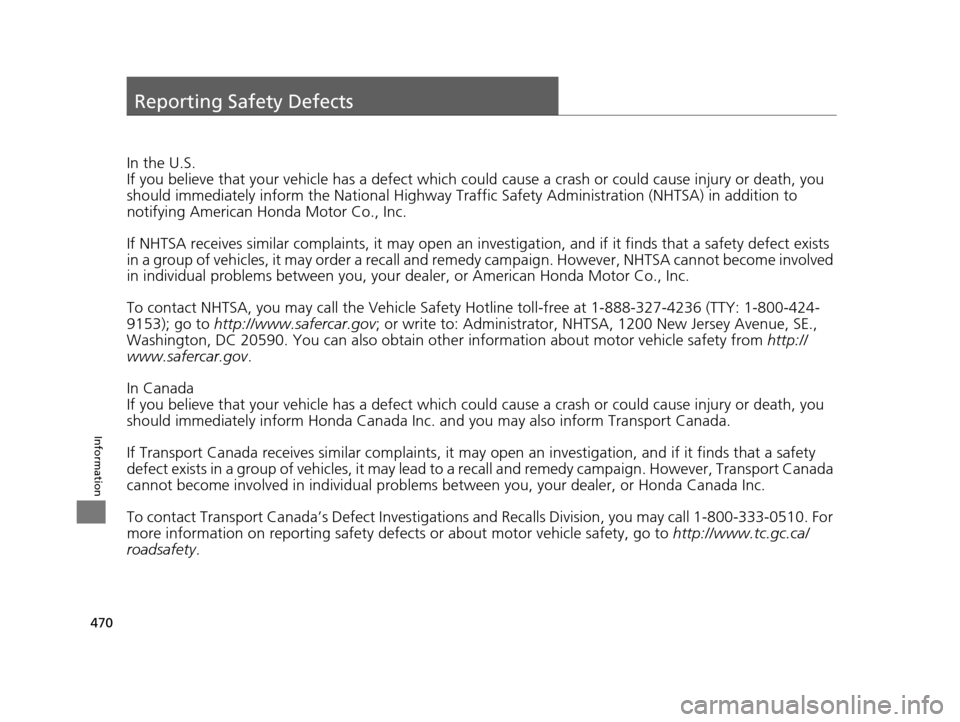

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
15 HR-V GAS-31T7A6000.book 470 ページ 2015年6月29日 月曜日 午前11時36分
Page 472 of 489
471Continued
Information

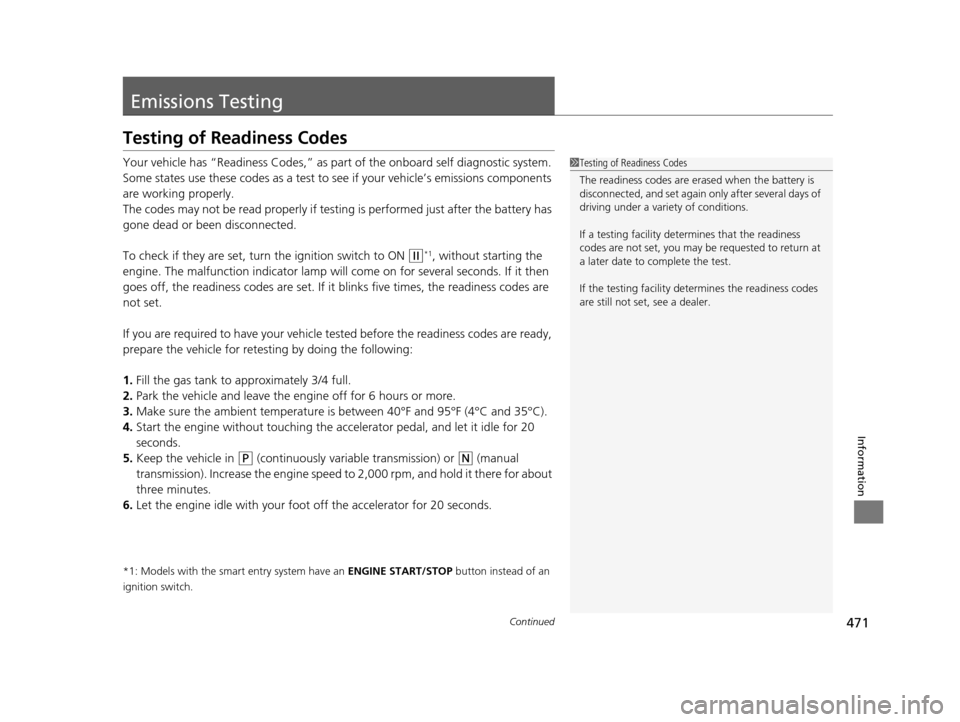

Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some states use these codes as a test to see if your vehicle’s emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
15 HR-V GAS-31T7A6000.book 471 ページ 2015年6月29日 月曜日 午前11時36分
Page 473 of 489
472

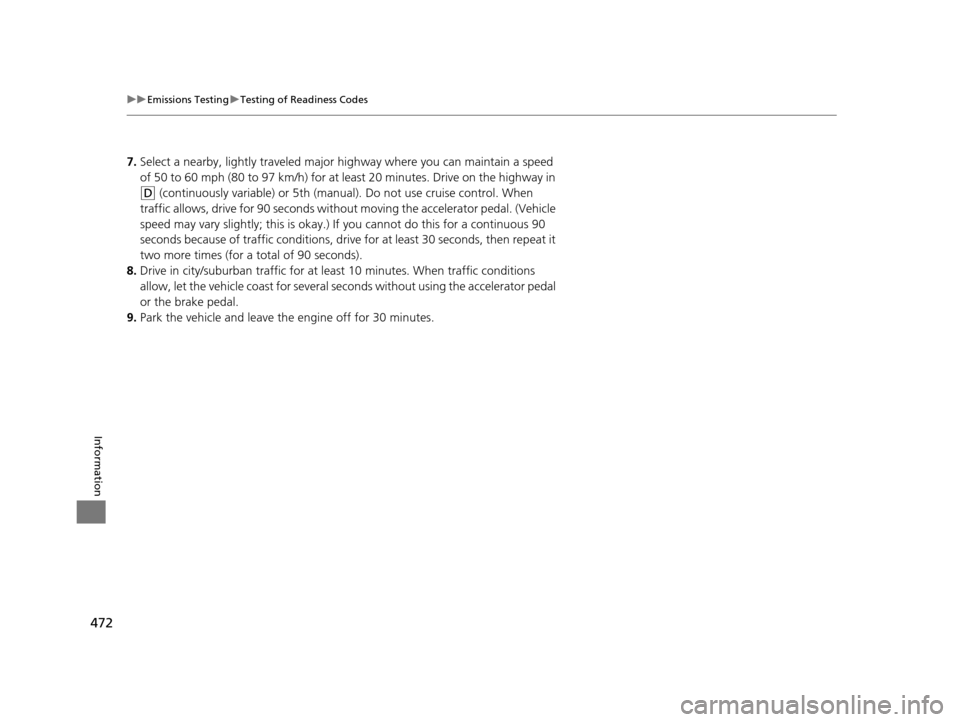

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable) or 5th (manual). Do not use cruise control. When
traffic allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle
speed may vary slightly; this is okay.) If you cannot do this for a continuous 90
seconds because of traffic conditions, drive for at least 30 seconds, then repeat it
two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
15 HR-V GAS-31T7A6000.book 472 ページ 2015年6月29日 月曜日 午前11時36分
Page 474 of 489
473Continued
Information

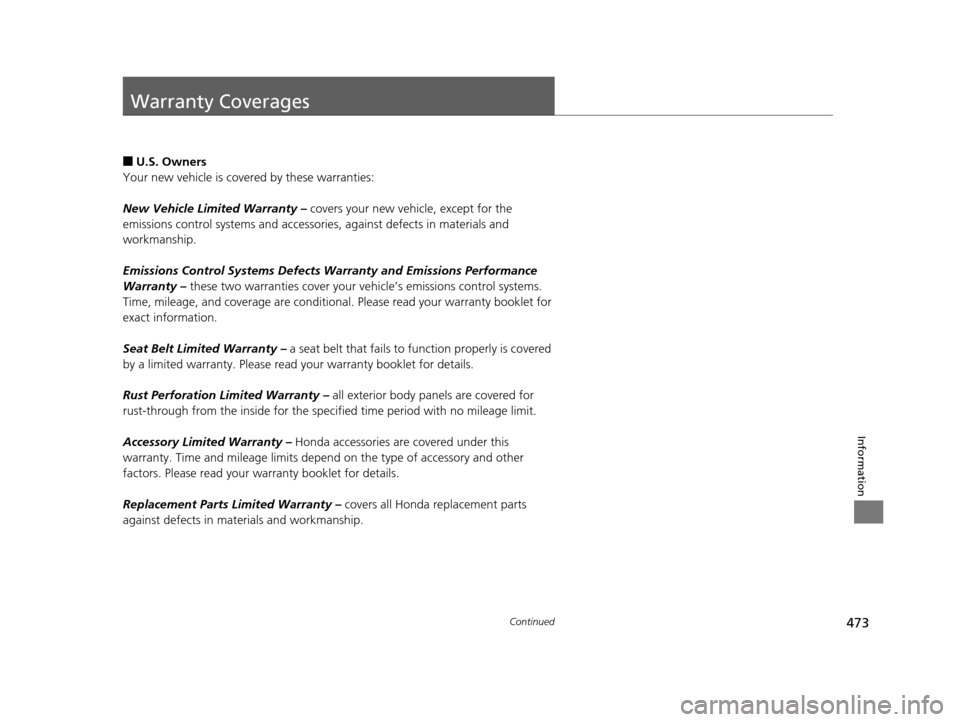

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
15 HR-V GAS-31T7A6000.book 473 ページ 2015年6月29日 月曜日 午前11時36分
Page 475 of 489
474

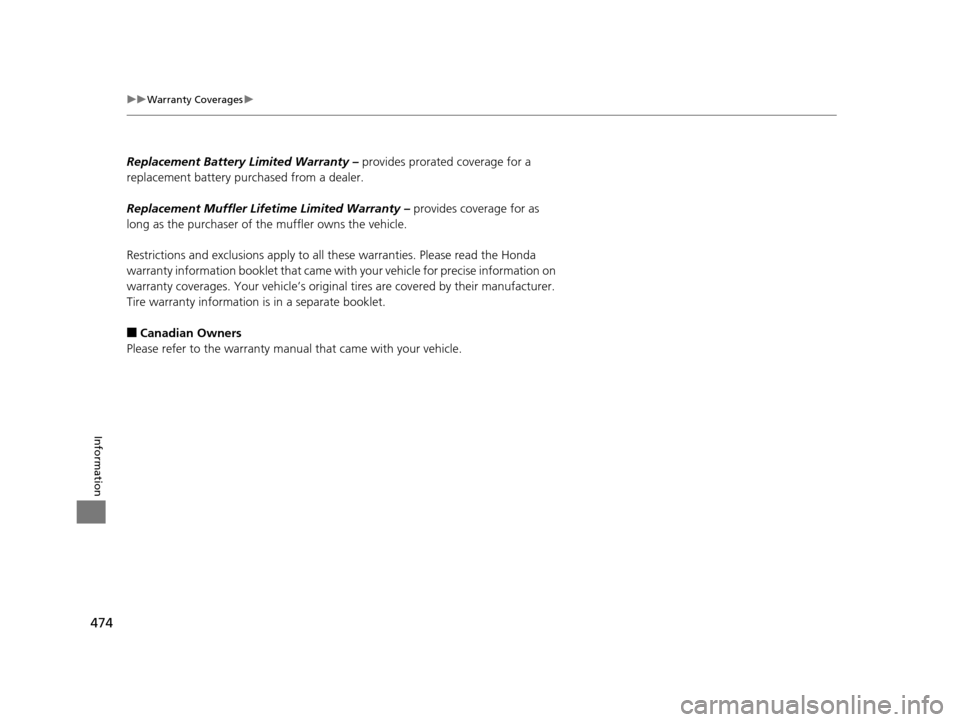

uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
15 HR-V GAS-31T7A6000.book 474 ページ 2015年6月29日 月曜日 午前11時36分
Page 476 of 489
475
Information

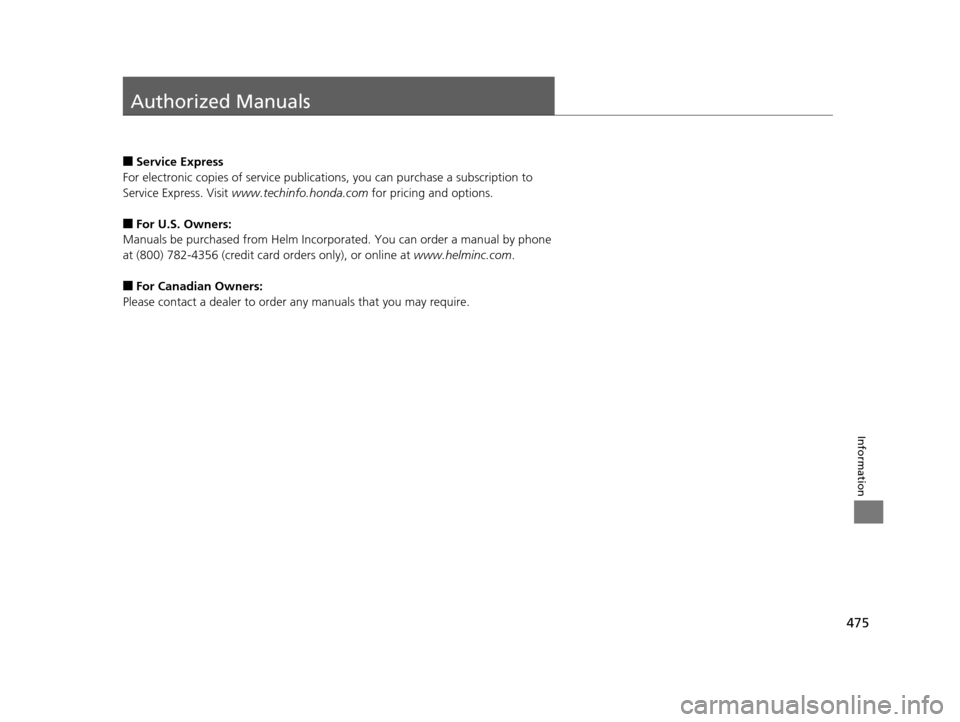

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners:
Manuals be purchased from Helm Incorpor ated. You can order a manual by phone
at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
■For Canadian Owners:
Please contact a dealer to order any manuals that you may require.
15 HR-V GAS-31T7A6000.book 475 ページ 2015年6月29日 月曜日 午前11時36分
Page 477 of 489
476
Information

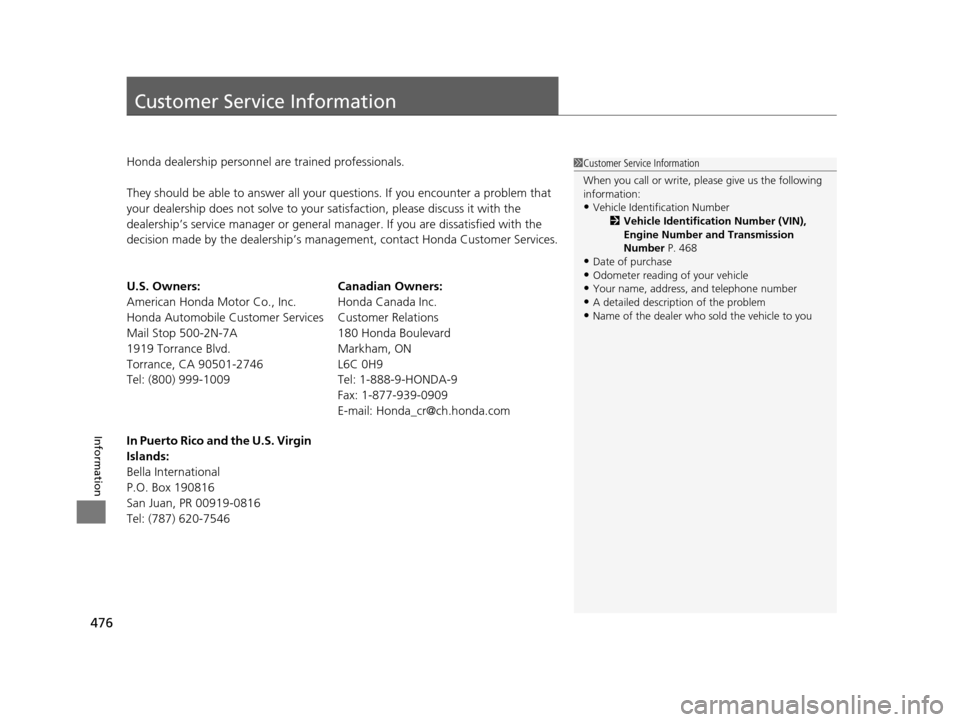

Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general manager. If you are dissatisfied with the
decision made by the dealership’s management, contact Honda Customer Services.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009 Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number and Transmission
Number P. 468
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
15 HR-V GAS-31T7A6000.book 476 ページ 2015年6月29日 月曜日 午前11時36分
Page 478 of 489
477
uuCustomer Service Information u
Information

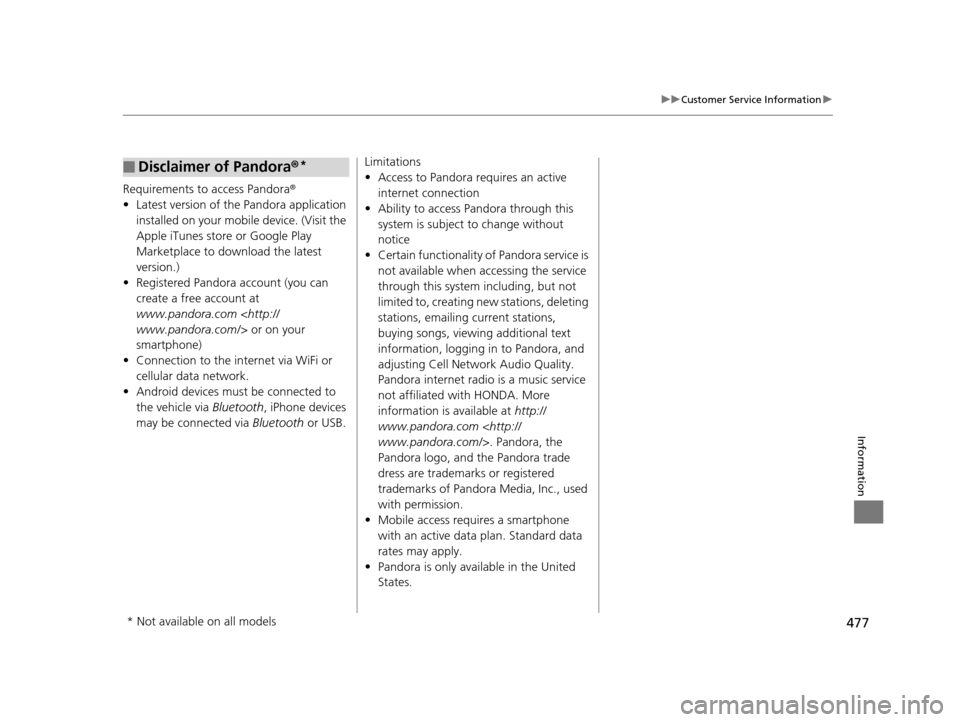

Requirements to access Pandora®
• Latest version of the Pandora application
installed on your mobile device. (Visit the
Apple iTunes store or Google Play
Marketplace to download the latest
version.)
• Registered Pandora account (you can
create a free account at
www.pandora.com
smartphone)
• Connection to the in ternet via WiFi or
cellular data network.
• Android devices must be connected to
the vehicle via Bluetooth, iPhone devices
may be connected via Bluetooth or USB.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying songs, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only available in the United
States.
* Not available on all models
15 HR-V GAS-31T7A6000.book 477 ページ 2015年6月29日 月曜日 午前11時36分
Page 479 of 489

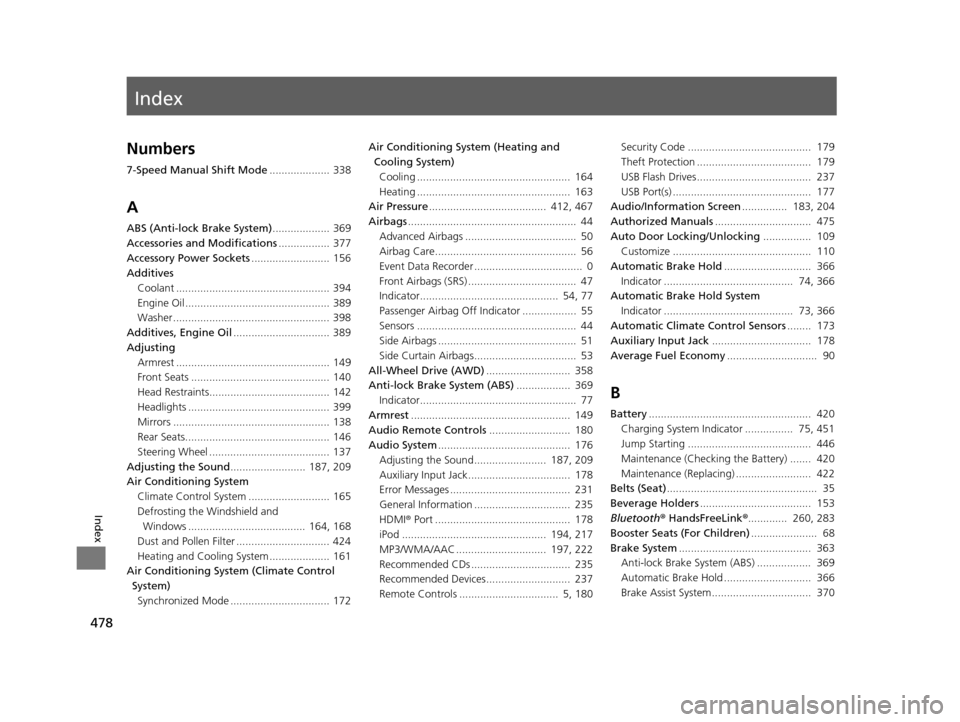

Index
478
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 338
A
ABS (Anti-lock Brake System) ................... 369
Accessories and Modifications ................. 377
Accessory Power Sockets .......................... 156
Additives Coolant ................................................... 394
Engine Oil ................................................ 389
Washer .................................................... 398
Additives, Engine Oil ................................ 389
Adjusting Armrest ................................................... 149
Front Seats .............................................. 140
Head Restraints........................................ 142
Headlights ............................................... 399
Mirrors .................................................... 138
Rear Seats................................................ 146
Steering Wheel ........................................ 137
Adjusting the Sound ......................... 187, 209
Air Conditioning System Climate Control System ........................... 165
Defrosting the Windshield and Windows ....................................... 164, 168
Dust and Pollen Filter ............................... 424
Heating and Cooling System .................... 161
Air Conditioning System (Climate Control System)
Synchronized Mode ................................. 172 Air Conditioning System (Heating and
Cooling System)
Cooling ................................................... 164
Heating ................................................... 163
Air Pressure ....................................... 412, 467
Airbags ........................................................ 44
Advanced Airbags ..................................... 50
Airbag Care............................................... 56
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 47
Indicator.............................................. 54, 77
Passenger Airbag Off Indicator .................. 55
Sensors ..................................................... 44
Side Airbags .............................................. 51
Side Curtain Airbags.................................. 53
All-Wheel Drive (AWD) ............................ 358
Anti-lock Brake System (ABS) .................. 369
Indicator.................................................... 77
Armrest ..................................................... 149
Audio Remote Controls ........................... 180
Audio System ............................................ 176
Adjusting the Sound........................ 187, 209
Auxiliary Input Jack.................................. 178
Error Messages ........................................ 231
General Information ................................ 235
HDMI ® Port ............................................. 178
iPod ................................................ 194, 217
MP3/WMA/AAC .............................. 197, 222
Recommended CDs ................................. 235
Recommended Devices............................ 237
Remote Controls ................................. 5, 180 Security Code ......................................... 179
Theft Protection ...................................... 179
USB Flash Drives...................................... 237
USB Port(s) .............................................. 177
Audio/Information Screen ............... 183, 204
Authorized Manuals ................................ 475
Auto Door Locking/Unlocking ................ 109
Customize .............................................. 110
Automatic Brake Hold ............................. 366
Indicator ........................................... 74, 366
Automatic Brake Hold System
Indicator ........................................... 73, 366
Automatic Climate Control Sensors ........ 173
Auxiliary Input Jack ................................. 178
Average Fuel Economy .............................. 90
B
Battery...................................................... 420
Charging System Indicator ................ 75, 451
Jump Starting ......................................... 446
Maintenance (Checking the Battery) ....... 420
Maintenance (Replacing) ......................... 422
Belts (Seat) .................................................. 35
Beverage Holders ..................................... 153
Bluetooth ® HandsFreeLink ®............. 260, 283
Booster Seats (For Children) ...................... 68
Brake System ............................................ 363
Anti-lock Brake System (ABS) .................. 369
Automatic Brake Hold ............................. 366
Brake Assist System................................. 370
15 HR-V GAS-31T7A6000.book 478 ページ 2015年6月29日 月曜日 午前11時36分
Page 480 of 489
479
Index
Fluid ....................................................... 397
Foot Brake .............................................. 365
Indicator (Amber) ...................................... 72
Indicator (Red) .................................. 72, 453
Parking Brake.......................................... 363
Brake System Indicator (Amber) ............... 72
Brake System Indicator (Red) .................... 72
Brightness Control (Instrument Panel) ... 134
Bulb Replacement .................................... 399
Back-Up Light ......................................... 404
Brake/Tail/Rear Side Marker Lights........... 405
Fog Lights ............................................... 401
Front Side Marker Lights ......................... 401
Front Turn Signal/Parking Lights .............. 400
Headlights .............................................. 399
High-Mount Brake Light.......................... 405
Rear License Plate Lights ......................... 406
Rear Turn Signal Lights............................ 403
Side Turn Signal, Emergency Indicator Lights .................................................... 402
Bulb Specifications ................................... 466
C
Carbon Monoxide Gas ............................... 69
Cargo Floor Box ....................................... 155
Carrying Cargo ................................. 315, 317
CD Player .......................................... 191, 214
Certification Label ................................... 468
Changing Bulbs ........................................ 399
Charging System Indicator ................ 75, 451Child Safety
................................................. 57
Childproof Door Locks ............................. 108
Child Seat .................................................... 57
Booster Seats ............................................. 68
Child Seat for Infants ................................. 59
Child Seat for Small Children ..................... 60
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 64
Larger Children .......................................... 67
Rear-facing Child Seat ............................... 59
Selecting a Child Seat ................................ 61
Childproof Door Locks ............................. 108
Cleaning the Exterior ............................... 427
Cleaning the Interior ................................ 425
Climate Control System ............................ 165
Synchronized Mode ................................. 172
Clock ............................................................ 94
Coat Hook ................................................. 157
Compact Spare Tire .......................... 434, 467
Continuously Variable Transmission ....... 333
7-Speed Manual Shift Mode .................... 338
Creeping ................................................. 333
Fluid ........................................................ 396
Kickdown ................................................ 333
Operating the Shift Lever ........... 21, 335, 337
Shift Lever Does Not Move ...................... 448
Shifting ........................................... 334, 336
Controls ....................................................... 93
Coolant (Engine) ....................................... 394
Adding to the Radiator ............................ 395
Adding to the Reserve Tank ..................... 394 High Temperature Indicator ....................... 77
Low Temperature Indicator........................ 77
Overheating ............................................ 449
Creeping (Continuously Variable Transmission) .......................................... 333
Cruise Control ........................................... 344
Indicator.................................................... 82
Cup Holders .............................................. 153
Customer Service Information ................. 476
D
Daytime Running Lights.......................... 131
Dead Battery ............................................. 446
Defrosting the Windshield and Windows ......................................... 164, 168
Devices that Emit Radio Waves ............... 469
Dimming
Headlights ............................................... 127
Rearview Mirror....................................... 138
Dipstick (Engine Oil) ................................. 390
Directional Signals (Turn Signal) ............. 127
Display Setup .................................... 188, 210
Door Mirrors ............................................. 139
Doors ........................................................... 96
Auto Door Locking .................................. 109
Auto Door Unlocking .............................. 109
Door and Tailgate Open Indicator ........ 34, 78
Keys .......................................................... 96
Locking/Unlocking the Doors from
the Inside .............................................. 105
15 HR-V GAS-31T7A6000.book 479 ページ 2015年6月29日 月曜日 午前11時36分
