80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Starter System
Indicator*
●Comes on for a few seconds when you
set the power mode to ON, then goes off
when the engine starts.
●Comes on if the starter system has a
problem.
●As a temporary measure, press and hold the
ENGINE START/STOP button for up to 15 seconds
while pressing the brake pedal and clutch pedal
(manual transmission only), and manually start the
engine. Have your vehicle checked by a dealer.
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn signal
lever.
●Blink if you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately.
2 Replacing Light Bulbs P. 400, 403
High Beam Indicator●Comes on when the high beam
headlights are on.—
Lights On Indicator
●Comes on whenever the light switch is
on, or in AUTO* when the exterior lights
are on.
●If you remove the key from the ignition switch*, or
set the power mode* to VEHICLE OFF (LOCK) while
the exterior lights are on, a chime sounds when the
driver’s door is opened.
Fog Light Indicator*●Comes on when the fog lights are on.—
U.S.
Canada
* Not available on all models
15 HR-V GAS-31T7A6000.book 80 ページ 2015年6月29日 月曜日 午前11時36分
Page 82 of 489
81
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation

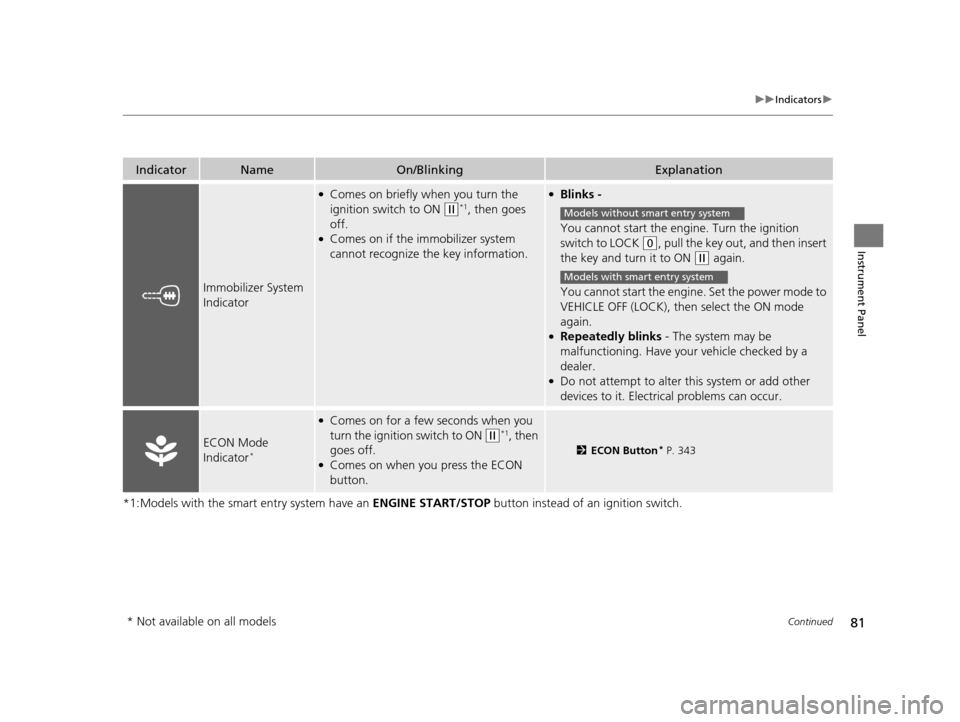

Immobilizer System
Indicator
●Comes on briefly when you turn the
ignition switch to ON
(w*1, then goes
off.
●Comes on if the immobilizer system
cannot recognize the key information.
●Blinks -
You cannot start the engine. Turn the ignition
switch to LOCK
(0, pull the key out, and then insert
the key and turn it to ON
(w again.
You cannot start the engine. Set the power mode to
VEHICLE OFF (LOCK), then select the ON mode
again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
●Do not attempt to alter this system or add other
devices to it. Electrica l problems can occur.
ECON Mode
Indicator*
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on when you press the ECON
button.
2 ECON Button* P. 343
Models without smart entry system
Models with smart entry system
* Not available on all models
15 HR-V GAS-31T7A6000.book 81 ページ 2015年6月29日 月曜日 午前11時36分
Page 83 of 489
82
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation

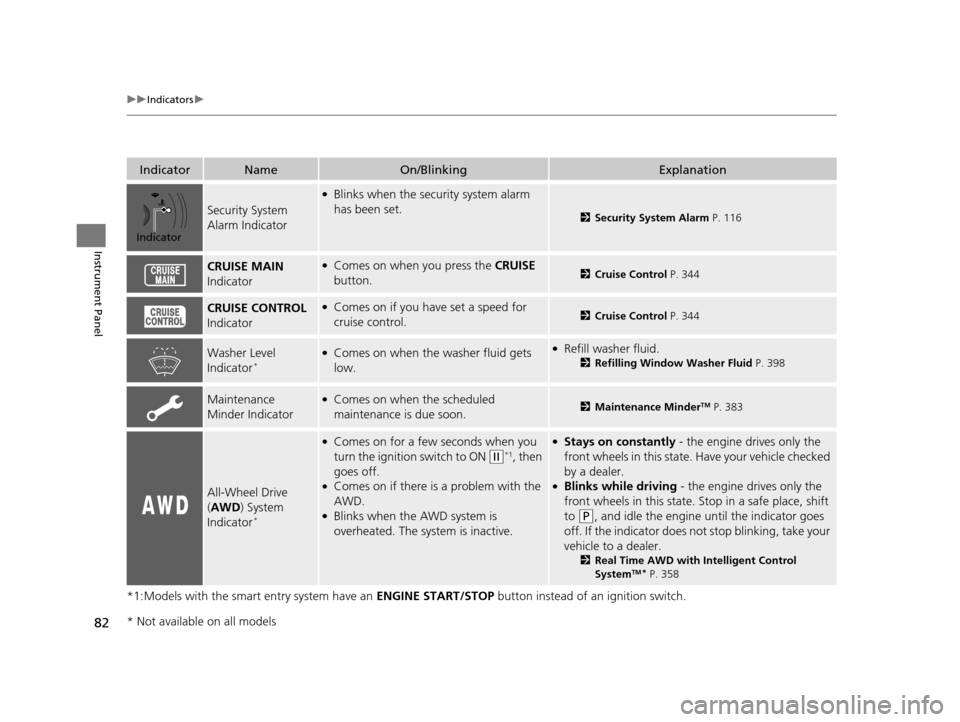

Security System
Alarm Indicator
●Blinks when the security system alarm
has been set.
2Security System Alarm P. 116
CRUISE MAIN
Indicator●Comes on when you press the CRUISE
button.2 Cruise Control P. 344
CRUISE CONTROL
Indicator●Comes on if you have set a speed for
cruise control.2 Cruise Control P. 344
Washer Level
Indicator*●Comes on when the washer fluid gets
low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 398
Maintenance
Minder Indicator●Comes on when the scheduled
maintenance is due soon.2Maintenance MinderTM P. 383
All-Wheel Drive
(AWD ) System
Indicator
*
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on if there is a problem with the
AWD.
●Blinks when the AWD system is
overheated. The system is inactive.
●Stays on constantly - the engine drives only the
front wheels in this state. Have your vehicle checked
by a dealer.
●Blinks while driving - the engine drives only the
front wheels in this state. Stop in a safe place, shift
to
(P, and idle the engine until the indicator goes
off. If the indicator does not stop blinking, take your
vehicle to a dealer.
2 Real Time AWD with Intelligent Control
SystemTM* P. 358
Indicator
* Not available on all models
15 HR-V GAS-31T7A6000.book 82 ページ 2015年6月29日 月曜日 午前11時36分
Page 84 of 489
83
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage

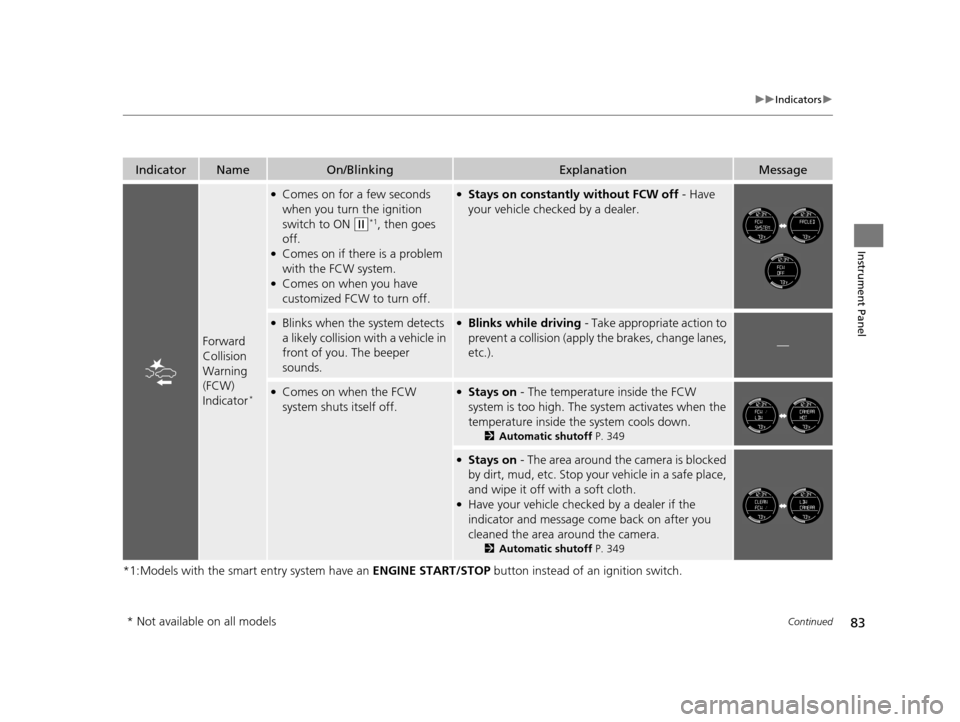

Forward
Collision
Warning
(FCW)
Indicator
*
●Comes on for a few seconds
when you turn the ignition
switch to ON
(w*1, then goes
off.
●Comes on if there is a problem
with the FCW system.
●Comes on when you have
customized FCW to turn off.
●Stays on constantly without FCW off - Have
your vehicle checked by a dealer.
●Blinks when the system detects
a likely collision with a vehicle in
front of you. The beeper
sounds.●Blinks while driving - Take appropriate action to
prevent a collision (apply the brakes, change lanes,
etc.).
—
●Comes on when the FCW
system shuts itself off.●Stays on - The temperature inside the FCW
system is too high. The sy stem activates when the
temperature inside the system cools down.
2 Automatic shutoff P. 349
●Stays on - The area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place,
and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after you
cleaned the area around the camera.
2 Automatic shutoff P. 349
* Not available on all models
15 HR-V GAS-31T7A6000.book 83 ページ 2015年6月29日 月曜日 午前11時36分
Page 85 of 489
84
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage

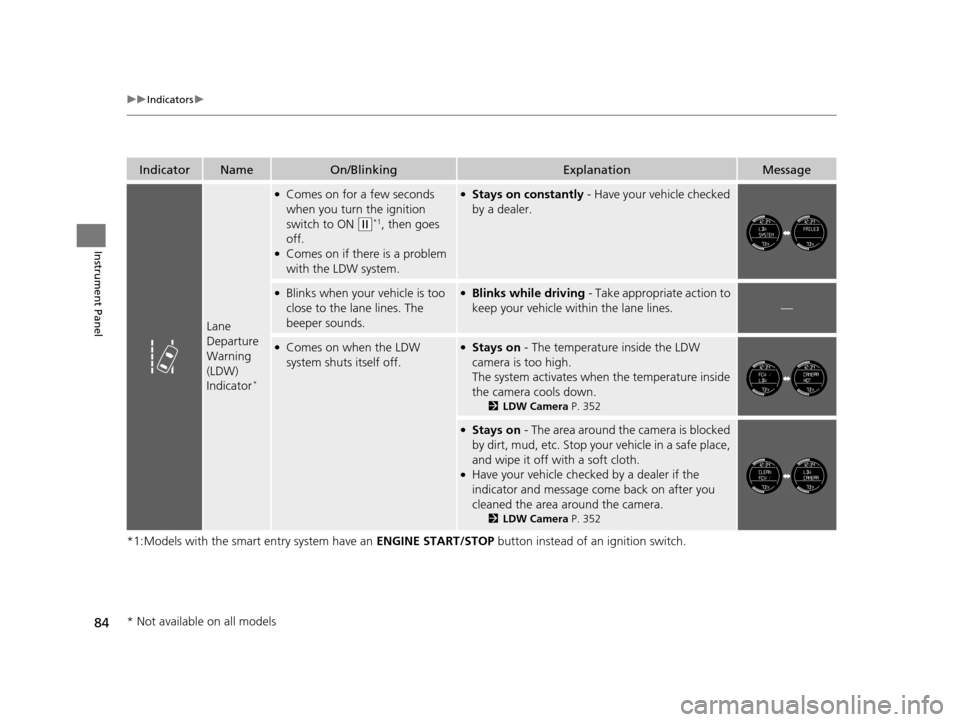

Lane
Departure
Warning
(LDW)
Indicator
*
●Comes on for a few seconds
when you turn the ignition
switch to ON
(w*1, then goes
off.
●Comes on if there is a problem
with the LDW system.
●Stays on constantly - Have your vehicle checked
by a dealer.
●Blinks when your vehicle is too
close to the lane lines. The
beeper sounds.●Blinks while driving - Take appropriate action to
keep your vehicle within the lane lines.
—
●Comes on when the LDW
system shuts itself off.●Stays on - The temperature inside the LDW
camera is too high.
The system activates when the temperature inside
the camera cools down.
2 LDW Camera P. 352
●Stays on - The area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place,
and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after you
cleaned the area around the camera.
2 LDW Camera P. 352
* Not available on all models
15 HR-V GAS-31T7A6000.book 84 ページ 2015年6月29日 月曜日 午前11時36分
Page 86 of 489
85
uuIndicators uInformation Display Warning and Information Messages
Continued
Instrument Panel
Information Display Warning and Information Messages
The following messages appear only on the information display.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2Check Fuel Cap Message P. 452
●Appears when there is a problem with the sensor on
the battery.●Stays on constantly - Have your vehicle checked
by a dealer.
15 HR-V GAS-31T7A6000.book 85 ページ 2015年6月29日 月曜日 午前11時36分
Page 87 of 489
86
uuIndicators uInformation Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Move the shift lever to (P.
●Appears when the power mode is in ACCESSORY.
—
●Appears when the steering wheel is locked.
●Move the steering wheel left and right while
pressing the ENGINE START/STOP button at the
same time.
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
●Appears when the smart entry remote’s battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 422
Models with smart entry system
Canadian models with continuously variable transmission
U.S. models with continuously variable transmission
U.S. models with manual transmission
Canadian models
15 HR-V GAS-31T7A6000.book 86 ページ 2015年6月29日 月曜日 午前11時36分
Page 88 of 489
87
uuIndicators uInformation Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation

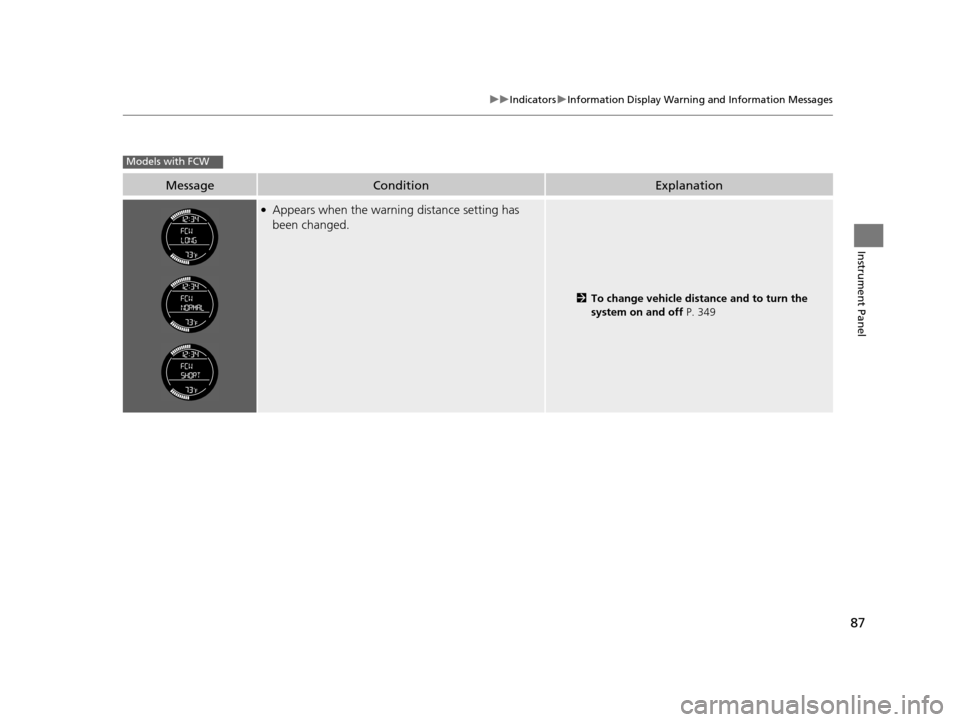

●Appears when the warning distance setting has
been changed.
2 To change vehicle distance and to turn the
system on and off P. 349
Models with FCW
15 HR-V GAS-31T7A6000.book 87 ページ 2015年6月29日 月曜日 午前11時36分
Page 89 of 489
88
Instrument Panel
Gauges and Displays

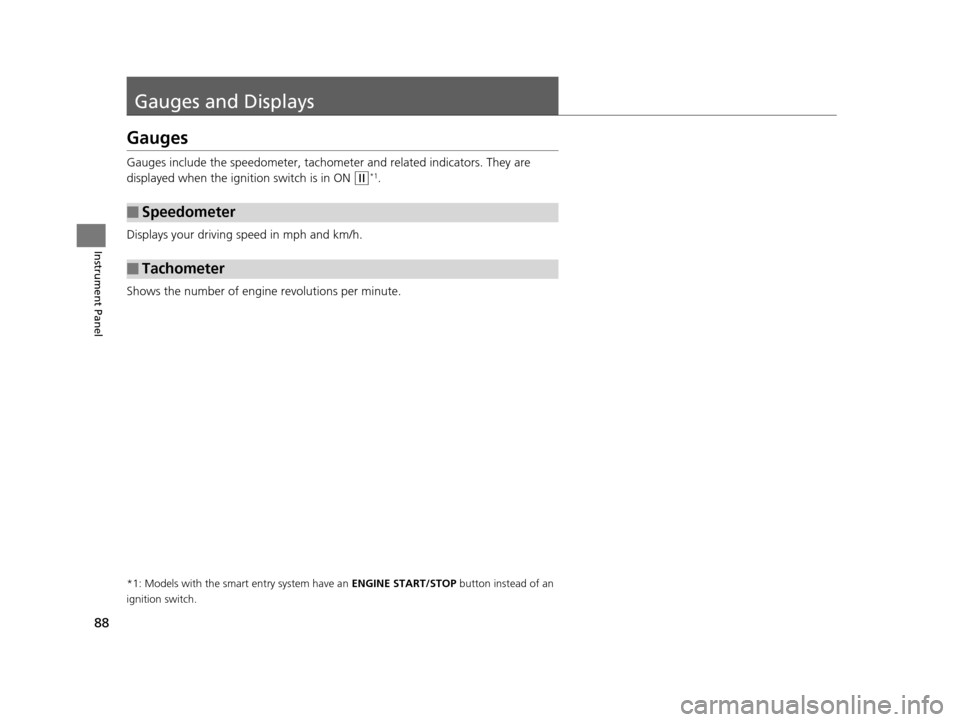

Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph and km/h.
Shows the number of engine revolutions per minute.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
15 HR-V GAS-31T7A6000.book 88 ページ 2015年6月29日 月曜日 午前11時36分
Page 90 of 489
89
uuGauges and Displays uInformation Display
Continued
Instrument Panel

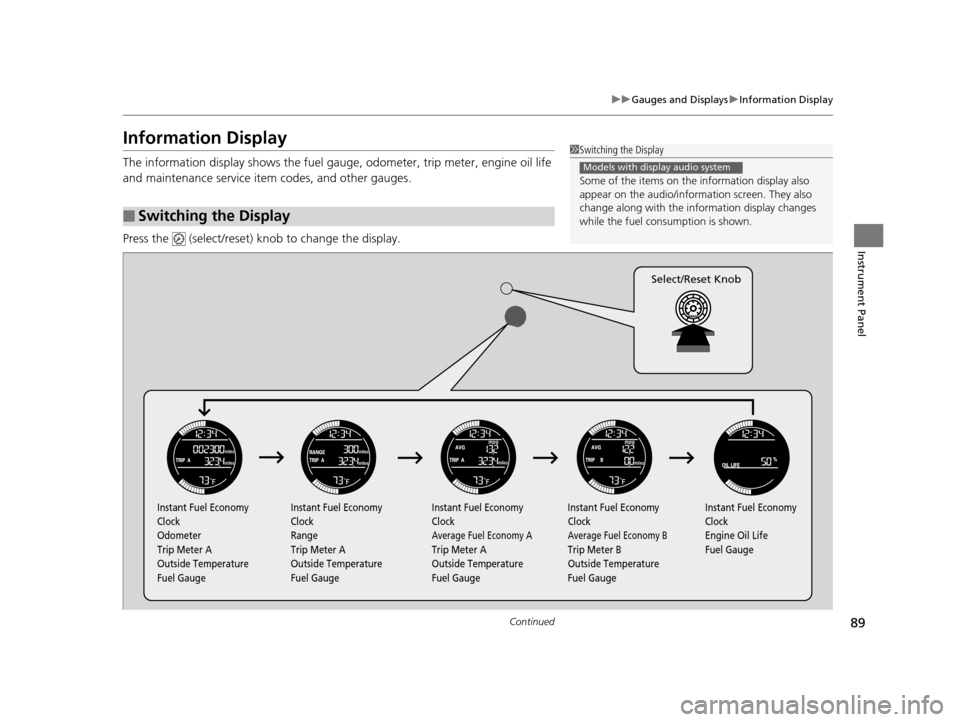

Information Display
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
15 HR-V GAS-31T7A6000.book 89 ページ 2015年6月29日 月曜日 午前11時36分
