Quick Reference Guide
Instrument Panel (P71)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Anti-lock Brake System
(ABS) IndicatorVehicle Stability Assist
(VSA®) System Indicator
VSA® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN IndicatorSupplemental Restraint
System Indicator
Starter System
Indicator*
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P88)/Information Display (P89)/System Indicators (P72)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
System Indicators
System Indicators
Low Tire Pressure/TPMS
Indicator
U.S. models only
Brake System Indicator
(Red)
CRUISE CONTROL
Indicator
System Indicators
Charging System
Indicator
U.S. U.S.
Canada
Smart Entry System
Indicator*
Washer Level Indicator*
ECON Mode
Indicator*
Maintenance Minder
Indicator
Fog Light Indicator*
Canada
Brake System Indicator
(Amber)
Canada U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
IndicatorU.S.
Canada
All-Wheel Drive ( AWD)
System Indicator*
Forward Collision
Warning (FCW)
Indicator
*
Lane Departure
Warning (LDW)
Indicator
*
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
IndicatorManual transmission models
* Not available on all models
15 HR-V GAS-31T7A6000.book 11 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

13

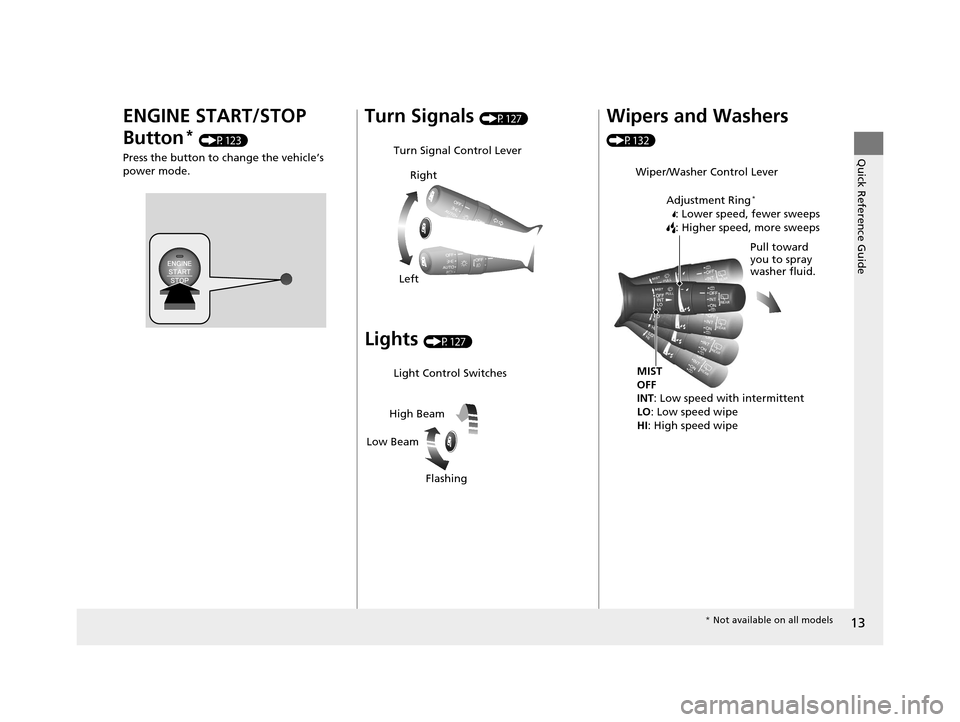

Quick Reference Guide
ENGINE START/STOP
Button
* (P123)
Press the button to change the vehicle’s
power mode.
Turn Signals (P127)
Lights (P127)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P132)
Wiper/Washer Control Lever
MIST
OFF
INT: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
Adjustment Ring
*
: Lower speed, fewer sweeps
: Higher speed, more sweeps
*
Not available on all models
15 HR-V GAS-31T7A6000.book 13 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Starter System
Indicator*
●Comes on for a few seconds when you
set the power mode to ON, then goes off
when the engine starts.
●Comes on if the starter system has a
problem.
●As a temporary measure, press and hold the
ENGINE START/STOP button for up to 15 seconds
while pressing the brake pedal and clutch pedal
(manual transmission only), and manually start the
engine. Have your vehicle checked by a dealer.
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn signal
lever.
●Blink if you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately.
2 Replacing Light Bulbs P. 400, 403
High Beam Indicator●Comes on when the high beam
headlights are on.—
Lights On Indicator
●Comes on whenever the light switch is
on, or in AUTO* when the exterior lights
are on.
●If you remove the key from the ignition switch*, or
set the power mode* to VEHICLE OFF (LOCK) while
the exterior lights are on, a chime sounds when the
driver’s door is opened.
Fog Light Indicator*●Comes on when the fog lights are on.—
U.S.
Canada
* Not available on all models
15 HR-V GAS-31T7A6000.book 80 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

127
uuOperating the Switches Around the Steering Wheel uTurn Signals
Continued
Controls

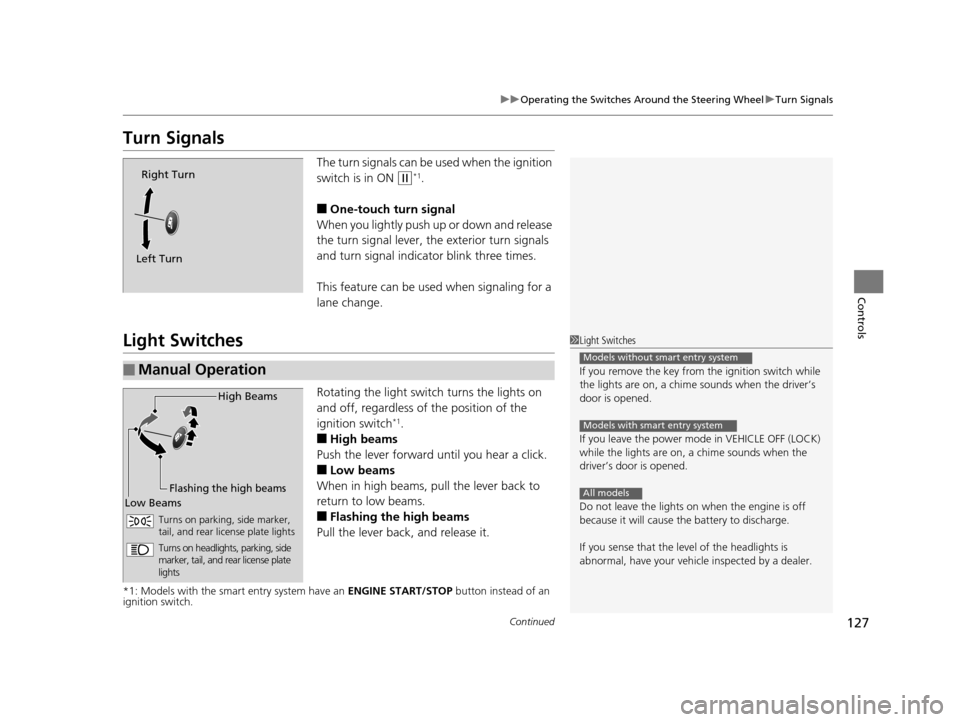

Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w*1.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the position of the
ignition switch
*1.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1 Light Switches
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the
driver’s door is opened.
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
If you sense that the le vel of the headlights is
abnormal, have your vehicle inspected by a dealer.
Models without smart entry system
Models with smart entry system
All models
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
15 HR-V GAS-31T7A6000.book 127 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

130
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls

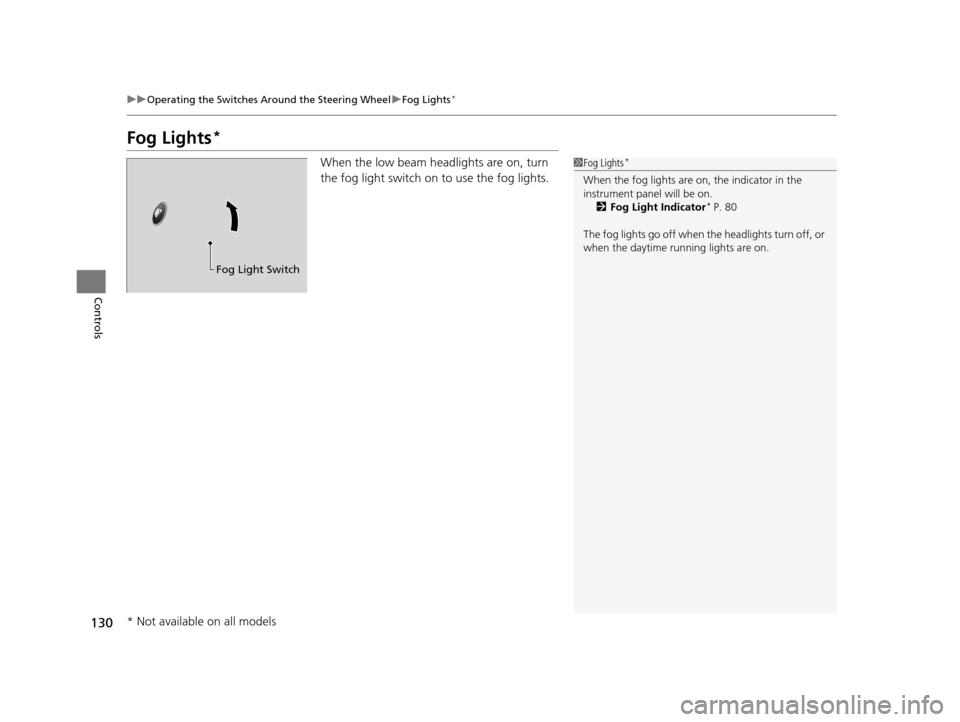

Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.1Fog Lights*
When the fog lights are on, the indicator in the
instrument pane l will be on.
2 Fog Light Indicator
* P. 80
The fog lights go off when the headlights turn off, or
when the daytime running lights are on.
Fog Light Switch
* Not available on all models
15 HR-V GAS-31T7A6000.book 130 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

399
Maintenance

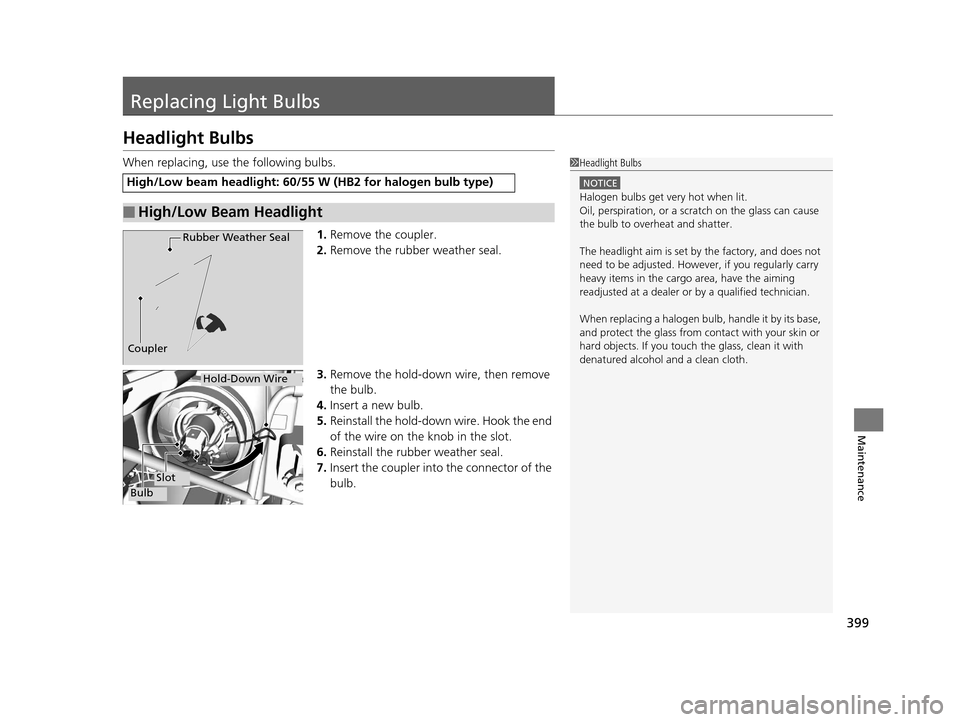

Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the coupler.
2. Remove the rubber weather seal.
3. Remove the hold-down wire, then remove
the bulb.
4. Insert a new bulb.
5. Reinstall the hold-down wire. Hook the end
of the wire on the knob in the slot.
6. Reinstall the rubber weather seal.
7. Insert the coupler into the connector of the
bulb.
High/Low beam headlight: 60/55 W (HB2 for halogen bulb type)
■High/Low Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Rubber Weather Seal
Coupler
Hold-Down Wire
Bulb
Slot
15 HR-V GAS-31T7A6000.book 399 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

456
Handling the Unexpected

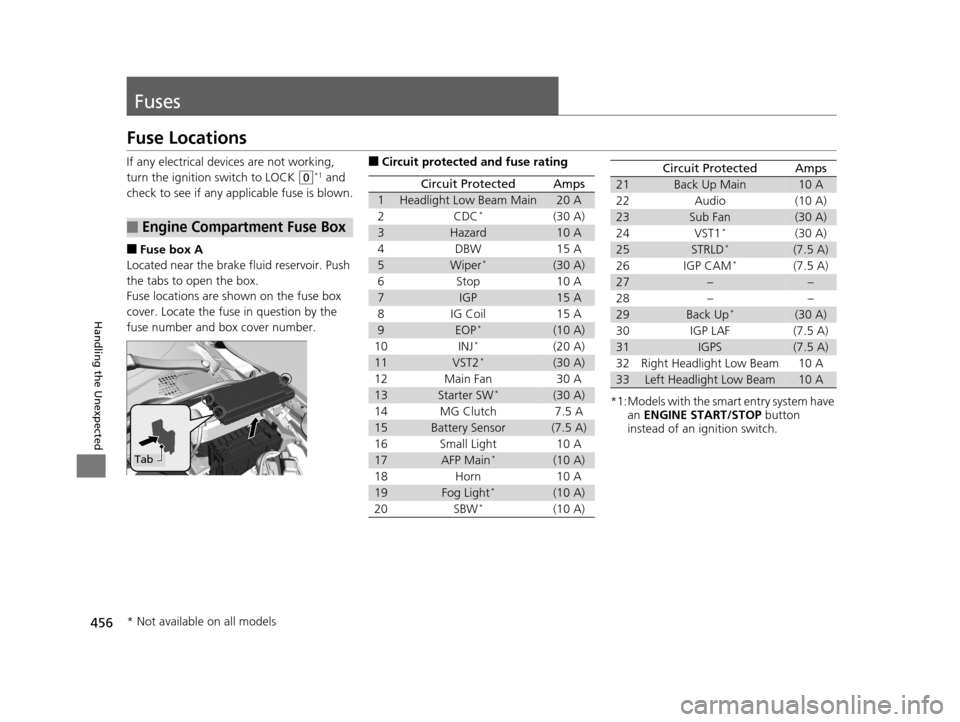

Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2CDC*(30 A)
3Hazard10 A
4DBW15 A
5Wiper*(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9EOP*(10 A)
10INJ*(20 A)
11VST2*(30 A)
12Main Fan30 A
13Starter SW*(30 A)
14MG Clutch7.5 A
15Battery Sensor(7.5 A)
16Small Light10 A
17AFP Main*(10 A)
18Horn10 A
19Fog Light*(10 A)
20SBW*(10 A)
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Circuit ProtectedAmps
21Back Up Main10 A
22Audio(10 A)
23Sub Fan(30 A)
24VST1*(30 A)
25STRLD*(7.5 A)
26IGP CAM*(7.5 A)
27––
28––
29Back Up*(30 A)
30IGP LAF(7.5 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
15 HR-V GAS-31T7A6000.book 456 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

466
Information
Specifications

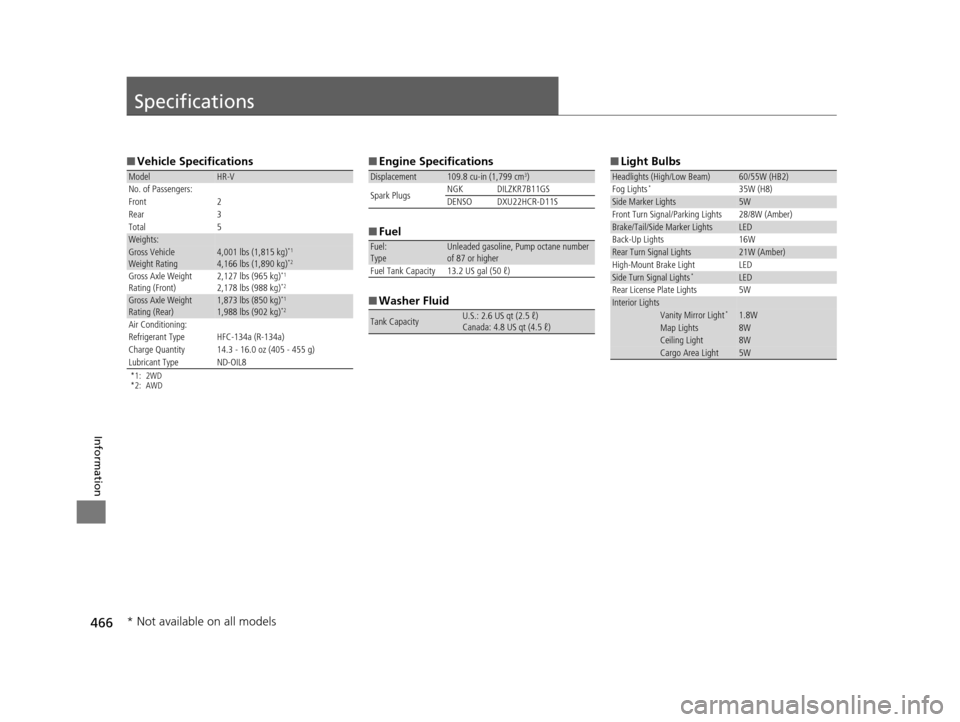

■Vehicle Specifications
*1: 2WD
*2: AWD
ModelHR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating 4,001 lbs (1,815 kg)*1
4,166 lbs (1,890 kg)*2
Gross Axle Weight
Rating (Front)2,127 lbs (965 kg)*1
2,178 lbs (988 kg)*2
Gross Axle Weight
Rating (Rear)1,873 lbs (850 kg)*1
1,988 lbs (902 kg)*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant Type ND-OIL8
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement109.8 cu-in (1,799 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSODXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (High/Low Beam)60/55W (HB2)
Fog Lights*35W (H8)Side Marker Lights5W
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Side Turn Signal Lights*LED
Rear License Plate Lights 5W
Interior LightsVanity Mirror Light*1.8WMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
15 HR-V GAS-31T7A6000.book 466 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

481
Index
Information............................................. 374
Low Fuel Indicator..................................... 76
Refueling ................................................ 374
Gauges ........................................................ 88
Gear Shift Lever Positions
Continuously Variable Transmission ................................. 334, 336
Manual Transmission .............................. 341
Glass (care) ....................................... 425, 428
Glove Box ................................................. 152
H
Halogen Bulbs .................................. 399, 401
Handling the Unexpected ....................... 431
HandsFreeLink ® (HFL) ...................... 260, 283
Menus ............................................ 262, 286
Phone Setup ................................... 266, 291
Hazard Warning Button .............................. 4
Head Restraints ........................................ 142
Headlights ................................................ 127
Aiming.................................................... 399
Dimming......................................... 127, 131
Operating ............................................... 127
Heated Door Mirrors ............................... 135
Heated Windshield .................................. 136
Heating and Cooling System ................... 161
Cooling................................................... 164
Defrosting the Windshield and Windows .............................................. 164
Dust and Pollen Filter .............................. 424 Heating ................................................... 163
HFL (HandsFreeLink ®)....................... 260, 283
High Beam Indicator .................................. 80
Hill Start Assist System ..................... 327, 331
I
Identification Numbers ............................ 468
Engine and Transmission ......................... 468
Vehicle Identification ............................... 468
Ignition Switch .......................................... 122
Illumination Control ................................. 134
Knob ....................................................... 134
Immobilizer System .................................. 116
Indicator .................................................... 81
Important Handling Information .............. 32
Indicators .................................................... 72
All-Wheel Drive (AWD) .............................. 82
Anti-lock Brake System (ABS) ..................... 77
Automatic Brake Hold ....................... 74, 366
Automatic Brake Hold System ............ 73, 366
Brake Depressing ....................................... 74
Brake System (Amber) ............................... 72
Brake System (Red) ............................ 72, 453
Charging System ............................... 75, 451
CRUISE CONTROL .............................. 82, 345
CRUISE MAIN .................................... 82, 344
Door and Tailgate Open ...................... 34, 78
ECON Mode .............................................. 81
Electric Parking Brake ................................ 73
Electric Parking Brake System ............. 73, 454 Electric Power Steering (EPS)
System ............................................ 78, 453
Fog Light ................................................... 80
Forward Collision Warning (FCW) .............. 83
High Beam ................................................ 80
High Temperature ..................................... 77
Immobilizer System ................................... 81
Lane Departure Warning (LDW) ................. 84
Lights On .................................................. 80
Low Fuel ................................................... 76
Low Oil Pressure ................................ 75, 451
Low Temperature ...................................... 77
Low Tire Pressure .............................. 79, 359
Maintenance Minder
TM...................... 82, 383
Malfunction Indicator Lamp............... 75, 452
Seat Belt Reminder .............................. 36, 76
Security System Alarm ............................... 82
Shift Lever Position .................................... 75
Smart Entry System ................................... 79
Starter System ........................................... 80
Supplemental Restraint System ............ 54, 77
TPMS ........................................................ 79
Transmission ............................................. 76
Turn Signal ................................................ 80
Vehicle Stability Assist (VSA® )
System ............................................ 78, 354
VSA ® OFF .......................................... 78, 355
Washer Level ............................................. 82
Information .............................................. 465
Information Display ................................... 89
15 HR-V GAS-31T7A6000.book 481 ページ ２０１５年６月２９日　月曜日　午前１１時３６分

482
Index
Instrument Panel........................................ 71
Brightness Control ................................... 134
Interior Lights ........................................... 150
Interior Rearview Mirror .......................... 138
Internet Radio ................................... 220, 221
J
Jack (Wheel Nut Wrench) ................. 432, 438
Jump Starting ............................................ 446
K
Keyless Lockout Prevention ..................... 104
Keys ............................................................. 96
Lockout Prevention .................................. 104
Number Tag .............................................. 97
Rear Door Won’t Open ............................ 108
Remote Transmitter ................................... 99
Types and Functions .................................. 96
Won’t Turn ................................................ 25
Kickdown (Continuously Variable Transmission) ........................................... 333
L
Lane Departure Warning (LDW) .............. 351
Indicator .................................................... 84
LaneWatch
TM............................................. 356
LATCH (Child Seats) .................................... 62 Lights
................................................. 127, 399
Bulb Replacement ................................... 399
Daytime Running Lights........................... 131
Fog Lights ............................................... 130
High Beam Indicator .................................. 80
Interior .................................................... 150
Light Switches ......................................... 127
Lights On Indicator .................................... 80
Turn Signals ............................................ 127
Load Limits ................................................ 317
Locking/Unlocking ...................................... 96
Auto Door Locking/Unlocking.................. 109
Childproof Door Locks............................. 108
From Inside ............................................. 105
From Outside ............................................ 99
Keys .......................................................... 96
Lockout Prevention System ...................... 104
Using a Key ............................................. 103
Lockout Prevention System ..................... 104
Low Battery Charge ................................. 451
Low Fuel Indicator ...................................... 76
Low Oil Pressure Indicator ................. 75, 451
Lower Anchors ............................................ 62
Lubricant Specifications Chart ................. 467
Luggage (Maximum Load Limit) ............. 317
M
Maintenance............................................. 379
Battery .................................................... 420
Brake Fluid .............................................. 397 Cleaning ................................................. 425
Coolant .................................................. 394
Heating and Cooling System/Climate Control
System .................................................. 424
Maintenance Minder
TM............................ 383
Oil .......................................................... 390
Precautions ............................................. 381
Radiator .................................................. 395
Remote Transmitter ................................ 422
Replacing Light Bulbs .............................. 399
Safety ..................................................... 381
Service Items ........................................... 385
Tires........................................................ 411
Transmission Fluid ................................... 396
Under the Hood ...................................... 387
Malfunction Indicator Lamp ............. 75, 452
Manual Transmission ............................... 340
Reverse Lockout ...................................... 342
Map Lights ................................................ 151
Maximum Load Limit ............................... 317
Meters, Gauges .......................................... 88
Mirrors ...................................................... 138
Adjusting ................................................ 138
Door ....................................................... 139
Exterior ................................................... 139
Interior Rearview ..................................... 138
Modifications (and Accessories) .............. 377
Moonroof ................................................. 121
MP3 ................................... 191, 197, 214, 222
Multi-View Rear Camera ......................... 372
15 HR-V GAS-31T7A6000.book 482 ページ ２０１５年６月２９日　月曜日　午前１１時３６分
