HONDA HR-V 2017 2.G Owner's Manual

20
Quick Reference Guide
(P203)Models with display audio system
VOL
HOMEMENU
BACK
(Day/Night) Button
CD Slot (CD Eject) Button
Audio/Information Screen
VOL (Volume) Icons
(Back) Icon
(Power) Button
(Menu) Icon
(Home) Icon
17 HR-V HDMC-31T7A6100.book 20 ページ ２０１６年７月２０日　水曜日　午前９時５０分

21
Quick Reference Guide

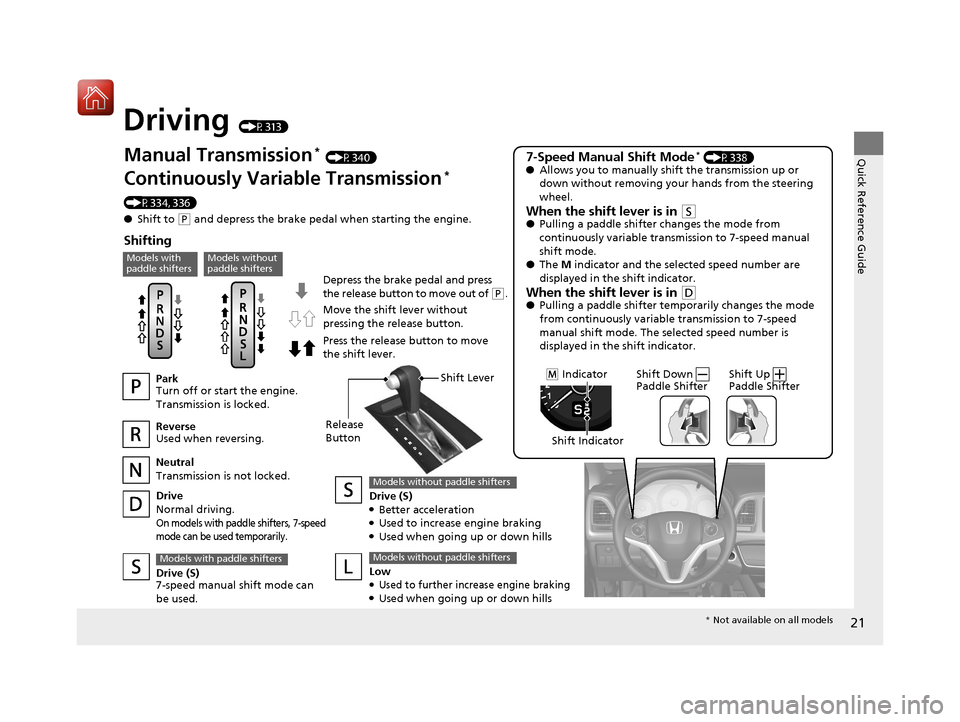

Driving (P313)
Depress the brake pedal and press
the release button to move out of
(P.
Manual Transmission* (P340)
Continuously Variable Transmission*
(P334, 336)
● Shift to
(P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters, 7-speed
mode can be used temporarily.
Drive (S)●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further incr ease engine braking●Used when going up or down hills
Models without paddle shifters
Drive (S)
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P338)
● Allows you to manually shift the transmission up or
down without removing yo ur hands from the steering
wheel.
When the shift lever is in (S● Pulling a paddle shifter changes the mode from
continuously variable trans mission to 7-speed manual
shift mode.
● The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
Paddle Shifter
Shift Up
Paddle Shifter (M Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
* Not available on all models
17 HR-V HDMC-31T7A6100.book 21 ページ ２０１６年７月２０日　水曜日　午前９時５０分

22
Quick Reference Guide

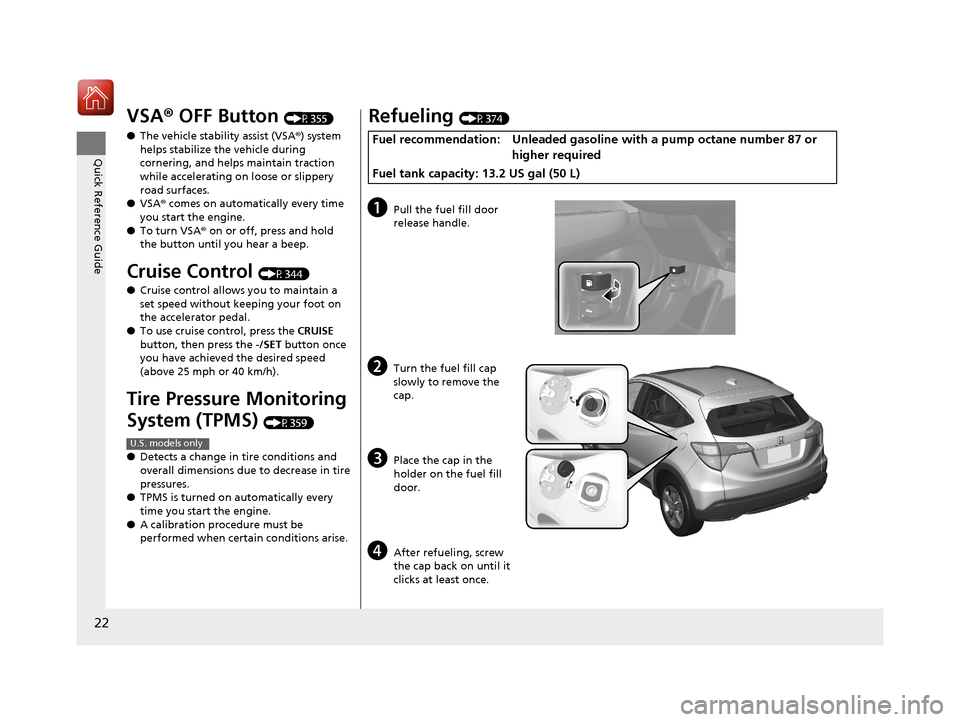

VSA® OFF Button (P355)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P344)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the -/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P359)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● TPMS is turned on automatically every
time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P374)
Fuel recommendation: Unlea ded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 13.2 US gal (50 L)
aPull the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
17 HR-V HDMC-31T7A6100.book 22 ページ ２０１６年７月２０日　水曜日　午前９時５０分

23
Quick Reference Guide

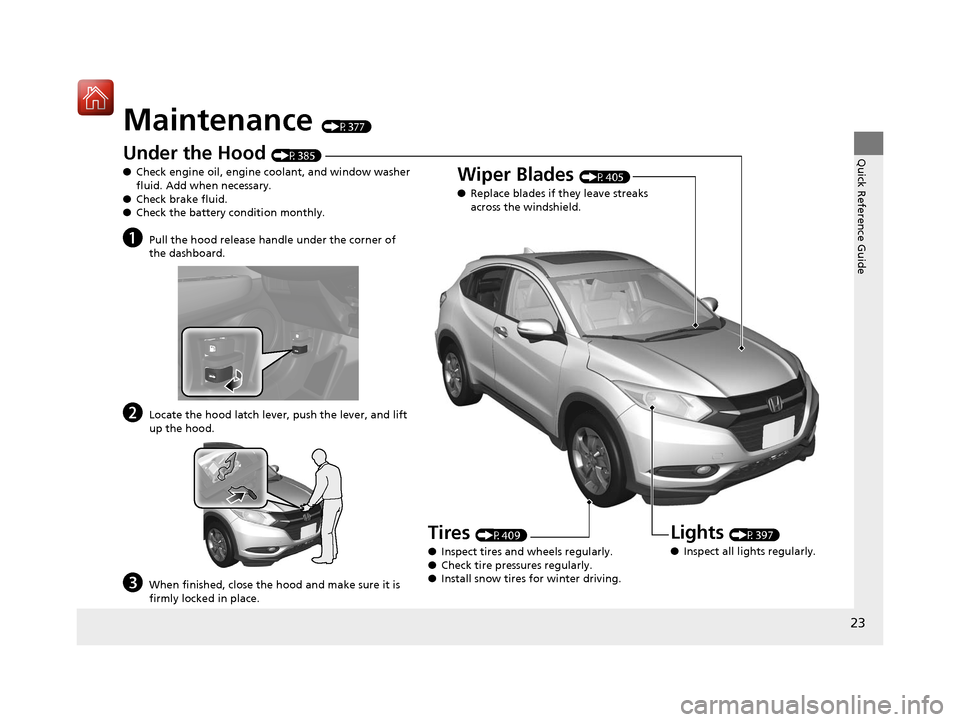

Maintenance (P377)
Under the Hood (P385)
● Check engine oil, engine coolant, and window washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of
the dashboard.
bLocate the hood latch lever, push the lever, and lift
up the hood.
cWhen finished, close the hood and make sure it is
firmly locked in place.
Lights (P397)
● Inspect all lights regularly.
Wiper Blades (P405)
● Replace blades if they leave streaks
across the windshield.
Tires (P409)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 HR-V HDMC-31T7A6100.book 23 ページ ２０１６年７月２０日　水曜日　午前９時５０分

24
Quick Reference Guide
Handling the Unexpected (P431)
Flat Tire (P434)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P451)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P443)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P456)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P449)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P461)
● Call a professional towing service if you
need to tow your vehicle.
17 HR-V HDMC-31T7A6100.book 24 ページ ２０１６年７月２０日　水曜日　午前９時５０分

25
Quick Reference Guide

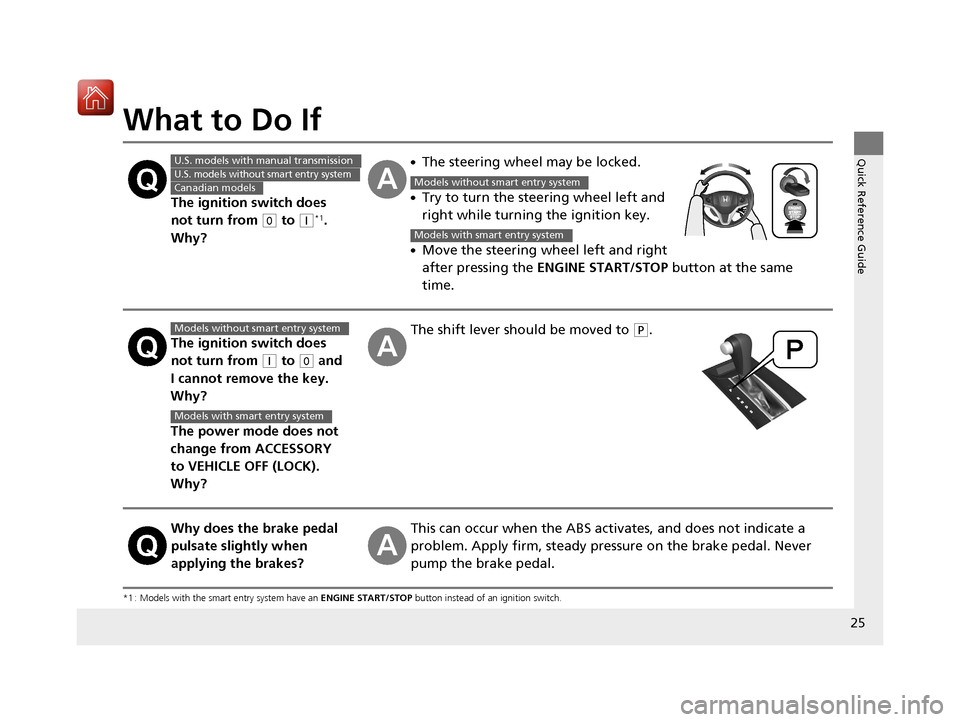

What to Do If
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
The ignition switch does
not turn from
(0 to (q*1.
Why?
●The steering wheel may be locked.
●Try to turn the steering wheel left and
right while turning the ignition key.
●Move the steering wheel left and right
after pressing the ENGINE START/STOP button at the same
time.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
U.S. models with manual transmission
U.S. models without smart entry system
Canadian modelsModels without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
17 HR-V HDMC-31T7A6100.book 25 ページ ２０１６年７月２０日　水曜日　午前９時５０分

26
Quick Reference Guide

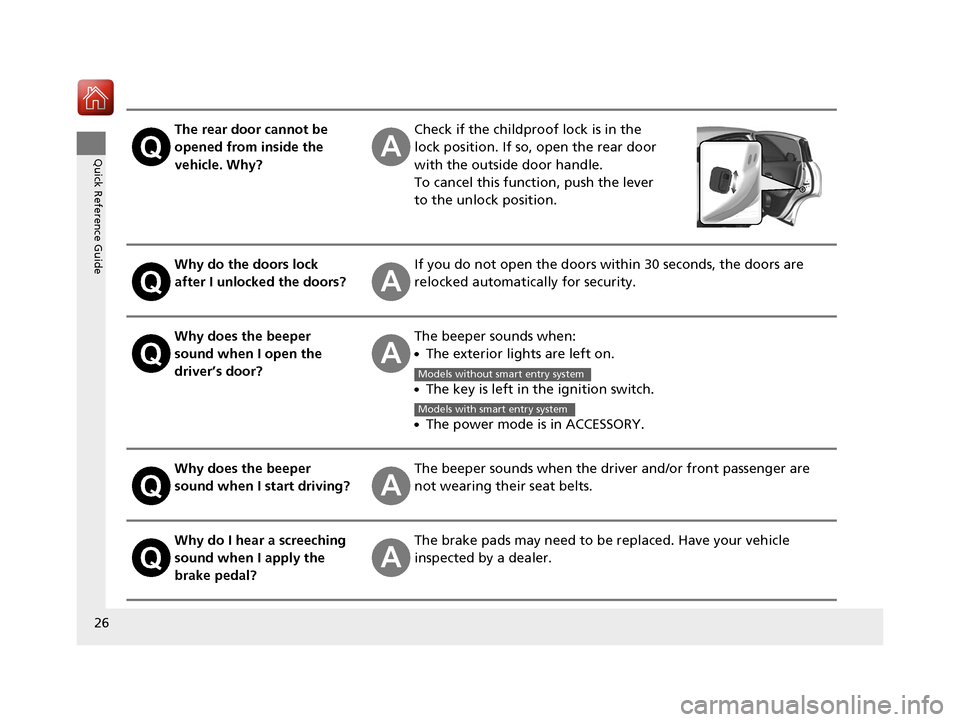

The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, push the lever
to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The exterior lights are left on.
●The key is left in the ignition switch.
●The power mode is in ACCESSORY.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models without smart entry system
Models with smart entry system
17 HR-V HDMC-31T7A6100.book 26 ページ ２０１６年７月２０日　水曜日　午前９時５０分

27
Quick Reference Guide

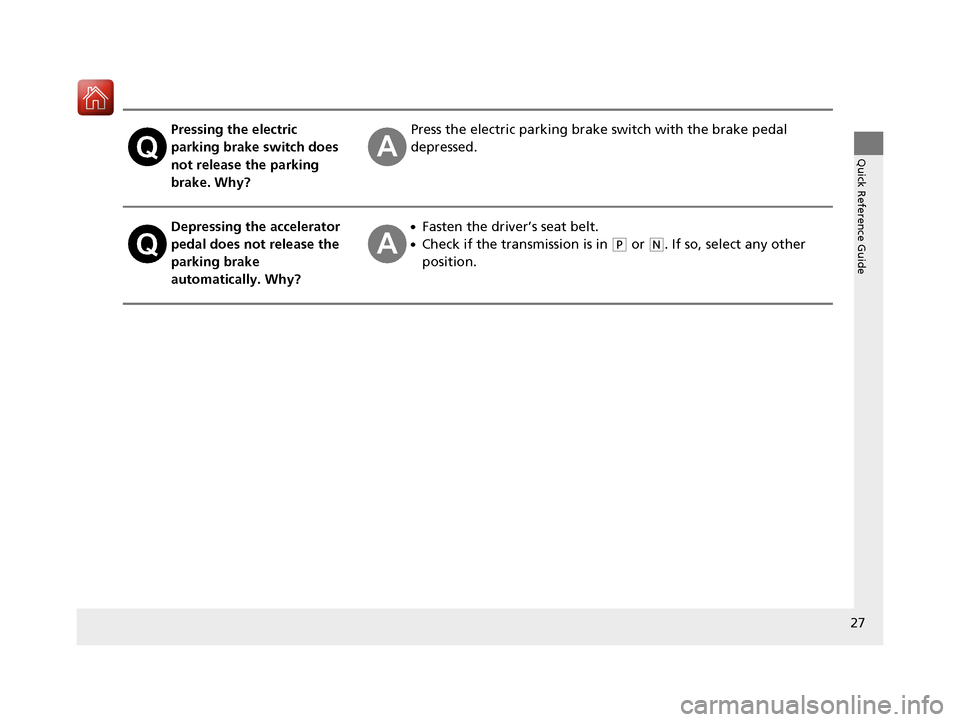

Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
17 HR-V HDMC-31T7A6100.book 27 ページ ２０１６年７月２０日　水曜日　午前９時５０分

28
17 HR-V HDMC-31T7A6100.book 28 ページ ２０１６年７月２０日　水曜日　午前９時５０分

29

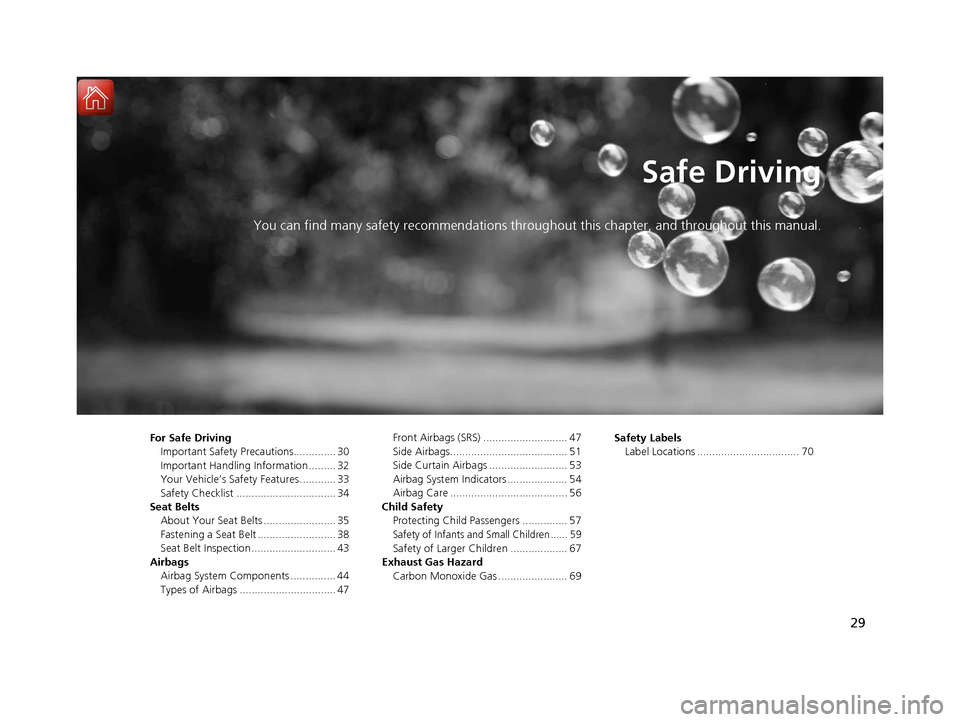

Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 30
Important Handling Information ......... 32
Your Vehicle’s Safety Features ............ 33
Safety Checklist ................................. 34
Seat Belts About Your Seat Belts ........................ 35
Fastening a Seat Belt .......................... 38
Seat Belt Inspection ............................ 43
Airbags Airbag System Components ............... 44
Types of Airbags ................................ 47 Front Airbags (SRS) ............................ 47
Side Airbags....................................... 51
Side Curtain Airbags .......................... 53
Airbag System Indicators .................... 54
Airbag Care ....................................... 56
Child Safety Protecting Child Passengers ............... 57
Safety of Infants and Small Children ...... 59
Safety of Larger Children ................... 67
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 69 Safety Labels
Label Locations .................................. 70
