Quick Reference Guide
Instrument Panel (P71)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Anti-lock Brake System
(ABS) IndicatorVehicle Stability Assist
(VSA®) System Indicator
VSA® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN IndicatorSupplemental Restraint
System Indicator
Starter System
Indicator*
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P88)/Information Display (P89)/System Indicators (P72)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
System Indicators
System Indicators
Low Tire Pressure/TPMS
Indicator
U.S. models only
Brake System Indicator
(Red)
CRUISE CONTROL
Indicator
System Indicators
Charging System
Indicator
U.S. U.S.
Canada
Smart Entry System
Indicator*
Washer Level Indicator*
ECON Mode
Indicator*
Maintenance Minder
Indicator
Fog Light Indicator*
Canada
Brake System Indicator
(Amber)
Canada U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
IndicatorU.S.
Canada
All-Wheel Drive ( AWD)
System Indicator*
Forward Collision
Warning (FCW)
Indicator
*
Lane Departure
Warning (LDW)
Indicator
*
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
IndicatorManual transmission models
* Not available on all models
17 HR-V HDMC-31T7A6100.book 11 ページ ２０１６年７月２０日　水曜日　午前９時５０分

378
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake/clutch* fluid level monthly.
2 Brake/Clutch* Fluid P. 395
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 409
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 397
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 405
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the information display.
2 Maintenance Service Items P. 383
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com. 2 Authorized Manuals P. 475
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
17 HR-V HDMC-31T7A6100.book 378 ページ ２０１６年７月２０日　水曜日　午前９時５０分

383
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance

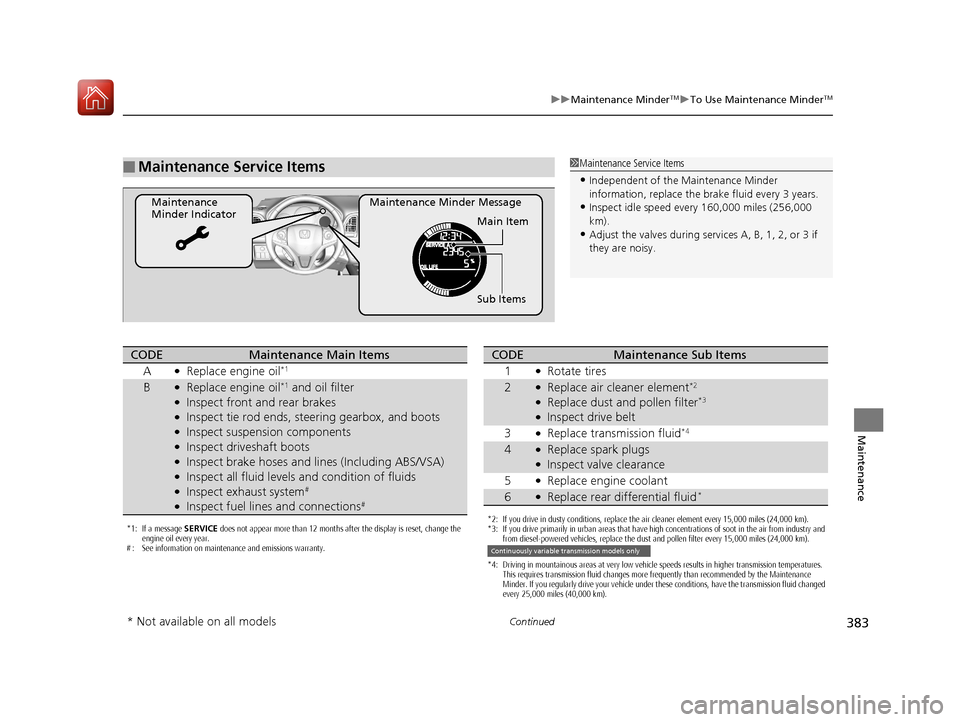

■Maintenance Service Items
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
Continuously variable transmission models only
* Not available on all models
17 HR-V HDMC-31T7A6100.book 383 ページ ２０１６年７月２０日　水曜日　午前９時５０分

388
uuMaintenance Under the Hood uOil Check
Maintenance

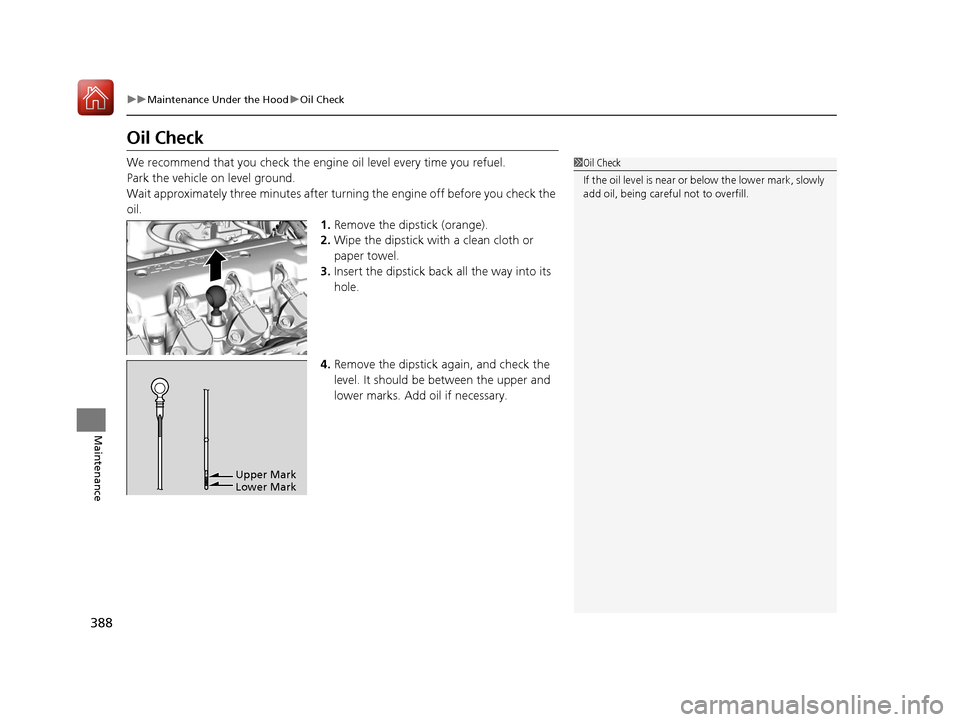

Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil. 1.Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.1Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being carefu l not to overfill.
Upper Mark
Lower Mark
17 HR-V HDMC-31T7A6100.book 388 ページ ２０１６年７月２０日　水曜日　午前９時５０分

391
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

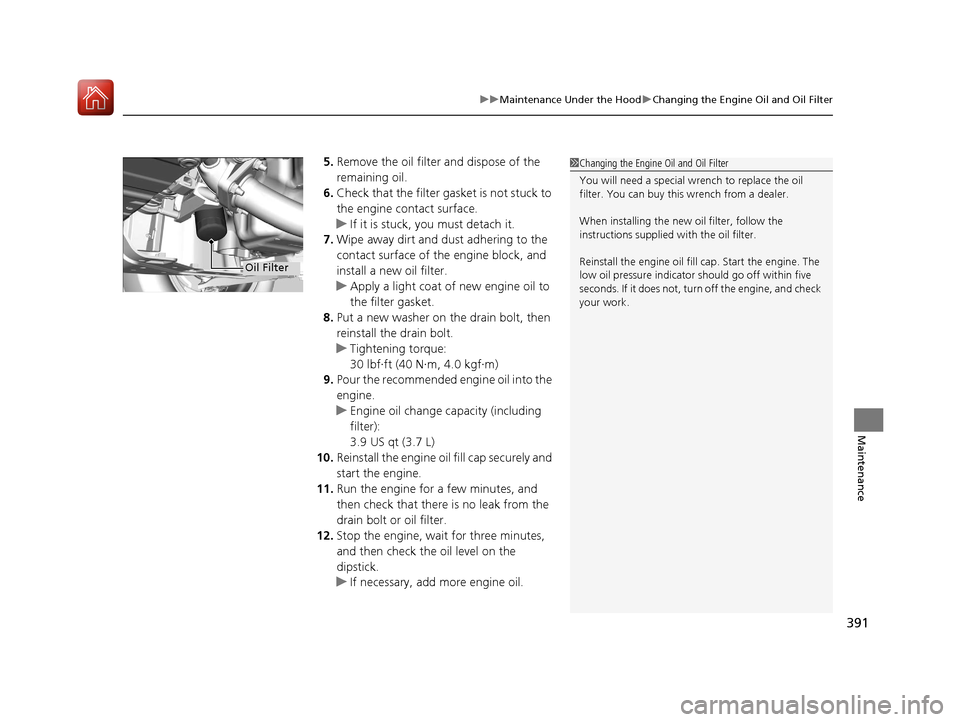

5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.9 US qt (3.7 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
17 HR-V HDMC-31T7A6100.book 391 ページ ２０１６年７月２０日　水曜日　午前９時５０分

394
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Have a dealer check the fluid level and replace if necessary.
■Continuously Variable Transmission (CVT) Fluid
Specified fluid: Honda HCF-2 Transmission Fluid
■Manual Transmission Fluid
Specified fluid: Honda Manual Transmission Fluid (MTF)
Continuously variable transmission models
1Continuously Variable Transmission (CVT) Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids
Using a transmission fluid other than HCF-2 may
adversely affect the operati on and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's
new vehicle limited warranty.
Manual transmission models
1 Manual Transmission Fluid
If Honda MTF is not availa ble, you may use the API
certificated SAE 0W-20 or 5W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper addi tives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
17 HR-V HDMC-31T7A6100.book 394 ページ ２０１６年７月２０日　水曜日　午前９時５０分

451
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 388
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the heating and cooling system*/climate control system*, rear
defogger, and other electrical system s, and immediately contact a dealer
for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
* Not available on all models
17 HR-V HDMC-31T7A6100.book 451 ページ ２０１６年７月２０日　水曜日　午前９時５０分

482
Index
Indicators..................................................... 72
All-Wheel Drive (AWD) .............................. 82
Anti-lock Brake System (ABS) ..................... 77
Automatic Brake Hold........................ 74, 366
Automatic Brake Hold System ............ 73, 366
Brake Depressing ....................................... 74
Brake System (Amber)................................ 72
Brake System (Red) ............................ 72, 453
Charging System ............................... 75, 451
CRUISE CONTROL .............................. 82, 345
CRUISE MAIN .................................... 82, 344
Door and Tailgate Open....................... 34, 78
ECON Mode .............................................. 81
Electric Parking Brake................................. 73
Electric Parking Brake System ............. 73, 454
Electric Power Steering (EPS) System ............................................. 78, 453
Fog Light ................................................... 80
Forward Collision Wa rning (FCW) .............. 83
High Beam................................................. 80
High Temperature...................................... 77
Immobilizer System .................................... 81
Lane Departure Warning (LDW) ................. 84
Lights On ................................................... 80 Low Fuel ................................................... 76
Low Oil Pressure ................................ 75, 451
Low Temperature ...................................... 77
Low Tire Pressure .............................. 79, 359
Maintenance Minder
TM...................... 82, 381
Malfunction Indicator Lamp............... 75, 452
Seat Belt Reminder .............................. 36, 76
Security System Alarm ............................... 82
Shift Lever Position .................................... 75
Smart Entry System ................................... 79
Starter System ........................................... 80
Supplemental Restraint System ............ 54, 77
TPMS ........................................................ 79
Transmission ............................................. 76
Turn Signal ................................................ 80
Vehicle Stability Assist (VSA ®)
System ............................................ 78, 354
VSA ® OFF .................................................. 78
VSA ® On and Off .................................... 355
Washer Level ............................................. 82
Information .............................................. 465
Information Display ................................... 89
Instrument Panel ........................................ 71
Brightness Control................................... 134
Interior Lights ........................................... 150 Interior Rearview Mirror
......................... 138
Internet Radio .................................. 220, 221J
Jack (Wheel Nut Wrench) ................ 432, 438
Jump Starting ........................................... 446
K
Keyless Lockout Prevention ..................... 104
Keys ............................................................. 96
Lockout Prevention ................................. 104
Number Tag.............................................. 97
Rear Door Won’t Open ........................... 108
Remote Transmitter ................................ 101
Types and Functions.................................. 96
Won’t Turn ............................................... 25
Kickdown (Continuously Variable Transmission) .......................................... 333
L
Lane Departure Warning (LDW) ............. 351
Indicator ................................................... 84
LaneWatch
TM............................................ 356
LATCH (Child Seats) ................................... 62
17 HR-V HDMC-31T7A6100.book 482 ページ ２０１６年７月２０日　水曜日　午前９時５０分
