HONDA HR-V 2018 Owner's Manual (in English)

99
uuLocking and Unlocking the Doors uKey Types and Functions
Controls

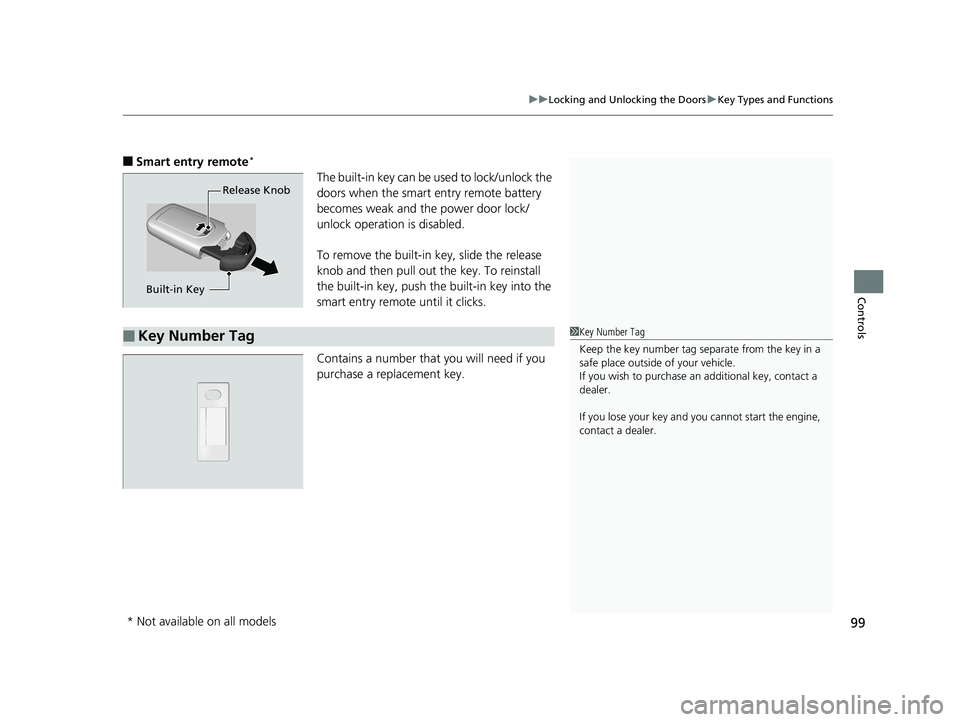

■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
smart entry remote until it clicks.
Contains a number that you will need if you
purchase a replacement key.Release Knob
Built-in Key
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
* Not available on all models
18 HR-V-31T7A6200.book 99 ページ ２０１７年６月３０日　金曜日　午後１時２３分

100
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls

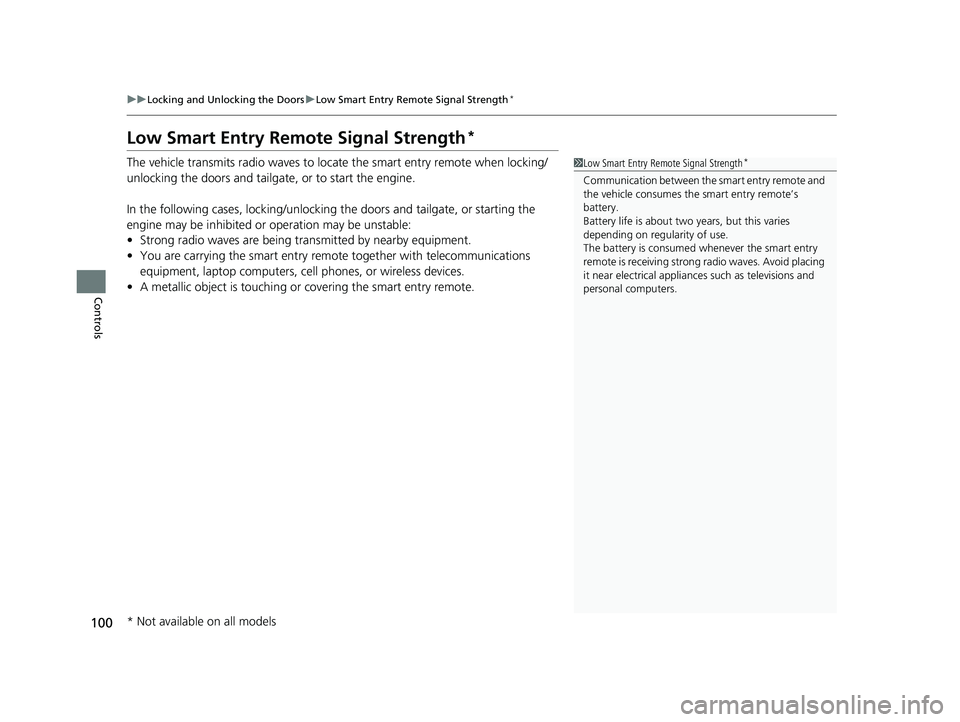

Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and tailgate, or to start the engine.
In the following cases, locking/unlocking the doors and tailgate, or starting the
engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
18 HR-V-31T7A6200.book 100 ページ ２０１７年６月３０日　金曜日　午後１時２３分

101
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

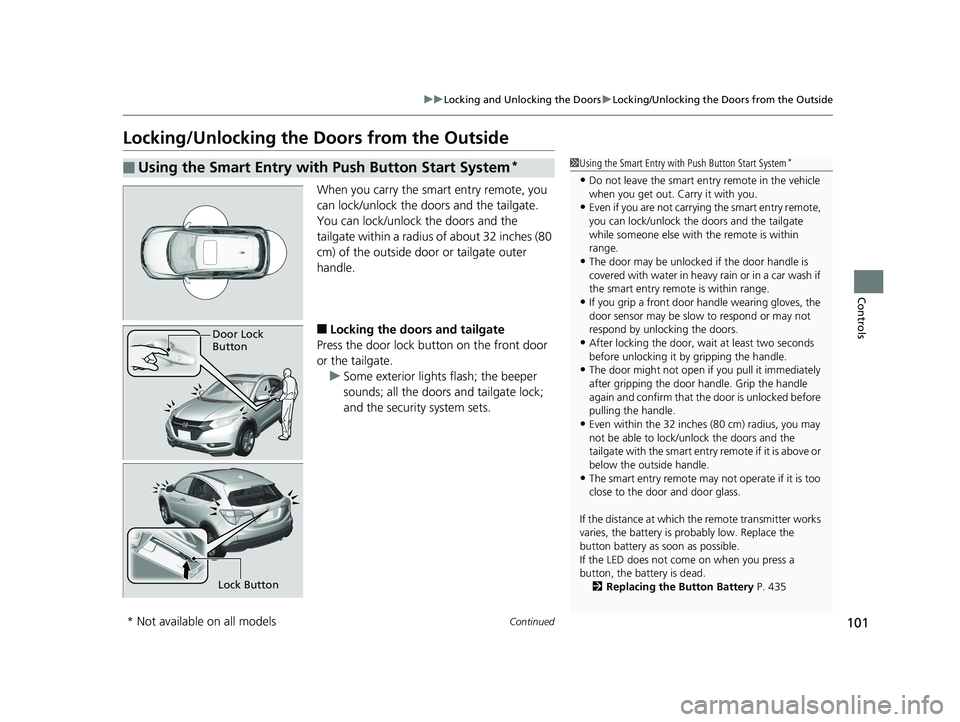

Locking/Unlocking the Doors from the Outside
When you carry the sm art entry remote, you
can lock/unlock the doors and the tailgate.
You can lock/unlock the doors and the
tailgate within a radius of about 32 inches (80
cm) of the outside door or tailgate outer
handle.
■Locking the doors and tailgate
Press the door lock button on the front door
or the tailgate.
u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors and the tailgate
while someone else with the remote is within
range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•After locking the door, wait at least two seconds
before unlocking it by gripping the handle.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors and the
tailgate with the smart entry remote if it is above or
below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which the remote transmitter works
varies, the battery is probably low. Replace the
button battery as soon as possible.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 435
Door Lock
Button
Lock Button
* Not available on all models
18 HR-V-31T7A6200.book 101 ページ ２０１７年６月３０日　金曜日　午後１時２３分

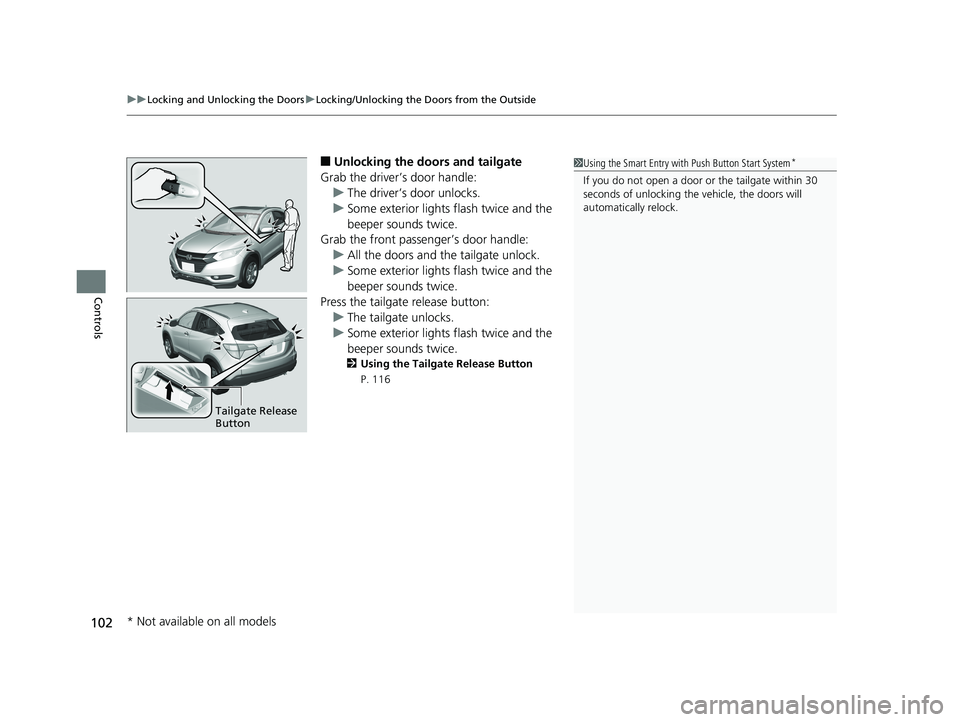

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
102
Controls
■Unlocking the doors and tailgate
Grab the driver’s door handle: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate release button: u The tailgate unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Tailgate Release Button
P. 116
1 Using the Smart Entry with Push Button Start System*
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle, the doors will
automatically relock.
Tailgate Release
Button
* Not available on all models
18 HR-V-31T7A6200.book 102 ページ ２０１７年６月３０日　金曜日　午後１時２３分

Continued103
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

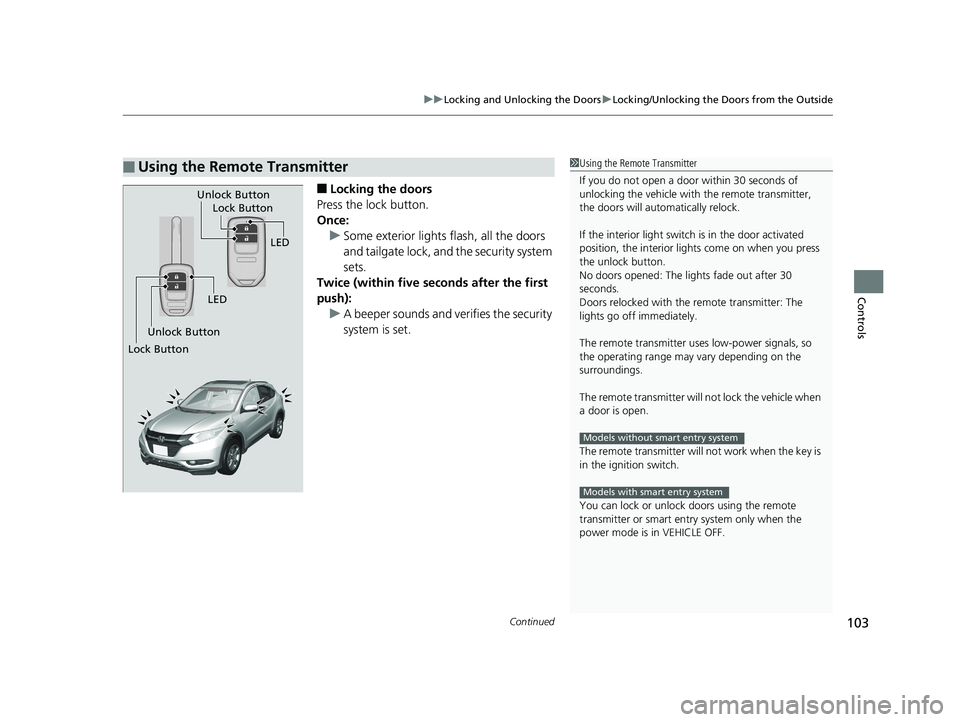

■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote transmitter: The
lights go off immediately.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not lock the vehicle when
a door is open.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode is in VEHICLE OFF.
Models without smart entry system
Models with smart entry system
LED
Unlock Button Lock Button
Unlock Button
LED
Lock Button
18 HR-V-31T7A6200.book 103 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
104
Controls

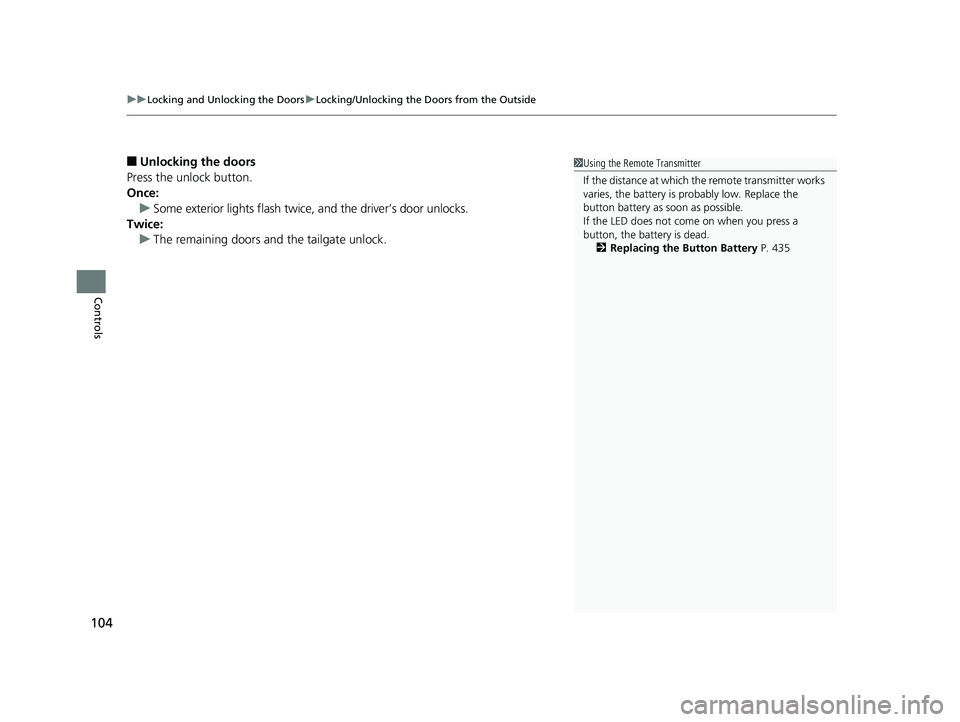

■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door unlocks.
Twice: u The remaining doors and the tailgate unlock.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the battery is probably low. Replace the
button battery as soon as possible.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 435
18 HR-V-31T7A6200.book 104 ページ ２０１７年６月３０日　金曜日　午後１時２３分

Continued105
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

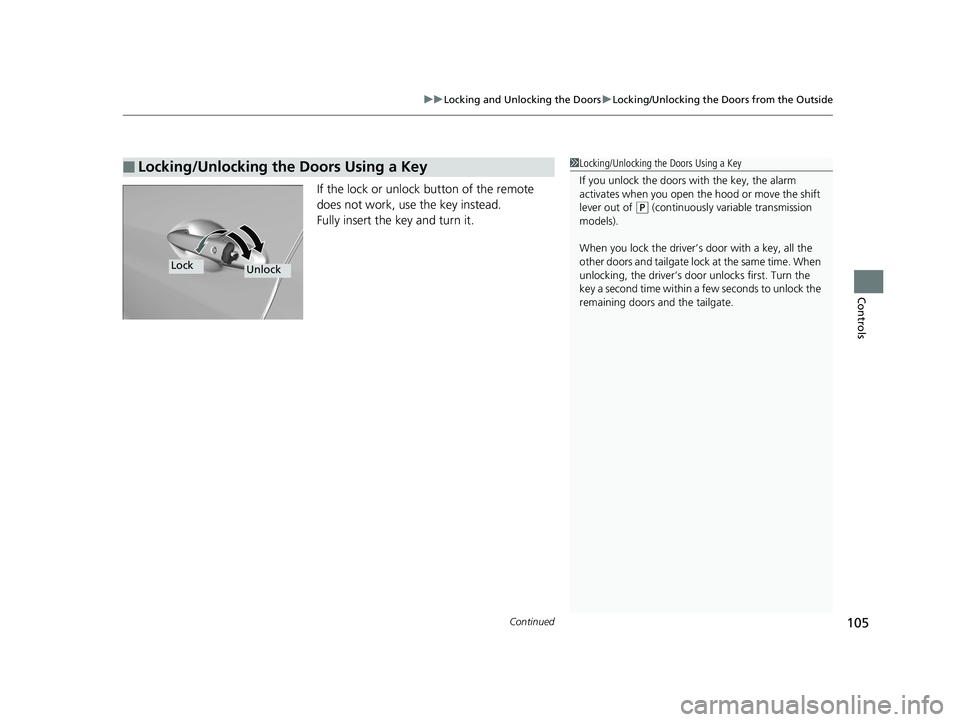

If the lock or unlock button of the remote
does not work, use the key instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
If you unlock the doors wi th the key, the alarm
activates when you open the hood or move the shift
lever out of
( P (continuously vari able transmission
models).
When you lock the driver’s door with a key, all the
other doors and tail gate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
LockUnlock
18 HR-V-31T7A6200.book 105 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
106
Controls

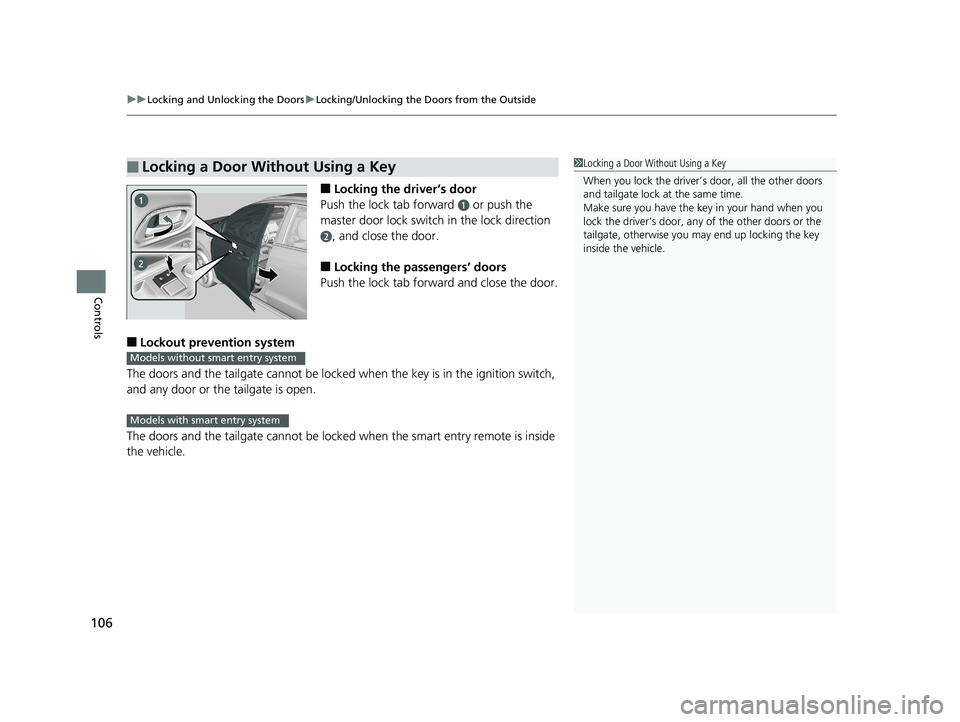

■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passengers’ doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and the tailgate cannot be locked when the key is in the ignition switch,
and any door or the tailgate is open.
The doors and the tailgate cannot be locked when the smart entry remote is inside
the vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Make sure you have the key in your hand when you
lock the driver’s door, any of the other doors or the
tailgate, otherwise you may end up locking the key
inside the vehicle.
Models without smart entry system
Models with smart entry system
18 HR-V-31T7A6200.book 106 ページ ２０１７年６月３０日　金曜日　午後１時２３分

107
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

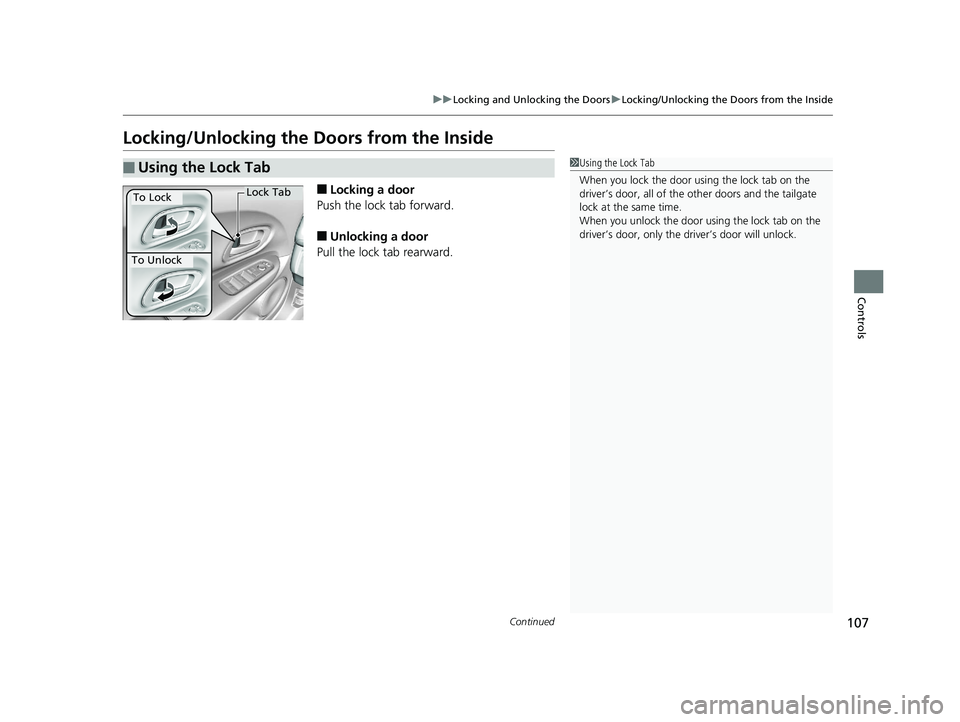

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
18 HR-V-31T7A6200.book 107 ページ ２０１７年６月３０日　金曜日　午後１時２３分

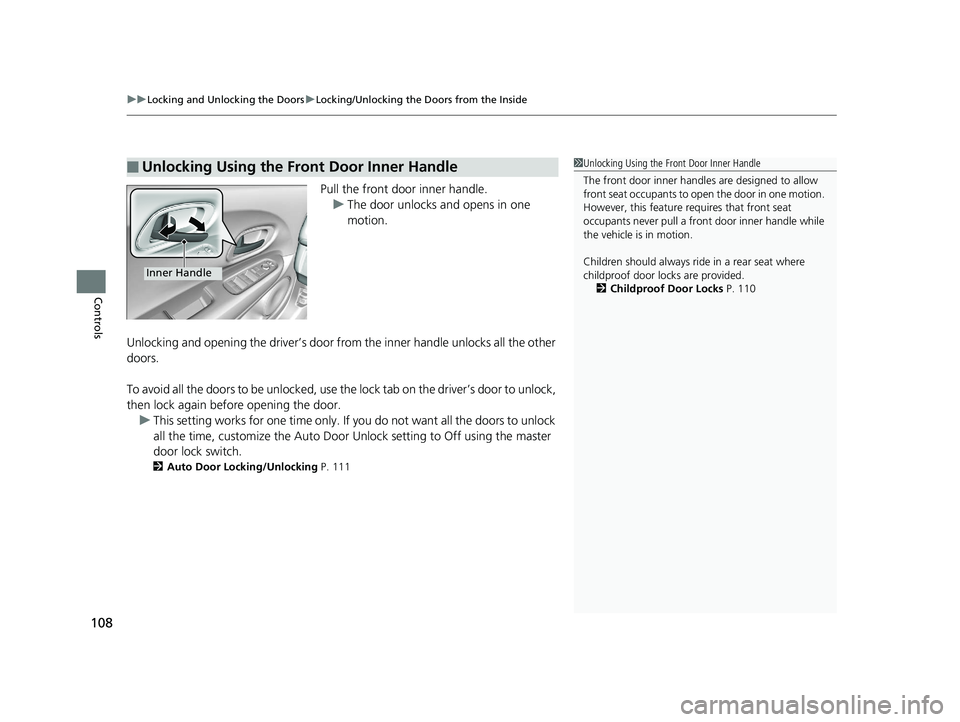

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
108
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only. If you do not want all the doors to unlock
all the time, customize the Auto Door Un lock setting to Off using the master
door lock switch.
2 Auto Door Locking/Unlocking P. 111
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 110
Inner Handle
