HONDA HR-V 2018 (in English) Owners Manual

89

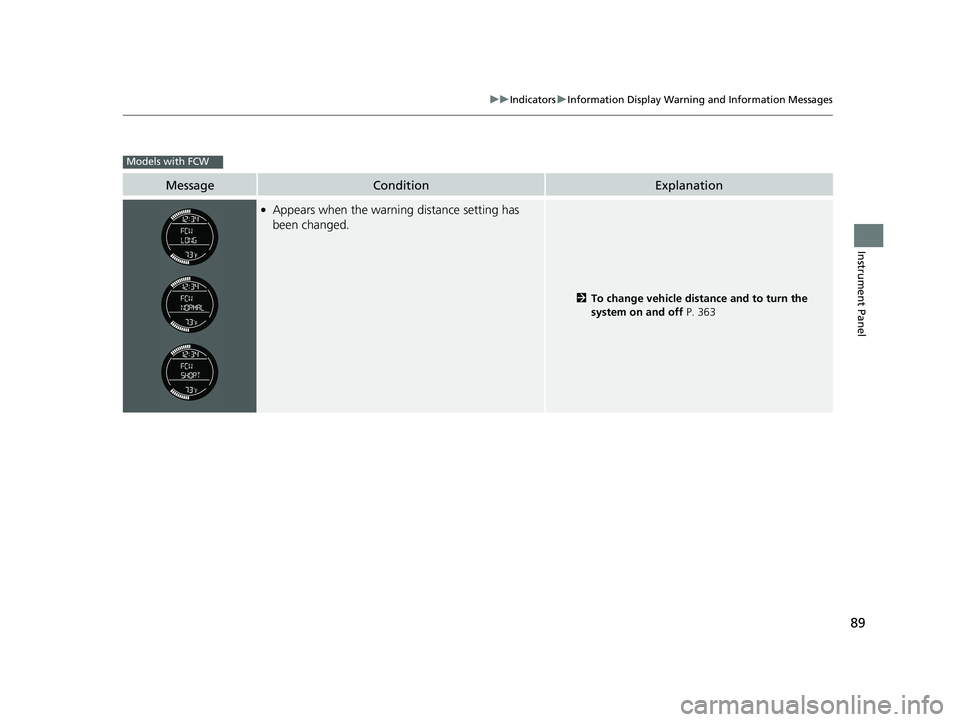

uuIndicators uInformation Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the warning distance setting has
been changed.
2 To change vehicle distance and to turn the
system on and off P. 363
Models with FCW
18 HR-V-31T7A6200.book 89 ページ ２０１７年６月３０日　金曜日　午後１時２３分

90
Instrument Panel

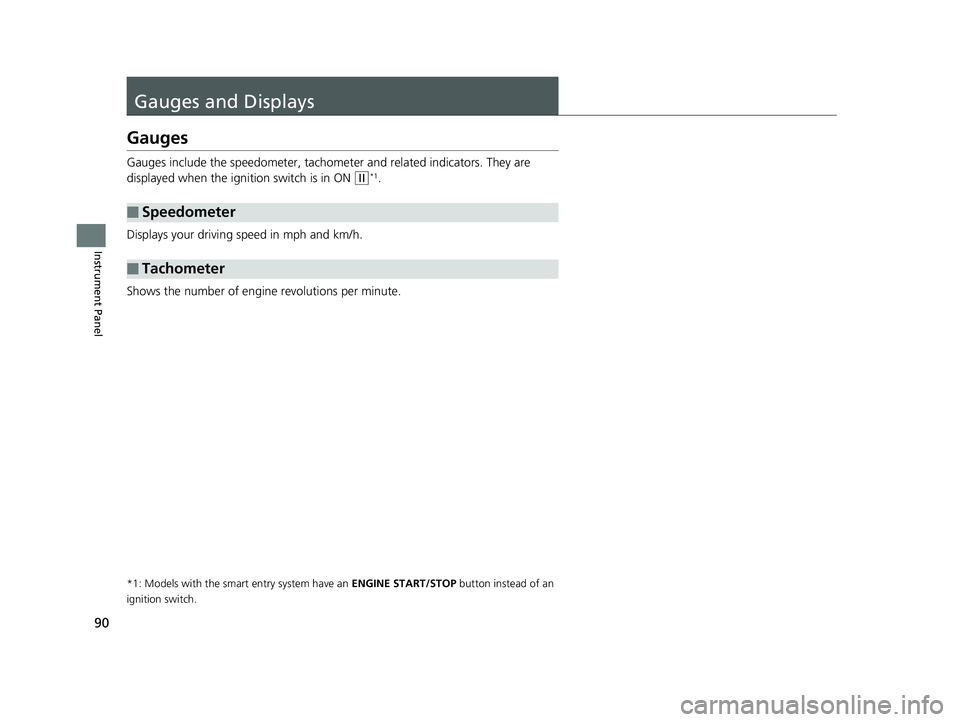

Gauges and Displays
Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph and km/h.
Shows the number of engine revolutions per minute.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
18 HR-V-31T7A6200.book 90 ページ ２０１７年６月３０日　金曜日　午後１時２３分

91
uuGauges and Displays uInformation Display
Continued
Instrument Panel
Information Display
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
Each time you press the (select/reset) knob, the information display changes as follows:
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
18 HR-V-31T7A6200.book 91 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuGauges and Displays uInformation Display
92
Instrument Panel

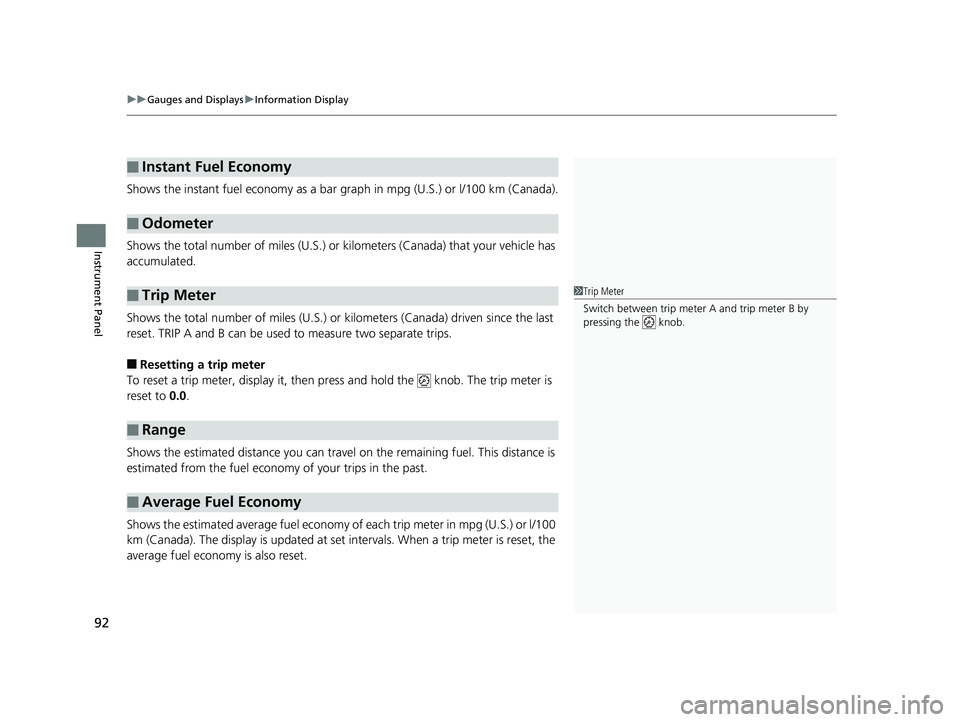

Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. TRIP A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
■Instant Fuel Economy
■Odometer
■Trip Meter
■Range
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
18 HR-V-31T7A6200.book 92 ページ ２０１７年６月３０日　金曜日　午後１時２３分

Continued93
uuGauges and Displays uInformation Display
Instrument Panel

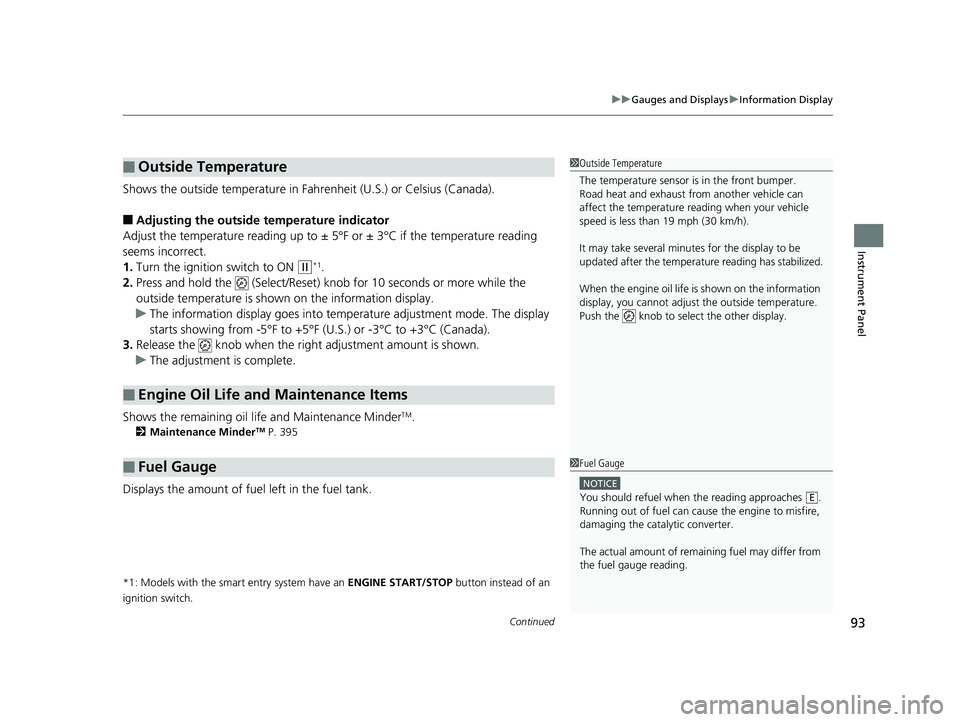

Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the (Select/Reset) knob for 10 seconds or more while the
outside temperature is show n on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F (U .S.) or -3°C to +3°C (Canada).
3. Release the knob when the right adjustment amount is shown.
u The adjustment is complete.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 395
Displays the amount of fuel left in the fuel tank.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature
■Engine Oil Life and Maintenance Items
■Fuel Gauge
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
When the engine oil life is shown on the information
display, you cannot adjust the outside temperature.
Push the knob to select the other display.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
18 HR-V-31T7A6200.book 93 ページ ２０１７年６月３０日　金曜日　午後１時２３分

94
uuGauges and Displays uInformation Display
Instrument Panel
The center ring illumination can be changed to a color of your choice. With the
ignition switch in the ACCESSORY
(q or LOCK (0*1 position and with the meter
ring illuminated, press the select/reset knob. Each time the knob is pressed, the
colors change in the following order:
White  Blue  Purple  Pink  Red  Amber  Yellow
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Changing Ring Color
Select/Reset Knob
18 HR-V-31T7A6200.book 94 ページ ２０１７年６月３０日　金曜日　午後１時２３分

95
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................................... 96
Locking and Unlocking the Doors
Key Types and Functions................................... 98
Low Smart Entry Remote Signal Strength
*...... 100Locking/Unlocking the Doors from the Outside ... 101Locking/Unlocking the Doors from the Inside .. 107
Childproof Door Locks .................................... 110
Auto Door Locking/Unlocking ......................... 111
Customizing the Auto Door Locking/Unlocking Setting ......................................................... 112
Opening and Closing the Tailgate .................. 115
Using the Tailgate Release Button ................... 116
Security System Immobilizer System......................................... 118
Security System Alarm .................................... 118
Opening and Closing the Windows ................ 121
Opening and Closing the Moonroof
*............. 123
Operating the Switches Around the Steering
Wheel
Ignition Switch.......................................... 124
ENGINE START/STOP Button ..................... 125
Ignition Switch and Power Mode Comparison ... 128Turn Signals .............................................. 129
Light Switches .......................................... 129
Fog Lights
*............................................... 132
Daytime Running Lights ............................ 133
Wipers and Washers ................................. 134
Brightness Control .................................... 136
Defogger/Heated Door Mirror*/Heated Windshield*... 137Adjusting the Steering Wheel ................... 139
Models without smart entry system
Models with smart entry system
Adjusting the Mirrors Interior Rearview Mirror.................................. 140
Power Door Mirrors ........................................ 141
Adjusting the Seats Front Seats ..................................................... 142
Head Restraints .............................................. 144
Maintain a Proper Sitting Position ................... 147
Rear Seats ...................................................... 148
Armrest .......................................................... 151
Interior Lights/Interior Convenience Items Interior Lights ................................................. 152
Interior Convenience Items ............................. 154
Heating and Cooling System
*Using Vents, Heating and A/C ........................ 163
Climate Control System*Using Automatic Climate Control ................... 167
Automatic Climate Control Sensors ................ 175
* Not available on all models
18 HR-V-31T7A6200.book 95 ページ ２０１７年６月３０日　金曜日　午後１時２３分

96
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w*1.
■Display audio system*
1.Select the ( HOME) icon, then select
Settings .
2. Select System , Clock , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
Models without navigation system1 Adjusting the Time
The clock in the information display is automatically
adjusted along with the audio system’s clock display.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 252
Models with navigation system
Models without navigation system
1Display audio system*
You can turn the clock display on and off.
2 Customized Features P. 252
34
* Not available on all models
18 HR-V-31T7A6200.book 96 ページ ２０１７年６月３０日　金曜日　午後１時２３分

97
uuClock uAdjusting the Clock
Controls

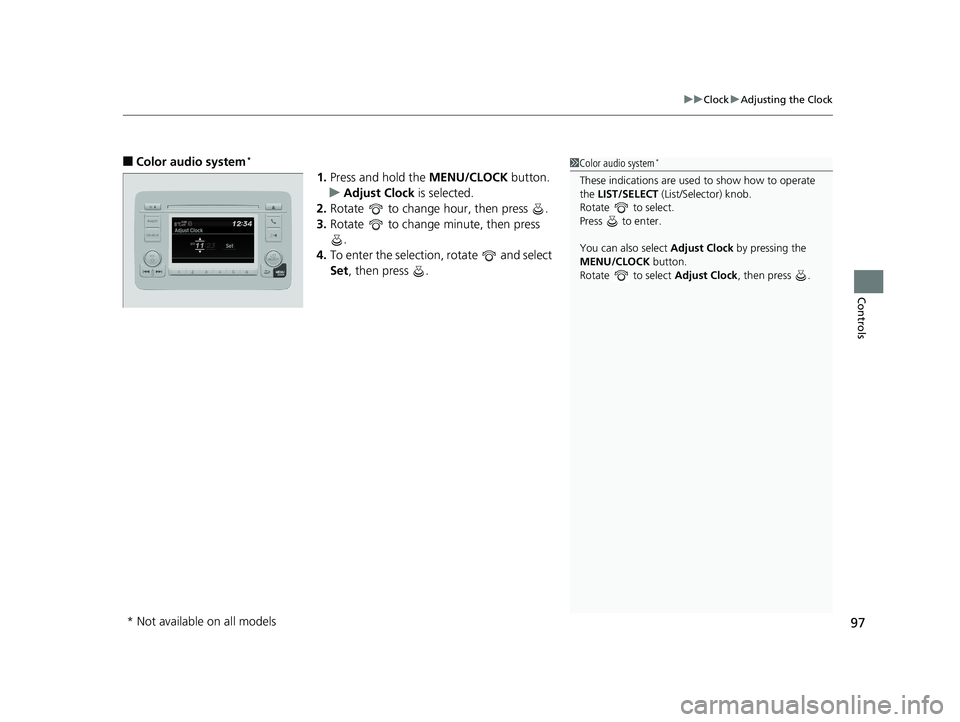

■Color audio system*
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set, then press .
1Color audio system*
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
You can also select Adjust Clock by pressing the
MENU/CLOCK button.
Rotate to select Adjust Clock, then press .
* Not available on all models
18 HR-V-31T7A6200.book 97 ページ ２０１７年６月３０日　金曜日　午後１時２３分

98
Controls

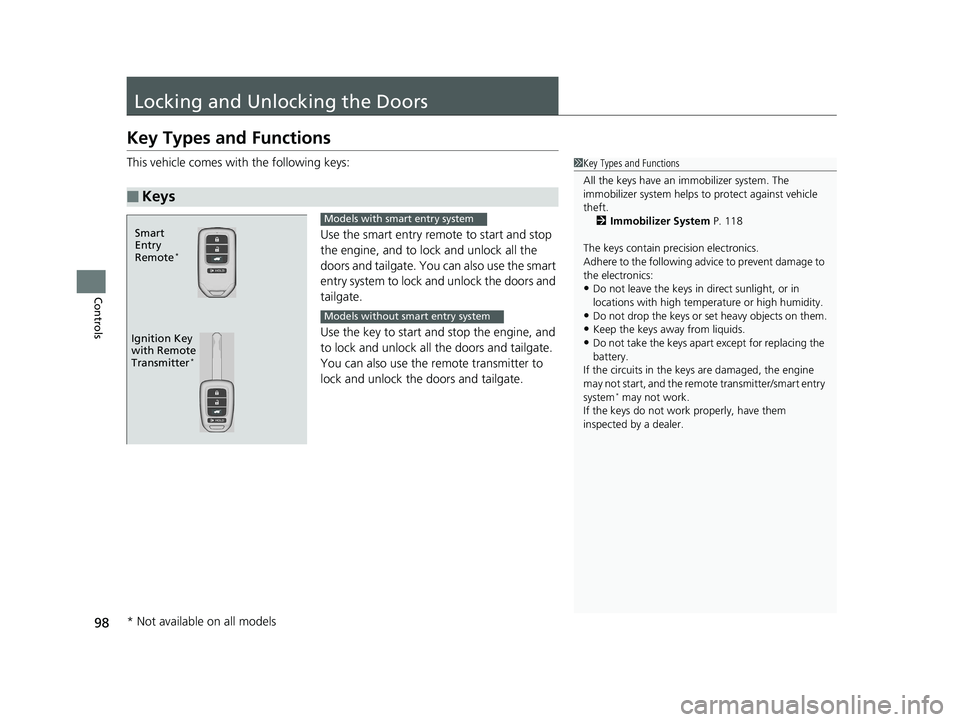

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the smart entry remote to start and stop
the engine, and to lock and unlock all the
doors and tailgate. You can also use the smart
entry system to lock and unlock the doors and
tailgate.
Use the key to start and stop the engine, and
to lock and unlock all the doors and tailgate.
You can also use the re mote transmitter to
lock and unlock the doors and tailgate.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 118
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter/smart entry
system
* may not work.
If the keys do not work properly, have them
inspected by a dealer.
Ignition Key
with Remote
Transmitter
*
Smart
Entry
Remote
*
Models with smart entry system
Models without smart entry system
* Not available on all models
