Continued149
uuAdjusting the Seats uRear Seats
Controls

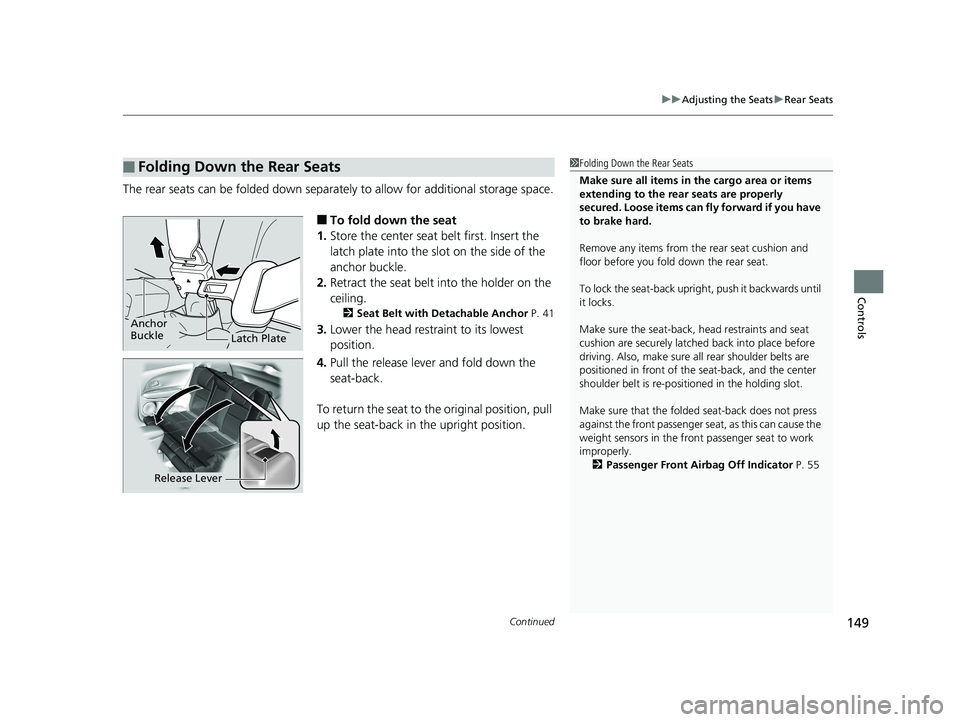

The rear seats can be folded down separa tely to allow for additional storage space.
■To fold down the seat
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 41
3.Lower the head restraint to its lowest
position.
4. Pull the release lever and fold down the
seat-back.
To return the seat to the original position, pull
up the seat-back in the upright position.
■Folding Down the Rear Seats1 Folding Down the Rear Seats
Make sure all items in the cargo area or items
extending to the rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
To lock the seat-back upri ght, push it backwards until
it locks.
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving. Also, make sure all rear shoulder belts are
positioned in front of the seat-back, and the center
shoulder belt is re-posit ioned in the holding slot.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Front Airbag Off Indicator P. 55
Anchor
Buckle
Latch Plate
Release Lever
18 HR-V-31T7A6200.book 149 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuAdjusting the Seats uRear Seats
150
Controls

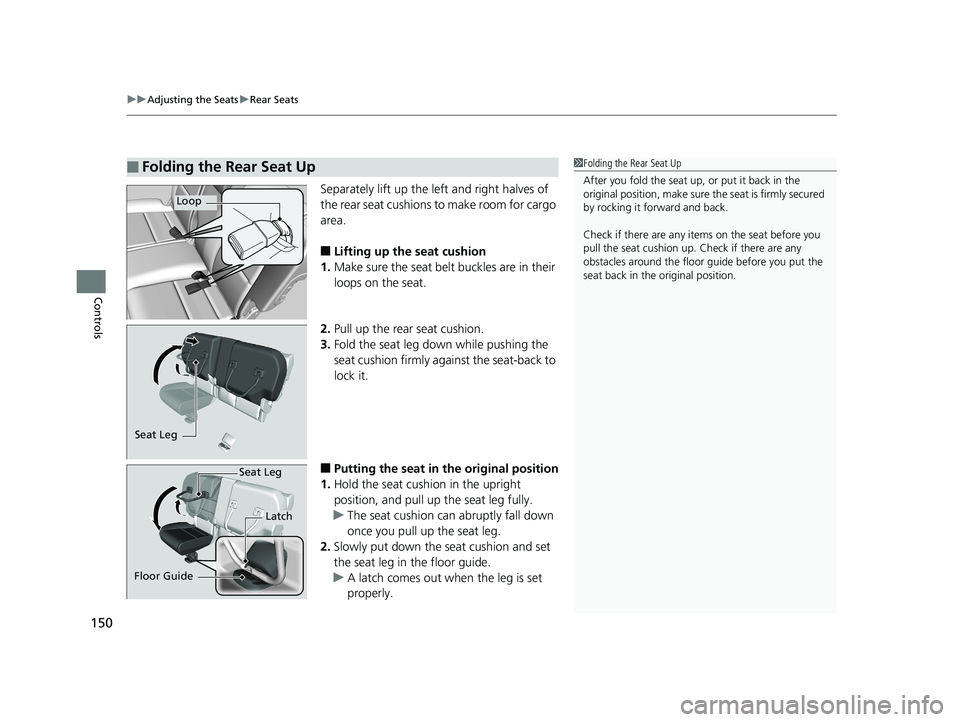

Separately lift up the left and right halves of
the rear seat cushions to make room for cargo
area.
■Lifting up the seat cushion
1. Make sure the seat belt buckles are in their
loops on the seat.
2. Pull up the rear seat cushion.
3. Fold the seat leg down while pushing the
seat cushion firmly agai nst the seat-back to
lock it.
■Putting the seat in the original position
1. Hold the seat cushion in the upright
position, and pull up the seat leg fully.
u The seat cushion can abruptly fall down
once you pull up the seat leg.
2. Slowly put down the seat cushion and set
the seat leg in the floor guide.
u A latch comes out when the leg is set
properly.
■Folding the Rear Seat Up1Folding the Rear Seat Up
After you fold the seat up, or put it back in the
original position, make sure the seat is firmly secured
by rocking it forward and back.
Check if there are any items on the seat before you
pull the seat cushion up. Check if there are any
obstacles around the floor guide before you put the
seat back in the original position.
Loop
Seat Leg
Floor Guide
Latch
Seat Leg
18 HR-V-31T7A6200.book 150 ページ ２０１７年６月３０日　金曜日　午後１時２３分

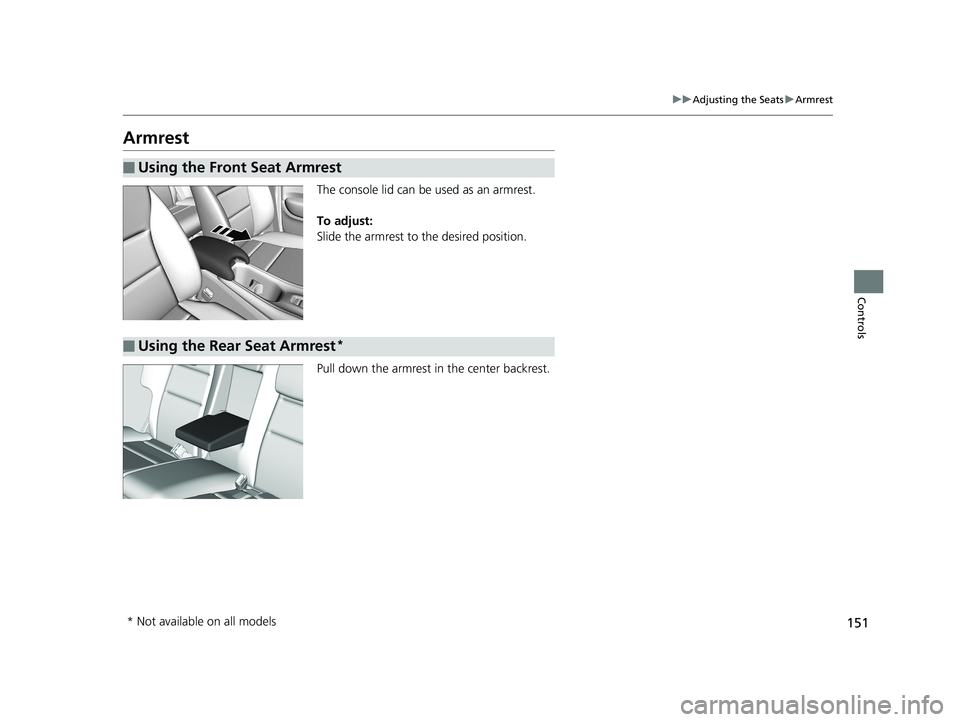

151
uuAdjusting the Seats uArmrest
Controls
Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to the desired position.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest*
* Not available on all models
18 HR-V-31T7A6200.book 151 ページ ２０１７年６月３０日　金曜日　午後１時２３分

152
Controls

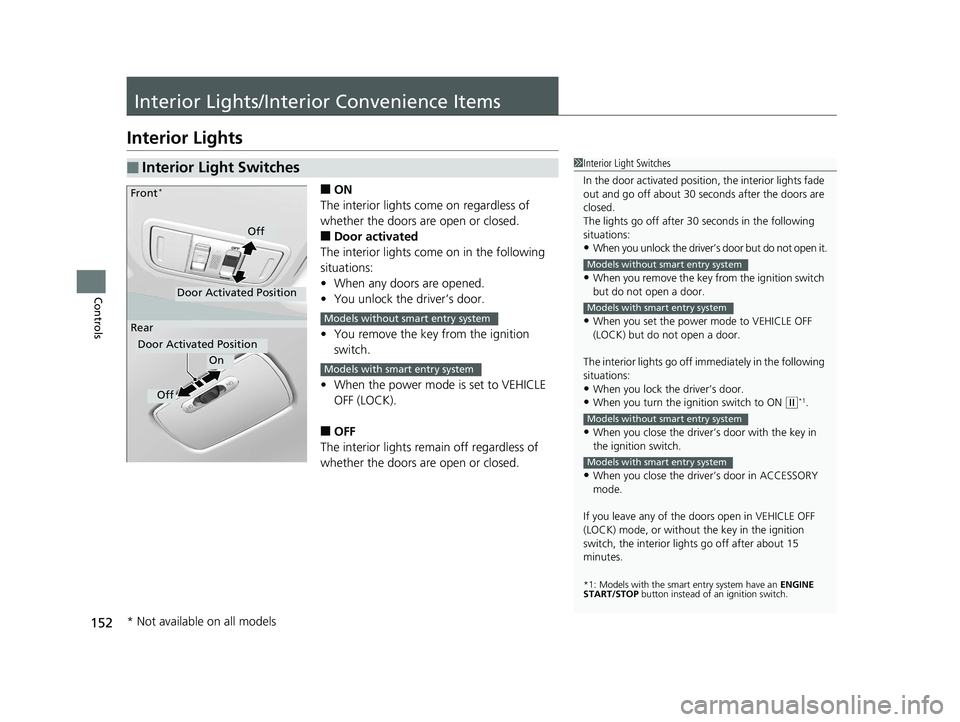

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you turn the ignition switch to ON ( w*1.
•When you close the driver’s door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition
switch, the interior li ghts go off after about 15
minutes.
*1: Models with the sma rt entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
On
Off
Door Activated Position
Front
*
Rear
Door Activated Position
Off
Models without smart entry system
Models with smart entry system
* Not available on all models
18 HR-V-31T7A6200.book 152 ページ ２０１７年６月３０日　金曜日　午後１時２３分

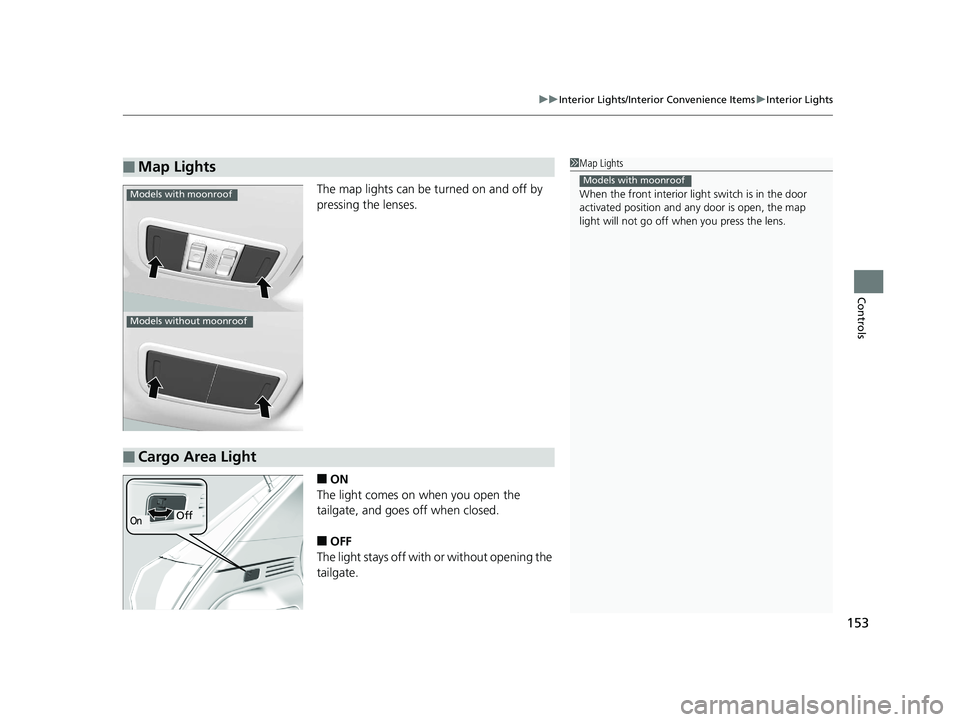

153
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
The map lights can be turned on and off by
pressing the lenses.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Map Lights1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
Models with moonroof
Models with moonroof
Models without moonroof
■Cargo Area Light
OnOff
18 HR-V-31T7A6200.book 153 ページ ２０１７年６月３０日　金曜日　午後１時２３分

154
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

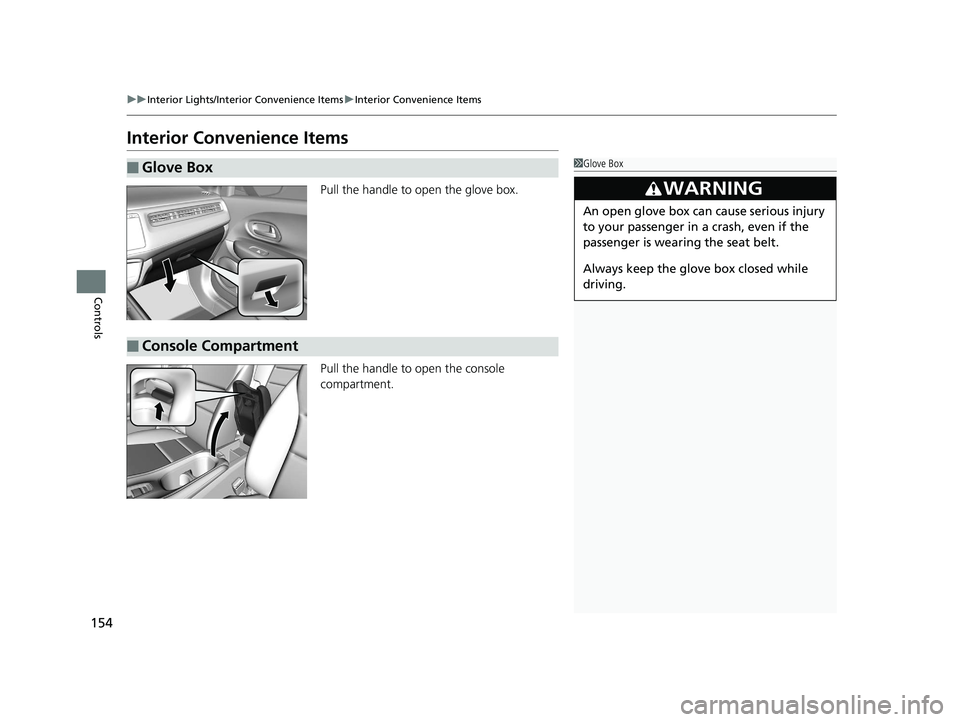

Interior Convenience Items
Pull the handle to open the glove box.
Pull the handle to open the console
compartment.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■Console Compartment
18 HR-V-31T7A6200.book 154 ページ ２０１７年６月３０日　金曜日　午後１時２３分

Continued155
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

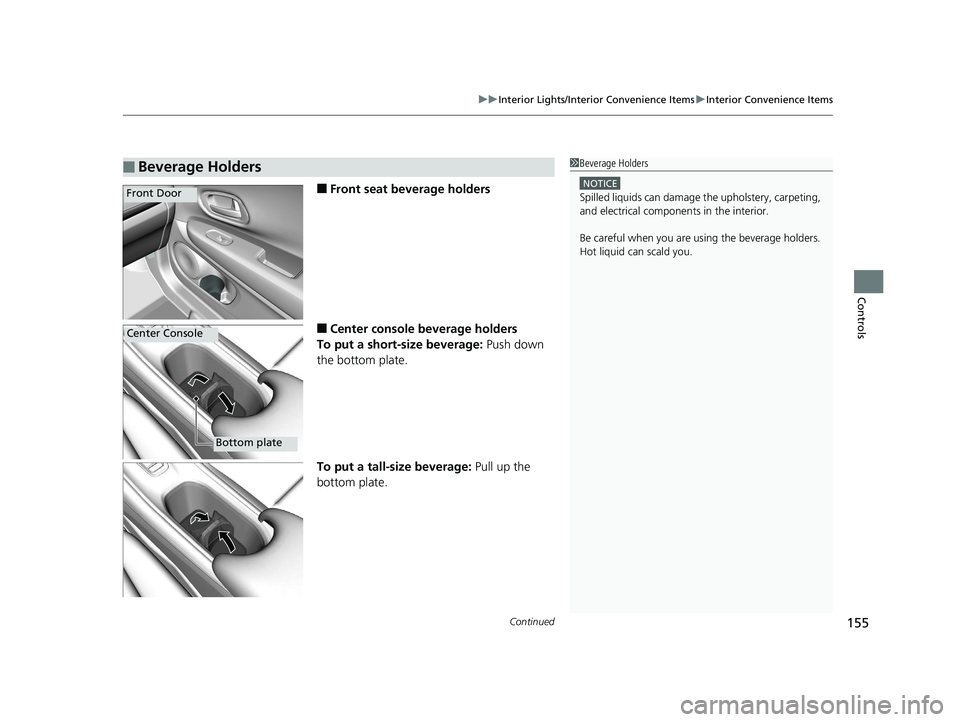

■Front seat beverage holders
■Center console beverage holders
To put a short-size beverage: Push down
the bottom plate.
To put a tall-size beverage: Pull up the
bottom plate.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.Front Door
Center Console
Bottom plate
18 HR-V-31T7A6200.book 155 ページ ２０１７年６月３０日　金曜日　午後１時２３分

156
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

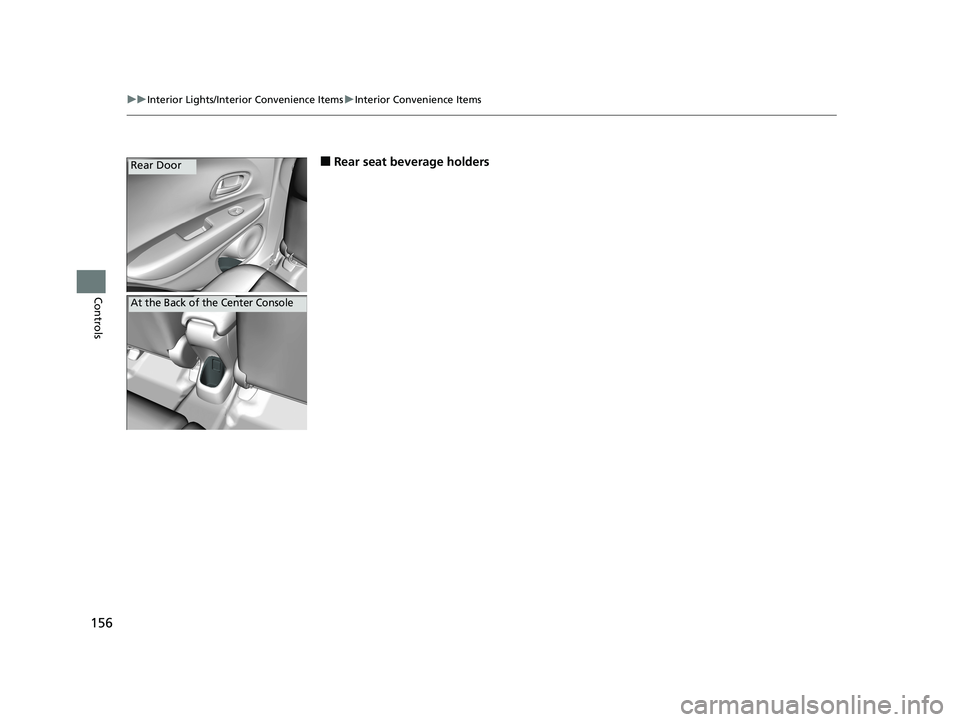

■Rear seat beverage holdersRear Door
At the Back of the Center Console
18 HR-V-31T7A6200.book 156 ページ ２０１７年６月３０日　金曜日　午後１時２３分

157
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

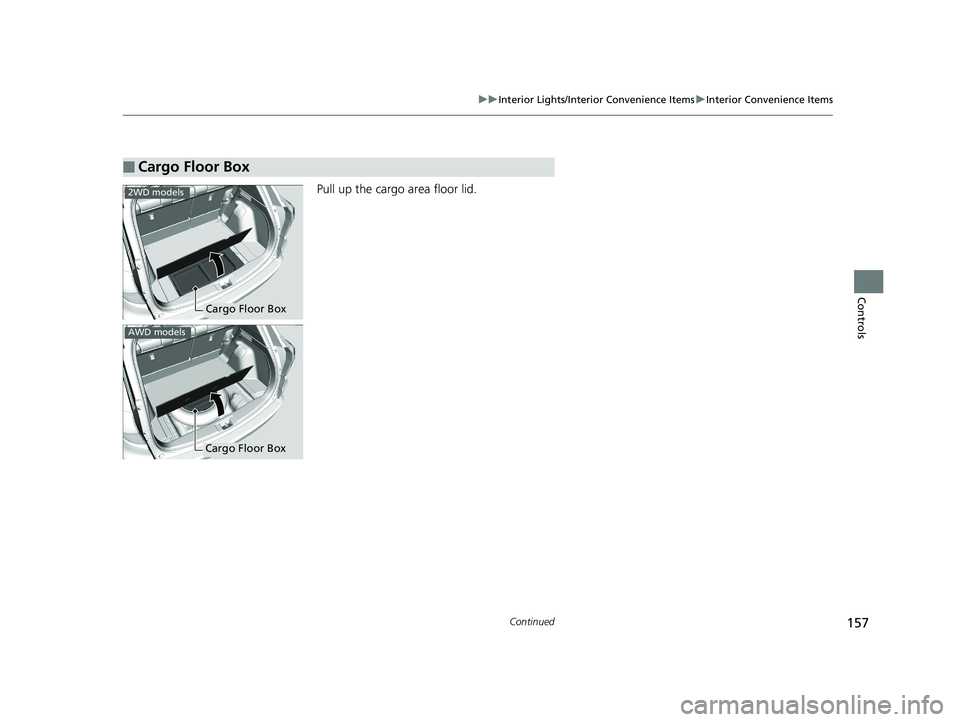

Pull up the cargo area floor lid.
■Cargo Floor Box
Cargo Floor Box
2WD models
AWD models
Cargo Floor Box
18 HR-V-31T7A6200.book 157 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
158
Controls

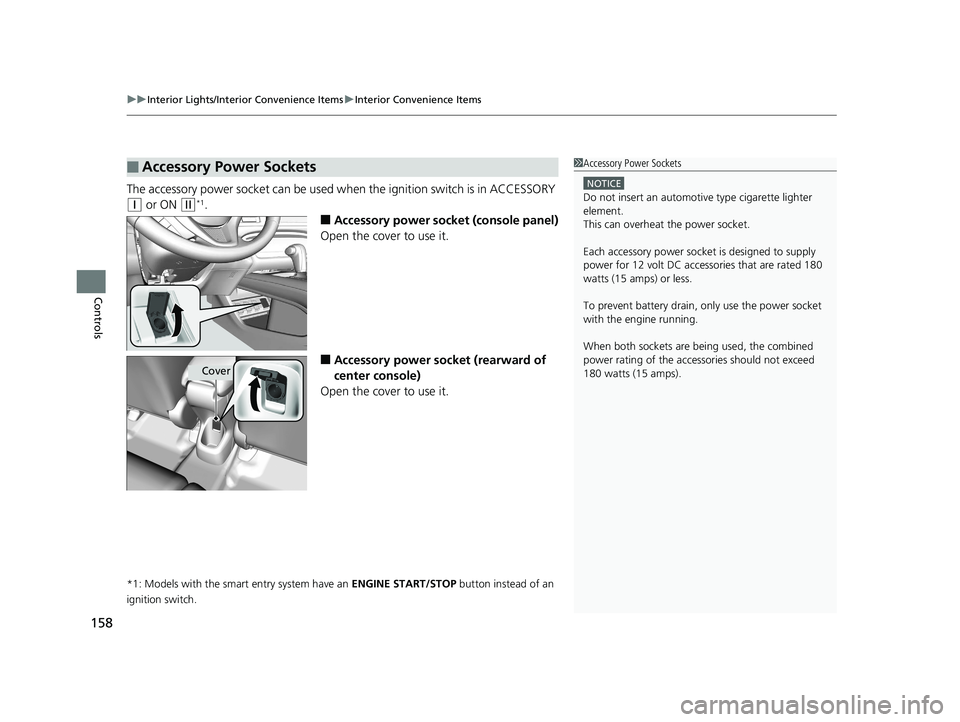

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (rearward of
center console)
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
Each accessory power soc ket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
When both sockets are being used, the combined
power rating of the accesso ries should not exceed
180 watts (15 amps).
Cover
18 HR-V-31T7A6200.book 158 ページ ２０１７年６月３０日　金曜日　午後１時２３分
