HONDA HR-V 2018 Owner's Manual (in English)

169
uuClimate Control System*uUsing Automatic Climate Control
Continued
Controls

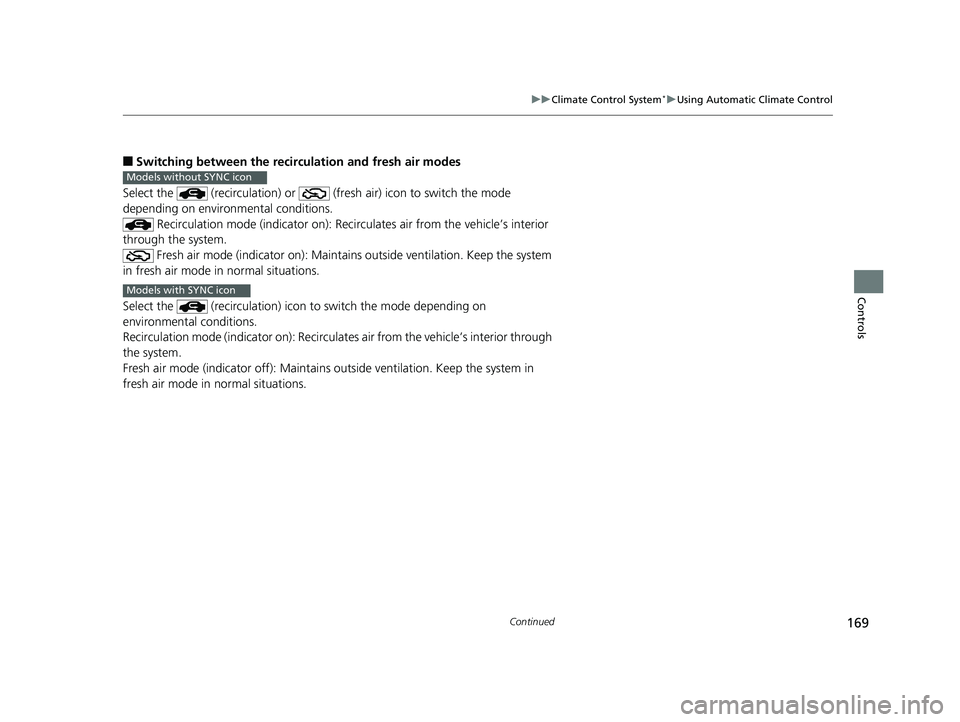

■Switching between the recirc ulation and fresh air modes
Select the (recirculation) or (fre sh air) icon to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Reci rculates air from the vehicle’s interior
through the system.
Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Select the (recirculation) icon to switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Models without SYNC icon
Models with SYNC icon
18 HR-V-31T7A6200.book 169 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuClimate Control System*uUsing Automatic Climate Control
170
Controls

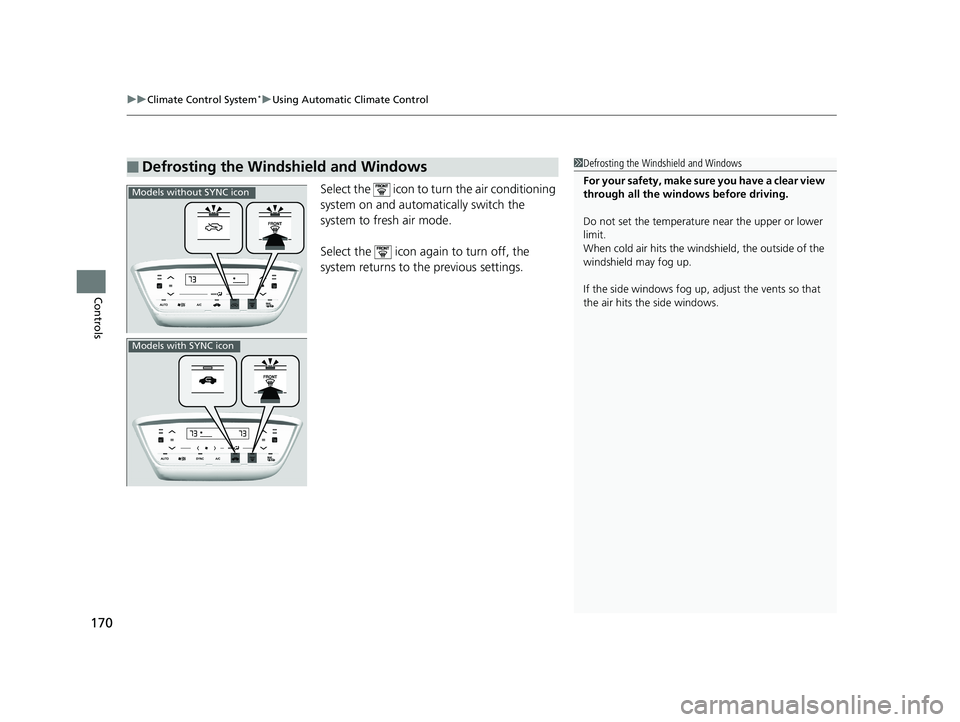

Select the icon to turn the air conditioning
system on and automa tically switch the
system to fresh air mode.
Select the icon again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
Models without SYNC icon
Models with SYNC icon
18 HR-V-31T7A6200.book 170 ページ ２０１７年６月３０日　金曜日　午後１時２３分

Continued171
uuClimate Control System*uUsing Automatic Climate Control
Controls

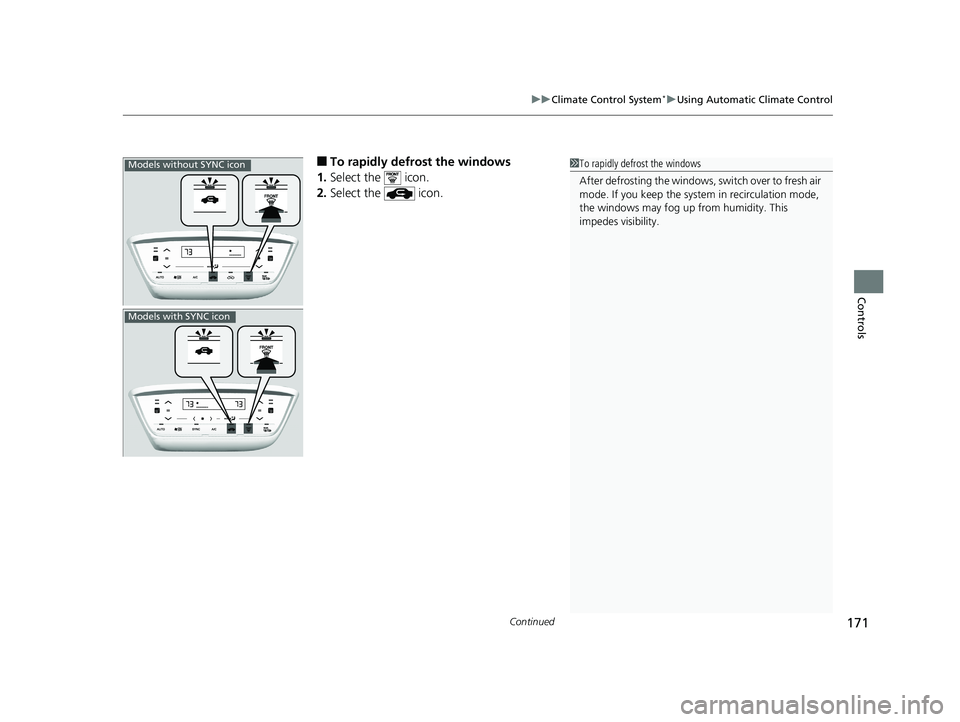

■To rapidly defrost the windows
1. Select the icon.
2. Select the icon.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.Models without SYNC icon
Models with SYNC icon
18 HR-V-31T7A6200.book 171 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuClimate Control System*uUsing Automatic Climate Control
172
Controls

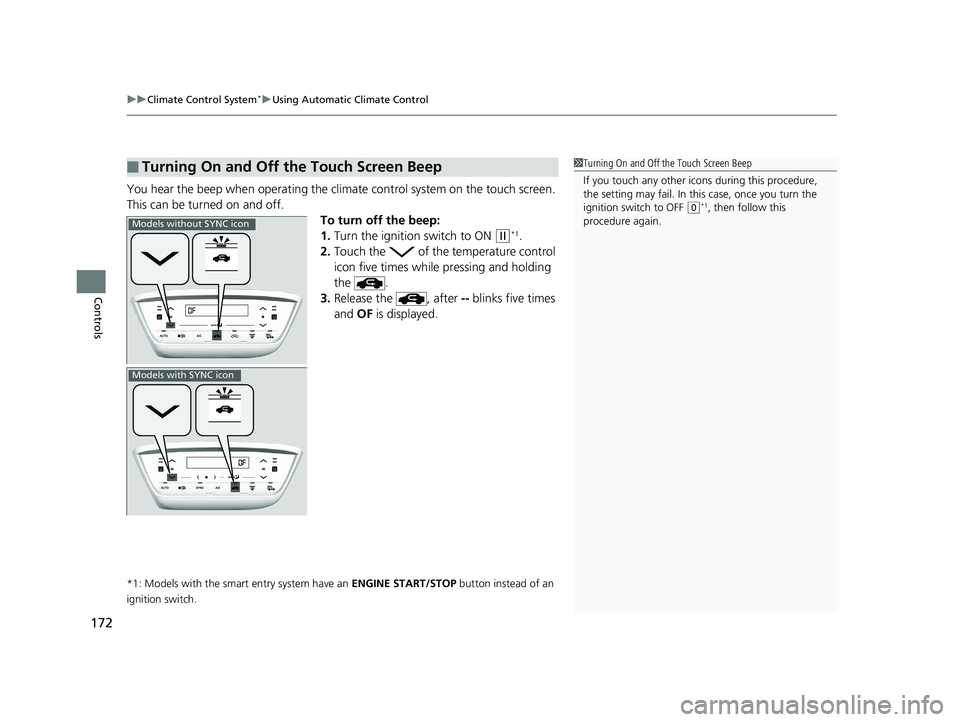

You hear the beep when operating the clim ate control system on the touch screen.
This can be turned on and off. To turn off the beep:
1.Turn the ignition switch to ON
(w*1.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after -- blinks five times
and OF is displayed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Turning On and Off the Touch Screen Beep1 Turning On and Off the Touch Screen Beep
If you touch any other icon s during this procedure,
the setting may fail. In this case, once you turn the
ignition switch to OFF
( 0*1, then follow this
procedure again.
Models without SYNC icon
Models with SYNC icon
18 HR-V-31T7A6200.book 172 ページ ２０１７年６月３０日　金曜日　午後１時２３分

173
uuClimate Control System*uUsing Automatic Climate Control
Continued
Controls

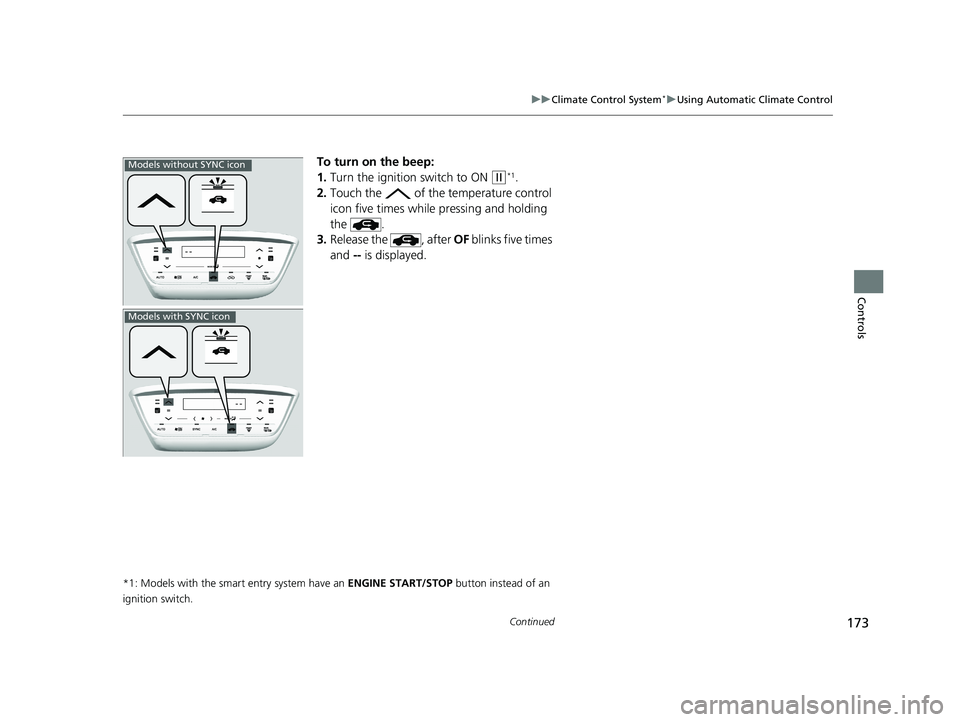

To turn on the beep:
1. Turn the ignition switch to ON
(w*1.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after OF blinks five times
and -- is displayed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models without SYNC icon
Models with SYNC icon
18 HR-V-31T7A6200.book 173 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuClimate Control System*uUsing Automatic Climate Control
174
Controls

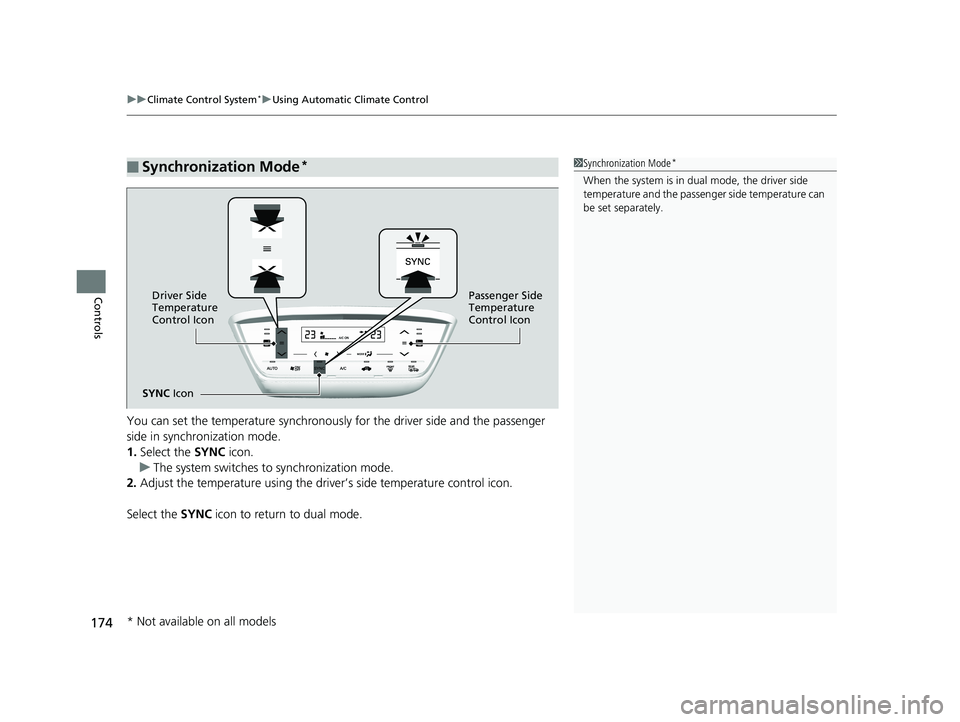

You can set the temperature synchronously for the driver side and the passenger
side in synchronization mode.
1. Select the SYNC icon.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control icon.
Select the SYNC icon to return to dual mode.
■Synchronization Mode*1Synchronization Mode*
When the system is in dua l mode, the driver side
temperature and the passenger side temperature can
be set separately.
SYNC Icon
Driver Side
Temperature
Control Icon
Passenger Side
Temperature
Control Icon
* Not available on all models
18 HR-V-31T7A6200.book 174 ページ ２０１７年６月３０日　金曜日　午後１時２３分

175
uuClimate Control System*uAutomatic Climate Control Sensors
Controls

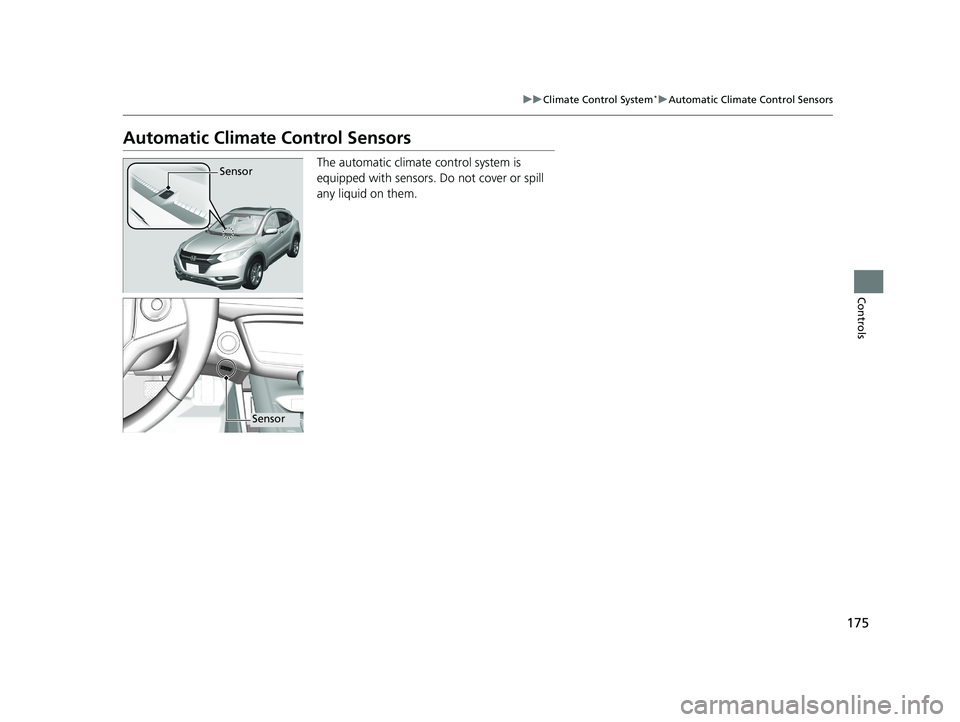

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
18 HR-V-31T7A6200.book 175 ページ ２０１７年６月３０日　金曜日　午後１時２３分

176
18 HR-V-31T7A6200.book 176 ページ ２０１７年６月３０日　金曜日　午後１時２３分

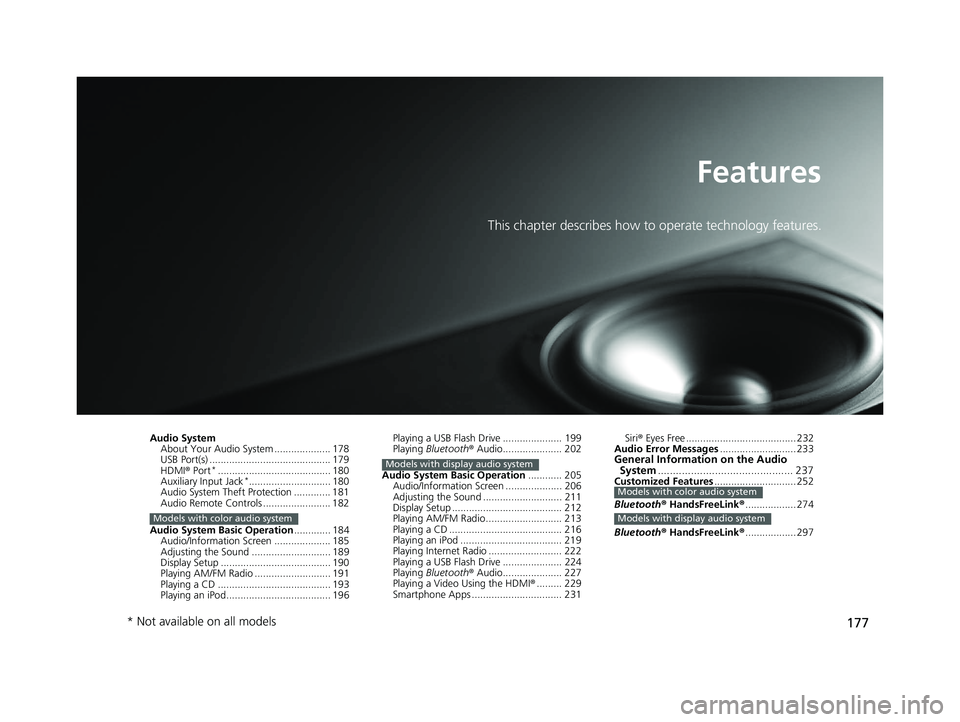

177
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 178
USB Port(s) ........................................... 179
HDMI ® Port
*........................................ 180
Auxiliary Input Jack*............................. 180
Audio System Theft Protection ............. 181
Audio Remote Controls ........................ 182
Audio System Basic Operation ............. 184
Audio/Information Screen .................... 185
Adjusting the Sound ............................ 189
Display Setup ....................................... 190
Playing AM/FM Radio ........................... 191
Playing a CD ........................................ 193
Playing an iPod..................................... 196
Models with color audio system
Playing a USB Flash Drive ..................... 199
Playing Bluetooth ® Audio..................... 202
Audio System Basic Operation ............ 205
Audio/Information Screen .................... 206
Adjusting the Sound ............................ 211
Display Setup ....................................... 212
Playing AM/FM Radio........................... 213
Playing a CD ........................................ 216
Playing an iPod .................................... 219
Playing Internet Radio .......................... 222
Playing a USB Flash Drive ..................... 224
Playing Bluetooth ® Audio..................... 227
Playing a Video Using the HDMI ®......... 229
Smartphone Apps ................................ 231
Models with display audio system
Siri ® Eyes Free ....................................... 232
Audio Error Messages ........................... 233
General Information on the Audio
System ............................................. 237
Customized Features ............................. 252
Bluetooth ® HandsFreeLink ®.................. 274
Bluetooth ® HandsFreeLink ®.................. 297Models with color audio system
Models with display audio system
* Not available on all models
18 HR-V-31T7A6200.book 177 ページ ２０１７年６月３０日　金曜日　午後１時２３分

178
Features

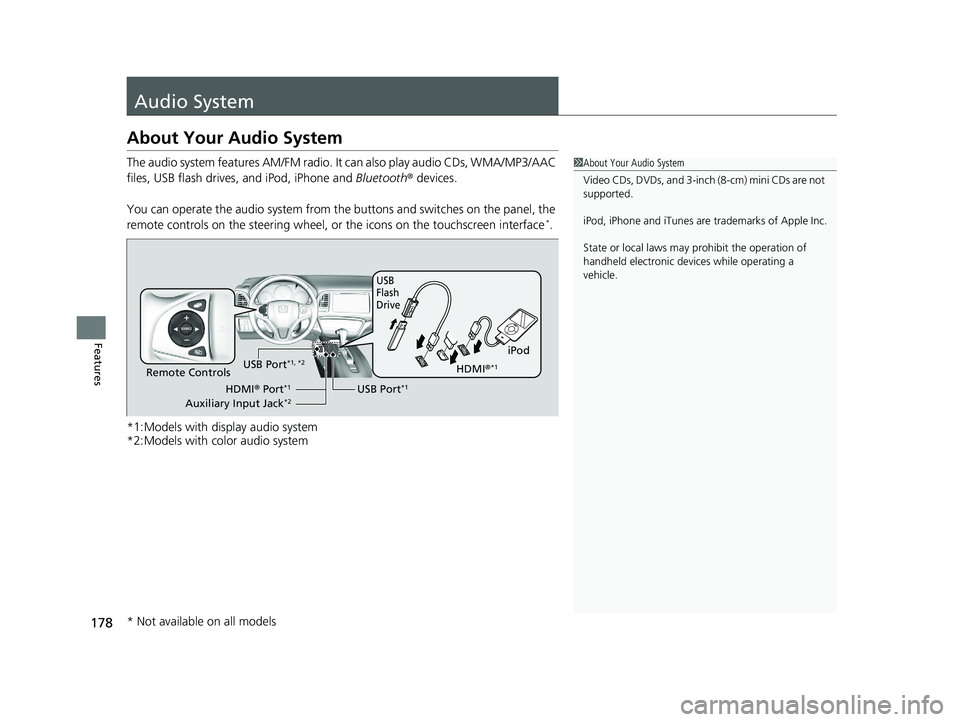

Audio System
About Your Audio System
The audio system features AM/FM radio. It can also play audio CDs, WMA/MP3/AAC
files, USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
*1:Models with display audio system
*2:Models with color audio system
1 About Your Audio System
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
iPod
USB
Flash
Drive
USB Port*1Remote Controls
HDMI® Port*1
Auxiliary Input Jack*2
USB Port*1, *2HDMI ®*1
* Not available on all models
