uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

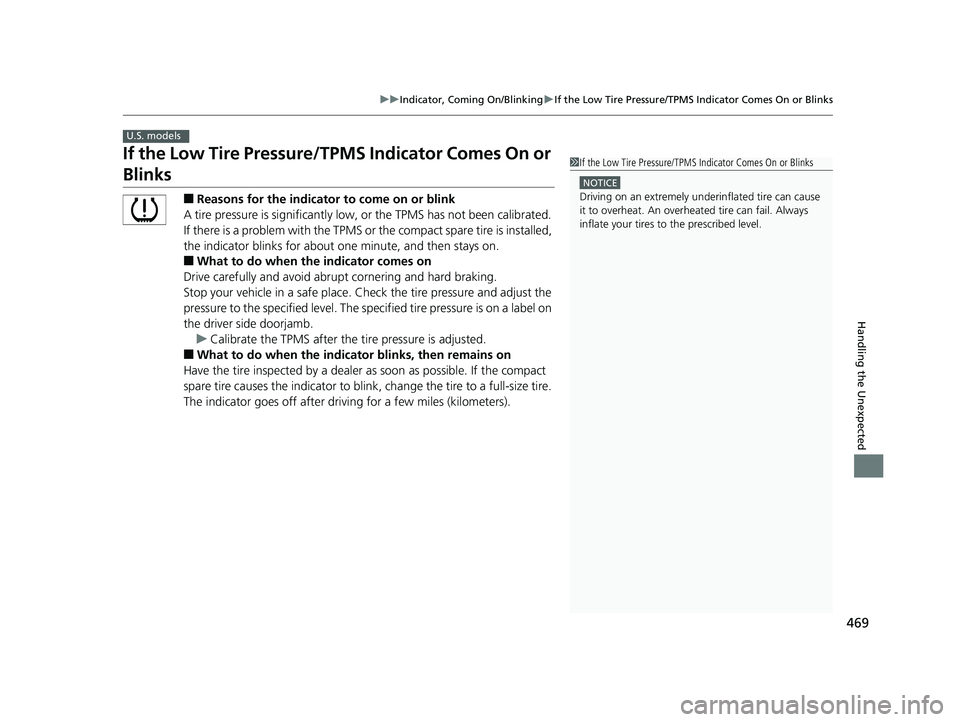

If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
U.S. models
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
18 HR-V-31T7A6200.book 469 ページ ２０１７年６月３０日　金曜日　午後１時２３分

470
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.

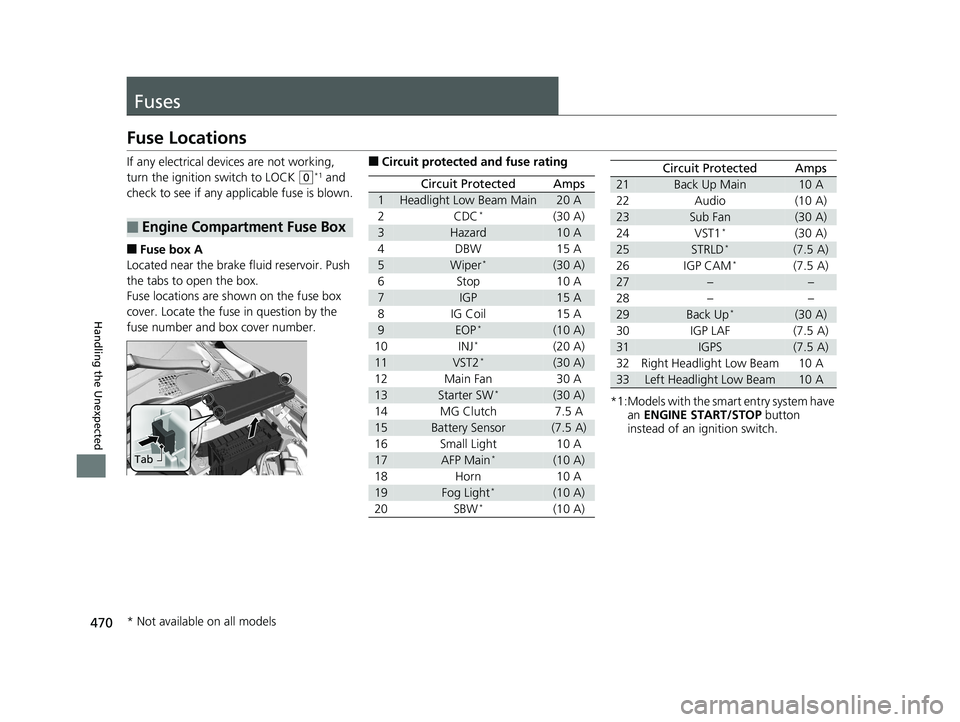

■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2CDC*(30 A)
3Hazard10 A
4DBW15 A
5Wiper*(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9EOP*(10 A)
10INJ*(20 A)
11VST2*(30 A)
12Main Fan30 A
13Starter SW*(30 A)
14MG Clutch7.5 A
15Battery Sensor(7.5 A)
16Small Light10 A
17AFP Main*(10 A)
18Horn10 A
19Fog Light*(10 A)
20SBW*(10 A)
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Circuit ProtectedAmps
21Back Up Main10 A
22Audio(10 A)
23Sub Fan(30 A)
24VST1*(30 A)
25STRLD*(7.5 A)
26IGP CAM*(7.5 A)
27––
28––
29Back Up*(30 A)
30IGP LAF(7.5 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
18 HR-V-31T7A6200.book 470 ページ ２０１７年６月３０日　金曜日　午後１時２３分

471
uuFuses uFuse Locations
Continued
Handling the Unexpected

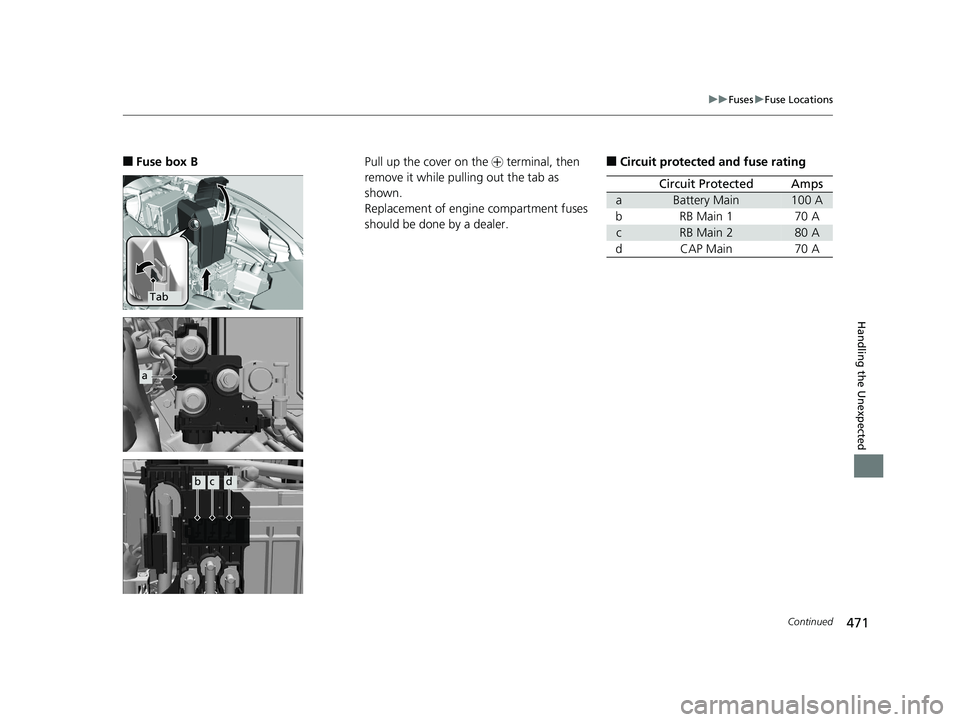

■Fuse box B
Tab
a
bcd
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of engine compartment fuses
should be done by a dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery Main100 A
bRB Main 170 A
cRB Main 280 A
dCAP Main70 A
18 HR-V-31T7A6200.book 471 ページ ２０１７年６月３０日　金曜日　午後１時２３分

472
uuFuses uFuse Locations
Handling the Unexpected

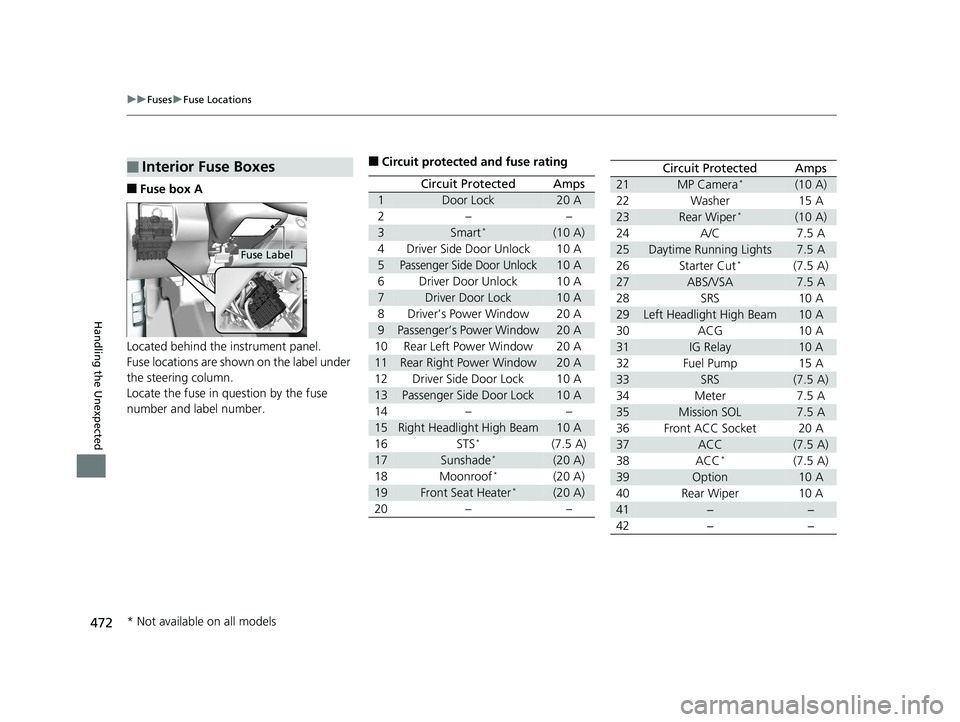

■Fuse box A
Located behind the instrument panel.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Boxes
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Door Lock20 A
2––
3Smart*(10 A)
4Driver Side Door Unlock10 A
5Passenger Side Door Unlock10 A
6Driver Door Unlock10 A
7Driver Door Lock10 A
8Driver’s Power Window20 A
9Passenger’s Power Window20 A
10Rear Left Power Window20 A
11Rear Right Power Window20 A
12Driver Side Door Lock10 A
13Passenger Side Door Lock10 A
14––
15Right Headlight High Beam10 A
16STS*(7.5 A)
17Sunshade*(20 A)
18Moonroof*(20 A)
19Front Seat Heater*(20 A)
20––
Circuit ProtectedAmps
21MP Camera*(10 A)
22Washer15 A
23Rear Wiper*(10 A)
24A/C7.5 A
25Daytime Running Lights7.5 A
26Starter Cut*(7.5 A)
27ABS/VSA7.5 A
28SRS10 A
29Left Headlight High Beam10 A
30ACG10 A
31IG Relay10 A
32Fuel Pump15 A
33SRS(7.5 A)
34Meter7.5 A
35Mission SOL7.5 A
36Front ACC Socket20 A
37ACC(7.5 A)
38ACC*(7.5 A)
39Option10 A
40Rear Wiper10 A
41−−
42−−
* Not available on all models
18 HR-V-31T7A6200.book 472 ページ ２０１７年６月３０日　金曜日　午後１時２３分

473
uuFuses uFuse Locations
Handling the Unexpected

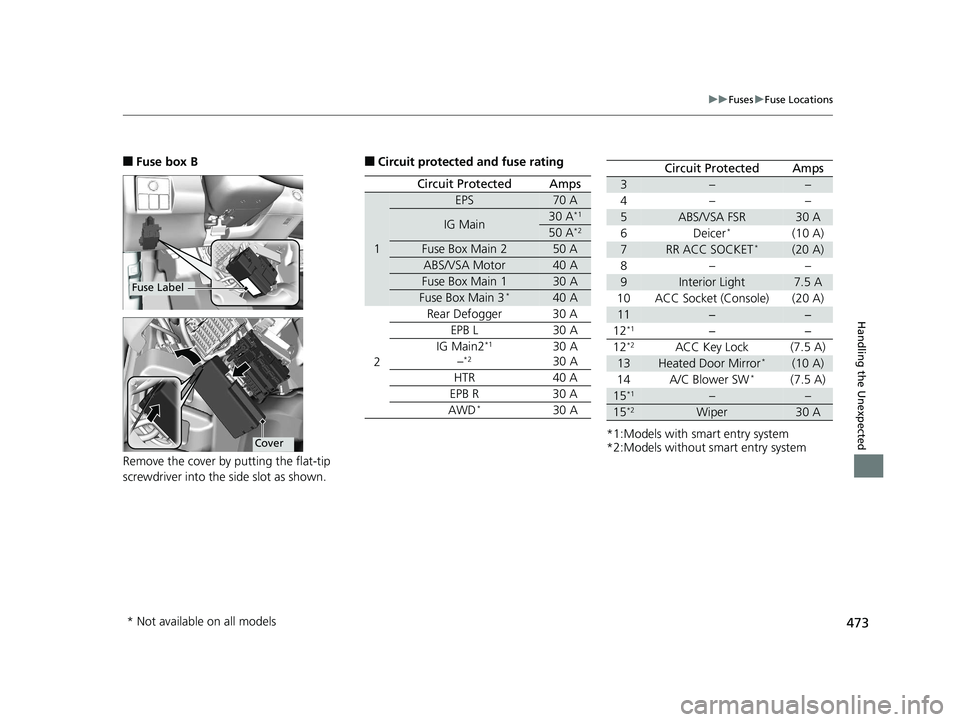

■Fuse box B
Remove the cover by putting the flat-tip
screwdriver into the side slot as shown.
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
IG Main30 A*1
50 A*2
Fuse Box Main 250 A
ABS/VSA Motor40 A
Fuse Box Main 130 A
Fuse Box Main 3*40 A
2 Rear Defogger 30 A
EPB L 30 A
IG Main2
*1
–*230 A
30 A
HTR 40 A
EPB R 30 A
AWD
*30 A
*1:Models with smart entry system
*2:Models without smart entry system
Circuit ProtectedAmps
3––
4– –
5ABS/VSA FSR30 A
6 Deicer*(10 A)
7RR ACC SOCKET*(20 A)
8– –
9Interior Light7.5 A
10 ACC Socket (Console) (20 A)
11−−
12*1−−
12*2ACC Key Lock (7.5 A)
13Heated Door Mirror*(10 A)
14 A/C Blower SW*(7.5 A)
15*1––
15*2Wiper30 A
* Not available on all models
18 HR-V-31T7A6200.book 473 ページ ２０１７年６月３０日　金曜日　午後１時２３分

474
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

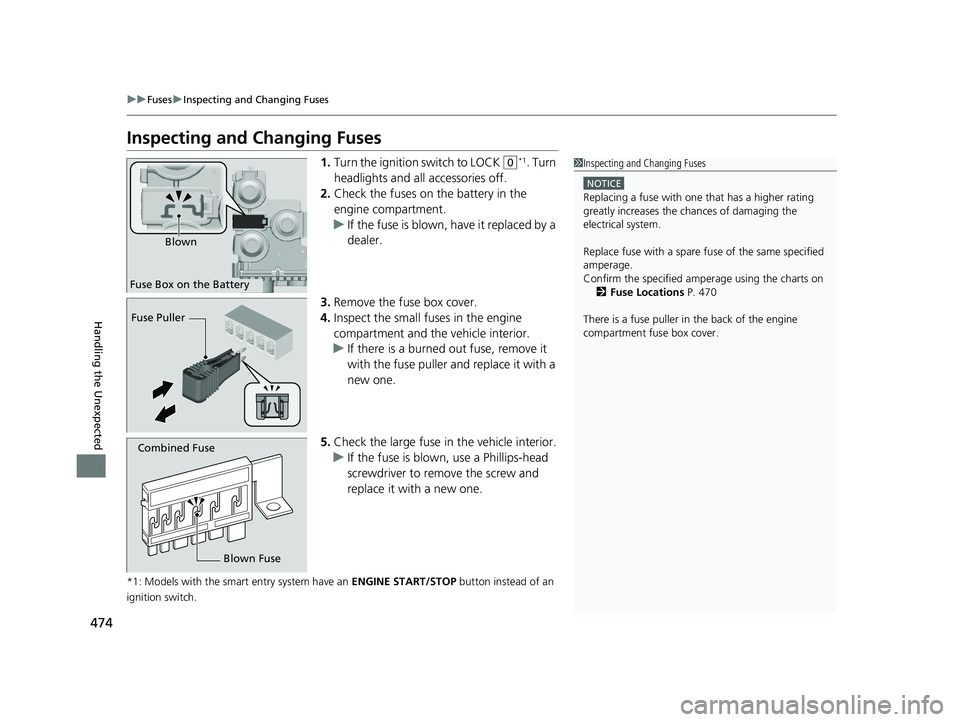

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified ampe rage using the charts on
2 Fuse Locations P. 470
There is a fuse puller in the back of the engine
compartment fuse box cover.
Fuse Box on the Battery Blown
Fuse Puller
Combined Fuse
Blown Fuse
18 HR-V-31T7A6200.book 474 ページ ２０１７年６月３０日　金曜日　午後１時２３分

475
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment. 2 Parking Brake P. 377
2WD models
All models
2WD models
18 HR-V-31T7A6200.book 475 ページ ２０１７年６月３０日　金曜日　午後１時２３分

476
Handling the Unexpected
When You Cannot Open the Tailgate

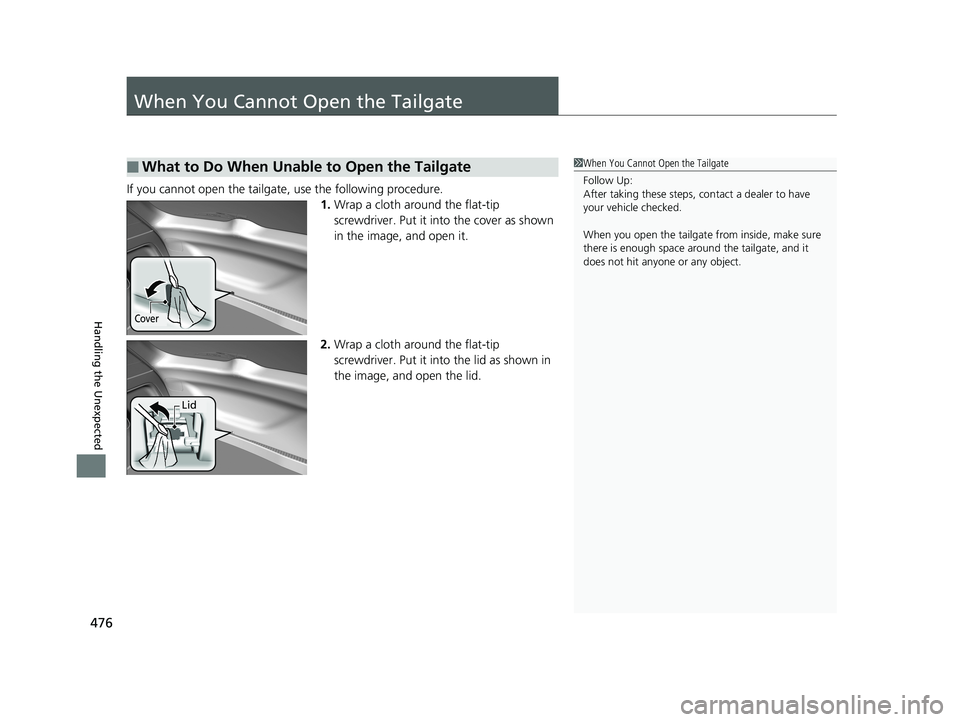

If you cannot open the tailgate, use the following procedure.1.Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover as shown
in the image, and open it.
2. Wrap a cloth around the flat-tip
screwdriver. Put it into the lid as shown in
the image, and open the lid.
■What to Do When Unable to Open the Tailgate1 When You Cannot Open the Tailgate
Follow Up:
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lid
18 HR-V-31T7A6200.book 476 ページ ２０１７年６月３０日　金曜日　午後１時２３分

477
uuWhen You Cannot Open the Tailgate u
Handling the Unexpected

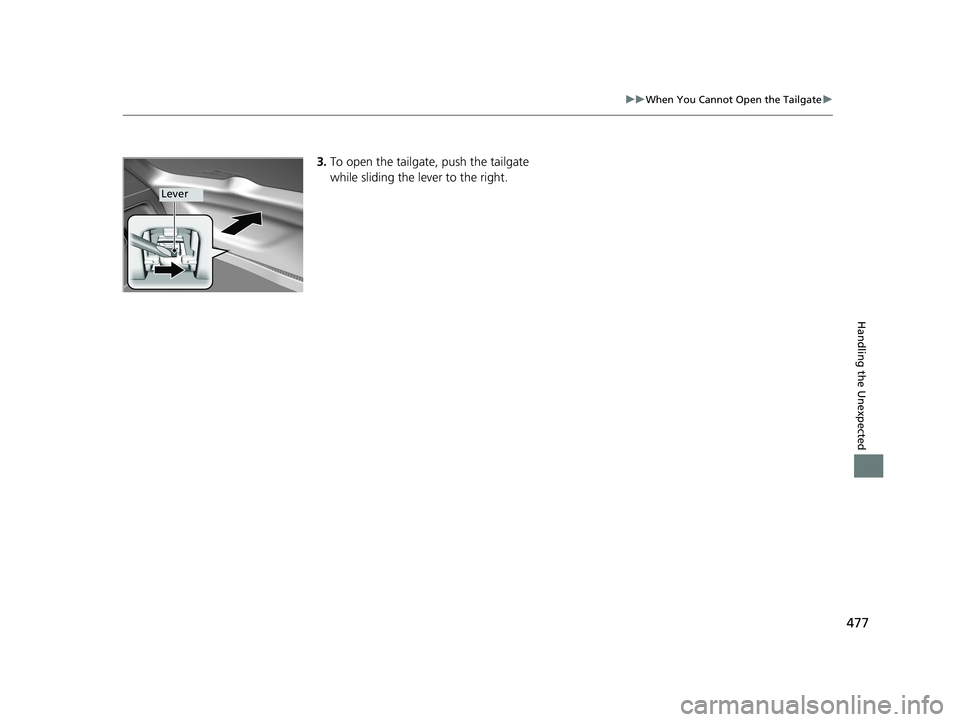

3.To open the tailgate, push the tailgate
while sliding the lever to the right.
Lever
18 HR-V-31T7A6200.book 477 ページ ２０１７年６月３０日　金曜日　午後１時２３分

478
