HONDA HR-V 2019 Owner's Manual (in English)

219
uuClimate Control System*uUsing Automatic Climate Control
Continued
Controls

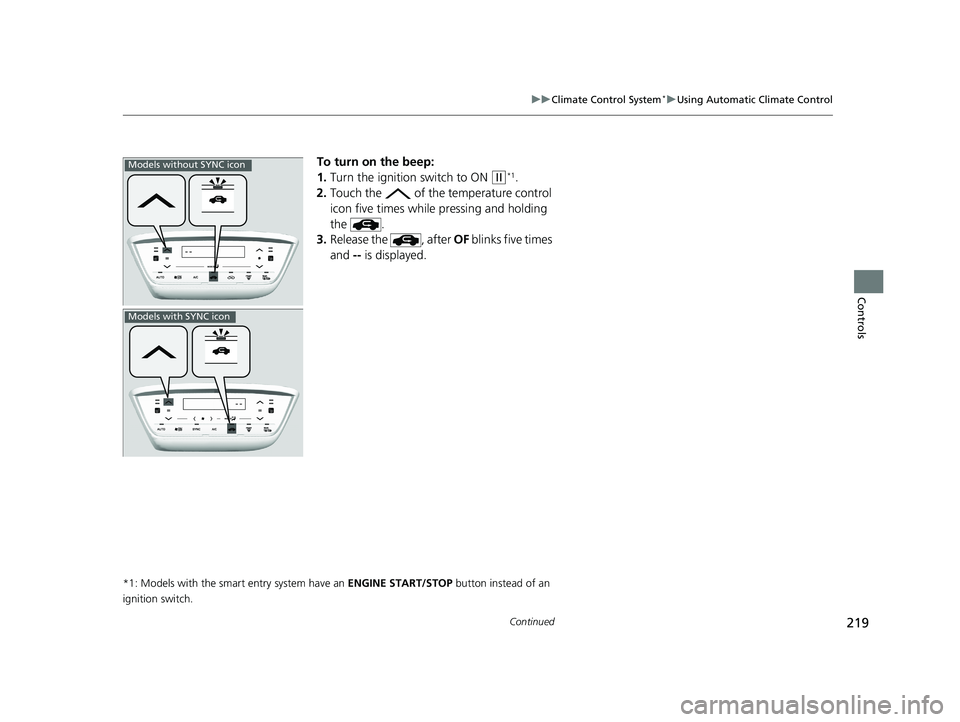

To turn on the beep:
1. Turn the ignition switch to ON
(w*1.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after OF blinks five times
and -- is displayed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models without SYNC icon
Models with SYNC icon
19 HR-V HDMC HDMG-31T7A6300.book 219 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuClimate Control System*uUsing Automatic Climate Control
220
Controls
You can set the level of sensitivity of the touch control panel to high, normal, or low.
1.Turn the ignition switch to ON
(w*1.
2. Press and hold the AUTO icon, then press
any of the following icons five times to set
the level.
• : High (Hi)
*2.
u Previous setting blinks five times and Hi
will be displayed in the temperature
display area.
• : Normal ( --)
u Previous setting blinks five times and --
will be displayed in the temperature
display area.
• : Low (Lo)
u Previous setting blinks five times and Lo
will be displayed in the temperature
display area.
3. Release the AUTO icon.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
*2: Default setting

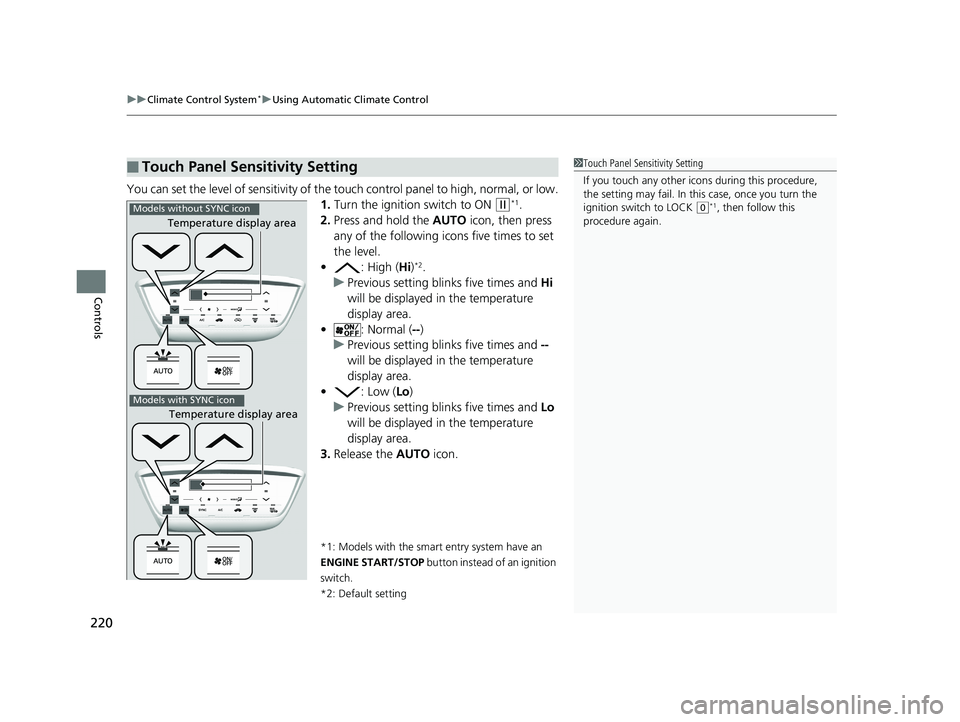

■Touch Panel Sensitivity Setting1 Touch Panel Sensitivity Setting
If you touch any other icon s during this procedure,
the setting may fail. In this case, once you turn the
ignition switch to LOCK
( 0*1, then follow this
procedure again.
Temperature display area
Temperature display area
Models without SYNC icon
Models with SYNC icon
19 HR-V HDMC HDMG-31T7A6300.book 220 ページ ２０１８年６月１日　金曜日　午後１時１４分

221
uuClimate Control System*uUsing Automatic Climate Control
Controls

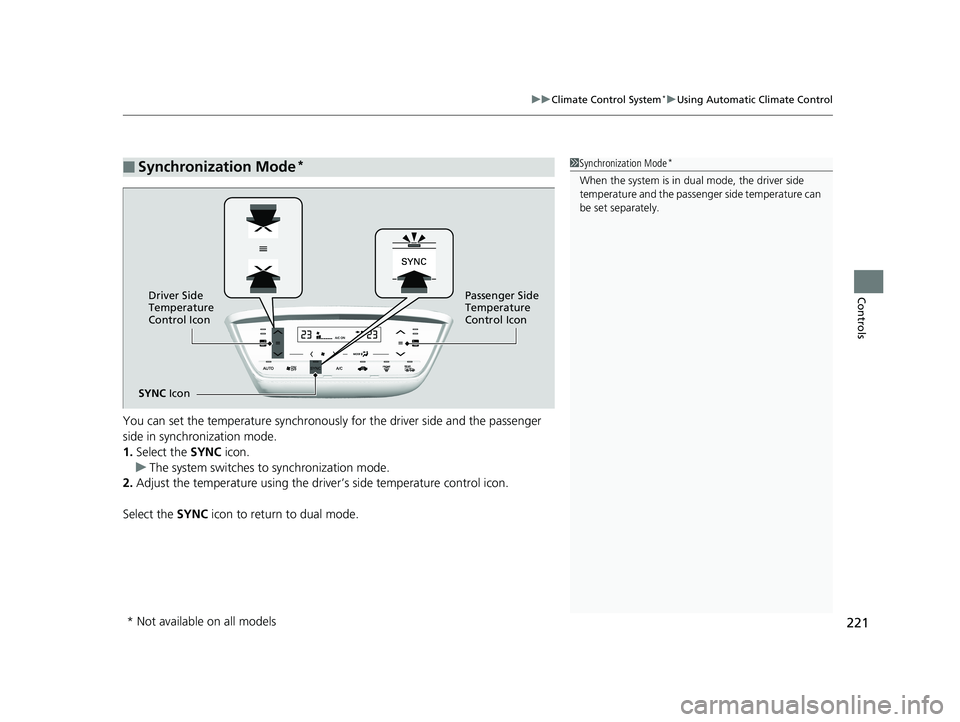

You can set the temperature synchronously for the driver side and the passenger
side in synchronization mode.
1. Select the SYNC icon.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control icon.
Select the SYNC icon to return to dual mode.
■Synchronization Mode*1Synchronization Mode*
When the system is in dua l mode, the driver side
temperature and the passenger side temperature can
be set separately.
SYNC Icon
Driver Side
Temperature
Control Icon
Passenger Side
Temperature
Control Icon
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 221 ページ ２０１８年６月１日　金曜日　午後１時１４分

222
uuClimate Control System*uAutomatic Climate Control Sensors
Controls

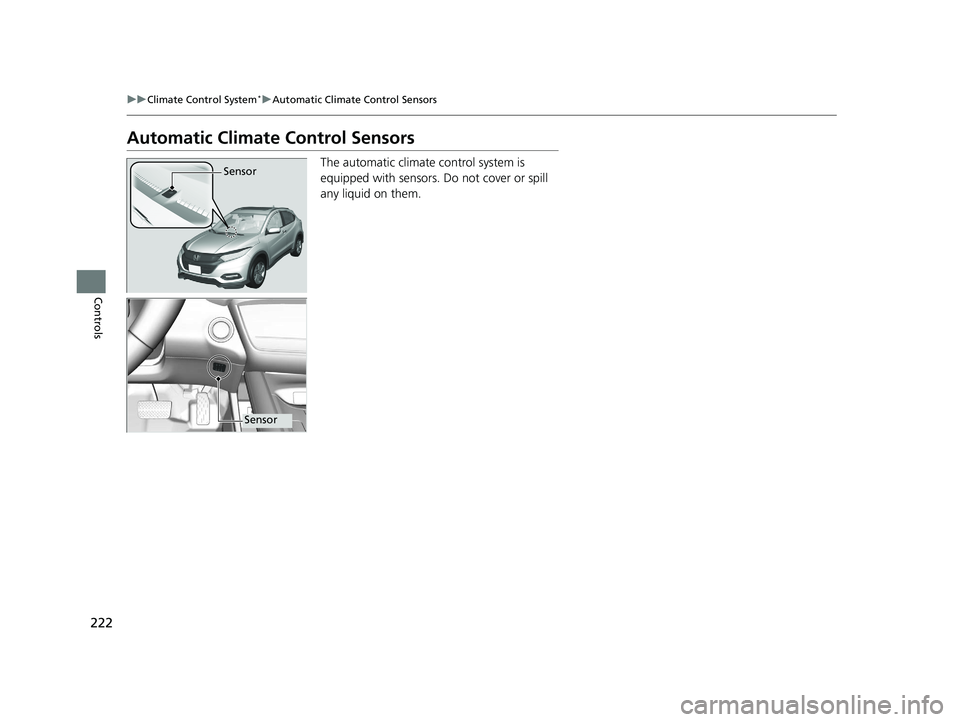

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
19 HR-V HDMC HDMG-31T7A6300.book 222 ページ ２０１８年６月１日　金曜日　午後１時１４分

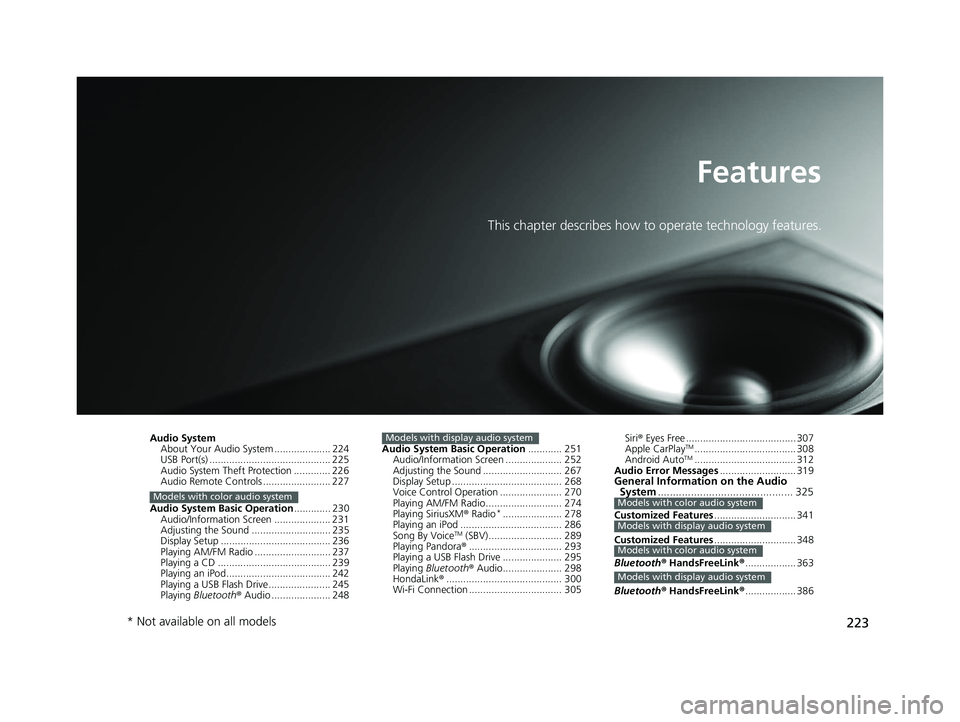

223
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 224
USB Port(s) ........................................... 225
Audio System Theft Protection ............. 226
Audio Remote Controls ........................ 227
Audio System Basic Operation ............. 230
Audio/Information Screen .................... 231
Adjusting the Sound ............................ 235
Display Setup ....................................... 236
Playing AM/FM Radio ........................... 237
Playing a CD ........................................ 239
Playing an iPod..................................... 242
Playing a USB Flash Drive...................... 245
Playing Bluetooth ® Audio ..................... 248
Models with color audio system
Audio System Basic Operation ............ 251
Audio/Information Screen .................... 252
Adjusting the Sound ............................ 267
Display Setup ....................................... 268
Voice Control Operation ...................... 270
Playing AM/FM Radio........................... 274
Playing SiriusXM ® Radio
*..................... 278
Playing an iPod .................................... 286
Song By Voice
TM (SBV).......................... 289
Playing Pandora ®................................. 293
Playing a USB Flash Drive ..................... 295
Playing Bluetooth ® Audio..................... 298
HondaLink ®......................................... 300
Wi-Fi Connection ................................. 305
Models with display audio systemSiri ® Eyes Free ....................................... 307
Apple CarPlayTM.................................... 308
Android AutoTM.................................... 312
Audio Error Messages ........................... 319
General Information on the Audio
System ............................................. 325
Customized Features ............................. 341
Customized Features ............................. 348
Bluetooth ® HandsFreeLink ®.................. 363
Bluetooth ® HandsFreeLink ®.................. 386Models with color audio system
Models with display audio system
Models with color audio system
Models with display audio system
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 223 ページ ２０１８年６月１日　金曜日　午後１時１４分

224
Features
Audio System

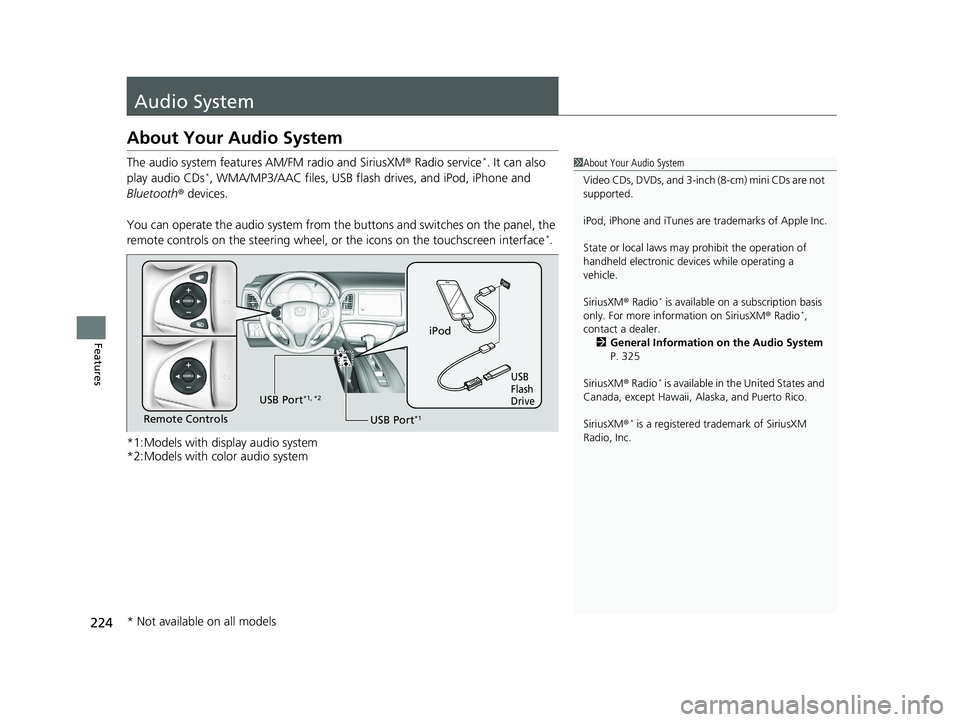

About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service*. It can also
play audio CDs*, WMA/MP3/AAC files, USB flash drives, and iPod, iPhone and
Bluetooth ® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
*1:Models with display audio system
*2:Models with color audio system
1 About Your Audio System
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
SiriusXM ® Radio
* is available on a subscription basis
only. For more information on SiriusXM ® Radio*,
contact a dealer.
2 General Information on the Audio System
P. 325
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ®
* is a registered trademark of SiriusXM
Radio, Inc.
iPod
USB
Flash
Drive
USB Port*1Remote Controls USB Port
*1, *2
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 224 ページ ２０１８年６月１日　金曜日　午後１時１４分

225
uuAudio System uUSB Port(s)
Features

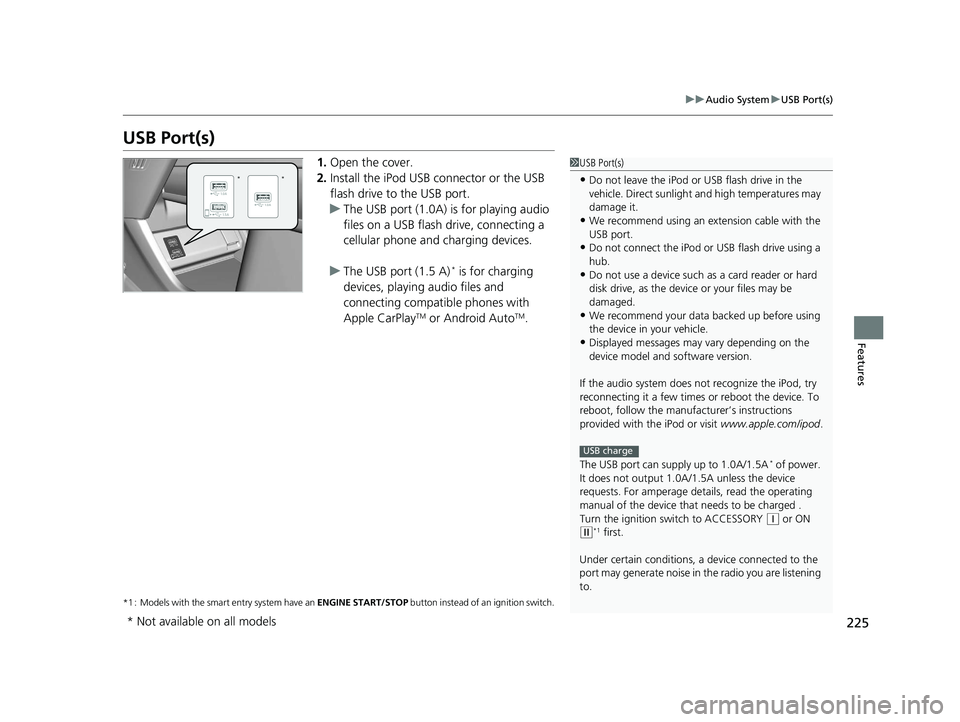

USB Port(s)
1. Open the cover.
2. Install the iPod USB connector or the USB
flash drive to the USB port.
u The USB port (1.0A) is for playing audio
files on a USB flash drive, connecting a
cellular phone and charging devices.
u The USB port (1.5 A)
* is for charging
devices, playing audio files and
connecting compatib le phones with
Apple CarPlay
TM or Android AutoTM.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend your data backed up before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0A/1.5A
* of power.
It does not output 1.0A/1 .5A unless the device
requests. For amperage de tails, read the operating
manual of the device that needs to be charged .
Turn the ignition switch to ACCESSORY
( q or ON (w*1 first.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
**
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 225 ページ ２０１８年６月１日　金曜日　午後１時１４分

226
uuAudio System uAudio System Theft Protection
Features

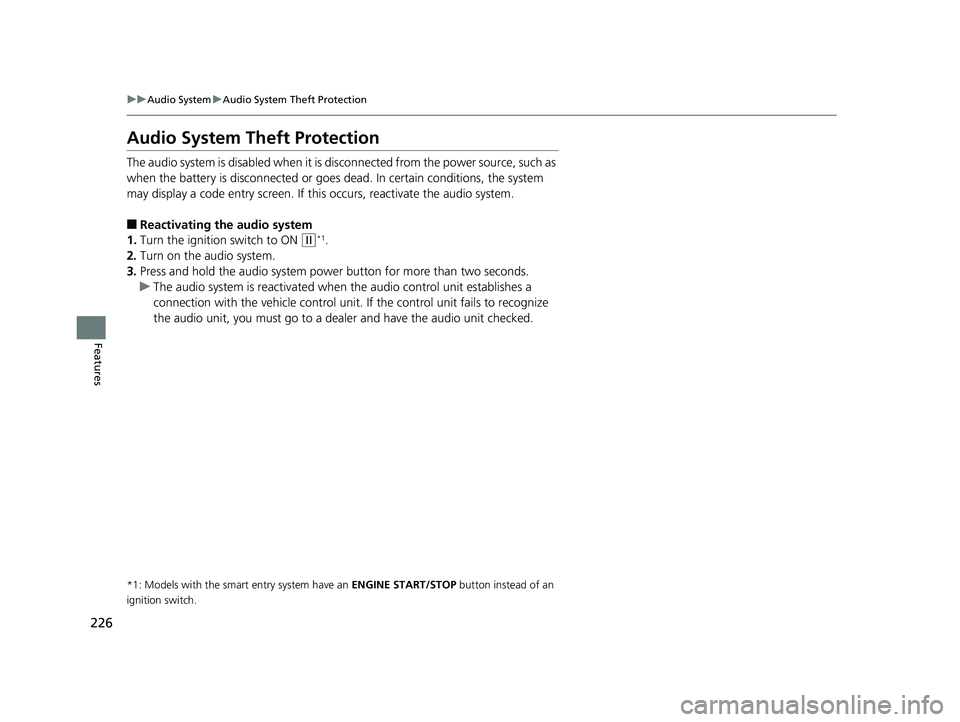

Audio System Theft Protection
The audio system is disabled when it is di sconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display a code entry screen. If this occurs, reactivate the audio system.
■Reactivating the audio system
1. Turn the ignition switch to ON
(w*1.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.
u The audio system is reac tivated when the audio co ntrol unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
19 HR-V HDMC HDMG-31T7A6300.book 226 ページ ２０１８年６月１日　金曜日　午後１時１４分

227
uuAudio System uAudio Remote Controls
Continued
Features

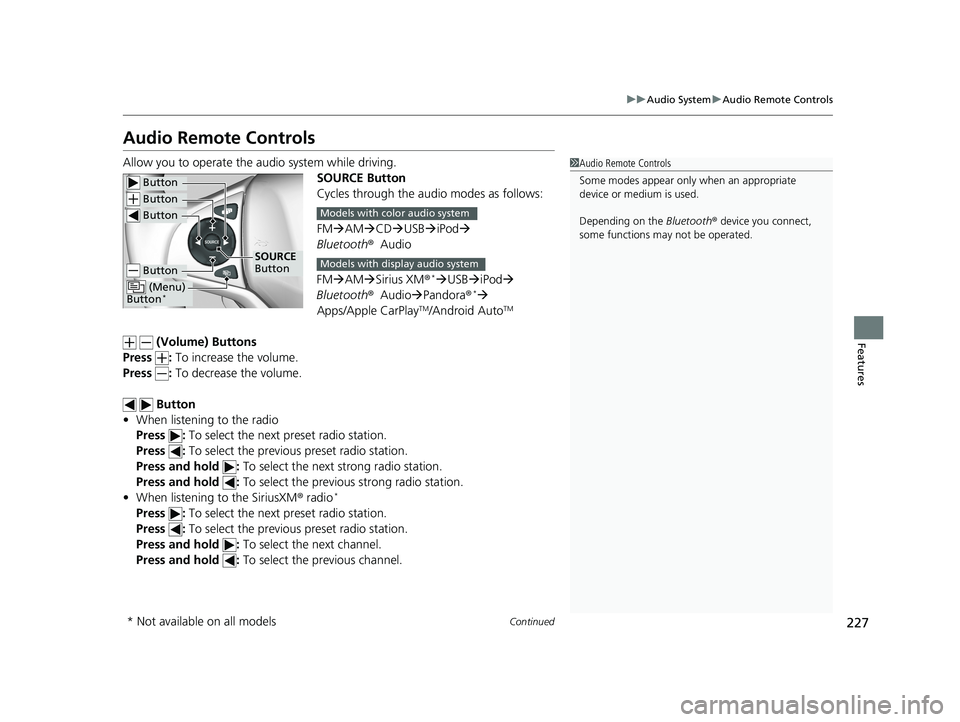

Audio Remote Controls
Allow you to operate the au dio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FMAM CD USB iPod 
Bluetooth ®Audio
FM AM Sirius XM®
*USB iPod 
Bluetooth ®Audio Pandora®*
Apps/Apple CarPlayTM/Android AutoTM
(Volume) Buttons
Press : To increase the volume.
Press : To decrease the volume.
Button
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong radio station.
Press and hold : To select the previous strong radio station.
• When listening to the SiriusXM ® radio
*
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next channel.
Press and hold : To select the previous channel.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions ma y not be operated.
Button
Button
Button
Button
(Menu)
Button*
SOURCE
Button
Models with color audio system
Models with display audio system
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 227 ページ ２０１８年６月１日　金曜日　午後１時１４分

228
uuAudio System uAudio Remote Controls
Features

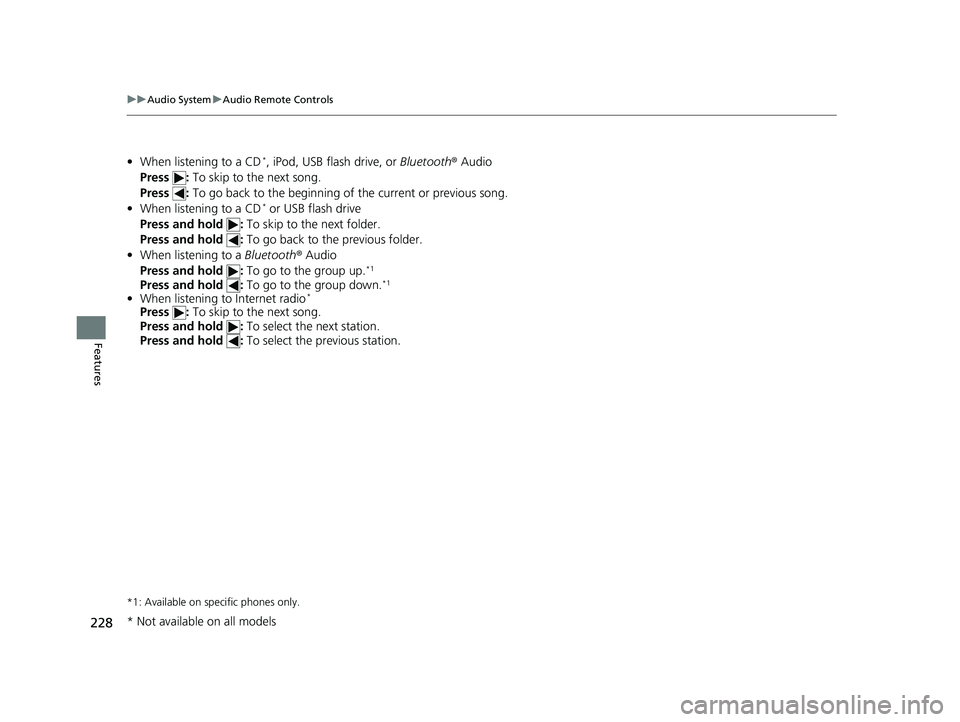

• When listening to a CD*, iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a CD
* or USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to a Bluetooth® Audio
Press and hold : To go to the group up.
*1
Press and hold : To go to the group down.*1
•When listening to Internet radio*
Press : To skip to the next song.
Press and hold : To select the next station.
Press and hold : To select the previous station.
*1: Available on specific phones only.
* Not available on all models
