uuReplacing Light Bulbs uFog Light Bulbs*
Continued
Maintenance

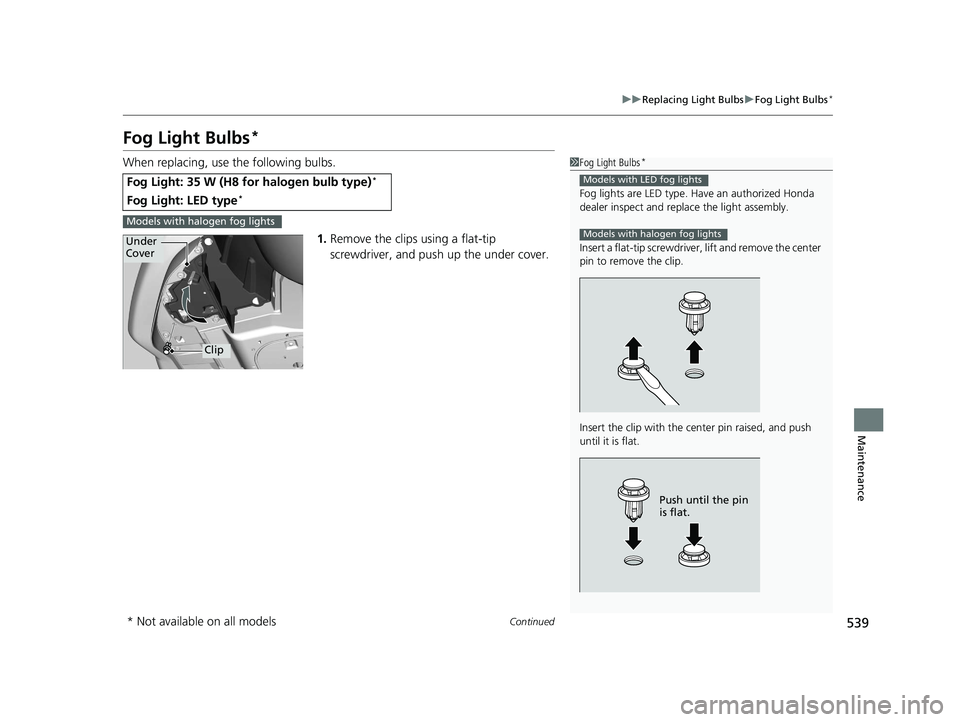

Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the clips using a flat-tip
screwdriver, and push up the under cover.
Fog Light: 35 W (H8 for halogen bulb type)*
Fog Light: LED type*
1Fog Light Bulbs*
Fog lights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Models with LED fog lights
Models with halogen fog lights
Push until the pin
is flat.
Models with halogen fog lights
Clip
Under
Cover
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 539 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Lights*
540
Maintenance

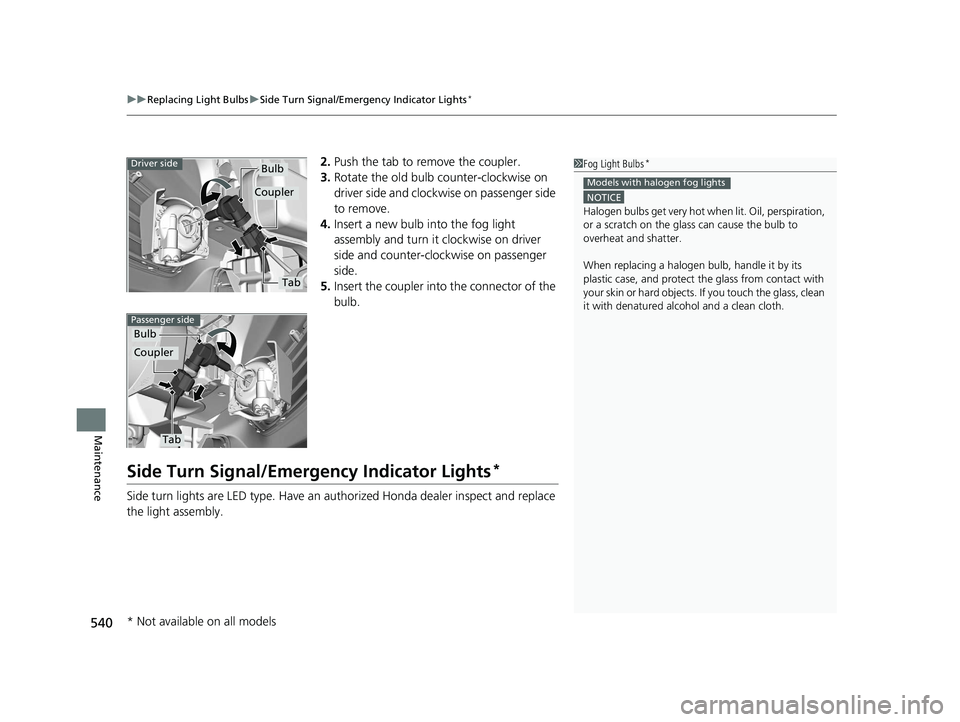

2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise on
driver side and clockw ise on passenger side
to remove.
4. Insert a new bulb into the fog light
assembly and turn it clockwise on driver
side and counter-clockwise on passenger
side.
5. Insert the coupler into the connector of the
bulb.
Side Turn Signal/Emergency Indicator Lights*
Side turn lights are LED type. Have an au thorized Honda dealer inspect and replace
the light assembly.
1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Models with halogen fog lights
Tab
Bulb
Coupler
Driver side
Tab
Bulb
Coupler
Passenger side
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 540 ページ ２０１８年６月１日　金曜日　午後１時１４分

541
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.

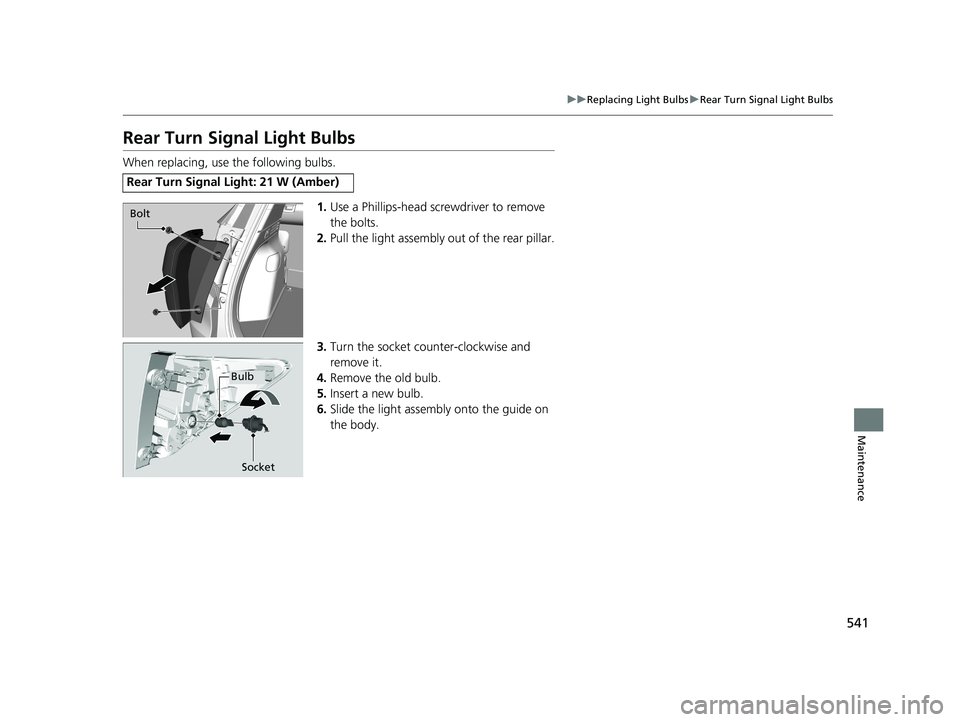

1.Use a Phillips-head sc rewdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb.
5. Insert a new bulb.
6. Slide the light assembly onto the guide on
the body.
Rear Turn Signal Light: 21 W (Amber)
Bolt
Bulb
Socket
19 HR-V HDMC HDMG-31T7A6300.book 541 ページ ２０１８年６月１日　金曜日　午後１時１４分

542
uuReplacing Light Bulbs uBack-Up Light Bulbs
Maintenance
Back-Up Light Bulbs
When replacing, use the following bulbs.

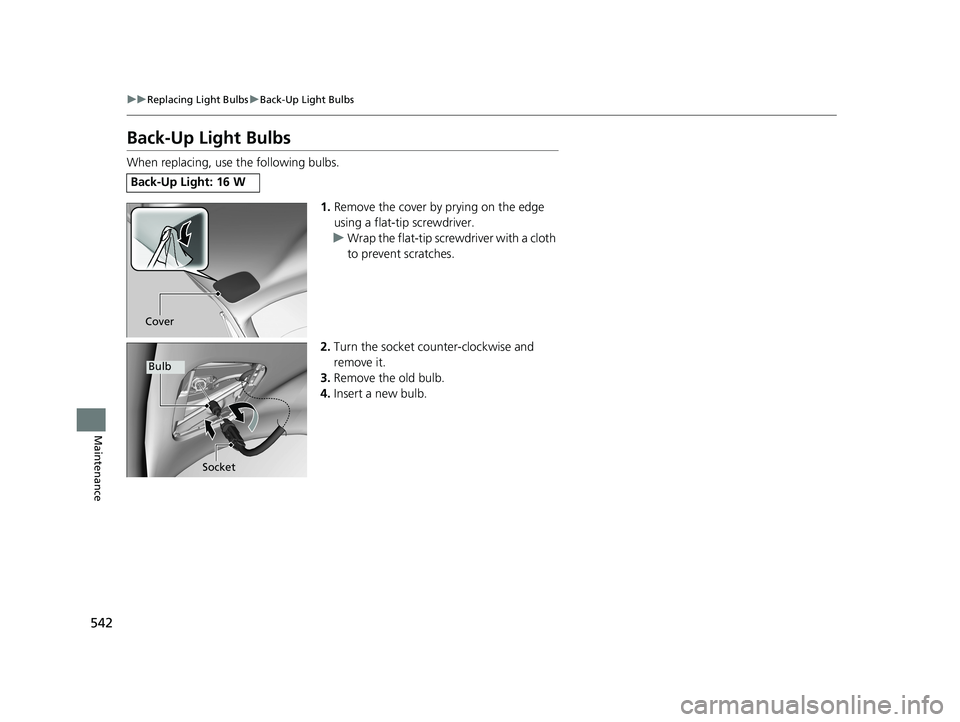

1.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb.
4. Insert a new bulb.
Back-Up Light: 16 W
Cover
Bulb
Socket
19 HR-V HDMC HDMG-31T7A6300.book 542 ページ ２０１８年６月１日　金曜日　午後１時１４分

543

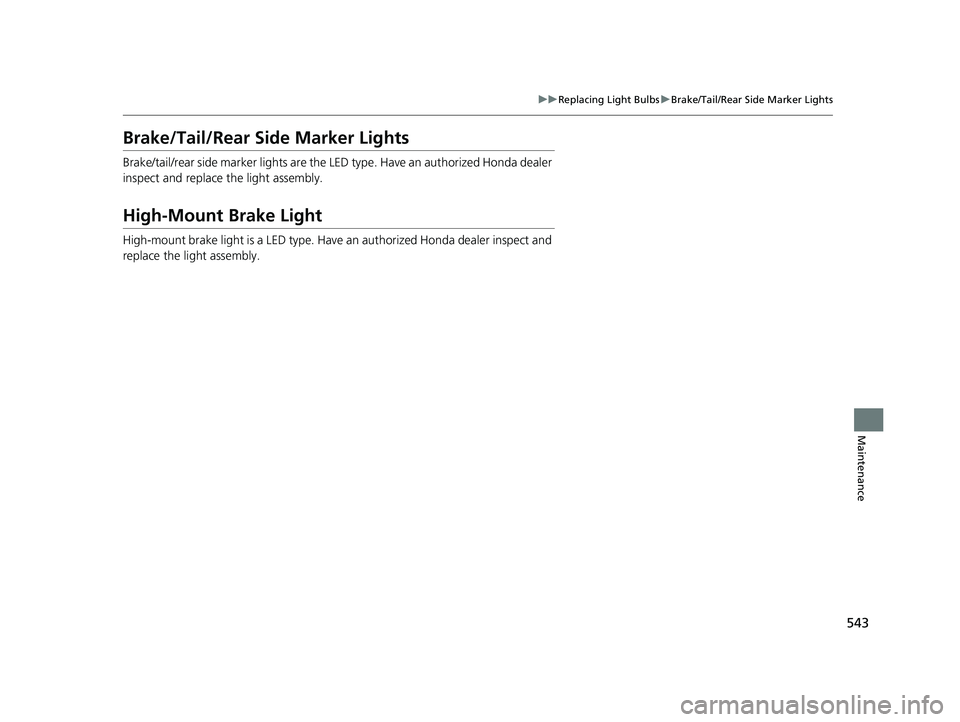

uuReplacing Light Bulbs uBrake/Tail/Rear Side Marker Lights
Maintenance
Brake/Tail/Rear Side Marker Lights
Brake/tail/rear side marker lights are the LE D type. Have an authorized Honda dealer
inspect and replace the light assembly.
High-Mount Brake Light
High-mount brake light is a LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
19 HR-V HDMC HDMG-31T7A6300.book 543 ページ ２０１８年６月１日　金曜日　午後１時１４分

544
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance
Rear License Plate Light Bulbs
When replacing, use the following bulbs.
1.Push the lens on th e left and pull out the
lens and the socket attached to it.
2. Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Lens
Bulb
19 HR-V HDMC HDMG-31T7A6300.book 544 ページ ２０１８年６月１日　金曜日　午後１時１４分

545Continued
Maintenance

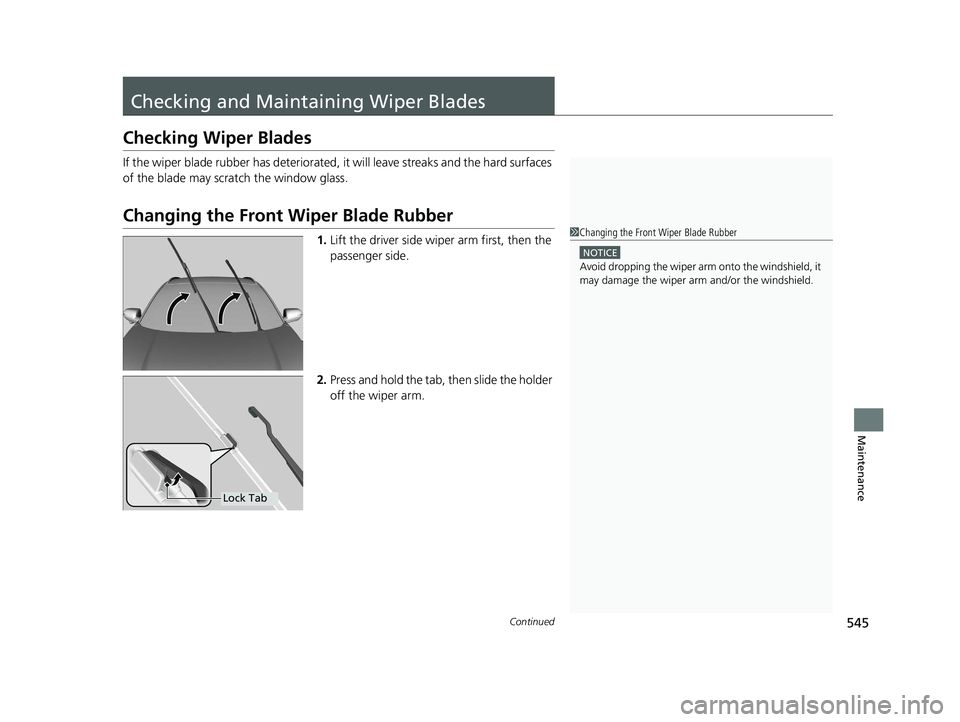

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the holder
off the wiper arm.1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
Lock Tab
19 HR-V HDMC HDMG-31T7A6300.book 545 ページ ２０１８年６月１日　金曜日　午後１時１４分

546
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

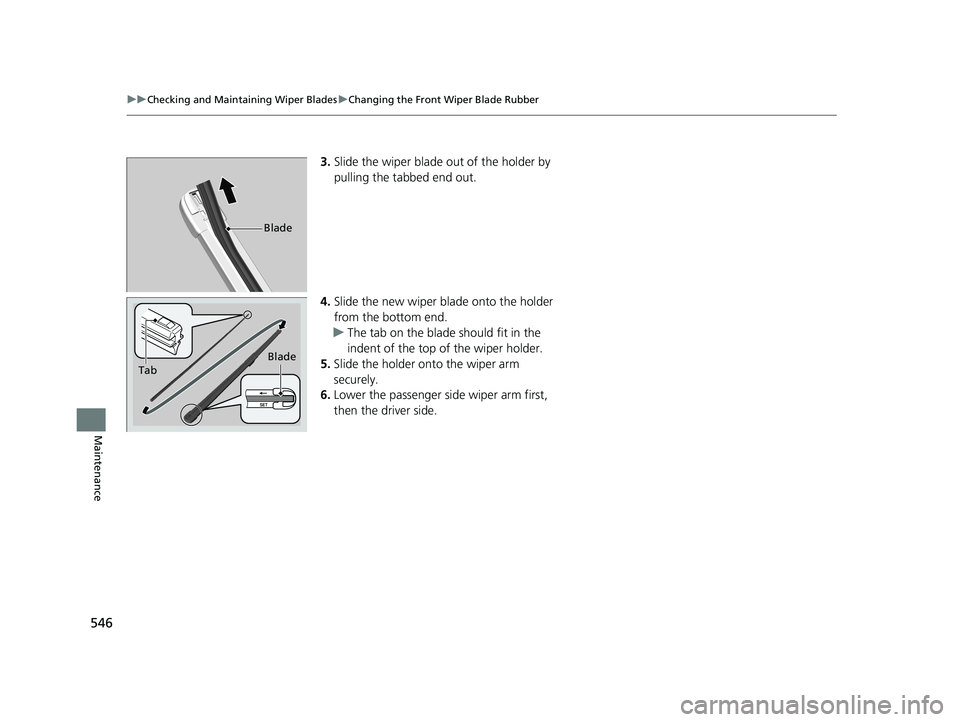

3. Slide the wiper blade out of the holder by
pulling the tabbed end out.
4. Slide the new wiper blade onto the holder
from the bottom end.
u The tab on the blade should fit in the
indent of the top of the wiper holder.
5. Slide the holder onto the wiper arm
securely.
6. Lower the passenger side wiper arm first,
then the driver side.
Blade
Tab Blade
19 HR-V HDMC HDMG-31T7A6300.book 546 ページ ２０１８年６月１日　金曜日　午後１時１４分

547
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Continued
Maintenance

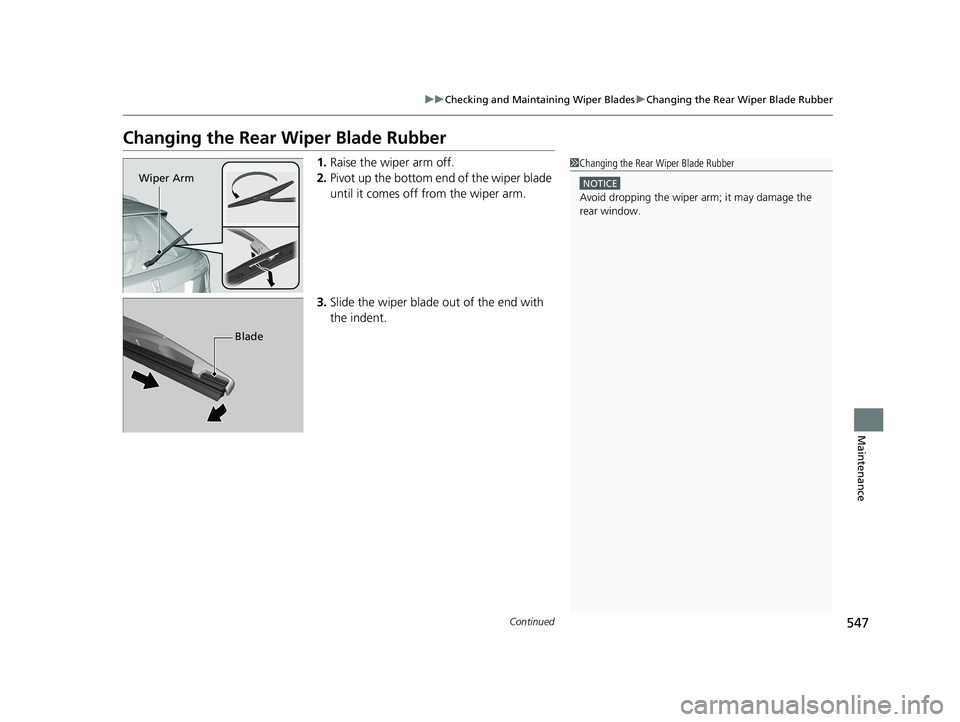

Changing the Rear Wiper Blade Rubber
1.Raise the wiper arm off.
2. Pivot up the bottom end of the wiper blade
until it comes off from the wiper arm.
3. Slide the wiper blade out of the end with
the indent.1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
rear window.
Wiper Arm
Blade
19 HR-V HDMC HDMG-31T7A6300.book 547 ページ ２０１８年６月１日　金曜日　午後１時１４分

548
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Maintenance

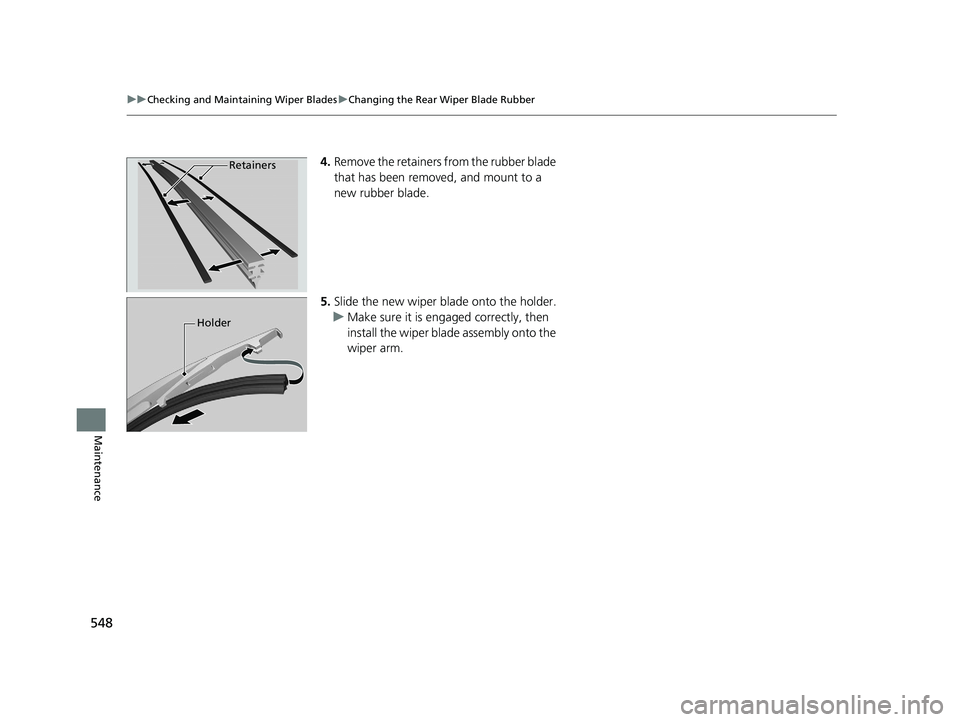

4. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
5. Slide the new wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.Retainers
