HONDA HR-V 2019 Owner's Manual (in English)

569
uuCleaning uExterior Care
Maintenance

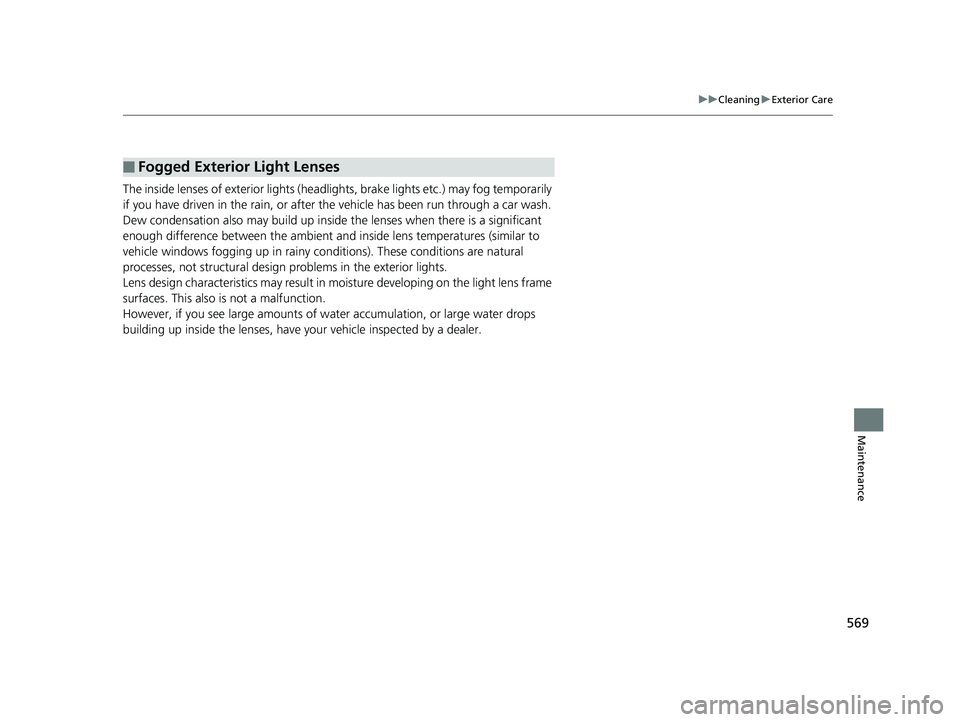

The inside lenses of exterior lights (headlights, brake lights etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
19 HR-V HDMC HDMG-31T7A6300.book 569 ページ ２０１８年６月１日　金曜日　午後１時１４分

570
Maintenance

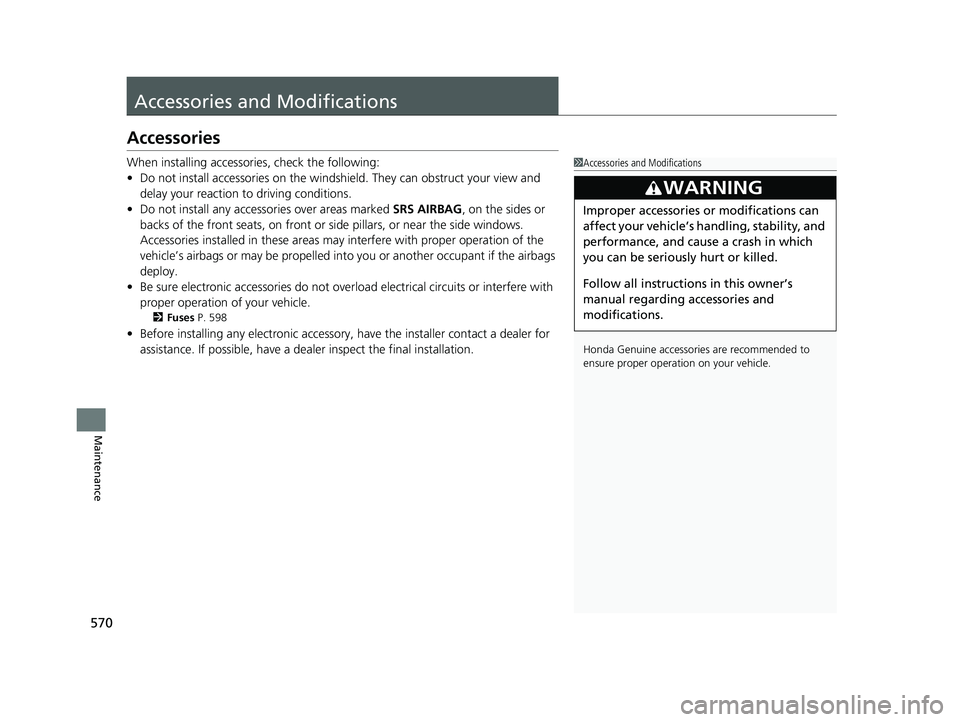

Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshie ld. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 598
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
19 HR-V HDMC HDMG-31T7A6300.book 570 ページ ２０１８年６月１日　金曜日　午後１時１４分

571
uuAccessories and Modifications uModifications
Maintenance

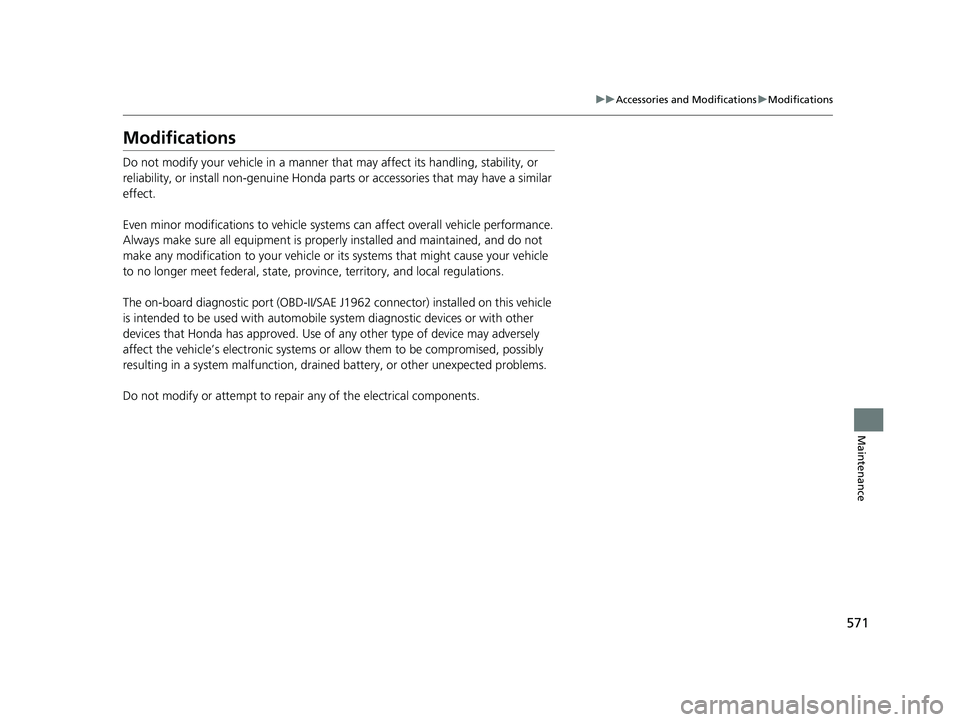

Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair any of the electrical components.
19 HR-V HDMC HDMG-31T7A6300.book 571 ページ ２０１８年６月１日　金曜日　午後１時１４分

572
19 HR-V HDMC HDMG-31T7A6300.book 572 ページ ２０１８年６月１日　金曜日　午後１時１４分

573

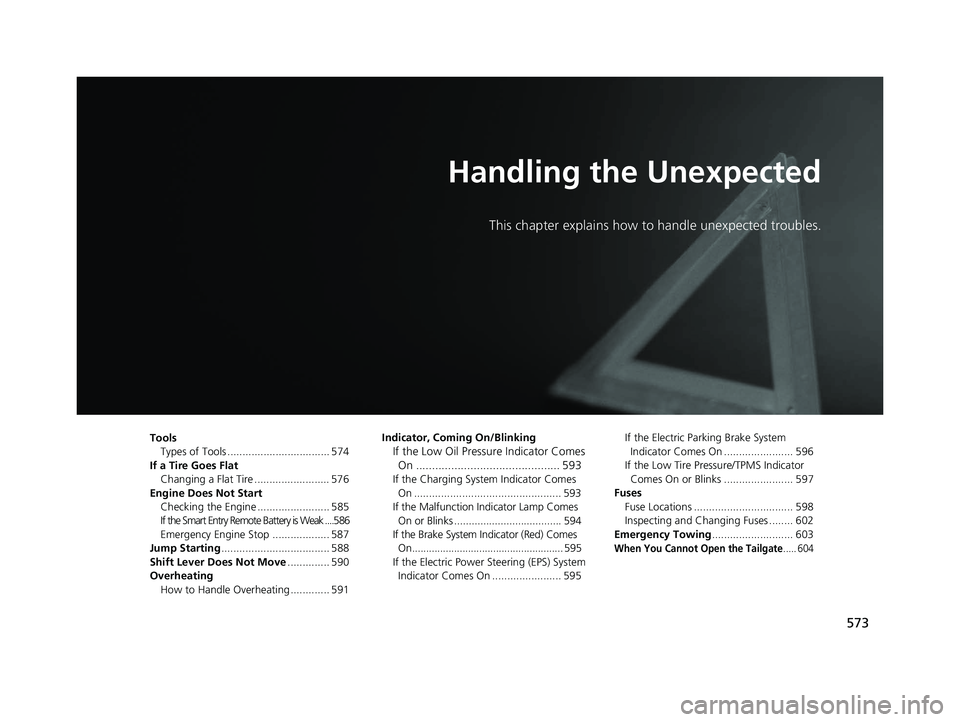

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 574
If a Tire Goes Flat Changing a Flat Tire ......................... 576
Engine Does Not Start Checking the Engine ........................ 585
If the Smart Entry Remote Battery is Weak ....586
Emergency Engine Stop ................... 587
Jump Starting .................................... 588
Shift Lever Does Not Move .............. 590
Overheating How to Handle Overheating ............. 591 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 593
If the Charging System Indicator Comes
On ................................................. 593
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 594
If the Brake System Indicator (Red) Comes On...................................................... 595
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 595 If the Electric Parking Brake System
Indicator Comes On ....................... 596
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 597
Fuses Fuse Locations ................................. 598
Inspecting and Changing Fuses ........ 602
Emergency Towing ........................... 603
When You Cannot Open the Tailgate..... 604
19 HR-V HDMC HDMG-31T7A6300.book 573 ページ ２０１８年６月１日　金曜日　午後１時１４分

574
Handling the Unexpected

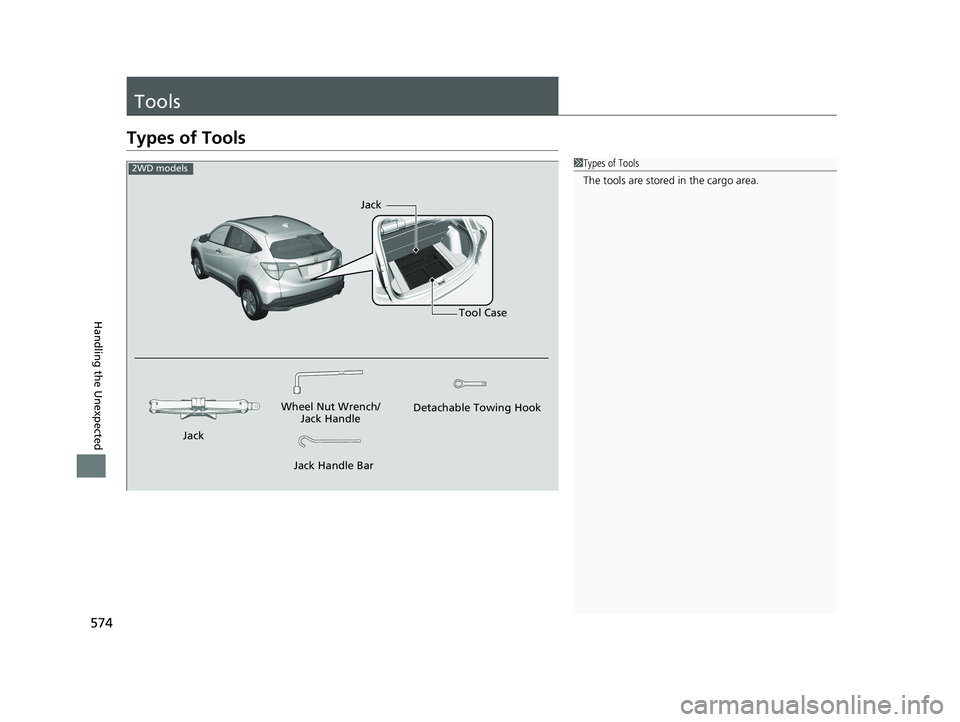

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle
Jack Handle Bar Detachable Towing HookTool Case
Jack
Jack
2WD models
19 HR-V HDMC HDMG-31T7A6300.book 574 ページ ２０１８年６月１日　金曜日　午後１時１４分

575

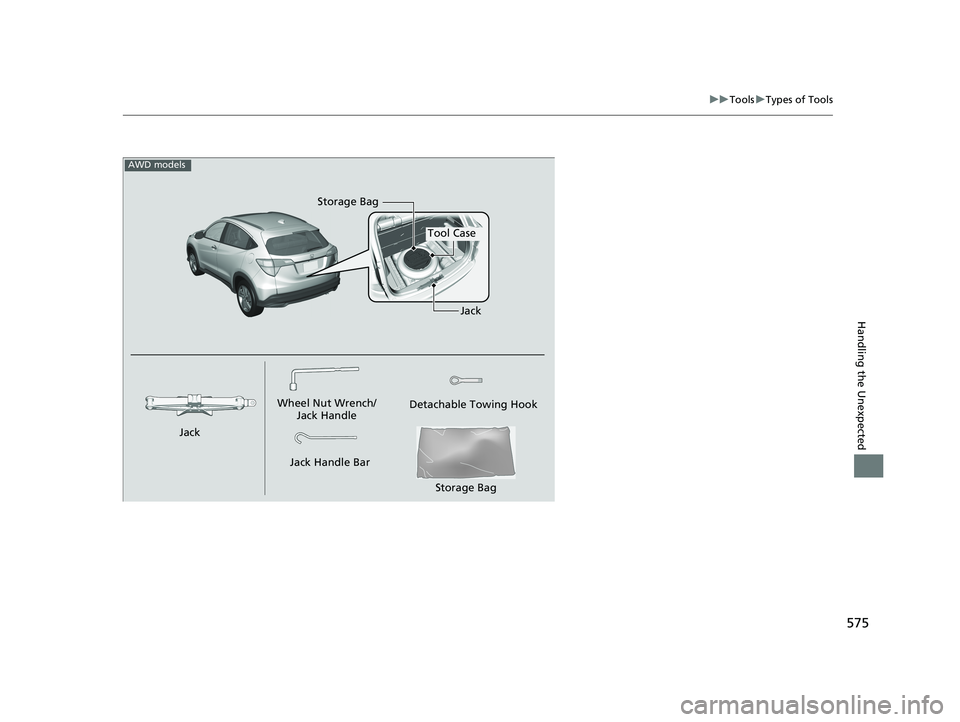

uuTools uTypes of Tools
Handling the Unexpected
Wheel Nut Wrench/
Jack Handle
Jack Handle Bar Detachable Towing Hook
Tool Case
Jack
Jack
AWD models
Storage Bag
Storage Bag
19 HR-V HDMC HDMG-31T7A6300.book 575 ページ ２０１８年６月１日　金曜日　午後１時１４分

576
Handling the Unexpected

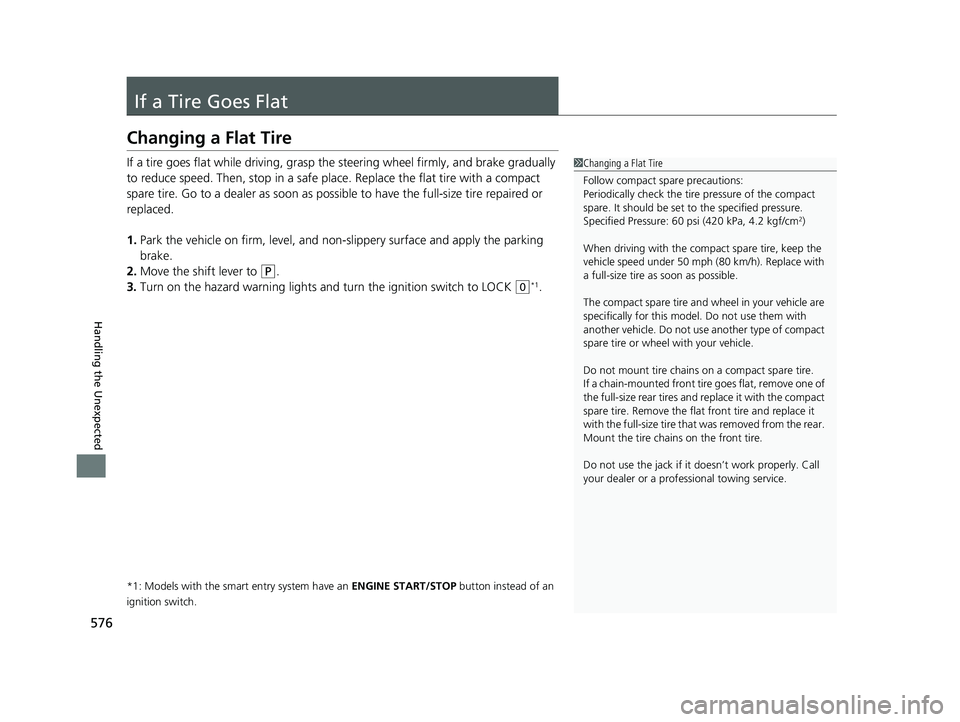

If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have th e full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Move the shift lever to
(P.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
19 HR-V HDMC HDMG-31T7A6300.book 576 ページ ２０１８年６月１日　金曜日　午後１時１４分

Continued577

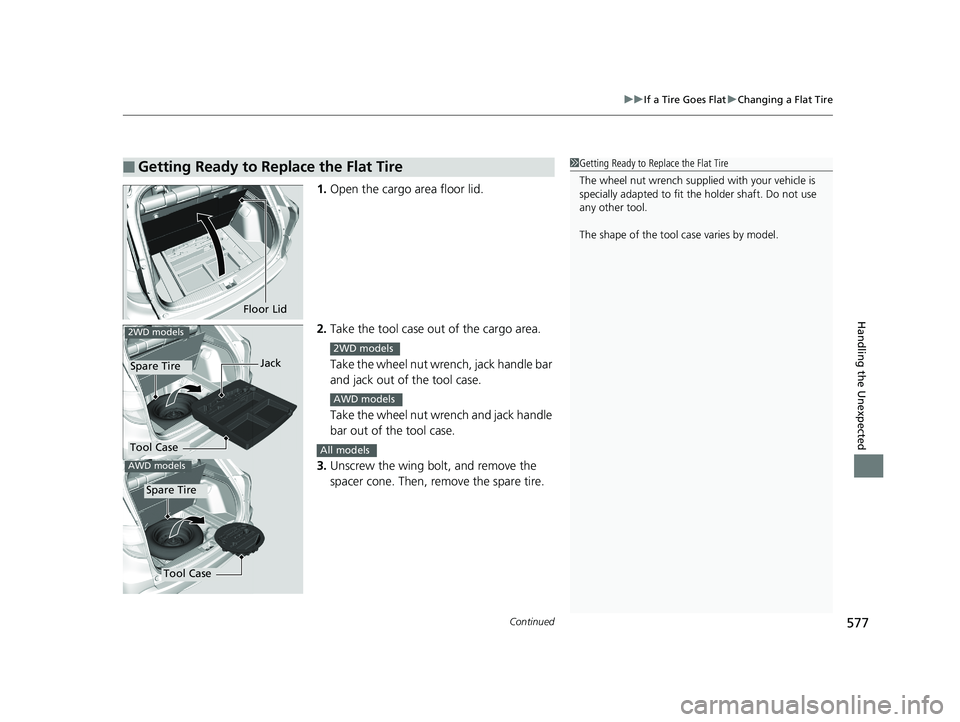

uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Open the cargo area floor lid.
2. Take the tool case out of the cargo area.
Take the wheel nut wrench, jack handle bar
and jack out of the tool case.
Take the wheel nut wrench and jack handle
bar out of the tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
■Getting Ready to Replace the Flat Tire1Getting Ready to Replace the Flat Tire
The wheel nut wrench supplied with your vehicle is
specially adapted to fit th e holder shaft. Do not use
any other tool.
The shape of the tool case varies by model.
Floor Lid
Tool Case Jack
Spare Tire
2WD models
AWD models
Tool Case
Spare Tire
2WD models
AWD models
All models
19 HR-V HDMC HDMG-31T7A6300.book 577 ページ ２０１８年６月１日　金曜日　午後１時１４分

578
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

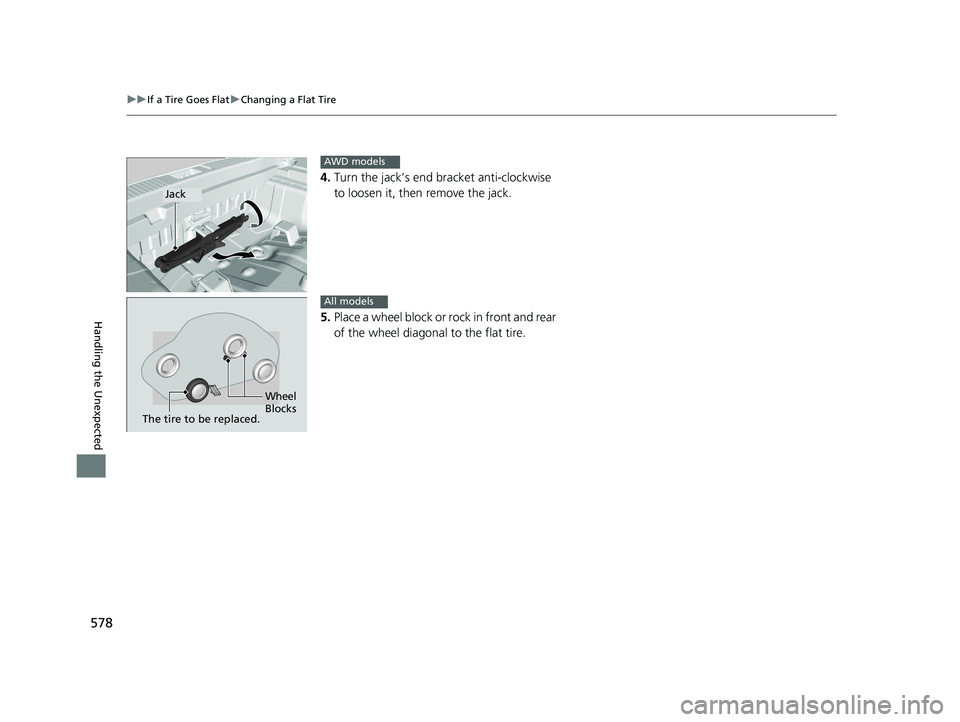

4. Turn the jack’s end bracket anti-clockwise
to loosen it, then remove the jack.
5. Place a wheel block or ro ck in front and rear
of the wheel diagonal to the flat tire.
Jack
AWD models
Wheel
Blocks
The tire to be replaced.
All models
