511Continued
Driving

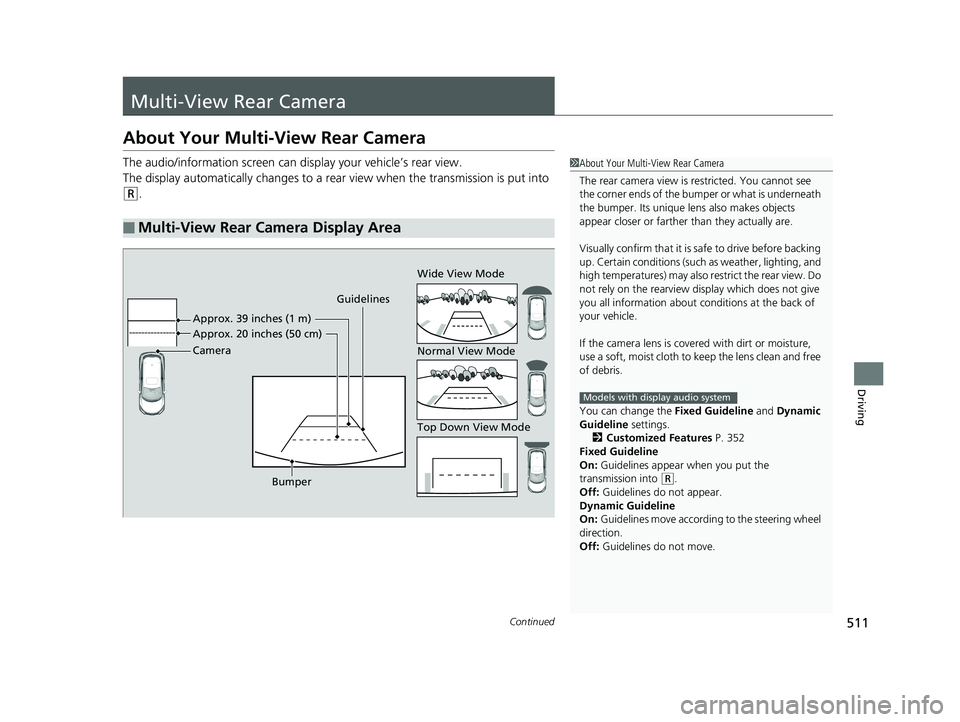

Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to a rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 352
Fixed Guideline
On: Guidelines appear when you put the
transmission into
( R.
Off: Guidelines do not appear.
Dynamic Guideline
On: Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.
Models with display audio system
Guidelines
Bumper Wide View Mode
Normal View Mode
Top Down View Mode
Camera Approx. 20 inches (50 cm) Approx. 39 inches (1 m)
20 HR-V HDMC HDMG-31T7A6400.book 511 ページ ２０１９年８月８日　木曜日　午後３時５２分

555Continued
Maintenance

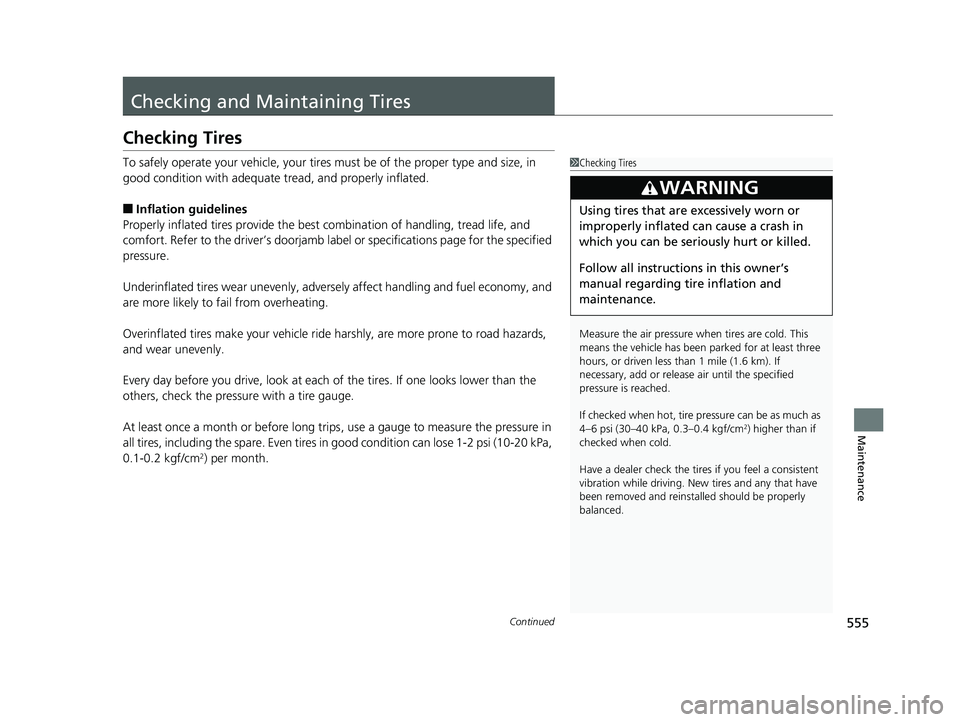

Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb labe l or specifications page for the specified
pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1-2 psi (10-20 kPa,
0.1-0.2 kgf/cm
2) per month.
1 Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
20 HR-V HDMC HDMG-31T7A6400.book 555 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuChecking and Maintaining Tires uChecking Tires
556
Maintenance

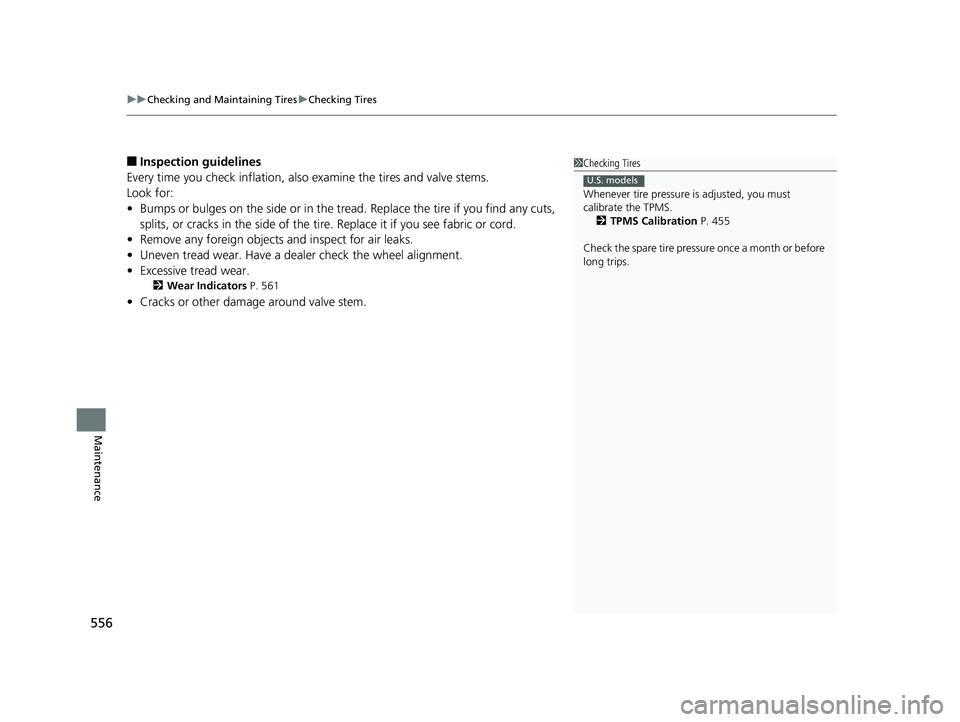

■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 561
•Cracks or other damage around valve stem.
1Checking Tires
Whenever tire pressure is adjusted, you must
calibrate the TPMS.
2 TPMS Calibration P. 455
Check the spare tire pressu re once a month or before
long trips.
U.S. models
20 HR-V HDMC HDMG-31T7A6400.book 556 ページ ２０１９年８月８日　木曜日　午後３時５２分

631
Index
Keys........................................................ 136
Lockout Prevention System ..................... 147
Using a Key............................................. 146
Lockout Prevention System ..................... 147
Low Battery Charge ................................. 599
Low Fuel Indicator ..................................... 87
Low Oil Pressure Indicator ................. 85, 599
Lower Anchors ........................................... 69
Lubricant Specifications Chart ................ 615
Luggage (Maximum Load Limit) ............. 427
M
Maintenance............................................ 517
Battery .................................................... 566
Brake Fluid .............................................. 539
Cleaning ................................................. 571
Coolant .................................................. 536
Heating and Cooling Sy stem/Climate Control
System .................................................. 570
Maintenance Minder............................... 521
Oil .......................................................... 532
Precautions ............................................. 519
Radiator .................................................. 537
Remote Transmitter ................................ 568
Replacing Light Bulbs .............................. 541
Safety ..................................................... 519
Service Items ................................... 523, 527
Tires........................................................ 555
Transmission Fluid ................................... 538
Under the Hood ...................................... 529 Malfunction Indicator Lamp
.............. 85, 600
Map Lights ................................................ 202
Maximum Load Limit ............................... 427
Meters, Gauges ......................................... 113
Mirrors ....................................................... 187
Adjusting ................................................. 187
Door........................................................ 189
Exterior .................................................... 189
Interior Rearview ............................. 187, 188
Modifications (and Accessories) .............. 576
Moonroof .................................................. 164
MP3 ........................................... 243, 249, 299
Multi-Information Display ....................... 118
Multi-View Rear Camera .......................... 511
N
Numbers (Identification).......................... 616
O
Odometer.......................................... 116, 120
Off-Highway Driving Guidelines ............. 430
Oil (Engine) ............................................... 531
Adding .................................................... 533
Checking ................................................. 532
Displaying Oil Life .................................... 521
Displaying the Maintenance Minder Information ........................................... 525
Low Oil Pressure Indicator .................. 85, 599
Recommended Engine Oil ........................ 531 Viscosity .................................................. 531
Open Source Licenses ............................... 322
Opening and Closing the Moonroof ....... 164
Opening/Closing Hood....................................................... 530
Moonroof ............................................... 164
Power Windows ...................................... 162
Tailgate ................................................... 156
Outside Temperature Display .......... 114, 117
Overheating .............................................. 597
P
Paddle Shifters (7-Speed Manual Shift
Mode) ........................................ 23, 444, 445
Pandora ®................................................... 297
Panic Mode ............................................... 161
Parking ...................................................... 510
Parking Brake ........................................... 503
Passenger Front Airb ag Off Indicator....... 62
Passing Indicators ..................................... 171
Playing Bluetooth ® Audio ................ 252, 302
Power Windows ....................................... 162
Precautions While Driving
Driving Guidelines for Your Utility Vehicle .................................................. 438
Rain ........................................................ 438
Pregnant Women ....................................... 48
Puncture (Tire) .......................................... 582
