HONDA HR-V 2020 Owner's Manual (in English)

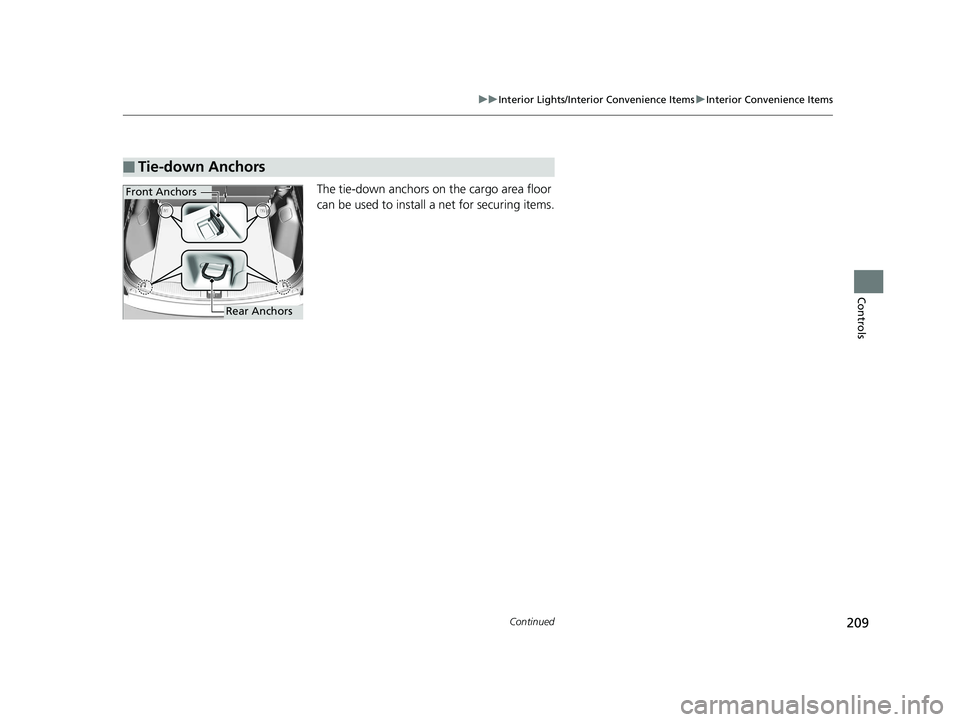

209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Tie-down Anchors
Front Anchors
Rear Anchors
20 HR-V HDMC HDMG-31T7A6400.book 209 ページ ２０１９年８月８日　木曜日　午後３時５２分

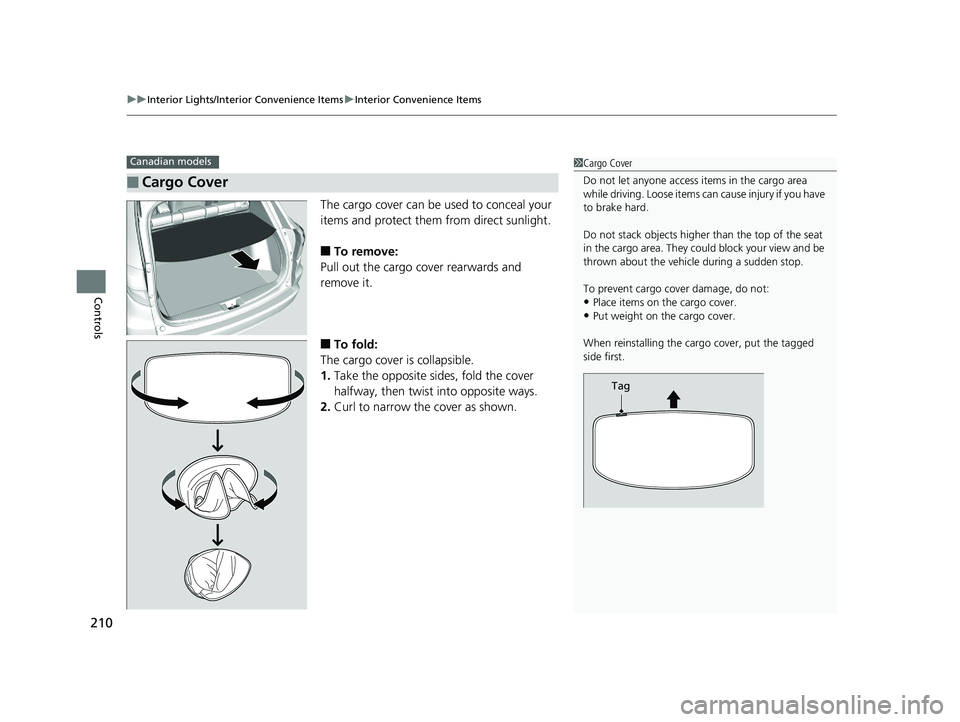

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
210
Controls
The cargo cover can be used to conceal your
items and protect them from direct sunlight.
■To remove:
Pull out the cargo cover rearwards and
remove it.
■To fold:
The cargo cover is collapsible.
1. Take the opposite sides, fold the cover
halfway, then twist into opposite ways.
2. Curl to narrow the cover as shown.
■Cargo Cover
Canadian models1Cargo Cover
Do not let anyone access items in the cargo area
while driving. Loose items ca n cause injury if you have
to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo cover damage, do not:
•Place items on the cargo cover.•Put weight on the cargo cover.
When reinstalling the carg o cover, put the tagged
side first.
Tag
20 HR-V HDMC HDMG-31T7A6400.book 210 ページ ２０１９年８月８日　木曜日　午後３時５２分

211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The ignition switch must be in ON (w*1 to use
the seat heaters.
Touch the seat heater icon.
Once - The HI setting (two indicators on)
Twice - The LO setting
Three times - The OFF setting (no indicator on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Heaters*1 Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 211 ページ ２０１９年８月８日　木曜日　午後３時５２分

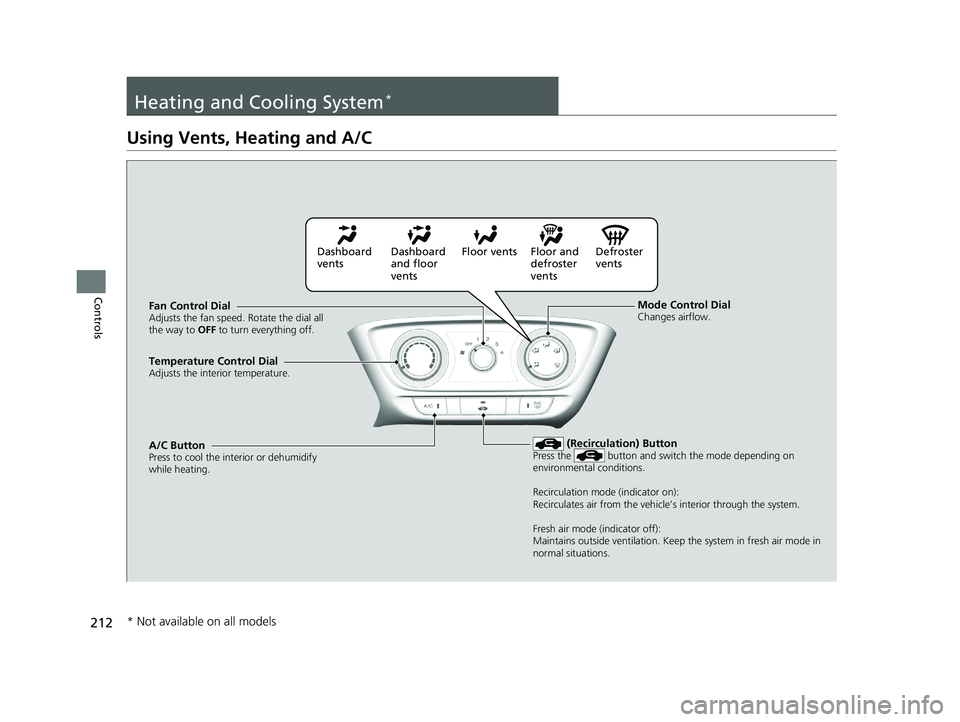

212
Controls
Heating and Cooling System*
Using Vents, Heating and A/C
Mode Control DialChanges airflow.Fan Control DialAdjusts the fan speed. Rotate the dial all
the way to OFF to turn everything off.
A/C ButtonPress to cool the interior or dehumidify
while heating.
Temperature Control DialAdjusts the interior temperature.
(Recirculation) ButtonPress the button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on):
Recirculates air from the vehicle’s interior through the system.
Fresh air mode (indicator off):
Maintains outside ventilation. Keep the system in fresh air mode in
normal situations.
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
ventsDefroster
vents
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 212 ページ ２０１９年８月８日　木曜日　午後３時５２分

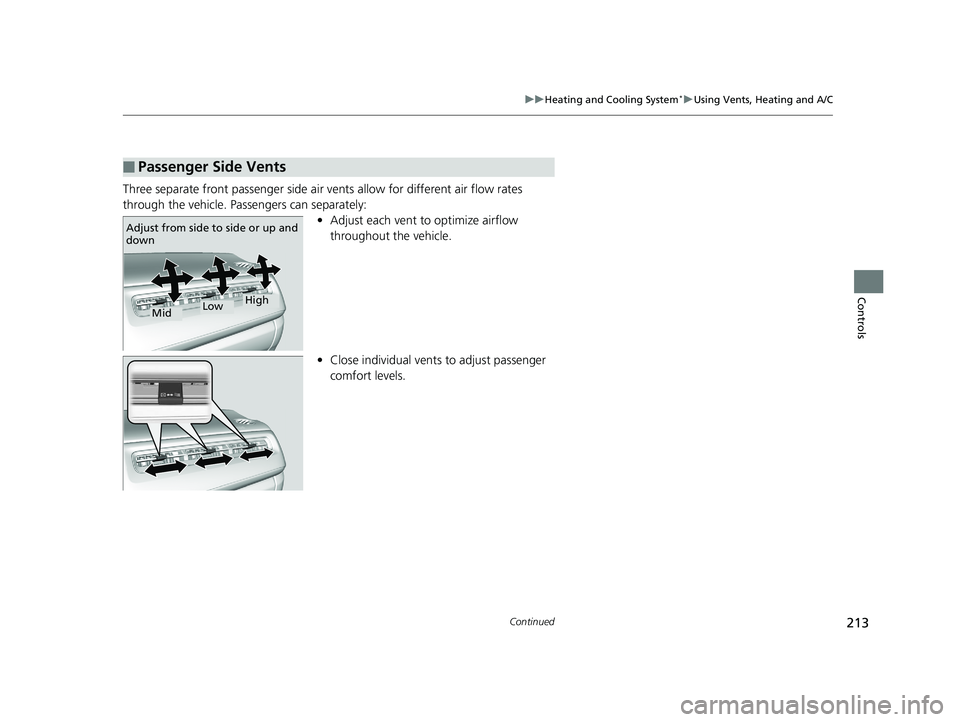

213
uuHeating and Cooling System*uUsing Vents, Heating and A/C
Continued
Controls
Three separate front passenger side air vents allow for different air flow rates
through the vehicle. Passengers can separately:
•Adjust each vent to optimize airflow
throughout the vehicle.
• Close individual vents to adjust passenger
comfort levels.
■Passenger Side Vents
Adjust from side to side or up and
down
MidLowHigh
20 HR-V HDMC HDMG-31T7A6400.book 213 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuHeating and Cooling System*uUsing Vents, Heating and A/C
214
Controls
The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum warm.
4. Press the button (the indicator on).
■To dehumidify the interior
When used in combination with the heater , the air conditioning system makes the
interior warm and dry and can prevent the windows from fogging up.
1. Turn the fan on.
2. Press the A/C button to turn on the air conditioning.
■Heating1Heating
When you select , the mode automatically
switches to fresh air.
1To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.
20 HR-V HDMC HDMG-31T7A6400.book 214 ページ ２０１９年８月８日　木曜日　午後３時５２分

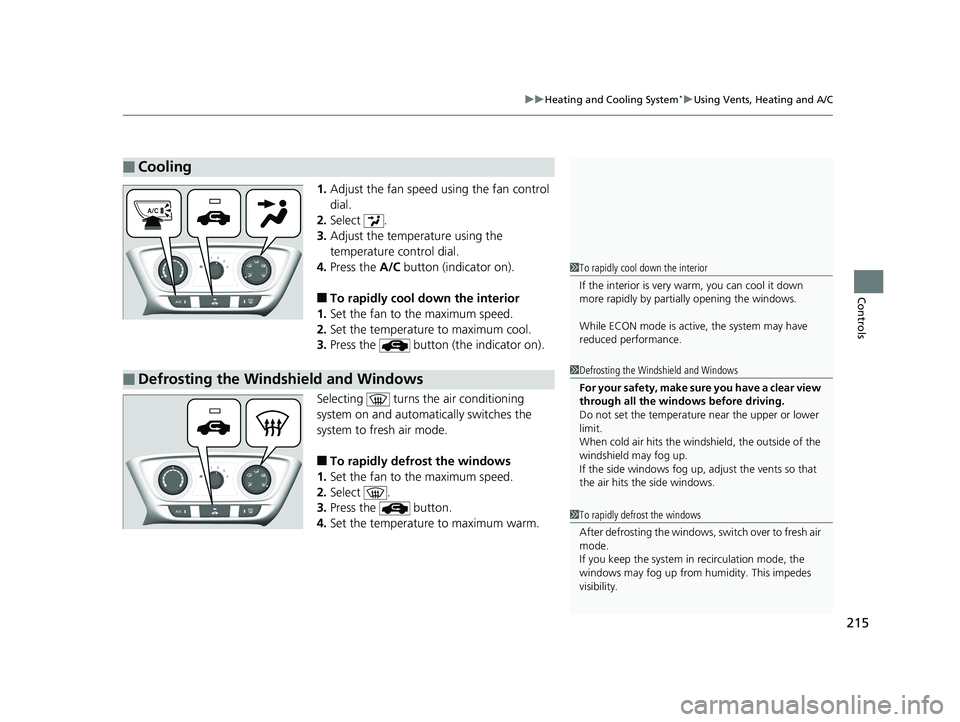

215
uuHeating and Cooling System*uUsing Vents, Heating and A/C
Controls
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
4. Press the A/C button (indicator on).
■To rapidly cool down the interior
1. Set the fan to the maximum speed.
2. Set the temperature to maximum cool.
3. Press the button (the indicator on).
Selecting turns the air conditioning
system on and automati cally switches the
system to fresh air mode.
■To rapidly defrost the windows
1. Set the fan to the maximum speed.
2. Select .
3. Press the button.
4. Set the temperature to maximum warm.
■Cooling
1To rapidly cool down the interior
If the interior is very warm, you can cool it down
more rapidly by parti ally opening the windows.
While ECON mode is active, the system may have
reduced performance.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
20 HR-V HDMC HDMG-31T7A6400.book 215 ページ ２０１９年８月８日　木曜日　午後３時５２分

216
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature us ing the temperature control icons.
3. Select the icon to cancel.1Using Automatic Climate Control
If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO icon
is selected.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
You can raise or lower the temperature or fan speed
setting flicking either control icon.
Models without SYNC icon
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
Temperature Control
Icons
AUTO Icon Mode Control Icon
Fan Control Icons
(On/Off) Icon
(Recirculation) IconA/C (Air Conditioning) Icon (Fresh Air) Icon
(Windshield Defroster)
Icon
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 216 ページ ２０１９年８月８日　木曜日　午後３時５２分

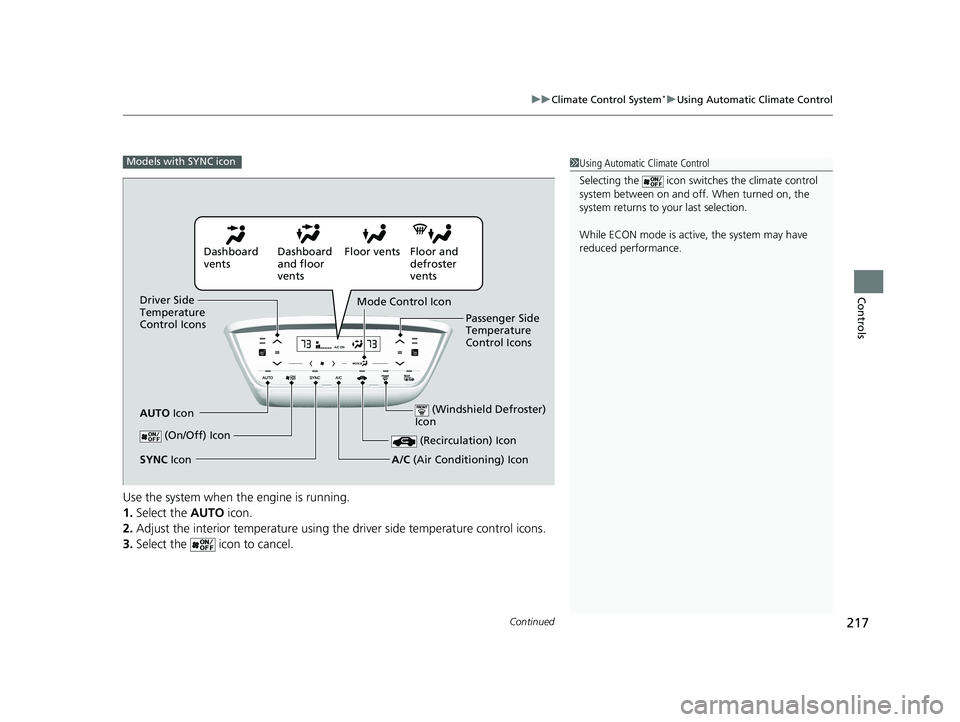

Continued217
uuClimate Control System*uUsing Automatic Climate Control
Controls
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature using th e driver side temperature control icons.
3. Select the icon to cancel.
1Using Automatic Climate Control
Selecting the icon switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the system may have
reduced performance.Models with SYNC icon
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
Driver Side
Temperature
Control Icons
AUTO Icon Mode Control Icon
Passenger Side
Temperature
Control Icons
(On/Off) Icon
(Recirculation) Icon
A/C (Air Conditioning) IconSYNC Icon
(Windshield Defroster)
Icon
20 HR-V HDMC HDMG-31T7A6400.book 217 ページ ２０１９年８月８日　木曜日　午後３時５２分

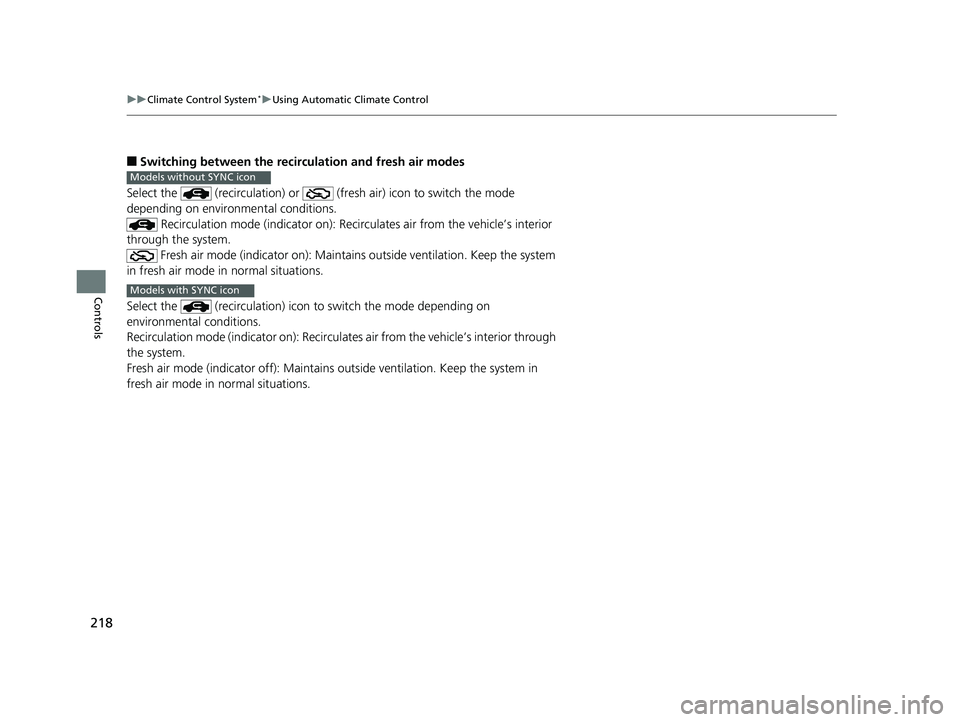

218
uuClimate Control System*uUsing Automatic Climate Control
Controls
■Switching between the recirculation and fresh air modes
Select the (recirculation ) or (fresh air) icon to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system.
Fresh air mode (indicator on): Maintains outside ventilation. Keep the system
in fresh air mode in normal situations.
Select the (recirculati on) icon to switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains out side ventilation. Keep the system in
fresh air mode in normal situations.
Models without SYNC icon
Models with SYNC icon
20 HR-V HDMC HDMG-31T7A6400.book 218 ページ ２０１９年８月８日　木曜日　午後３時５２分
