child restraint HONDA HR-V 2020 Owner's Manual (in English)

10
Quick Reference Guide
Safe Driving (P 33)
Airbags (P50)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P64)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P77)
● Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P38)
● Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P40)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 HR-V HDMC HDMG-31T7A6400.book 10 ページ ２０１９年８月８日　木曜日　午後３時５２分

38
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 148
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 190
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the front head restraint positions P. 197
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 44
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 64
1Safety Checklist
If the door and ta ilgate open indica tor is on, a door
and/or the tailgate is not completely closed. Close all
doors and the tailgate tightly until the indicator goes
off. 2 Door and Tailgate Open Indicator
* P. 89
Models with information display
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 38 ページ ２０１９年８月８日　木曜日　午後３時５２分

51
uuAirbags uAirbag System Components
Continued
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
cTwo side curtain ai rbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit can record such information.
eAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver’s seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator near the shift lever that
alerts you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kSafing Sensor
lA rollover sensor that detects if your
vehicle is about to ro ll over and signal the
control unit to deploy both side curtain
airbags.
20 HR-V HDMC HDMG-31T7A6400.book 51 ページ ２０１９年８月８日　木曜日　午後３時５２分

Continued69
uuChild Safety uSafety of Infants and Small Children

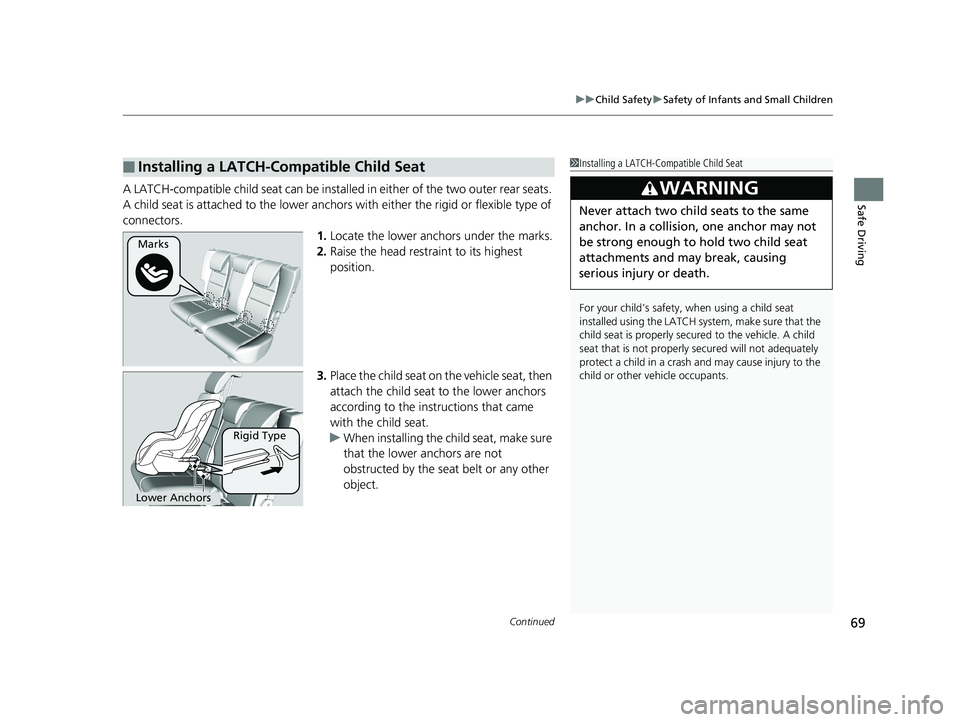

Safe DrivingA LATCH-compatible child seat can be installe d in either of the two outer rear seats.
A child seat is attached to th e lower anchors with either th e rigid or flexible type of
connectors. 1.Locate the lower anchors under the marks.
2. Raise the head restraint to its highest
position.
3. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
■Installing a LATCH-Compatible Child Seat1 Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Marks
Rigid Type
Lower Anchors
20 HR-V HDMC HDMG-31T7A6400.book 69 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuChild Safety uSafety of Infants and Small Children
70
Safe Driving

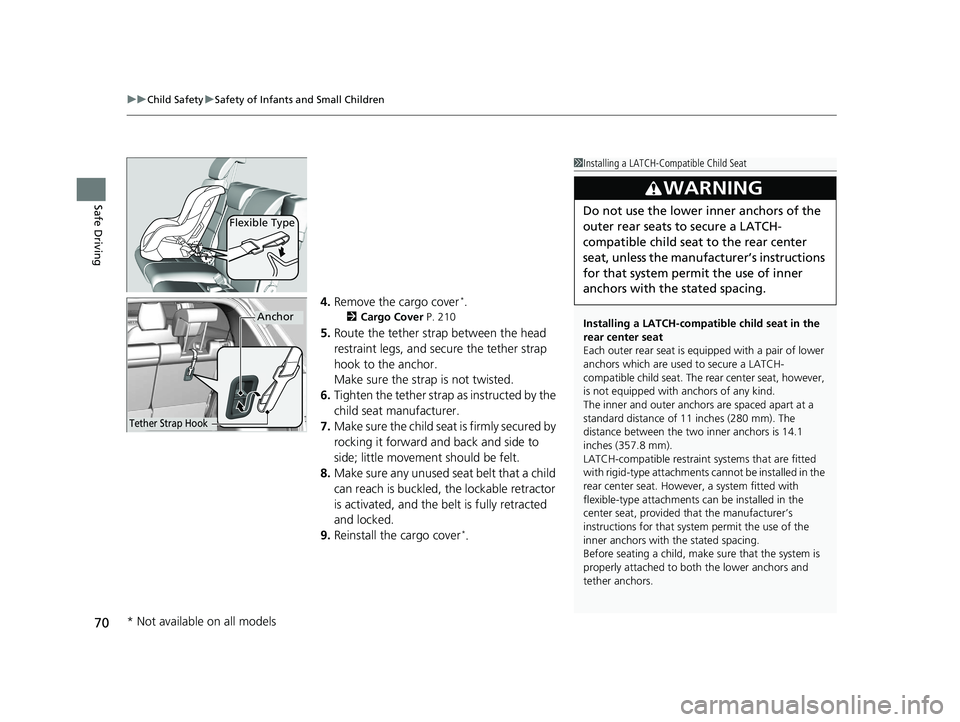

4. Remove the cargo cover*.
2 Cargo Cover P. 210
5.Route the tether strap between the head
restraint legs, and secure the tether strap
hook to the anchor.
Make sure the strap is not twisted.
6. Tighten the tether strap as instructed by the
child seat manufacturer.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
9. Reinstall the cargo cover
*.
Flexible Type
1Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
rear center seat
Each outer rear seat is equi pped with a pair of lower
anchors which are used to secure a LATCH-
compatible child seat. The rear center seat, however,
is not equipped with anchors of any kind.
The inner and outer anchors are spaced apart at a
standard distance of 11 inches (280 mm). The
distance between the two inner anchors is 14.1
inches (357.8 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
3WARNING
Do not use the lower inner anchors of the
outer rear seats to secure a LATCH-
compatible child seat to the rear center
seat, unless the manufacturer’s instructions
for that system permit the use of inner
anchors with the stated spacing.
Anchor
Tether Strap Hook
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 70 ページ ２０１９年８月８日　木曜日　午後３時５２分

Continued71
uuChild Safety uSafety of Infants and Small Children

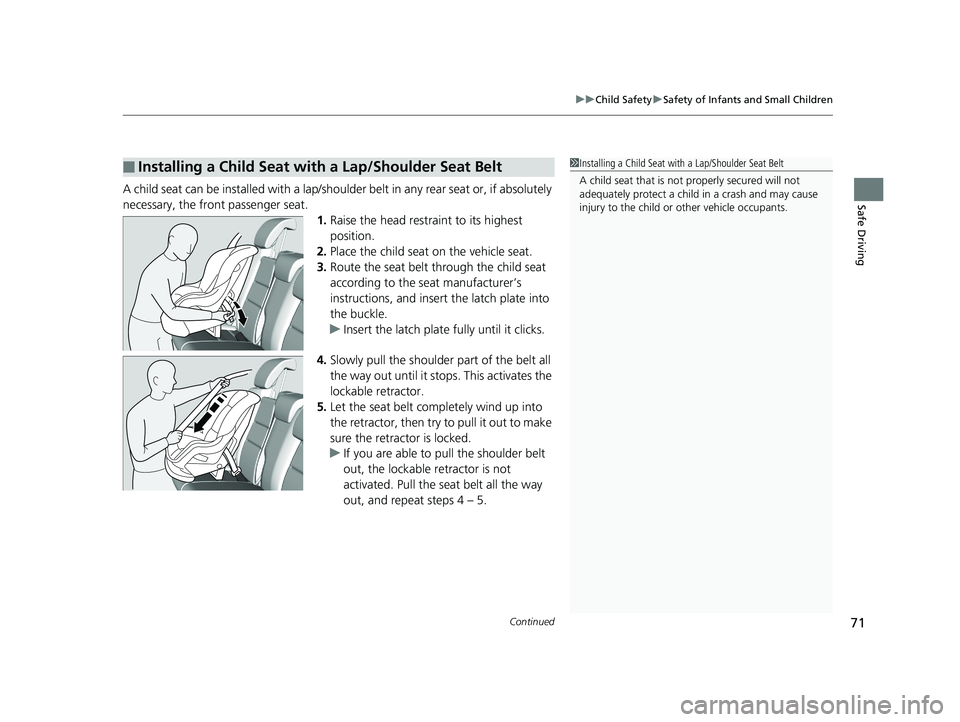

Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Raise the head restraint to its highest
position.
2. Place the child seat on the vehicle seat.
3. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
4. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
5. Let the seat belt completely wind up into
the retractor, then try to pull it out to make
sure the retractor is locked.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Pull the seat belt all the way
out, and repeat steps 4 – 5.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
20 HR-V HDMC HDMG-31T7A6400.book 71 ページ ２０１９年８月８日　木曜日　午後３時５２分

74
uuChild Safety uSafety of Infants and Small Children
Safe Driving

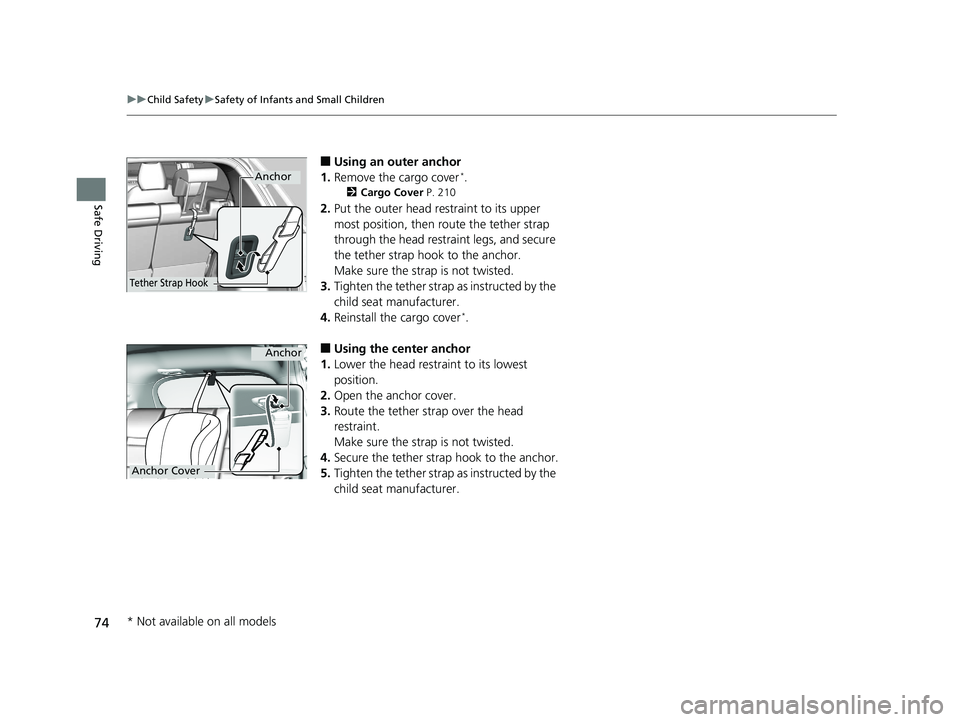

■Using an outer anchor
1. Remove the cargo cover*.
2 Cargo Cover P. 210
2.Put the outer head restraint to its upper
most position, then route the tether strap
through the head restraint legs, and secure
the tether strap hook to the anchor.
Make sure the strap is not twisted.
3. Tighten the tether strap as instructed by the
child seat manufacturer.
4. Reinstall the cargo cover
*.
■Using the center anchor
1. Lower the head restra int to its lowest
position.
2. Open the anchor cover.
3. Route the tether strap over the head
restraint.
Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Anchor
Tether Strap Hook
Anchor
Anchor Cover
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 74 ページ ２０１９年８月８日　木曜日　午後３時５２分

133
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................................. 134
Locking and Unlocking the Doors
Key................................................................. 136
Low Smart Entry Remote Signal Strength
*...... 138Locking/Unlocking the Doors from the Outside ... 139Locking/Unlocking the Doors from the Inside .. 148
Childproof Door Locks .................................... 151
Auto Door Locking/Unlocking ......................... 152
Customizing the Auto Door Locking/Unlocking Setting
*....................................................... 153
Tailgate ............................................................. 156
Opening/Closing the Tailgate.......................... 157
Security System Immobilizer System......................................... 159
Security System Alarm .................................... 159
Opening and Closing the Windows ................ 162
Moonroof
*........................................................ 164 Operating the Switches Around the Steering
Wheel
Ignition Switch ............................................... 165
ENGINE START/STOP Button ........................... 166
Ignition Switch and Power Mode Comparison .....169Turn Signals ................................................... 170
Light Switches ................................................ 171
Fog Lights
*..................................................... 174
Daytime Running Lights .................................. 175
Auto High-Beam
*........................................... 176
Wipers and Washers....................................... 179
Defogger/Heated Door Mirror*/Heated Windshield*..... 182Brightness Control.......................................... 184
Adjusting the Steering Wheel ......................... 186
Models without smart entry system
Models with smart entry system
Adjusting the Mirrors Interior Rearview Mirror.................................. 187
Power Door Mirrors ........................................ 189
Adjusting the Seats Front Seats ..................................................... 190
Rear Seats ...................................................... 193
Maintain a Proper Sitting Position ................... 196
Head Restraints .............................................. 197
Armrest .......................................................... 200
Interior Lights/Interior Convenience Items Interior Lights ................................................. 201
Interior Convenience Items ............................. 203
Heating and Cooling System
*Using Vents, Heating and A/C ........................ 212
Climate Control System*Using Automatic Climate Control ................... 216
Automatic Climate Control Sensors ................ 225
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 133 ページ ２０１９年８月８日　木曜日　午後３時５２分

630
Index
Collision Mitigation Braking SystemTM
(CMBSTM) ........................................... 97, 98
CRUISE CONTROL .............................. 93, 448
CRUISE MAIN .................................... 93, 447
Door and Tailgate Open................. 38, 39, 89
ECON Mode .............................................. 93
Electric Parking Brake................................. 82
Electric Parking Brake System ............. 82, 602
Electric Power Steering (EPS) System ............................................. 90, 601
Fog Light ................................................... 92
High Beam................................................. 91
High Temperature...................................... 88
Immobilizer System .................................... 92
Lane Keeping Assist System (LKAS) (Amber) .................................................. 96
Lane Keeping Assist System (LKAS)
(Green) ................................................... 96
Lights On ................................................... 92
Low Fuel .................................................... 87
Low Oil Pressure ................................ 85, 599
Low Temperature ...................................... 88
Low Tire Pressure/TPMS ............. 90, 455, 603
M (7-speed manual shift mode) Indicator/ Shift......................................................... 86
Maintenance Minder ......................... 93, 521
Malfunction Indicator Lamp ............... 85, 600
Road Departure Mitigation (RDM) .............. 95
Seat Belt Reminder .............................. 42, 86
Security System Alarm ............................... 93
Shift Lever Position .................................... 86 Smart Entry System ................................... 91
Supplemental Restraint System ............ 61, 87
System Message Indicator ......................... 91
Transmission System.................................. 86
Turn Signal ................................................ 91
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 89, 450
VSA ® OFF .......................................... 89, 451
Information .............................................. 613
Information Display ................................. 115
Instant Fuel Economy ....................... 116, 121
Instrument Panel ........................................ 79
Brightness Control................................... 184
Interior Lights ........................................... 201
Interior Rearview Mirror .................. 187, 188
Internet Radio .......................................... 297
J
Jack (Wheel Nut Wrench) ................ 580, 586
Jump Starting ........................................... 594
K
Keyless Lockout Prevention ..................... 147
Keys ........................................................... 136
Lockout Prevention ................................. 147
Number Tag............................................ 137
Rear Door Won’t Open ........................... 151
Remote Transmitter ................................ 144
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 439
L
LaneWatchTM............................................ 452
LATCH (Child Seats) ................................... 69
Lights ........................................................ 171
Auto High-Beam ..................................... 176
Bulb Replacement ................................... 541
Daytime Running Lights .......................... 175
Fog Lights ............................................... 174
High Beam Indicator ................................. 91
Interior.................................................... 201
Light Switches......................................... 171
Lights On Indicator.................................... 92
Turn Signals ............................................ 170
Load Limits ............................................... 427
Locking/Unlocking ................................... 136
Auto Door Locking/Unlocking ................. 152
Childproof Door Locks ............................ 151
From Inside ............................................. 148
From Outside .......................................... 139
20 HR-V HDMC HDMG-31T7A6400.book 630 ページ ２０１９年８月８日　木曜日　午後３時５２分

632
Index
R
Radiator..................................................... 537
Radio (FM/AM) .................................. 241, 278
Radio (SiriusXM ®)...................................... 282
Radio Data System (RDS) .................. 242, 280
Range ................................................ 116, 121
RDS (Radio Data System) .................. 242, 280
Readiness Codes (Emissions Testing) ....... 619
Real Time AWD with Intelligent Control System
TM.................................................. 454
Rear Defogger/Heated Door Mirror
Button ...................................................... 182
Rear Seats (Folding Down) ....................... 194
Rearview Mirror ................................ 187, 188
Refueling ................................................... 513
Fuel Gauge ...................................... 117, 120
Gasoline .......................................... 513, 614
Low Fuel Indicator ..................................... 87
Regulations ............................... 458, 559, 617
Remote Transmitter .................................. 144
Replacement Battery..................................................... 568
Bulbs ....................................................... 541
Fuses ............................................... 604, 606
Tires ........................................................ 562
Wiper Blade Rubber ......................... 551, 553
Reporting Safety Defects ......................... 618
Resetting a Trip Meter ..................... 116, 120
Road Departure Mitigation (RDM) Indicator .................................................... 95
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 78
Safety Message ............................................. 1
Seat Belts .................................................... 40
Adjusting the Shoulder Anchor.................. 46
Automatic Seat Belt Tensioners ................. 43
Checking................................................... 49
Detachable Anchor.................................... 47
Fastening .................................................. 44
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 71
Pregnant Women ...................................... 48
Reminder .................................................. 42
Warning Indicator ............................... 42, 86
Seat Heaters .............................................. 211
Seats .......................................................... 190
Adjusting ................................................ 190
Front Seats .............................................. 190
Rear Seats ............................................... 193
Security System ......................................... 159
Immobilizer System Indicator ..................... 92
Security System Alarm Indicator................. 93
SEL/RESET Button ..................................... 119
Select/Reset Knob ............................. 115, 119
Selecting a Child Seat ................................. 68
Selector Knob (Audio) .............................. 234
Setting the Clock ...................................... 134 Shift Lever
.................................. 23, 440, 442
Operation ................................. 23, 441, 443
Releasing ................................................ 596
Won’t Move ........................................... 596
Shift Lever Position Indicator .... 86, 441, 443
Shifting (Transmission) .................... 440, 442
Shoulder Anchor ........................................ 46
Side Airbags ............................................... 57
Side Curtain Airbags .................................. 59
Siri Eyes Free ............................................. 311
SiriusXM ® Radio ....................................... 282
Snow Tires ................................................ 564
Spare Tire ......................................... 582, 615
Spark Plugs ............................................... 614
Specifications ........................................... 614
Specified Fuel ................................... 513, 614
Speedometer ............................................ 114
SRS Airbags (Airbags) ................................ 53
Starting the Engine .......................... 432, 435
Does Not Start ........................................ 591
Engine Switch Buzzer ...................... 165, 168
Jump Starting ......................................... 594
Steering Wheel Adjusting ................................................ 186
Stopping ................................................... 510
Summer Tires ............................................ 564
Supplemental Restraint System (SRS) ....... 53
Switches (Around the Steering
Wheel) ............................................ 4, 5, 165
20 HR-V HDMC HDMG-31T7A6400.book 632 ページ ２０１９年８月８日　木曜日　午後３時５２分
