HONDA HR-V 2020 (in English) Owner's Guide

29
Quick Reference Guide
What to Do If
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
•The steering wheel may be locked.
•Try to turn the steering wheel left and
right while turning the ignition key.
•Move the steering wheel left and right
after pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Models without smart entry system
Canadian models with smart entry
system
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
20 HR-V HDMC HDMG-31T7A6400.book 29 ページ ２０１９年８月８日　木曜日　午後３時５２分

30
Quick Reference Guide
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P508)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the lock
position. If so, open the rear door with the
outside door handle.
To cancel this function, push the lever to
the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
•The exterior lights are left on.
•The key is left in the ignition switch.
•The power mode is in ACCESSORY.
Models without smart entry system
Models with smart entry system
20 HR-V HDMC HDMG-31T7A6400.book 30 ページ ２０１９年８月８日　木曜日　午後３時５２分

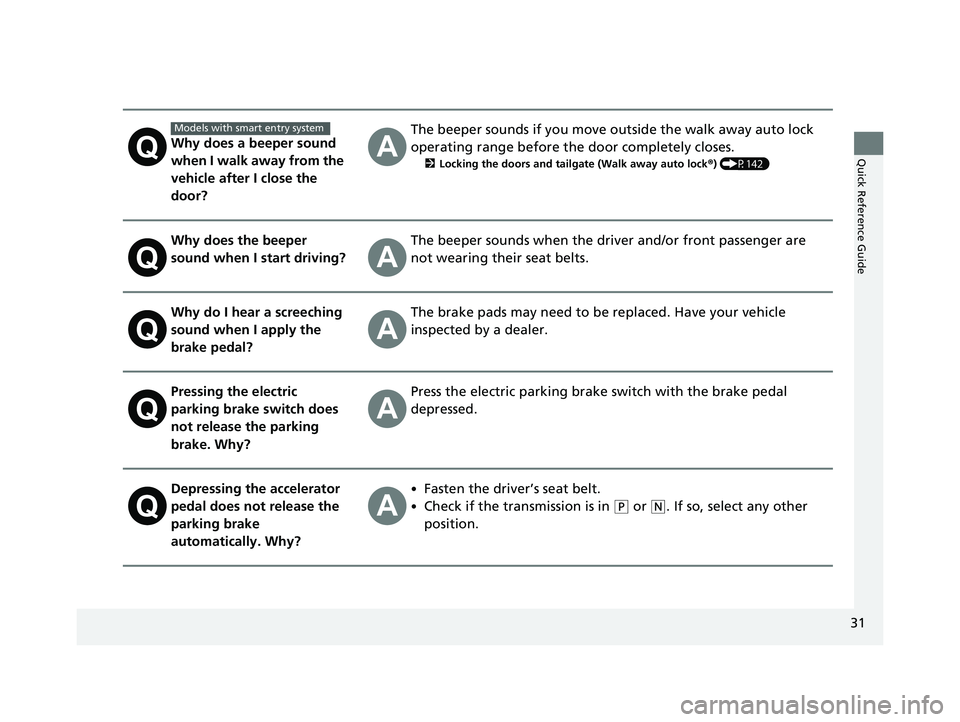

31
Quick Reference GuideWhy does a beeper sound
when I walk away from the
vehicle after I close the
door?
The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P142)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?•Fasten the driver’s seat belt.
•Check if the transmission is in (P or (N. If so, select any other
position.
Models with smart entry system
20 HR-V HDMC HDMG-31T7A6400.book 31 ページ ２０１９年８月８日　木曜日　午後３時５２分

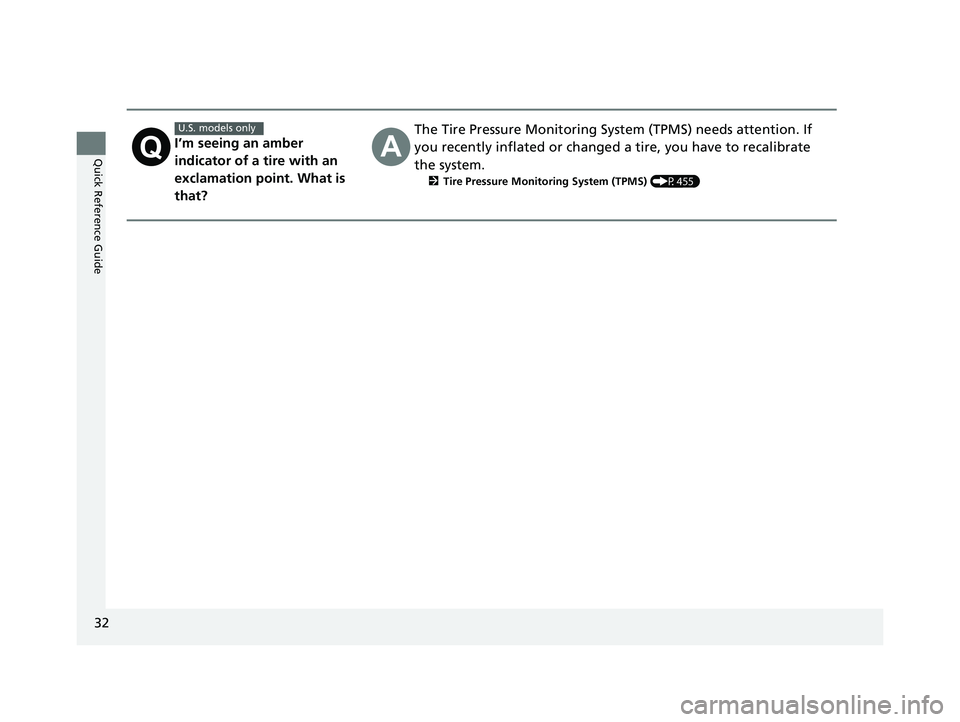

32
Quick Reference GuideI’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?
The Tire Pressure Monitoring System (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
2 Tire Pressure Monitoring System (TPMS) (P455)
U.S. models only
20 HR-V HDMC HDMG-31T7A6400.book 32 ページ ２０１９年８月８日　木曜日　午後３時５２分

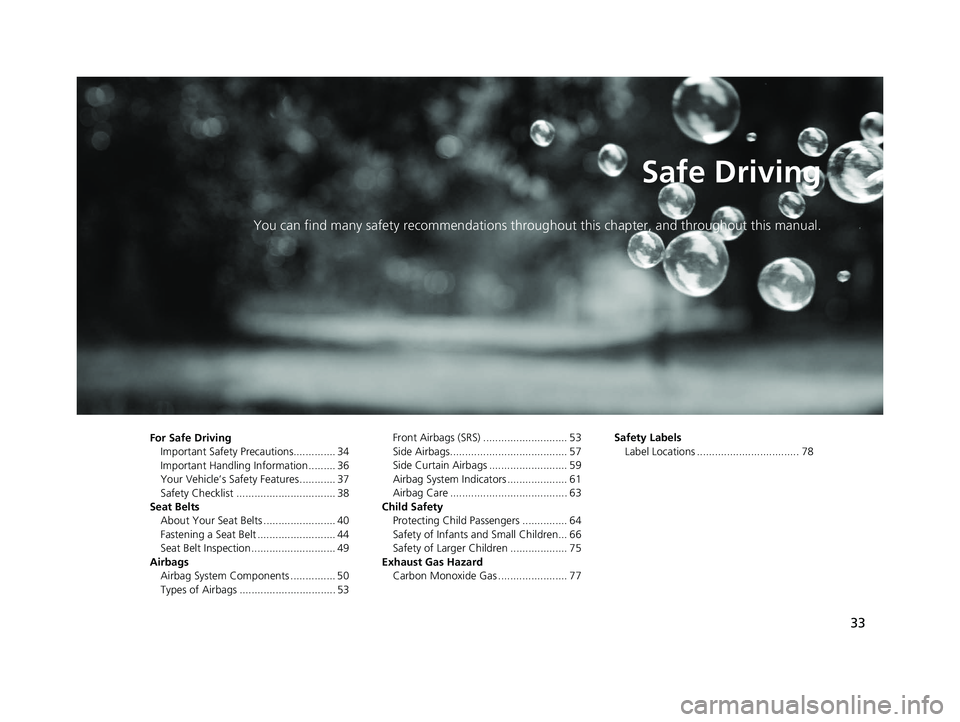

33
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 34
Important Handling Information ......... 36
Your Vehicle’s Safety Features ............ 37
Safety Checklist ................................. 38
Seat Belts About Your Seat Belts ........................ 40
Fastening a Seat Belt .......................... 44
Seat Belt Inspection ............................ 49
Airbags Airbag System Components ............... 50
Types of Airbags ................................ 53 Front Airbags (SRS) ............................ 53
Side Airbags....................................... 57
Side Curtain Airbags .......................... 59
Airbag System Indicators .................... 61
Airbag Care ....................................... 63
Child Safety Protecting Child Passengers ............... 64
Safety of Infants a nd Small Children... 66
Safety of Larger Children ................... 75
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 77 Safety Labels
Label Locations .................................. 78
20 HR-V HDMC HDMG-31T7A6400.book 33 ページ ２０１９年８月８日　木曜日　午後３時５２分

34
Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precauti ons below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passe ngers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children shoul d be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
20 HR-V HDMC HDMG-31T7A6400.book 34 ページ ２０１９年８月８日　木曜日　午後３時５２分

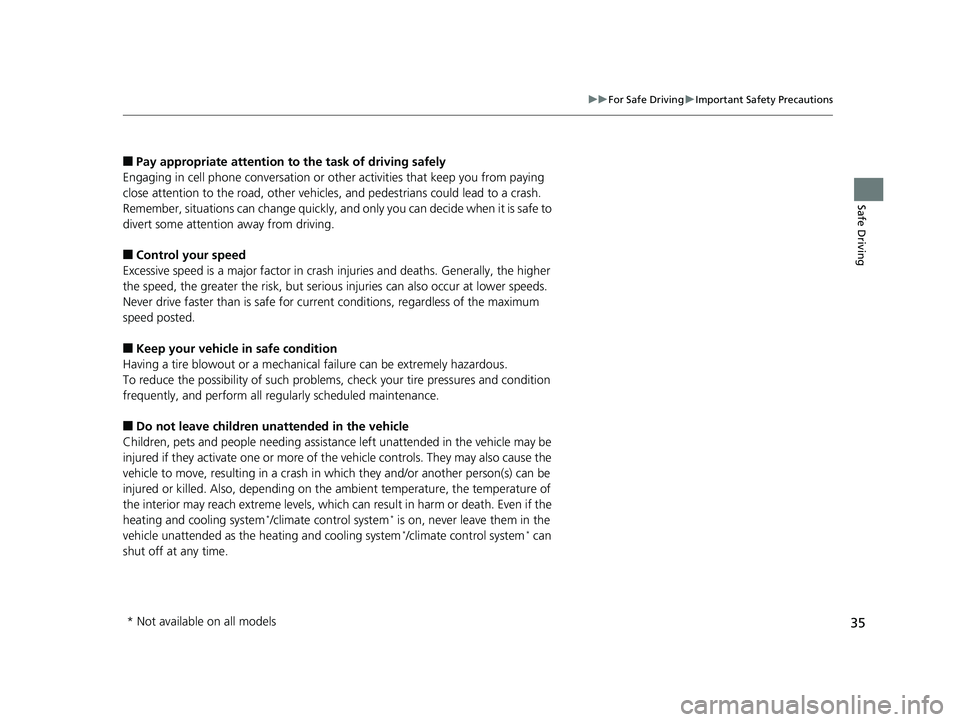

35
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regul arly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets and people needing assistan ce left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which can result in harm or death. Even if the
heating and cooling system
*/climate control system* is on, never leave them in the
vehicle unattended as the heating and cooling system*/climate control system* can
shut off at any time.
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 35 ページ ２０１９年８月８日　木曜日　午後３時５２分

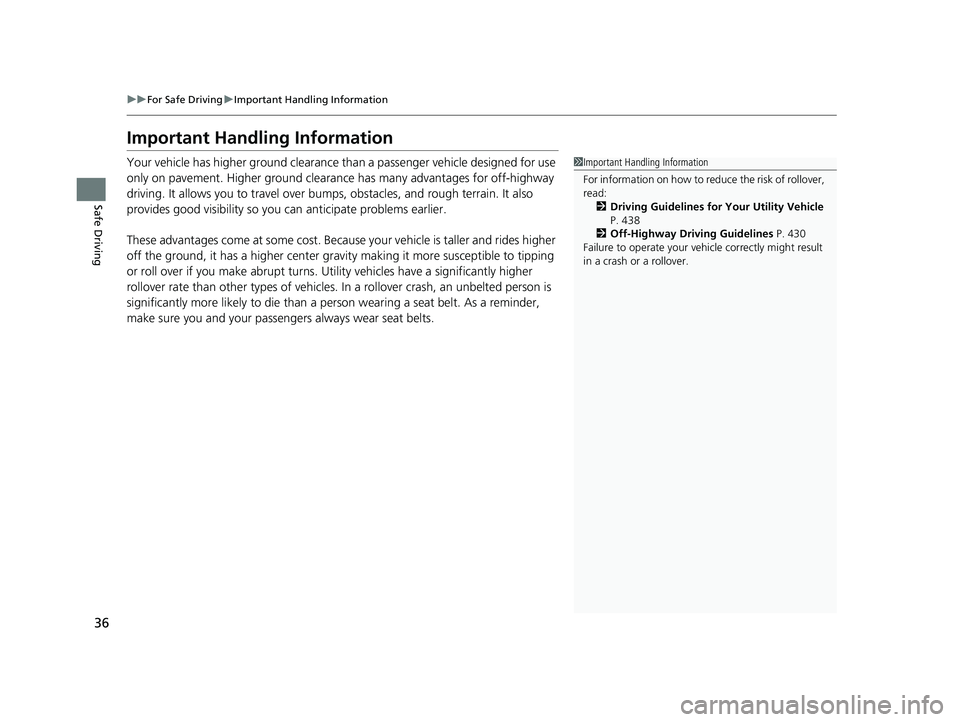

36
uuFor Safe Driving uImportant Handling Information
Safe Driving
Important Handling Information
Your vehicle has higher ground clearance than a passenger vehicle designed for use
only on pavement. Higher ground clearance has many advantages for off-highway
driving. It allows you to travel over bumps, obstacles, and rough terrain. It also
provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Beca use your vehicle is taller and rides higher
off the ground, it has a higher center grav ity making it more susceptible to tipping
or roll over if you make abrupt turns. Utility vehicles have a significantly higher
rollover rate than other types of vehicles. In a rollover crash, an unbelted person is
significantly more likely to die than a pe rson wearing a seat belt. As a reminder,
make sure you and your passeng ers always wear seat belts.1Important Handling Information
For information on how to reduce the risk of rollover,
read:
2 Driving Guidelines for Your Utility Vehicle
P. 438
2 Off-Highway Driving Guidelines P. 430
Failure to operate your vehicle correctly might result
in a crash or a rollover.
20 HR-V HDMC HDMG-31T7A6400.book 36 ページ ２０１９年８月８日　木曜日　午後３時５２分

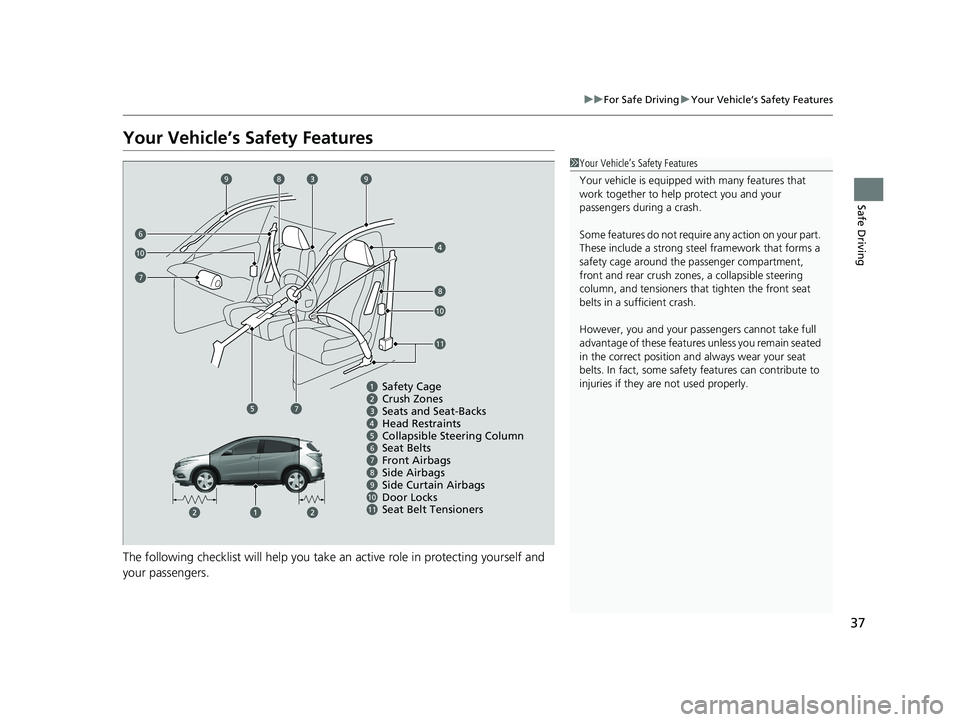

37
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zone s, a collapsible steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
67891011
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Seat Belt Tensioners Side Airbags
6
7
7
8
8
99
10
11
Door Locks
10
Safety Cage
20 HR-V HDMC HDMG-31T7A6400.book 37 ページ ２０１９年８月８日　木曜日　午後３時５２分

38
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 148
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 190
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the front head restraint positions P. 197
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 44
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 64
1Safety Checklist
If the door and ta ilgate open indica tor is on, a door
and/or the tailgate is not completely closed. Close all
doors and the tailgate tightly until the indicator goes
off. 2 Door and Tailgate Open Indicator
* P. 89
Models with information display
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 38 ページ ２０１９年８月８日　木曜日　午後３時５２分
