Visual Index
6
Quick Reference Guide
❙Electric Parking Brake Switch (P503)
❙Hood Release Handle (P530)
❙Fuel Fill Door Release Handle (P514)
❙Passenger’s Front Airbag (P53)
❙Interior Fuse Boxes (P606)
❙Driver’s Front Airbag (P53)
❙Power Window Switches (P162)
❙Power Door Lock Master Switch (P150)
❙Door Mirror Controls (P189)
❙Automatic Brake Hold Button (P506)
❙Seat Heater Icons* (P211)
❙Glove Box (P203)
❙Accessory Power Socket (P207)
❙USB Port(s) (P229)
❙Shift Lever
Continuously Variable
Transmission
(P440, 442)
20 HR-V HDMC HDMG-31T7A6400.book 6 ページ ２０１９年８月８日　木曜日　午後３時５２分

594
Handling the Unexpected

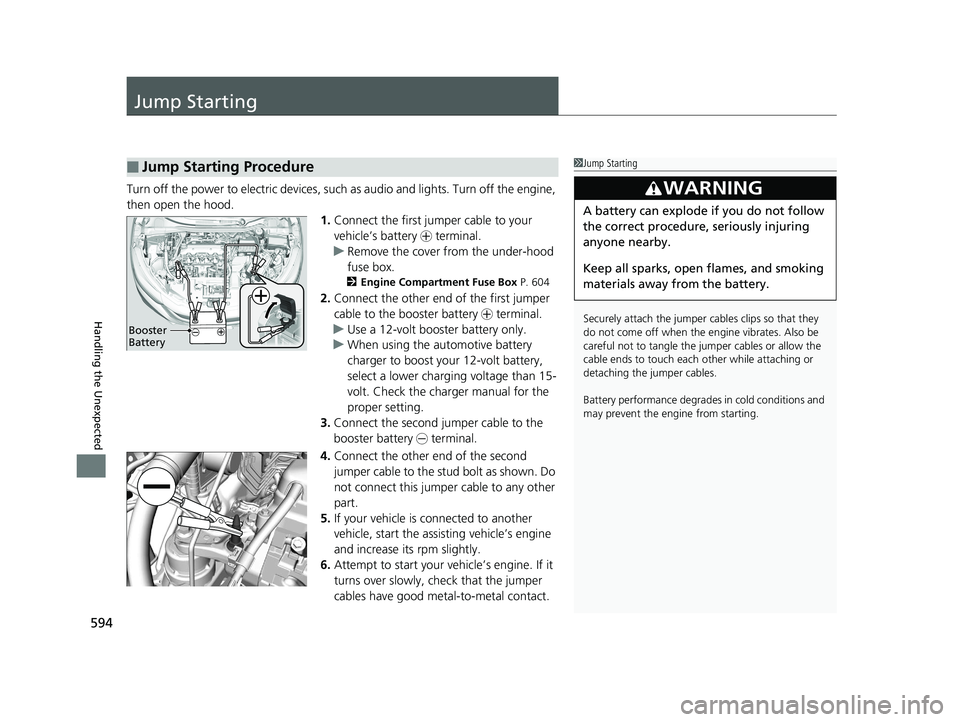

Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jump er cable to your
vehicle’s battery + terminal.
u Remove the cover from the under-hood
fuse box.
2 Engine Compartment Fuse Box P. 604
2.Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using the automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
6. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the e ngine from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster
Battery
20 HR-V HDMC HDMG-31T7A6400.book 594 ページ ２０１９年８月８日　木曜日　午後３時５２分

604
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2Driver’s Power Seat Sliding*(20 A)
3Hazard10 A
4Drive By Wire15 A
5Wiper*(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9Daytime Running Lights(10 A)
10–(20 A)
11–(30 A)
12Main Fan30 A
13Starter SW*(30 A)
14MG Clutch7.5 A
15Battery Sensor(7.5 A)
16Small Light10 A
17Driver’s Power Seat Reclining*(20 A)
18Horn10 A
19Fog Light*(10 A)
20Heated Windshield*2(10 A)
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Canadian models
Circuit ProtectedAmps
21Back Up10 A
22Audio(10 A)
23Sub Fan(30 A)
24–(30 A)
25STRLD*(7.5 A)
26IGP CAM*(7.5 A)
27––
28––
29–(30 A)
30IGP LAF(7.5 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 604 ページ ２０１９年８月８日　木曜日　午後３時５２分

605
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse box B
Tab
a
bcd
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of engine compartment fuses
should be done by a dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery Main100 A
bRB Main 170 A
cRB Main 280 A
dCAP Main70 A
20 HR-V HDMC HDMG-31T7A6400.book 605 ページ ２０１９年８月８日　木曜日　午後３時５２分

606
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box A
Located behind the instrument panel.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Boxes
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Door Lock20 A
2––
3Smart*(10 A)
4Driver Side Door Unlock10 A
5Passenger Side Door Unlock10 A
6Driver Door Unlock10 A
7Driver Door Lock10 A
8Driver’s Power Window20 A
9Passenger’s Power Window20 A
10Rear Left Power Window20 A
11Rear Right Power Window20 A
12Driver Side Door Lock10 A
13Passenger Side Door Lock10 A
14––
15Right Headlight High Beam10 A
16STS*(7.5 A)
17–(20 A)
18Moonroof*(20 A)
19Front Seat Heater*(20 A)
20––
Circuit ProtectedAmps
21Adaptive Cruise Control*(7.5 A)
22Washer15 A
23Rear Wiper*(10 A)
24A/C7.5 A
25Daytime Running Lights7.5 A
26Starter Cut*(7.5 A)
27ABS/VSA7.5 A
28SRS10 A
29Left Headlight High Beam10 A
30ACG10 A
31IG Relay10 A
32Fuel Pump15 A
33SRS(7.5 A)
34Meter7.5 A
35Mission SOL7.5 A
36Front Accessory Power Socket20 A
37ACC(7.5 A)
38–(7.5 A)
39Option10 A
40Rear Wiper10 A
41−−
42−−
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 606 ページ ２０１９年８月８日　木曜日　午後３時５２分

607
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Remove the cover by putting the flat-tip
screwdriver into the side slot as shown.
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
IG Main30 A*1
50 A*2
Fuse Box Main 250 A
ABS/VSA Motor40 A
Fuse Box Main 130 A
Fuse Box Main 3*40 A
2 Rear Defogger 30 A
Left Electric Parking Brake 30 A IG Main2
*1
–*230 A
30 A
Heater Motor 40 A
Right Electric Parking Brake 30 A ABS/VSA FSR 30 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Canadian models
Circuit ProtectedAmps
3––
4– –
5AWD*(20 A)
6–(10 A)
7Rear Accessory Power Socket*3(20 A)
8– –
9Interior Light7.5 A
10 Accessory Power Socket
(Console) (20 A)
11−−
12*1−−
12*2ACC Key Lock (7.5 A)
13Heated Door Mirror*(10 A)
14 A/C Blower SW*(7.5 A)
15*1––
15*2Wiper30 A
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 607 ページ ２０１９年８月８日　木曜日　午後３時５２分

608
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
2 Fuse Locations P. 604
There is a fuse puller in the back of the engine
compartment fuse box cover.
Fuse Box on the Battery Blown
Fuse Puller
Combined Fuse
Blown Fuse
20 HR-V HDMC HDMG-31T7A6400.book 608 ページ ２０１９年８月８日　木曜日　午後３時５２分

629
Index
Front SeatsAdjusting ................................................ 190
Front Sensor Camera ............................... 500
Fuel ..................................................... 25, 513
Economy................................................. 515
Gauge ............................................ 117, 120
Instant Fuel Economy ...................... 116, 121
Low Fuel Indicator..................................... 87
Range ............................................. 116, 121
Recommendation.................................... 513
Refueling .......................................... 25, 513
Fuel Economy ........................................... 515
Fuel Fill Cap ........................................ 25, 514
Message ................................................. 600
Fuel Fill Door ...................................... 25, 514
Fuel Gauge ....................................... 117, 120
Fuses ......................................................... 604
Inspecting and Changing ........................ 608
Locations ................................................ 604
G
Gasoline (Fuel) Economy................................................. 515
Gauge ............................................ 117, 120
Information............................................. 513
Instant Fuel Economy ...................... 116, 121
Low Fuel Indicator..................................... 87
Refueling ................................................ 513
Gauges ...................................................... 113
Glass (care) ....................................... 571, 574 Glove Box
.................................................. 203
H
Halogen Bulbs ................................... 541, 546
Handling the Unexpected ........................ 579
HandsFreeLink ® (HFL) ....................... 370, 393
Displaying Messages ................................ 418
In Case of Emergency .............................. 421
Menus ............................................. 372, 396
Phone Setup .................................... 376, 400
Phonebook Phonetic M odification ........... 409
To Set Up Text Message Options ............. 403
Hazard Warning Button ............................... 4
HD Radio
TM................................................ 279
Head Restraints ......................................... 197
Headlights ................................................. 171
Aiming .................................................... 541
Auto High-Beam ...................................... 176
Dimming ......................................... 171, 175
Operating ................................................ 171
Heated Door Mirrors ................................ 182
Heated Windshield ................................... 183
Heating and Cooling System ................... 212
Cooling ................................................... 215
Defrosting the Windshield and Windows ............................................... 215
Dust and Pollen Filter ............................... 570
Heating ................................................... 214
HFL (HandsFreeLink ®)....................... 370, 393
High Beam Indicator .................................. 91 Hill Start Assist System
..................... 434, 437
HomeLink ® Universal Transceiver ............ 367
Honda App License Agreement .............. 333
Honda Sensing ®.................................. 26, 460
HondaLink ®............................................... 304
I
Identification Numbers
Engine and Transmission ......................... 616
Vehicle Identification ............................... 616
Ignition Switch ......................................... 165
Illumination Control
Knob ....................................................... 184
Immobilizer System .................................. 159
Indicator.................................................... 92
Important Handling Information .............. 36
Indicators .................................................... 80
Adaptive Cruise Control (ACC) (Amber)..... 96
Adaptive Cruise Control (ACC) (Green) ................................................... 96
All-Wheel Drive (AWD) .............................. 94
Anti-lock Brake System (ABS)..................... 87
Auto High-Beam ....................................... 88
Automatic Brake Hold ....................... 83, 506
Automatic Brake Hold System ........... 83, 506
Brake Depressing....................................... 84
Brake System (Amber) ............................... 81
Brake System (Red) ............................ 80, 601
Charging System ............................... 85, 599
20 HR-V HDMC HDMG-31T7A6400.book 629 ページ ２０１９年８月８日　木曜日　午後３時５２分
