112
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button P. 446
•Appears when approaching a intersection during
route guidance.2 Refer to the Navigation System Manual
•Appears when set the po wer mode to ON while
driving.
2 Emergency Engine Stop P. 593
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
Models with navigation system
Models with LED headlights
20 HR-V HDMC HDMG-31T7A6400.book 112 ページ ２０１９年８月８日　木曜日　午後３時５２分

113Continued
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
■Changing the color of the meter
You can change the color of the meter.
Press the (select/reset) knob when the ignition switch is in ACCESSORY
(q or
LOCK
(0*1 and the ambient meter is lit up. Each time you press the knob, the color
changes.
The colors change in the following order:
white  blue  purple  pink  red  amber  yellow
You can change the white to some colors.
2 Customized Features P. 123
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with info rmation display
Models with multi- information display
20 HR-V HDMC HDMG-31T7A6400.book 113 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuGauges and Displays uGauges
114
Instrument Panel

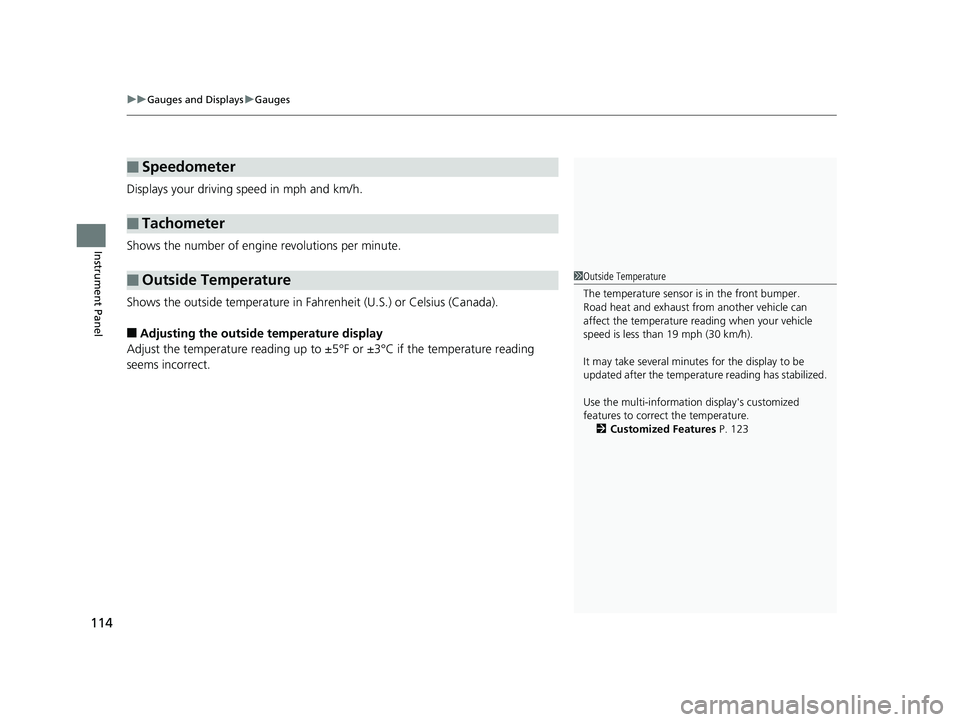

Displays your driving speed in mph and km/h.
Shows the number of engine revolutions per minute.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
■Speedometer
■Tachometer
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the te mperature reading has stabilized.
Use the multi-information display's customized
features to correct the temperature. 2 Customized Features P. 123
20 HR-V HDMC HDMG-31T7A6400.book 114 ページ ２０１９年８月８日　木曜日　午後３時５２分

115
uuGauges and Displays uInformation Display*
Continued
Instrument Panel
Information Display*
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
Each time you press the (select/reset) knob, the information display changes as follows:
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 115 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuGauges and Displays uInformation Display*
116
Instrument Panel

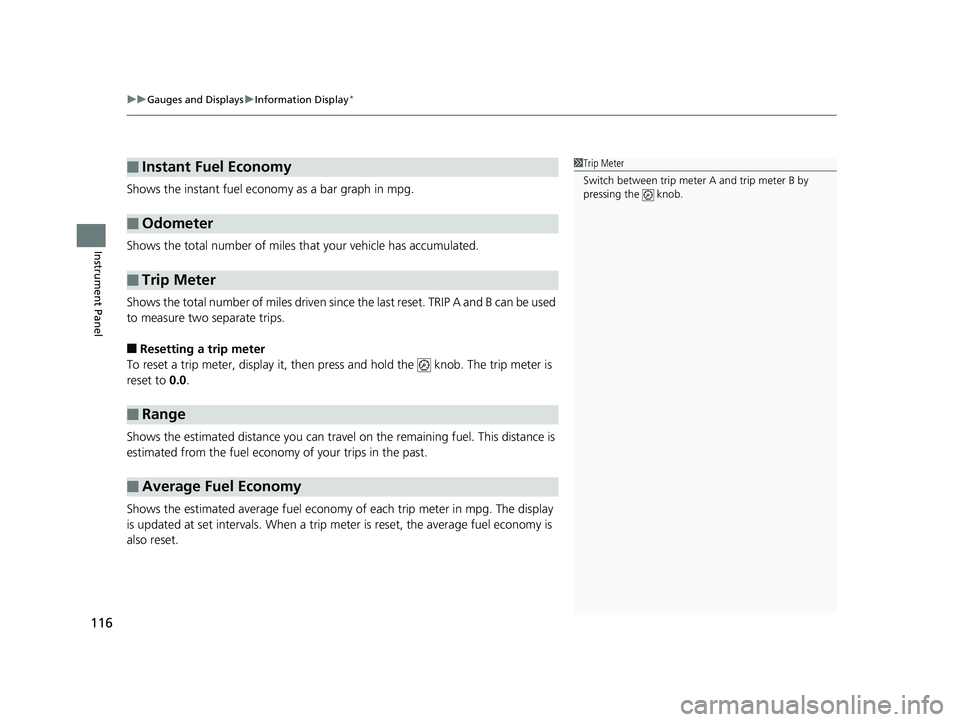

Shows the instant fuel economy as a bar graph in mpg.
Shows the total number of miles th at your vehicle has accumulated.
Shows the total number of miles driven since the last reset. TRIP A and B can be used
to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
Shows the estimated average fuel economy of each trip meter in mpg. The display
is updated at set intervals. When a trip me ter is reset, the average fuel economy is
also reset.
■Instant Fuel Economy
■Odometer
■Trip Meter
■Range
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
20 HR-V HDMC HDMG-31T7A6400.book 116 ページ ２０１９年８月８日　木曜日　午後３時５２分

117
uuGauges and Displays uInformation Display*
Instrument Panel
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
1. Turn the ignition switch to ON
(w.
2. Press and hold the (select/ reset) knob for 10 seconds or more while the outside
temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F.
3. Release the knob when the right adjustment amount is shown.
u The adjustment is complete.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 521
Displays the amount of fuel left in the fuel tank.
■Outside Temperature
■Engine Oil Life and Maintenance Items
■Fuel Gauge
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
When the engine oil life is shown on the information
display, you cannot adjust the outside temperature.
Push the knob to select the other display.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
20 HR-V HDMC HDMG-31T7A6400.book 117 ページ ２０１９年８月８日　木曜日　午後３時５２分

118
uuGauges and Displays uMulti-Information Display*
Instrument Panel

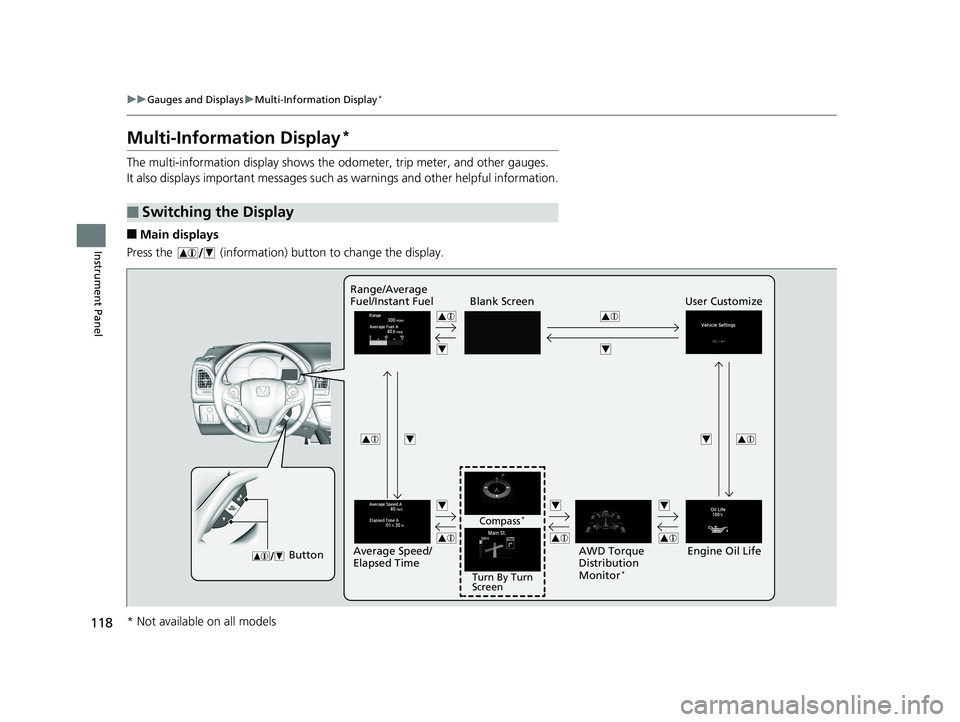

Multi-Information Display*
The multi-information display shows the od ometer, trip meter, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (information) bu tton to change the display.
■Switching the Display
Blank Screen User Customize
Button
Engine Oil Life
Range/Average
Fuel/Instant Fuel
Turn By Turn
Screen
Compass
*
Average Speed/
Elapsed Time
AWD Torque
Distribution
Monitor
*
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 118 ページ ２０１９年８月８日　木曜日　午後３時５２分

119
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

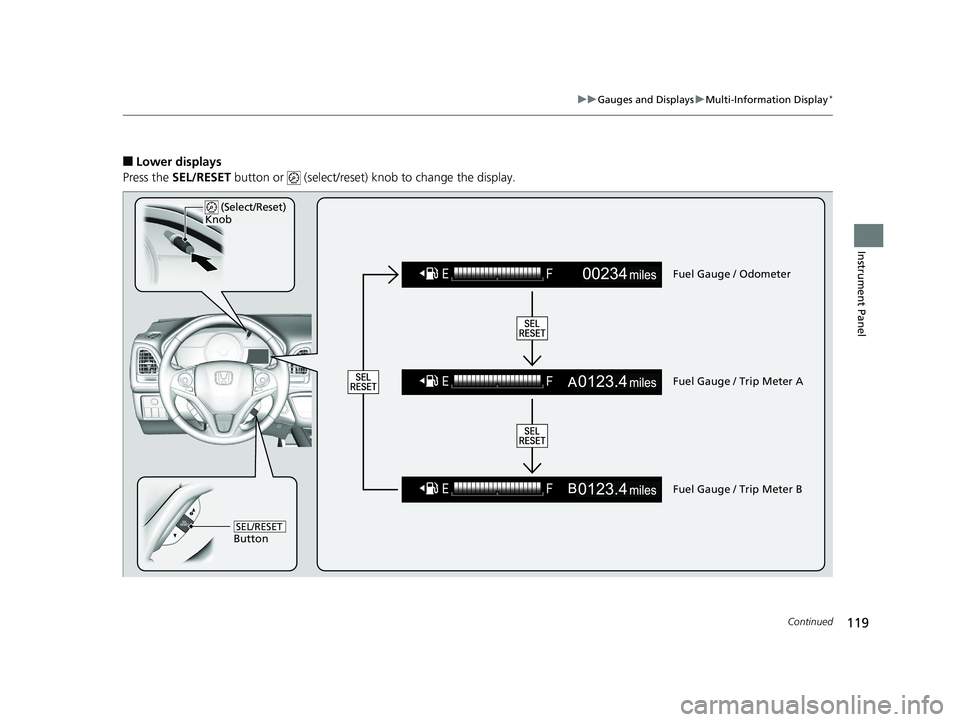

■Lower displays
Press the SEL/RESET button or (select/reset) knob to change the display.
Fuel Gauge / Odometer
Fuel Gauge / Trip Meter A
Fuel Gauge / Trip Meter B
(Select/Reset)
Knob

ButtonSEL/RESET
20 HR-V HDMC HDMG-31T7A6400.book 119 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuGauges and Displays uMulti-Information Display*
120
Instrument Panel

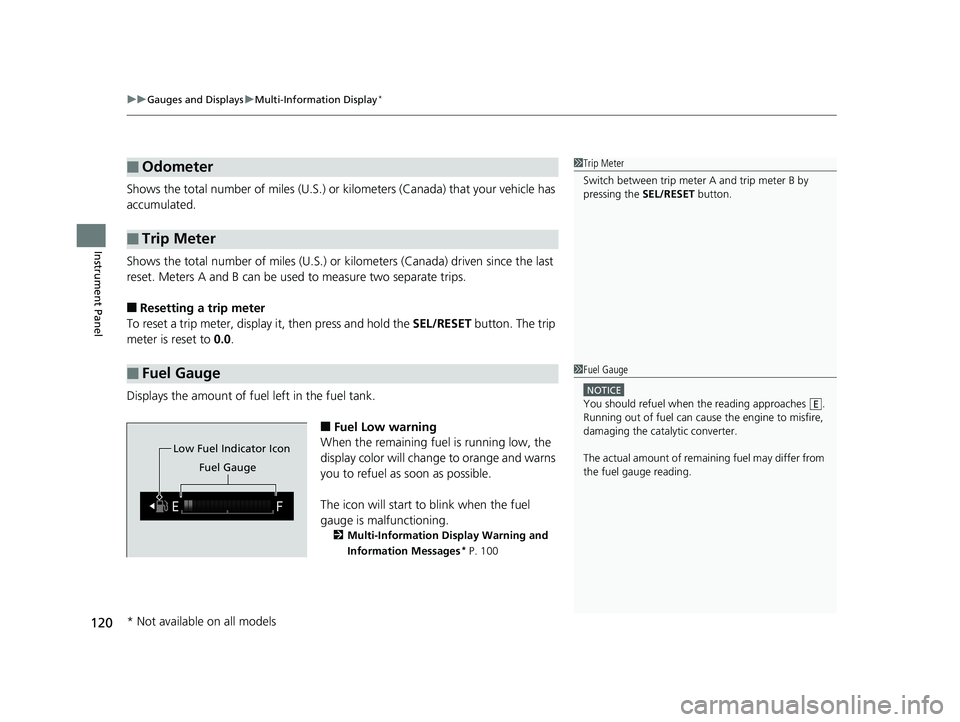

Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Displays the amount of fuel left in the fuel tank.
■Fuel Low warning
When the remaining fuel is running low, the
display color will change to orange and warns
you to refuel as soon as possible.
The icon will start to blink when the fuel
gauge is malfunctioning.
2 Multi-Information Display Warning and
Information Messages
* P. 100
■Odometer
■Trip Meter
■Fuel Gauge
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
Low Fuel Indicator Icon
Fuel Gauge
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 120 ページ ２０１９年８月８日　木曜日　午後３時５２分

Continued121
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km /h (Canada) since Trip A or Trip B was
reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 521
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 123
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 123
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 123
