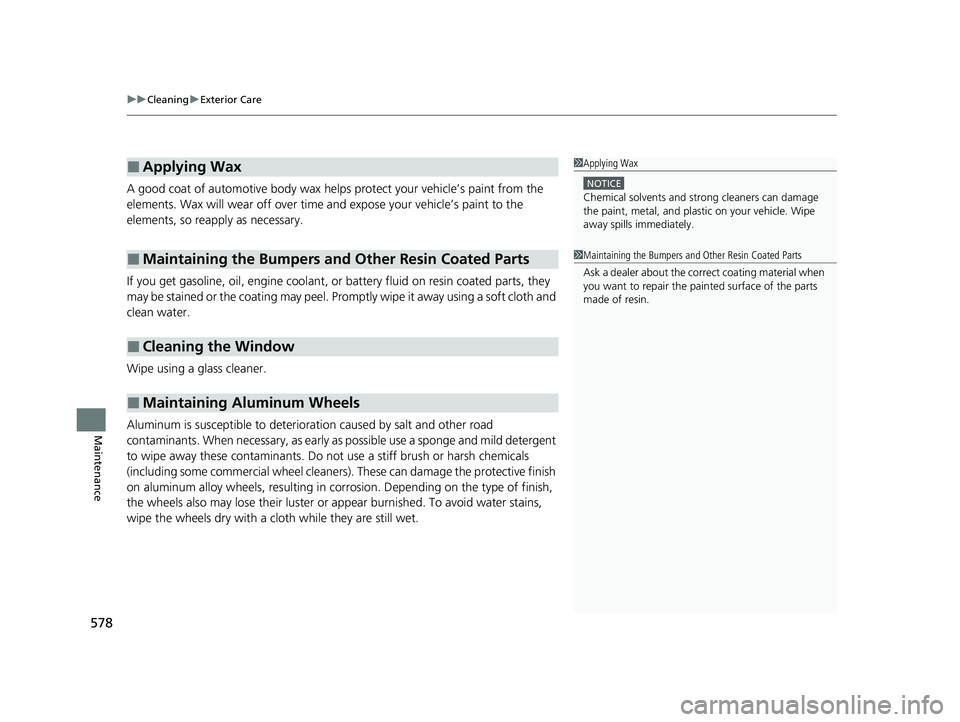

uuCleaning uExterior Care
578
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the pa inted surface of the parts
made of resin.
21 HR-V HDMC-31T7A6500.book 578 ページ ２０２０年９月２３日 水曜日 午前７時０分
Page 604 of 643

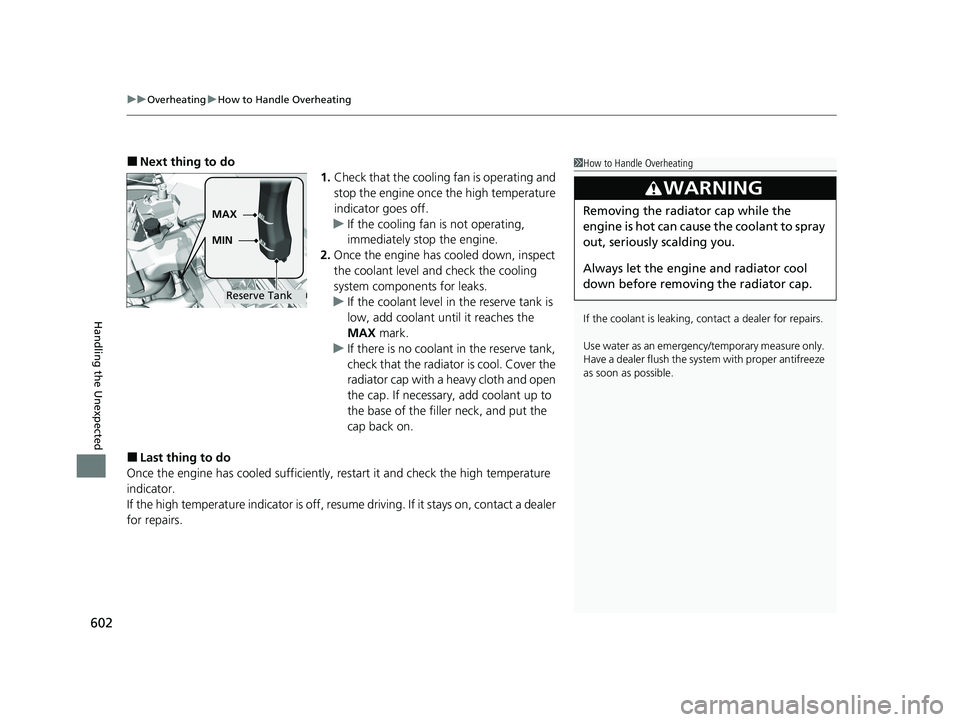

uuOverheating uHow to Handle Overheating
602
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the high temperature
indicator goes off.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the high temperature
indicator.
If the high temperature indicator is off, resume driving. If it stays on, contact a dealer
for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.MAX
Reserve Tank
MIN
21 HR-V HDMC-31T7A6500.book 602 ページ ２０２０年９月２３日 水曜日 午前７時０分
Page 621 of 643
619

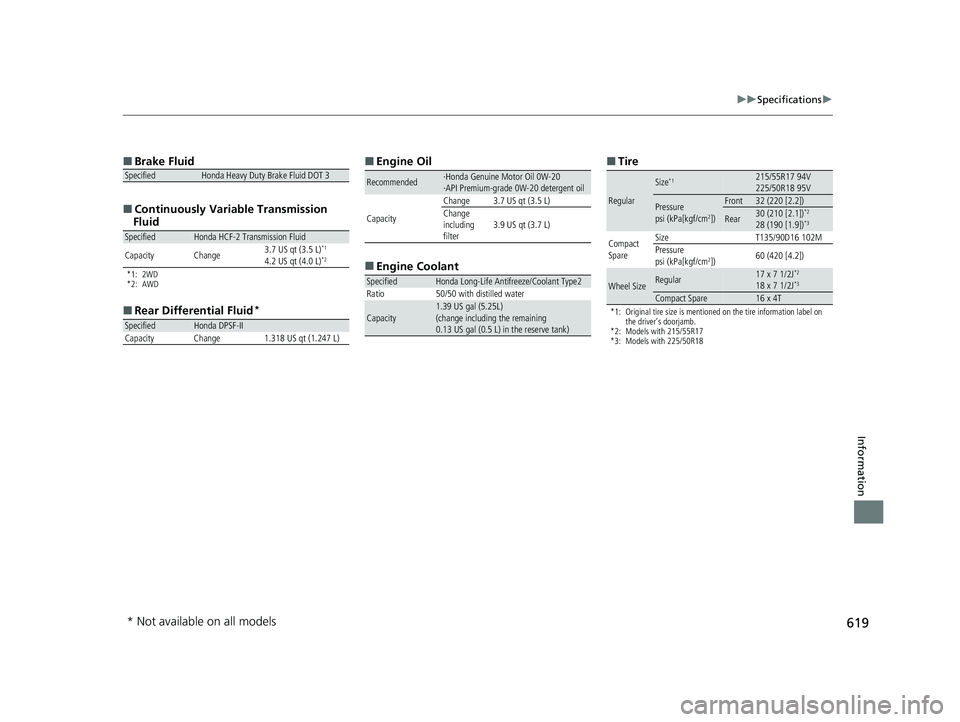

uuSpecifications u
Information
■
Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD
*2: AWD
■ Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 L)*1
4.2 US qt (4.0 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.318 US qt (1.247 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 L)
Change
including
filter
3.9 US qt (3.7 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.39 US gal (5.25L)
(change including the remaining
0.13 US gal (0.5 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 215/55R17
*3: Models with 225/50R18
Regular
Size*1215/55R17 94V
225/50R18 95V
Pressure
psi (kPa[kgf/cm2])
Front32 (220 [2.2])
Rear30 (210 [2.1])*2
28 (190 [1.9])*3
Compact
Spare Size T135/90D16 102M
Pressure
psi (kPa[kgf/cm
2])
60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*2
18 x 7 1/2J*3
Compact Spare16 x 4T
* Not available on all models
21 HR-V HDMC-31T7A6500.book 619 ページ ２０２０年９月２３日 水曜日 午前７時０分
Page 633 of 643
Index
631
Index
Index
Numbers
7-Speed Manual Shift Mode................... 448
A
ABS (Anti-lock Brake System) .................. 512
Accessories and Modifications ................ 580
Accessory Power Sockets ......................... 211
Adaptive Cruise Control (ACC) Indicator ................................................. 100
Additives Coolant .................................................. 540
Engine Oil ............................................... 535
Washer ................................................... 544
Additives, Engine Oil ............................... 535
Adjusting
Armrest .................................................. 204
Front Seats.............................................. 194
Head Restraints ....................................... 201
Mirrors.................................................... 191
Rear Seats ............................................... 197
Steering Wheel ....................................... 190
Temperature ................................... 118, 121
Adjusting the Sound ........................ 243, 275
Air Conditioning System Climate Control System .......................... 220
Defrosting the Windshield and
Windows ...................................... 219, 223
Dust and Pollen Filter .............................. 574
Heating and Cooling System ................... 216 Air Conditioning System (Climate Control
System)
Dust and Pollen Filter ............................... 574
Synchronization Mode ............................. 228
Air Conditioning System (Heating and
Cooling System)Cooling ................................................... 219
Dust and Pollen Filter ............................... 574
Heating ................................................... 218
Air Pressure ....................................... 561, 619
Airbags ........................................................ 52
Advanced Airbags ..................................... 58
Airbag Care ............................................... 67
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 55
Indicator .............................................. 64, 91
Passenger Front Airbag Off Indicator ......... 65
Sensors ...................................................... 52
Side Airbags .............................................. 60
Side Curtain Airbags .................................. 62
All-Wheel Drive (AWD) ............................ 458
Android Auto ............................................ 320
Anti-lock Brake System (ABS) .................. 512
Indicator .................................................... 91
Apple CarPlay ........................................... 316
Armrest ..................................................... 204
Audio Remote Controls ............................ 235
Audio System ............................................ 232
Adjusting the Sound ........................ 243, 275
Error Messages ........................................ 327
General Information ................................ 333 iPod ................................................ 250, 294
MP3/WMA/AAC ...................... 247, 253, 303
Recommended CDs ................................. 334
Recommended Devices............................ 336
Remote Controls ..................................... 235
Security Code .......................................... 234
Theft Protection ...................................... 234
USB Flash Drives ...................................... 336
USB Port(s) .............................................. 233
Audio/Information Screen ............... 239, 260
Authorized Manuals ................................ 628
Auto Door Locking/Unlocking ................. 156
Customize ............................................... 157
Auto High-Beam ....................................... 180
Automatic Brake Hold ............................. 510
Indicator............................................ 87, 510
Automatic Brake Hold System
Indicator............................................ 87, 510
Automatic Climate Control Sensors ........ 229
Average Fuel Economy .................... 120, 125
Average Speed ......................................... 125
B
Battery...................................................... 570
Charging System Indicator................. 89, 603
If the Battery Is Dead ............................... 598
Maintenance (Checki ng the Battery) ........ 570
Maintenance (Replacing) ......................... 572
Belts (Seat) .................................................. 42
Beverage Holders ..................................... 208
21 HR-V HDMC-31T7A6500.book 631 ページ ２０２０年９月２３日 水曜日 午前７時０分

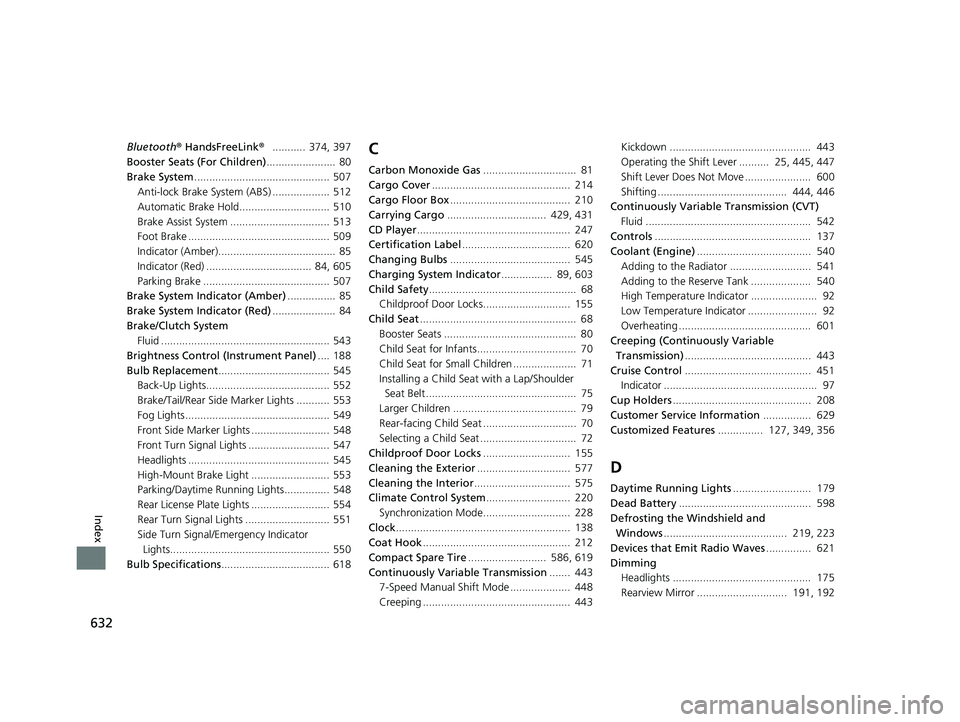

Page 634 of 643
632
Index
Bluetooth® HandsFreeLink ®........... 374, 397
Booster Seats (For Children) ....................... 80
Brake System ............................................. 507
Anti-lock Brake System (ABS) ................... 512
Automatic Brake Hold.............................. 510
Brake Assist System ................................. 513
Foot Brake ............................................... 509
Indicator (Amber)....................................... 85
Indicator (Red) ................................... 84, 605
Parking Brake .......................................... 507
Brake System Indicator (Amber) ................ 85
Brake System Indicator (Red) ..................... 84
Brake/Clutch System Fluid ........................................................ 543
Brightness Control (Instrument Panel) .... 188
Bulb Replacement ..................................... 545
Back-Up Lights......................................... 552
Brake/Tail/Rear Side Marker Lights ........... 553
Fog Lights ................................................ 549
Front Side Marker Lights .......................... 548
Front Turn Signal Lights ........................... 547
Headlights ............................................... 545
High-Mount Brake Light .......................... 553
Parking/Daytime Running Lights............... 548
Rear License Plate Lights .......................... 554
Rear Turn Signal Lights ............................ 551
Side Turn Signal/Emergency Indicator Lights..................................................... 550
Bulb Specifications .................................... 618C
Carbon Monoxide Gas ............................... 81
Cargo Cover .............................................. 214
Cargo Floor Box ........................................ 210
Carrying Cargo ................................. 429, 431
CD Player ................................................... 247
Certification Label .................................... 620
Changing Bulbs ........................................ 545
Charging System Indicator ................. 89, 603
Child Safety ................................................. 68
Childproof Door Locks............................. 155
Child Seat .................................................... 68
Booster Seats ............................................ 80
Child Seat for Infants................................. 70
Child Seat for Small Children ..................... 71
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Larger Children ......................................... 79
Rear-facing Child Seat ............................... 70
Selecting a Child Seat ................................ 72
Childproof Door Locks ............................. 155
Cleaning the Exterior ............................... 577
Cleaning the Interior ................................ 575
Climate Control System ............................ 220
Synchronization Mode............................. 228
Clock .......................................................... 138
Coat Hook ................................................. 212
Compact Spare Tire .......................... 586, 619
Continuously Variable Transmission ....... 443
7-Speed Manual Shift Mode .................... 448
Creeping ................................................. 443 Kickdown ............................................... 443
Operating the Shift Lever .......... 25, 445, 447
Shift Lever Does Not Move ...................... 600
Shifting ........................................... 444, 446
Continuously Variable Transmission (CVT)
Fluid ....................................................... 542
Controls .................................................... 137
Coolant (Engine) ...................................... 540
Adding to the Radiator ........................... 541
Adding to the Reserve Tank .................... 540
High Temperature Indicator ...................... 92
Low Temperature Indicator ....................... 92
Overheating ............................................ 601
Creeping (Continuously Variable
Transmission) .......................................... 443
Cruise Control .......................................... 451
Indicator ................................................... 97
Cup Holders .............................................. 208
Customer Service Information ................ 629
Customized Features ............... 127, 349, 356
D
Daytime Running Lights .......................... 179
Dead Battery ............................................ 598
Defrosting the Windshield and Windows ......................................... 219, 223
Devices that Emit Radio Waves ............... 621
Dimming Headlights .............................................. 175
Rearview Mirror .............................. 191, 192
21 HR-V HDMC-31T7A6500.book 632 ページ ２０２０年９月２３日 水曜日 午前７時０分
Page 635 of 643
633
Index
Dipstick (Engine Oil)................................ 536
Directional Signals (Turn Signal) ............. 174
Display Setup .................................... 244, 276
Door Mirrors ............................................. 193
Doors ........................................................ 140
Auto Door Locking.................................. 156
Auto Door Unlocking .............................. 156
Door and Tailgate Open Indicator ..................................... 40, 41, 93
Keys........................................................ 140
Locking/Unlocking the Doors from the
Inside .................................................... 152
Locking/Unlocking the Doors from the Outside ................................................. 143
Lockout Prevention System ..................... 151
DOT Tire Quality Grading ........................ 563
Driving ...................................................... 427
Braking ................................................... 507
Continuously Variable Transmission ........ 443
Cruise Control ........................................ 451
Shifting Position .............................. 444, 446
Starting the Engine ......................... 436, 439
Dust and Pollen Filter .............................. 574
E
ECO Assist® System ..................................... 11
ECON Button ............................................ 450
ECON Mode Indicator ................................ 97
Elapsed Time ............................................ 125 Electric Parking Brake
Indicator .................................................... 86
Electric Parking Brake System Indicator ............................................ 86, 606
Electric Power Steering (EPS) System
Indicator ............................................ 94, 605
Electronic Stability Control (ESC) ............. 454
Emergency ................................................ 613
Emissions Testing (Readiness Codes) ....... 623
Engine Coolant ................................................... 540
If the Battery Is Dead ............................... 598
Number ................................................... 620
Oil ........................................................... 535
Starting ........................................... 436, 439
Switch Buzzer .......................................... 169
Engine Coolant ......................................... 540
Adding to the Radiator ............................ 541
Adding to the Reserve Tank ..................... 540
High Temperature Indicator ....................... 92
Low Temperature Indicator ........................ 92
Overheating ............................................ 601
Engine Oil ................................................. 535
Adding .................................................... 537
Checking ................................................. 536
Displaying Oil Life ............................ 525, 529
Low Oil Pressure Indicator .................. 89, 603
Recommended Engine Oil ........................ 535
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) ........................... 577
Exterior Mirrors ........................................ 193
F
Features.................................................... 231
Filters Dust and Pollen ....................................... 574
Oil ........................................................... 538
Flat Tire ..................................................... 586
Floor Mats ................................................. 576
Fluids
Brake ...................................................... 543
Continuously Variable Transmission (CVT) ..................................................... 542
Engine Coolant ....................................... 540
Windshield Washer ................................. 544
FM/AM Radio .................................... 245, 282
Fog Light Indicator ..................................... 96
Folding Down the Rear Seats .................. 198
Folding the Rear Seat Up ......................... 199
Foot Brake ................................................ 509
Front Airbags (SRS) ..................................... 55
Front Seats Adjusting ................................................ 194
Front Sensor Camera ................................ 504
Fuel ...................................................... 27, 517
Economy ................................................. 520
Gauge ............................................. 121, 124
Instant Fuel Economy ...................... 120, 125
Low Fuel Indicator ..................................... 91
Range ............................................. 120, 125
Recommendation .................................... 517
Refueling........................................... 27, 517
Fuel Economy ........................................... 520
21 HR-V HDMC-31T7A6500.book 633 ページ ２０２０年９月２３日 水曜日 午前７時０分
