Page 7 of 643
Contents
Child Safety P. 68Exhaust Gas Hazard P. 81Safety Labels P. 82
Tailgate P. 160 Security System P. 163
Operating the Switches Around the Steering Wheel P. 169 Adjusting the Mirrors P. 191
Interior Lights/Interior Convenience Items P. 205 Heating and Cooling System
* P. 216
Audio Error Messages P. 327General Information on the Audio System P. 333
Bluetooth ® HandsFreeLink ® P. 374, 397
Off-Highway Driving Guidelines P. 434 When Driving P. 436 Honda Sensing®* P. 464
Multi-View Rear Camera P. 515 Refueling P. 517 Fuel Economy and CO
2 Emissions P. 520
Maintenance Under the Hood P. 533 Replacing Light Bulbs P. 545
Checking and Maintaining Tires P. 559 Battery P. 570 Remote Transmitter Care P. 572
Cleaning P. 575 Accessories and Modifications P. 580
Engine Does Not Start P. 595 If the Battery Is Dead P. 598 Shift Lever Does Not Move P. 600
Emergency Towing P. 613 If You Cannot Open the Tailgate P. 614
Devices that Emit Radio Waves P. 621 Reporting Safety Defects P. 622
Authorized Manuals P. 628 Customer Service Information P. 629
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 83
ControlsP. 137
FeaturesP. 231
DrivingP. 427
MaintenanceP. 521
Handling the UnexpectedP. 583
InformationP. 617
IndexP. 631
21 HR-V HDMC-31T7A6500.book 5 ページ 2020年9月23日 水曜日 午前7時0分
Page 14 of 643
12
Quick Reference Guide

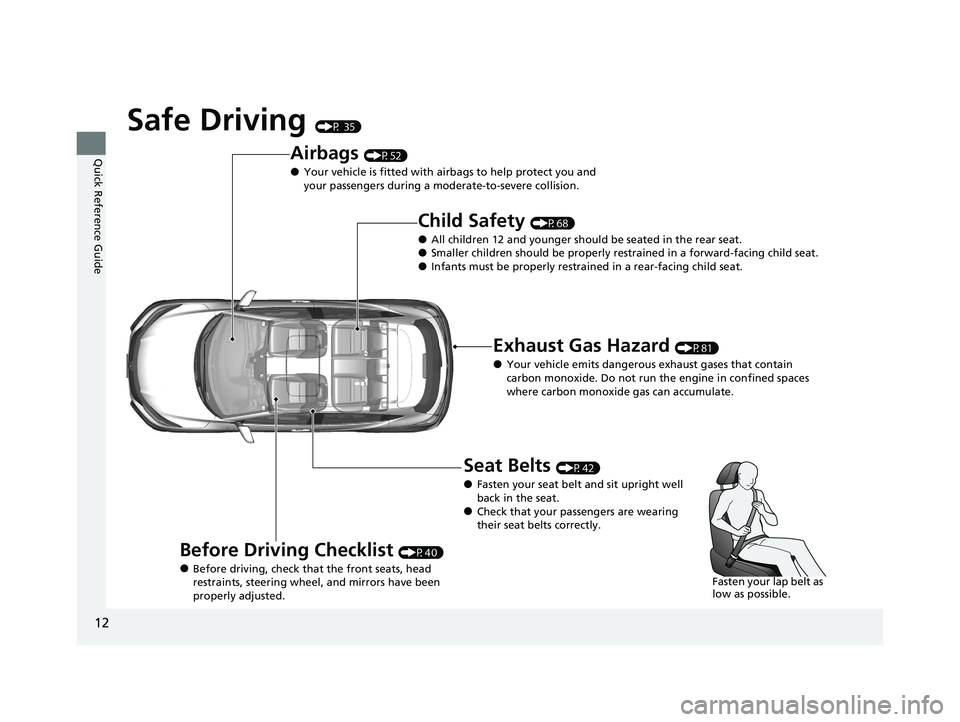

Safe Driving (P 35)
Airbags (P52)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P68)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P81)
●Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P40)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P42)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
21 HR-V HDMC-31T7A6500.book 12 ページ 2020年9月23日 水曜日 午前7時0分
Page 31 of 643
29
Quick Reference Guide

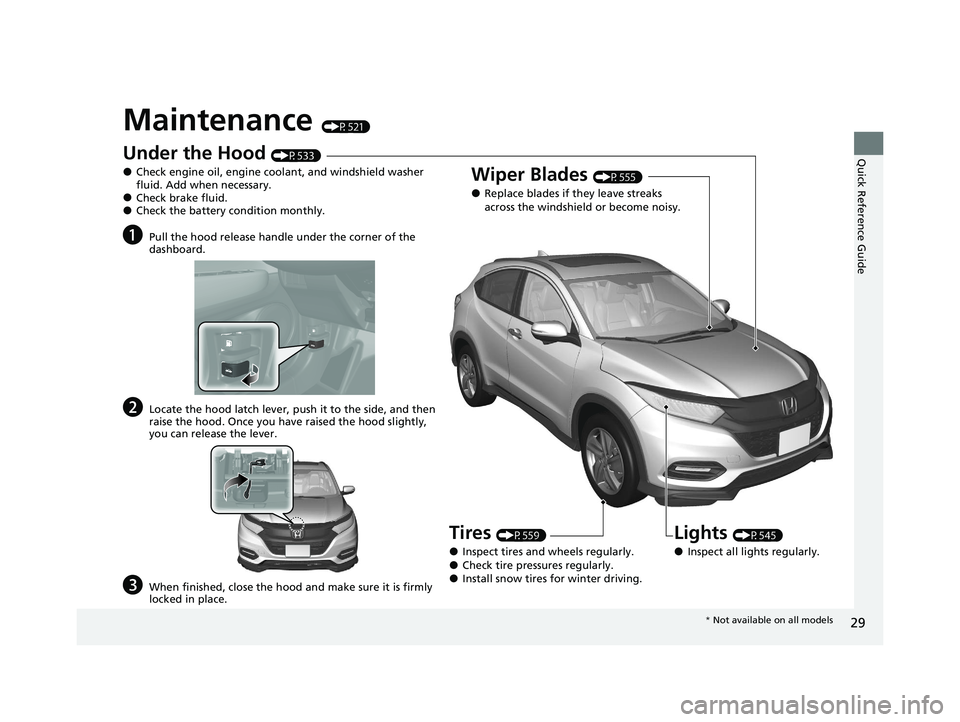

Maintenance (P521)
Under the Hood (P533)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly,
you can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P545)
●Inspect all lights regularly.
Wiper Blades (P555)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P559)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
* Not available on all models
21 HR-V HDMC-31T7A6500.book 29 ページ 2020年9月23日 水曜日 午前7時0分
Page 32 of 643
30
Quick Reference Guide

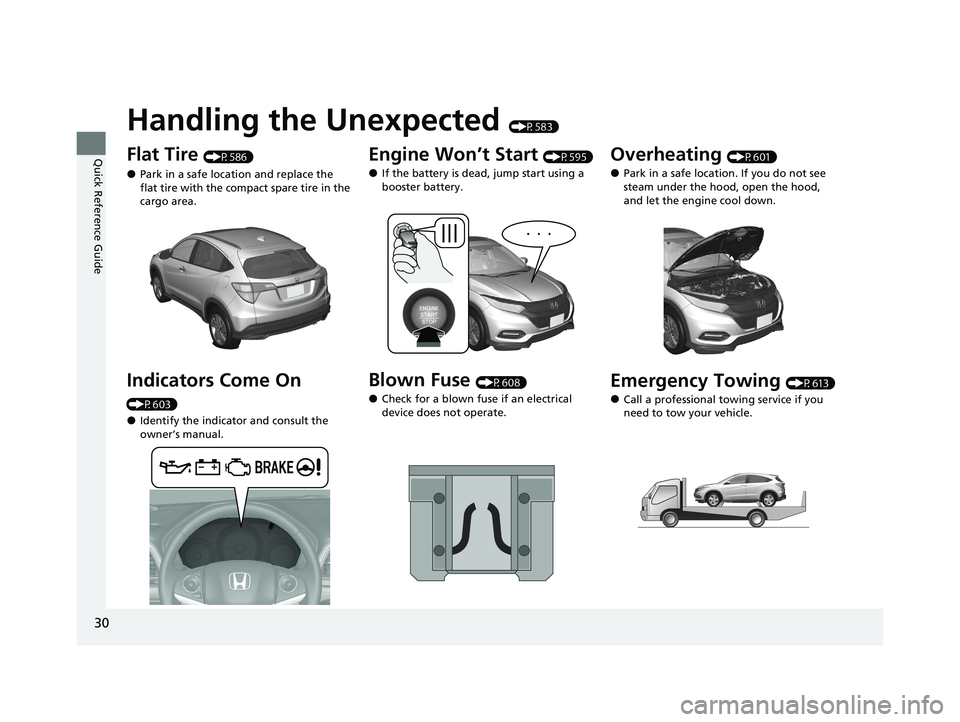

Handling the Unexpected (P583)
Flat Tire (P586)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P603)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P595)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P608)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P601)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P613)
●Call a professional towing service if you
need to tow your vehicle.
21 HR-V HDMC-31T7A6500.book 30 ページ 2020年9月23日 水曜日 午前7時0分
Page 66 of 643
64
uuAirbags uAirbag System Indicators
Safe Driving

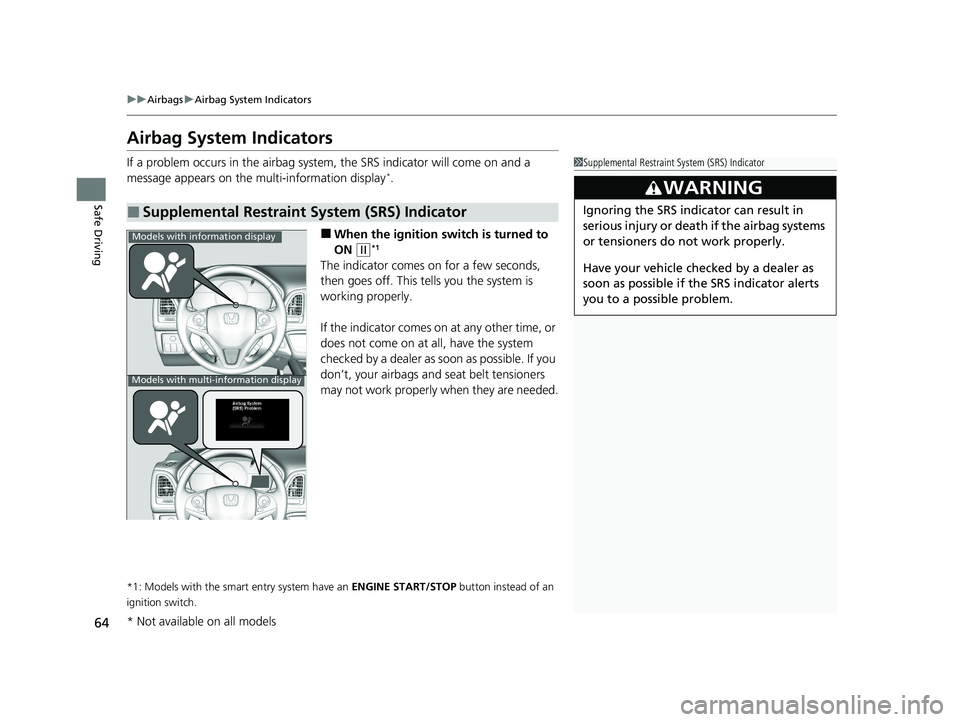

Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the multi-information display*.
■When the ignition sw itch is turned to
ON
(w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as s oon as possible. If you
don’t, your airbags and seat belt tensioners
may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator
1 Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.
Models with information display
Models with multi-information display
* Not available on all models
21 HR-V HDMC-31T7A6500.book 64 ページ 2020年9月23日 水曜日 午前7時0分
Page 86 of 643
84

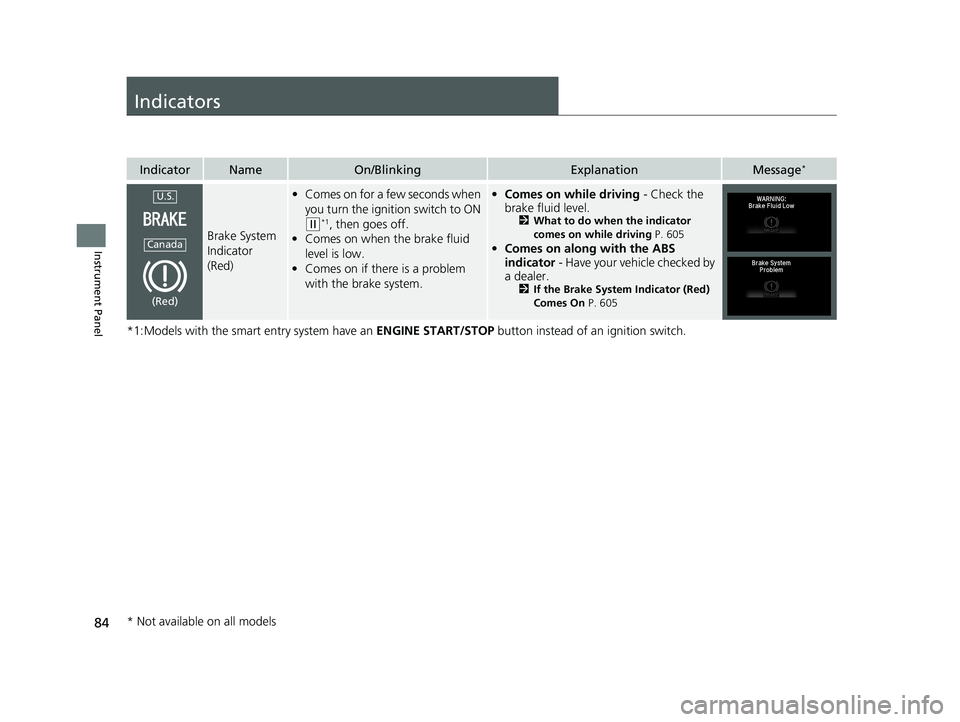

Instrument Panel
Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Brake System
Indicator
(Red)
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem
with the brake system.
• Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 605
•Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 605
U.S.
Canada
(Red)
* Not available on all models
21 HR-V HDMC-31T7A6500.book 84 ページ 2020年9月23日 水曜日 午前7時0分
Page 87 of 643
85
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

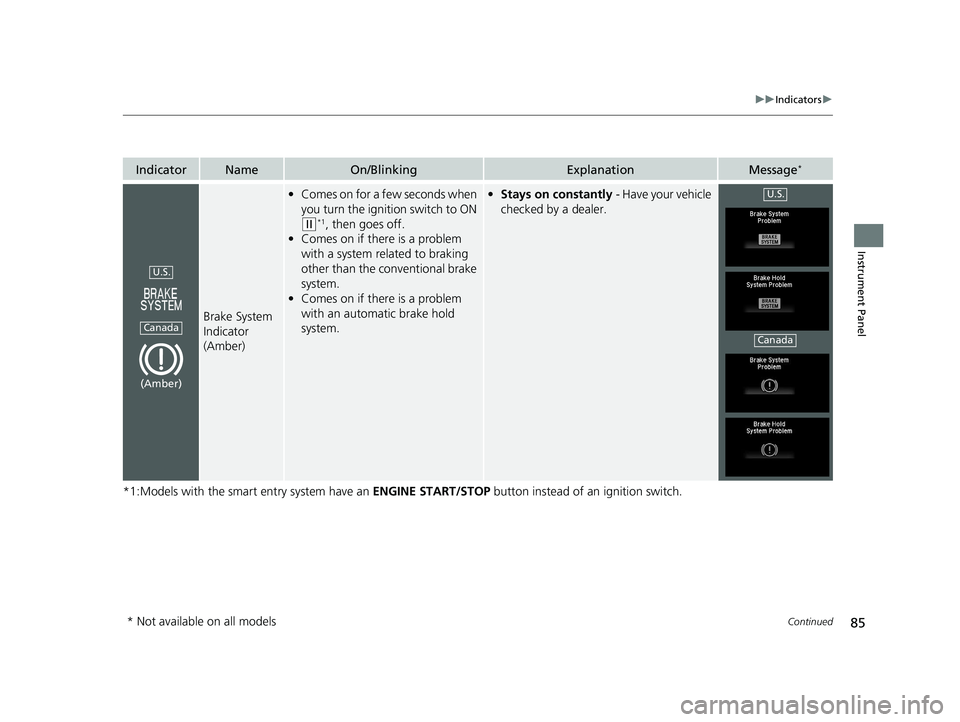

Brake System
Indicator
(Amber)
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
• Comes on if there is a problem
with an automatic brake hold
system.
•Stays on constantly - Have your vehicle
checked by a dealer.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
21 HR-V HDMC-31T7A6500.book 85 ページ 2020年9月23日 水曜日 午前7時0分
Page 88 of 643
86
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Electric
Parking Brake
Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off if the parking
brake has been released.
• Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on for about 15 seconds
when you pull the electric parking
brake switch while the ignition
switch is in LOCK
(0*1.
• Stays on for about 15 seconds
when you turn the ignition switch
to LOCK
(0*1 while the electric
parking brake is set.
• Blinks and the electric parking brake
system indicator comes on at the
same time - There is a problem with the
electric parking brake system. The
parking brake may not be set.
Electric
Parking Brake
System
Indicator
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the electric parking brake
system.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 606
U.S.
Canada
U.S.
Canada
* Not available on all models
21 HR-V HDMC-31T7A6500.book 86 ページ 2020年9月23日 水曜日 午前7時0分
Page 91 of 643
89
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

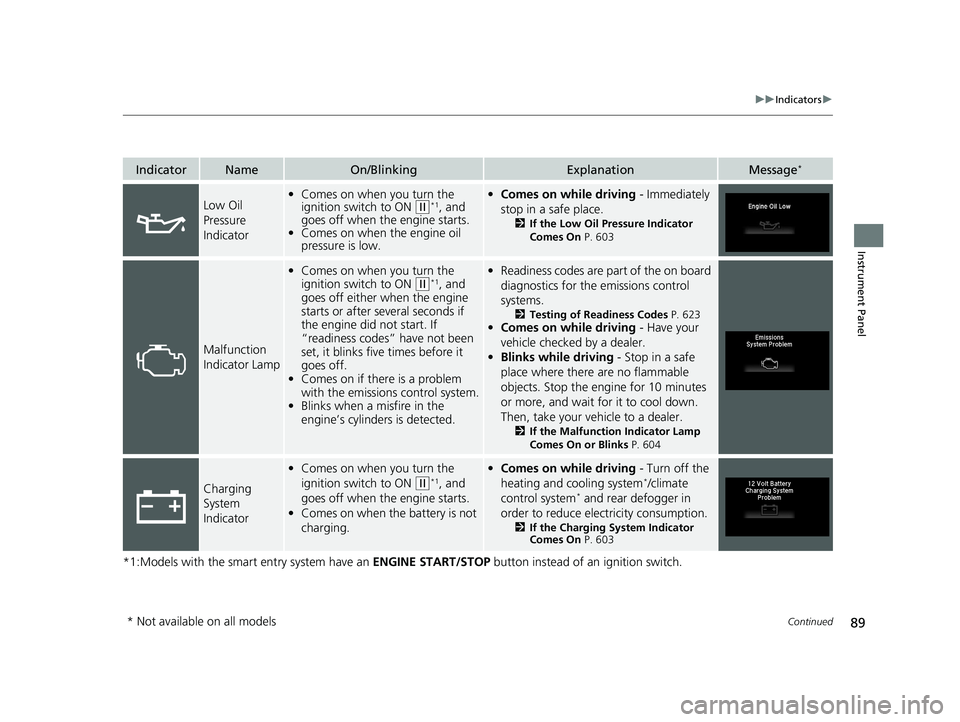

Low Oil
Pressure
Indicator•Comes on when you turn the
ignition switch to ON (w*1, and
goes off when the engine starts.
• Comes on when the engine oil
pressure is low.•Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 603
Malfunction
Indicator Lamp
•Comes on when you turn the
ignition switch to ON
(w*1, and
goes off either when the engine
starts or after several seconds if
the engine did not start. If
“readiness codes” have not been
set, it blinks five times before it
goes off.
• Comes on if there is a problem
with the emissions control system.
• Blinks when a misfire in the
engine’s cylinders is detected.
•Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 623•Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 604
Charging
System
Indicator
•Comes on when you turn the
ignition switch to ON
(w*1, and
goes off when the engine starts.
• Comes on when the battery is not
charging.
•Comes on while driving - Turn off the
heating and cooling system*/climate
control system* and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator
Comes On P. 603
* Not available on all models
21 HR-V HDMC-31T7A6500.book 89 ページ 2020年9月23日 水曜日 午前7時0分
Page 92 of 643
90
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

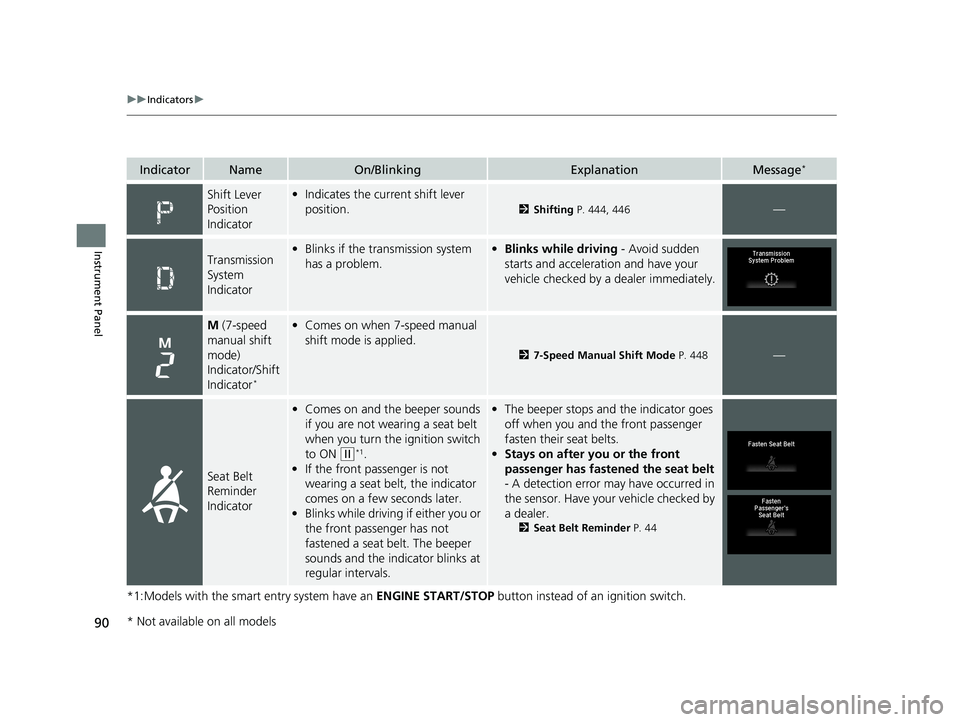

Shift Lever
Position
Indicator•Indicates the current shift lever
position.
2 Shifting P. 444, 446—
Transmission
System
Indicator•Blinks if the transmission system
has a problem.• Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
M (7-speed
manual shift
mode)
Indicator/Shift
Indicator
*
• Comes on when 7-speed manual
shift mode is applied.
2 7-Speed Manual Shift Mode P. 448—
Seat Belt
Reminder
Indicator
•Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch
to ON
(w*1.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
• The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
• Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by
a dealer.
2 Seat Belt Reminder P. 44
* Not available on all models
21 HR-V HDMC-31T7A6500.book 90 ページ 2020年9月23日 水曜日 午前7時0分
