209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

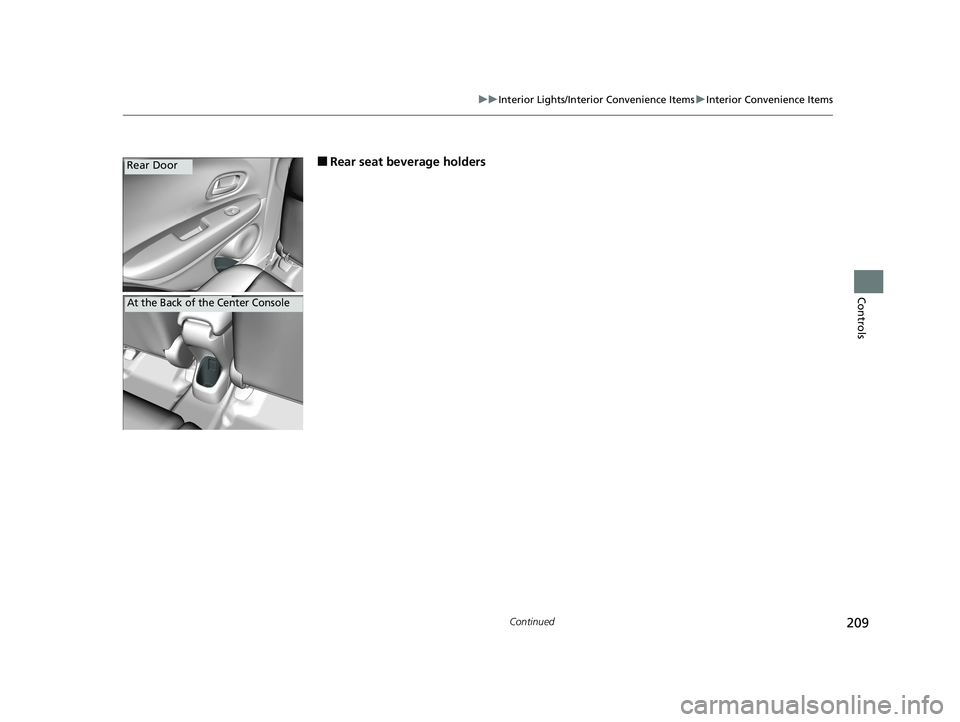

■Rear seat beverage holdersRear Door
At the Back of the Center Console
21 HR-V HDMC-31T7A6500.book 209 ページ ２０２０年９月２３日　水曜日　午前７時０分

210
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

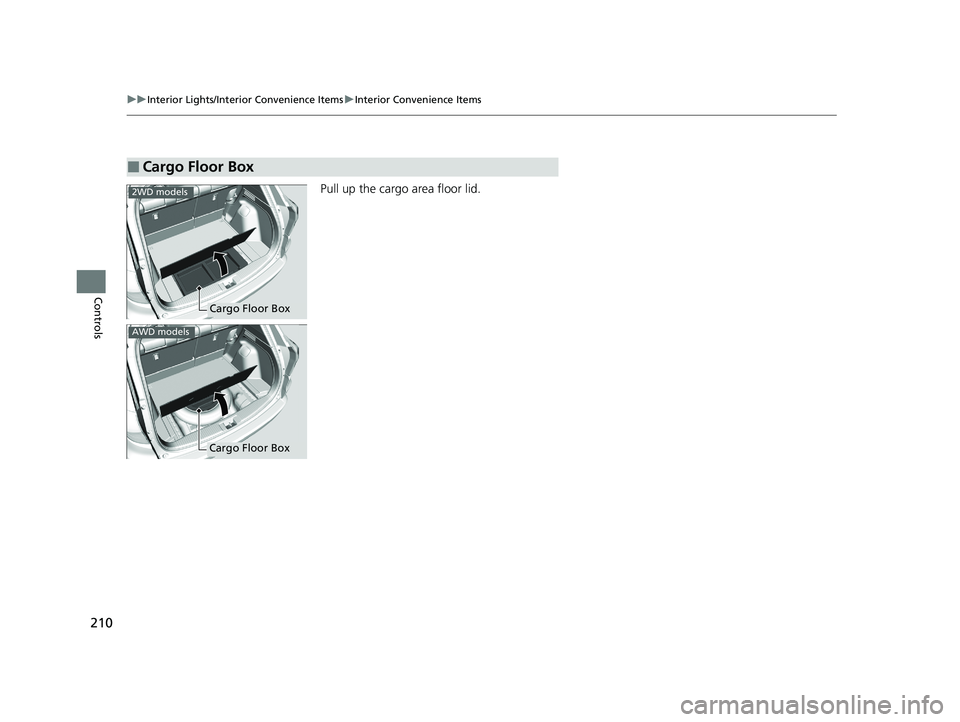

Pull up the cargo area floor lid.
■Cargo Floor Box
Cargo Floor Box
2WD models
AWD models
Cargo Floor Box
21 HR-V HDMC-31T7A6500.book 210 ページ ２０２０年９月２３日　水曜日　午前７時０分

Continued211
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

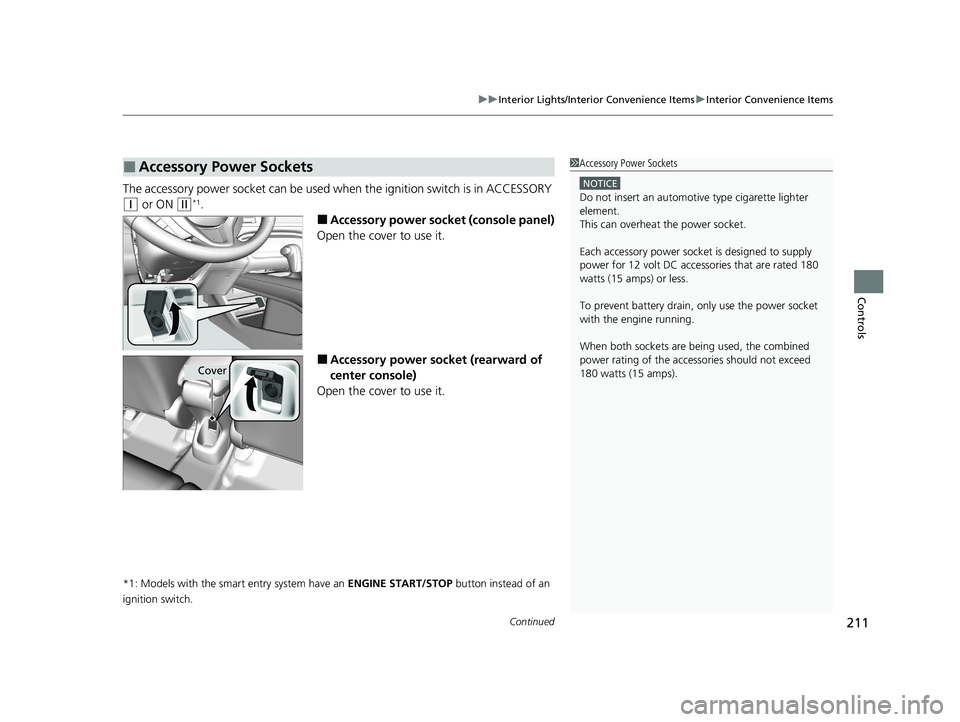

The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (rearward of
center console)
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
Each accessory power soc ket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
When both sockets are being used, the combined
power rating of the accesso ries should not exceed
180 watts (15 amps).
Cover
21 HR-V HDMC-31T7A6500.book 211 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
212
Controls

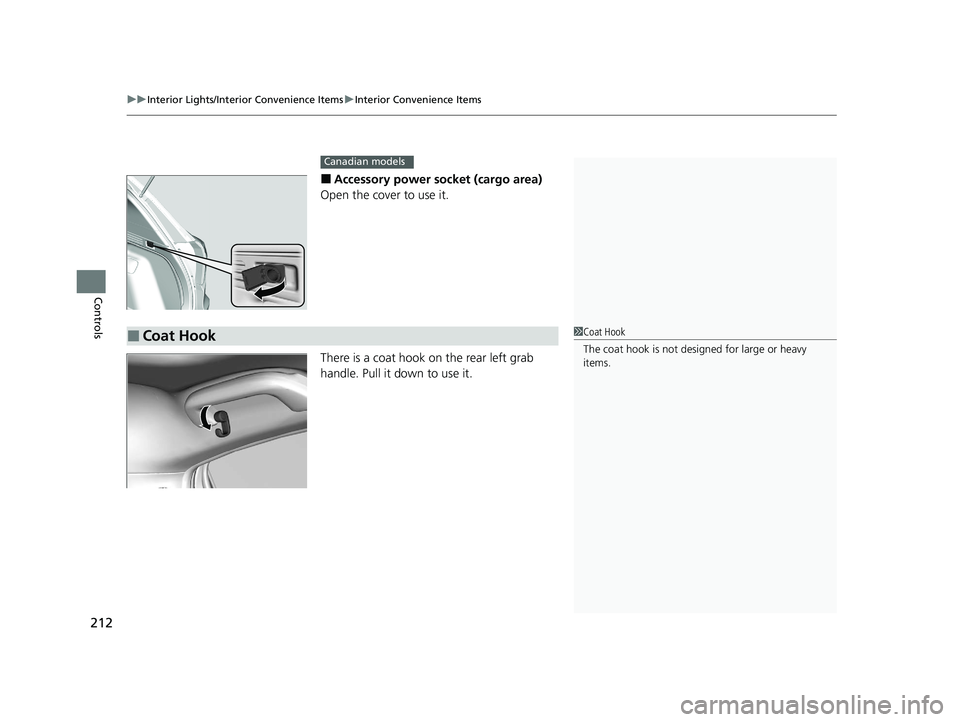

■Accessory power socket (cargo area)
Open the cover to use it.
There is a coat hook on the rear left grab
handle. Pull it down to use it.
Canadian models
■Coat Hook1 Coat Hook
The coat hook is not desi gned for large or heavy
items.
21 HR-V HDMC-31T7A6500.book 212 ページ ２０２０年９月２３日　水曜日　午前７時０分

213
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

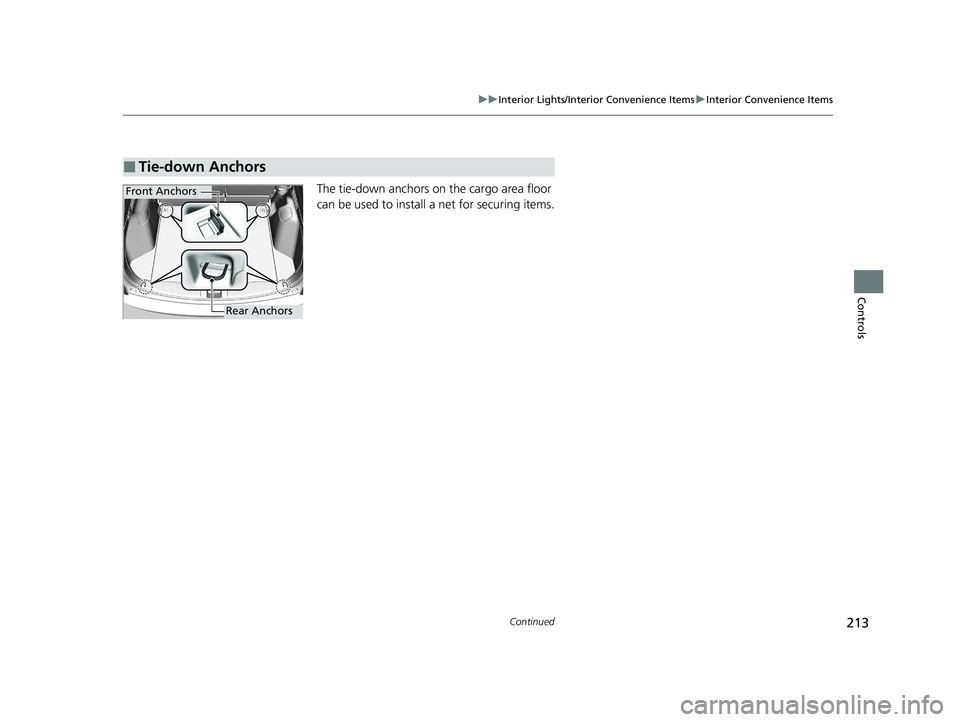

The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Tie-down Anchors
Front Anchors
Rear Anchors
21 HR-V HDMC-31T7A6500.book 213 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
214
Controls

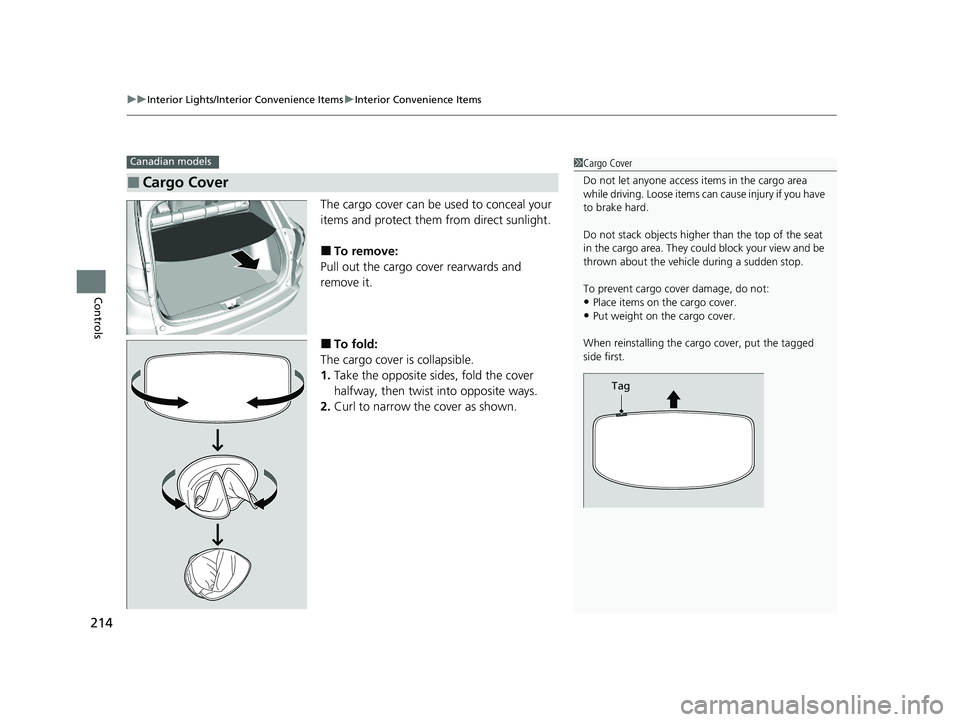

The cargo cover can be used to conceal your
items and protect them from direct sunlight.
■To remove:
Pull out the cargo cover rearwards and
remove it.
■To fold:
The cargo cover is collapsible.
1. Take the opposite sides, fold the cover
halfway, then twist into opposite ways.
2. Curl to narrow the cover as shown.
■Cargo Cover
Canadian models1Cargo Cover
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo cover damage, do not:
•Place items on the cargo cover.•Put weight on the cargo cover.
When reinstalling the carg o cover, put the tagged
side first.
Tag
21 HR-V HDMC-31T7A6500.book 214 ページ ２０２０年９月２３日　水曜日　午前７時０分

215
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

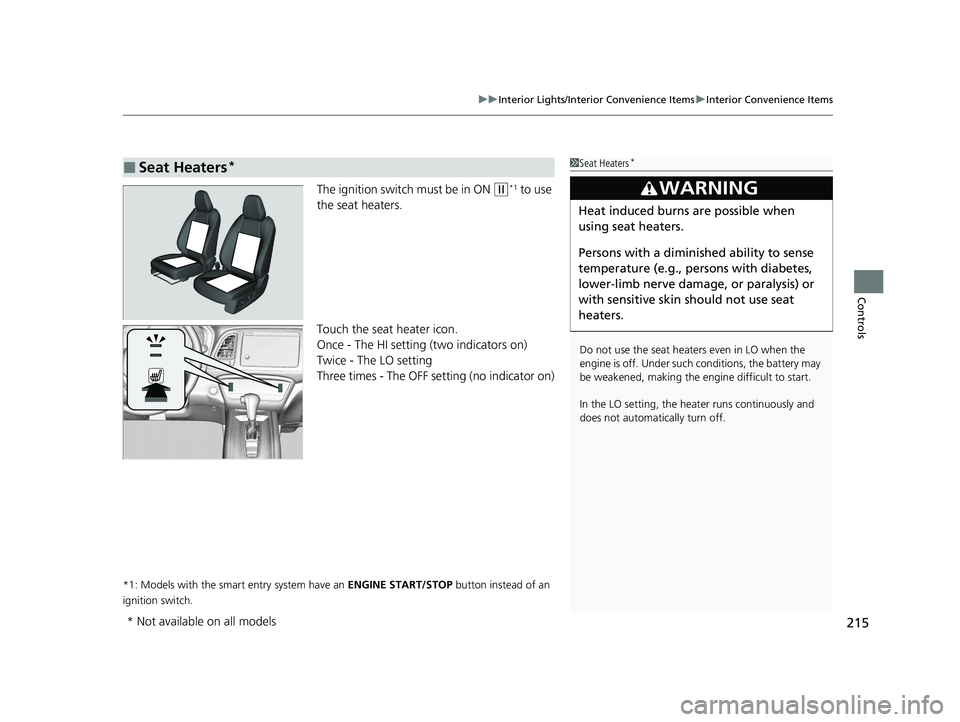

The ignition switch must be in ON (w*1 to use
the seat heaters.
Touch the seat heater icon.
Once - The HI setting (two indicators on)
Twice - The LO setting
Three times - The OFF setting (no indicator on)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Heaters*1 Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
21 HR-V HDMC-31T7A6500.book 215 ページ ２０２０年９月２３日　水曜日　午前７時０分

216
Controls

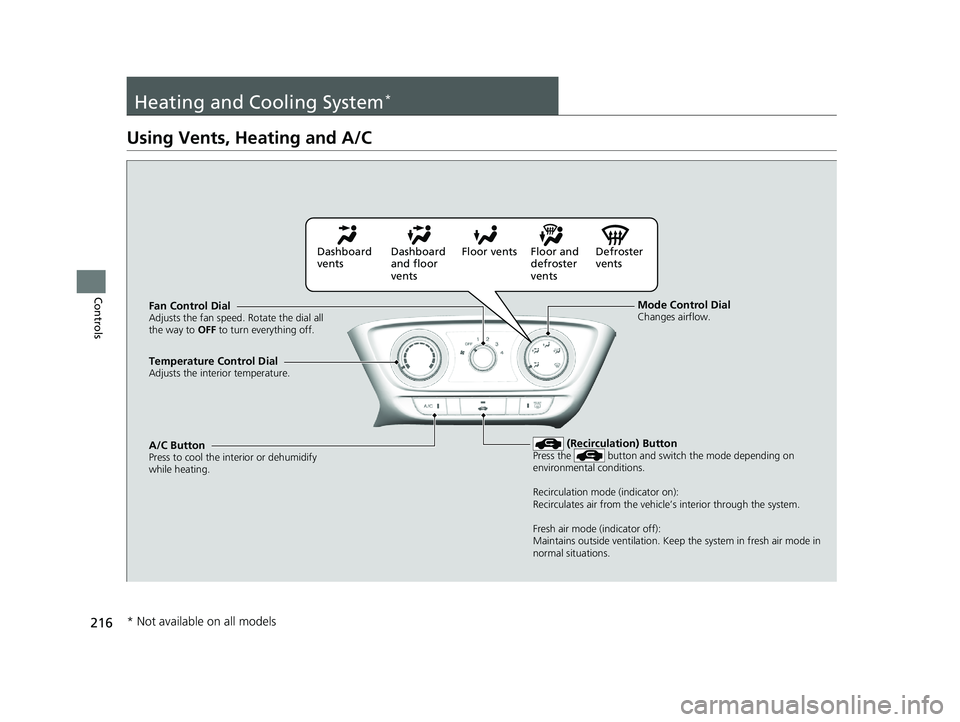

Heating and Cooling System*
Using Vents, Heating and A/C
Mode Control DialChanges airflow.Fan Control DialAdjusts the fan speed. Rotate the dial all
the way to OFF to turn everything off.
A/C ButtonPress to cool the interior or dehumidify
while heating.
Temperature Control DialAdjusts the interior temperature.
(Recirculation) ButtonPress the button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on):
Recirculates air from the vehicle’s interior through the system.
Fresh air mode (indicator off):
Maintains outside ventilation. Keep the system in fresh air mode in
normal situations.
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
ventsDefroster
vents
* Not available on all models
21 HR-V HDMC-31T7A6500.book 216 ページ ２０２０年９月２３日　水曜日　午前７時０分

217
uuHeating and Cooling System*uUsing Vents, Heating and A/C
Continued
Controls

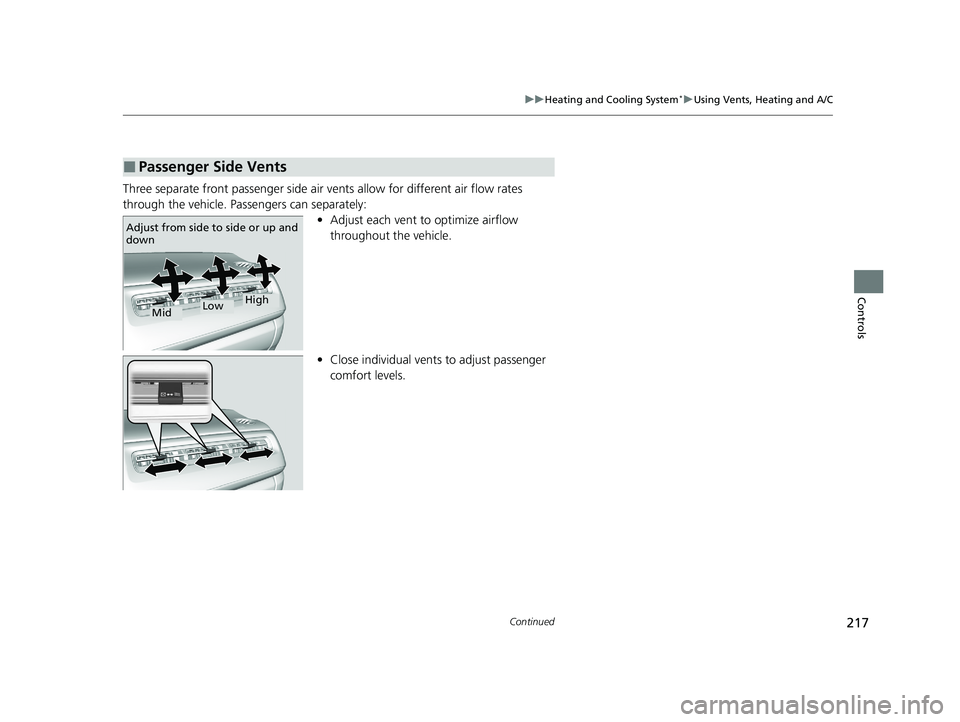

Three separate front passenger side air vents allow for different air flow rates
through the vehicle. Passengers can separately:
•Adjust each vent to optimize airflow
throughout the vehicle.
• Close individual vents to adjust passenger
comfort levels.
■Passenger Side Vents
Adjust from side to side or up and
down
MidLowHigh
21 HR-V HDMC-31T7A6500.book 217 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuHeating and Cooling System*uUsing Vents, Heating and A/C
218
Controls
The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum warm.
4. Press the button (the indicator on).
■To dehumidify the interior
When used in combination with the heater , the air conditioning system makes the
interior warm and dry and can pr event the windows from fogging up.
1. Turn the fan on.
2. Press the A/C button to turn on the air conditioning.
■Heating1Heating
When you select , the mode automatically
switches to fresh air.
1To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.
