HONDA HR-V 2021 Owner's Manual (in English)

399
uuBluetooth ® HandsFreeLink ®u Using HFL
Features
The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion.
2 Speed Dial P. 410
■HFL Status Display1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language. 2 Customized Features P. 356
HFL Mode
Battery Level Status
Signal Strength
Bluetooth Indicator
Appears when your phone
is connected to HFL.
Caller’s Name
Caller’s Number
Roaming Status
■Limitations for Manual Operation
21 HR-V HDMC-31T7A6500.book 399 ページ ２０２０年９月２３日　水曜日　午前７時０分

400
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
HFL Menus
The ignition switch must be in ACCESSORY (q or ON (w*1 to use the system.
■Phone settings screen
1.Select .
2. Select Settings .
3. Select Phone .
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are li mited while driving.
Disconnect a paired phone
from the system.
Bluetooth Device List(Existing entry list)
Disconnect
DeleteDelete a previously paired
phone.
Add Bluetooth DevicePair a new phone to the system.
Phone
Connect a paired device to
the system.Connect :
Connect :
Connect :
21 HR-V HDMC-31T7A6500.book 400 ページ ２０２０年９月２３日　水曜日　午前７時０分

401
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
Ring ToneSelect the fixed or cell phone.
Automatic Phone SyncSet phonebook and call history data to be automa tically imported when a phone is paired to HFL.
Set calls to automatically transfer from your phone to HFL when you enter the vehicle.Auto Phone Call Transfer
Turn HondaLink Assist on and off.HondaLink Assist
Enable Text MessagesText Messages
New Message NotificationSelect whether a pop-up alert comes on the screen when HFL
receives a new text message.
Turn the text message function on and off.
DefaultCancel/Reset all customized items in the Phone settings group as default.
21 HR-V HDMC-31T7A6500.book 401 ページ ２０２０年９月２３日　水曜日　午前７時０分

402
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

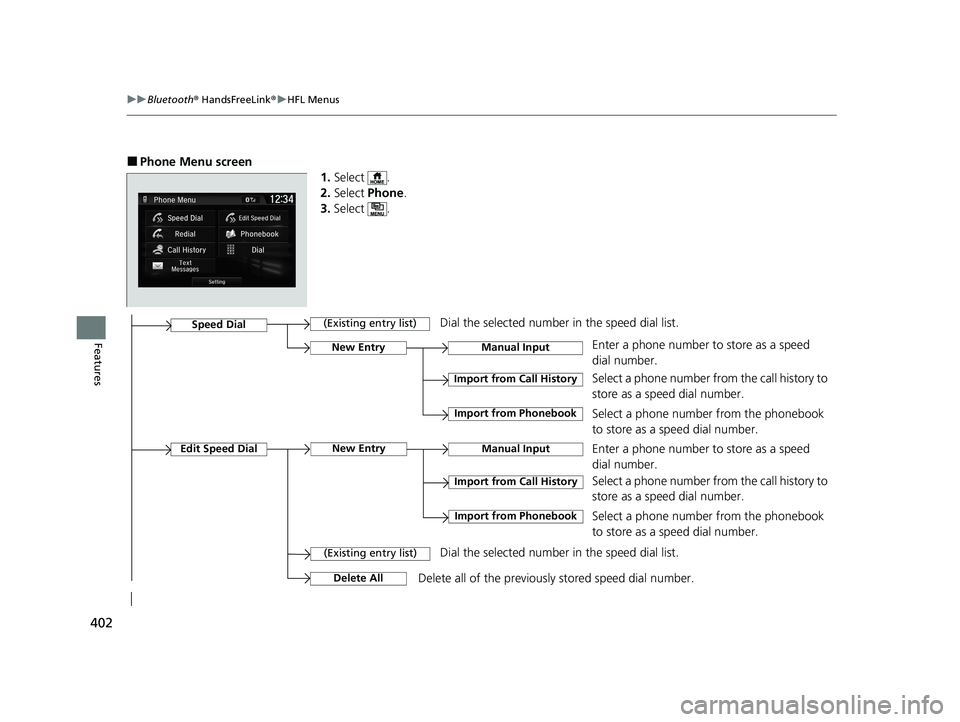

■Phone Menu screen
1.Select .
2. Select Phone .
3. Select .
Select a phone number from the call history to
store as a speed dial number.
Speed Dial
Manual InputNew Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
(Existing entry list)Dial the selected number in the speed dial list.
Select a phone number from the call history to
store as a speed dial number.
Manual InputNew Entry
Import from Call History
Import from PhonebookSelect a phone number from the phonebook
to store as a speed dial number. Enter a phone number to store as a speed
dial number.
(Existing entry list)Dial the selected number in the speed dial list.
Edit Speed Dial
Delete AllDelete all of the previously stored speed dial number.
21 HR-V HDMC-31T7A6500.book 402 ページ ２０２０年９月２３日　水曜日　午前７時０分

403
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

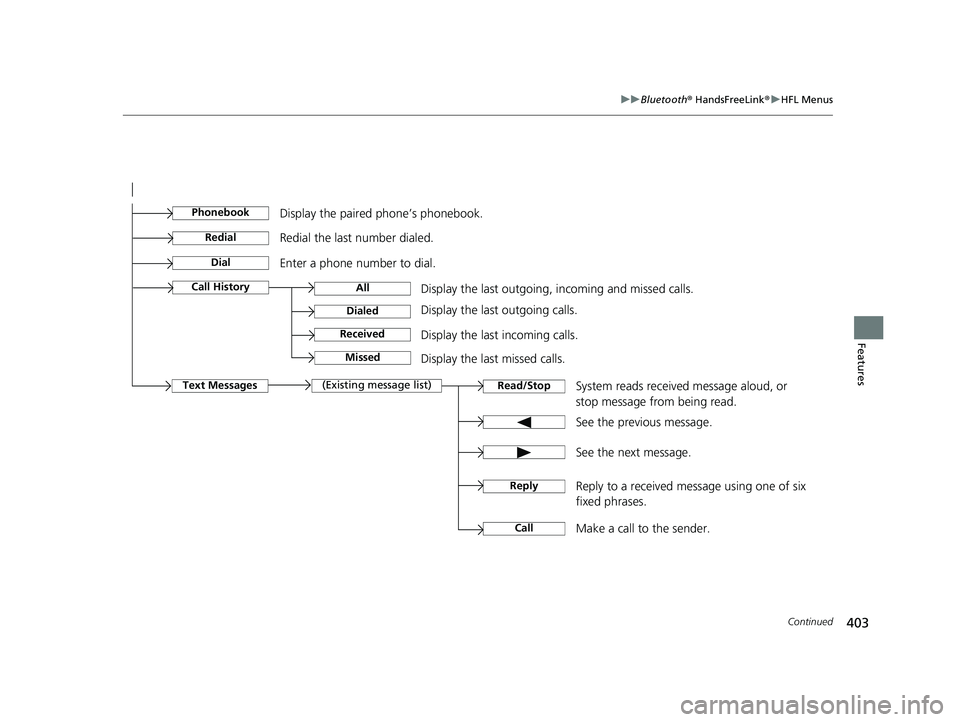

See the previous message.
Text MessagesRead/Stop(Existing message list)
See the next message. System reads received message aloud, or
stop message from being read.
Reply to a received message using one of six
fixed phrases.
CallMake a call to the sender.
Reply
Display the last outgoing, incoming and missed calls.Call HistoryAll
Dialed
Received
Display the last outgoing calls.
Display the last incoming calls.
MissedDisplay the last missed calls.
Dial
Redial
Enter a phone number to dial. Redial the last number dialed.
PhonebookDisplay the paired phone’s phonebook.
21 HR-V HDMC-31T7A6500.book 403 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
404
Features

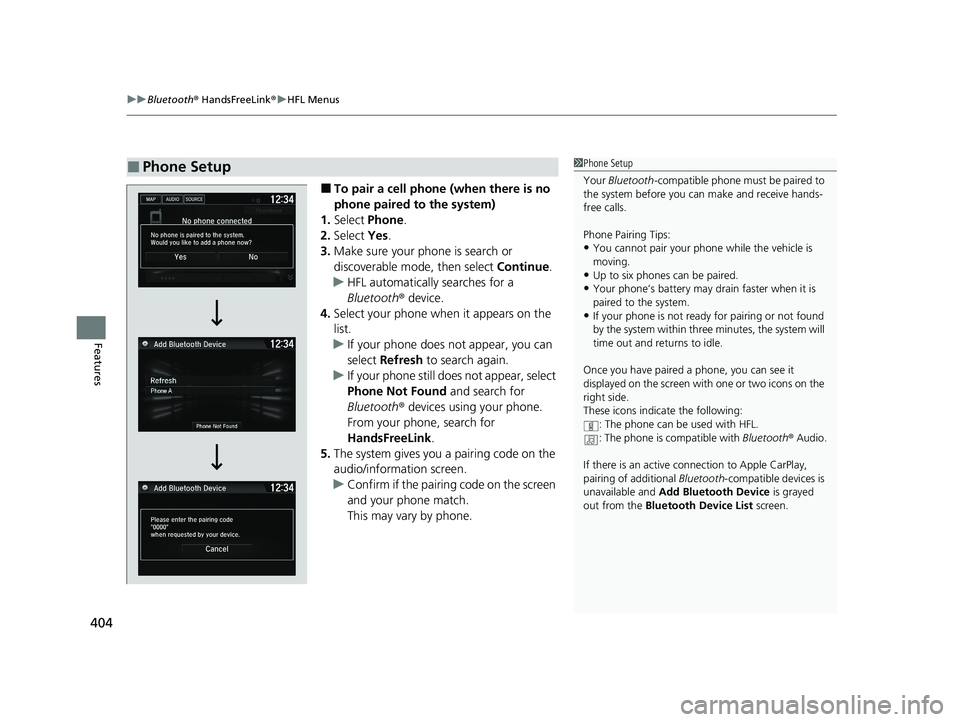

■To pair a cell phone (when there is no
phone paired to the system)
1. Select Phone .
2. Select Yes.
3. Make sure your phone is search or
discoverable mode, then select Continue.
u HFL automatically searches for a
Bluetooth ® device.
4. Select your phone when it appears on the
list.
u If your phone does not appear, you can
select Refresh to search again.
u If your phone still does not appear, select
Phone Not Found and search for
Bluetooth ® devices using your phone.
From your phone, search for
HandsFreeLink .
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
■Phone Setup1Phone Setup
Your Bluetooth -compatible phone must be paired to
the system before you ca n make and receive hands-
free calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone’s battery may dr ain faster when it is
paired to the system.
•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and returns to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following: : The phone can be used with HFL.
: The phone is co mpatible with Bluetooth ® Audio.
If there is an active c onnection to Apple CarPlay,
pairing of additional Bluetooth -compatible devices is
unavailable and Add Bluetooth Device is grayed
out from the Bluetooth Device List screen.
21 HR-V HDMC-31T7A6500.book 404 ページ ２０２０年９月２３日　水曜日　午前７時０分

Continued405
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To change the currently paired phone
1. Go to the phone settings screen.
2 Phone settings screen P. 400
2.Select Bluetooth Device List .
3. Select a phone to connect.
u HFL disconnects the connected phone
and starts searching for another paired
phone.
4. Select Connect : , Connect : , or
Connect : .
■To change the pairing code setting
1. Select .
2. Select Settings .
3. Select Bluetooth / Wi-Fi .
4. Select the Bluetooth tab.
5. Select Edit Pairing Code .
6. Select Random or Fixed .
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HF L will inform you that the
original phone is connected again.
To pair other phones, select Add Bluetooth Device
from the Bluetooth Device List screen.
1To change the pairing code setting
The default pairing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pair ing code each time you
pair a phone , select Random .
21 HR-V HDMC-31T7A6500.book 405 ページ ２０２０年９月２３日　水曜日　午前７時０分

406
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To delete a paired phone
1. Go to the phone settings screen.
2 Phone settings screen P. 400
2.Select Bluetooth Device List .
3. Select a phone you want to delete.
4. Select Delete.
5. A confirmation message appears on the
screen. Select Yes.
21 HR-V HDMC-31T7A6500.book 406 ページ ２０２０年９月２３日　水曜日　午前７時０分

Continued407
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To turn on or off the text message
function
1. Go to the phone settings screen.
2 Phone settings screen P. 400
2.Select Enable Text Messages .
u A pop-up menu appears on the screen.
3. Select On or Off .
■To turn on or off the text message
notice
1. Go to the phone settings screen.
2 Phone settings screen P. 400
2.Select New Message Notification .
u A pop-up menu appears on the screen.
3. Select On or Off .
■To Set Up Text Message Options1To Set Up Text Message Options
To use the text message func tion, it may be necessary
to set up on your phone.
1 To turn on or off the text message notice
On: A pop-up notification comes on every time you
receive a new message.
Off: The message you receive is stored in the system
without not ification.
21 HR-V HDMC-31T7A6500.book 407 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
408
Features
You can change the ring tone setting.
1.Go to the phone settings screen.
2 Phone settings screen P. 400
2.Select Ring Tone.
3. Select Fixed or Mobile Phone .
If you get into the vehicle while you are on the phone, the call can be automatically
transferred to HFL. 1.Go to the phone settings screen.
2 Phone settings screen P. 400
2.Select Auto Phone Call Transfer .
3. Select On or Off .
■Ring Tone1Ring Tone
Fixed: The fixed ring tone sounds from the speakers.
Mobile Phone: For certain connect ed phones, the
ring tone stored in the phone sounds from the
speakers.
■Automatic Transferring
21 HR-V HDMC-31T7A6500.book 408 ページ ２０２０年９月２３日　水曜日　午前７時０分
