HONDA HR-V 2021 Owner's Manual (in English)

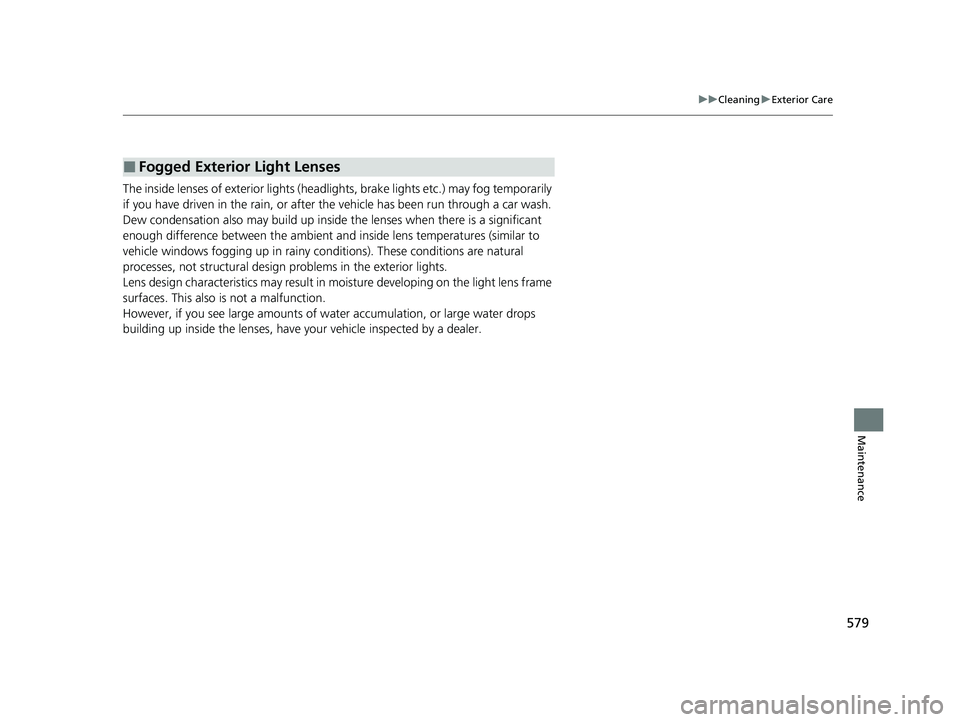

579
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlights, brake lights etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
21 HR-V HDMC-31T7A6500.book 579 ページ ２０２０年９月２３日　水曜日　午前７時０分

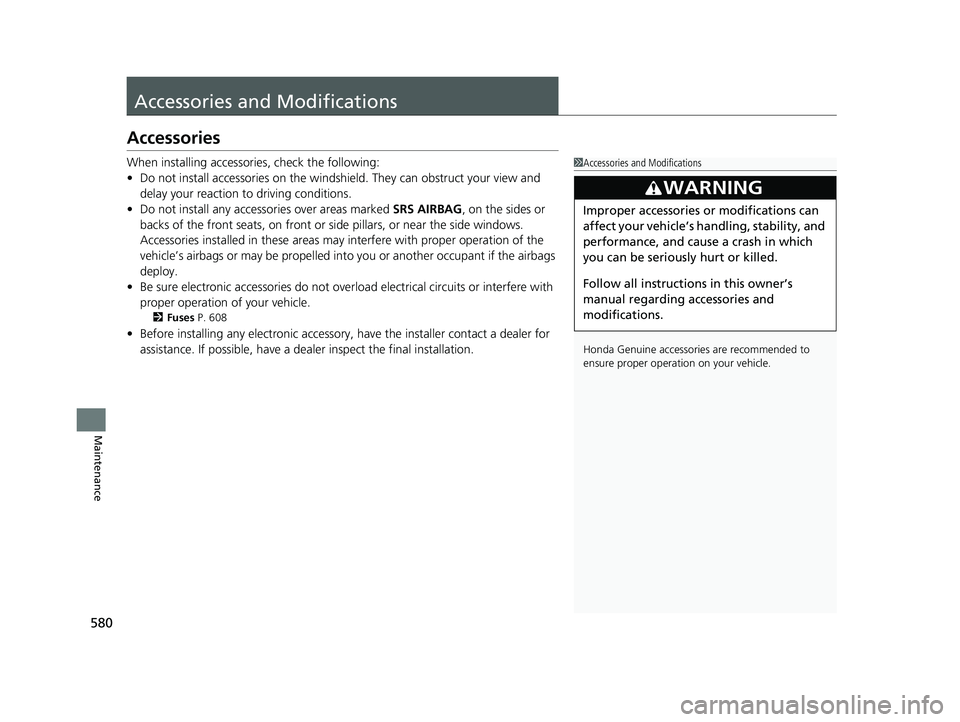

580
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshie ld. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 608
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
21 HR-V HDMC-31T7A6500.book 580 ページ ２０２０年９月２３日　水曜日　午前７時０分

581
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair any of the electrical components.
21 HR-V HDMC-31T7A6500.book 581 ページ ２０２０年９月２３日　水曜日　午前７時０分

582
21 HR-V HDMC-31T7A6500.book 582 ページ ２０２０年９月２３日　水曜日　午前７時０分

583
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 584
If a Tire Goes Flat Changing a Flat Tire ......................... 586
Engine Does Not Start Checking the Engine ........................ 595
If the Smart Entry Remote Battery is Weak .. 596
Emergency Engine Stop ................... 597
If the Battery Is Dead ....................... 598
Shift Lever Does Not Move .............. 600
Overheating How to Handle Overheating ............. 601 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On....603
If the Charging System Indicator Comes
On ................................................. 603
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 604
If the Brake System Indicator (Red) Comes On ................................................. 605
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 605
If the Electric Parking Brake System Indicator Comes On ....................... 606 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 607
Fuses Fuse Locations ................................. 608
Inspecting and Changing Fuses ........ 612
Emergency Towing ........................... 613
If You Cannot Open the Tailgate .... 614
21 HR-V HDMC-31T7A6500.book 583 ページ ２０２０年９月２３日　水曜日　午前７時０分

584
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle
Jack Handle Bar Detachable Towing HookTool Case
Jack
Jack
2WD models
21 HR-V HDMC-31T7A6500.book 584 ページ ２０２０年９月２３日　水曜日　午前７時０分

585
uuTools uTypes of Tools
Handling the Unexpected
Wheel Nut Wrench/
Jack Handle
Jack Handle Bar Detachable Towing Hook
Tool Case
Jack
Jack
AWD models
Storage Bag
Storage Bag
21 HR-V HDMC-31T7A6500.book 585 ページ ２０２０年９月２３日　水曜日　午前７時０分

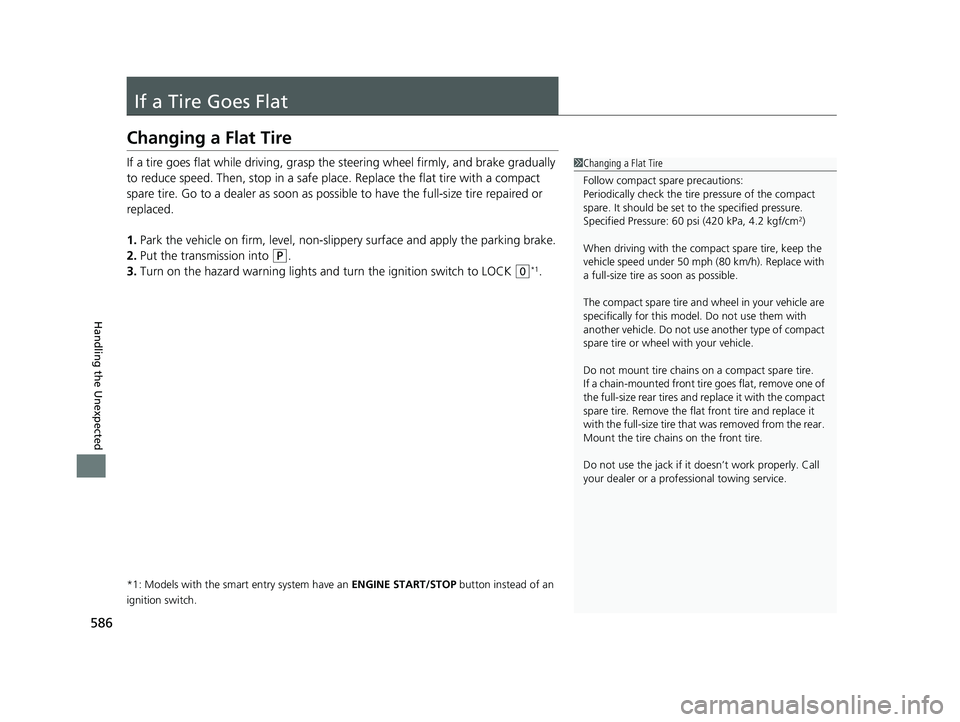

586
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have th e full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
21 HR-V HDMC-31T7A6500.book 586 ページ ２０２０年９月２３日　水曜日　午前７時０分

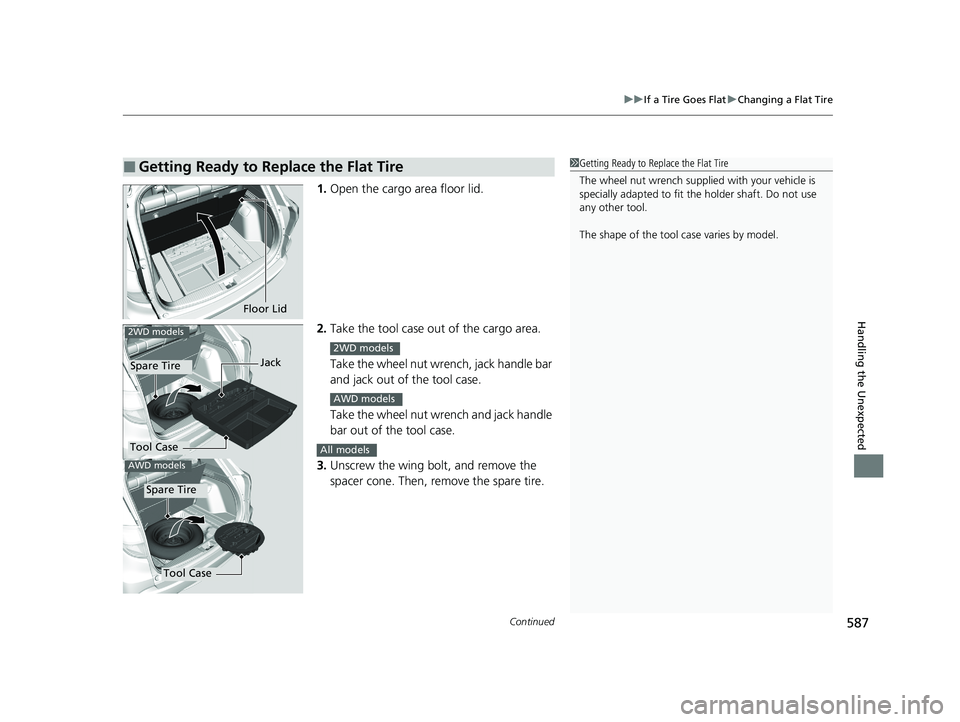

Continued587
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Open the cargo area floor lid.
2. Take the tool case out of the cargo area.
Take the wheel nut wrench, jack handle bar
and jack out of the tool case.
Take the wheel nut wrench and jack handle
bar out of the tool case.
3. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
■Getting Ready to Replace the Flat Tire1Getting Ready to Replace the Flat Tire
The wheel nut wrench supplied with your vehicle is
specially adapted to fit th e holder shaft. Do not use
any other tool.
The shape of the tool case varies by model.
Floor Lid
Tool Case Jack
Spare Tire
2WD models
AWD models
Tool Case
Spare Tire
2WD models
AWD models
All models
21 HR-V HDMC-31T7A6500.book 587 ページ ２０２０年９月２３日　水曜日　午前７時０分

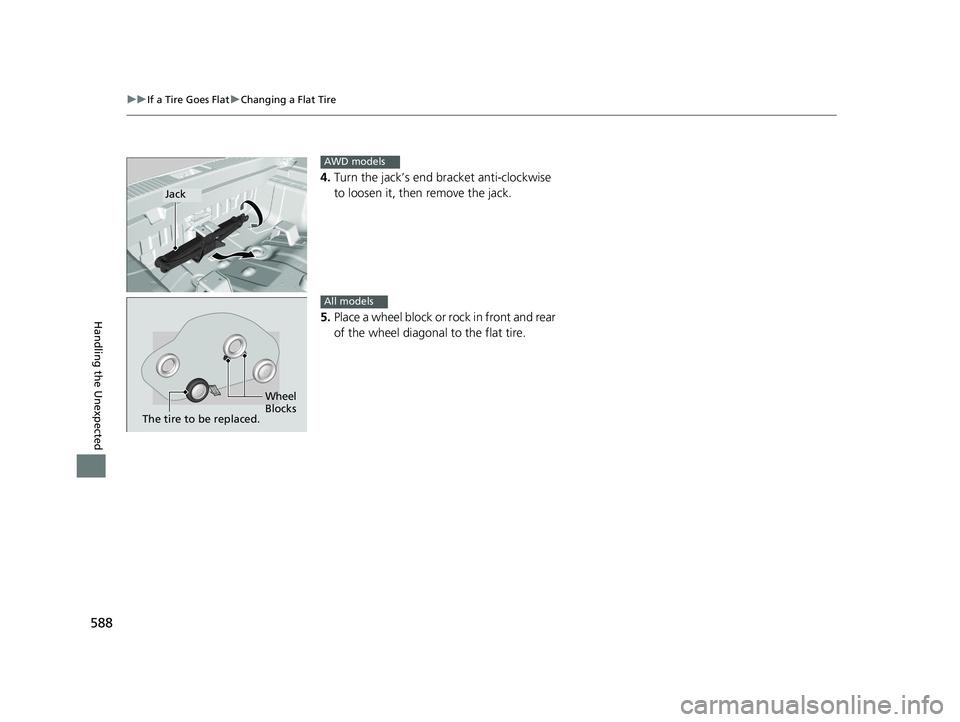

588
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
4. Turn the jack’s end bracket anti-clockwise
to loosen it, then remove the jack.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
Jack
AWD models
Wheel
Blocks
The tire to be replaced.
All models
