uuFuses uFuse Locations
Continued
Handling the Unexpected
■Fuse box B
Tab
a
bcd
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of engine compartment fuses
should be done by a dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
aBattery Main100 A
bRB Main 170 A
cRB Main 280 A
dCAP Main70 A
21 HR-V HDMC-31T7A6500.book 609 ページ ２０２０年９月２３日　水曜日　午前７時０分

610
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box A
Located behind the instrument panel.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Boxes
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Door Lock20 A
2––
3Smart*(10 A)
4Driver Side Door Unlock10 A
5Passenger Side Door Unlock10 A
6Driver Door Unlock10 A
7Driver Door Lock10 A
8Driver’s Power Window20 A
9Passenger’s Power Window20 A
10Rear Left Power Window20 A
11Rear Right Power Window20 A
12Driver Side Door Lock10 A
13Passenger Side Door Lock10 A
14––
15Right Headlight High Beam10 A
16STS*(7.5 A)
17–(20 A)
18Moonroof*(20 A)
19Front Seat Heater*(20 A)
20––
Circuit ProtectedAmps
21Adaptive Cruise Control*(7.5 A)
22Washer15 A
23Rear Wiper*(10 A)
24A/C7.5 A
25Daytime Running Lights7.5 A
26Starter Cut*(7.5 A)
27ABS/VSA7.5 A
28SRS10 A
29Left Headlight High Beam10 A
30ACG10 A
31IG Relay10 A
32Fuel Pump15 A
33SRS(7.5 A)
34Meter7.5 A
35Mission SOL7.5 A
36Front Accessory Power Socket20 A
37ACC(7.5 A)
38–(7.5 A)
39Option10 A
40Rear Wiper10 A
41−−
42−−
* Not available on all models
21 HR-V HDMC-31T7A6500.book 610 ページ ２０２０年９月２３日　水曜日　午前７時０分

611
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Remove the cover by putting the flat-tip
screwdriver into the side slot as shown.
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
IG Main30 A*1
50 A*2
Fuse Box Main 250 A
ABS/VSA Motor40 A
Fuse Box Main 130 A
Fuse Box Main 3*40 A
2 Rear Defogger 30 A
Left Electric Parking Brake 30 A IG Main2
*1
–*230 A
30 A
Heater Motor 40 A
Right Electric Parking Brake 30 A ABS/VSA FSR 30 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Canadian models
Circuit ProtectedAmps
3––
4– –
5AWD*(20 A)
6–(10 A)
7Rear Accessory Power Socket*3(20 A)
8– –
9Interior Light7.5 A
10 Accessory Power Socket
(Console) (20 A)
11−−
12*1−−
12*2ACC Key Lock (7.5 A)
13Heated Door Mirror*(10 A)
14 A/C Blower SW*(7.5 A)
15*1––
15*2Wiper30 A
* Not available on all models
21 HR-V HDMC-31T7A6500.book 611 ページ ２０２０年９月２３日　水曜日　午前７時０分

612
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 608
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the back of the engine
compartment fuse box cover.
Fuse Box on the Battery Blown
Fuse Puller
Combined Fuse
Blown Fuse
21 HR-V HDMC-31T7A6500.book 612 ページ ２０２０年９月２３日　水曜日　午前７時０分

613
Handling the Unexpected
Emergency Towing

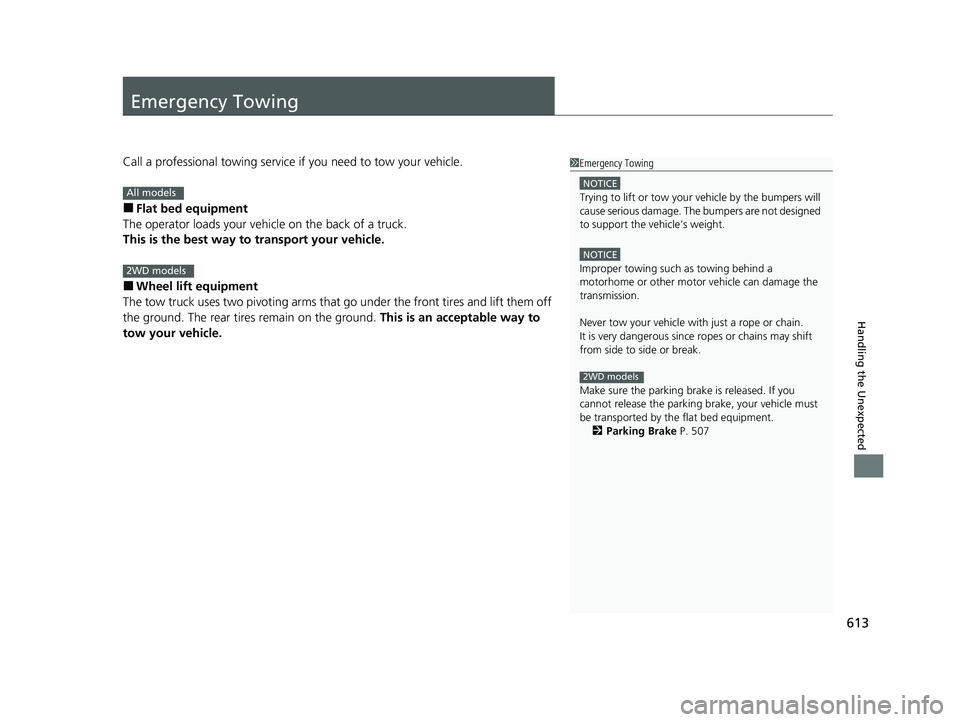

Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment. 2 Parking Brake P. 507
2WD models
All models
2WD models
21 HR-V HDMC-31T7A6500.book 613 ページ ２０２０年９月２３日　水曜日　午前７時０分

614
Handling the Unexpected
If You Cannot Open the Tailgate

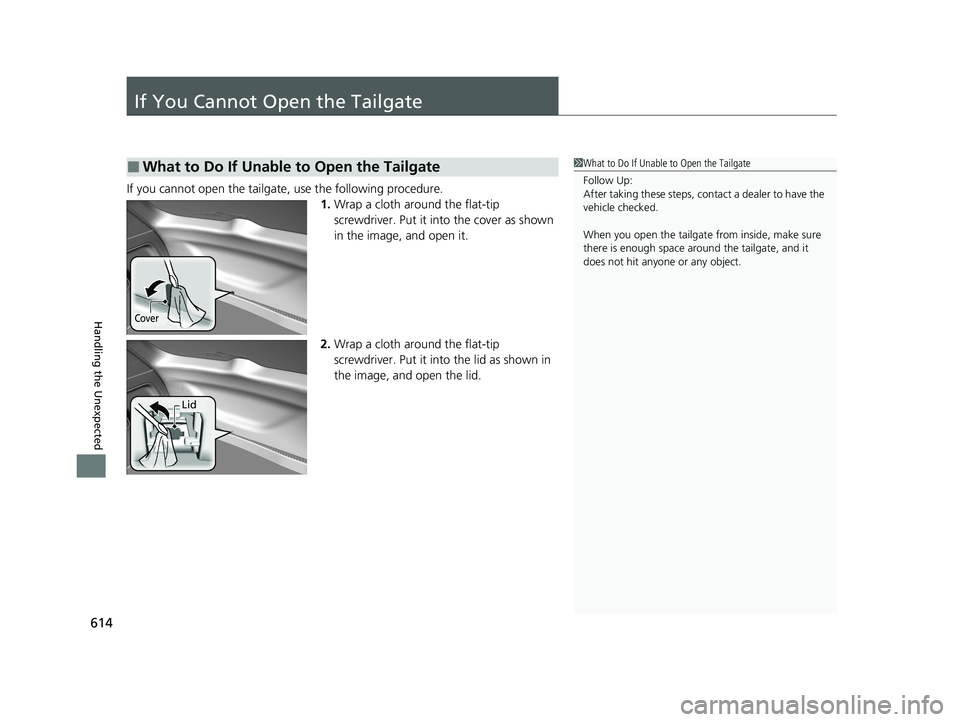

If you cannot open the tailgate, use the following procedure.1.Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover as shown
in the image, and open it.
2. Wrap a cloth around the flat-tip
screwdriver. Put it into the lid as shown in
the image, and open the lid.
■What to Do If Unable to Open the Tailgate1 What to Do If Unable to Open the Tailgate
Follow Up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lid
21 HR-V HDMC-31T7A6500.book 614 ページ ２０２０年９月２３日　水曜日　午前７時０分

615
uuIf You Cannot Open the Tailgate u
Handling the Unexpected

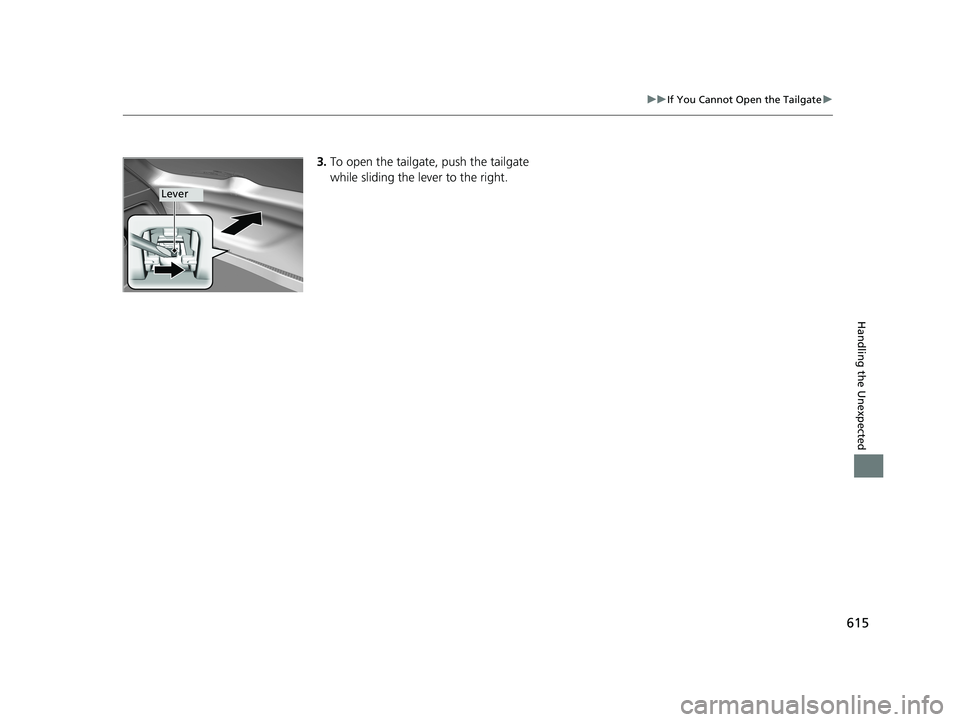

3.To open the tailgate, push the tailgate
while sliding the lever to the right.
Lever
21 HR-V HDMC-31T7A6500.book 615 ページ ２０２０年９月２３日　水曜日　午前７時０分

616
21 HR-V HDMC-31T7A6500.book 616 ページ ２０２０年９月２３日　水曜日　午前７時０分

617

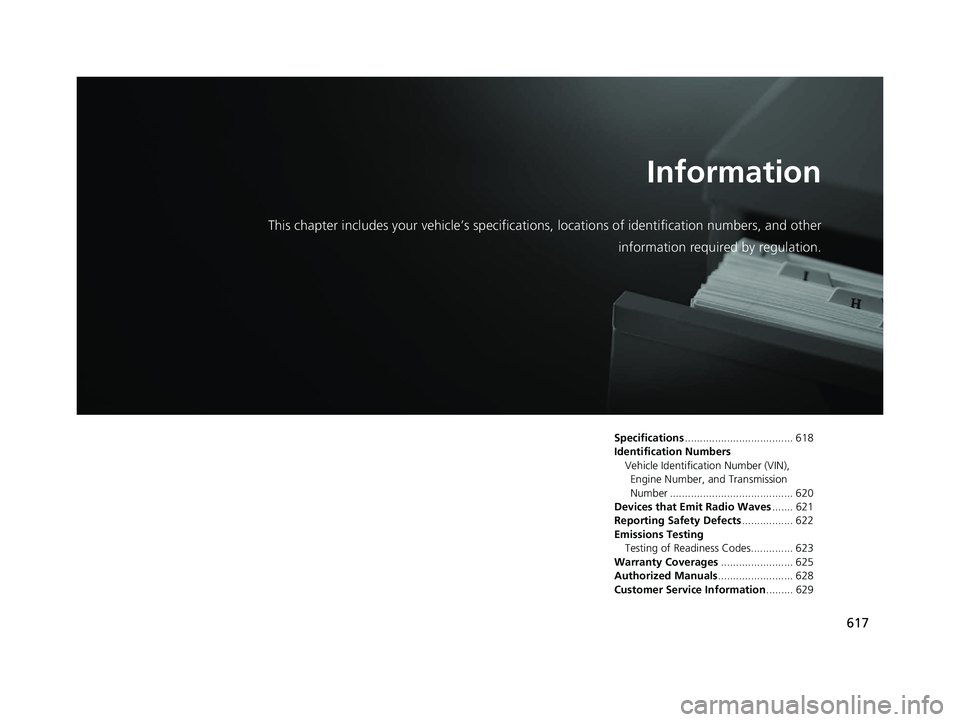

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 618
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 620
Devices that Emit Radio Waves ....... 621
Reporting Safety Defects ................. 622
Emissions Testing Testing of Readiness Codes.............. 623
Warranty Coverages ........................ 625
Authorized Manuals ......................... 628
Customer Service Information ......... 629
