compass display HONDA HR-V 2021 Owner's Manual (in English)

122
uuGauges and Displays uMulti-Information Display*
Instrument Panel

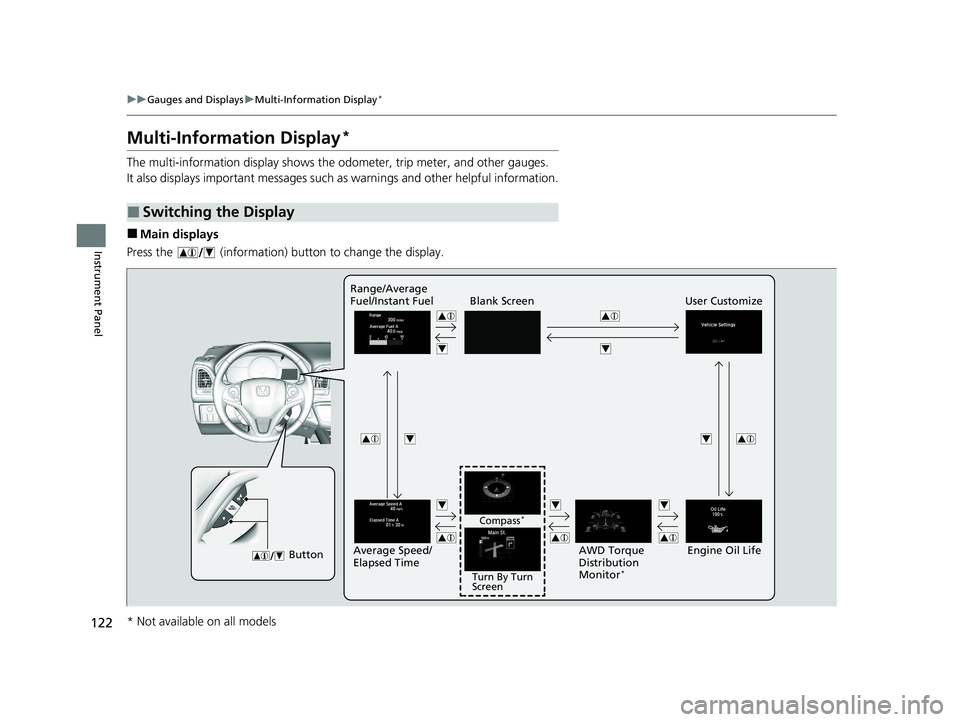

Multi-Information Display*
The multi-information display shows the od ometer, trip meter, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (information) button to change the display.
■Switching the Display
Blank Screen User Customize
Button
Engine Oil Life
Range/Average
Fuel/Instant Fuel
Turn By Turn
Screen
Compass
*
Average Speed/
Elapsed Time
AWD Torque
Distribution
Monitor
*
* Not available on all models
21 HR-V HDMC-31T7A6500.book 122 ページ ２０２０年９月２３日　水曜日　午前７時０分

uuGauges and Displays uMulti-Information Display*
126
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 320
The indicators on th e display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM* P. 458
■Navigation
■AWD Torque Distribution Monitor*
1Navigation
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 127
* Not available on all models
21 HR-V HDMC-31T7A6500.book 126 ページ ２０２０年９月２３日　水曜日　午前７時０分
