HONDA HRV 2022 Owners Manual

119
uuGauges and Displays uInformation Display*
Continued
Instrument Panel

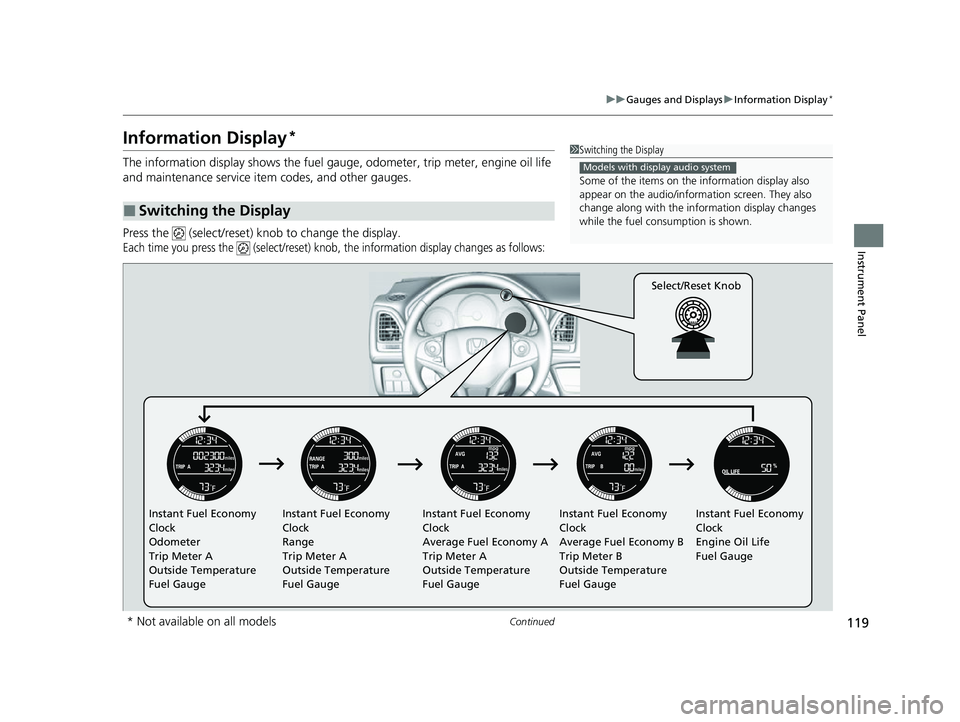

Information Display*
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) kn ob to change the display.
Each time you press the (select/reset) knob, the informati on display changes as follows:
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
* Not available on all models
22 HR-V HDMC-31T7A6600.book 119 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuGauges and Displays uInformation Display*
120
Instrument Panel

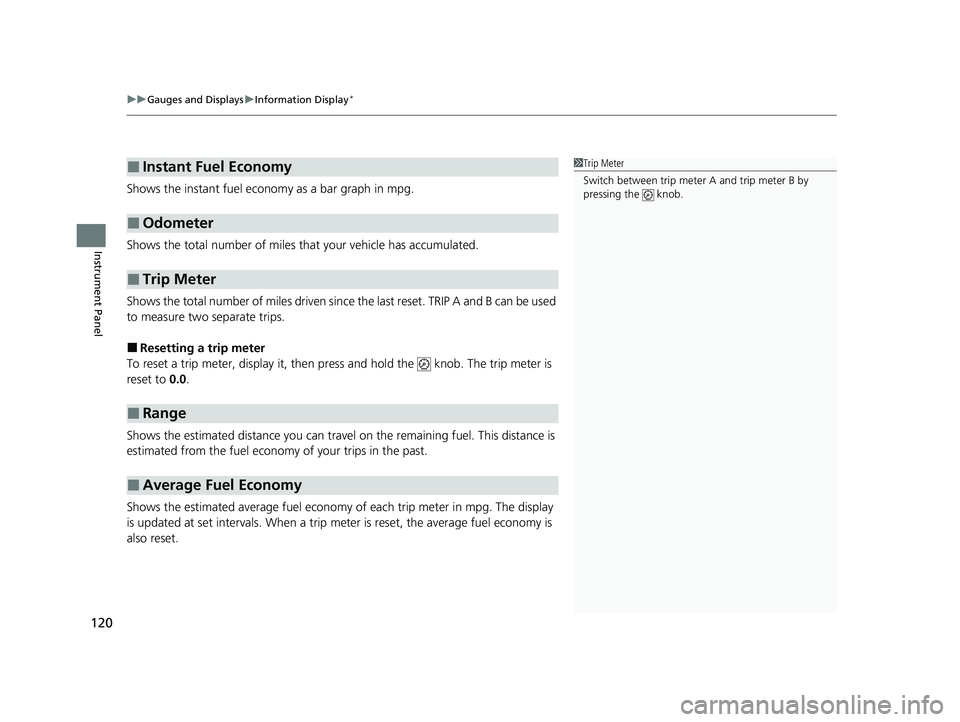

Shows the instant fuel economy as a bar graph in mpg.
Shows the total number of miles that your vehicle has accumulated.
Shows the total number of miles driven since the last reset. TRIP A and B can be used
to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
Shows the estimated average fuel economy of each trip meter in mpg. The display
is updated at set intervals. When a trip me ter is reset, the average fuel economy is
also reset.
■Instant Fuel Economy
■Odometer
■Trip Meter
■Range
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
22 HR-V HDMC-31T7A6600.book 120 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

121
uuGauges and Displays uInformation Display*
Instrument Panel
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
1. Turn the ignition switch to ON
(w.
2. Press and hold the (select/reset) knob for 10 seconds or more while the outside
temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F.
3. Release the knob when the ri ght adjustment amount is shown.
u The adjustment is complete.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 525
Displays the amount of fuel left in the fuel tank.
■Outside Temperature
■Engine Oil Life and Maintenance Items
■Fuel Gauge
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
When the engine oil life is shown on the information
display, you cannot adjust the outside temperature.
Push the knob to select the other display.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
22 HR-V HDMC-31T7A6600.book 121 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

122
uuGauges and Displays uMulti-Information Display*
Instrument Panel

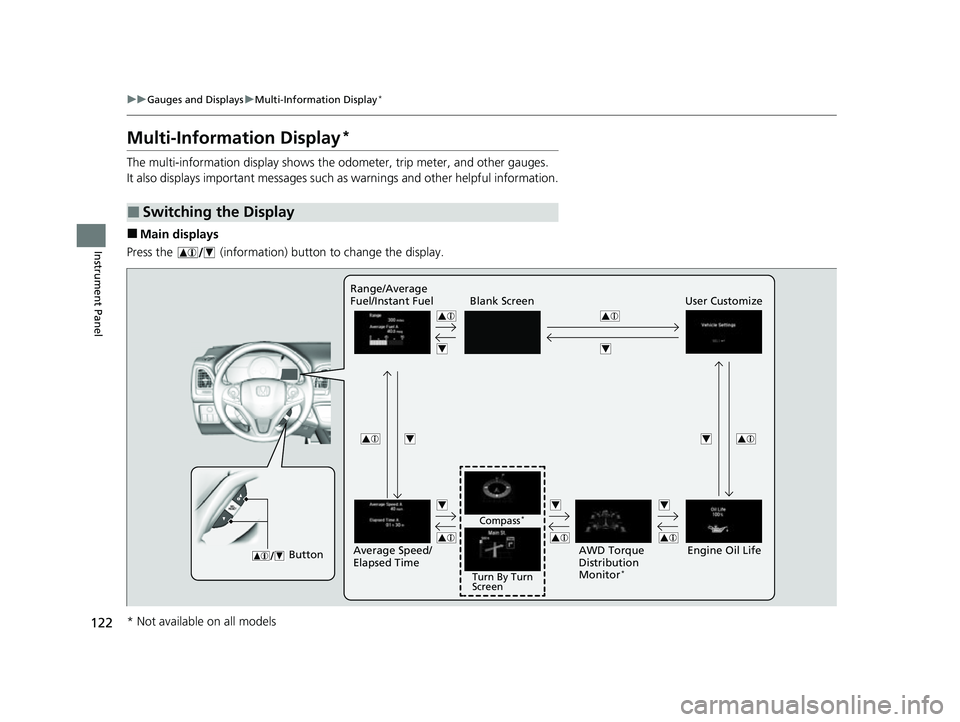

Multi-Information Display*
The multi-information display shows the od ometer, trip meter, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (information) button to change the display.
■Switching the Display
Blank Screen User Customize
Button
Engine Oil Life
Range/Average
Fuel/Instant Fuel
Turn By Turn
Screen
Compass
*
Average Speed/
Elapsed Time
AWD Torque
Distribution
Monitor
*
* Not available on all models
22 HR-V HDMC-31T7A6600.book 122 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

123
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

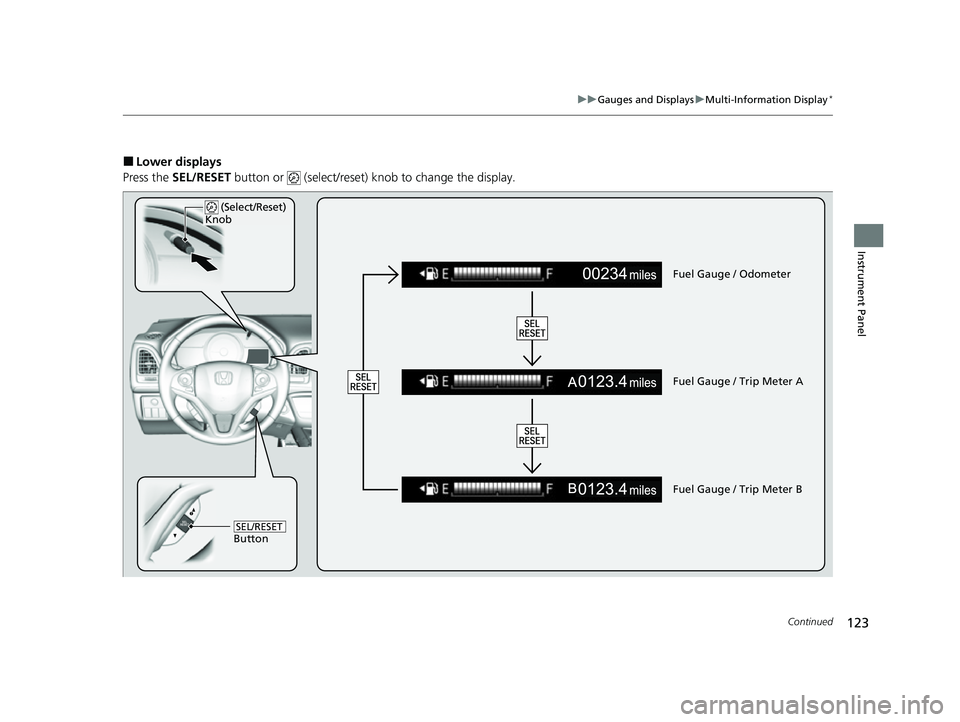

■Lower displays
Press the SEL/RESET button or (select/reset) knob to change the display.
Fuel Gauge / Odometer
Fuel Gauge / Trip Meter A
Fuel Gauge / Trip Meter B
(Select/Reset)
Knob

ButtonSEL/RESET
22 HR-V HDMC-31T7A6600.book 123 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuGauges and Displays uMulti-Information Display*
124
Instrument Panel

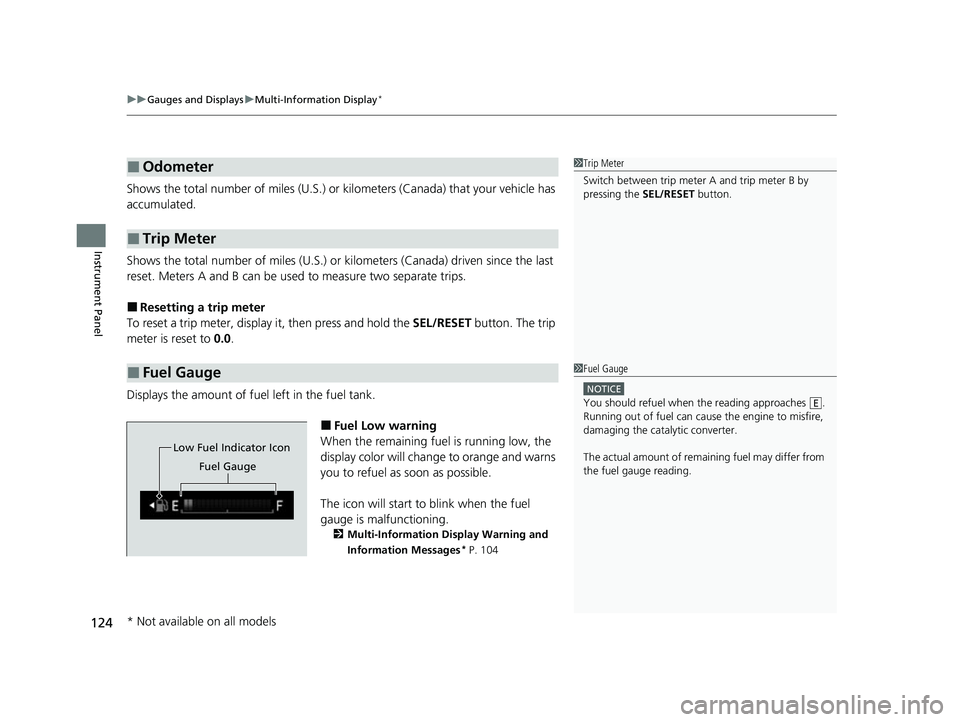

Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Displays the amount of fuel left in the fuel tank.
■Fuel Low warning
When the remaining fuel is running low, the
display color will change to orange and warns
you to refuel as soon as possible.
The icon will start to blink when the fuel
gauge is malfunctioning.
2 Multi-Information Display Warning and
Information Messages* P. 104
■Odometer
■Trip Meter
■Fuel Gauge
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
Low Fuel Indicator Icon
Fuel Gauge
* Not available on all models
22 HR-V HDMC-31T7A6600.book 124 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued125
uuGauges and Displays uMulti-Information Display*
Instrument Panel

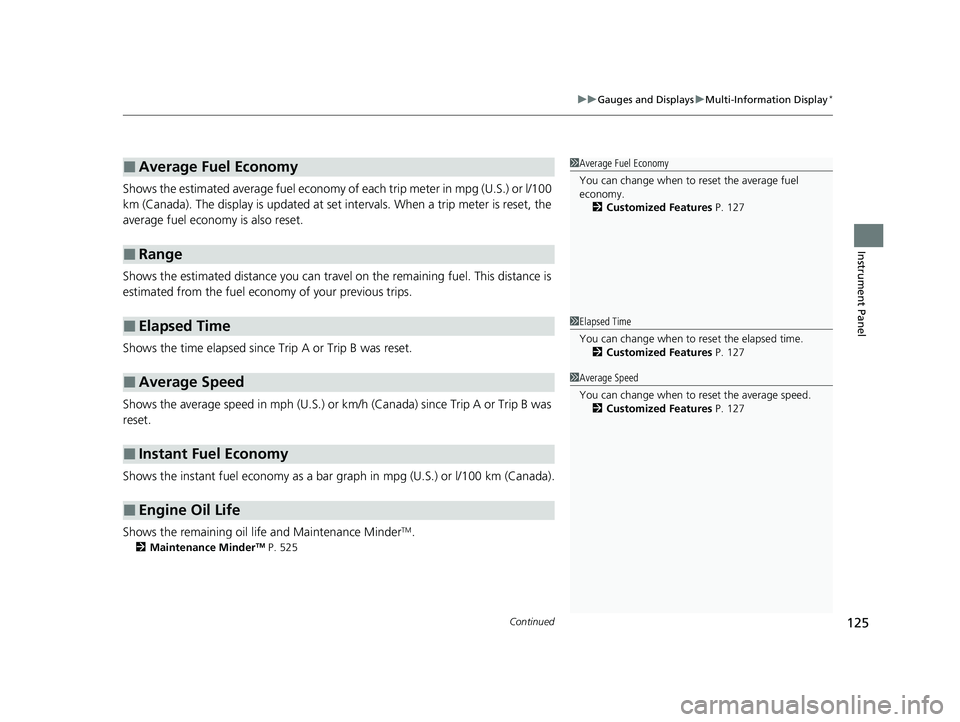

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also resetM
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous tripsM
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km /h (Canada) since Trip A or Trip B was
reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada)M
Shows the remaining oil life and Maintenance Minder
TMM
2 Maintenance MinderTM P. 525
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 127
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 127
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 127
22 HR-V HDMC-31T7A6600.book 125 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuGauges and Displays uMulti-Information Display*
126
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 320
The indicators on th e display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM* P. 458
■Navigation
■AWD Torque Distribution Monitor*
1Navigation
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 127
* Not available on all models
22 HR-V HDMC-31T7A6600.book 126 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued127
uuGauges and Displays uMulti-Information Display*
Instrument Panel

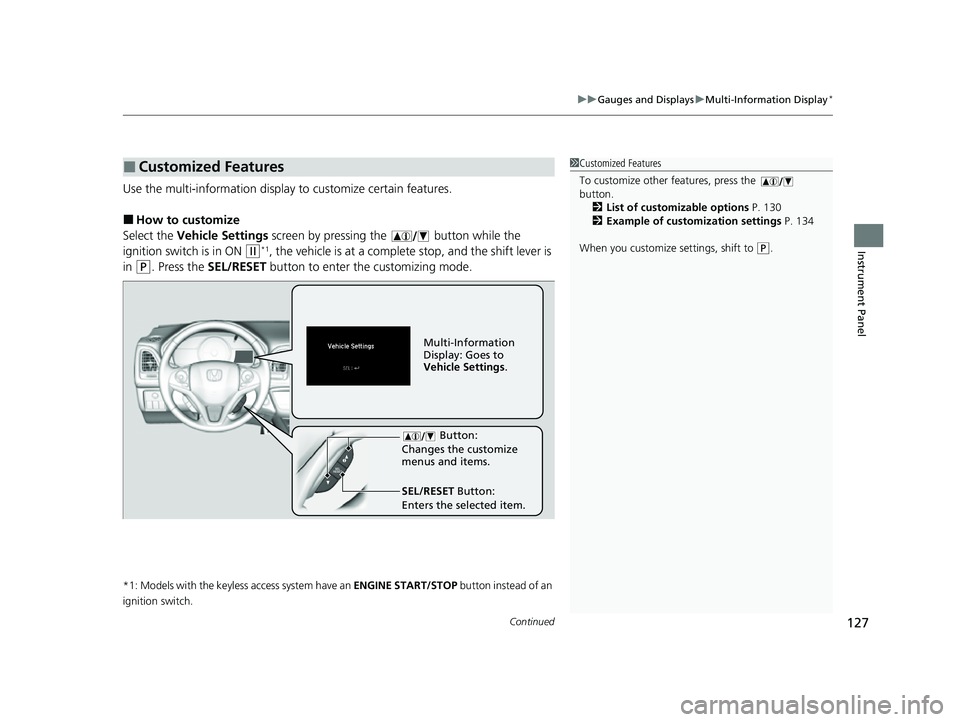

Use the multi-information display to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the
ignition switch is in ON
(w*1, the vehicle is at a complete stop, and the shift lever is
in
(P. Press the SEL/RESET button to enter the customizing mode.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features1 Customized Features
To customize other features, press the
button.
2 List of customizable options P. 130
2 Example of customization settings P. 134
When you customize settings, shift to
( P.
Button:
Changes the customize
menus and items.
Multi-Information
Display: Goes to
Vehicle Settings .
SEL/RESET Button:
Enters the selected item.
22 HR-V HDMC-31T7A6600.book 127 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

128
uuGauges and Displays uMulti-Information Display*
Instrument Panel

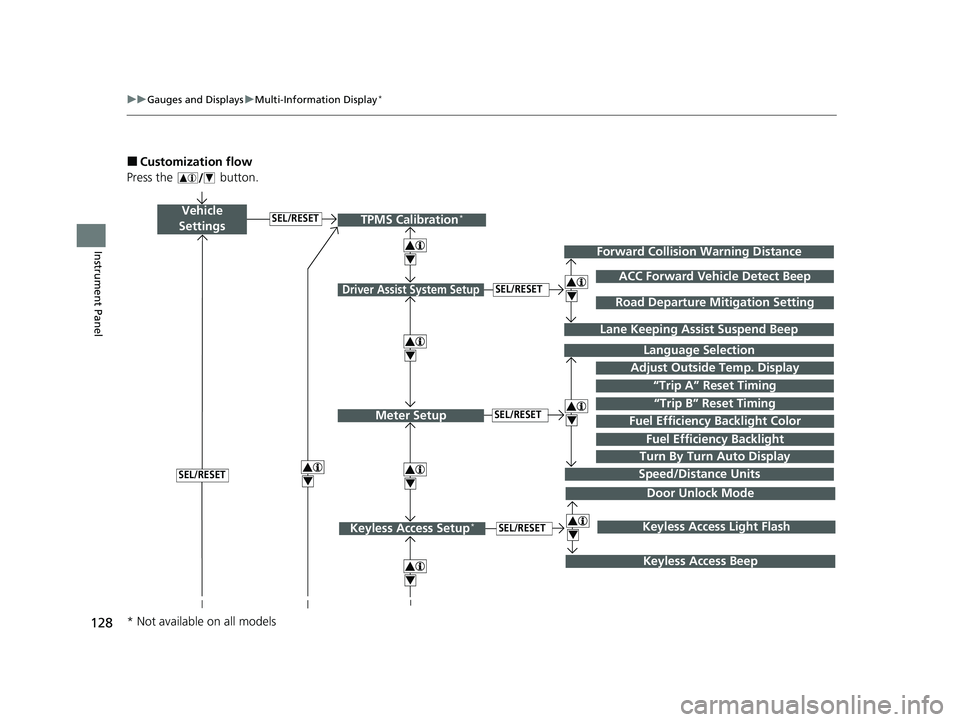

■Customization flow
Press the button.
Vehicle
Settings
Adjust Outside Temp. Display
Language Selection
Driver Assist System Setup
Meter Setup“Trip B” Reset TimingSEL/RESET
SEL/RESET
“Trip A” Reset Timing
4
ACC Forward Vehicle Detect Beep
Lane Keeping Assist Suspend Beep
4
SEL/RESET
Forward Collision Warning Distance
4
SEL/RESET
Speed/Distance Units
Road Departure Mitigation Setting
Fuel Efficien cy Backlight
Turn By Turn Auto Display
TPMS Calibration*
4
Fuel Efficiency Backlight Color
4
4
Door Unlock Mode
Keyless Access Setup*SEL/RESET
Keyless Access Beep
4Keyless Access Light Flash
4
* Not available on all models
22 HR-V HDMC-31T7A6600.book 128 ページ ２０２１年４月１２日　月曜日　午前１０時５０分
