HONDA HRV 2022 Owners Manual

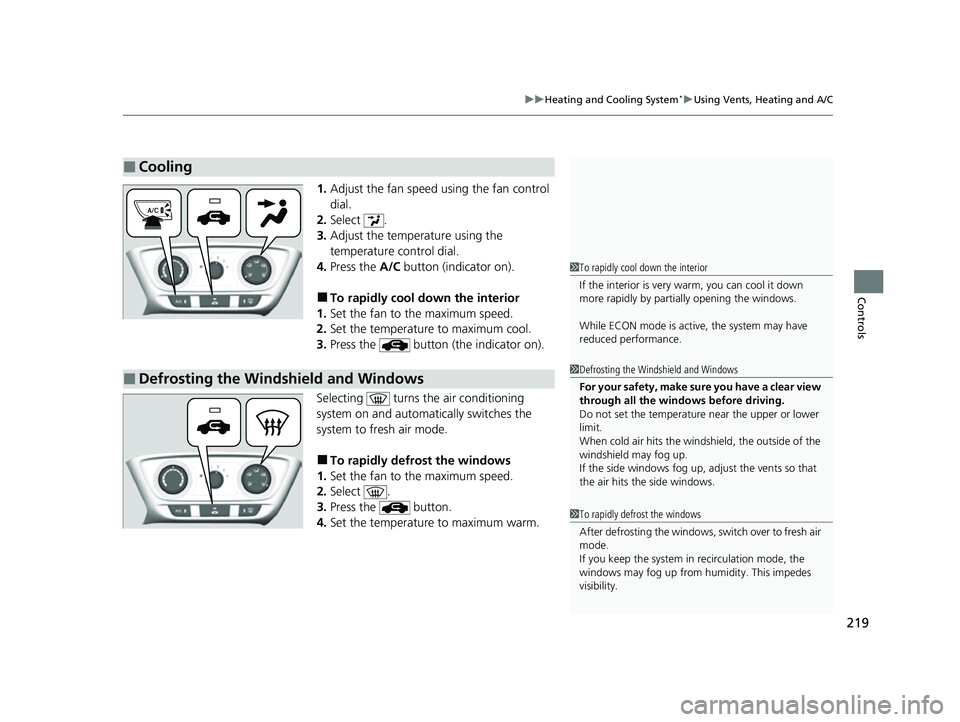

219
uuHeating and Cooling System*uUsing Vents, Heating and A/C
Controls
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
4. Press the A/C button (indicator on).
■To rapidly cool down the interior
1. Set the fan to the maximum speed.
2. Set the temperature to maximum cool.
3. Press the button (the indicator on).
Selecting turns the air conditioning
system on and automati cally switches the
system to fresh air mode.
■To rapidly defrost the windows
1. Set the fan to the maximum speed.
2. Select .
3. Press the button.
4. Set the temperature to maximum warm.
■Cooling
1To rapidly cool down the interior
If the interior is very warm, you can cool it down
more rapidly by parti ally opening the windows.
While ECON mode is active, the system may have
reduced performance.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits the side windows.
1 To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
22 HR-V HDMC-31T7A6600.book 219 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

220
Controls

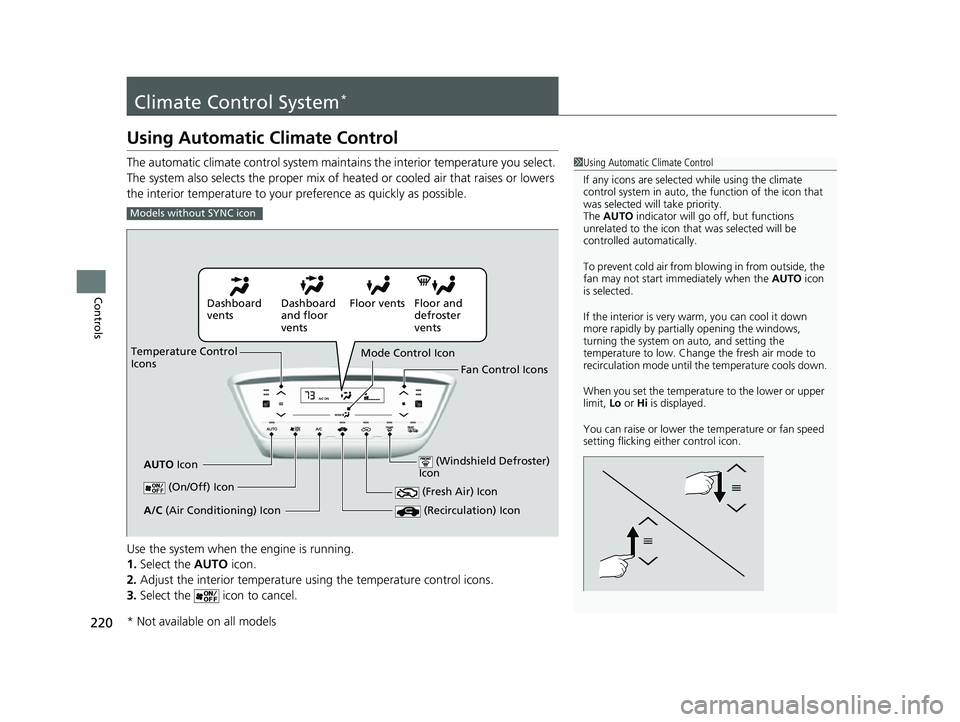

Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature us ing the temperature control icons.
3. Select the icon to cancel.1Using Automatic Climate Control
If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO icon
is selected.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
You can raise or lower the temperature or fan speed
setting flicking either control icon.
Models without SYNC icon
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
Temperature Control
Icons
AUTO Icon Mode Control Icon
Fan Control Icons
(On/Off) Icon
(Recirculation) IconA/C (Air Conditioning) Icon (Fresh Air) Icon
(Windshield Defroster)
Icon
* Not available on all models
22 HR-V HDMC-31T7A6600.book 220 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

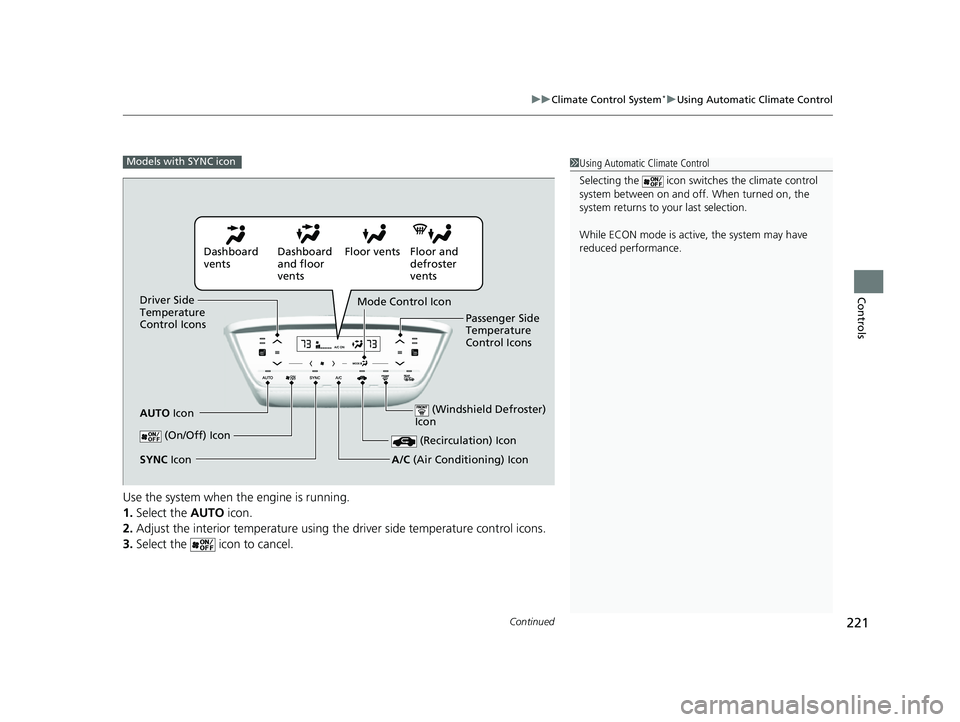

Continued221
uuClimate Control System*uUsing Automatic Climate Control
Controls
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature using th e driver side temperature control icons.
3. Select the icon to cancel.
1Using Automatic Climate Control
Selecting the icon switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the system may have
reduced performance.Models with SYNC icon
Dashboard
vents Dashboard
and floor
ventsFloor vents Floor and
defroster
vents
Driver Side
Temperature
Control Icons
AUTO Icon Mode Control Icon
Passenger Side
Temperature
Control Icons
(On/Off) Icon
(Recirculation) Icon
A/C (Air Conditioning) IconSYNC Icon
(Windshield Defroster)
Icon
22 HR-V HDMC-31T7A6600.book 221 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

222
uuClimate Control System*uUsing Automatic Climate Control
Controls

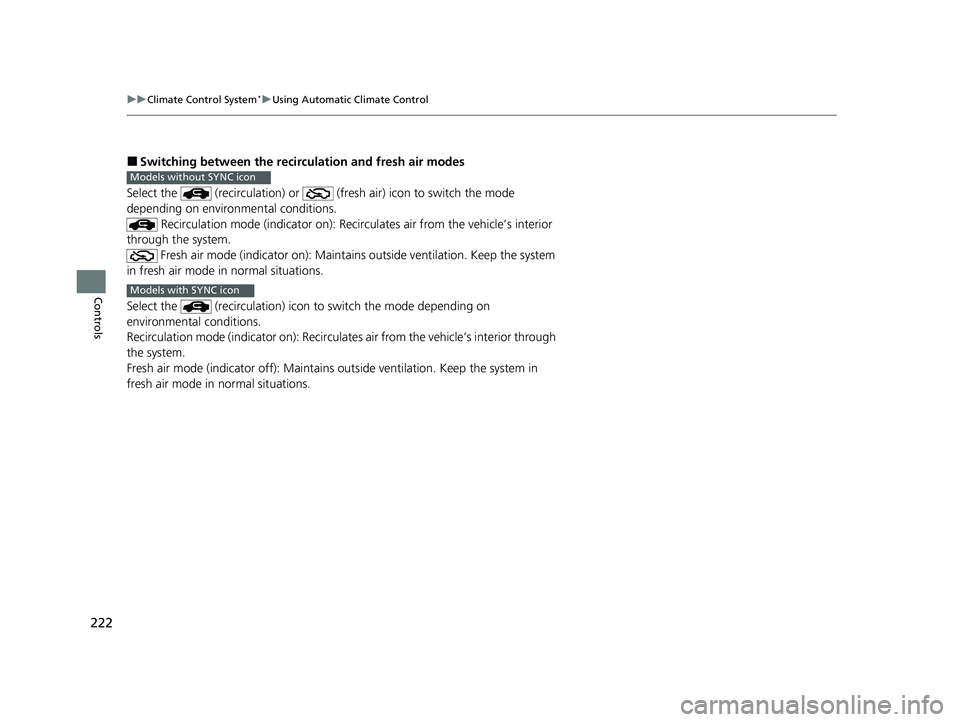

■Switching between the recirc ulation and fresh air modes
Select the (recirculation ) or (fresh air) icon to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Reci rculates air from the vehicle’s interior
through the system.
Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Select the (recirculation) icon to switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains ou tside ventilation. Keep the system in
fresh air mode in normal situations.
Models without SYNC icon
Models with SYNC icon
22 HR-V HDMC-31T7A6600.book 222 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued223
uuClimate Control System*uUsing Automatic Climate Control
Controls

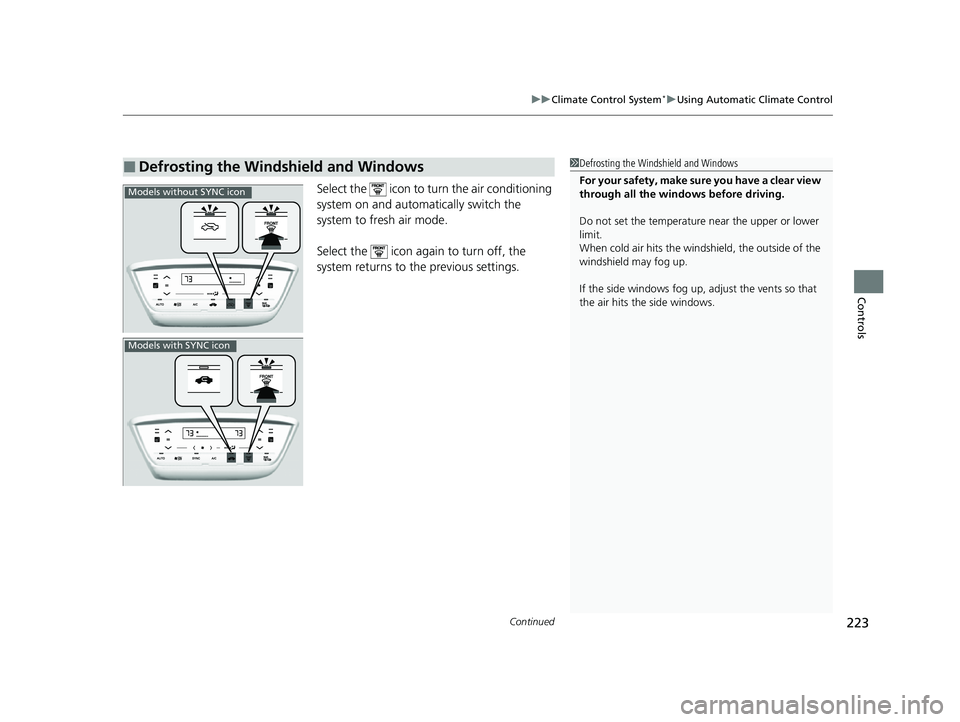

Select the icon to turn the air conditioning
system on and automa tically switch the
system to fresh air mode.
Select the icon again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits the side windows.
Models without SYNC icon
Models with SYNC icon
22 HR-V HDMC-31T7A6600.book 223 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuClimate Control System*uUsing Automatic Climate Control
224
Controls

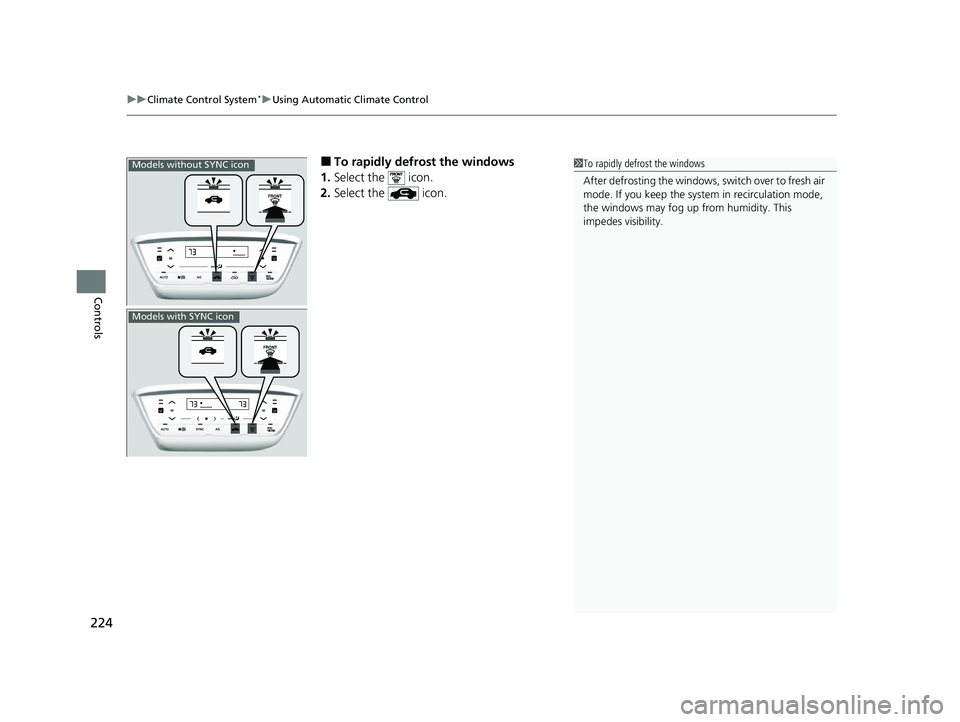

■To rapidly defrost the windows
1. Select the icon.
2. Select the icon.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.Models without SYNC icon
Models with SYNC icon
22 HR-V HDMC-31T7A6600.book 224 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued225
uuClimate Control System*uUsing Automatic Climate Control
Controls

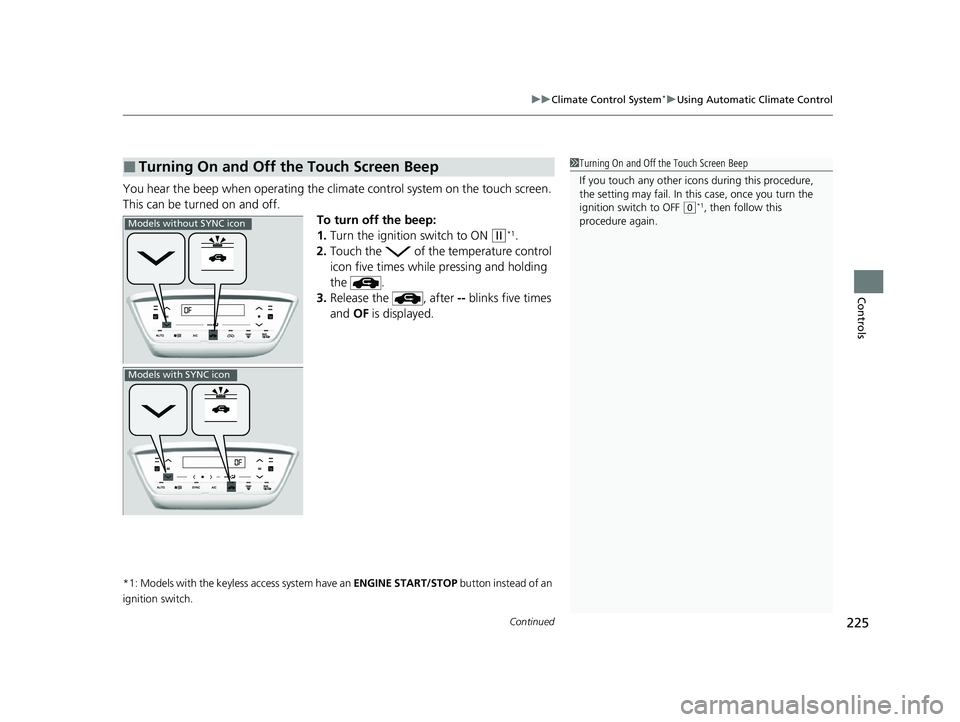

You hear the beep when operating the climate control system on the touch screen.
This can be turned on and off.
To turn off the beep:
1.Turn the ignition switch to ON
(w*1.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after -- blinks five times
and OF is displayed.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
■Turning On and Off the Touch Screen Beep1 Turning On and Off the Touch Screen Beep
If you touch any other icon s during this procedure,
the setting may fail. In this case, once you turn the
ignition switch to OFF
( 0*1, then follow this
procedure again.
Models without SYNC icon
Models with SYNC icon
22 HR-V HDMC-31T7A6600.book 225 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

226
uuClimate Control System*uUsing Automatic Climate Control
Controls

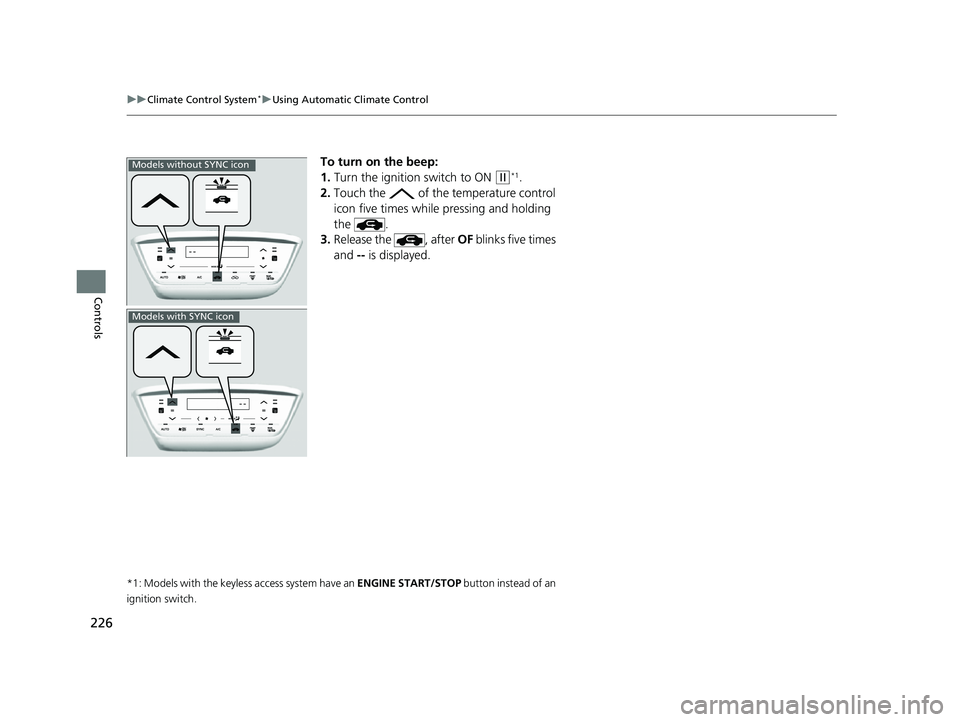

To turn on the beep:
1. Turn the ignition switch to ON
(w*1.
2. Touch the of the temperature control
icon five times while pressing and holding
the .
3. Release the , after OF blinks five times
and -- is displayed.
*1: Models with the keyless access system have an ENGINE START/STOP button instead of an
ignition switch.
Models without SYNC icon
Models with SYNC icon
22 HR-V HDMC-31T7A6600.book 226 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

Continued227
uuClimate Control System*uUsing Automatic Climate Control
Controls

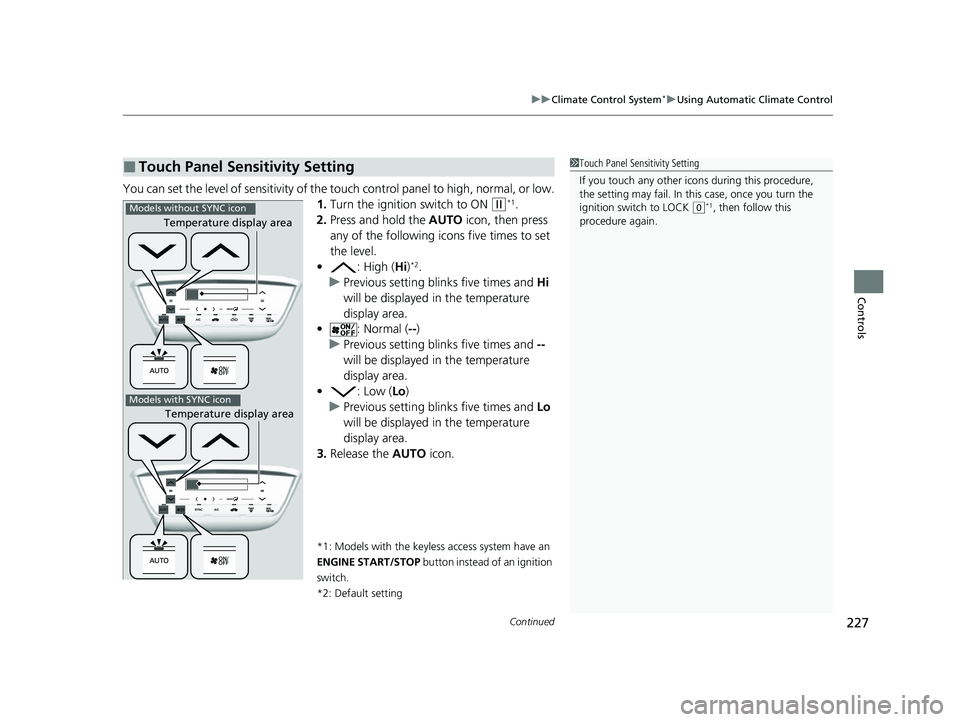

You can set the level of sensitivity of the touch control panel to high, normal, or low.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the AUTO icon, then press
any of the following ic ons five times to set
the level.
• : High (Hi)
*2.
u Previous setting blinks five times and Hi
will be displayed in the temperature
display area.
• : Normal ( --)
u Previous setting blinks five times and --
will be displayed in the temperature
display area.
• : Low (Lo)
u Previous setting blinks five times and Lo
will be displayed in the temperature
display area.
3. Release the AUTO icon.
*1: Models with the keyless access system have an
ENGINE START/STOP button instead of an ignition
switch.
*2: Default setting
■Touch Panel Sensitivity Setting1 Touch Panel Sensitivity Setting
If you touch any other icon s during this procedure,
the setting may fail. In this case, once you turn the
ignition switch to LOCK
( 0*1, then follow this
procedure again.
Temperature display area
Temperature display area
Models without SYNC icon
Models with SYNC icon
22 HR-V HDMC-31T7A6600.book 227 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

uuClimate Control System*uUsing Automatic Climate Control
228
Controls

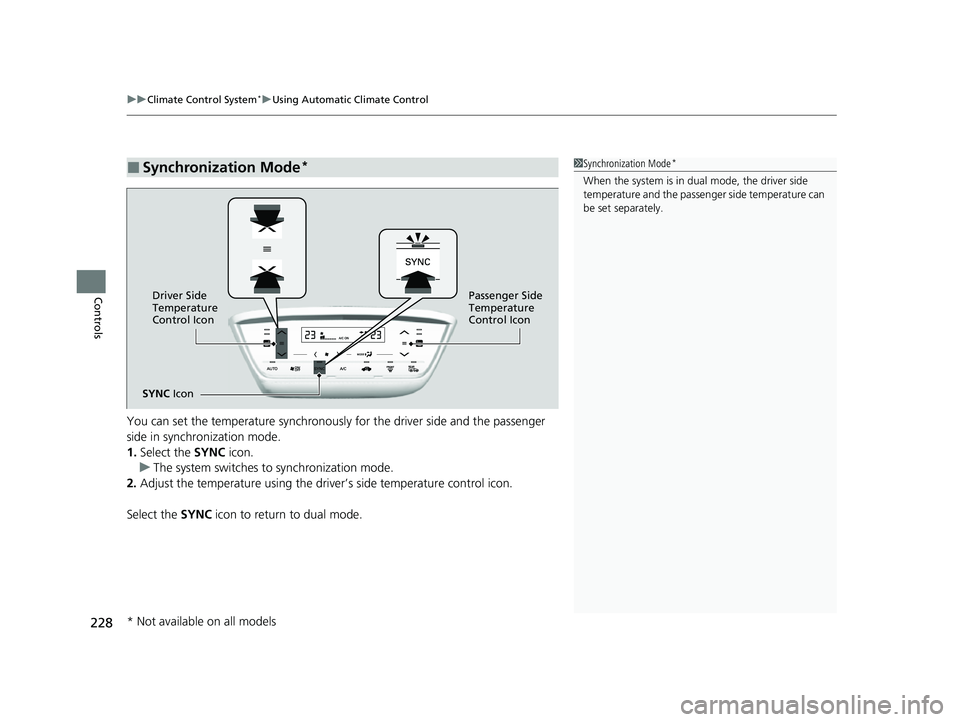

You can set the temperature synchronously for the driver side and the passenger
side in synchronization mode.
1. Select the SYNC icon.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control icon.
Select the SYNC icon to return to dual mode.
■Synchronization Mode*1Synchronization Mode*
When the system is in dua l mode, the driver side
temperature and the passe nger side temperature can
be set separately.
SYNC Icon
Driver Side
Temperature
Control Icon
Passen
g
er Side
Temperature
Control Icon
* Not available on all models
