HONDA INSIGHT 2001 1.G Owners Manual

Remove the radiator cap by
pushing down and turning
counterclockwise.
Turn the radiator cap counter-
clockwise, without pressing down
on it, until it stops. This relieves
any pressure remaining in the
cooling system.
Make sure the engine and radiator
are cool.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Put the radiator cap back on.
Tighten it f ully.
The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low. Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents.
2. 3. 4. 5. 6.
1.
Cooling Syst em
Maint enance
172
RRAADDIIAATTOORRCCAAPPRREESSEERRVVEETTAANNKK

CONT INUED
Turn the ignition ON (II). Turn
the temperature control dial to
maximum heat. Turn of f the
ignition and remove the key. Open
the hood. Make sure the engine

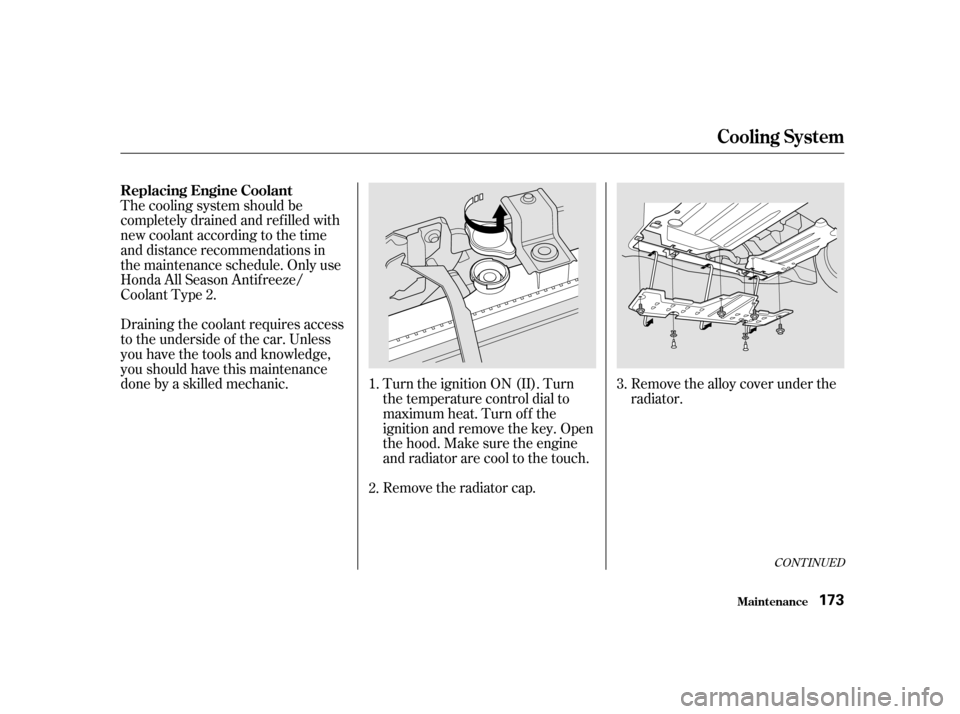

and radiator are cool to the touch.Removethealloycoverunderthe
radiator.
Remove the radiator cap.
Thecoolingsystemshouldbe
completely drained and ref illed with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
Honda All Season Antif reeze/
Coolant Type 2.
Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic. 1.
2.3.
Replacing Engine Coolant
Cooling Syst em
Maint enance
173

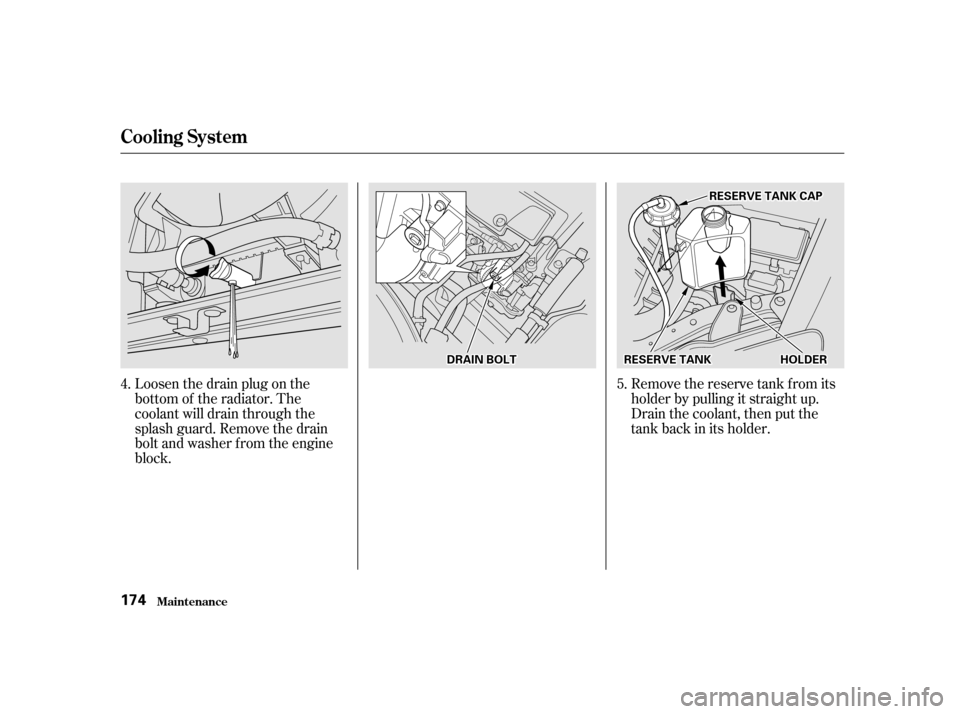

Loosen the drain plug on the
bottom of the radiator. The
coolant will drain through the
splash guard. Remove the drain
bolt and washer f rom the engine
block.Remove the reserve tank f rom its
holder by pulling it straight up.
Drain the coolant, then put the
tank back in its holder.
5.
4.
Cooling Syst em
Maint enance
174
RREESSEERRVVEETTAANNKKCCAAPP
HHOOLLDDEERRRREESSEERRVVEETTAANNKKDDRRAAIINNBBOOLLTT

CONT INUED
When the coolant stops draining,
tightenthedrainplugatthe
bottom of the radiator.
Apply non-hardening sealant to the
drain bolt threads, put a new
washer on the drain bolt, and
reinstall the bolt in the engine
block. Tighten it securely.
Tightening torque:Pour coolant into the f unnel until
the coolant stops f lowing into the
engine.
Install the engine cover.
Pour coolant into the water outlet
up to its edge. Install the cap.
Start the engine and let it run f or
about 30 seconds. Then turn of f
the engine.
Remove the engine cover.
Loosen the bleeder bolt on top of
the engine.
Pour Honda All Season
Antif reeze/Coolant Type 2 into
the radiator. This coolant is a
mixture of 50 percent anti-f reeze
and 50 percent water. Pre-mixing
is not required.
Tighten the bleeder bolt when
coolant comes out in a steady
stream with no bubbles.
Install the radiator cap, and
tighten it fully. The cooling system capacity is:
Remove the cap from the water
outlet, and install a pipe and f unnel.
6. 7. 8.
9.10. 11.12. 13.
Cooling Syst em
Maint enance
175
BBLLEEEEDDEERRBBOOLLTT
CCAAPP
61 lbf·ft (83 N·m , 8.5 kgf·m) 0.61 US gal (2.3
, 0.51 Imp gal)

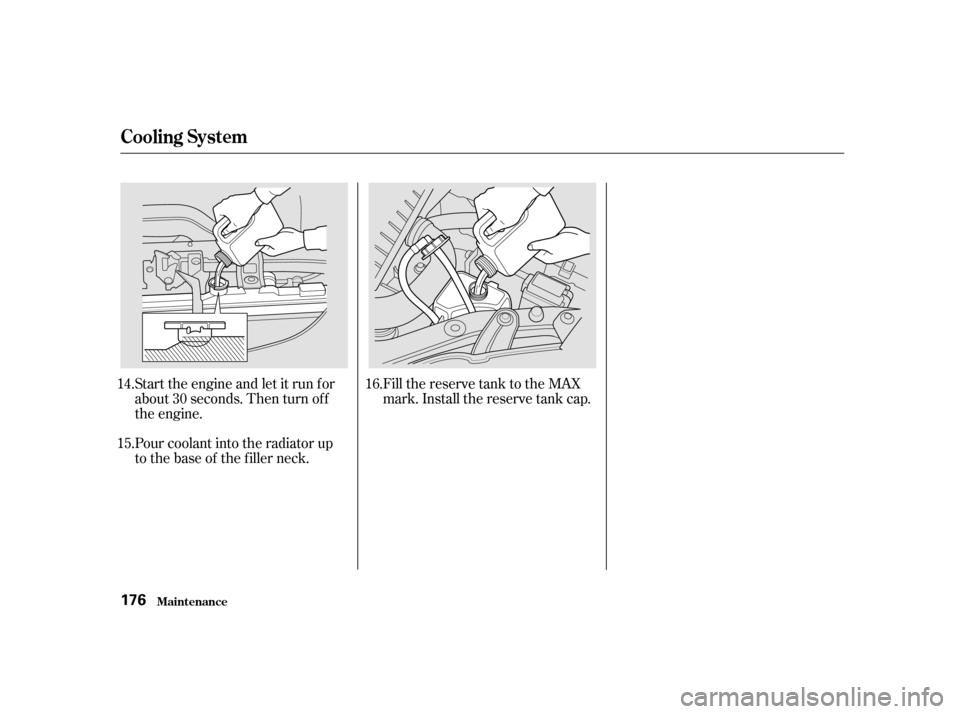

Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Start the engine and let it run f or
about 30 seconds. Then turn of f
the engine.
Pour coolant into the radiator up
to the base of the f iller neck.
14. 15.
16.
Cooling Syst em
Maint enance
176

Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
f or f uel. This reservoir supplies the
windshield and rear window washers.Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
The windshield washer reservoir is
located behind the passenger’s side
headlight. Check the reservoir’s f luid
level by removing the cap and
looking at the level gauge attached
to the cap.
Windshield Washers
Maint enance 177
LLEEVVEELLGGAAUUGGEE
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.

Check the f luid level with the engine

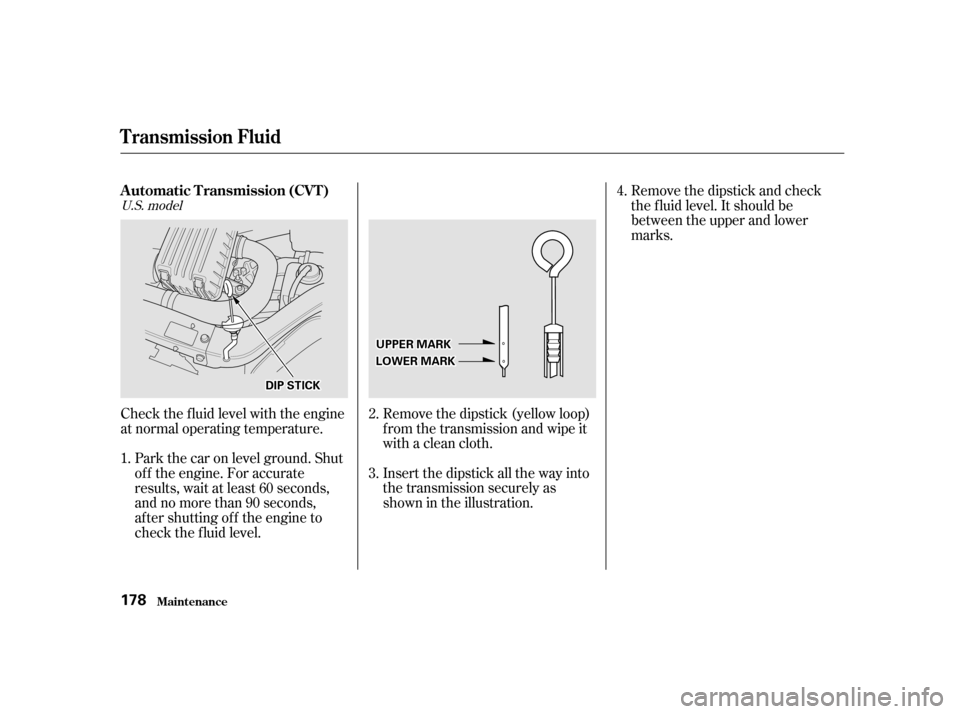

at normal operating temperature.Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth. Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks.
Park the car on level ground. Shut
of f the engine. For accurate
results, wait at least 60 seconds,
andnomorethan90seconds,
af ter shutting of f the engine to
check the f luid level.
1.
2. 3.4.
U.S. model
Maint enance
T ransmission Fluid
Automatic Transmission (CVT) 178
UUPPPPEERRMMAARRKK
LLOOWWEERRMMAARRKK
DDIIPPSSTTIICCKK

If the level is below the lower
mark, add f luid into the f iller hole
to bring it to the upper mark.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it is not available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can affect shift quality. Have
the transmission f lushed and
ref illed with Honda ATF-Z1 as
soon as it is convenient. Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
To thoroughly f lush the transmission,
the technician should drain and ref ill
it with Honda ATF-Z1 (Automatic
Transmission Fluid), then drive the
vehicle a short distance. Do this
three times. Then drain and ref ill the
transmission a f inal time.
5.
6.
T ransmission Fluid
Maint enance179

If Honda MTF is not available, you
may use an API service SG, SH or SJ
grade motor oil with a viscosity of
SAE 10W-30 or 10W-40 as a
temporary replacement. An SG
grade is pref erred, but an SH or SJ
grade may be used if SG is not
available. However, motor oil does
not contain the proper additives and
continued use can cause stif f er
shif ting. Replace as soon as it is
convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
Check the f luid level with the
transmission at normal operating
temperature and the car sitting on
the level ground.

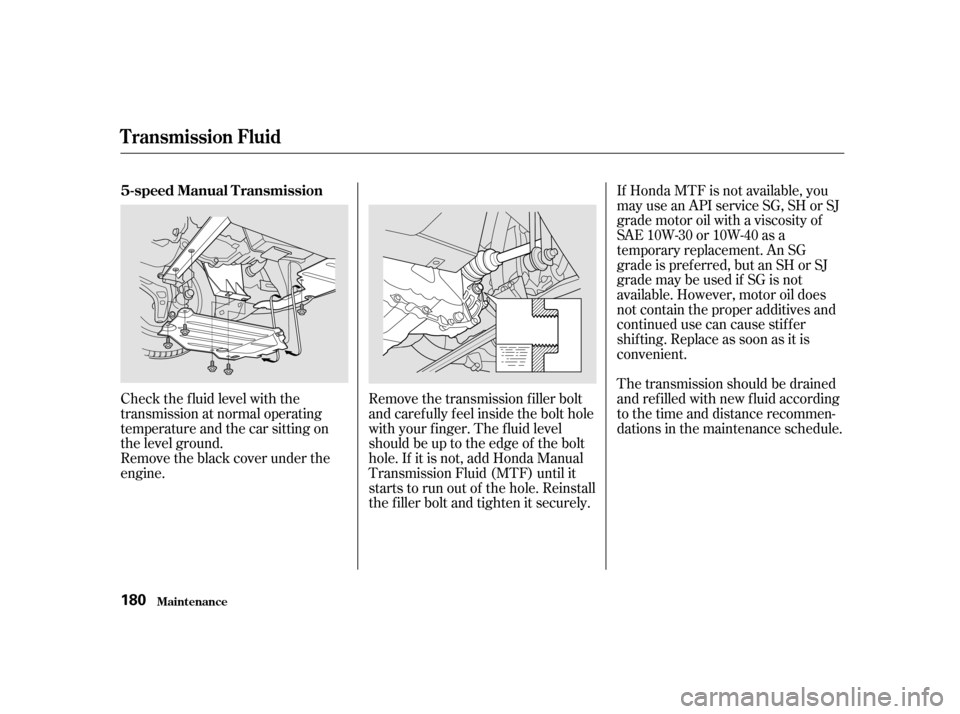

Remove the black cover under the
engine. Remove the transmission f iller bolt
and caref ully f eel inside the bolt hole
with your f inger. The f luid level
should be up to the edge of the bolt
hole. If it is not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the f iller bolt and tighten it securely.
Maint enance
T ransmission Fluid
5-speed Manual Transmission 180

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement. However, the use of
any non-Honda brake fluid can cause
corrosion and decrease the lif e of the
system. Have the brake system
f lushed and ref illed with Honda
Heavy Duty Brake Fluid DOT 3 as
soon as possible.
Brake f luid marked DOT 5 is not
compatible with your car’s braking
system and can cause extensive
damage.
Check the f luid level in the reser-
voirs monthly. There are up to two
reservoirs, depending on the model.
They are:
The brake f luid should be replaced
accordingtothetimeanddistance
recommendations in the mainte-
nance schedule.
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Maint enance
Brake and Clutch Fluid
Brake System
181
MMAAXX
MMIINN
