HONDA INSIGHT 2004 1.G Service Manual
Manufacturer: HONDA, Model Year: 2004, Model line: INSIGHT, Model: HONDA INSIGHT 2004 1.GPages: 218, PDF Size: 2.59 MB
Page 41 of 218
38
Page 42 of 218
This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach............................
Control Locations .40
............................
Instrument Panel .41
..........
Instrument Panel Indicators . 42
.............................................
Gauges .46
..................................
Fuel Gauge .47
...................
Temperature Gauge . 47
.....................................
Odometer .47
..............
Display Change Button . 47
.................
Current Fuel Mileage . 48
.................................
Trip Meters .48
................................
Trip Mileage .48
Segment Distance and Fuel ....................................
Mileage .49
................
Lif etime Fuel Mileage . 49
Turning Of f the Mileage ....................................
Displays .50
..................
Battery Level Gauge . 51
................
Charge/Assist Gauge . 51
Controls Near the Steering ...........................................
Wheel .52
.
Windshield Wipers and Washers . 53
...........
Turn Signal and Headlights . 54
........
Instrument Panel Brightness . 55
.............
Hazard Warning Button . 55
.............
Rear Window Def ogger . 56
...............................
Keys and Locks .57 ........................
Immobilizer System .58
................................
Ignition Switch .59
......................................
Door Locks .60
................................................
Hatch .60
.......................
Remote Transmitter .62
.................................................
Seats .64
..............................
Power Windows .65
.............................................
Mirrors .66
.................................
Parking Brake .67
...........
Interior Convenience Items . 68
.................................
Storage Box .69
.........................
Beverage Holder .69
....................................
Glove Box .69
...........
Accessory Power Socket . 69
.................................
Interior Lights .70
Instruments and Controls
Inst rument s and Cont rols39
Page 43 of 218
Î
Î

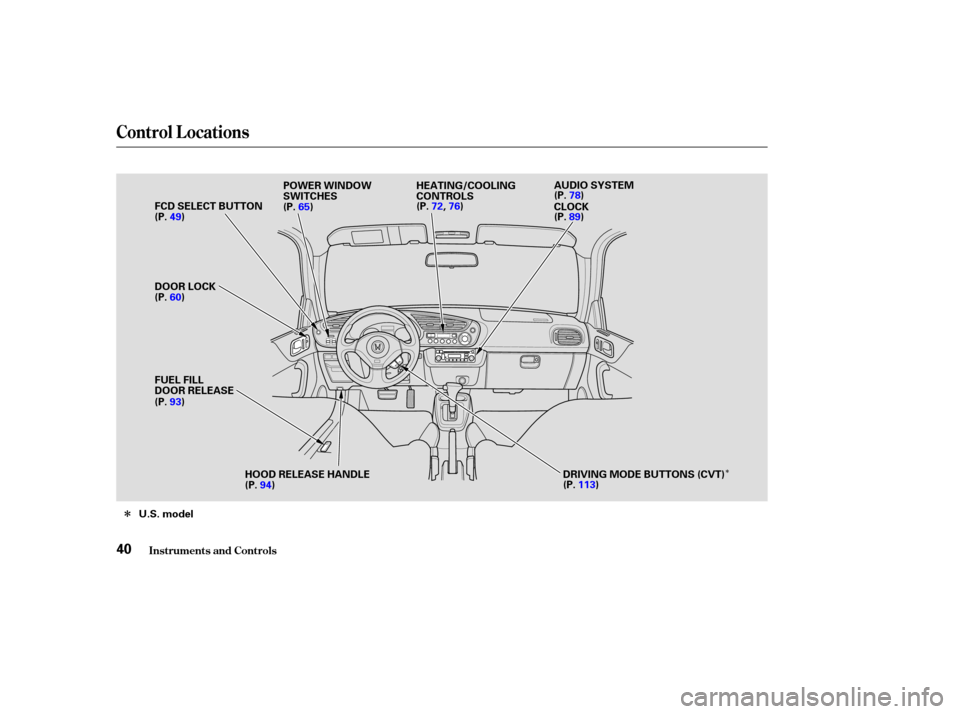

Control L ocations
Inst rument s and Cont rols40
U.S. modelFCD SELECT BUTTON
DOOR LOCK
FUEL FILL
DOOR RELEASE
HOOD RELEASE HANDLE DRIVING MODE BUTTONS (CVT)
AUDIO SYSTEM
HEATING/COOLING
CONTROLS
POWER WINDOW
SWITCHES
(P. 49)
(P. 60)
(P. 93) (P.
65) (P.
72, 76) (P.
78)
CLOCK
(P. 89)
(P. 94) (P.
113)
Page 44 of 218
Î
Î
Î
Î Shif t Lever Position Indicators on CVT model (P. ) The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
1:
2 : 111

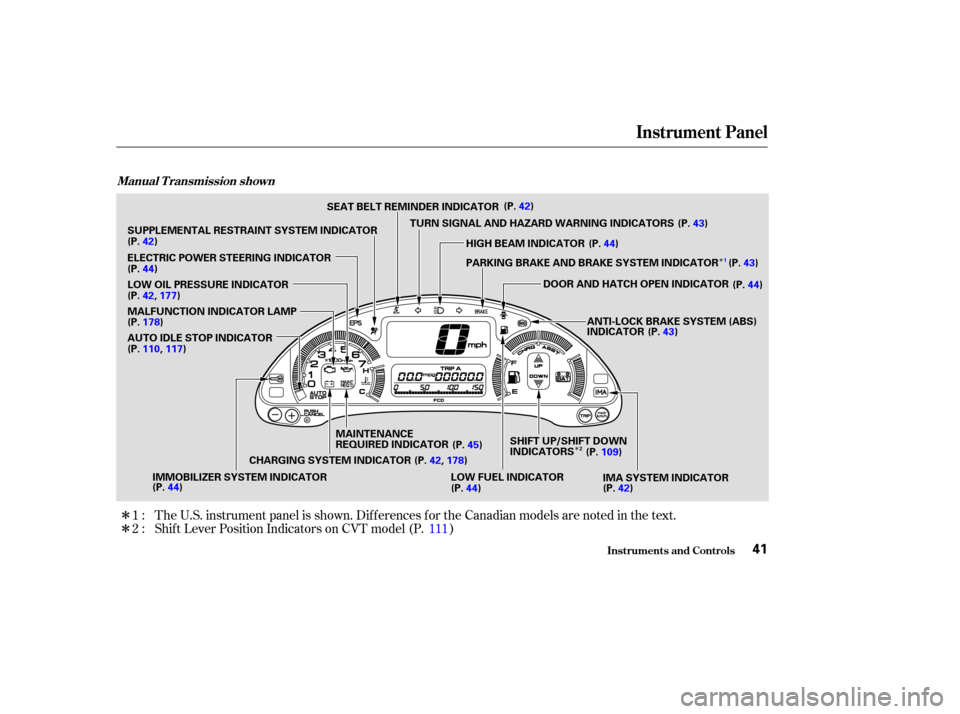

Instrument Panel
Inst rument s and Cont rols
Manual T ransmission shown
41
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ELECTRIC POWER STEERING INDICATOR
LOW OIL PRESSURE INDICATOR
MALFUNCTION INDICATOR LAMP
AUTO IDLE STOP INDICATOR
IMMOBILIZER SYSTEM INDICATOR CHARGING SYSTEM INDICATORMAINTENANCE
REQUIRED INDICATOR
LOW FUEL INDICATOR IMA SYSTEM INDICATOR
HIGH BEAM INDICATOR
TURN SIGNAL AND HAZARD WARNING INDICATORS
DOOR AND HATCH OPEN INDICATOR
SEAT BELT REMINDER INDICATOR
(P.
42)
(P. 42)
(P. 44)
(P. 42, 177)
(P. 178)
(P. 110, 117) (P.
43)
(P. 44)
(P.43)
PARKING BRAKE AND BRAKE SYSTEM INDICATOR
(P.44)
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR (P.
43)
SHIFT UP/SHIFT DOWN
INDICATORS (P.109)
(P. 42)
(P. 44)
(P.
45)
(P. 42, 178)
(P. 44)
1
2
Page 45 of 218
The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
If you turn the ignition switch to ON
(II) bef ore f astening your seat belt,
the beeper sounds and the indicator
f lashes. If you do not f asten your
seat belt bef ore the beeper stops, the
indicator stops f lashing but remains
on.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals.The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your airbags or automatic seat belt
tensioners. For more inf ormation,
see page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, it indicates a
problem in the Integrated Motor
Assist (IMA) system. Have the
vehicle checked by the dealer as
soon as possible.
(Manual Transmission)
See pages and . See page . (Automatic Transmission) See page .
The seat belt system includes an
indicator on the instrument panel
and a beeper to remind you and your
passenger to f asten your seat belts.
177
178
21 109
111 110 117
Instrument Panel Indicators
Inst rument s and Cont rols
Seat Belt Reminder
Indicator
Supplemental Restraint
System Indicator L ow Oil Pressure
Indicator
Charging System
IndicatorIMA System Indicator
Shif t Up/Shif t Down Indicators
A uto Idle Stop Indicator Shif t L ever Position Indicators
42
Page 46 of 218
This indicator has two f unctions:This indicator comes on when you
turn the ignition switch to ON (II).
It is a reminder to check the
parking brake. Driving with the
parking brake not f ully released
can damage the brakes and tires.
If it remains lit af ter you f ully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . See page .
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or blink rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling.
WhenyouturnontheHazard
Warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked by your Honda
dealer. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock. For more
inf ormation, see page .
2. 1.
180 178
146 120
Instrument Panel Indicators
Inst rument s and Cont rols
Parking Brake and Brake System
IndicatorMalf unction Indicator
Lamp
Turn Signal and Hazard Warning
Indicators Anti-lock Brake System
(A BS) Indicator
43
U.S. Canada
Page 47 of 218
This indicator comes on with the
high beam headlights. See pagef or inf ormation on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will go of f if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on if either
door or the hatch is not closed
tightly.
This indicator comes on as a
reminder that you must ref uel soon.This indicator normally comes on
when you turn the ignition to ON (II)
and goes off after the engine starts.
If it comes on at any other time,
there is a problem in the Electric
Power Steering system. If this
happens, stop the vehicle in a saf e
place, and turn of f the engine. Reset
the system by restarting the engine,
and watch the EPS indicator. If it
does not go of f , or comes back on
again while driving, take the vehicle
to your dealer to have it checked.
With the indicator on, the EPS is
turned off, making the vehicle
harder to steer.
54
5458
Canadian models only
Instrument Panel Indicators
High Beam Indicator
‘‘Daytime Running
Lights’’ Indicator Immobilizer System
Indicator
Door and Hatch Open
Indicator
Low Fuel IndicatorElectric Power Steering
(EPS) Indicator
Inst rument s and Cont rols44
Page 48 of 218
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages and .
When the distance driven since the
last scheduled maintenance reaches
6,000 miles (9,600 km), the indicator
starts blinking. If you exceed 7,500
miles (12,000 km), the indicator
stays on.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.Turn of f the engine. Press and hold the TRIP button in
the instrument panel, then turn
the ignition switch to ON (II).
Hold the button for about 10
seconds until the indicator resets.
1. 2.
3.
127 128
Instrument Panel Indicators
Inst rument s and Cont rols
Maintenance Required
Indicator
45
TRIP BUTTON
Page 49 of 218
Gauges
Inst rument s and Cont rols
Manual T ransmission shown
46
CURRENT FUEL MILEAGE DISPLAYDISPLAY CHANGE BUTTONTRIP BUTTON
IMA CHARGE/ASSIST GAUGE
FUEL MILEAGE DISPLAY
AUTO IDLE STOP INDICATOR BATTERY LEVEL
GAUGE
TEMPERATURE
GAUGE
SPEEDOMETER
TRIP METER/ODOMETER FUEL GAUGE
TACHOMETER
Page 50 of 218
This shows how much f uel you have.
It may show slightly more or less
than the actual amount.This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, the reading may
reach near the red mark. If it
reaches the red mark, pull saf ely to
thesideof theroad.Turntopage
f or instructions and precautions
on checking the engine’s cooling
system. The odometer shows the total
distance your vehicle has been
driven in miles and kilometers. It is
illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles and kilometers
indicated.
Push the Display Change button to
switch the speedometer, trip meter,
and odometer reading between miles
per hour and kilometers per hour.
175
Gauges
Inst rument s and Cont rols
Fuel Gauge
T emperature GaugeOdometer
Display Change Button
47
NOTICE:Avoid driving with an
extremely low f uel level. Running out
of f uel could cause the engine to
misf ire, damaging the catalytic
converter.
