Inst rument s and Cont rols
Interior Convenience Items
68

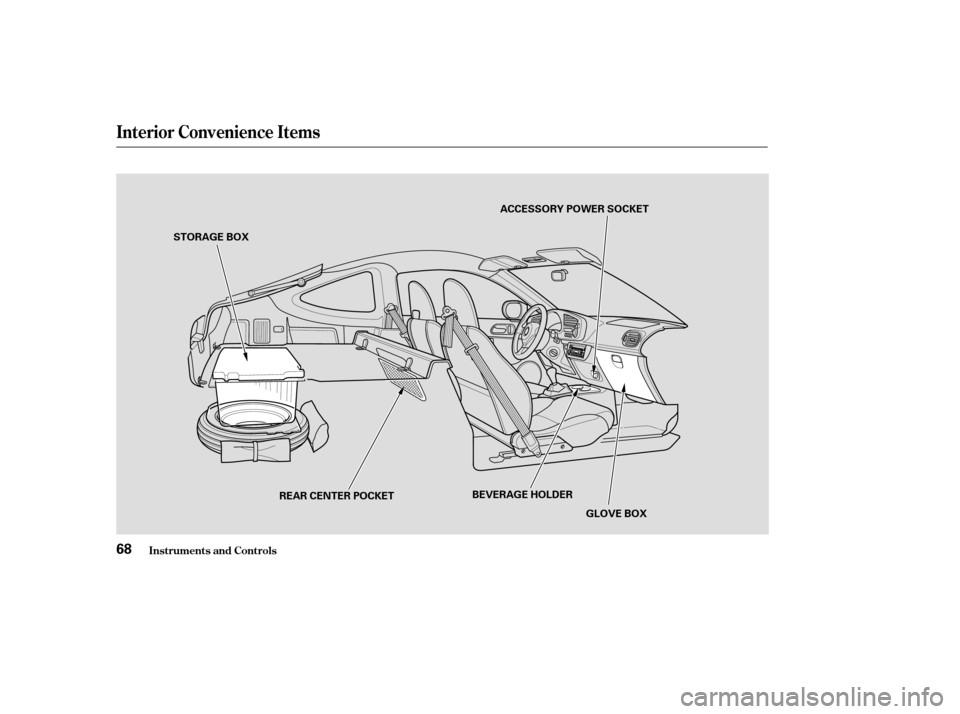

BEVERAGE HOLDER
STORAGE BOX
ACCESSORY POWER SOCKET
GLOVE BOX
REAR CENTER POCKET

To open the storage box, pull the
strap.Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.To use the accessory power socket,
pull up the cover. The ignition switch
must be in ACCESSORY (I) or ON
(II).
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
It will not power an automotive type
cigarette lighter element.
Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passenger. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
Interior Convenience Items
Inst rument s and Cont rols
Storage Box
Beverage Holder Glove Box
A ccessory Power Socket
69
STRAP GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:The ceiling light also contains two
spotlights. Push the button next to
the light to turn it on and off. You
can use the spotlights at all times.
The cargo area light has a two-
position switch. In the OFF (down)
position, the light does not come on.
In the ON (up) position, the light
comes on when you open the hatch.
Open either door or the rear hatch.
Unlock the doors and the rear
hatch with the remote transmitter.
Interior Lights
Inst rument s and Cont rols
Ceiling L ight Cargo A rea L ight
70
DOOR ACTIVATED
OFF
ON

Î
ÎThe heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them.
Your Honda has an anti-thef t audio
system that requires a code number
to enable it. Air conditioning is standard on
vehicles with automatic transmission
(CVT). ...............
Vents, Heating, and A/C . 72
..............................
ECON Button .73
.
To Cool or Heat Automatically . 76
............................
Playing the Radio .78
..............................
Radio Reception .81
....................................
Playing a CD .83
.....................................
CD Changer .84
......................
Protecting Your CDs .85
...........
CD Player Error Messages . 86
.......
CD Changer Error Messages . 87
...................
Radio Thef t Protection . 88
............................
Setting the Clock .89
Comf ort and Convenience Features
Comf ort and Convenience Feat ures71

Vents, Heating, and A/C
Comf ort and Convenience Feat ures72

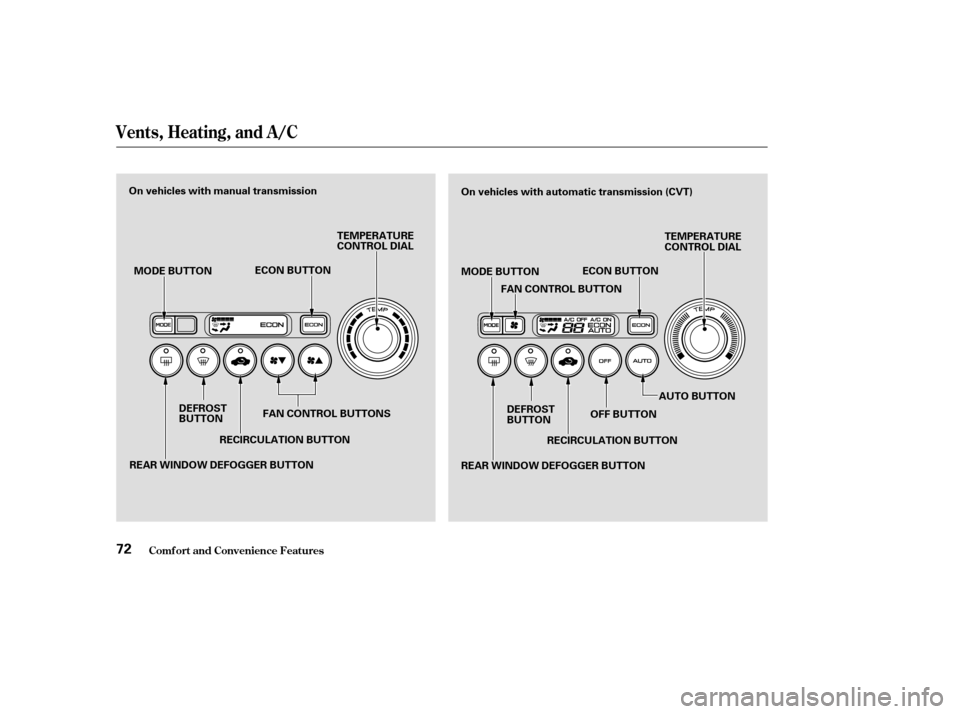

On vehicles with manual transmissionTEMPERATURE
CONTROL DIAL
DEFROST
BUTTON FAN CONTROL BUTTONS
RECIRCULATION BUTTON
REAR WINDOW DEFOGGER BUTTON TEMPERATURE
CONTROL DIAL
DEFROST
BUTTON RECIRCULATION BUTTON
ECON BUTTON
MODE BUTTON ECON BUTTON
FAN CONTROL BUTTON
AUTO BUTTON
OFF BUTTON
On vehicles with automatic transmission (CVT)
REAR WINDOW DEFOGGER BUTTON MODE BUTTON

On vehicles with automatic
transmission (CVT), see page f or
Automatic Climate Control and
Manual Operations inf ormation.
You can manually select the f an
speed by pressing the f an control
button ( / or ). The
fanspeedisshownbybarsinthe
display.
Turning this dial clockwise increases
the temperature of the airflow.Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris. If thecoolingprovidedinECON
mode is not adequate, press the Auto
button (see page ). This button turns the air
conditioning on and of f . When the
air conditioning is turned on with
this button, the auto idle stop works
only if the outside temperature is
above 41°F (5°C).
Press the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
When the indicator in the button is
on, air f rom the vehicle’s interior is
recirculated throughout the system.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (Fresh Air mode). ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, can cause the windows to f og
up.
When this button is pressed, the
auto idle stop works only if the
outside temperature is above 41°F
(5°C). 76
56
76
CONT INUED
On vehicles with automatic
transmission
On vehicles with manual transmission and no A/C
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
Fan Control
T emperature Control Dial Rear Window Def ogger Button
Recirculation Button
ECON Button Mode Control Button
73

The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.Turn the temperature control dial
all the way to the lef t.
Select and Fresh Air mode.
Set the f an to the desired speed.
On vehicles with automatic
transmission (CVT), make sure the
display shows A/C OFF.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system. Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C (on CVT model only).
When mode is selected, the
auto idle stop f unction will not
activate. you can
cool it down more rapidly by partially
opening the windows, turning on the
AUTO, and setting the fan to
maximum speed in Fresh Air mode. Turn on the A/C by pressing the
ECON button. The display shows
A/CONwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Air f lows f rom the f loor
vents.
1.
2.
3.
4.
5.
1.
2.
3. 1.
2.
3. 47
If the interior is very warm,
On vehicles with automatic
transmission (CVT)
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Ventilation
Using the Heater Using the A /C in ECON Mode
74

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your pref erence. Select . The system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C
indicator will not come on, if it was
off to start with.
Select .
Set the f an and temperature
controls to the maximum level.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
To remove f og f rom the inside of the
windows:
Set the f an to the desired speed.
Select , the system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C indicator will not come on, if it was
off to start with.
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
When mode is selected, the
auto idle stop f unction will not
activate.
When you switch to another mode
f rom , the A/C stays on.
Press the ECON button to turn it of f .
When you turn of f by
pressing the button again, the
system returns to its former settings.
1.
2.
3.
4.
1.
2.
3.
1.
2. 3.
4.
On vehicles with climate control
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
T o Remove Exterior Frost or Ice
From the Windows
T o Def og and Def rost To Dehumidif y the Interior
75

The Automatic Climate Control
system can adjust the f an speed and
airflow levels to maintain the interior
temperature you select.Press the Auto button.
Set the desired temperature by
turning the Temperature Control
dial. You will see AUTO in the
system’s display.
When the system is in f ully
automatic mode, the auto idle stop
f unction will not be activated.
The system automatically selects the
proper mix of conditioned and/or
heated air to raise or lower the
interior temperature to the
temperature you selected. If you set the temperature to its
lower limit or its highest limit, the
system runs at f ull cooling or heating
only. It does not regulate the interior
temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
f unctions of the Climate Control
System when it is in AUTO. All other
f eatures remain automatically
controlled.
Manual selections will cause the
word AUTO in the display to go out.
To shut of f the system completely,
turn off the fan and turn the
temperature control dial all the way
to left.
If you press OFF, the Climate
Control system shuts of f completely.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
1.
2.
On vehicles with manual transmission
On vehicles with automatic
transmission (CVT)
On vehicles with automatictransmission (CVT) On vehicles with automatictransmission (CVT) On vehicles with automatic
transmission (CVT)
Vents, Heating, and A/C
T o Cool or Heat A utomatically
Using A utomatic Climate Control
Manual OperationTo Turn Everything Of f
Comf ort and Convenience Feat ures76

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Vents, Heating, and A/C
Sunlight and T emperature
Sensors
Comf ort and Convenience Feat ures77
SUNLIGHT SENSORTEMPERATURE SENSOR
