The exhaust emissions controls
include three systems: PGM-FI,
Ignition Timing Control, and Three
Way Catalytic Converter. These
three systems work together to
control the engine’s combustion and
minimize the amount of HC, CO, and
NOx that comes out the tailpipe. The
exhaust emissions control systems
are separate from the crankcase and
evaporative emissions control
systems.The PGM-FI System uses sequential
multiport f uel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Engine Control Module (ECM)
or the Powertrain Control Module
(PCM) uses various sensors to
determine how much air is going
into the engine. It then controls how
much f uel to inject under all operat-
ing conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), dinitrogen
(N ), and water vapor.The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual f or more informa-
tion.
2
2
Emissions Cont rols
T echnical Inf ormation
Exhaust Emissions Controls Replacement PartsPGM-FI Syst em
Ignit ion T iming Cont rol Syst emThree Way Catalytic Converter
198

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converter is ref erred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on f ire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other f lamma-
bles.A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
f ormance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective. Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
T echnical Inf ormation199

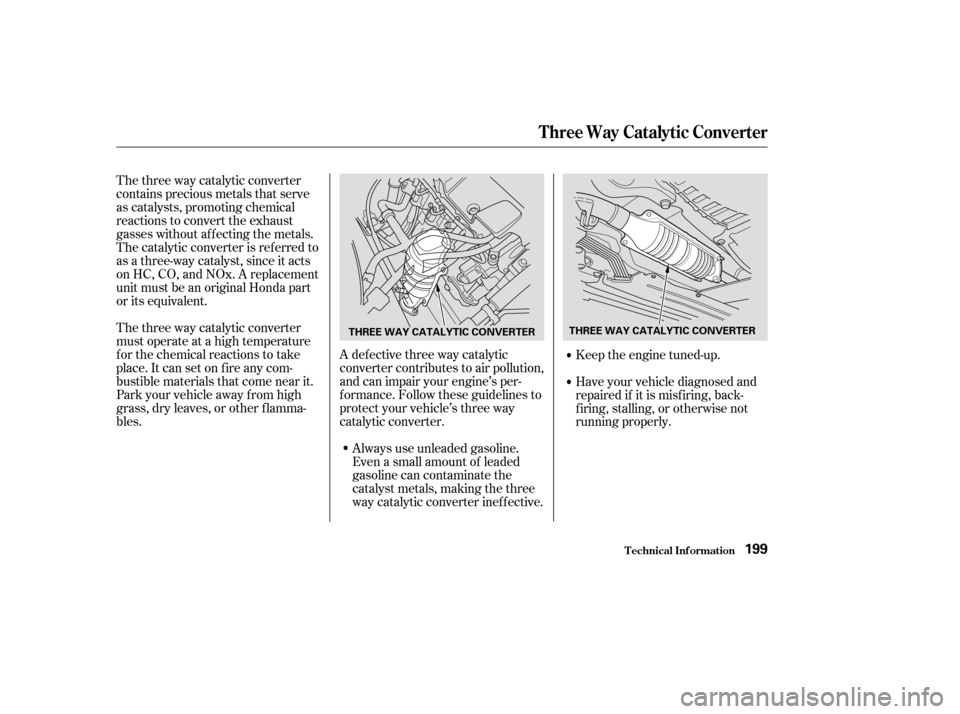

THREE WAY CATALYTIC CONVERTER
THREE WAY CATALYTIC CONVERTER

If you take your vehicle f or a state
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the f ollowing.Make sure the gas tank is nearly,
but not completely, f ull (around
3/4). Make sure the vehicle has been
parked with the engine of f f or 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle f or 20 seconds.
Keep the vehicle in Park
(automatic transmission) or
Neutral (manual transmission).
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4of thescale(approximately3
minutes).
Select a nearby highway where
you can maintain a speed of 50 to
60 mph (80 to 97 km/h) f or at
least 20 minutes in D (CVT) or 5th
gear (M/T). When traffic allows,
drive f or 90 seconds without
moving the accelerator pedal.
(Vehicle speed may vary slightly;
this is okay.) If you cannot do this
f or a continuous 90 seconds, drive
f or at least 30 seconds, then repeat
it two more times (f or a total of 90
seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing f acility determines the
readiness codes are still not set, see
your Honda dealer.
St at e Emissions T est ing
T esting of Readiness Codes
T echnical Inf ormation200

µµ
µ
(


%
)
$
%

.
"

#
