This display shows the current, or
instantaneous fuel mileage you are
getting. (U.S.: miles per hour and
mpg, Canada: kilometer per hour
and l/100 km)
You can turn off this display at any
time. See page .The trip meters show the number of
miles or kilometers driven since you
last reset them.
There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two dif f erent distances. To change
the display to show Trip A, Trip B, or
the odometer, press the Trip button
repeatedly.
To reset a trip meter, display it, then
press and hold the Trip button until
the numbers reset to 0.0.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets. When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once per minute.
This display can be turned of f at any
time. See page .
52
52
Gauges

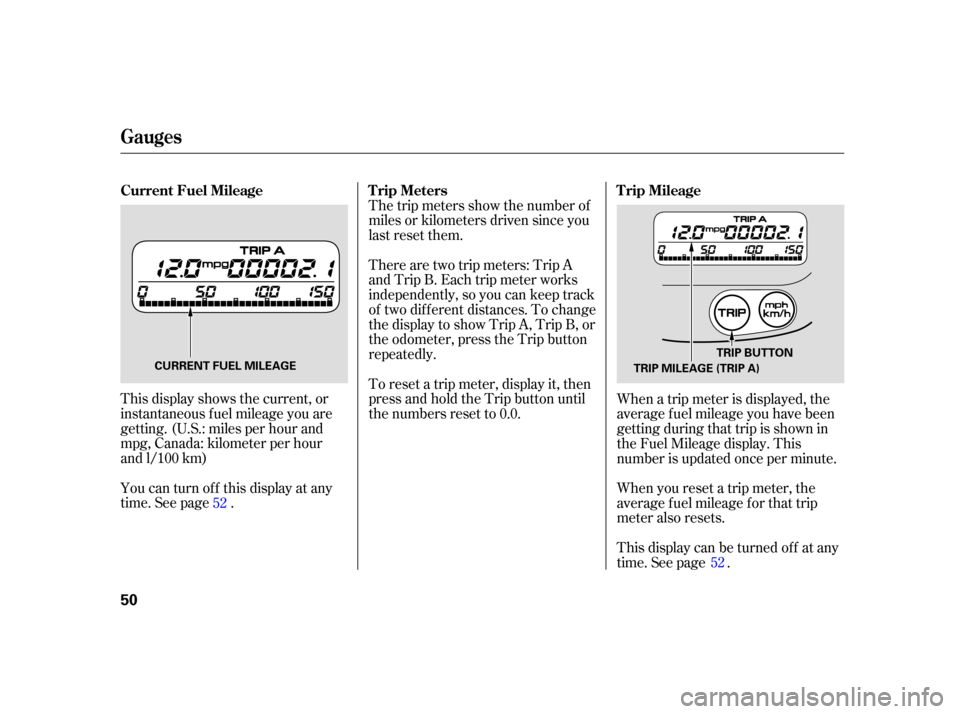

Current Fuel MileageT rip Meters T rip Mileage
50
CURRENT FUEL MILEAGE
TRIP MILEAGE (TRIP A)TRIP BUTTON

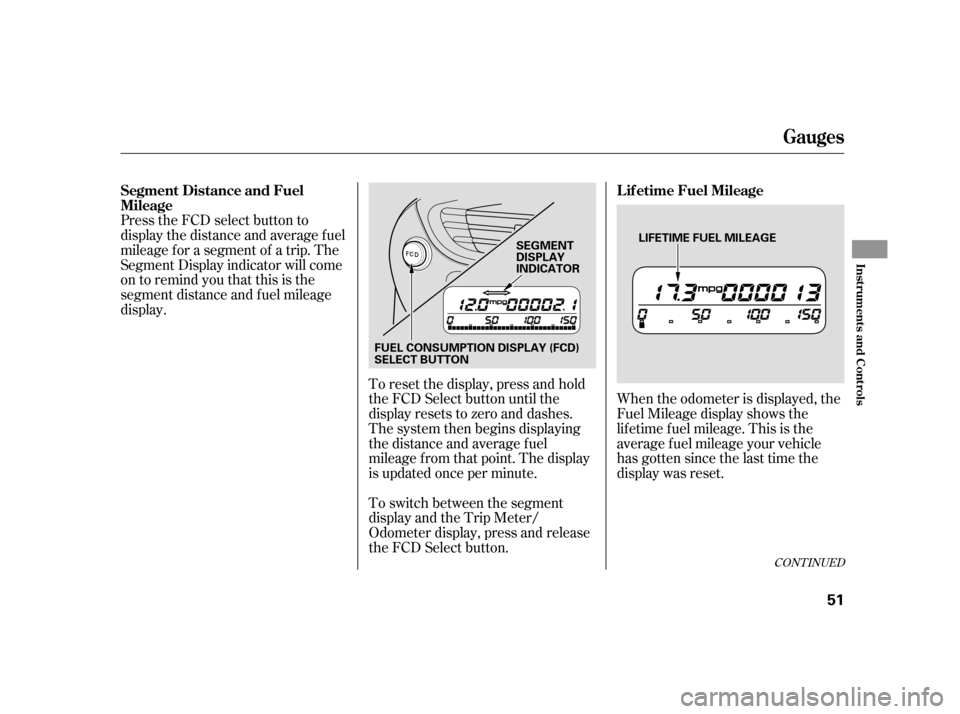

Press the FCD select button to
display the distance and average fuel
mileage f or a segment of a trip. The
Segment Display indicator will come
on to remind you that this is the
segment distance and f uel mileage
display.To reset the display, press and hold
the FCD Select button until the
display resets to zero and dashes.
The system then begins displaying
the distance and average f uel
mileage f rom that point. The display
is updated once per minute.
To switch between the segment
display and the Trip Meter/
Odometer display, press and release
the FCD Select button.When the odometer is displayed, the
Fuel Mileage display shows the
lif etime f uel mileage. This is the
average fuel mileage your vehicle
has gotten since the last time the
display was reset.
CONT INUED
Gauges
Segment Distance and Fuel
Mileage
Lifetime Fuel Mileage
Inst rument s and Cont rols
51
LIFETIME FUEL MILEAGE
FUEL CONSUMPTION DISPLAY (FCD)
SELECT BUTTON SEGMENT
DISPLAY
INDICATOR

To reset this display, turn the
ignition switch to ON (II), the
transmission is in neutral or Park
(CVT),andtheparkingbrakeisset.
Use the Trip button to display the
odometer. Then press and hold the
Trip button until the Lif etime Fuel
Mileage Display begins to blink
(approximately f ive seconds).
Release the Trip button, then press it
again while the display is blinking
andholdituntilthedisplayclearsto
dashes.You can temporarily turn of f the
Current Fuel Mileage and Fuel
Mileage displays.
To turn them off:
Turn the ignition switch to ON (II),
the transmission is in neutral or
Park (CVT), and the parking
brake is set.
Use the Trip button to select Trip
A, Trip B, or the odometer.
Press and hold the FCD Select
button f or approximately three
seconds. The Current Fuel
Mileage display will turn of f .
Press and hold the FCD Select
button again. The Fuel Mileage
display f or the meter you are
displaying (Trip A, Trip B, or
odometer) will turn of f . Use the Trip button to select
another mileage display.
To turn of f the other trip meters,
select the meter with the Trip
button, and hold the FCD select
button.
Although the displays are turned off,
the average f uel mileages continue
to be calculated. The displays will
turn back on when you press and
hold the FCD Select button again.
1.
3.
4. 2. 5.
6.
Gauges
T urning Of f the Mileage Displays
52

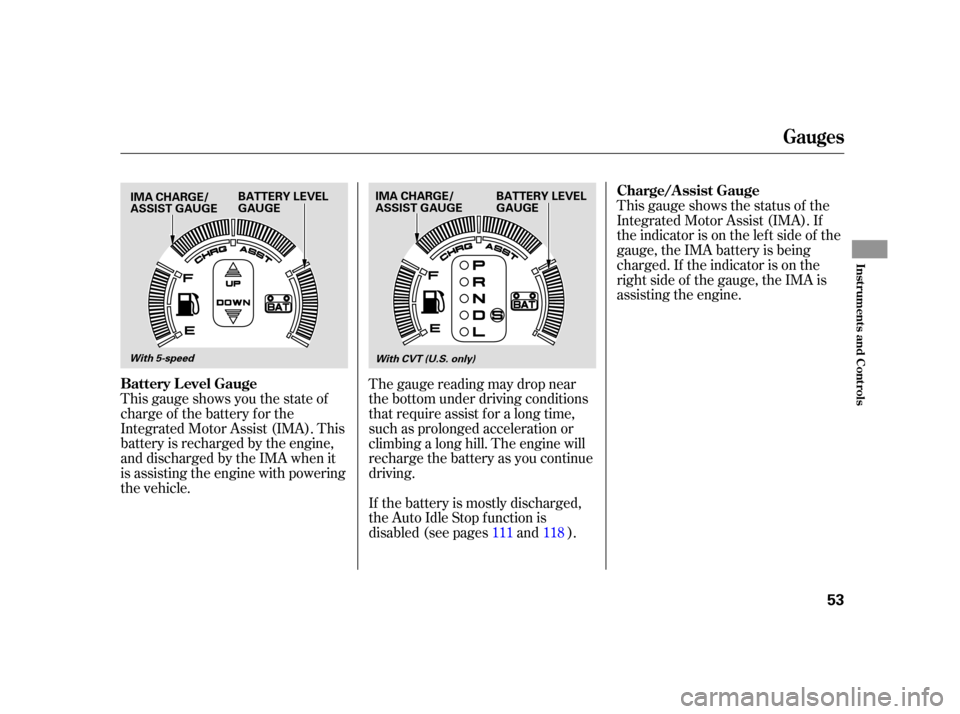

This gauge shows you the state of
charge of the battery for the
Integrated Motor Assist (IMA). This
battery is recharged by the engine,
anddischargedbytheIMAwhenit
is assisting the engine with powering
the vehicle.The gauge reading may drop near
the bottom under driving conditions
that require assist f or a long time,
such as prolonged acceleration or
climbing a long hill. The engine will
recharge the battery as you continue
driving.
If the battery is mostly discharged,
the Auto Idle Stop f unction is
disabled (see pages and ).This gauge shows the status of the
Integrated Motor Assist (IMA). If
the indicator is on the left side of the
gauge, the IMA battery is being
charged. If the indicator is on the
right side of the gauge, the IMA is
assisting the engine.
111 118
Gauges
Battery Level Gauge Charge/Assist Gauge
Inst rument s and Cont rols
53
BATTERY LEVEL
GAUGE
IMA CHARGE/
ASSIST GAUGE BATTERY LEVEL
GAUGE
IMA CHARGE/
ASSIST GAUGE
With
5-speed
With CVT (U.S. only)

Î
Î
To use the horn, press the pad around the ‘‘H’’ logo.
:
Controls Near the Steering Wheel
54
WINDSHIELD
WIPERS/WASHERS
HORN ECON BUTTON
POWER WINDOW SWITCHES
HEADLIGHTS/TURN SIGNALS DRIVING MODE BUTTONS
(CVT model only)REAR WINDOW
DEFOGGER
MIRROR CONTROLS
AUDIO SYSTEM
HAZARD WARNING BUTTON
(P. 67) (P.68)
(P.55)
(P.75) (P.
57)
(P.80)
(P. 58)
(P. 115)
(P.
56)

µ
µ
µ µ
µ
µ µ
µ
µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed

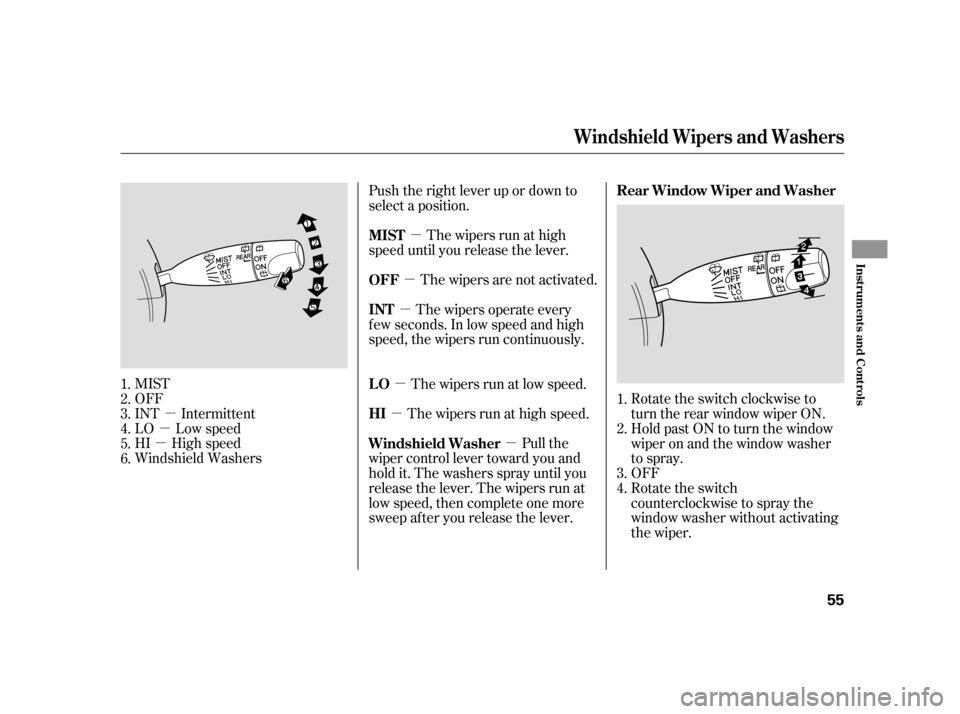

Windshield Washers Push the right lever up or down to
select a position.
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed. The wipers run at high
speed until you release the lever.
The wipers operate every
f ew seconds. In low speed and high
speed, the wipers run continuously.
Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever. Rotate the switch clockwise to
turn the rear window wiper ON.
Hold past ON to turn the window
wiper on and the window washer
to spray.
OFF
Rotate the switch
counterclockwise to spray the
window washer without activating
the wiper.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
OFF
Rear Window Wiper and Washer
LO
HI MIST
INT
Windshield Washer
Windshield Wipers and Washers
Inst rument s and Cont rols
55

µµµ
Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn. Push the lever
f orward until you hear a click to turn
on the high beams. The blue high
beam indicator will come on (see
page ). Pull the lever back to
return to the low beams.
The headlights revert to normal
operation when you turn them on
with the switch. With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch of f , even if you set the
parking brake. To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams Turning the
switch to the position turns on
the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the position turns on the
headlights. If you leave the lights on
with the key removed from the
ignition switch, you will hear a
reminder tone when you open the
driver’s door.
1.
2.
3.
4.
5.
6. 46
Turn Signal
High Beams
(Canadian Models) Daytime Running L ights
Headlights On
Turn Signal and Headlights
56

´µ´µ
µ´

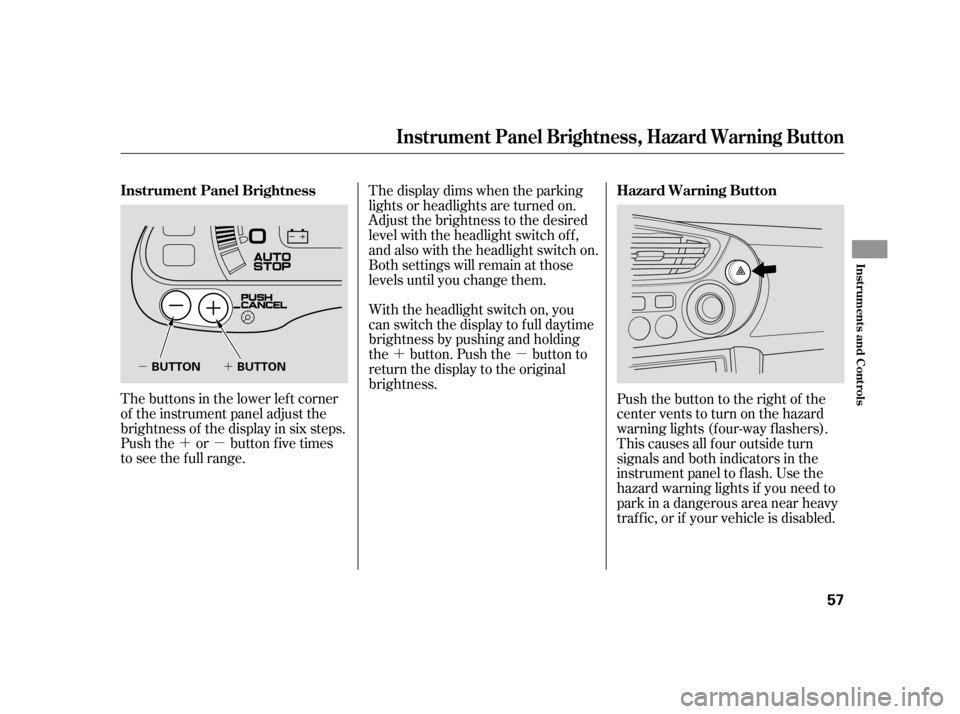

The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in six steps.
Push the or button five times
to see the f ull range. Thedisplaydimswhentheparking
lights or headlights are turned on.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.
With the headlight switch on, you
can switch the display to f ull daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
Push the button to the right of the
center vents to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signals and both indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Instrument Panel Brightness, Hazard Warning Button
Instrument Panel Brightness Hazard Warning Button
Inst rument s and Cont rols
57
BUTTON BUTTON

The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 25 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn it on again
when you restart the vehicle.The rear window def ogger turns on
automatically when you turn the
ignition switch to ON (II) if the
outside temperature is below 32°F (0
°C), or if the engine is at ambient
temperature. The indicator in the
button does not light.
It will also turn of f automatically
af ter 25 minutes.
Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Def ogger
Automatic Operation
Manual Operation
58

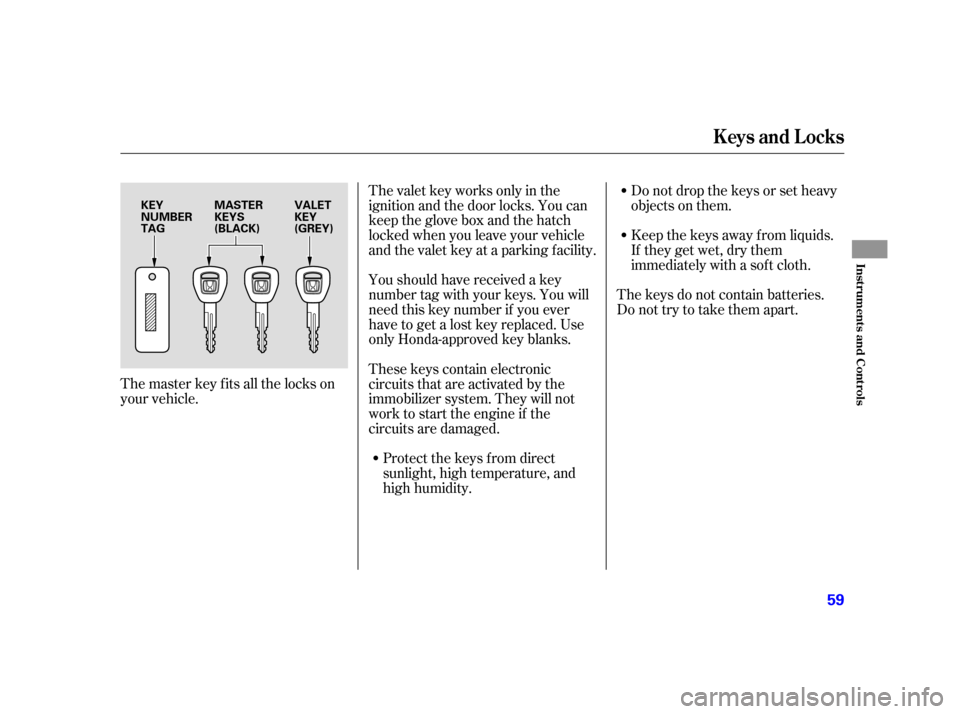

The master key fits all the locks on
your vehicle.The valet key works only in the
ignition and the door locks. You can
keep the glove box and the hatch
locked when you leave your vehicle
and the valet key at a parking f acility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity. Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys and Locks
Inst rument s and Cont rols
59
KEY
NUMBER
TAG VALET
KEY
(GREY)
MASTER
KEYS
(BLACK)
