HONDA INSIGHT 2005 1.G Service Manual

40

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .42
............................
Instrument Panel .43
..........
Instrument Panel Indicators . 44
.............................................
Gauges .48
..................................
Fuel Gauge .49
...................
Temperature Gauge . 49
.....................................
Odometer .49
..............
Display Change Button . 49
.................
Current Fuel Mileage . 50
.................................
Trip Meters .50
................................
Trip Mileage .50
Segment Distance and Fuel ....................................
Mileage .51
................
Lif etime Fuel Mileage . 51
Turning Of f the Mileage ....................................
Displays .52
..................
Battery Level Gauge . 53
................
Charge/Assist Gauge . 53
Controls Near the Steering ...........................................
Wheel .54
.
Windshield Wipers and Washers . 55
...........
Turn Signal and Headlights . 56
........
Instrument Panel Brightness . 57
.................
Hazard Warning Button . 57
.................
Rear Window Def ogger . 58
...............................
Keys and Locks .59 ........................
Immobilizer System .60
................................
Ignition Switch .61
......................................
Door Locks .62
................................................
Hatch .63
.......................
Remote Transmitter .64
.................................................
Seats .66
..............................
Power Windows .67
.............................................
Mirrors .68
.................................
Parking Brake .69
...........
Interior Convenience Items . 70
.................................
Storage Box .71
.........................
Beverage Holder .71
....................................
Glove Box .71
...........
Accessory Power Socket . 71
.................................
Interior Lights .72
Instruments and Controls
Inst rument s and Cont rols
41

Î
Î

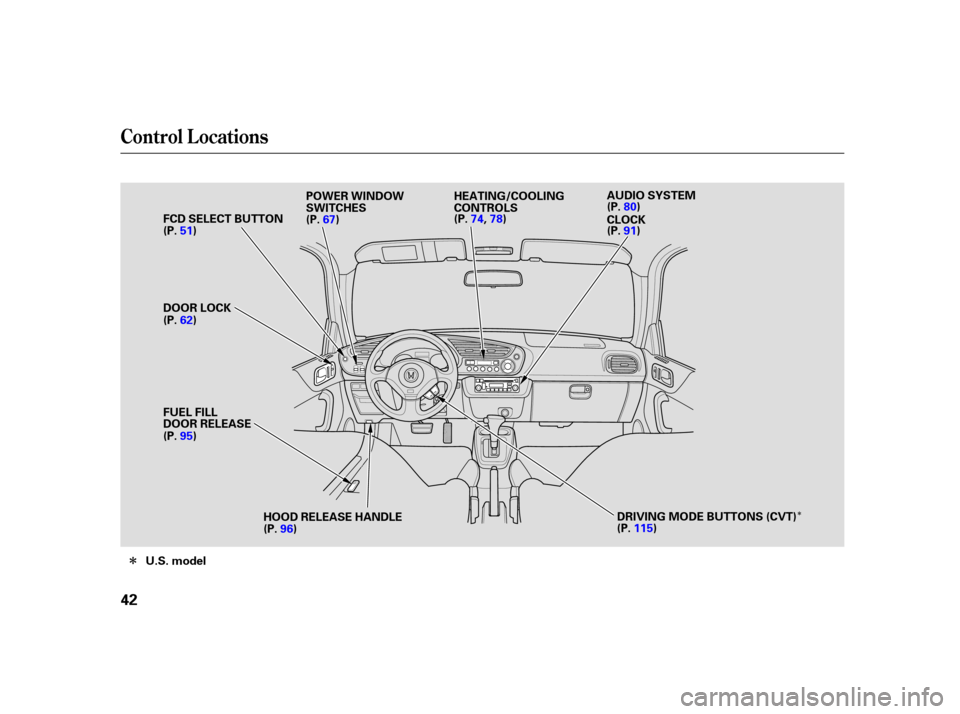

Control L ocations
42
U.S. modelFCD SELECT BUTTON
DOOR LOCK
FUEL FILL
DOOR RELEASE
HOOD RELEASE HANDLE DRIVING MODE BUTTONS (CVT)
AUDIO SYSTEM
HEATING/COOLING
CONTROLS
POWER WINDOW
SWITCHES
CLOCK
(P. 96)
(P.
95)
(P.
62)
(P.
51) (P.
67) (P.
74, 78) (P.
80)
(P. 91)
(P. 115)

Î
Î
Î
Î Shif t Lever Position Indicators on CVT model (P. ) The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
1:
2 : 113
Instrument Panel
Manual T ransmission shown
Inst rument s and Cont rols
43
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ELECTRIC POWER STEERING INDICATOR
LOW OIL PRESSURE INDICATOR
MALFUNCTION INDICATOR LAMP
AUTO IDLE STOP INDICATOR
IMMOBILIZER SYSTEM INDICATOR CHARGING SYSTEM INDICATORMAINTENANCE
REQUIRED INDICATOR
LOW FUEL INDICATOR IMA SYSTEM INDICATOR
HIGH BEAM INDICATOR
TURN SIGNAL AND HAZARD WARNING INDICATORS
DOOR AND HATCH OPEN INDICATOR
SEAT BELT REMINDER INDICATOR
PARKING BRAKE AND BRAKE SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
SHIFT UP/SHIFT DOWN
INDICATORS
(P. 46)
(P.
112, 119)
(P.
180)
(P.
44, 179)
(P.
46)
(P.
44) (P.
44)
(P.45)
(P. 46)
(P.45)
(P. 46)
(P. 45)
(P. 111)
(P. 44)
(P. 46)
(P.
44, 180)(P.
47)
1
2

The instrument panel has many
indicators to give you important
inf ormation about your vehicle. The engine can be severely damagedif this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, it indicates a
problem in the Integrated Motor
Assist (IMA) system. Have the
vehicle checked by the dealer as
soon as possible.
(Manual Transmission)
See pages and . See page . (Automatic Transmission) See page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passenger to
f asten your seat belts. A beeper also
sounds if you have not f astened your
seat belt.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals. If you turn the ignition switch to ON
(II) bef ore f astening your seat belt,
the beeper sounds and the indicator
f lashes. If you do not f asten your
seat belt bef ore the beeper stops, the
indicator stops f lashing but remains
on.
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. For more
inf ormation, see page .179
180 111
113 112 119
23
Instrument Panel Indicators
Seat Belt Reminder
Indicator
Supplemental Restraint
System Indicator L ow Oil Pressure
Indicator
Charging System
IndicatorIMA System Indicator
Shif t Up/Shif t Down Indicators
A uto Idle Stop Indicator Shif t L ever Position Indicators
44

This indicator has two f unctions:If it remains lit af ter you f ully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . See page .
Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires. The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should f lash. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
2. 1.
182 180
148 122
Instrument Panel Indicators
Parking Brake and Brake System
Indicator Malf unction Indicator
Lamp
Turn Signal and Hazard Warning
Indicators Anti-lock Brake System
(A BS) Indicator
Inst rument s and Cont rols
45
U.S. Canada

This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on if either
door or the hatch is not closed
tightly.
This indicator comes on as a
reminder that you must ref uel soon.This indicator normally comes on
when you turn the ignition switch to
ON (II) and goes of f af ter the engine
starts. If it comes on at any other
time, there is a problem in the
electric power steering system. If
this happens, stop the vehicle in a
saf e place, and turn of f the engine.
Reset the system by restarting the
engine, and watch the EPS indicator.
If it does not go of f , or comes back
on again while driving, take the
vehicle to your dealer to have it
checked. With the indicator on, the
EPSisturnedoff,makingthevehicle
harder to steer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will then go of f
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights. 56
60
56
Canadian models only
Instrument Panel Indicators
High Beam Indicator Immobilizer System
Indicator
Door and Hatch Open
Indicator
Low Fuel IndicatorElectric Power Steering
(EPS) Indicator
‘‘Daytime Running
Lights’’ Indicator
46

This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the maintenance schedule
f or normal and severe driving
conditions on pages and .
When the distance driven since the
last scheduled maintenance reaches
6,000 miles (9,600 km), the indicator
starts blinking. If you exceed 7,500
miles (12,000 km), the indicator
stays on.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as f ollows.Turn of f the engine.
Press and hold the TRIP button in
the instrument panel, then turn
the ignition switch to ON (II).
Hold the button for about 10
seconds until the indicator goes
off.
1.
2.
3.
129 130
Instrument Panel Indicators
Maintenance Required
Indicator
Inst rument s and Cont rols
47
TRIP BUTTON

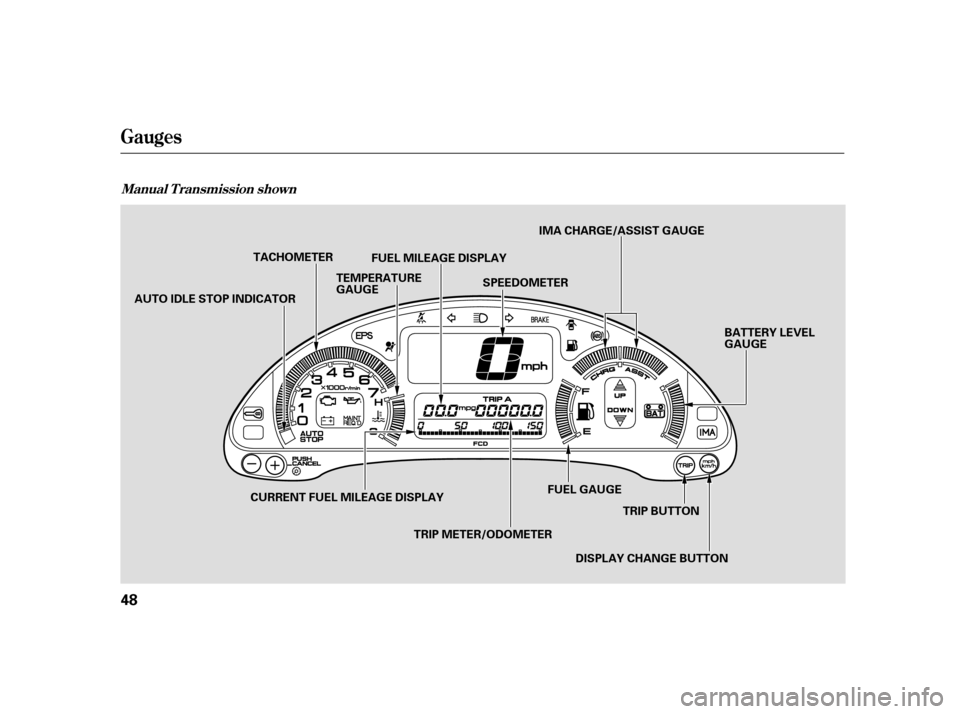

Gauges
Manual T ransmission shown
48
CURRENT FUEL MILEAGE DISPLAYDISPLAY CHANGE BUTTONTRIP BUTTON
IMA CHARGE/ASSIST GAUGE
FUEL MILEAGE DISPLAY
AUTO IDLE STOP INDICATOR BATTERY LEVEL
GAUGE
TEMPERATURE
GAUGE
SPEEDOMETER
TRIP METER/ODOMETER FUEL GAUGE
TACHOMETER

This shows how much f uel you have.
It may show slightly more or less
than the actual amount.This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, the reading may
reach near the red mark. If it
reaches the red mark, pull saf ely to
thesideof theroad.Turntopage
f or instructions and precautions
on checking the engine’s cooling
system. The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
Push the Display Change button to
switch the speedometer, trip meter,
and odometer reading between miles
per hour and kilometers per hour.
177
Gauges
Fuel Gauge
T emperature GaugeOdometer
Display Change Button
Inst rument s and Cont rols
49
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
