Navigation System
Table of Contents
Landmark Icons ............................. 56Showing Icons on the Map............... 58
Icon Options .................................... 58Going Off the Route ...................... 60
Off-road Tracking.......................... 60
Viewing/Saving the Current
Location ...................................... 61
Pop-Ups and Disclaimers .............. 62
Changing the Route ....................... 63Change Route By Screen ................. 63
Waypoints ........................................ 63
Reroute: Avoid Streets ..................... 65
Reroute: Detour ............................... 65
Reroute: Change Routing
Method.......................................... 65
Cancel Current Route ...................... 66
Back to Current Route ..................... 66Changing Your Destination ........... 66Find Nearest (Voice command) ....... 66
Go Home (Voice command) ............ 66
Using Joystick to Change Destination ................................... 66
Entering a Destination from the Menu Screen (while en route) ................ 68Continue Trip Screen..................... 68
Information Features ................ 69
Information Screen ........................69
Cellular Phonebook .......................69
Voice Command Help ...................69
Map Legend ...................................70
Calendar .........................................71Entering Your Schedule ................... 71Calculator.......................................72Unit Conversion ............................... 73
System Setup .............................. 74
Setup Mode ....................................74
Setup Screen (first) ........................74Brightness ........................................ 74
Volume ............................................. 74
Display ............................................. 75
Guidance Prompts ........................... 76
Contrast ........................................... 76Setup Screen (second) ...................77
Personal Information .....................77Address Book ................................... 77
Home Address .................................. 81
PIN Number ..................................... 81
User Name ....................................... 82
Previous Destinations ...................... 82Routing & Guidance ......................83Rerouting ......................................... 83
Unverified Area Routing .................. 84 Edit Avoid Area................................ 88
Edit Waypoint Search Area.............. 90
Guidance Mode ................................ 91
Vehicle ...........................................91Off-road Tracking .....
....................... 91
Correct Vehicle Position.................. 92System Information .......................93
Basic Settings.................................93Keyboard Layout.............................. 93
Units (mile or km) ............................ 93
Voice Recognition F eedback ........... 93Clock Settings ................................94Clock Adjustment ............................. 94
Clock Type ....................................... 95Color ..............................................96Map Color ........................................ 96
Menu Color ...................................... 96
System Initialization .................. 97
System Initialization ......................97
Entering the Security Code ............97
GPS Initialization...........................98
Map Matching................................98
System Limitations .................... 99
Database Limitations............... 101

Navigation System17Getting Started
Read this disclaimer carefully so you
understand it before continuing. Push in
on the joystick, or touch OK
, and the
map screen will appear on the display.
The “OK” cannot be activated by voice.
NOTE:
If you do not select OK
, and then enter
the Setup or Information screens, some
items are not available and will show up
as darkened buttons (grayed out). See
System Function Diagram on page 21.
If you do not press the joystick or touch
OK , the screen will turn to the clock

screen after 30 seconds. If you are not planning to use the
navigation system at this time, touch
DISPLAY OFF
to turn off the screen.
By touching CLOCK TYPE, you can
change the design of the clock
screen.
For details of the clock type, see
page 76.
Tip:
For information on clock adjustment,
see page 94. To return to the
Disclaimer
screen,
press the MENU or
MAP/GUIDE
button.
If you have entered any Calendar
reminders, they are displayed after you
select OK.
The Calendar reminder screen
remains displayed until you select OK

or Remind Later , or press the
CANCEL button.

Navigation System21Getting Started
System Function DiagramThis diagram shows the navigation
system features, starting at the center
and working outward in layers. The
navigation program starts at “Key ON,”
and then displays the globe screen
(blue). If OK is selected on the
Disclaimer screen, the functions in the
yellow segments of the diagram become
available in the Setup and Information
screens.The white segments of the
diagram are available anytime, even if
you do not select OK
.
The items above the map
screen show
various methods to begin driving to
your destination (orange). You are
provided with map/voice guidance,
routing cautions, an d a direction list.
While driving to your destination, use
the voice control system as much as
possible to interact with the navigation,
audio, and climate control systems
(green).
KEY ON
GLOBESCREEN
PRESS
OK
OKNOT
PRESSEDTHEDISCLAIMERSCREEN(pg.16)
CALENDAR
REMINDERS(pg.17)
-THEMAPSCREEN(pg.19)-
AUDIO
BUTTON
(pg. 11)
INFO
BUTTON
(pg. 6 9)
Formoreinformation,see
yourOwner’sManual
VOICECOMMANDSNAVI AUDIO
CLIMATE (pg. 6 9)
ENTER (pg. 71)LIST (pg. 71)MATH (pg. 72)CONVERT (pg. 73)
LIST (pg. 70)
CALENDARCALCULATORMAP LEGEN D
VOICE: "FIND
NEAREST..." ATM, ETC.(pg. 140)
SELEC T A
DESTINATION
WITH
JOYSTICK
(pg. 66 )
VOICE:
"GO HOME"
(pg. 44)
VOICE:
"MENU" FOR
ENTER
DESTINATION SCREEN(pg. 22)
CONTIN UE
TO THE
DESTINATION (RESUME)
AFTER RESTART
(pg. 68)
VOICE HE LP
SELECT
BAND/
FREQUENCY
VOL
BALANCE
CD
FUNCTIONS
OTHER
AUDIO
VOICE:
"ZOOM IN/ZOO M OUT"
(pg. 54, 13 9)VOICE:
"HIDE/DISP LAY ICONS"
(pg. 57, 13 9)
INFORMATION
SCREEN
(pg. 144)AUDIO (pg. 142 - 143)
-DRIVING
TO
YOUR
DESTINATION-
(MAP/VOICEGUIDANCE,ROUTINGCAUTIONS,DIRECTIONLIST)
VOICE: "HELP" (ALL)
(pg. 138)
VOICE:
"INFORMATION SCREEN"(pg. 6 9)
VOICE:
"MENU" (to
change route) (pg. 63)
VOICE:
"HOW FAR TO TH E
DESTINATION?" (pg. 138)
VOICE:
"DISPLAY (OR SAVE)
CURRENT LOCATION" (pg.61)
VOICE:
"SET WAYP OINT"
(pg. 63)
VOICE:
"WHAT TIM E
IS IT?"
(pg. 138)
VOICE:
AUDIO
(pg. 142 - 143)
ADD BOOK (pg. 77)PINs (pg. 81)
UNITS MI/KM (pg. 93)
PERSONALBASIC
UNVERIFIED (pg. 84)AVOID AREAS (pg. 88)ADJ. TIME (pg.
94)CLOCK TYPE (pg. 95)
ROUTING
GUIDANCECLOCK
SETT INGS
OFF-ROAD TRA
CKING
(pg. 60, 91)CORRECT VEHICLE
POSITION (pg. 92)MAP COLOR (pg. 9
6)MENU COLOR ( pg. 96)VEHICLECOLORGUIDE. PRO MPTS
(pg. 76)
SETUP
SCREE N
(FIRST)
OKNOTPRESSED
VERSION ( pg. 93)
SYSTEM INF
O.
BRIGHTNESS (pg. 74)
VOLUME (pg. 74)
DISPLAY (pg . 75)CONTRAST (pg. 76)
SETUP(pg.74)
BRIGHTNESS
ZOOM IN/OUT REAR CAMERA
(REVERSE)
IMPORT, SEA RCH,
DELETE (pg. 6 9
)
PHONEBOOK
CLIMATE CONTR OL
(pg. 141 - 142)
VOICE:
CLIMATE
FAN, TEMP
(pg. 141 - 142)

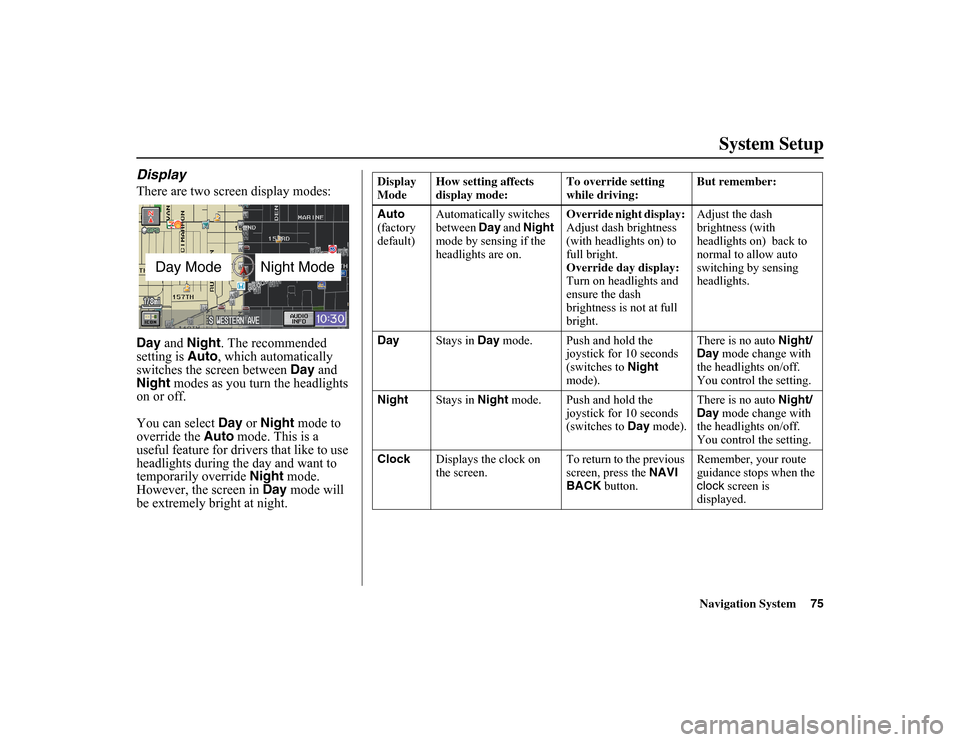

Navigation System75
System Setup
DisplayThere are two screen display modes:
Day
and Night . The recommended
setting is Auto
, which automatically
switches the screen between Day
and
Night modes as you turn the headlights
on or off.
You can select Day or
Night mode to
override the Auto mode. This is a
useful feature for drivers that like to use
headlights during the day and want to
temporarily override Night mode.
However, the screen in Day
mode will
be extremely bright at night.
Day Mode
Night Mode
Display
Mode How setting affects
display mode: To override setting
while driving:But remember:
Auto
(factory
default) Automatically switches
between
Day and Night

mode by sensing if the
headlights are on. Override night display:
Adjust dash brightness
(with headlights on) to
full bright.
Override day display:
Turn on headlights and
ensure the dash
brightness is not at full
bright.Adjust the dash
brightness (with
headlights on) back to
normal to allow auto
switching by sensing
headlights.
Day Stays in Day
mode. Push and hold the
joystick for 10 seconds
(switches to Night
mode). There is no auto
Night/
Day mode change with
the headlights on/off.
You control the setting.
Night Stays in
Night mode. Push and hold the
joystick for 10 seconds
(switches to Day mode). There is no auto
Night/
Day mode change with
the headlights on/off.
You control the setting.
Clock Displays the clock on
the screen. To return to the previous
screen, press the
NAVI
BACK button. Remember, your route
guidance stops when the
clock
screen is
displayed.

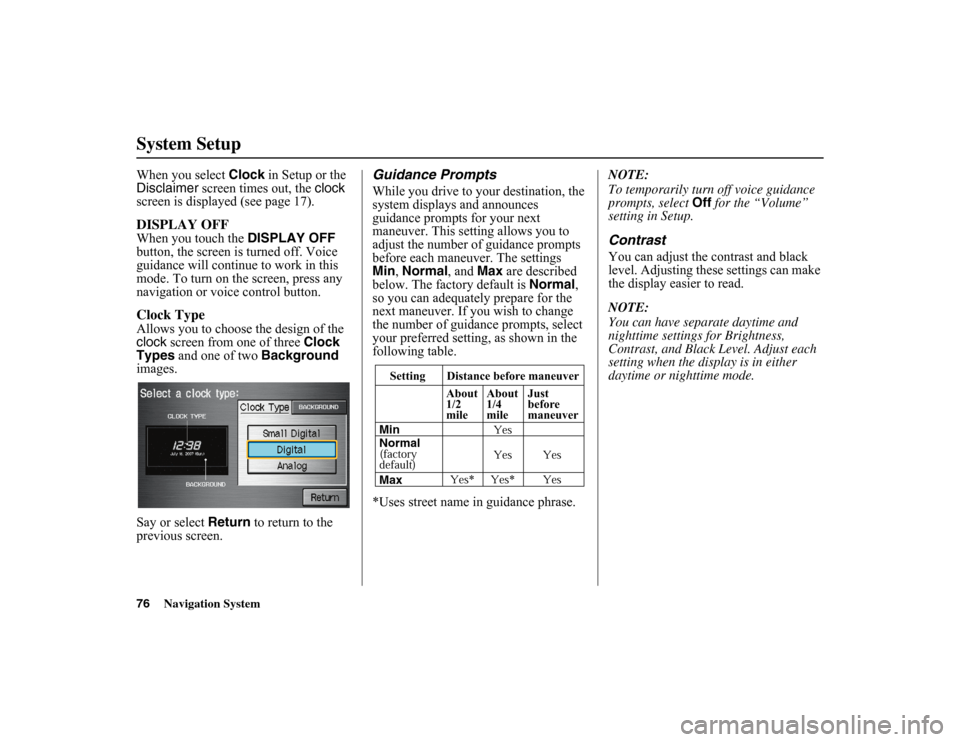

76
Navigation System
System SetupWhen you select Clock
in Setup or the
Disclaimer screen times out, the clock

screen is displayed (see page 17).DISPLAY OFFWhen you touch the DISPLAY OFF
button, the screen is turned off. Voice
guidance will continue to work in this
mode. To turn on the screen, press any
navigation or voice control button.Clock TypeAllows you to choose the design of the
clock screen from one of three Clock
Types and one of two Background
images.
Say or select Return to return to the
previous screen.
Guidance PromptsWhile you drive to yo ur destination, the
system displays and announces
guidance prompts for your next
maneuver. This settin g allows you to
adjust the number of guidance prompts
before each maneuver. The settings
Min , Normal
, and Max are described
below. The factory default is Normal
,
so you can adequately prepare for the
next maneuver. If you wish to change
the number of guidance prompts, select
your preferred setting, as shown in the
following table.
*Uses street name in guidance phrase. NOTE:
To temporarily turn
off voice guidance
prompts, select Off
for the “Volume”
setting in Setup.
ContrastYou can adjust the contrast and black
level. Adjusting these settings can make
the display easier to read.
NOTE:
You can have separate daytime and
nighttime settings for Brightness,
Contrast, and Black Level. Adjust each
setting when the disp lay is in either
daytime or nighttime mode.
Setting Distance before maneuver
About
1/2
mile
Max Normal
(factory
default) Min About
1/4
mile
Just
before
maneuver
Yes* Yes* Yes
Yes Yes Yes

94
Navigation System
System SetupClock SettingsFrom the Setup
screen (second), say or
select Clock Settings and the
following screen appears:Clock AdjustmentWhen you select Clock Adjustment ,
the following screen appears: This screen allows you to set or adjust
the following:
• Auto Daylight Saving Time
(Default = On)
• Auto Time Zone by GPS (Default = On)
• DST (Daylight Saving Time) Selection
(change DST schedule)
• Time Adjustment (adjust your clock)
• Reset button (resets this screen’s
settings to factory defaults)
Auto Daylight Saving TimeSets automatic daylight saving time On

or Off . If set to On
, the clock will
automatically “spring ahead” or “fall
back” by one hour when a daylight
saving time change occurs. If you reside
in a state or area where daylight saving
time is not used, then you may want to
turn this feature off. NOTE:
If you set Auto Daylight Saving Time to
On
, the daylight saving time function is
activated even in an area that does not
use daylight saving time.
The federal government mandated that
starting in 2007, da ylight saving time
begins in March and ends in November
instead of the old schedule from April to
October. The schedule is subject to
review and possible cancellation in
2009-2010.
The schedules for the time changes are
stored in the software and can be
selected in the DST schedule
selection screen. Therefore, your clock
will change based on the daylight saving
time schedule.
NOTE:
The automatic clock setting feature
relies on a satellite signal. It will not
work in Hawaii and Alaska.

Navigation System95
System Setup
Auto Time Zone by GPSSets automatic time zone selection by
GPS to On or
Off . If you are driving
across the country and passing through
time zones, then this feature will
automatically set the time to the time
zone you are traveling through.
However, if you live and work in two
different time zones, you may want to
turn this feature off.
NOTE:
When driving near a time zone
boundary, the displayed time zone may
fluctuate between the two zone times.Daylight Saving Time (DST)
Selection (Change DST Schedule)This option lets you select the schedule
(April-October or
March-
November ) when daylight saving time
will automatically occur in your
navigation system. The system default is
the March-November schedule as
mandated by the U.S. government. During 2009-2010, it is possible that
this new change will
be canceled by the
government and returned back to the
previous “April-October” schedule. If
so, simply change the schedule in this
setting back to the “April-October”
schedule.
Time AdjustmentAdjusts the current time in hours and
minutes. You can reset the adjustment
by selecting Reset . Selecting Done
returns you to the previous screen.
NOTE:
Selecting Reset
also clears any
changes you made to “Auto Daylight
Saving Time,” “Auto Time Zone by
GPS,” or “DST Selection” settings.
Depending on your location, you may
need to adjust these settings.
Clock TypeAllows you to choose the design of the
clock screen. For more informaion, see
Clock Type on page 76.

Navigation System121
Operation in Alaska and
HawaiiCertain functions that rely on a satellite
signal will not work in Alaska and
Hawaii. These functions include but are
not limited to automatic clock updates
and time zone adjustments.AlaskaIf the vehicle was purchased in the
lower 48 states and driven to Alaska, the
system cannot display maps. The
message “Vehicle is out of the
database...” will be displayed.HawaiiThis section describes the differences in
navigation system operation for vehicles
delivered in Hawaii.
Map CoverageAll roads displayed on the Hawaii map

screens are detailed coverage roads.
Text related to “unverified” roads or
areas are not applicable. The following
topics do not apply in Hawaii:
• Unverified road descriptions (see
page 6 and 84).
• Cautions and pop-up windows related to unverified roads (see page 62).
• Setup entries that relate to turning on or off unverified routing (see
page 85).
• When zooming in and out, there is no 350-mile scale for Hawaii.
Other Map Issues
• See the coverage section for a list of islands with coverage (see page 108).
• Freeway Exit information does not exist in Hawaii, so the “Freeway Exit
Info” icon is not shown on the icon
bar.
Address and POI Entry ScreensWhen in Hawaii, the following
differences occur for map, address, and
POI selection:
• It is not possible to enter U.S. mainland addresses or scroll the map
east to the U.S. mainland.
• Selection of the “State” is confined to the state of Hawaii only.
• Entry of a destination address or POI on an island other than your current
island may result in a screen caution
message. This is normal because
there are no “ferry” routes between
islands available in the database.
• If the “Guidance Prompts” setting on the Setup screen is set to normal or
maximum, street names will not be
spoken in voice guidance commands.
Coverage Areas

122
Navigation System
Coverage AreasSetup Screen DifferencesThe Setup screen differences are minor
and are listed below. See the Setup
section (page 74) for additional
information.Routing and Guidance (Unverified
Area Routing On/Off)This feature is unavailable. All roads
displayed on the map are verified.Clock Adjust ScreenThere is no daylight saving time for
Hawaii. Auto Daylight Saving
Time, Auto Time Zone by GPS , and
DST Selection will not be shown on
the Clock adjustment screen. To test
your adjustment, use the voice control
system, and say “What time is it?” (see
page 94).Bluetooth® HandsFreeLink®
OperationWhen pairing a cell phone to use the
Bluetooth® HandsFreeLink® feature,
you may see a “Phone-Data
Connection” screen. If so, do not
complete this portion of the process.
Shipping a Vehicle To or From
HawaiiAlthough the DVD in the vehicle
contains maps for both U.S. mainland
and Hawaii, the dealer must perform the
selection of “U.S. mainland” or
“Hawaii” for you. When the dealer
makes the switch from U.S. mainland to
Hawaii or vice versa, the system clears
all user data. Make sure to record any
personal information that you do not
want to lose.

Navigation System131

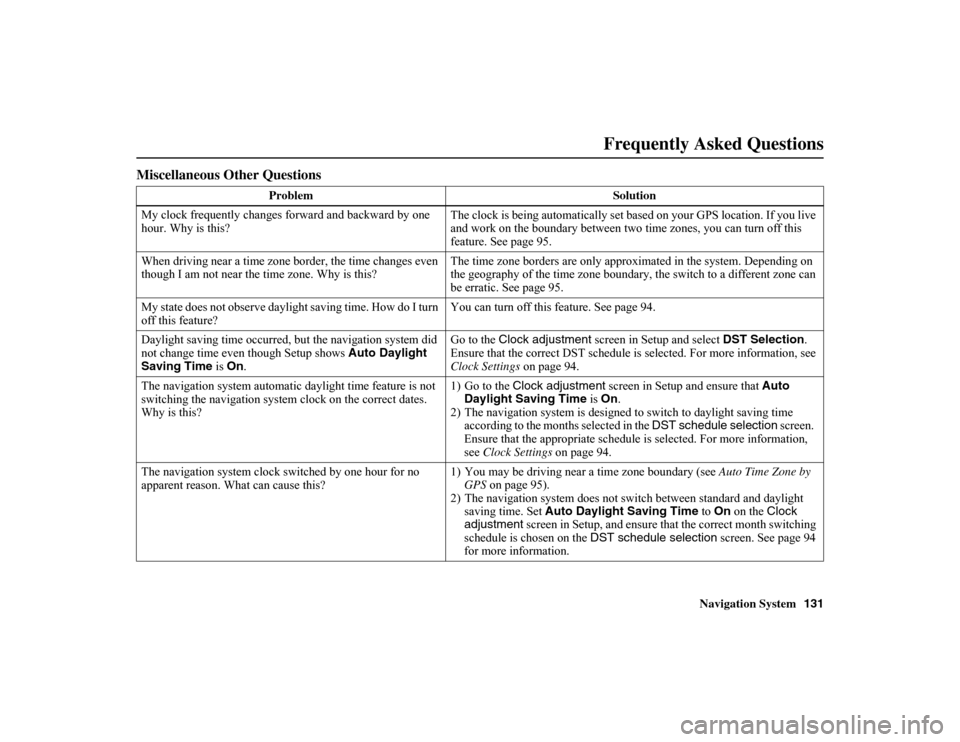

Miscellaneous Other Questions
Problem Solution
My clock frequently changes forward and backward by one
hour. Why is this? The clock is being automatically set based on your GPS location. If you live
and work on the boundary between two time zones, you can turn off t
his
feature. See page 95.
When driving near a time zone border, the time changes even
though I am not near the time zone. Why is this? The time zone borders are only approximated in the system. Dependin
g on
the geography of the time zone boundary, the switch to a different zone can
be erratic. See page 95.
My state does not observe daylight saving time. How do I turn
off this feature? You can turn off this feature. See page 94.
Daylight saving time occurred, but the navigation system did
not change time even though Setup shows Auto Daylight
Saving Time is
On . Go to the
Clock adjustment screen in Setup and select DST Selection.
Ensure that the correct DST schedule is selected. For more
information, see
Clock Settings on page 94.
The navigation system automatic daylight time feature is not
switching the navigation system clock on the correct dates.
Why is this? 1) Go to the Clock adjustment
screen in Setup and ensure that Auto
Daylight Saving Time is On
.
2) The navigation system is designed to switch to daylight saving tim e
according to the months selected in the DST schedule selection
screen.
Ensure that the appropriate schedule is selected. For more information,
see Clock Settings
on page 94.
The navigation system clock switched by one hour for no
apparent reason. What can cause this? 1) You may be driving near a time zone boundary (see
Auto Time Zone by
GPS on page 95).
2) The navigation system does not switch between standard and daylight saving time. Set Auto Daylight Saving Time to
On on the Clock
adjustment screen in Setup, and ensure that the correct month switching
schedule is chosen on the DST schedule selection screen. See page 94
for more information.
Frequently Asked Questions
