HONDA INSIGHT 2010 2.G Owners Manual

´
µ

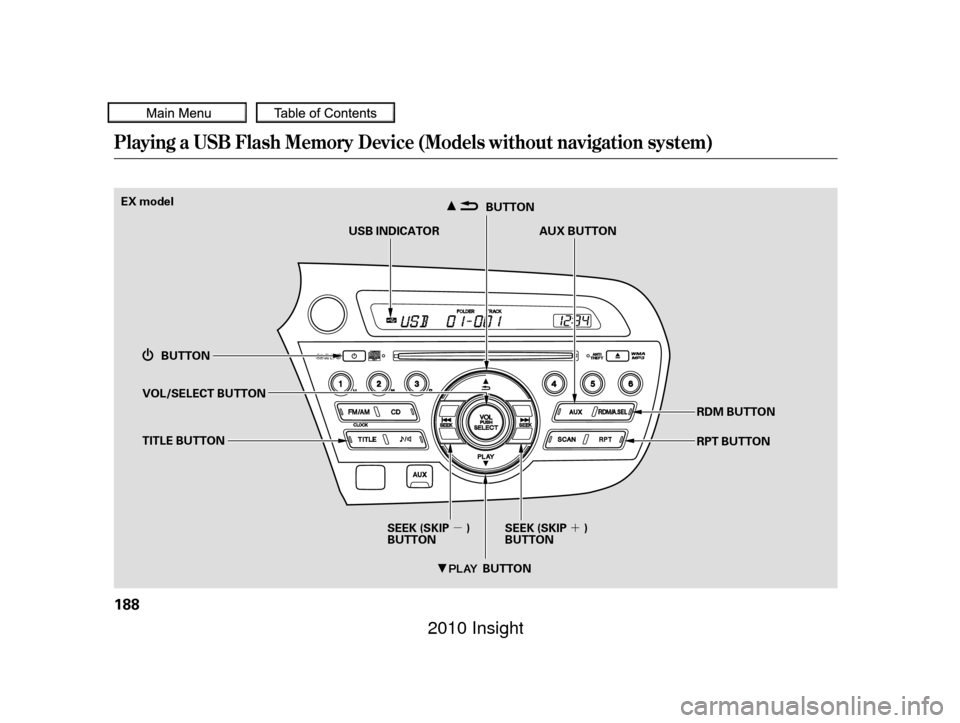

Playing a USB Flash Memory Device (Models without navigation system)
188
BUTTON
BUTTON
TITLE BUTTON
SEEK (SKIP )
BUTTON
USB INDICATOR
AUX BUTTON
BUTTON
SEEK (SKIP )
BUTTON RDM BUTTON
RPT BUTTON
VOL/SELECT BUTTON
EX model
—
—y

y
)"y
y
2010 Insight

Î
ÎSome USB f lash memory devices
(such as devices with security lock-
out f eatures, etc.) will not work in
this audio unit.
Do not use a device such as a card
reader or hard drive as the device
or your f iles may be damaged.
Do not connect your USB f lash
memory device using a hub.
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
Do not keep a USB f lash memory
device in the vehicle. Direct
sunlight and high heat will damage
it. We recommend backing up your
data bef ore playing a USB f lash
memory device.
Depending on the type and
number of f iles, it may take some
time bef ore they begin to play.
Depending on the sof tware the
f iles were made with, it may not be
possible to play some f iles, or
displaysometextdata.
The recommended USB f lash
memory devices are 256 MB or
higher. Some digital audio players
maybecompatibleaswell.
Only AAC f ormat f iles recorded
with iTunes are playable on this
audio unit.
The audio system reads and plays
the audio f iles on the USB f lash
memory device in MP3, WMA or
AAC f ormats. Depending on the
f ormat, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
f lash memory device limit is up to
700 f olders or up to 65535 f iles. This audio system can operate the
audio f iles on a USB f lash memory
device with the same controls used
f or the in-dash disc player. To play a
USB f lash memory device, connect it
to the USB adapter cable in the
console compartment, then press the
AUX button.
:
CONT INUED
EX model
To Play a USB Flash Memory
Device
Playing a USB Flash Memory Device (Models without navigation system)
Features
189
NOTE:
—
—y


y
)"y
y
2010 Insight

µ
µ
µ µ
µ µ
µ
µ
µµ
µ
µ
µ
µ
µ
µ
µ The specif ications f or compatible
AAC files are:
Bitrate:
8 320 kbps
Supported standards:
MPEG4/AAC LC
MPEG2/AAC LC
Partition: Top partition only
Maximum layers: 8
The specif ications f or compatible
WMA f iles are:
Bitrate:
48 320/VBR kbps (Max 384)
Maximum layers: 8 Partition: Top partition only Sampling f requency:
32/44.1/48 kHz
Supported standards:
WMA version 7/8/9 Sampling f requency:
8/11.025/12/16/22.05/24/32/
44.1/48 kHz
The specif ications f or compatible
MP3 f iles are:
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320/VBR kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/144/160/VBR kbps
(MPEG2) Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
Supported standards:
MPEG1 Audio Layer3
MPEG2 Audio LSF Layer3
Partition: Top partition only
Maximum layers: 8
Playing a USB Flash Memory Device (Models without navigation system)
190
—
—y



y
)"y
y
2010 Insight

CONT INUED

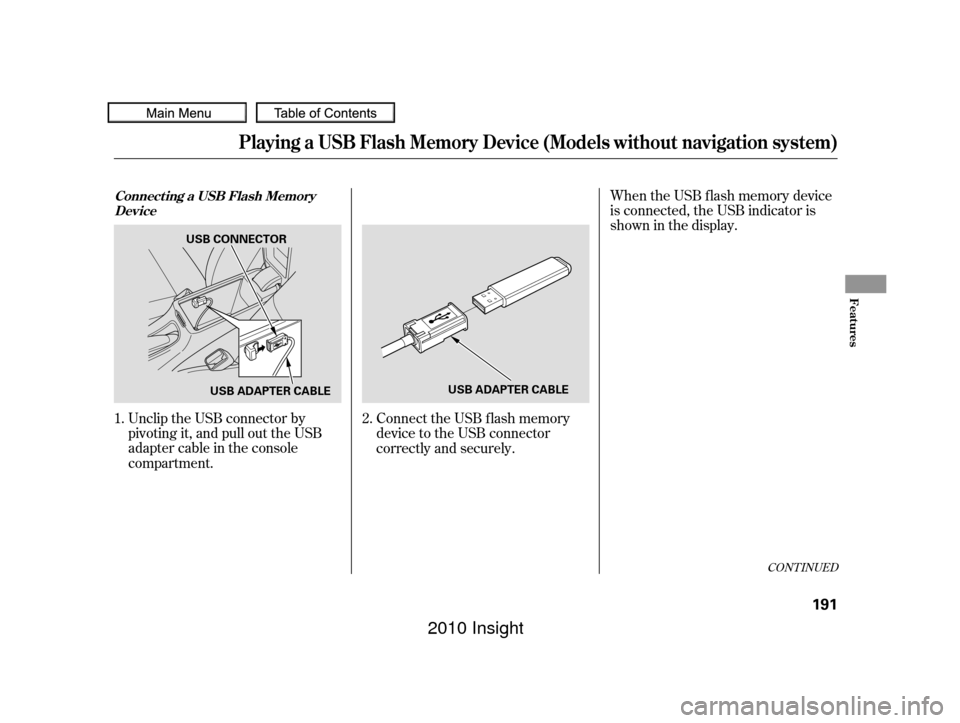

Unclip the USB connector by
pivoting it, and pull out the USB
adapter cable in the console
compartment.When the USB f lash memory device
is connected, the USB indicator is
showninthedisplay.
Connect the USB f lash memory
device to the USB connector
correctly and securely.
1.
2.
Playing a USB Flash Memory Device (Models without navigation system)
Connect ing a USB Flash Memory
Device
Features
191
USB CONNECTOR
USB ADAPTER CABLE USB ADAPTER CABLE
—
—y


y
)"y
y
2010 Insight

µ´
µ
µ
¼ Use the SKIP button while a USB
f lash memory device is playing to
change f iles.
Each time you press the
(SKIP ) button, the system
skips forward to the beginning of the
next f ile. Press the (SKIP )
button, to skip backward to the
beginning of the current f ile. Press it
again to skip to the beginning of the
previous f ile.
To move rapidly within a f ile, press
andholdeitherside( or )
of the SKIP button.
Each time you press the TITLE
button, the display mode shows you
in sequence, the f older name, the f ile
name, the artist name, the album
name, the song name, or name of f
(which turns off the text display).
The display shows up to 16
characters of the selected data. If the
text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the
TITLE button until the next 16
characters are shown. To
select a different folder, press the button or button.
Pressthe buttontoskipto
the next f older, and press the buttontoskiptothe
beginning of the previous f older.
Playing a USB Flash Memory Device (Models without navigation system)
T o Change or Select Files
T ext Data Display Function
SK IP
FOLDER SELECTION
192
—
—y


y
)"y
y
2010 Insight

CONT INUED

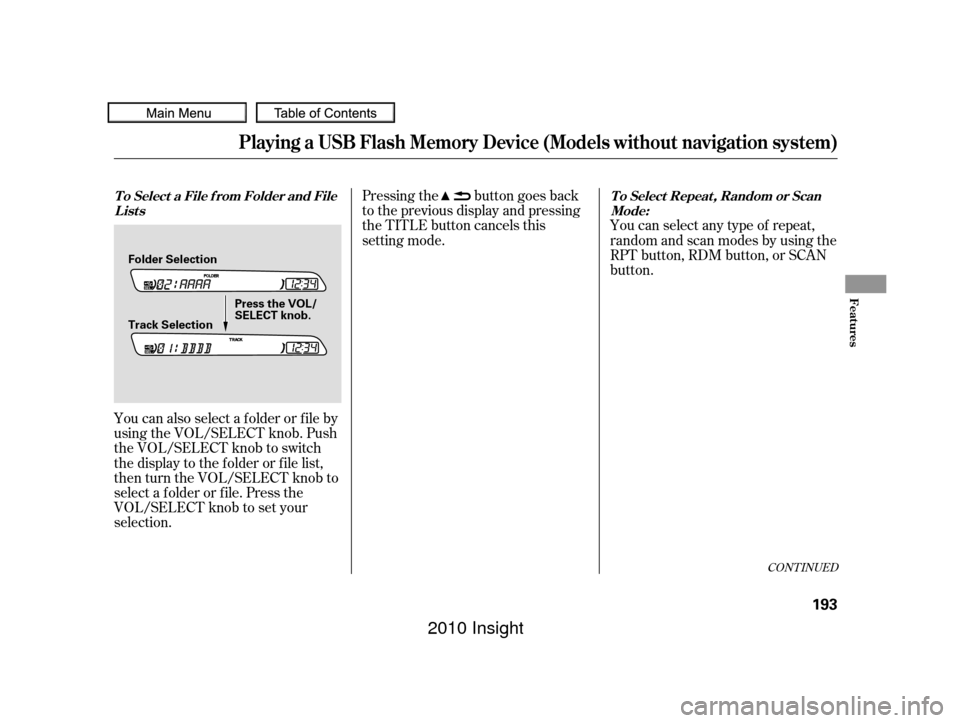

You can also select a f older or f ile by
using the VOL/SELECT knob. Push
the VOL/SELECT knob to switch
the display to the f older or f ile list,
then turn the VOL/SELECT knob to
select a f older or f ile. Press the
VOL/SELECT knob to set your
selection.You can select any type of repeat,
random and scan modes by using the
RPT button, RDM button, or SCAN
button.
Pressing the button goes back
to the previous display and pressing
the TITLE button cancels this
setting mode.
Playing a USB Flash Memory Device (Models without navigation system)
T o Select a File f rom Folder and File
Lists T o Select Repeat , Random or Scan
Mode:
Features
193
Press the VOL/
SELECT knob.
Folder Selection
Track Selection
—
—y



y
)"y
y
2010 Insight

µµµ
This feature
continuously plays a f ile. To activate
the repeat f eature, press the RPT
button. You will see ‘‘RPT’’ in the
display. To turn it of f , press and hold
the RPT button. This feature
replays all the f iles in the selected
f older in the order they are stored.
To activate the folder repeat feature,
press the RPT button repeatedly.
You will see ‘‘F-RPT’’ in the display.
To turn it of f , press and hold the
RPT button.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal play. This f eature plays all
the files in random order. To activate
the track random f eature, press the
RDM button. You will see ‘‘RDM’’ in
the display. To turn it of f , press and
hold the RDM button.
REPEAT
FOLDER REPEATRANDOM
Playing a USB Flash Memory Device (Models without navigation system)
194
—
—y


y
)"y
y
2010 Insight

µ
µ
µ
Each time you press and release the
SCAN button, the mode changes
f rom f ile scan to f older scan, then to
normal play.This feature
samples the f irst f ile in each f older in
the order they are stored. To
activate the folder scan feature,
press the SCAN button repeatedly.
You will see ‘‘F-SCAN’’ in the display.
You will get a 10 second sampling of
the f irst f ile in each f older. Press and
hold the SCAN button to get out of
the f older scan mode and play the
last f ile sampled.
This feature samples all
f iles in the selected f older in the
order they are stored. To activate
the scan feature, press the SCAN
button. You will see ‘‘SCAN’’ in the
display. You will get a 10 second
sampling of each f ile in the f older.
Press and hold the SCAN button to
get out of the scan mode and play
the last f ile sampled.
This
f eature plays the f iles in the selected
f older in random order. To activate
the folder random feature, press the
RDM button repeatedly. You will see
‘‘F-RDM’’ in the display. To turn it
of f , press and hold the RDM button.
Each time you press the RDM
button, the mode changes f rom track
random, play to f older random play,
then to normal play.
Playing a USB Flash Memory Device (Models without navigation system)
FOLDER SCAN
SCAN
FOLDER RANDOM
Features
195
—
—y



y
)"yy
2010 Insight

If you see an error message in the
display, see page .
To play the radio when a USB flash
memory device is playing, press the
FM/AM button. If a disc is in the
audio unit, press the CD button to
play the disc. You can disconnect the USB f lash
memory device at any time even if
the USB mode is selected on the
audio system. Always f ollow the USB
f lash memory device’s instructions
when you remove it.
When you disconnect the USB f lash
memory device while it is playing,
the display shows ‘‘USB NO DATA.’’
If you reconnect the same USB f lash
memory device, the system will
begin playing where it lef t of f . 197
Playing a USB Flash Memory Device (Models without navigation system)
USB Flash Memory Device Error
Messages
To Stop Playing a USB Flash
Memory DeviceDisconnect ing a USB Flash Memory
Device
196
—
—y


y
)"y
y
2010 Insight

If you see an error message on the
audio display while playing a USB
f lash memory device, f ind the
solution in the chart to the right. If
you cannot clear the error message,
take your vehicle to your dealer.Error
Message Cause
Solution
USB ROM Error
Abnormal power source
Use of unsupported files
No files in USB flash
memory device
Use of unsupported USB
flash memory device There is problem with the USB adapter unit.
Appears when the overcurrent protection
feature of the system stops supplying power to
USB because an incompatible device is
connected. Disconnect the device. Then, turn
the audio system off, and turn it on again. Do
not reconnect the device that caused the error.
Appears when the files in the USB flash
memory device are DRM or an unsupported
format. This error message appears for about 3
seconds, then plays the next song.
Appears when the USB flash memory device is
emptyortherearenoMP3,WMA,orAACfiles
in the USB flash memory device. Save some
MP3, WMA, or AAC files in the USB flash
memory device.
Appears when an unsupported device is
connected. See page
190for the specification
information for the USB flash memory device.
If it appears when the supported device is
connected, reconnect the device.
USB Flash Memory Device Error Messages (Models without navigation system)
Features
197
USB ERROR BAD USBDEVICE
PLEASE CHECK OWNERS
MANUAL
UNPLAYABLE FILE
NO SONG
UNSUPPORTED
—
—y

y
)"yy
2010 Insight
