This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.U.S. Vehicles:
This section also includes
instructions on how to read the
Maintenance Minder messages on
the multi-information display, and
instructions f or simple maintenance
tasks you may want to take care of
yourself . ......................
Maintenance Saf ety . 300
.................
Maintenance Minder . 301
..............................
Fluid Locations . 311
........................
Adding Engine Oil . 312
.........
Changing the Oil and Filter . 314
..............................
Engine Coolant . 317
....................
Windshield Washers . 319
....
Automatic Transmission Fluid . 320
Continuously Variable ............
Transmission (CVT) . 320
....................................
Brake Fluid . 321
.............................................
Lights . 323
..............................
Audio Antenna . 333
................
Cleaning the Seat Belts . 333
.....................................
Floor Mats . 333
..................
DustandPollenFilter .334
.................................
Wiper Blades . 334
...............................................
Tires . 340
......
Checking the 12 Volt Battery . 346
.............................
Vehicle Storage . 348
399
Maintenance
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
Maint enance
299
TM
Page 315 of 416

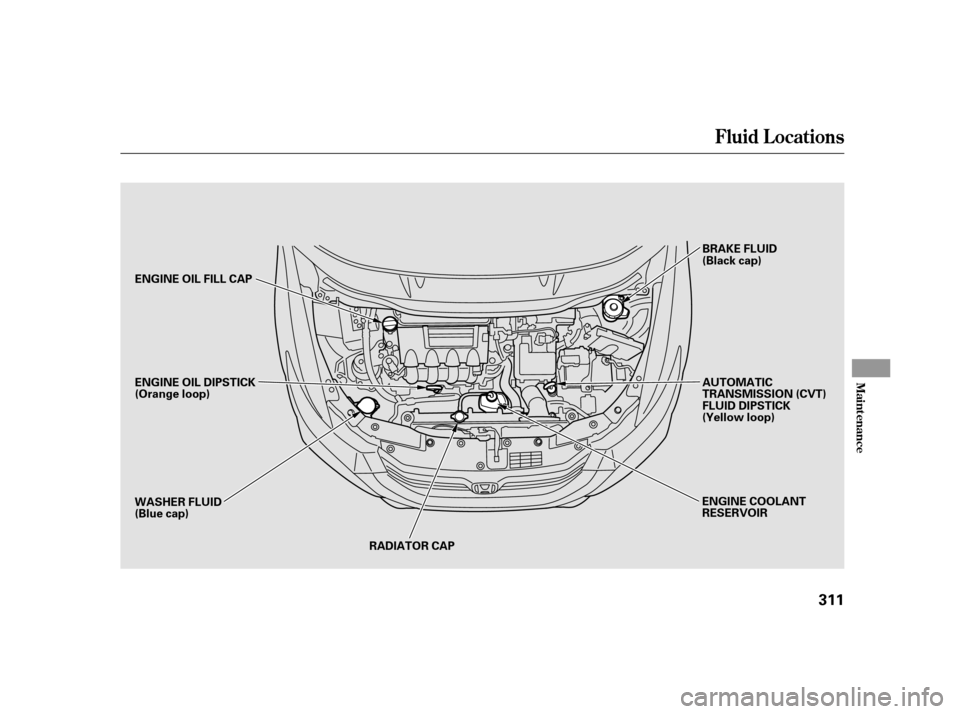

Fluid Locations
Maint enance
311
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
AUTOMATIC
TRANSMISSION (CVT)
FLUID DIPSTICK
(Yellow loop)
BRAKE FLUID
(Black cap)
ENGINE OIL FILL CAP
ENGINE COOLANT
RESERVOIR
WASHER FLUID
(Blue cap)
Page 324 of 416

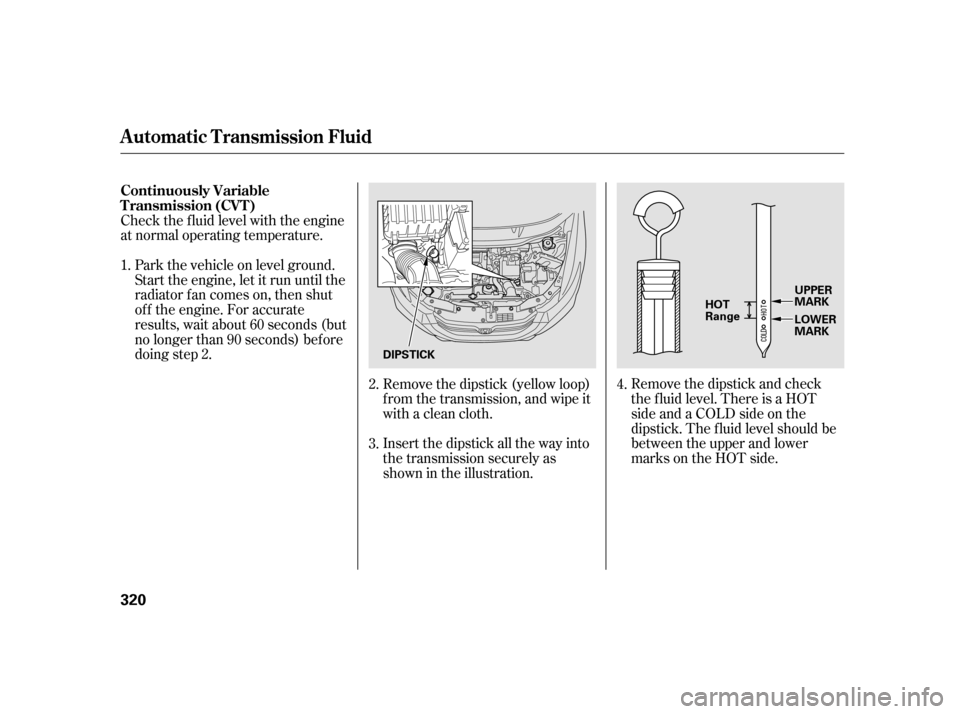

Remove the dipstick and check
the f luid level. There is a HOT
side and a COLD side on the
dipstick. The f luid level should be
between the upper and lower
marks on the HOT side.
Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Check the f luid level with the engine
at normal operating temperature.
Park the vehicle on level ground.
Start the engine, let it run until the
radiator f an comes on, then shut
of f the engine. For accurate
results, wait about 60 seconds (but
no longer than 90 seconds) bef ore
doing step 2.
3. 4.
2.
1.
Continuously Variable
Transmission (CVT)
Automatic Transmission Fluid
320 DIPSTICK
HOT
Range
UPPER
MARK
LOWER
MARK
Page 325 of 416
CONT INUED
Check the brake f luid level in the
reservoirs monthly.
You will also see the ‘‘BRAKE
FLUID LOW’’ message on the multi-
inf ormation display when the brake
f luid level is low.
Insert the dipstick all the way back
into the transmission securely.
The transmission should be drained
and ref illed with new f luid when this
service is indicated by a maintenance
message on the multi-inf ormation
display.
If you are not sure how to add f luid,
contact your dealer.
If the level is below the lower
mark, add f luid into the dipstick
hole to bring it to the level
between the upper and lower
marks.
Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
Always use Honda CVTF
(continuously variable
transmission f luid).
Independent of the Maintenance
Minder inf ormation, replace the
brake f luid every 3 years.
6.
5.
Automatic Transmission Fluid, Brake Fluid
Brake Fluid
Maint enance
321
Page 386 of 416
Î ÎÎ Î
Specif ications
382Dimensions
Weights
Seating Capacities
Capacities
Engine 172.3 in (4,377 mm)
66.7 in (1,695 mm)
56.2 in (1,427 mm)
100.4 in (2,550 mm)
58.3 in (1,481 mm)
58.0 in (1,472 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb. 3.4 US qt (3.2
)
3.2 US qt (3.0)
4.0 US qt (3.8)
Total
FrontRear 523
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity: 0.116 US gal (0.44
)
2.6 US qt (2.5
)
4.76 US qt (4.50)
Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid (CVTF)
Windshield
washer
reservoir
Type
BorexStroke
Displacement
Compression ratio
Spark plugs 10.8 : 1
82 cu-in (1,339 cm
)
2.87 x 3.15 in (73.0 x 80.0 mm) 3.0 US qt (2.8
)
5.5 US qt (5.2)
10.6 US gal (40
)
1.165 US gal (4.41)
1.295 US gal (4.90)
Water cooled 4-stroke SOHC i-VTEC gasoline engine with Hybrid Electric Motor
DILFR6J11
Front Rear
Approx.
1: 2: Change Total
Change
Including filter
Without filter
Total
ChangeTotal
U.S. Vehicles
Canada Vehicles
(NGK) 1 2
Page 405 of 416
CONT INUED
....................................
Accessories . 256
ACCESSORY (Ignition Key
.....................................
Position) . 131
.............
Accessory Power Socket . 157
................
Active Head Restraints . 144
....................
Additives, Engine Oil . 313
.............................
Airbag (SRS) . 10, 25
...
Airbags, Additional Information . 25
...
Additional Safety Precautions . 37
..........
AdvancedAirbagSystem .30
.............................
Airbag Service . 36
How the Passenger Airbag Of f
......................
Indicator Works . 35
How the Side Airbag Of f ......................
Indicator Works . 34
..
How the SRS Indicator Works . 34
How Your Front Airbags
.........................................
Work . 28
...
How Your Side Airbags Work . 32
How Your Side Curtain Airbags
.........................................
Work . 33
........................
SRS Components . 25
..............
Air Conditioning System . 164
.......................
Air Pressure, Tires . 341 ................................
Ambient Meter . 72
......................................
Antif reeze . 317
Anti-lock Brakes (ABS)
...............................
Indicator . 64, 289
...................................
Operation . 289
..............
Anti-thef t, Audio System . 221
Anti-thef t Steering Column
............................................
Lock . 131
..........................................
Armrest . 146
................................
Audio System . 170
.......................
Auto Door Locking . 109
...................
Auto Door Unlocking . 110
................................
Auto Idle Stop . 283
...
Automatic Seat Belt Tensioners . 23
.............
Automatic Speed Control . 224
.
Automatic Transmission (CVT) . 273
..........................
Capacity,Fluid .382
...............
Checking Fluid Level . 420
Paddle Shif ters in the
..............................
D Position . 278
Paddle Shif ters in the ...............................
S Position . 281
.....
Recommended Shif t Points . 282
.......................................
Shif ting . 274
Shif t Lever Position
...............................
Indicators . 273 ................
Shif t Lever Positions . 275
....................
Shif t Lock Release . 277
......................
Auxiliary Input Jack . 220
Battery
Charging System ...........................
Indicator . 63, 366
............................
Jump Starting . 360
..............................
Maintenance . 346
............................
Specif ications . 383
..............................
Bef ore Driving . 245
....................................
Belts,Seat .9,21
...........................
Beverage Holder . 156
.......
Bluetooth
HandsFreeLink. 227
Brakes
...........
Anti-lock System (ABS) . 289
.............
Break-in, New Linings . 246
....................
Bulb Replacement . 332
...........................................
Fluid . 321
...................
Pad Wear Indicator . 288
.......................................
Parking . 151
...........
System Indicator . 63, 64, 368
Index
A
B
INDEX
I
Page 407 of 416
CONT INUED
Doors...................
Auto Door Locking . 109
...............
Auto Door Unlocking . 110
............
Childproof Door Locks . 134
............
Locking and Unlocking . 133
..........
DOT Tire Quality Grading . 384
...........
Driver and Passenger Safety . 5
...........................................
Driving . 263
....................................
Economy . 253
..................
Dust and Pollen Filter . 334 ...................................
Fan, Interior . 166
.........................................
Features . 163
....................
Filling the Fuel Tank . 247
Filters
.........................
Dust and Pollen . 334
...............................................
Oil . 315
...........
Flashers, Hazard Warning . 125
...................
Flat Tire, Changing a . 351
.....................................
Floor Mats . 333
Fluids
..........
Automatic Transmission . 320
..........................................
Brake . 321
..................
Windshield Washer . 319
FM Stereo Radio ...................................
Reception . 214
........................
Four-way Flashers . 125
............................
Front Airbags . 10, 25
........................
Eco Assist System . 266
.......
Eco Guide Feedback Monitor . 81
................................
ECON Button . 124
..................................
ECON Mode . 124
..............................
Economy, Fuel . 253
............
Emergencies on the Road . 349
.............
Battery, Jump Starting . 360
.....
Brake System Indicator . 63, 368
................
Changing a Flat Tire . 351
Charging System
...........................
Indicator . 63, 366
..................
Checking the Fuses . 371 Low Oil Pressure
...........................
Indicator . 62, 365
Malf unction Indicator ................................
Lamp . 62, 367
..................
Overheated Engine . 362
.........................
Emergency Brake . 151
....................
Emergency Flashers . 125
...........
Emergency Hatch Opener . 140
......................
Emergency Towing . 376
.......................
Emissions Controls . 389
........................
Emissions Testing . 392Engine
............
Adding Engine Coolant . 317
Coolant Temperature
...................................
Indicator . 67
.........................
If It Won’t Start . 358
Malf unction Indicator
................................
Lamp . 62, 367
.........................
Oil Lif e Display . 301
........
Oil Pressure Indicator . 62, 365
..............
Oil, What Kind to Use . 312
...............................
Overheating . 362
............................
Specif ications . 382
............................
Speed Limiter . 276
.......................................
Starting . 265
.
Evaporative Emissions Controls . 389 ...............................
Exhaust Fumes . 56
Expectant Mothers, Use of Seat
........................................
Belts by . 19
Index
F
E
INDEX
III
Page 413 of 416
Tires...........................................
Snow . 344
............................
Specif ications . 383
...................
Tools, Tire Changing . 352
Towing
.....................................
A Trailer . 298
..................
Emergency Towing . 376
Transmission
Checking Fluid Level, ..............................
Automatic . 320
...........................
Fluid Selection . 321
..............
Identif ication Number . 381
.............
Shif ting the Automatic . 274
.....................................
Treadwear . 342
.......................................
Trip Meter . 79
..................................
Turn Signals . 121
Unexpected, Taking Care
..........................................
of the . 349
....
Unif orm Tire Quality Grading . 384
........................
Unleaded Gasoline . 246
......................
USB Adapter Cable . 207
.........
USB Flash Memory Device . 205
.......
Used Oil, How to Dispose of . 316 ................................
Vanity Mirror . 160
.................
Vehicle Capacity Load . 259
......................
Vehicle Dimensions . 382
....
Vehicle Identif ication Number . 380
Vehicle Stability Assist (VSA
)
....................................
System . 295
...
VSA Activation Indicator . 65, 295
.........................
VSA Of f Switch . 296
........
VSA System Indicator . 65, 295
.............................
Vehicle Storage . 348
.....................................
Ventilation . 167
.................................................
VIN . 380
..................................
Viscosity, Oil . 313
............
WARNING, Explanation of . iii
.........
Warning Labels, Location of . 57
....................
Warranty Coverages . 397
Washer, Windshield
........
Checking the Fluid Level . 319
...................................
Operation . 119
Wheels
.............
Adjusting the Steering . 128 ............
Alignment and Balance . 342
.....................................
Cleaning . 345
..........................
Compact Spare . 350
...............................
Nut Wrench . 352
Windows
.............................
Auto Reverse . 150
................
Operating the Power . 149
.........................
Rear, Def ogger . 167
Windshield
.....................................
Cleaning . 119
...................................
Def roster . 168
.....................................
Washers . 119
Wipers, Windshield
.......................
Changing Blades . 334
...................................
Operation . 119
....................................
Worn Tires . 341
.....
Wrecker, Emergency Towing . 376
Index
INDEX
W
U V
IX
Page 416 of 416
Service Inf ormat ion Summary
Gasoline:
Fuel Tank Capacity:Brake Fluid:
Tire Pressure (measured cold):
Recommended Engine Oil: Automatic Transmission Fluid (CVTF):
33 psi (230 kPa , 2.3 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Front/Rear:
Spare Tire:
Unleaded gasoline, pump octane
number of 87 or higher.
API Premium grade 0W-20
detergent oil (see page ).
Oil change capacity (including
filter):
3.4 US qt (3.2
) Use Honda CVT Fluid
(continuously variable
transmission fluid) only
Fluid change capacity:
3.0 US qt (2.8
)
10.6 US gal (40
)
362 371
