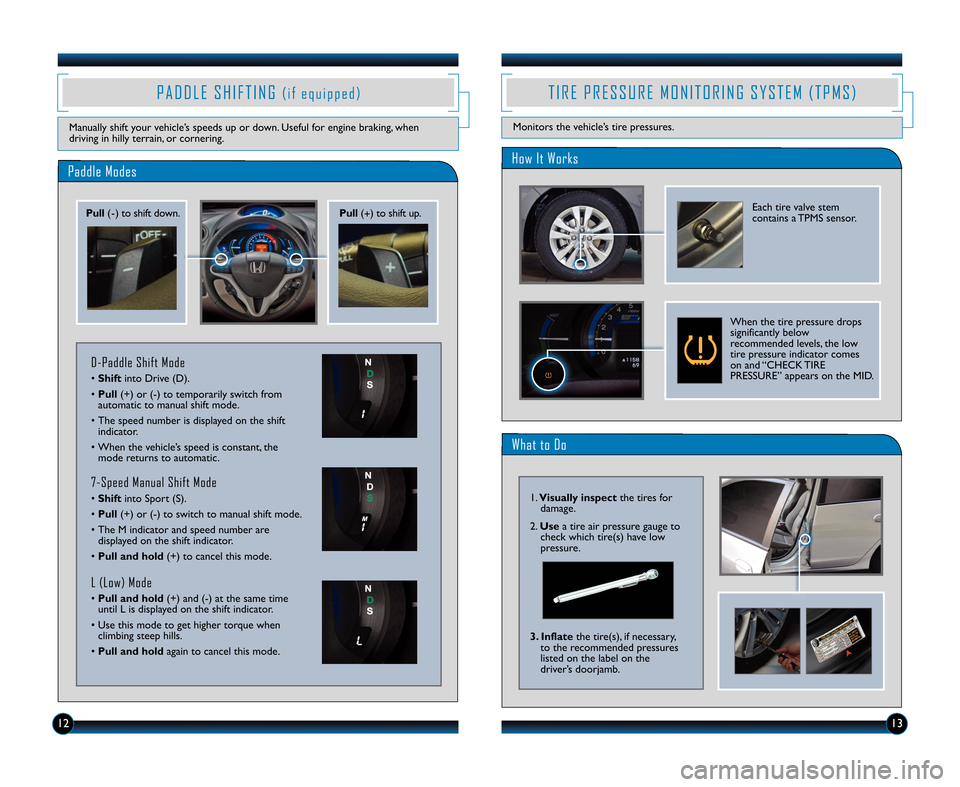

Paddle Modes
P A D D L E S H I F T I N G( i f e q u i p p e d )
Manually shift your vehicle’s speeds up or down. Useful for engine braking, when
driving in hilly terrain, or cornering.
Pull (\b) to shift down. Pull(
+ ) to shift up.
DPaddle Shift Mode
•
Shift into Drive (D).
• Pull (+) or (\b) to temporarily switch from
automatic to manual shift mode.
• The speed number is displayed on the shift indicator.
• When the vehicle’s speed is constant, the mode returns to automatic.
7Speed Manual Shift Mode
•Shift into Sport (S).
• Pull (+) or (\b) to switch to manual shift mode.
• The M indicator and speed number are displayed on the shift indicator.
• Pull and hold (+) to cancel this mode.
L (Low) Mode
•Pull and hold (+) and (\b) at the same time
until L is displayed on the shift indicator.
• Use this mode to get higher torque when climbing steep hills.
• Pull and hold again to cancel this mode.
How It Works
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
Each tire valve stem
contains a TPMS sensor.
When the tire pressure drops
significantly below
recommended levels, the low
tire pressure indicator comes
on and “CHECK TIRE
PRESSURE” appears on the MID.
What to Do
\f. Visually inspect the tires for
damage.
2. Use a tire air pressure gauge to
check which tire(s) have low
pressure.
3. Inflate the tire(s), if necessary,
to the recommended pressures
listed on the label on the
driver’s doorjamb.
