CD player HONDA INSIGHT 2013 2.G Navigation Manual

129

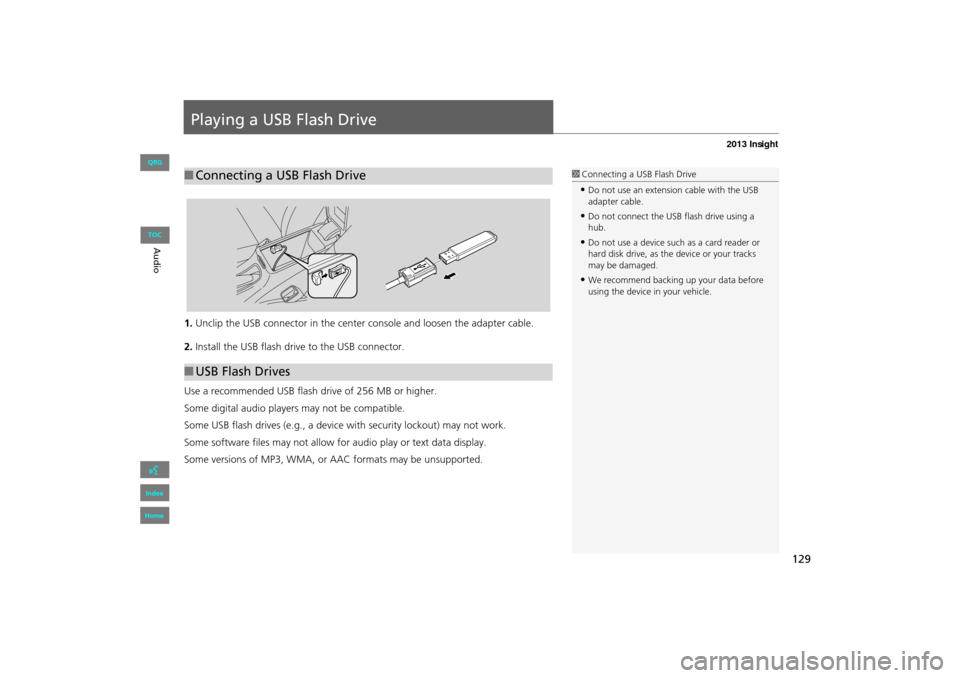

Playing a USB Flash Drive
1.Unclip the USB connector in the center console and loosen the adapter cable.
2. Install the USB flash drive to the USB connector.
Use a recommended USB flash drive of 256 MB or higher.
Some digital audio players may not be compatible.
Some USB flash drives (e.g., a device with security lockout) may not work.
Some software files may not allow for audio play or text data display.
Some versions of MP3, WMA, or AAC formats may be unsupported.
■Connecting a USB Flash Drive1 Connecting a USB Flash Drive
•Do not use an extension cable with the USB
adapter cable.
•Do not connect the USB flash drive using a
hub.
•Do not use a device such as a card reader or
hard disk drive, as th e device or your tracks
may be damaged.
•We recommend backing up your data before
using the device in your vehicle.
■ USB Flash Drives
INSIGHT_KA-31TM8820.book 129 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Au dioTOC

163
Troubleshooting
Troubleshooting................................... 164
Map, Voice, Entering Destinations ........ 164
Traffic .................................................. 166
Guidance, Routing ............................... 166
Update, Coverage, Map Errors ............. 168
Display, Accessories.............................. 168
Rearview Camera ................................. 169
Miscellaneous Questions ...................... 169
Error Messages ...................................... 171
Navigation System ................................ 171
Disc Player............................................ 172
iPod® .................................................. 173
USB Flash Drive .................................... 174
INSIGHT_KA-31TM8820.book 163 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home2013 Insight

172
XXError MessagesXDisc Player

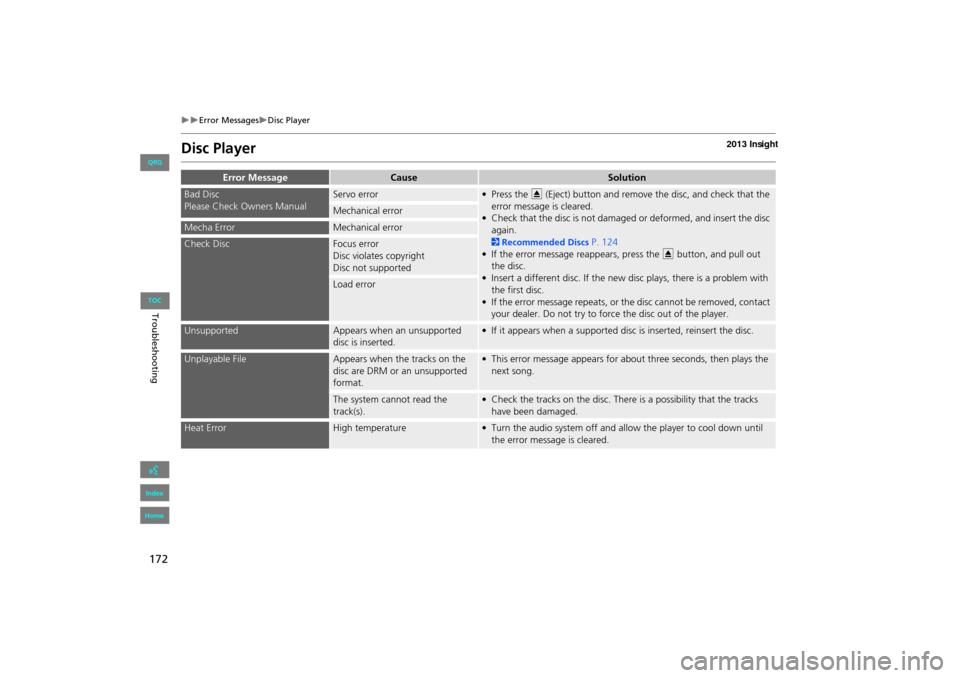

Disc Player
Error MessageCauseSolution
Bad Disc
Please Check Owners ManualServo error• Press the E (Eject) button and remove the disc, and check that the
error message is cleared.
• Check that the disc is not damaged or deformed, and insert the disc again.
2 Recommended Discs P. 124
• If the error message reappears, press the E button, and pull out
the disc.
• Insert a different disc. If the new disc plays, there is a problem with the first disc.
• If the error message repeats, or th e disc cannot be removed, contact
your dealer. Do not try to forc e the disc out of the player.
Mechanical error
Mecha ErrorMechanical error
Check DiscFocus error
Disc violates copyright
Disc not supported
Load error
UnsupportedAppears when an unsupported
disc is inserted.• If it appears when a supported disc is inserted, reinsert the disc.
Unplayable FileAppears when the tracks on the
disc are DRM or an unsupported
format.• This error message appears for about three seconds, then plays the
next song.
The system cannot read the
track(s).• Check the tracks on the disc. There is a possibility that the tracks have been damaged.
Heat ErrorHigh temperature• Turn the audio system off and allow the player to cool down until the error message is cleared.
INSIGHT_KA-31TM8820.book 172 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Trou blesh ootin gTOC

199
D
Day ModeMap Color
.................................................. 26
Menu Color ................................................ 26Switching Display Mode ............................. 27
Delete this Phone ...................................... 145
DEST Button
Changing Route ....................................... 101
Entering a Destination ................................ 56
DEST Menu 1 ................................................ 56DEST Menu 2 ................................................ 56
Destination Map .......................................... 79
Detour ......................................................... 102Dial .............................................................. 153
Directions ...................................................... 88
Disc
Playing ...................................................... 121
Voice Commands List ............................... 192
Display Voice Command Tips ..................... 24
E
Edit Avoid Area ........................................... 44
Edit Speed Dial ........................................... 147
Edit Waypoint Search Area ........................46Emergency (Place Category) ...................... 67
Error Messages ........................................... 171
Disc Player ................................................ 172iPod® ........................................................ 173
Navigation System ....................................171
USB Flash Drive ......................................... 174Exit Info ......................................................... 89
F
Favorite Subcategory ..................................69
Find Nearest... ............................................108
FM/AM Button .......................................6, 116FM/AM Radio
Playing
......................................................116
Voice Commands List ...............................191Folder ListDisc
........................................................... 123
USB Flash Drive .........................................132
G
Go Home 1 .................................................... 10
Go Home 1 PIN ............................................. 37
Go Home 2 ....................................................10Go Home 2 PIN .............................................37
Guidance Menu ............................................87
Directions ....................................................88Exit Info ....................................................... 89
Guidance Mode ..........................................90
Guidance Mode ............................................90Guidance Prompts .......................................23
H
Heading-up ...................................................97
Home Address 1 .....................................10, 36Home Address 2 ..................................... 10, 36
Honda Customer Services .........................180
I
Icon Option .................................................. 93
Intersection .................................................. 74
iPod®
Connecting, Disconnecting ..................... 125
Playing ...................................................... 125
Voice Commands List ..............................192
K
Keyboard Layout ......................................... 24
L
Language ..................................................... 29
Leisure (Place Category) .............................67Lodging (Place Category) ...........................67
M
Map Color .................................................... 26
Map Input
Editing Avoid Area ..................................... 45
Setting Destination ....................................75
Map Legend ............................................. 7, 94Map Menu ................................................... 85
Map Screen .................................................. 80
Icon .................................................. 7, 92, 96Orientation .................................................97
Scale ........................................................... 95
Map Update
Checking Version ..................................... 161
Obtaining Update Data ............................181
Viewing Update Status ............................ 161
INSIGHT_KA-31TM8820.book 199 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
