ECU HONDA INSIGHT 2013 2.G Navigation Manual

14
TroubleshootingFor more Information (P163)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
Why does my clock frequently change the time forward
and backward by one hour?
The clock setting is automatically updated based on your
GPS location. If you normally drive between two time
zones, the clock may keep adjusting the time. You can
turn this feature off.
2
Clock Adjustment P. 47
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in with
a major metro area. In rural “unverified” areas or new
subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1. Press the INFO button. Select Setup. Check that
Volume is not set to Off.
2. Select Other, then Basic Settings. Set Voice
Recognition Tutor to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find it?
Your vehicle comes with a label in the Owner’s Manual kit
that includes the system’s secu rity code and serial number.
You should keep this label in a safe place outside your
vehicle. If you cannot find it, contact your dealer.
INSIGHT_KA-31TM8820.book 14 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Q uic k R efer en ce G uid e - 2013 Insight

18
System Setup
Start-up
The navigation system starts automatically when you turn the ignition to
ACCESSORY (I) or ON (II). At start-up, the fo llowing Confirmation screen is displayed.
1. Select Change Language .
XIf you do not need to change
the system language, proceed to
step 3.
2. Select the system language.
3. Select OK.
XYour current position is
displayed on the map screen.
1Start-up
If the navigation system loses power at any time,
you may need to press and hold the VOL 9
(Volume/Power) button for more than two
seconds, or you may be pr ompted for the 5-digit
security code.
2 System Initialization P. 176
You can change the system language at any
time.
2 Language P. 29
“OK” on the Confirmati on screen cannot be
selected by using a voice command. If you do not
select OK within 30 seconds, the screen turns
dark and you cannot use voice commands. Press
any navigation or voic e control button to
continue.
2 Clock Adjustment P. 47
2 Setting the Clock Type P. 49
INSIGHT_KA-31TM8820.book 18 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
TOC

37
XXPersonal InformationXPIN Numbers

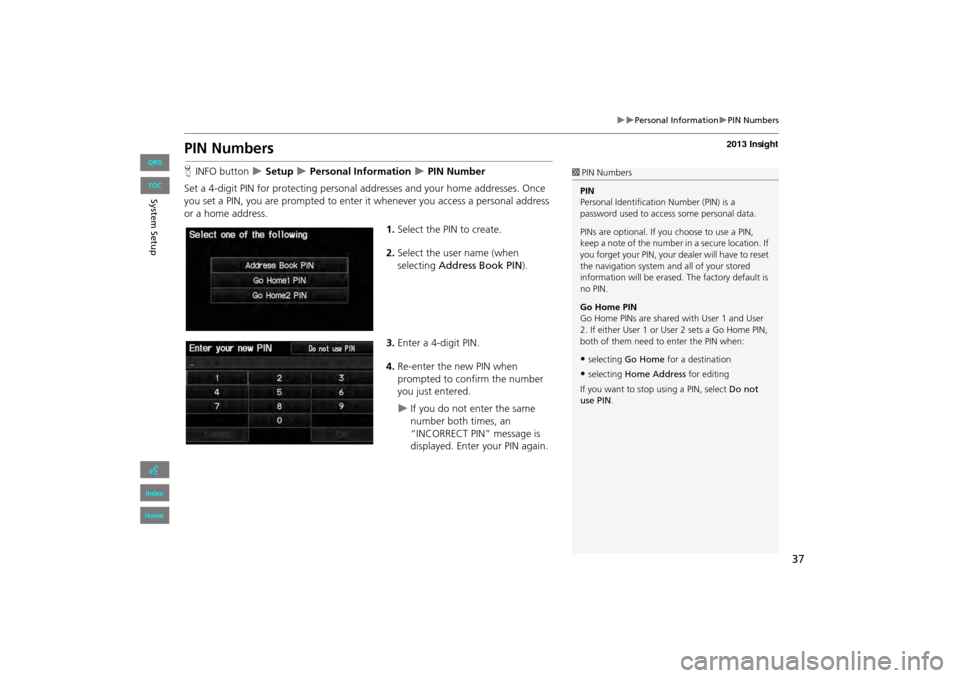

PIN Numbers
HINFO button X Setup X Personal Information X PIN Number
Set a 4-digit PIN for protecting personal addresses and your home addresses. Once
you set a PIN, you are prompted to enter it whenever you access a personal address
or a home address.
1.Select the PIN to create.
2. Select the user name (when
selecting Address Book PIN ).
3. Enter a 4-digit PIN.
4. Re-enter the new PIN when
prompted to confirm the number
you just entered.
XIf you do not enter the same
number both times, an
“INCORRECT PIN” message is
displayed. Enter your PIN again.
1PIN Numbers
PIN
Personal Identification Number (PIN) is a
password used to access some personal data.
PINs are optional. If you choose to use a PIN,
keep a note of the number in a secure location. If
you forget your PIN, your dealer will have to reset
the navigation system a nd all of your stored
information will be erased . The factory default is
no PIN.
Go Home PIN
Go Home PINs are shared with User 1 and User
2. If either User 1 or User 2 sets a Go Home PIN,
both of them need to enter the PIN when:
•selecting Go Home for a destination
•selecting Home Address for editing
If you want to stop using a PIN, select Do not
use PIN .
INSIGHT_KA-31TM8820.book 37 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
System S etup
TOC

115
XXAudio SystemXSystem Theft Protection

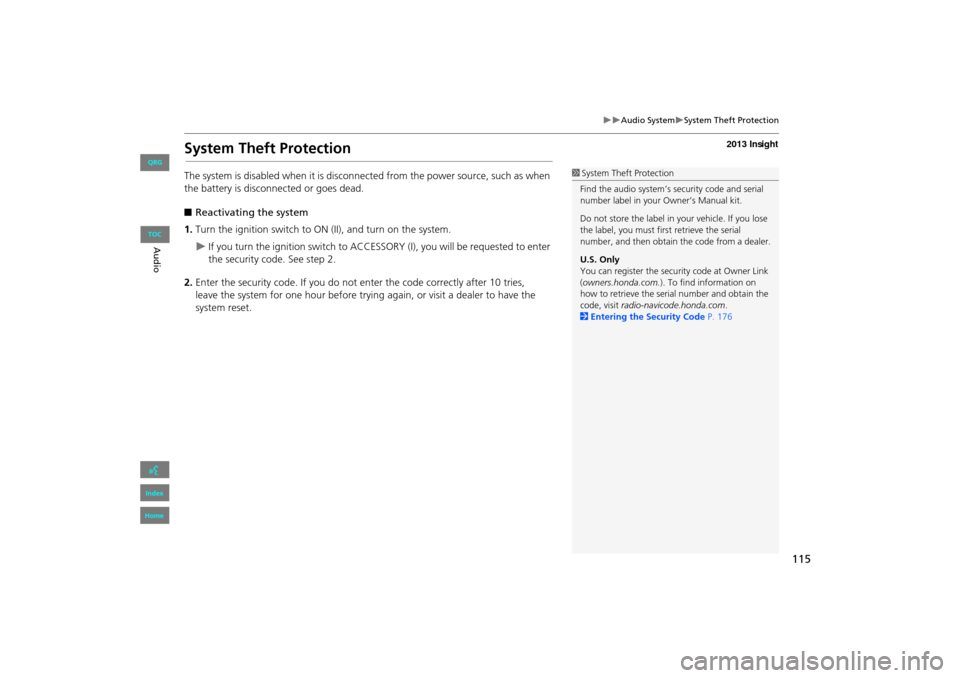

System Theft Protection
The system is disabled when it is disconnected from the power source, such as when
the battery is disconnected or goes dead.
■ Reactivating the system
1. Turn the ignition switch to ON (II), and turn on the system.
XIf you turn the ignition switch to ACCESSO RY (I), you will be requested to enter
the security code. See step 2.
2. Enter the security code. If you do not enter the code correctly after 10 tries,
leave the system for one hour before trying again, or visit a dealer to have the
system reset.
1System Theft Protection
Find the audio system’s se curity code and serial
number label in your Owner’s Manual kit.
Do not store the label in your vehicle. If you lose
the label, you must first retrieve the serial
number, and then obtain the code from a dealer.
U.S. Only
You can register the securi ty code at Owner Link
(owners.honda.com. ). To find information on
how to retrieve the serial number and obtain the
code, visit radio-navicode.honda.com .
2 Entering the Security Code P. 176
INSIGHT_KA-31TM8820.book 115 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
AudioTOC

129
Playing a USB Flash Drive
1.Unclip the USB connector in the center console and loosen the adapter cable.
2. Install the USB flash drive to the USB connector.
Use a recommended USB flash drive of 256 MB or higher.
Some digital audio players may not be compatible.
Some USB flash drives (e.g., a device with security lockout) may not work.
Some software files may not allow for audio play or text data display.
Some versions of MP3, WMA, or AAC formats may be unsupported.
■Connecting a USB Flash Drive1 Connecting a USB Flash Drive
•Do not use an extension cable with the USB
adapter cable.
•Do not connect the USB flash drive using a
hub.
•Do not use a device such as a card reader or
hard disk drive, as th e device or your tracks
may be damaged.
•We recommend backing up your data before
using the device in your vehicle.
■ USB Flash Drives
INSIGHT_KA-31TM8820.book 129 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Au dioTOC

170
XXTroubleshootingXMiscellaneous Questions
The navigation system clock switched by one hour for
no apparent reason.You may be driving near a time zone boundary.
2Clock Adjustment P. 47
My battery was disconnected or went dead, and the
navigation system is asking for a code.Your vehicle comes with a label in the Owner’s Manual kit that includes the system’s
security code and serial number. You should keep this label in a safe place outside
your vehicle. If you cannot find it, contact your dealer.
How do I change the interface language?Press the INFO button. Select Setup > Other > Language, and set the language to
English , Français , or Español .
ProblemSolution
INSIGHT_KA-31TM8820.book 170 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Troublesh ootin gTOC

175
Reference Information
System Initialization..............................176
Entering the Security Code ....................176
Acquiring GPS Information .................... 176
Startup Confirmation Screen .................177
Map Matching ......................................177
System Limitations ................................178
GPS System........................................... 178
Address Calculation ..............................178
Database .............................................. 178
Customer Assistance .............................180
Resolving Problems ...............................180
Reporting Errors ....................................180
Honda Automobile Customer Service Contact Information ............................180 Visiting Your Dealer .............................
180
Map Coverage ..................................... 181
Obtaining Navigation Update Data ....... 181
Traffic Information ............................... 182
Operation in Alaska, Hawaii, Canada, and Puerto Rico......................................... 182
Legal Information ................................. 183
END-USER TERMS ................................ 183
As required by the FCC ........................ 185
INSIGHT_KA-31TM8820.book 175 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home 2013 Insight

176
Reference Information
System Initialization
The navigation system must be initialized if
power to the navigation system is
interrupted for any reason (e.g., the
battery was disconnected).
Entering the Security Code
Find the navigation system’s security code
and serial number label in your Owner’s
Manual kit. Do not store the label in your
vehicle. If you lose the label, you must
first retrieve the serial number, and then
obtain the code. You can find out about
your serial number and security code
from a dealer.
1.Turn the ignition swit ch to ON (II), and
turn on the audio system.
XIf you turn the i gnition switch to
ACCESSORY (I), you will be
requested to enter the security code.
See step 2.
2. Enter the security code.
XIf you do not enter the security code
correctly after 10 tries, leave the
system for one hour before trying
again, or visit a dealer to have the
system reset.
NOTE:
In the U.S., you can register the security
code on Owner Link (owners.honda.com.) .
To find information on how to retrieve the
serial number and obtain the code, visit
radio-navicode.honda.com .
Acquiring GPS Information
Depending on the length of time the
power was interrupted, your system may
require GPS initialization.
If initialization is not necessary, the system
proceeds directly to the Startup
Confirmation screen.
If the system fails to locate a sufficient
number of satellites to locate your
position within 10 minutes, the following
screen is displayed.
INSIGHT_KA-31TM8820.book 176 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
TOC

178
System Limitations
GPS System
The signals received from the GPS satellites
are extremely weak (less than a millionth
of the strength of a local FM station) and
require an unobstructed view of the sky.
The GPS antenna is located in the
dashboard. The signal reception can easily
be interrupted or interfered with by the
following:
• M etallic window tint on the front or
side windows
• Cell phones, PDAs, or other electronic
devices docked in a cradle or lying loose
on the dashboard
• Remote starters or “hidden” vehicle
tracking systems mounted near the
navigation unit
• Audio electronic devices mounted near
the navigation unit
• Trees, tall buildings, freeway
overpasses, tunnels, or overhead
electrical power wires The GPS is operated by the U.S.
Department of Defense. For security
reasons, there are certain inaccuracies built
into the GPS for wh
ich the navigation
system must constantly compensate. This
can cause occasional positioning errors of
up to several hundred feet.
Address Calculation
The destination icon shows only the
approximate location of a destination
address. This occurs if the number of
possible addresses is different from the
number of actual addresses on a block. For
example, the address 1425 on a 1400
block with 100 possible addresses
(because it is followed by the 1500 block)
will be shown a quarter of the way down
the block by the system. If there are only
25 actual addresses on the block, the
actual location of address 1425 would be
at the end of the block.
Database
The digitized map database reflects
conditions as they existed at various points
in time before production. Accordingly,
your database may contain inaccurate or
incomplete data or information due to the
passage of time, road construction,
changing conditions, or other causes.
For example, some places/landmarks may
be missing when you search the database
because the name was misspelled, the
place was improperly categorized, or a
place/landmark is not yet in the database.
This is also true for police stations,
hospitals, and other public institutions. Do
not rely on the navigation system if you
need law enforcement or hospital services.
Always check with local information
sources.
INSIGHT_KA-31TM8820.book 178 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Reference Inf ormationTOC

200
MAP/GUIDE Button ..................................8, 90Menu (DEST Menu 1) ..................................56
Menu (DEST Menu 2) ..................................56
Menu (Route) .............................................101Menu Color ...................................................26
MODE Button ............................................. 137
Music Search
iPod® ........................................................128
Mute ............................................................155
My Destination
Adding Waypoint .....................................103
Editing .......................................................107
N
Night ModeMap Color ................................................... 26
Menu Color ................................................26
Switching Display Mode .............................27North-up .......................................................97
O
Off-road Tracking
Driving
........................................................83Setting ........................................................51
P
Pair Phone ...................................................142
Pairing Code ...............................................144Personal Information ..................................30
Phone
Voice Commands List
...............................193PHONE Button ................................................4
Phone Setup ............................................... 140Phonebook
Making a Call
........................................... 152
PIN NumbersPersonal Info .............................................. 37
Phone ....................................................... 150
Place Category
Editing Address Book ............................... .. 33
Place Category List ................................... 197
Setting Destination .................................... 67Place Name
Editing Address Book
................................. 33
Setting Destination .............................. 65, 68Place Phone No.
Editing Address Book
................................. 33
Setting Destination .................................... 72Previous DestinationDeleting
...................................................... 39
Editing Address Book ................................. 33Setting Destination .................................... 64
R
Radio
FM/AM
..................................................... 116Random (Pairing Code) ............................144
RDS Search ................................................. 119
Read Radio Text ........................................ 120Rearview Camera ...................................... 162
Recalculation ......................................... 41, 83
Repeat
iPod® ....................................................... 127
USB Flash Drive ........................................ 132
Replace this Phone .................................... 150Rerouting ..................................................... 41
Reset Clock Settings ................................... . 48Reset Factory Default .................................. 53
Restaurant (Place Category) ...................... 67
Route (Menu) ............................................. 101Route Pref. ................................................... 78
Routing & Guidance ................................... . 40
S
Scan
Disc ........................................................... 122
FM/AM Radio ...........................................117
USB Flash Drive .........................................131Search by Keyword ...................................... 68
Security PIN Code ...................................... 176
SEEK/SKIP Button ........................................... 4Shopping (Place Category) ......................... 67
Show icon on Map ..................................... . 92
Single Screen ............................................... . 90Sort by Distance to Travel .......................... 68
Sound Setup ............................................... 136
Speed Dial
Making a Call ........................................... 154
Registering ................................................ 147
Split Screen .................................................. . 91Street ............................................................ . 61
System/Device Information ......................161
T
Touch Tones ............................................... 155Traffic Detail ............................................... . 99
Traffic Rerouting ........................................ . 99
Transfer Call ............................................... 155Travel (Place Category) ............................... 67
INSIGHT_KA-31TM8820.book 200 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
IndexA B C D E F G H I J K L M N O P Q R S T U V W X Y Z
