HONDA INSIGHT 2013 2.G Owners Manual

´µ
´ µ
In MP3 or WMA mode, you can use
the seek function to select folders.
Press and hold the top ( ) of the
CH button until you hear a beep to
skip f orward to the f irst f ile of the
next folder. Press the bottom ( ) to
skip backward to the previous f older.
If you are playing a PC card, press
the top ( ) of the CH button to
advance to the next file. Press the
bottom( )togobacktothe
previous f ile.
Your vehicle has the auxiliary input
jack on the f ront panel. The system
will accept auxiliary input f rom
standard audio accessories using a
1/8 inch (3.5 mm) stereo miniplug.
When a compatible audio unit is
connected to the jack, press the CD/
AUX (on vehicles with navigation
system) or AUX (on vehicles without
navigation system) button to select it. Auxiliary Input Jack
Remote Audio Controls, Auxiliary Input Jack
218
On Insight model and EX model with
navigation system On LX model and EX model without
navigation system
12/07/13 17:04:17 31TM8630_223
FeaturesTOC
2013 Insight

If your vehicle’s battery is
disconnected or goes dead, the audio
system disables itself. If this
happens, you will see ‘‘ENTER
CODE’’ in the frequency display next
time you turn on the system. Use the
preset bars (icons on models with
navigation system) to enter the five-
digit code. The code is on the Anti-
theft Identification Card included
in your owner’s manual kit. When it
is entered correctly, the radio will
start playing.
The Anti-thef t Identif ication Card
also lists your audio serial number. It
is best to store the card in a saf e
place at home. In addition, you
should write the audio system’s
serial number in this owner’s manual.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you areunsuccessful in ten attempts, you
must then leave the system on for
one hour bef ore trying again.
The system will retain your AM and
FM presets even if power is
disconnected.
We recommend that you register the
security code at Owner Link (owners.
honda.com). If you lose the Anti-
thef t Identif ication Card bef ore
registering the code at Owner Link,
you must obtain the code f rom your
dealer or
. To do this, you will need the
audio system’s serial number. If you
do not have the serial number with
you,askyourdealerorgoto for
inf ormation on how to retrieve it. If you lose the Anti-thef t
Identif ication Card, you must obtain
thecodefromyourdealer.Todothis,
you will need the audio system’s
serial number. If you do not have the
serial number with you, ask your
dealer how to retrieve it.
You need to enter a separate code
f or the navigation system to
reactivate. The Anti-theft Card also
lists the navigation system’s security
code and serial number. Follow the
same procedure to retrieve the serial
number and obtain the code, and
read the navigation system manual
f or details.
https://radio-navicode.honda.
com/
https://
radio-navicode.honda.com/ On models with navigation system
U.S. owners Canadian owners
Radio T hef t Protection
219
12/07/13 17:04:24 31TM8630_224
FeaturesTOC
2013 Insight

For example: 1:06 will reset to 1:001:52 will reset to 2:00
When you set the time, the ignition
switch must be ACCESSORY (I) or
ON (II) position.
To set the time, press the CLOCK
button until you hear a beep. The
displayed time begins to blink.
Change the hours by pressing the H
(hour) button until the numbers
advance to the desired time. Change
the minutes by pressing the M
(minute) button until the numbers
advance to the desired time.
Press the CLOCK button again to
enter the set time.
You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, press and hold
the CLOCK button, then press the R
(reset) button to set the time back to
the previous hour. If the displayed
time is af ter the half hour, the same
procedure sets the time f orward to
the beginning of the next hour.
Setting the Clock (Models without navigation system)
220
CLOCK BUTTON
(A.SEL side of the A.SEL/SCAN bar)
HOUR BUTTON
(PRESET 4) HOUR BUTTON
(PRESET 1)
RESET BUTTON
(PRESET 6) EX model without navigation system
and LX model
MINUTE BUTTON
(PRESET 5) CLOCK BUTTON
(FM/AM button)
MINUTE BUTTON
(PRESET 2)RESET BUTTON
(PRESET 3)
Insight model
12/07/13 17:04:33 31TM8630_225
FeaturesTOC
2013 Insight

The alarm also activates if a
passenger inside the locked vehicle
turns the ignition switch on.Do not attempt to alter this system
or add other devices to it.
Once the security system is sets,
opening any door, the hatch, or the
hood without using the key or the
remote transmitter, will cause the
alarm to activate. It also activates if
the audio unit is removed f rom the
dashboard or the wiring is cut.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights f lashes if
someone attempts to break into your
vehicle or remove the audio unit.
This alarm continues for two
minutes, then the system resets. To
deactivate the system before the two
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
The security system sets
automatically 15 seconds after you
lock the doors, hood, and the hatch.
For the system to activate, you must
lock the doors and the hatch f rom
the outside with the key, or use
driver’s lock tab, door lock master
switch, or remote transmitter. The
security system indicator on the
instrument panel starts blinking
immediately to show you the system
is setting itself .
To see if the system is set
af ter you exit the vehicle, press the
LOCK button on the remote
transmitter within five seconds. If
the system is set, the horn will beep
once. The security system does not set if
the hood, hatch, or any door is not
f ully closed. If the system will not set,
check the door and hatch open
indicator on the instrument panel
and multi-inf ormation display (see
page ) to see if the doors and
hatch are f ully closed. Since it is not
part of the monitor display, manually
check the hood. 12
On LX and EX models
Security System
221
NOTE:SECURITY SYSTEM INDICATOR
12/07/13 17:04:40 31TM8630_226
FeaturesTOC
2013 Insight

Push the CRUISE button on the
steering wheel. The CRUISE
MAIN indicator on the instrument
panel comes on.
Accelerate to the desired cruising
speedabove25mph(40km/h).Press and release the SET/
DECELbuttononthesteering
wheel. The CRUISE CONTROL
indicator on the instrument panel
comes on to show the system is
now activated.
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Cruise control may not hold the set
speed when you are going up and
down hills. If your vehicle speed
increases going down a hill, use the
brakes to slow down. This will cancel
thecruisecontrol.Toresumetheset
speed, press the RES/ACCEL button.
The CRUISE CONTROL indicator
on the instrument panel will come
back on.
1.
2. 3.
On LX and EX modelsUsing the Cruise Control
Cruise Control
222
CANCEL
BUTTON
CRUISE BUTTON
RES/ACCEL
BUTTON
SET/DECEL
BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
12/07/13 17:04:48 31TM8630_227
FeaturesTOC
2013 Insight

You can increase the set cruising
speed in any of these ways:Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h). Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
You can decrease the set cruising
speed in any of these ways:
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up f or passing. Af ter
completing the pass, take your foot
of f the accelerator pedal. The vehicle
will return to the set cruising speed.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button. Resting your f oot on the brake pedal
causes cruise control to cancel.
Tap the brake pedal lightly with
your f oot. The CRUISE
CONTROL indicator on the
instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
DECEL button.
Changing the Set Speed
Cruise Control
223
12/07/13 17:04:56 31TM8630_228
FeaturesTOC
2013 Insight

You can cancel cruise control in any
of these ways:Push the CANCEL button on the
steering wheel.
Push the CRUISE button on the
steering wheel. Tap the brake pedal. Pressing the CRUISE button turns
the system off and erases the
previous cruising speed. When you push the CANCEL button,
or tap the brake pedal, the system
will remember the previously-set
cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h) and then press and
release the RES/ACCEL button. The
CRUISE CONTROL indicator comes
on. The vehicle will accelerate to the
same cruising speed as bef ore.
Tapping either of the paddle shif ters
shif ts the speed up or down, but does
not cancel the cruise control. For
more information on driving with
paddle shif ters, see
page .276
EX models onlyCanceling Cruise Control Resuming the Set Speed
Cruise Control
224
CRUISE BUTTON
CANCEL
BUTTON
RES/ACCEL
BUTTON
SET/DECEL
BUTTON
12/07/13 17:05:04 31TM8630_229
FeaturesTOC
2013 Insight

µµ Press and
release to give a command or answer
a call.
Press and
release to end a call, go back to the
previous command, or cancel the
command.
To use HFL, you need a Bluetooth-
compatible cell phone. For a list of
compatible phones, pairing
procedures, and special feature
capabilities:
In the U
.S., visit
or call (888) 528-7876.
In Canada , visit
or call (888) 528-7876.
HandsFreeLink(HFL)
allows you to place and receive
phone calls using voice commands,
without handling your cell phone.
For models with the navigation
system, see the Navigation System
Manual f or how to operate the
HandsFreeLink.
handsf reelink.honda.
com
www.handsfreelink.ca,
Bluetooth
Bluetooth
CONT INUED
Using HFL
HFL Talk button
HFL Back button
HFL Buttons
BluetoothHandsFreeL ink(Models without navigation system)
225
HFL TALK
BUTTON
HFL BACK BUTTON
12/07/23 16:33:55 31TM8630_230
FeaturesTOC
2013 Insight

ÌÌÌÌ
Try to reduce all background
noise. If the microphone picks up
voices other than yours,
commands may be misinterpreted. Many commands can be spoken
together. For example, you can
say ‘‘Call 123-456- ’’ or
‘‘Dial Peter.’’
Press and release the HFL Talk
button each time you want to
make a command. Af ter the beep,
speak in a clear, natural tone.
Airorwindnoisefromthe
dashboard and side vents and all
windows may interfere with the
microphone. Adjust or close them
as necessary. To change the volume level of
HFL, use the audio system
volume knob or the steering
wheel volume controls.
Voice Cont rol T ips
BluetoothHandsFreeL ink(Models without navigation system)
226
MICROPHONE
12/07/13 17:05:18 31TM8630_231
FeaturesTOC
2013 Insight

CONT INUED
To hear general HFL inf ormation,
including help on pairing a phone
or setting up the system, say
‘‘Tutorial.’’
For help at any time, including a
list of available commands, say

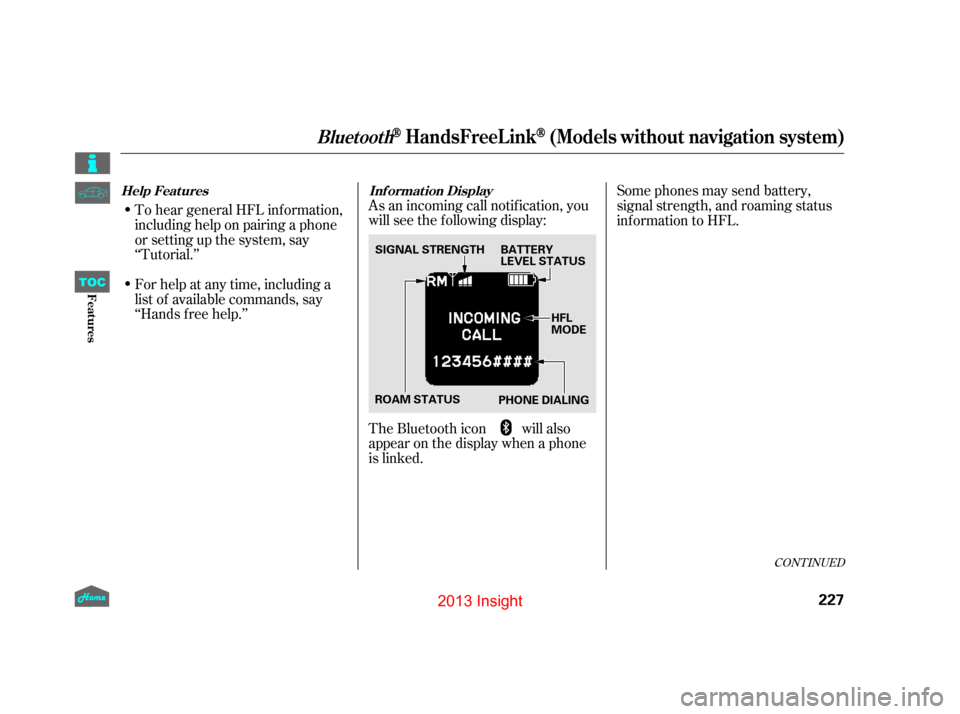

‘‘Hands f ree help.’’As an incoming call notif ication, you
will see the f ollowing display:
The Bluetooth icon will also
appear on the display when a phone
is linked. Some phones may send battery,
signal strength, and roaming status
inf ormation to HFL.
Help Features
Inf ormation Display
BluetoothHandsFreeL ink(Models without navigation system)
227
ROAM STATUSHFL
MODE
PHONE DIALING
SIGNAL STRENGTH BA
TTERY
LEVEL STATUS
12/07/13 17:05:26 31TM8630_232
FeaturesTOC
2013 Insight
