oil HONDA INSIGHT 2013 2.G Owners Manual

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
Select the f resh air mode.
Select the mode.
Set the f an speed to high.
Set the temperature control to a
comfortable setting.
With the hatch open, airflow can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
hatch open, open all the windows,
and set the climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as f ollows:
The vehicle is raised for an
oil change.
You notice a change in the sound
of the exhaust.
The vehicle was in a crash that
may have damaged the underside. 1.
2.
3.
4.
Carbon Monoxide Hazard
56
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
12/07/13 16:44:03 31TM8630_061
Driver and Passenger Saf etyTOC
2013 Insight

Î
ÎÎ
Î Î

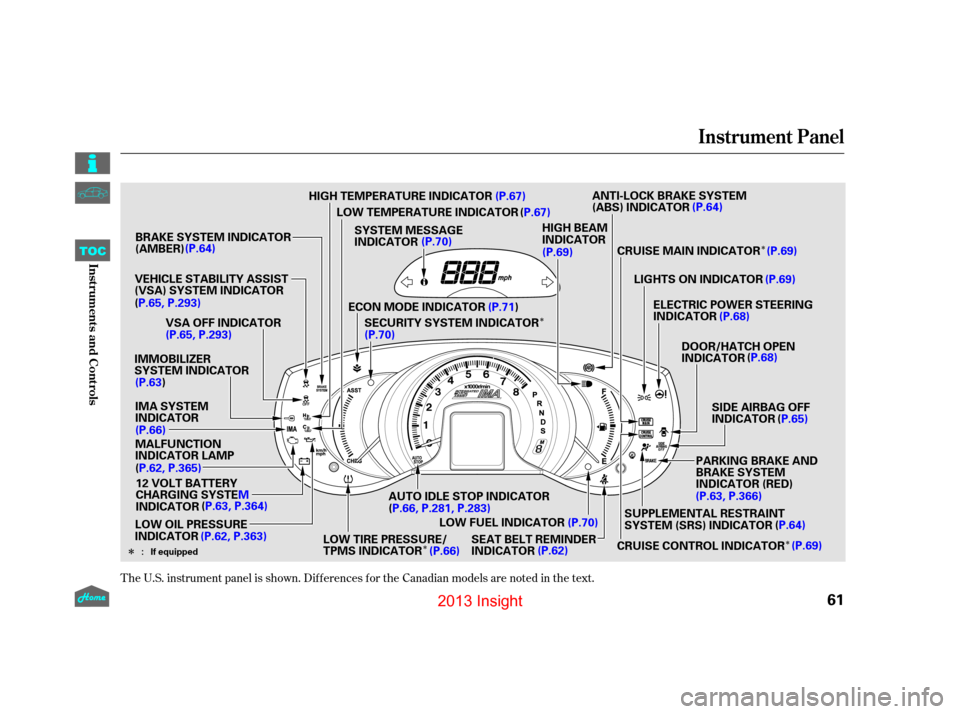

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
61
LIGHTS ON INDICATOR
SEAT BELT REMINDER
INDICATOR ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
SYSTEM MESSAGE
INDICATOR
BRAKE SYSTEM INDICATOR
(AMBER)
VSA OFF INDICATOR
MALFUNCTION
INDICATOR LAMP PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
DOOR/HATCH OPEN
INDICATOR
SIDE AIRBAG OFF
INDICATOR
IMMOBILIZER
SYSTEM INDICATOR
IMA SYSTEM
INDICATOR HIGH BEAM
INDICATOR
ELECTRIC POWER STEERING
INDICATOR
(P.64)
(P.63) (P.66)
: If equipped(P.62) (
P.64)
(
P.65)
(
P.68)
(P.68)
(P.69)
(P.64)
(P.69)
HIGH TEMPERATURE INDICATOR
(P.67)
LOW TEMPERATURE INDICATOR ( P.67)
(P.70)
(P.66) CRUISE MAIN INDICATOR
(P.69)
CRUISE CONTROL INDICATOR (P.69)
LOW OIL PRESSURE
INDICATOR
LOW TIRE PRESSURE/
TPMS INDICATOR
12 VOLT BATTERY
CHARGING SYSTE
M
INDICATOR (P.70)
ECON MODE INDICATOR
(P.71)
(P.70)
AUTO IDLE STOP INDICATOR
LOW FUEL INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
SECURITY SYSTEM INDICATOR
(
P.65, P.293)
(P.65, P.293)
(P.66, P.281, P.283) (P.63, P.366)
(
P.62, P.365)
(P.63, P.364)
(P.62, P.363)
12/07/23 10:21:03 31TM8630_066
Inst rument s and Cont rolsTOC
2013 Insight

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
You will also see a ‘‘FASTEN SEAT
BELT’’ message on the multi-
inf ormation display.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on. If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals, and you
will see a ‘‘FASTEN SEAT BELT’’ or
‘‘FASTEN PASSENGER SEAT
BELT’’ message on the multi-
inf ormation display. For more
inf ormation, see
page. You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display. For
more information, seepage.
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running, and you
will see a ‘‘CHECK ENGINE OIL
LEVEL’’ message on the multi-
inf ormation display. For more
inf ormation, see
page.
21 365
363
Instrument Panel Indicators
Seat Belt Reminder
Indicator Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
62
12/07/13 16:44:54 31TM8630_067
Inst rument s and Cont rolsTOC
2013 Insight

The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably. Others help to keep
you aware of the periodic
maintenance your vehicle needs f or
continued trouble-f ree driving.If you do not f asten your seat belt,
you will see a ‘‘FASTEN SEAT
BELT’’ message on the multi-
information display when
you turn the ignition switch to
the ON (II)position.
These messages go of f several
seconds af ter the key is inserted into
the ignition switch.
There are three types of messages:
normal display messages, engine oil
lif e and maintenance messages, and
system messages.
You can select the displayed
language and also customize some
vehicle control settings to your liking
with the multi-information display
and the three buttons on the steering
wheel (see
page). You will see an ‘‘ECON ON’’ or
‘‘ECON OFF’’ message on the multi-
inf ormation display according to the
previous ECON setting when you
turn the ignition switch to the ON
(II) position (see
page).
76 127
CONT INUED
Normal Display Messages
Multi-Inf ormation Display
75
ECON is On.
ECON is Off.
12/07/13 16:46:40 31TM8630_080
Inst rument s and Cont rolsTOC
2013 Insight

In the multi-information display, the
system message is also displayed
(seepage ) and you can
customize your vehicle control
settings (see page).

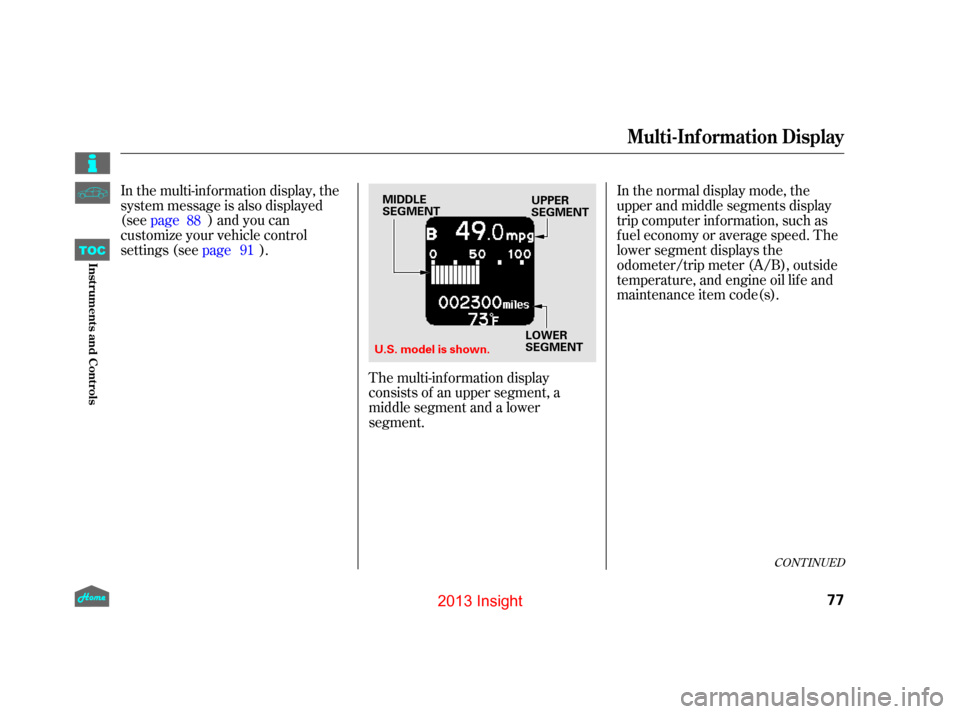

The multi-inf ormation display
consists of an upper segment, a
middle segment and a lower
segment. In the normal display mode, the
upper and middle segments display
trip computer inf ormation, such as
f uel economy or average speed. The
lower segment displays the
odometer/trip meter (A/B), outside
temperature, and engine oil lif e and
maintenance item code(s).
88
91
CONT INUED
Multi-Inf ormation Display
77
MIDDLE
SEGMENT
U.S. model is shown. LOWER
SEGMENTUPPER
SEGMENT
12/07/13 16:46:52 31TM8630_082
Inst rument s and Cont rolsTOC
2013 Insight

Î
Ý
Û
Î

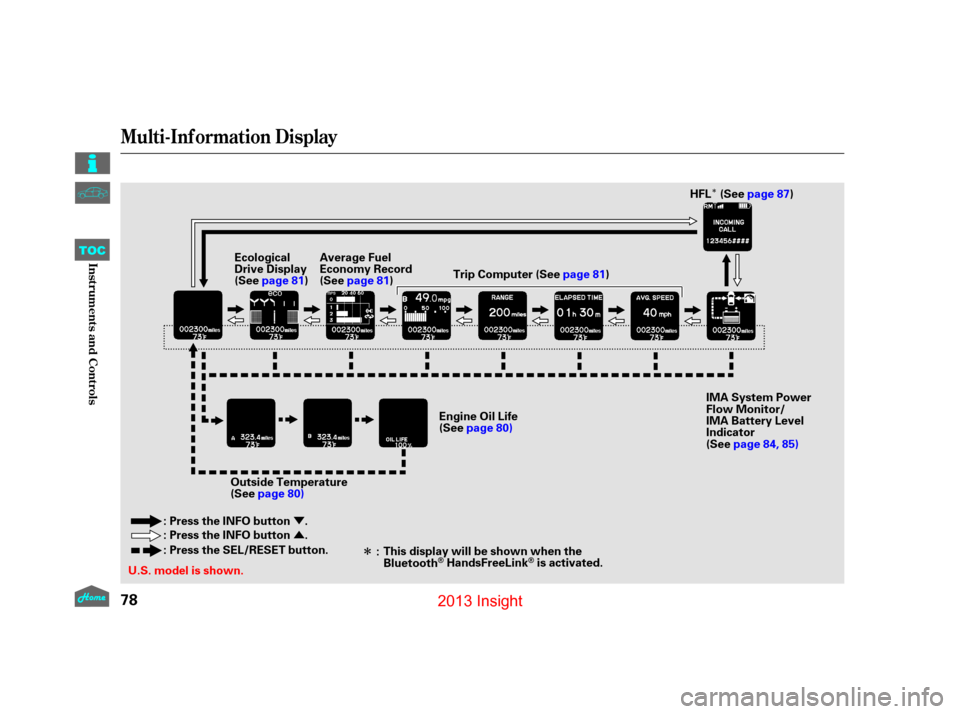

Multi-Inf ormation Display
78
U.S. model is shown.
:
This display will be shown when the
BluetoothHandsFreeLinkis activated. IMA System Power
Flow Monitor/
IMA Battery Level
Indicator
(See
page 84, 85)
: Press the INFO button .
: Press the INFO button .
: Press the SEL/RESET button. HFL (Seepage87
)
Average Fuel
Economy Record
(See page 81)
Engine Oil Life
(Seepage 80)
Outside Temperature
(See page 80) Trip Computer (See
page 81)
Ecological
Drive Display
(See
page 81)
12/07/13 16:46:58 31TM8630_083
Inst rument s and Cont rolsTOC
2013 Insight

This shows the outside Fahrenheit
temperature in U.S. models, and
Celsius temperature in Canadian
models.In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see
page).
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
This shows the remaining engine oil
lif e. It shows 100% af ter the engine
oil is replaced and the display is reset.
The engine oil lif e is calculated
based on engine operating conditions.
For more inf ormation, seepage.
98 299

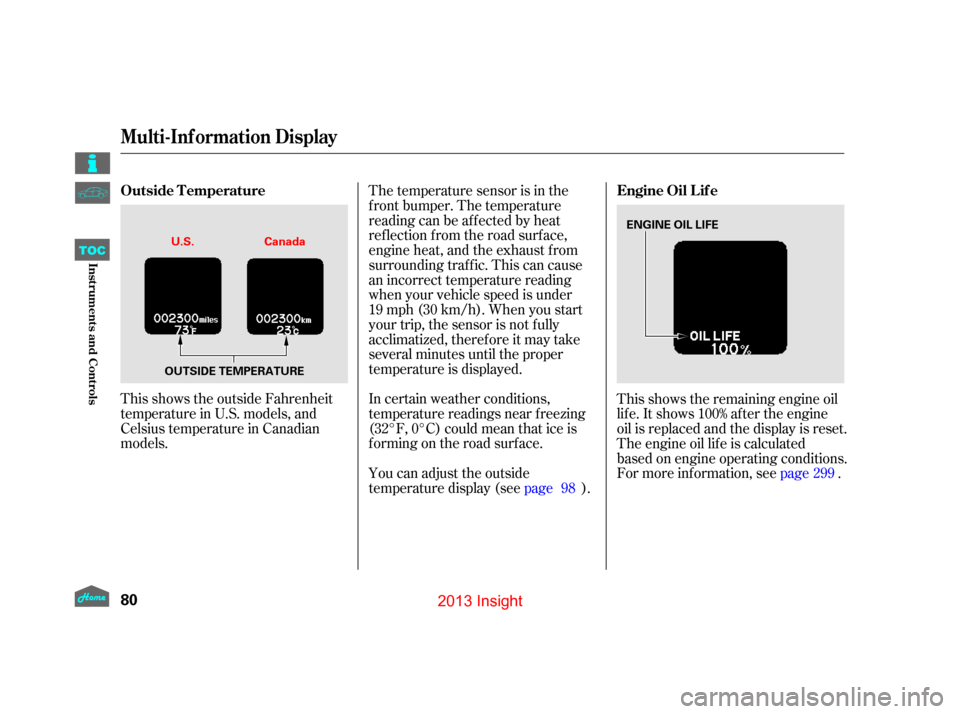

Outside Temperature
Engine Oil Lif e
Multi-Inf ormation Display
80
OUTSIDE TEMPERATURE ENGINE OIL LIFE
U.S. Canada
12/07/13 16:47:16 31TM8630_085
Inst rument s and Cont rolsTOC
2013 Insight

ÛÝÛÝ
ÛÝ
If there is a problem with your
vehicle, f or example the engine oil
level is low or a door is not f ully
closed, the multi-inf ormation display
will show you the problem. It does
this by interrupting the current
display with one or more messages. The system message(s) triggers the
appropriate indicator(s) on the
instrument panel, including the
system message indicator, to come
on. The system message indicator
does not go of f until the problem(s)
is corrected.
You will also hear a beep when the
system message comes on f or the
first time.
Most of the messages are displayed
f or about 5 seconds, and then the
normal display returns. If there are
several system messages to be
shown, the display switches these
messages every 5 seconds.
To switch the message(s) bef ore 5
seconds have elapsed, press the
INFO( / )buttononthesteering
wheel.
Even if you press the INFO ( / )
button, some messages stay on or
come on again at regular intervals
until the problem is corrected.
If the system message indicator
remains lit on the instrument panel,
you can see the corresponding
message(s) again by pressing the
INFO ( / ) button repeatedly.
System Messages
Multi-Inf ormation Display
88
SYSTEM MESSAGE INDICATOR
12/07/13 16:48:24 31TM8630_093
Inst rument s and Cont rolsTOC
A list of all messages begins on the
next page:
2013 Insight

Before you begin driving your
vehicle, you should know what
gasoline to use and how to check
the levels of important fluids.
You also need to know how
to properly store luggage or
packages. The information in
this section will help you. If
you plan to add any accessories
to your vehicle, please read the
information in this section first..............................
Break-in Period .244
.................
Fuel Recommendation . 244
.........
Service Station Procedures . 245
....................................
Ref ueling .245
.....
Tighten Fuel Cap Message . 247
OpeningandClosingthe .......................................
Hood .248
...................................
Oil Check .249
.............
Engine Coolant Check . 250
...............................
Fuel Economy .251
...
Accessories and Modif ications . 254
.............................
Carrying Cargo .256
Bef ore Driving
Bef ore Driving
243
12/07/13 17:07:58 31TM8630_248
2013 Insight

Help assure your vehicle’s f uture
reliability and perf ormance by paying
extra attention to how you drive
during the f irst 600 miles (1,000 km).
During this period:Avoid full-throttle starts and rapid
acceleration.
You should also f ollow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced. Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 87 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine damage.
Do not change the oil until the
scheduled maintenance time.
Avoidhardbrakingforthefirst
200 miles (300 km). Use of gasoline with these additives
may adversely affect performance,
and cause the malfunction indicator
lamp on your instrument panel to
come on. If this happens, contact
your dealer for service. Some
gasoline today is blended with
oxygenates such as ethanol. Your
vehicle is designed to operate on
oxygenated gasoline
containing up to 10% ethanol by
volume. Do not use gasoline
containing methanol. If you notice
any undesirable operating
symptoms, try another service
station or switch to another brand
of gasoline.
Break-in Period
Fuel Recommendation
Break-in Period, Fuel Recommendation
244
T o help prevent harmf ul f uel system
and engine deposits, use high quality
f uel containing detergent and additives.
In addition, in order to maintain good
perf ormance, f uel economy, and
emissions control, we strongly
recommend the use of gasoline that
does NOT contain harmf ul manganese-
based f uel additives such as MMT , if
such gasoline is available.
12/07/13 17:08:06 31TM8630_249
Bef ore DrivingTOC
2013 Insight
