T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you
get acquainted with your 2014 Honda Insight EX with
Navigation and provide basic instructions on some of its
technology and convenience features.
This guide is not intended to be a substitute \0for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual or Navigation Manual.
ECO
ASSIST
TMp. 8
BLUETOOTH®
HANDSFREELINK®p. 2\b
INSTRUMENT PANEL p. 2
MIDp. 4
NAVIGATION p.\b8
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f25 AM Pag\Ae 2
p.2\b

23
Malfunction IndicatorsIf an indicator remains on, there may be a problem; see a dealer.
On/Off Indicators
SIDE AIRBAG OFF
CRUISE CONTROL on
VSA OFFExterior lights on
Turn signals\fhazards on
Auto Idle Stop on (blinking)
ECON mode on
High beams on
Charging system
Low brake fluid, Brake system
Low oil pressure
AntiLock Brake System (ABS)
Low tire pressure:
\fdd airHigh temperature indicator:
Pull over and cool down
engine
IMA system
Malfunction indicator lamp
(check engine light)
Vehicle Stability Assist®(VSA)
Supplemental Restraint System
(SRS)
Electric Power Steering (EPS)
Low temperature
Tire Pressure Monitoring System
(TPMS) (blinks and stays on)
INSTRUMENT PANEL INDICATORSBriefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information. See your Owner’s Manual for
more information.
CRUISE MAIN on
PASSENGER AIRBAG
OFF(center audio panel)
Message indicator:
See MID Immobilizer (blinks):
Use other vehicle key
and see dealer
Condition IndicatorsAction is needed by driver.
Parking brake on:
Release
Door\fHatch open:
Close door(s) / hatch
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
RefillBrake system
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f25 AM Pag\Ae 3

Accessing the MultiInformation Display
MID Main Display
Bluetooth®HandsFreeLink®*
IMA System Power Flow Monitor
Average Speed
Elapsed Time
Ecological Drive Display
Average Fuel Economy Records
Instant and Average FuelEconomy A\fB
Range
*if a phone is paired and active
MID Main Displays
When you start the engine, the
MID shows the main display.
45

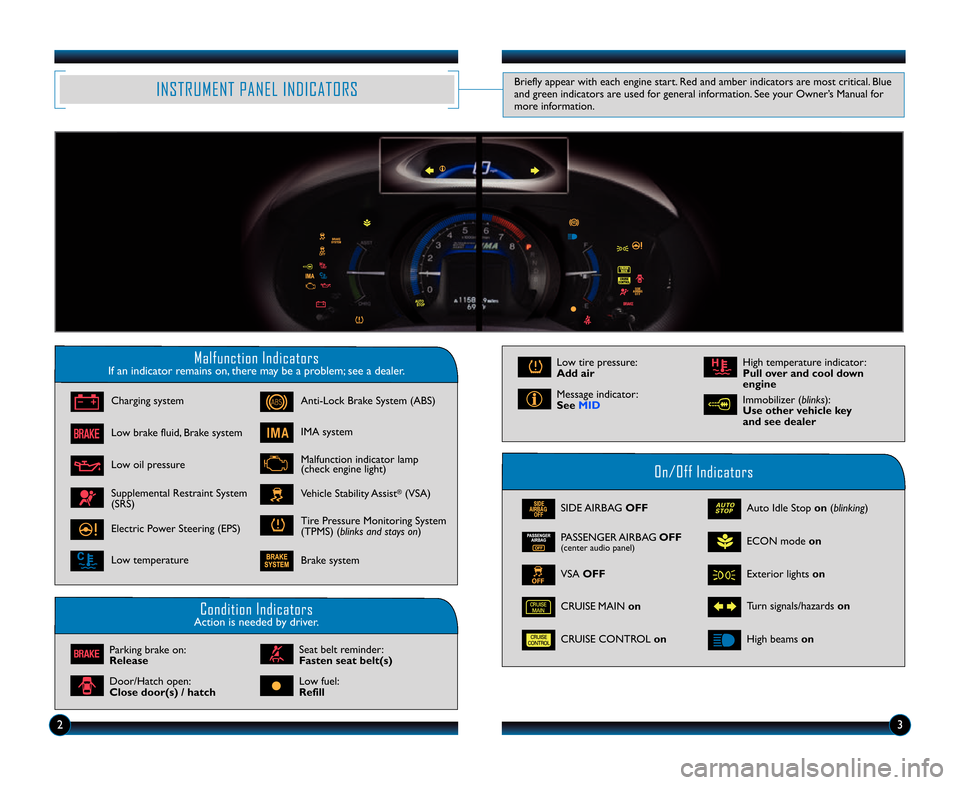

MULTIINFORMATION DISPLAY (MID)Consists of several displays that provide you with useful information.
To toggle between the MID
displays:
• Press either Info button
(p\fq) for the main displays.
• Press SEL\fRESET for the subdisplays.
SEL/RESET
Button
Info
Buttons
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f25 AM Pag\Ae 4

Default Lock/Unlock Setting
Default Lock Setting
All doors and the hatch are preset
to lock when your vehicle reaches
about 10 mph.
Programmable Auto Door Lock/Unlock Settings
Below are the different programmable options you can choose. See your Owner’s
Manual for additional instructions on programming these settings.
Default Unlock Setting
Only the driver’s door and the
hatch are preset to unlock when
you shift into Park (P).
67
\fUTO DOOR UNLOCK
\futo Unlock
(all doors and hatch)
When you turn
the ignition OFFWhen you shift into Park
\futo Unlock
(only driver’s door andhatch)
When you turn
the ignition OFFWhen you shift into Park
Turn off
\futo Unlock
Operate manually
\fUTO DOOR LOCK
\futo Lock
When you
reach 10 mphWhen you shift out of Park
Turn off
\futo Lock
Operate manually
Programming the Auto Door Unlock Setting
Press and hold either Info (p\fq) button on the steering wheel to go to the
“Customize Settings” display on the MID, then press SEL\fRESET to enter the menu.
1. Select CHG SETTING.
2. Select DOOR SETUP.
3. Select AUTO DOOR UNLOCK. 4 . Select ALL DOORS WITH SHIFT
TO P.
5. The display returns to the AUTO DOOR UNLOCK menu.

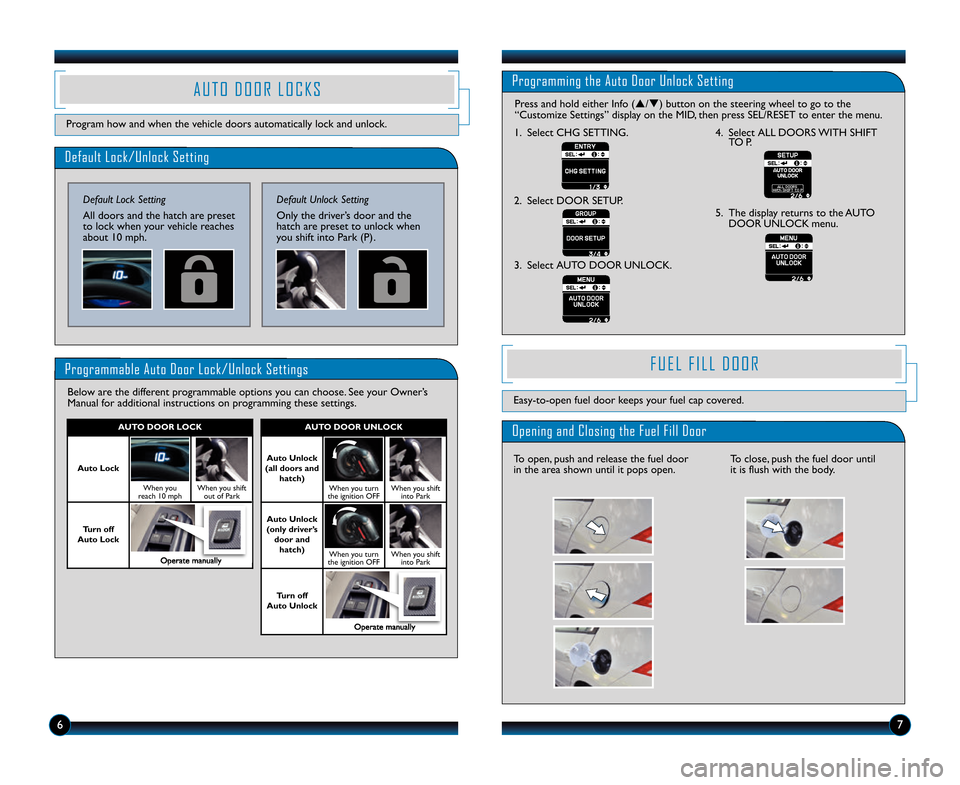

A U T O D O O R L O C K S
Program how and when the vehicle doors automatically lock and unlock.
F U E L F I L L D O O R
Opening and Closing the Fuel Fill Door
To open, push and release the fuel door
in the area shown until it pops open.To close, push the fuel door until
it is flush with the body.
Easytoopen fuel door keeps your fuel cap covered.
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f2\b AM Page\A 5

Activating the ECON Mode
1. Press ECON.
2. The ECON mode indicatorcomes on. 3. Check the MID.4. Press either INFO (p\fq)
button and toggle to the
Ecological Drive Display.
89

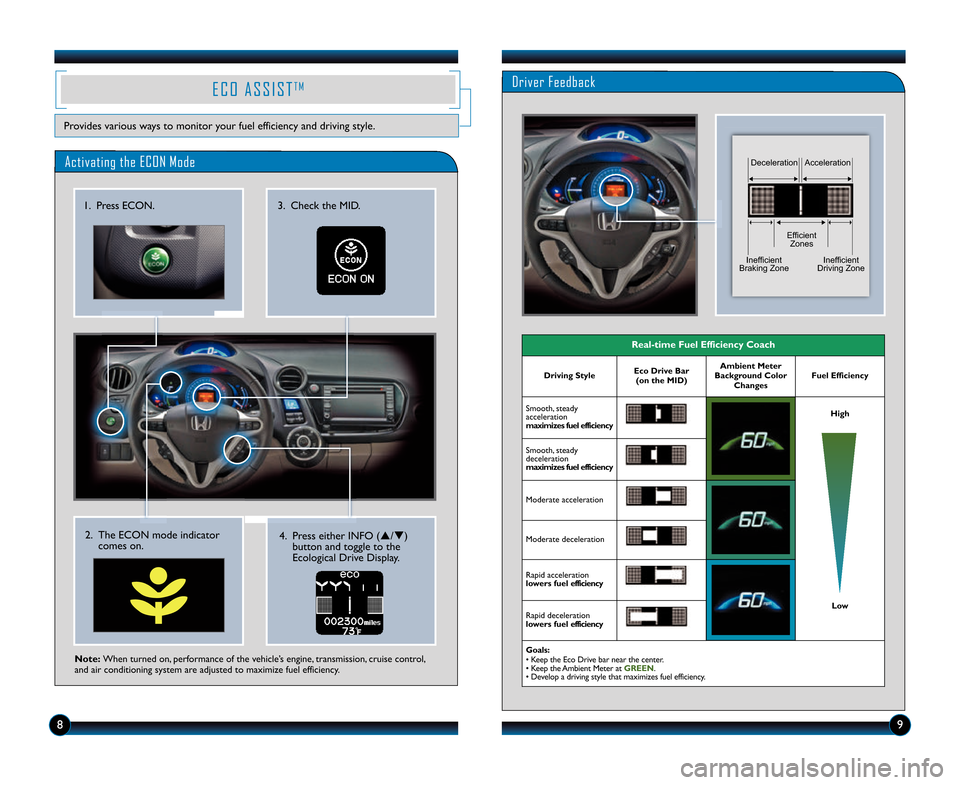

E C O A S S I S TT MDriver Feedback
Realtime Fuel Efficiency Coach
Driving StyleEco Drive Bar
(on the MID)\fmbient Meter
Background Color ChangesFuel Efficiency
Smooth, steady
acceleration
maximizes fuel efficiencyHigh
Low
Smooth, steady
deceleration
maximizes fuel efficiency
Moderate acceleration
Moderate deceleration
Rapid acceleration
lowers fuel efficiency
Rapid deceleration
lowers fuel efficiency
Goals:
• Keep the Eco Drive bar near the center.
• Keep the Ambient Meter at GREEN.
• Develop a driving style that maximizes fuel efficiency.
Deceleration
EfficientZones
Inefficient
Braking Zone Inefficient
Driving ZoneAcceleration
Note: When turned on, performance of the vehicle’s engine, transmission, cruise control,
and air conditioning system are adjusted to maximize fuel efficiency.
Provides various ways to monitor your fuel efficiency and driving style.
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f2\b AM Page\A \b

1011

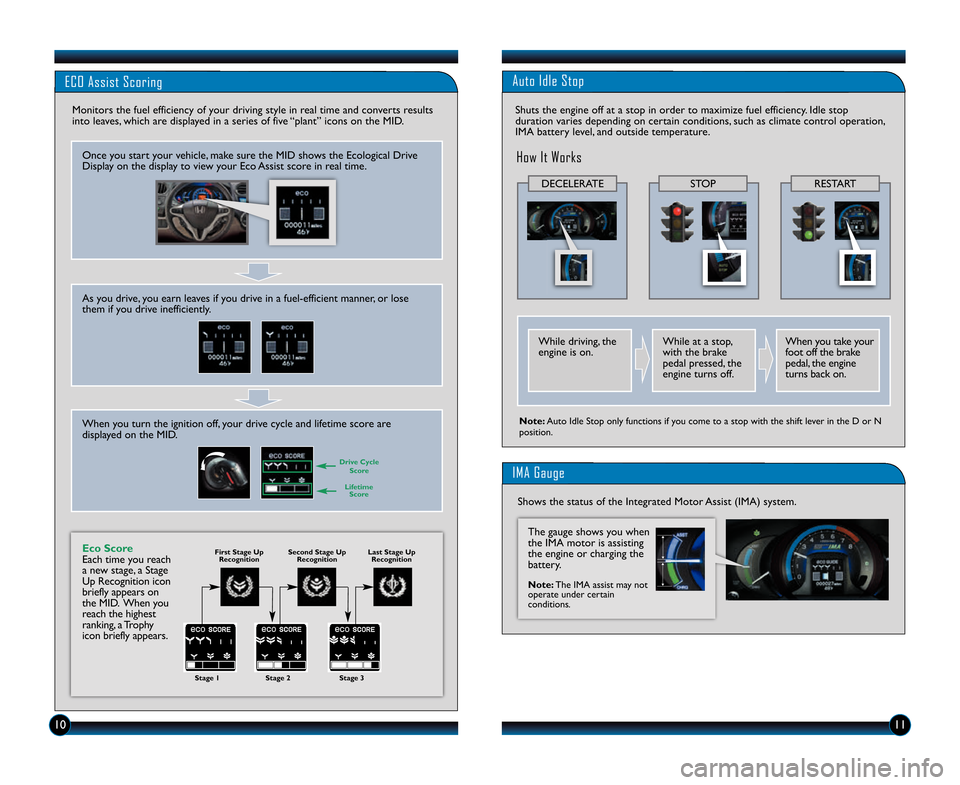

ECO Assist Scoring
Monitors the fuel efficiency of your driving style in real time and converts results
into leaves, which are displayed in a series of five “plant” icons on the MID.
Once you start your vehicle, make sure the MID shows the Ecological Drive
Display on the display to view your Eco Assist score in real time.
As you drive, you earn leaves if you drive in a fuelefficient manner, or lose
them if you drive inefficiently.
When you turn the ignition off, your drive cycle and lifetime score are
displayed on the MID.
Eco Score
Each time you reach
a new stage, a Stage
Up Recognition icon
briefly appears on
the MID. When you
reach the highest
ranking, a Trophy
icon briefly appears.
Drive CycleScore
Stage \bStage 2Stage 3
LifetimeScore
First Stage Up Recognition Second Stage Up
Recognition Last Stage Up
Recognition
While driving, the
engine is on. While at a stop,
with the brake
pedal pressed, the
engine turns off.When you take your
foot off the brake
pedal, the engine
turns back on.
Note: Auto Idle Stop only functions if you come to a stop with the shift lever in the D or N
position.
DECELERATESTOPRESTART
Auto Idle Stop
Shuts the engine off at a stop in order to maximize fuel efficiency. Idle stop
duration varies depending on certain conditions, such as climate control operation,
IMA battery level, and outside temperature.
How It Works
IMA Gauge
Shows the status of the Integrated Motor Assist (IMA) system.
The gauge shows you when
the IMA motor is assisting
the engine or charging the
battery.
Note: The IMA assist may not
operate under certain
conditions.
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f2\b AM Page\A 7

1213
Paddle Modes
P A D D L E S H I F T I N G

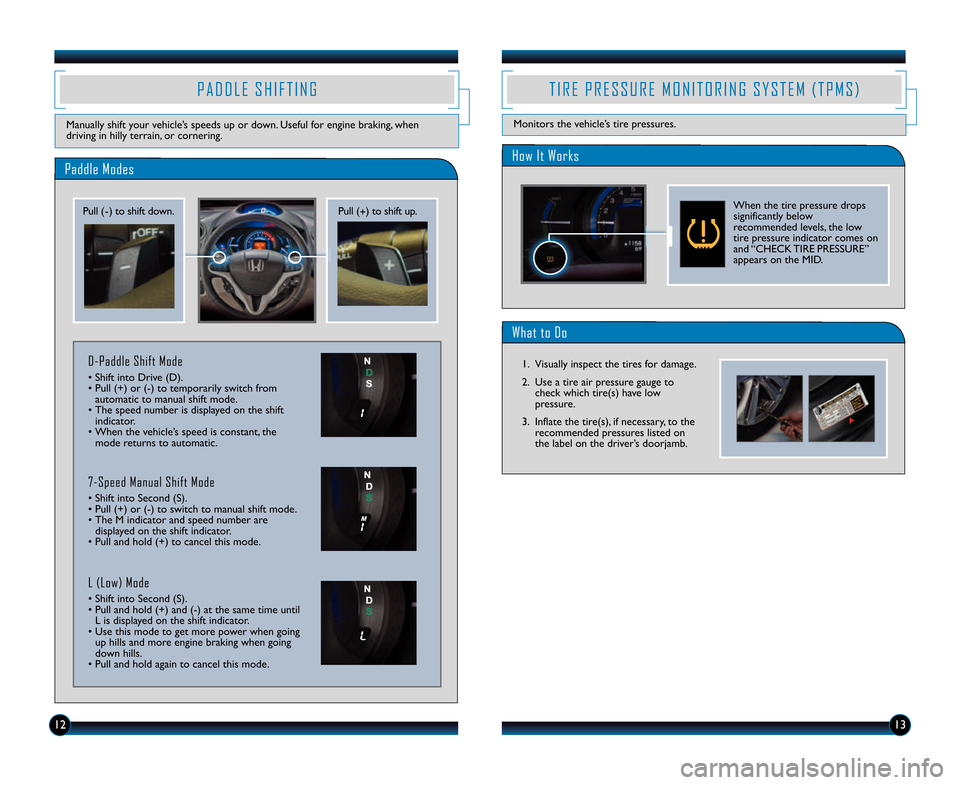

Manually shift your vehicle’s speeds up or down. Useful for engine braking, when
driving in hilly terrain, or cornering.
Pull () to shift down.Pull (
\b) to shift up.
How It Works
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
When the tire pressure drops
significantly below
recommended levels, the low
tire pressure indicator comes on
and “CHECK TIRE PRESSURE”
appears on the MID.
What to Do
1. Visually inspect the tires for damage.
2. Use a tire air pressure gauge to
check which tire(s) have low
pressure.
3. Inflate the tire(s), if necessary, to the recommended pressures listed on
the label on the driver’s doorjamb. DPaddle Shift Mode
• Shift into Drive (D).
• Pull (\b) or () to temporarily switch fromautomatic to manual shift mode.
• The speed number is displayed on the shift indicator.
• When the vehicle’s speed is constant, the mode returns to automatic.
\fSpeed Manual Shift Mode
• Shift into Second (S).
• Pull (\b) or () to switch to manual shift mode.
• The M indicator and speed number are displayed on the shift indicator.
• Pull and hold (\b) to cancel this mode.
L (Low) Mode
• Shift into Second (S).
• Pull and hold (\b) and () at the \0same time until L is displayed on the shift indicator.
• Use this mode to get more power when going up hills and more engine braking when going
down hills.
• Pull and hold again to cancel this mode.
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f2\b AM Page\A 8

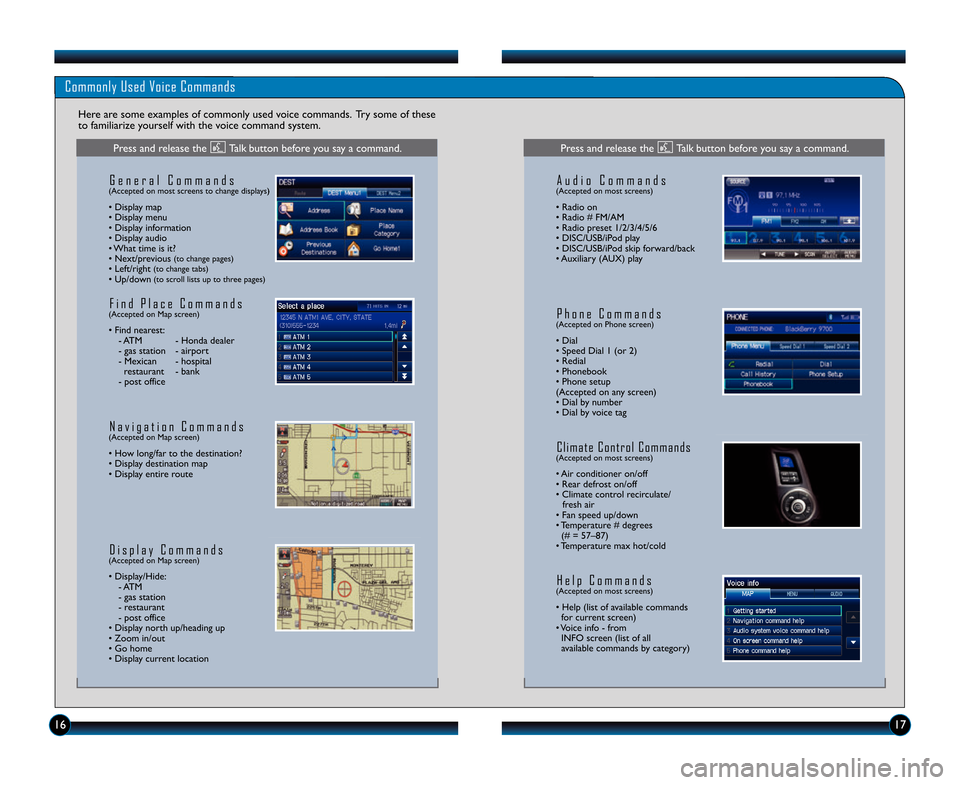

V O I C E R E C O G N I T I O N
Voice Command Tips
1415
PickUp button: Answer an
incoming call, or go directly to the
Phone screen.
Talk button: Say navigation, HFL,
audio, or climate control commands.
HangUp button: End a call or
decline a call.
Back button: Cancel a command
and return to the previous screen.
The voice control system uses the steering wheel buttons and ce\0iling microphone.
To reduce the potential for driver distraction, certain manual and touch
screen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
Voice Control System

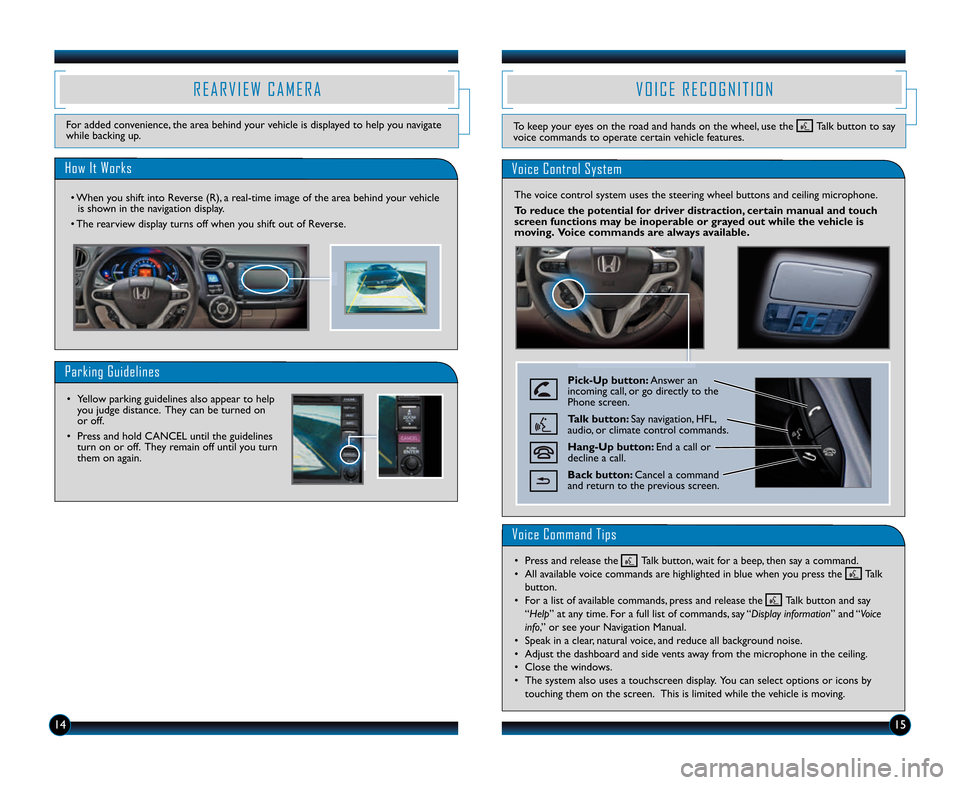

R E A R V I E W C A M E R A
How It Works
• When you shift into Reverse (R), a realtime image of the area behind your vehicleis shown in the navigation display.
• The rearview display turns off when you shift out of Reverse.
For added convenience, the area behind your vehicle is displayed to help you navigate
while backing up.
Parking Guidelines
• Yellow parking guidelines also appear to help you judge distance. They can be turned on
or off.
• Press and hold CANCEL until the guidelines turn on or off. They remain off until you turn
them on again.
• Press and release the Talk button, wait for a beep, then say a command.
• All available voice commands are highlighted in blue when you press the Talk
button.
• For a list of available commands, press and release the Talk button and say “Help” at any time. For a full list of commands, say “Display information” and “Voice
info,” or see your Navigation Manual.
• Speak in a clear, natural voice, and reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
• The system also uses a touchscreen display. You can select options or icons by touching them on the screen. This is limited while the vehicle is moving.
To keep your eyes on the road and hands on the wheel, use the Talk button to say
voice commands to operate certain vehicle features.
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f2\b AM Page\A 9

Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Display information
• Display audio
• What time is it?
• Next\fprevious
(to change pages)• Left\fright (to change tabs)• Up\fdown(to scroll lists up to three pages)
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: ATM Honda dealer
gas station airport
Mexican hospital restaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long\ffar to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display\fHide: ATM
gas station
restaurant
post office
• Display north up\fheading up
• Zoom in\fout
• Go home
• Display current location
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM\fAM
• Radio preset 1\f2\f3\f4\f5\f6
• DISC\fUSB\fiPod play
• DISC\fUSB\fiPod skip forward\fback
• Auxiliary (AUX) play
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice info from INFO screen (list of all
available commands by category)
1617
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on\foff
• Rear defrost on\foff
• Climate control recirculate\f fresh air
• Fan speed up\fdown
• Temperature # degrees (# = 57–87)
• Temperature max hot\fcold
P h o n e C o m m a n d s(Accepted on Phone screen)
• Dial
• Speed Dial 1 (or 2)
• Redial
• Phonebook
• Phone setup
(Accepted on any screen)
• Dial by number
• Dial by voice tag
Press and release the Talk button before you say a command.Press and release the Talk button before you say a command.
14 Insight EX NAV TRG_A\ATG_NEW STYLE 7/2\b/\A2013 10\f2\b AM Page\A 10
