airbag HONDA INSIGHT 2019 Owner's Manual (in English)

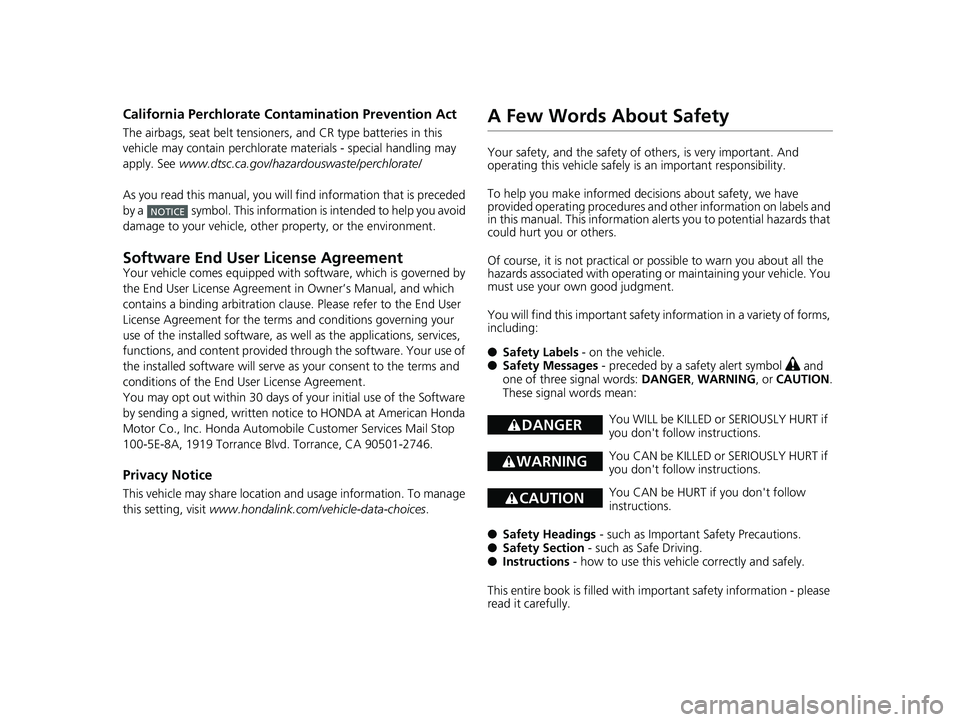

California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as we ll as the applications, services,
functions, and content provided through the software. Your use of
the installed software wi ll serve as your consent to the terms and
conditions of the End User License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location a nd usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices.
NOTICE
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.
You will find this impo rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with im portant safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
19 INSIGHT HMIN-31TXM6000.book 1 ページ ２０１８年４月２０日　金曜日　午後４時２２分

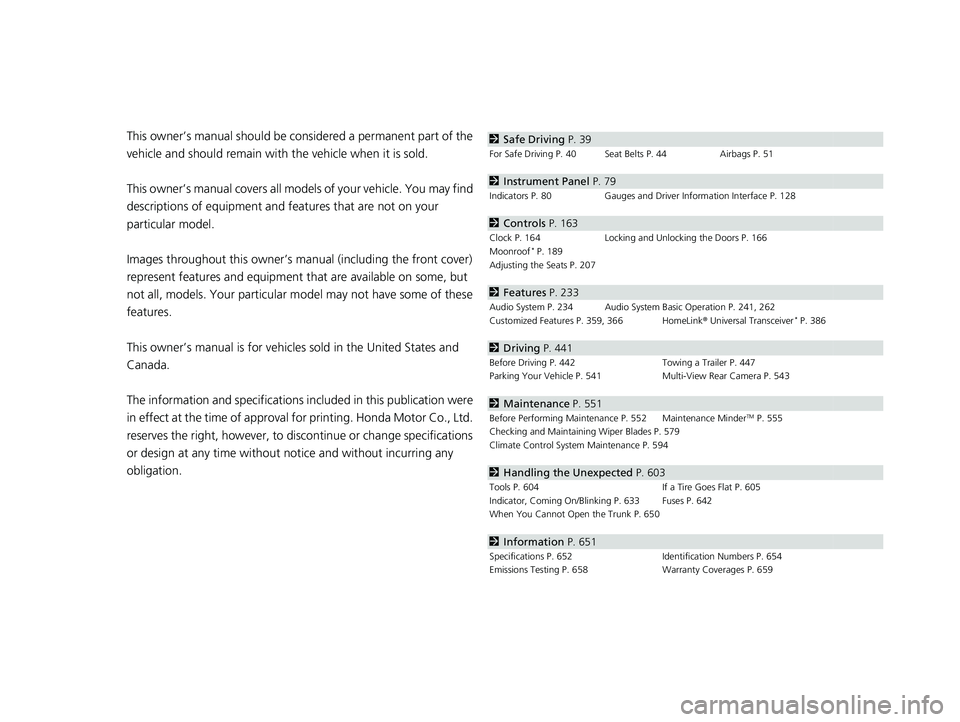

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 39
For Safe Driving P. 40 Seat Belts P. 44 Airbags P. 51
2Instrument Panel P. 79
Indicators P. 80 Gauges and Driver Information Interface P. 128
2Controls P. 163
Clock P. 164 Locking and Unlocking the Doors P. 166
Moonroof* P. 189
Adjusting the Seats P. 207
2 Features P. 233
Audio System P. 234 Audio System Basic Operation P. 241, 262
Customized Features P. 359, 366 HomeLink ® Universal Transceiver* P. 386
2 Driving P. 441
Before Driving P. 442 Towing a Trailer P. 447
Parking Your Vehicle P. 541 Multi-View Rear Camera P. 543
2Maintenance P. 551
Before Performing Maintenance P. 552 Maintenance MinderTM P. 555
Checking and Maintaining Wiper Blades P. 579
Climate Control System Maintenance P. 594
2Handling the Unexpected P. 603
Tools P. 604 If a Tire Goes Flat P. 605
Indicator, Coming On/Blinking P. 633 Fuses P. 642
When You Cannot Open the Trunk P. 650
2 Information P. 651
Specifications P. 652 Identification Numbers P. 654
Emissions Testing P. 658 Warranty Coverages P. 659
19 INSIGHT HMIN-31TXM6000.book 2 ページ ２０１８年４月２０日　金曜日　午後４時２２分

4
Quick Reference Guide
Quick Reference Guide

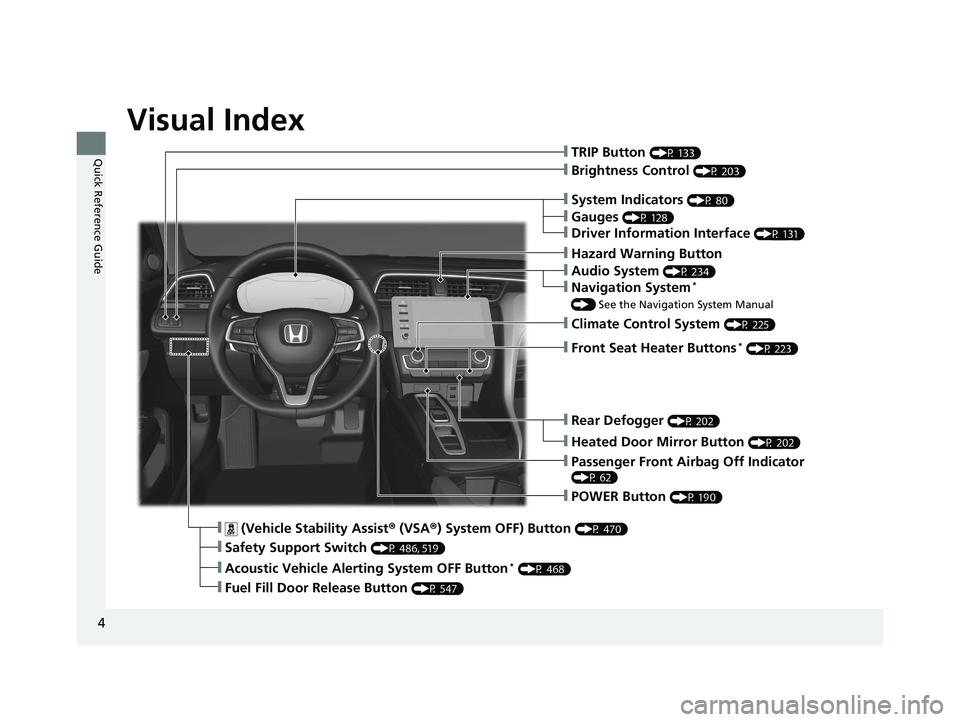

Visual Index
❙ (Vehicle Stability Assist® (VSA ®) System OFF) Button (P 470)
❙Safety Support Switch (P 486, 519)
❙Acoustic Vehicle Alerting System OFF Button* (P 468)
❙TRIP Button (P 133)
❙System Indicators (P 80)
❙Gauges (P 128)
❙Driver Information Interface (P 131)
❙Brightness Control (P 203)
❙POWER Button (P 190)
❙Climate Control System (P 225)
❙Rear Defogger (P 202)
❙Heated Door Mirror Button (P 202)
❙Hazard Warning Button
❙Audio System (P 234)
❙Navigation System*
() See the Navigation System Manual
❙Passenger Front Airbag Off Indicator
(P 62)
❙Front Seat Heater Buttons* (P 223)
❙Fuel Fill Door Release Button (P 547)
19 INSIGHT HMIN-31TXM6000.book 4 ページ ２０１８年４月２０日　金曜日　午後４時２２分

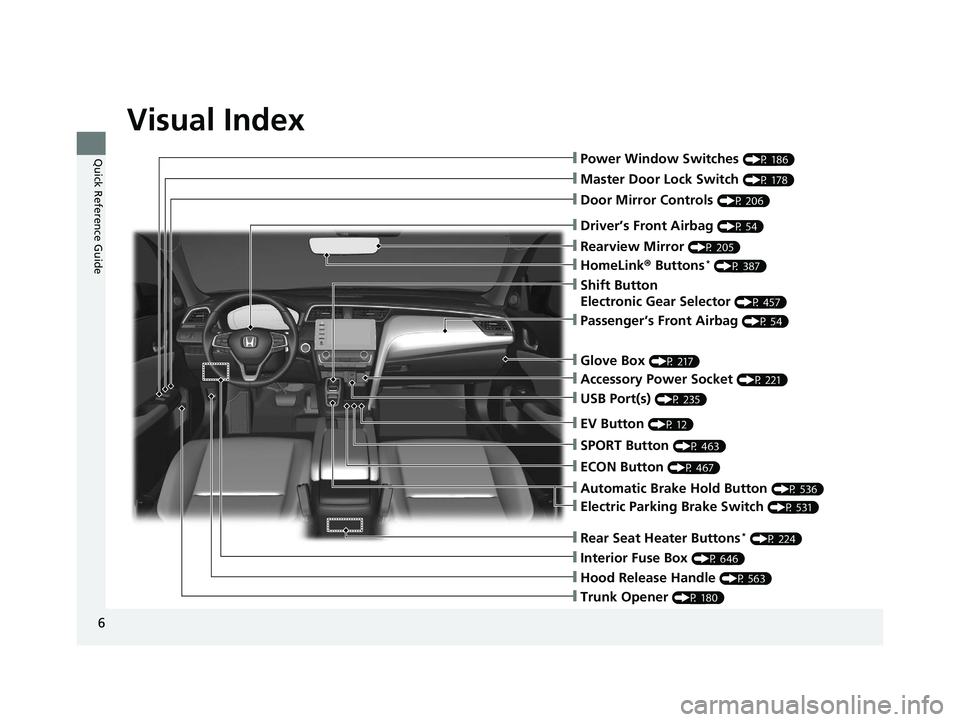

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 186)
❙Master Door Lock Switch (P 178)
❙Door Mirror Controls (P 206)
❙Trunk Opener (P 180)
❙Interior Fuse Box (P 646)
❙Hood Release Handle (P 563)
❙Driver’s Front Airbag (P 54)
❙Rearview Mirror (P 205)
❙HomeLink® Buttons* (P 387)
❙Accessory Power Socket (P 221)
❙Passenger’s Front Airbag (P 54)
❙USB Port(s) (P 235)
❙Glove Box (P 217)
❙ECON Button (P 467)
❙SPORT Button (P 463)
❙EV Button (P 12)
❙Shift Button
Electronic Gear Selector
(P 457)
❙Rear Seat Heater Buttons* (P 224)
❙Automatic Brake Hold Button (P 536)
❙Electric Parking Brake Switch (P 531)
19 INSIGHT HMIN-31TXM6000.book 6 ページ ２０１８年４月２０日　金曜日　午後４時２２分

7

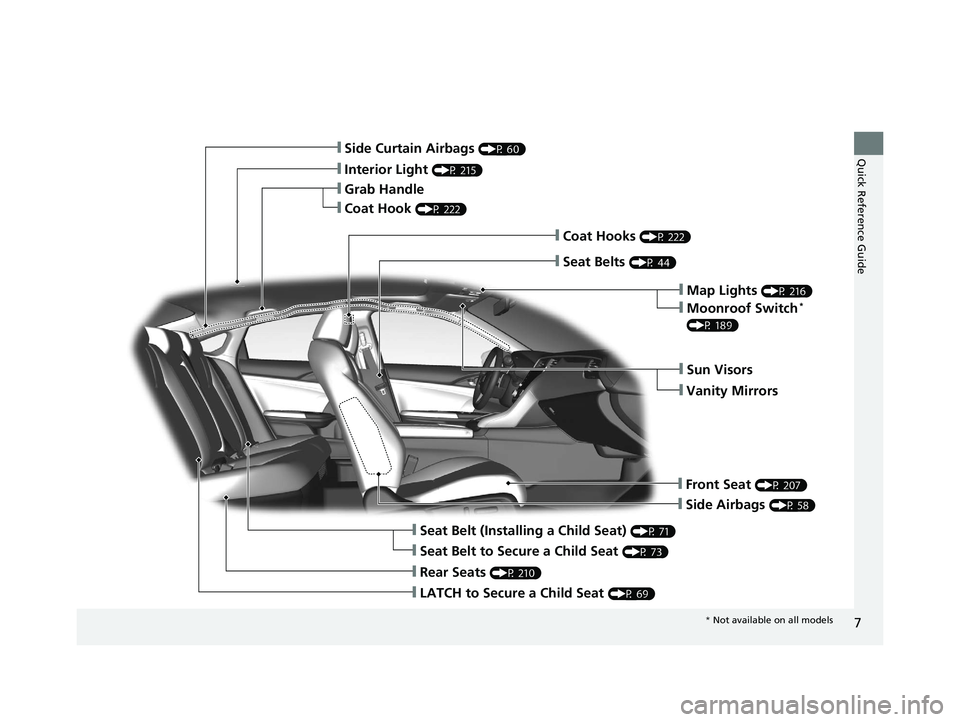

Quick Reference Guide❙Side Curtain Airbags (P 60)
❙Interior Light (P 215)
❙Grab Handle
❙Coat Hook (P 222)
❙Side Airbags (P 58)
❙Seat Belt (Installing a Child Seat) (P 71)
❙Seat Belt to Secure a Child Seat (P 73)
❙LATCH to Secure a Child Seat (P 69)
❙Rear Seats (P 210)
❙Seat Belts (P 44)
❙Coat Hooks (P 222)
❙Sun Visors
❙Vanity Mirrors
❙Front Seat (P 207)
❙Map Lights (P 216)
❙Moonroof Switch*
(P 189)
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 7 ページ ２０１８年４月２０日　金曜日　午後４時２２分

9
Quick Reference Guide
SPORT HYBRID i-MMD (intelligent Multi Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery or internal generator. The High Voltage battery can be charged from the
generator driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the electric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, pressing the
EV button can manually enable EV (driven only on electricity) mode.
● Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficien cy and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.
● Battery types
There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 9 ページ ２０１８年４月２０日　金曜日　午後４時２２分

18
Quick Reference Guide

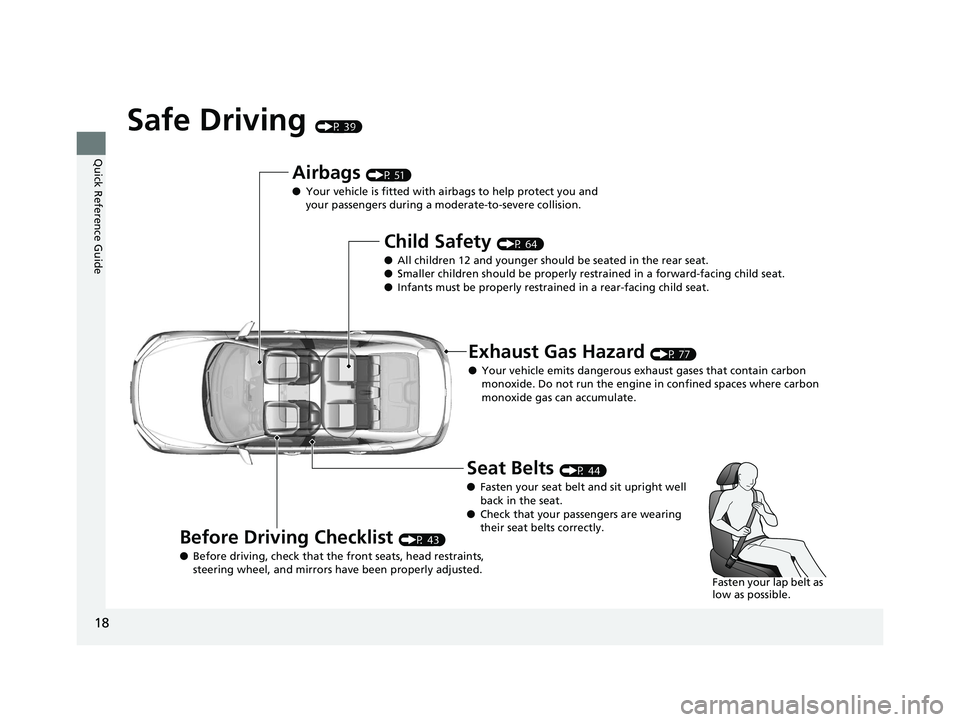

Safe Driving (P 39)
Airbags (P 51)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 64)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 77)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 43)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 44)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
19 INSIGHT HMIN-31TXM6000.book 18 ページ ２０１８年４月２０日　金曜日　午後４時２２分

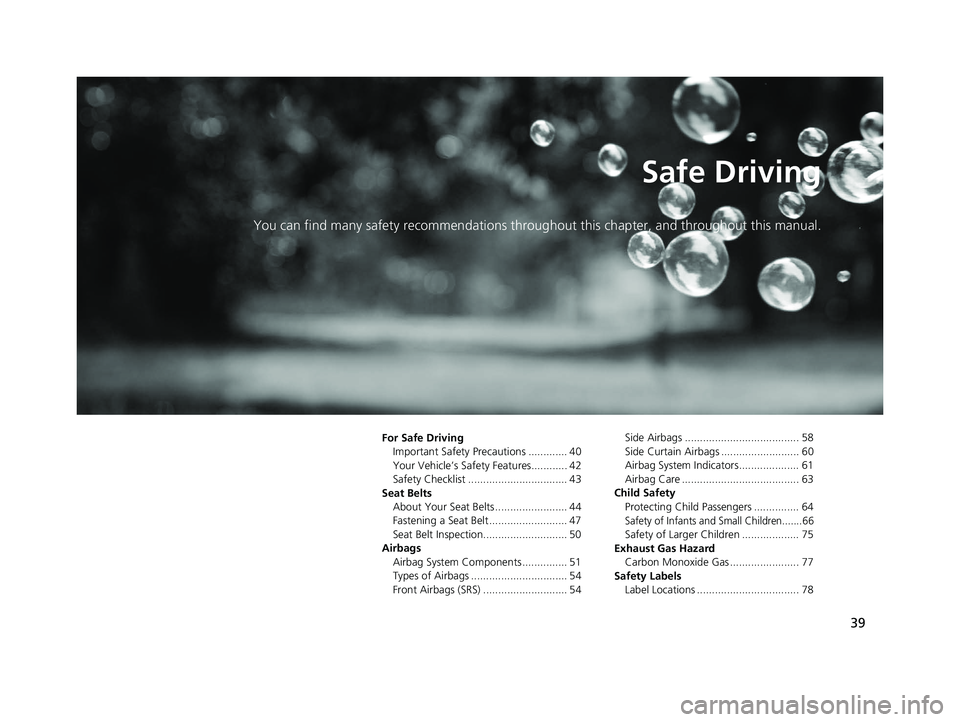

39
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions ............. 40

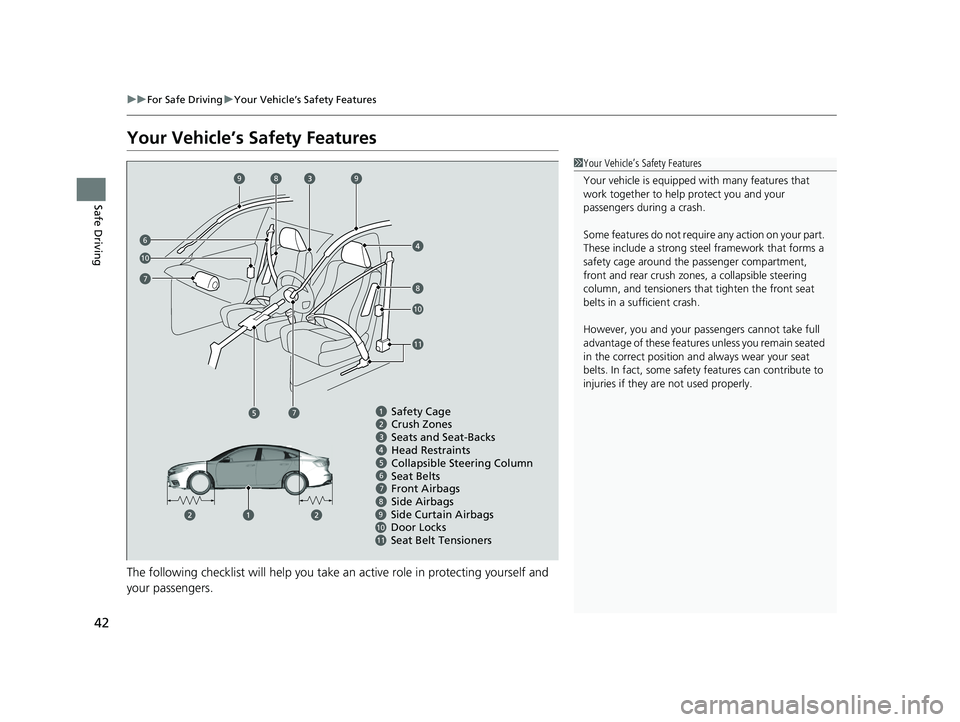

Your Vehicle’s Safety Features............ 42
Safety Checklist ................................. 43
Seat Belts About Your Seat Belts ........................ 44
Fastening a Seat Belt .......................... 47
Seat Belt Inspection............................ 50
Airbags Airbag System Components ............... 51
Types of Airbags ................................ 54
Front Airbags (SRS) ............................ 54 Side Airbags ...................................... 58
Side Curtain Airbags .......................... 60
Airbag System Indicators.................... 61
Airbag Care ....................................... 63
Child Safety Protecting Child Passengers ............... 64
Safety of Infants and Small Children.......66
Safety of Larger Children ................... 75
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 77
Safety Labels Label Locations .................................. 78
19 INSIGHT HMIN-31TXM6000.book 39 ページ ２０１８年４月２０日　金曜日　午後４時２２分

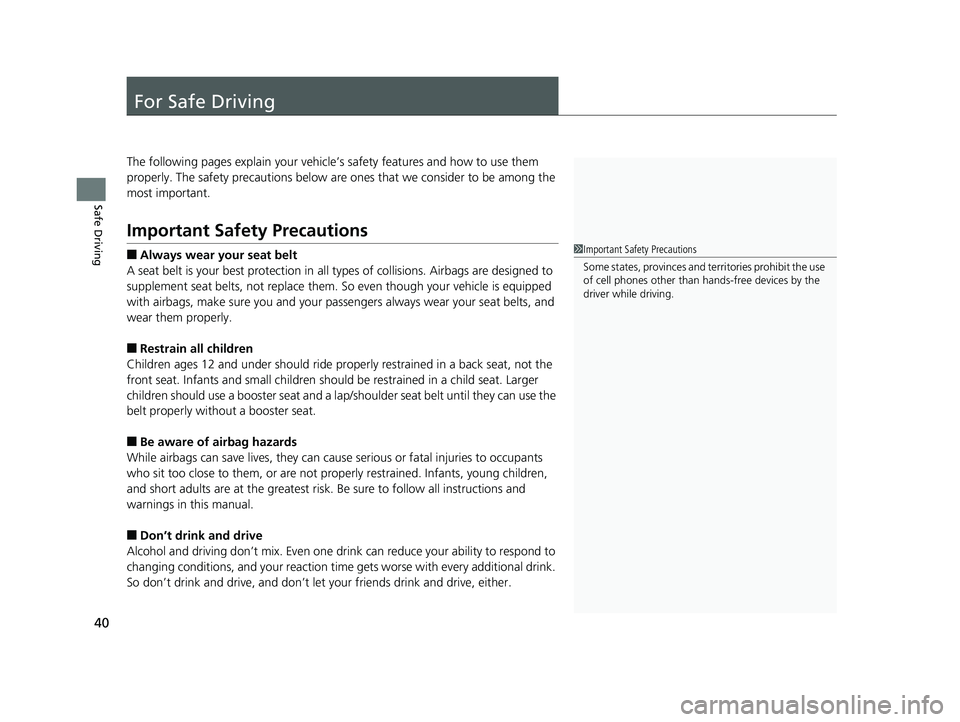

40
Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precauti ons below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passe ngers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children shoul d be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
19 INSIGHT HMIN-31TXM6000.book 40 ページ ２０１８年４月２０日　金曜日　午後４時２２分

42
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1 Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zone s, a collapsible steering
column, and tensioners that tighten the front seat
belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
Crush Zones
67
91011
Safety Cage
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Door Locks
Seat Belt Tensioners Side Curtain Airbags7
78
899
10
6
10
11
8Side Airbags
19 INSIGHT HMIN-31TXM6000.book 42 ページ ２０１８年４月２０日　金曜日　午後４時２２分
