HONDA INSIGHT 2019 Owner's Manual (in English)

2019
OWNER’S MANUAL

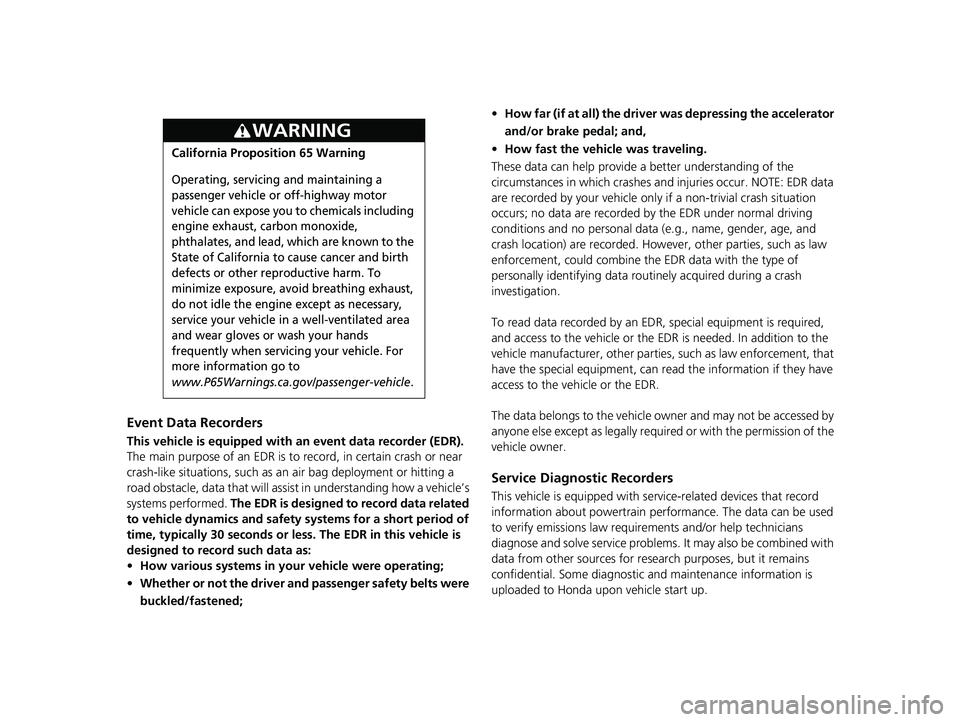

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assi st in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
3WARNING
California Proposition 65 Warning
Operating, servicing and maintaining a
passenger vehicle or off-highway motor
vehicle can expose you to chemicals including
engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the
State of California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust,
do not idle the engine except as necessary,
service your vehicle in a well-ventilated area
and wear gloves or wash your hands
frequently when servicing your vehicle. For
more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howeve r, other parties, such as law
enforcement, could co mbine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requ ired or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with serv ice-related devices that record
information about powertrain perform ance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
19 INSIGHT HMIN-31TXM6000.book 0 ページ ２０１８年４月２０日　金曜日　午後４時２２分

California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as we ll as the applications, services,
functions, and content provided through the software. Your use of
the installed software wi ll serve as your consent to the terms and
conditions of the End User License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written noti ce to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location a nd usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices.
NOTICE
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.
You will find this impo rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with im portant safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
19 INSIGHT HMIN-31TXM6000.book 1 ページ ２０１８年４月２０日　金曜日　午後４時２２分

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 39
For Safe Driving P. 40 Seat Belts P. 44 Airbags P. 51
2Instrument Panel P. 79
Indicators P. 80 Gauges and Driver Information Interface P. 128
2Controls P. 163
Clock P. 164 Locking and Unlocking the Doors P. 166
Moonroof* P. 189
Adjusting the Seats P. 207
2 Features P. 233
Audio System P. 234 Audio System Basic Operation P. 241, 262
Customized Features P. 359, 366 HomeLink ® Universal Transceiver* P. 386
2 Driving P. 441
Before Driving P. 442 Towing a Trailer P. 447
Parking Your Vehicle P. 541 Multi-View Rear Camera P. 543
2Maintenance P. 551
Before Performing Maintenance P. 552 Maintenance MinderTM P. 555
Checking and Maintaining Wiper Blades P. 579
Climate Control System Maintenance P. 594
2Handling the Unexpected P. 603
Tools P. 604 If a Tire Goes Flat P. 605
Indicator, Coming On/Blinking P. 633 Fuses P. 642
When You Cannot Open the Trunk P. 650
2 Information P. 651
Specifications P. 652 Identification Numbers P. 654
Emissions Testing P. 658 Warranty Coverages P. 659
19 INSIGHT HMIN-31TXM6000.book 2 ページ ２０１８年４月２０日　金曜日　午後４時２２分

Contents
Child Safety P. 64Exhaust Gas Hazard P. 77Safety Labels P. 78
Opening and Closing the Trunk P. 180 Security System P. 183 Opening and Closing the Windows P. 186
Operating the Switches Around the Steering Wheel P. 190 Adjusting the Mirrors P. 205
Interior Lights/Interior Convenience Items P. 215 Climate Control System P. 225
Audio Error Messages P. 332General Information on the Audio System P. 337
Bluetooth ® HandsFreeLink ® P. 389, 414 Refuel Recommend P. 439
When Driving P. 448 Honda Sensing® P. 480 Braking P. 531
Refueling P. 546 Fuel Economy and CO
2 Emissions P. 549
Maintenance Under the Hood P. 562 Replacing Light Bulbs P. 575
Checking and Maintaining Tires P. 582 12-Volt Battery P. 591 Remote Transmitter Care P. 593
Cleaning P. 595 Accessories and Modifications P. 601
Power System Won’t Start P. 625 Jump Starting P. 628 Overheating P. 631
Emergency Towing P. 648 When You Cannot Unlock the Fuel Fill Door P. 649
Devices that Emit Radio Waves P. 655 Reporting Safety Defects P. 657
Authorized Manuals P. 661 Customer Service Information P. 662
Quick Reference GuideP. 4
Safe DrivingP. 39
Instrument PanelP. 79
ControlsP. 163
FeaturesP. 233
DrivingP. 441
MaintenanceP. 551
Handling the UnexpectedP. 603
InformationP. 651
IndexP. 664
19 INSIGHT HMIN-31TXM6000.book 3 ページ ２０１８年４月２０日　金曜日　午後４時２２分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙ (Vehicle Stability Assist® (VSA ®) System OFF) Button (P 470)
❙Safety Support Switch (P 486, 519)
❙Acoustic Vehicle Alerting System OFF Button* (P 468)
❙TRIP Button (P 133)
❙System Indicators (P 80)
❙Gauges (P 128)
❙Driver Information Interface (P 131)
❙Brightness Control (P 203)
❙POWER Button (P 190)
❙Climate Control System (P 225)
❙Rear Defogger (P 202)
❙Heated Door Mirror Button (P 202)
❙Hazard Warning Button
❙Audio System (P 234)
❙Navigation System*
() See the Navigation System Manual
❙Passenger Front Airbag Off Indicator
(P 62)
❙Front Seat Heater Buttons* (P 223)
❙Fuel Fill Door Release Button (P 547)
19 INSIGHT HMIN-31TXM6000.book 4 ページ ２０１８年４月２０日　金曜日　午後４時２２分

5

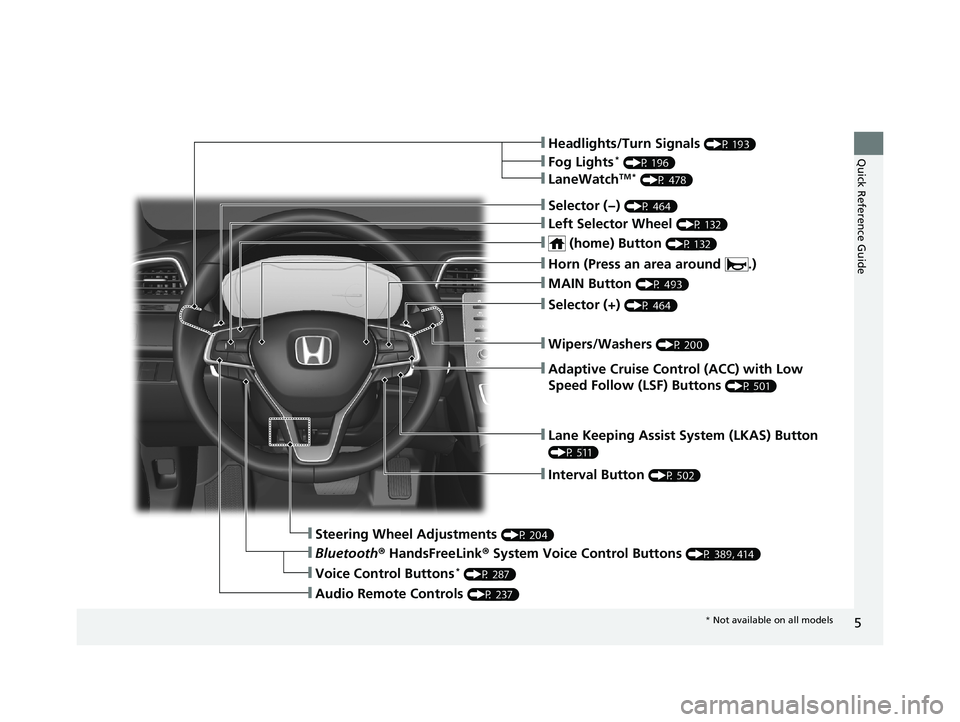

Quick Reference Guide❙Headlights/Turn Signals (P 193)
❙Fog Lights* (P 196)
❙LaneWatchTM * (P 478)
❙Lane Keeping Assist System (LKAS) Button
(P 511)
❙Interval Button (P 502)
❙Steering Wheel Adjustments (P 204)
❙Bluetooth® HandsFreeLink ® System Voice Control Buttons (P 389, 414)
❙Audio Remote Controls (P 237)
❙Voice Control Buttons* (P 287)
❙Selector (−) (P 464)
❙Left Selector Wheel (P 132)
❙ (home) Button (P 132)
❙MAIN Button (P 493)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons
(P 501)
❙Wipers/Washers (P 200)
❙Selector (+) (P 464)
❙Horn (Press an area around .)
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 5 ページ ２０１８年４月２０日　金曜日　午後４時２２分

Visual Index
6
Quick Reference Guide❙Power Window Switches (P 186)
❙Master Door Lock Switch (P 178)
❙Door Mirror Controls (P 206)
❙Trunk Opener (P 180)
❙Interior Fuse Box (P 646)
❙Hood Release Handle (P 563)
❙Driver’s Front Airbag (P 54)
❙Rearview Mirror (P 205)
❙HomeLink® Buttons* (P 387)
❙Accessory Power Socket (P 221)
❙Passenger’s Front Airbag (P 54)
❙USB Port(s) (P 235)
❙Glove Box (P 217)
❙ECON Button (P 467)
❙SPORT Button (P 463)
❙EV Button (P 12)
❙Shift Button
Electronic Gear Selector
(P 457)
❙Rear Seat Heater Buttons* (P 224)
❙Automatic Brake Hold Button (P 536)
❙Electric Parking Brake Switch (P 531)
19 INSIGHT HMIN-31TXM6000.book 6 ページ ２０１８年４月２０日　金曜日　午後４時２２分

7
Quick Reference Guide❙Side Curtain Airbags (P 60)
❙Interior Light (P 215)
❙Grab Handle
❙Coat Hook (P 222)
❙Side Airbags (P 58)
❙Seat Belt (Installing a Child Seat) (P 71)
❙Seat Belt to Secure a Child Seat (P 73)
❙LATCH to Secure a Child Seat (P 69)
❙Rear Seats (P 210)
❙Seat Belts (P 44)
❙Coat Hooks (P 222)
❙Sun Visors
❙Vanity Mirrors
❙Front Seat (P 207)
❙Map Lights (P 216)
❙Moonroof Switch*
(P 189)
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 7 ページ ２０１８年４月２０日　金曜日　午後４時２２分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 562)
❙Windshield Wipers (P 200, 579)
❙Door Lock/Unlock Control (P 169)
❙Power Door Mirrors (P 206)
❙Headlights (P 193, 575)
❙High-Mount Brake Light (P 578)
❙Emergency Trunk Opener (P 182)
❙Opening/Closing the Trunk (P 180)
❙Parking/Daytime Running Lights (P 193, 196, 575)
❙Fog Lights* (P 196, 575)
❙Trunk Release Button* (P 181)
❙Brake Lights (P 576)
❙Rear Side Marker Lights/Taillights (P 576)
❙Rear Turn Signal Lights (P 576)
❙Back-Up Lights (P 577)
❙How to Refuel (P 547)
❙Tires (P 582, 605, 611)
❙Taillights (P 577)
❙Multi-View Rear Camera (P 543)
❙Rear License Plate Light (P 578)
❙Front Turn Signal Lights (P 193, 575)
❙Front Side Marker Lights (P 193, 575)
❙Side Turn Signal Lights* (P 193, 575)
19 INSIGHT HMIN-31TXM6000.book 8 ページ ２０１８年４月２０日　金曜日　午後４時２２分
