wiper fluid HONDA INSIGHT 2019 Owner's Manual (in English)

21
Quick Reference Guide
Turn Signals (P 193)
Lights (P 193)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 200)
*1:Models with automatic intermittent wipers
*2:Models without au tomatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P 204)
● To adjust, pull the adjustment lever
toward you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
To lock
To adjust
19 INSIGHT HMIN-31TXM6000.book 21 ページ ２０１８年４月２０日　金曜日　午後４時２２分

33
Quick Reference Guide
Maintenance (P 551)
Under the Hood (P 562)
● Check engine oil, engine coolant, inverter coolant, and
windshield washer fluid. Add when necessary.
● Check brake fluid.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 575)
● Inspect all lights regularly.
Wiper Blades (P 579)
● Replace blades if they leave streaks
across the windshield.
Tires (P 582)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
19 INSIGHT HMIN-31TXM6000.book 33 ページ ２０１８年４月２０日　金曜日　午後４時２２分

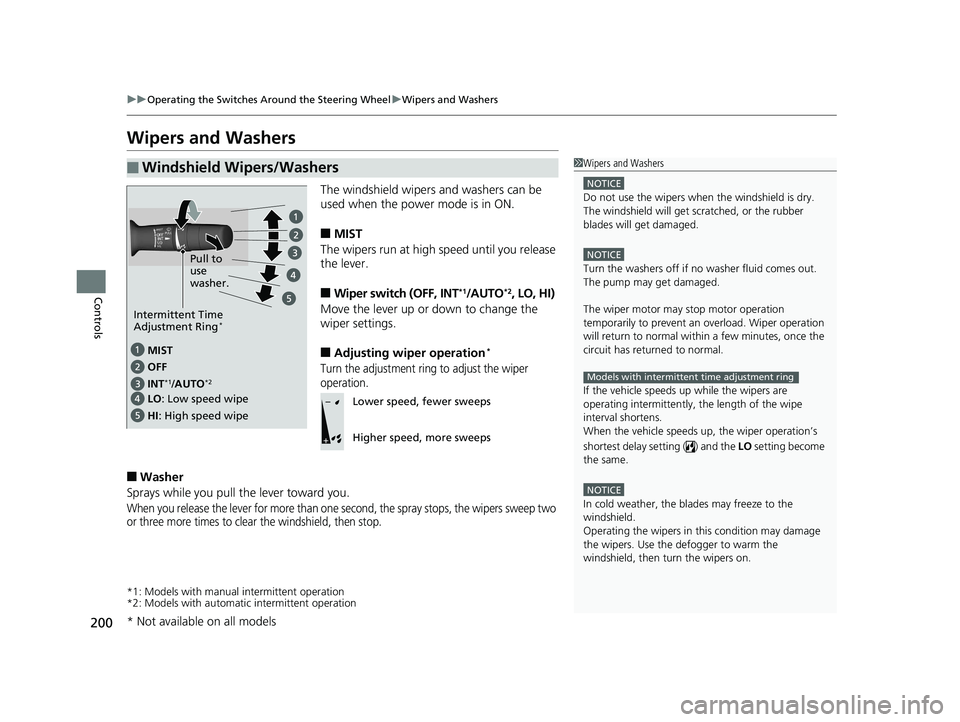

200
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO, HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one second, the spray stops, the wipers sweep two
or three more times to clear the windshield, then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
Models with intermittent time adjustment ring
MIST
INT
*1/AUTO*2
OFF
LO: Low speed wipe
HI : High speed wipe Pull to
use
washer.
Intermittent Time
Adjustment Ring*
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 200 ページ ２０１８年４月２０日　金曜日　午後４時２２分

551
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 552
Safety When Performing Maintenance ...553Parts and Fluids Used in Maintenance Service ........................................... 554
Maintenance Minder
TM..................... 555
Maintenance Under the Hood Maintenance Items Under the Hood .. 562
Opening the Hood ........................... 563
Recommended Engine Oil ................ 564
Oil Check ......................................... 565
Adding Engine Oil ............................ 566
Changing the Engine Oil and Oil Filter ..... 567
Cooling System ................................ 569
Inverter Coolant ............................... 571
Transmission Fluid ............................ 572
Brake Fluid ....................................... 573
Refilling Window Wa sher Fluid......... 574
Replacing Light Bulbs ....................... 575
Checking and Maintaining Wiper
Blades .......................................... 579
Checking and Maintaining Tires
Checking Tires ................................. 582
Tire and Loading Information Label .. 583
Tire Labeling .................................... 583
DOT Tire Quality Grading (U.S. Vehicles) .. 585
Wear Indicators ............................... 587
Tire Service Life ................................ 587
Tire and Wheel Replacement ........... 588
Tire Rotation .................................... 589
Winter Tires ..................................... 590
12-Volt Battery ................................. 591
Remote Transmitter Care Replacing the Button Battery ........... 593
Climate Control System Maintenance.. 594Cleaning
Interior Care .................................... 595
Exterior Care.................................... 597
Accessories and Modifications ........ 601
19 INSIGHT HMIN-31TXM6000.book 551 ページ ２０１８年４月２０日　金曜日　午後４時２２分

552
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance tri ps, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 573
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 582
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 575
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 579
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 559
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 661
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
19 INSIGHT HMIN-31TXM6000.book 552 ページ ２０１８年４月２０日　金曜日　午後４時２２分

665
Index
Automatic Brake Hold............................. 536
Indicator ........................................... 84, 536
Automatic Brake Hold System Indicator ........................................... 84, 536
Automatic Intermittent Wipers .............. 201
Automatic Lighting .................................. 194
Average Fuel Economy ............................ 136
Average Fuel Economy Records .............. 149
Average Speed ......................................... 138
B
Belts (Seat).................................................. 44
Beverage Holders ..................................... 219
Bluetooth ® Audio ............................. 258, 311
Bluetooth ® HandsFreeLink ®............ 389, 414
Booster Seats (For Children) ...................... 76
Brake System ............................................ 531
Anti-lock Brake System (ABS) .................. 539
Automatic Brake Hold ............................. 536
Brake Assist System................................. 540
Fluid ....................................................... 573
Foot Brake .............................................. 535
Indicator ............................. 81, 82, 636, 637
Parking Brake.......................................... 531
Brightness Control (Instrument Panel) ... 203
Bulb Replacement .................................... 575
Back-Up Light ......................................... 577
Brake and Rear Side Marker Lights .......... 576
Fog Lights ............................................... 575 Front Turn Signal,
Parking/Daytime
Running and Front Side Marker Lights ... 575
Headlights ............................................... 575
High-Mount Brake Light .......................... 578
Rear License Plate Lights .......................... 578
Rear Turn Signal Light .............................. 576
Side Turn Signal/Em ergency Indicator
Lights .................................................... 575
Taillights .................................................. 577
Bulb Specifications ................................... 652C
Carbon Monoxide Gas ................................ 77
Carrying Cargo .................................. 443, 445
Certification Label .................................... 654
Changing Bulbs ......................................... 575
Charging System Indicator ................. 88, 634
Child Safety ................................................. 64
Childproof Door Locks ............................. 178
Emergency Trunk Opener ........................ 182
Child Seat .................................................... 64
Booster Seats ............................................. 76
Child Seat for Infants ................................. 66
Child Seat for Small Children ..................... 67
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Larger Children .......................................... 75
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 73 Childproof Door Locks
............................. 178
Cleaning the Exterior ............................... 597
Cleaning the Interior ................................ 595
Climate Control System ............................ 225
Changing the Mode ................................ 225
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter............................... 594
Recirculation and Fresh Air Mode ............ 227
Sensors ................................................... 231
Synchronized Mode................................. 230
Using Automatic Climate Control ............ 225
Clock .......................................................... 164
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 483
Coat Hooks ............................................... 222
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 483
Compact Spare Tire .......................... 605, 653
Console Compartment ............................. 218
Continuously Variable Transmission Creeping ................................................. 456
Fluid ........................................................ 572
Controls ..................................................... 163
Coolant (Engine) ...................................... 569
Adding to the Radiator ............................ 570
Adding to the Reserve Tank..................... 569
Overheating ............................................ 631
19 INSIGHT HMIN-31TXM6000.book 665 ページ ２０１８年４月２０日　金曜日　午後４時２２分

672
Index
Viscosity (Oil)..................................... 564, 653
Voice Control Operation .......................... 287
Voice Portal Screen .................................. 288
Voice Recognition .................................... 287
VSA ® (Vehicle Stability Assist) ®................ 469
W
Wallpaper .......................................... 244, 269
Warning and Information Messages ....... 102
Warning Indicator On/Blinking ................ 633
Warning Labels ........................................... 78
Warnings ................................................... 140
Warranties (Warranty Manual provided separately) ............................................... 659
Watts ......................................................... 652
WAV .......................................................... 255
Wear Indicators (Tire) ............................... 587
Wheel Nut Wrench (Jack Handle) ............ 608
Wi-Fi Connection ...................................... 322
Window Washers ...................................... 200
Adding/Refilling Fluid ............................... 574
Switch ..................................................... 200
Windows (Opening and Closing) ............. 186
Windshield Cleaning .......................................... 595, 598
Defrosting/Defogging .............................. 228
Washer Fluid............................................ 574
Wiper Blades ........................................... 579
Wipers and Washers ................................ 200 Winter Tires
Snow Tires .............................................. 590
Tire Chains .............................................. 590
Wipers and Washers ................................. 200
Automatic Intermi ttent Wipers ................ 201
Checking and Replacing Wiper Blades ..... 579
WMA ................................................. 255, 308
Worn Tires ................................................ 582
19 INSIGHT HMIN-31TXM6000.book 672 ページ ２０１８年４月２０日　金曜日　午後４時２２分
