Page 596 of 675

594
Maintenance
Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, th e Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant sy stem only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped wi th a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1Air Conditioning
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’ s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 78
2 Specifications P. 652
Canadian models
: Caution
: Flammable Refrigerant
: Requires Registered
Technician to Service
: Air Conditioning
System
1Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.
20 INSIGHT-31TXM6100.book 594 ページ 2019年4月24日 水曜日 午後2時2分
Page 617 of 675

Continued615
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
5. Turn the power system on.
u Keep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 77
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usin g the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
20 INSIGHT-31TXM6100.book 615 ページ 2019年4月24日 水曜日 午後2時2分
Page 628 of 675

626
uuPower System Won’t Start uIf the Remote Battery is Weak
Handling the Unexpected
If the Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver info rmation interface, and the POWER button flashes, the
READY indicator does not come on. Turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the remote while the
POWER button is flashing. The buttons on
the remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
20 INSIGHT-31TXM6100.book 626 ページ 2019年4月24日 水曜日 午後2時2分
Page 629 of 675

627
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button about for two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power syst em provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
20 INSIGHT-31TXM6100.book 627 ページ 2019年4月24日 水曜日 午後2時2分

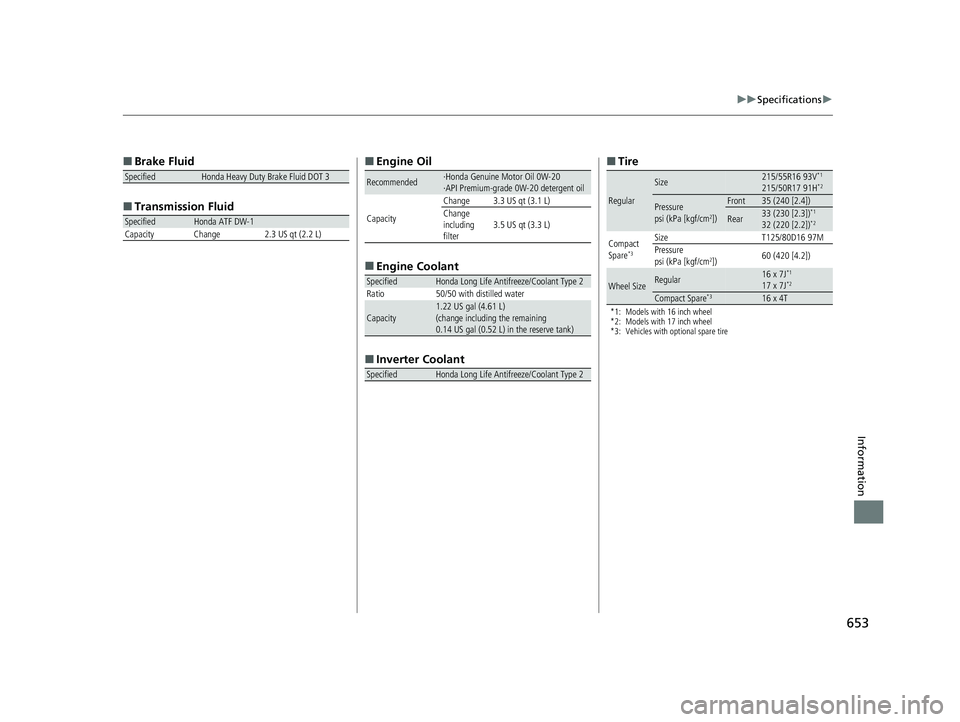

Page 655 of 675

653
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 2.3 US qt (2.2 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1 L)
Change
including
filter
3.5 US qt (3.3 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.22 US gal (4.61 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Vehicles with optional spare tire
Regular
Size215/55R16 93V*1
215/50R17 91H*2
Pressure
psi (kPa [kgf/cm2])
Front35 (240 [2.4])
Rear33 (230 [2.3])*1
32 (220 [2.2])*2
Compact
Spare*3
Size T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
17 x 7J*2
Compact Spare*316 x 4T
20 INSIGHT-31TXM6100.book 653 ページ 2019年4月24日 水曜日 午後2時2分
Page 665 of 675

Index
663
Index
Index
Numbers
12-Volt Battery................................... 10, 591
Charging System Indicator ................ 88, 634
High Voltage..................................... 10, 477
Jump Starting ......................................... 628
Maintenance (Checking the Battery) ....... 591
Maintenance (Replacing) ......................... 593
A
ABS (Anti-lock Brake System) .................. 540
Accessories and Modifications ................ 601
Accessory Power Socket ........................... 221
Acoustic Vehicle Alerting System ............ 468
Adaptive Cruise Control (ACC) ............ 97, 98
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 97, 98, 492
Additives
Coolant .................................................. 569
Engine Oil ............................................... 564
Washer ................................................... 574
Additives, Engine Oil ............................... 564
Adjusting Armrest .................................................. 214
Front Seats.............................................. 207
Head Restraints ....................................... 212
Mirrors.................................................... 205
Rear Seats ............................................... 210
Steering Wheel ....................................... 204
Adjusting the Sound ................................ 246
Agile Handling Assist ............................... 471 Air Conditioning System (Climate Control
System) .................................................... 225
Changing the Mode ................................ 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter ............................... 594
Recirculation/Fresh Air Mode ................... 227
Sensors .................................................... 231
Synchronized Mode ................................. 230
Using Automatic Climate Control ............ 225
Air Pressure ....................................... 583, 653
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 54
Indicator .............................................. 61, 91
Passenger Front Airbag Off Indicator ......... 62
Sensors ...................................................... 51
Side Airbags .............................................. 58
Side Curtain Airbags .................................. 60
AM/FM Radio .................................... 248, 290
Android Auto ............................................ 328
Anti-lock Brake System (ABS) .................. 540
Indicator .................................................... 91
Apple CarPlay ........................................... 325
Armrest ..................................................... 214
Audio Remote Controls ............................ 237
Audio System .................................... 234, 241
Adjusting the Sound ........................ 246, 284 AM/FM Radio .......................................... 248
Audio/Information Screen................ 242, 263
Display Setup .................................. 247, 285
Error Messages ........................................ 332
General Information ................................ 337
Home Screen........................................... 271
How to Update Wirelessly ....................... 278
How to Update with a USB Device........... 282
How to use Siri Eyes Free ................. 261, 324
iPod ................................................ 250, 305
Limitations for Manual Operation ............ 286
MP3/WMA/AAC .............................. 255, 308
Pandora
®............................................... 253
Playing Bluetooth ® Audio ........................ 258
Reactivating ............................................ 236
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 286
Status Area ............................................. 276
System Updates....................................... 278
Theft Protection ...................................... 236
USB Flash Drives ...................... 255, 308, 338
USB Ports ................................................ 235
Wallpaper Setup.............................. 244, 269
Audio/Information Screen ............... 242, 263
Authorized Manuals ................................ 660
Auto Door Locking/Unlocking ................. 179
Customize ....................................... 159, 383
Auto High-Beam ....................................... 197
Indicator.................................................... 94
20 INSIGHT-31TXM6100.book 663 ページ 2019年4月24日 水曜日 午後2時2分
Page 666 of 675

664
Index
Automatic Brake Hold.............................. 537
Indicator ............................................ 84, 537
Automatic Brake Hold System Indicator ............................................ 84, 537
Automatic Intermittent Wipers ............... 201
Automatic Lighting .................................. 194
Average Fuel Economy ............................. 136
Average Fuel Economy Records ............... 149
Average Speed .......................................... 138
B
Belts (Seat).................................................. 44
Beverage Holders ...................................... 219
Bluetooth ® Audio ............................. 258, 311
Bluetooth ® HandsFreeLink ®........... 389, 414
Booster Seats (For Children) ....................... 76
Brake System ............................................. 532
Anti-lock Brake System (ABS) ................... 540
Automatic Brake Hold.............................. 537
Brake Assist System ................................. 541
Fluid ........................................................ 573
Foot Brake ............................................... 536
Indicator .............................. 81, 82, 636, 637
Parking Brake .......................................... 532
Brightness Control (Instrument Panel) .... 203
Bulb Replacement ..................................... 575
Back-Up Light .......................................... 577
Brake and Rear Side Marker Lights ........... 576
Fog Lights ................................................ 575 Front Turn Signal, Parking/Daytime
Running and Front Side Marker Lights ... 575
Headlights ............................................... 575
High-Mount Brake Light .......................... 578
Rear License Plate Lights .......................... 578
Rear Turn Signal Light ............................. 576
Side Turn Signal/Emergency Indicator Lights .................................................... 575
Taillights.................................................. 577
Bulb Specifications ................................... 652C
Carbon Monoxide Gas ............................... 77
Carrying Cargo ................................. 443, 445
Certification Label .................................... 654
Changing Bulbs ........................................ 575
Charging System Indicator ................. 88, 634
Child Safety ................................................. 64
Childproof Door Locks............................. 178
Emergency Trunk Opener ........................ 182
Child Seat .................................................... 64
Booster Seats ............................................ 76
Child Seat for Infants................................. 66
Child Seat for Small Children ..................... 67
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Larger Children ......................................... 75
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 73 Childproof Door Locks
............................. 178
Cleaning the Exterior ............................... 597
Cleaning the Interior ............................... 595
Climate Control System ........................... 225
Changing the Mode................................ 225
Defrosting the Windshield and Windows .............................................. 228
Dust and Pollen Filter .............................. 594
Recirculation and Fresh Air Mode ............ 227
Sensors ................................................... 231
Synchronized Mode ................................ 230
Using Automatic Climate Control............ 225
Clock ......................................................... 164
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 483
Coat Hooks ............................................... 222
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 483
Compact Spare Tire .......................... 605, 653
Console Compartment ............................. 218
Controls .................................................... 163
Coolant (Engine) ...................................... 569
Adding to the Radiator ........................... 570
Adding to the Reserve Tank .................... 569
Overheating ............................................ 631
Cooling System ......................................... 569
Adding to the Radiator ........................... 570
Adding to the Reserve Tank .................... 569
Overheating ............................................ 631
Creeping ................................................... 456
Cup Holders .............................................. 219
20 INSIGHT-31TXM6100.book 664 ページ 2019年4月24日 水曜日 午後2時2分
Page 667 of 675

665
Index
Customer Service Information................ 661
Customized Features ............... 153, 359, 366
D
Daytime Running Lights .......................... 196
Dead Battery ............................................ 628
Deceleration Paddle Selector .................. 464
Defaulting All the Settings ...................... 385
Defrosting the Windshield and
Windows ................................................. 228
Devices that Emit Radio Waves ............... 655
Dimming
Headlights .............................................. 193
Rearview Mirror ...................................... 205
Dipstick (Engine Oil) ................................ 565
Directional Signals (Turn Signal) ............. 193
Display Setup ............................................ 247
Door Mirrors ............................................. 206
Doors ........................................................ 166
Auto Door Locking.................................. 179
Auto Door Unlocking .............................. 179
Door and Trunk Open Message................. 43
Keys........................................................ 166
Locking/Unlocking the Doors from the Inside .................................................... 176
Locking/Unlocking the Doors from the
Outside ................................................. 169
Lockout Prevention System ..................... 175
DOT Tire Quality Grading ........................ 585
Driver Attention Monitor ........................ 144Driver Information Interface
................... 131
Switching the Display .............................. 131
Warning and Information Messages ........ 102
Driving ....................................................... 441
Braking .................................................... 532
Shifting Gear ........................................... 457
Transmission ............................................ 456
Turning on the Power .............................. 448
Driving Support Information ................... 147
Dust and Pollen Filter ............................... 594
E
Eco Assist® System ...................................... 16
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 150
ECON Mode .............................................. 467
Indicator .................................................... 96
Elapsed Time ............................................. 138
Electric Power Steering (EPS) System Indicator ............................................ 91, 638
Electronic Stability Control (ESC) ............. 469
Emergency ................................................ 647
Emergency Power System Off .................. 627
Emergency Trunk Opener ........................ 182
Emissions Testing (Readiness Codes) ....... 657
Engine ....................................................... 654
Coolant ................................................... 569
Jump Starting .......................................... 628
Oil ........................................................... 564
Starting ................................................... 448 Engine Oil
................................................. 564
Adding .................................................... 566
Checking................................................. 565
Displaying Oil Life .................................... 556
Low Oil Pressure Warning........................ 633
Recommended Engine Oil ....................... 564
EPS (Electric Power Steering) System ...... 638
EV Button .................................................... 12
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) ........................... 597
Exterior Mirrors ........................................ 206F
Features.................................................... 233
Filters
Dust and Pollen ....................................... 594
Oil ........................................................... 567
Flat Tire ..................................................... 605
Floor Mats ................................................. 596
Fluids
Brake ...................................................... 573
Engine Coolant ....................................... 569
Inverter Coolant ...................................... 571
Windshield Washer ................................. 574
FM/AM Radio .................................... 248, 290
Fog Lights ................................................. 196
Indicator.................................................... 94
Folding Down the Rear Seat .................... 210
Foot Brake ................................................ 536
Front Airbags (SRS) ..................................... 54
20 INSIGHT-31TXM6100.book 665 ページ 2019年4月24日 水曜日 午後2時2分
Page 668 of 675

666
Index
Front Seat Heaters.................................... 223
Front Seats
Adjusting ................................................. 207
Front Sensor Camera ................................ 529
Fuel ...................................................... 31, 547
Economy ................................................. 550
Gauge ..................................................... 128
Instant Fuel Economy ............................... 136
Low Fuel Indicator ..................................... 90
Range ...................................................... 136
Recommendation .................................... 547
Refueling ................................................. 547
Fuel Economy and CO
2 Emissions ............ 550
Fuel Fill Cap ......................................... 31, 548
Fuel Fill Door ....................................... 31, 548
Unable to Unlock ..................................... 648
Fuses .......................................................... 641
Inspecting and Changing ......................... 646
Locations ......................................... 641, 645
G
Gasoline (Fuel) Economy ................................................. 550
Gauge ..................................................... 128
Information ............................................. 547
Instant Fuel Economy ............................... 136
Low Fuel Indicator ..................................... 90
Refueling ................................................. 547
Gauges ....................................................... 128
Glass (care) ........................................ 595, 598 Glove Box
.................................................. 217
H
Handling the Unexpected ........................ 603
HandsFreeLink ® (HFL) ....................... 389, 414
Automatic Import of Cellular
Phonebook and Call History........... 404, 423
Automatic Transferring............................ 422
Caller’s ID Information............................. 401
Displaying Messages................................ 433
Favorite Contacts .................................... 424
HFL Buttons..................................... 389, 414
HFL Menus ...................................... 391, 417
HFL Status Display ........................... 390, 416
In Case of Emergency ...................... 317, 437
Limitations for Manual Operation .... 390, 416
Making a Call .................................. 408, 426
Options During a Call ...................... 413, 429
Phone Setup.................................... 395, 419
Receiving a Call ............................... 412, 429
Receiving a Text Message ........................ 431
Ring Tone........................................ 401, 422
Selecting a Phone .................................... 432
Speed Dial ............................................... 405
To Clear the System ................................ 403
To Set Up a Text Message Options .......... 430
Hazard Warning Button .............................. 4
HD Radio
TM................................................ 293
Head Restraints ........................................ 212 Headlights
................................................ 193
Auto High-Beam System ......................... 197
Automatic Operation .............................. 194
Dimming......................................... 193, 196
Operating ............................................... 193
Heaters (Seat) ................................... 223, 224
HFL (HandsFreeLink ®) ...................... 389, 414
High Beam Indicator .................................. 94
High Voltage Battery ............................... 477
High Voltage Battery Charge Level Gauge ..................................................... 129
Hill Start Assist System ............................. 453
HomeLink ® Universal Transceiver ........... 386
Honda App License Agreement .............. 339
Honda Sensing ®................................ 32, 480
HondaLink ®............................................ 313
Hybrid Vehicle
SPORT HYBRID i-MMD (i ntelligent Multi
Mode Drive) .............................................. 9
I
Identification Numbers Engine and Transmission ......................... 654
Vehicle Identification............................... 654
Illumination Control Dial ......................................................... 203
Immobilizer System .................................. 183
Indicator ................................................... 95
Indicators .................................................... 80
12-Volt Battery Charging System ...... 88, 634
20 INSIGHT-31TXM6100.book 666 ページ 2019年4月24日 水曜日 午後2時2分
Page 669 of 675

667
Index
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................. 97
Adaptive Cruise Control (ACC) with Low Speed Follow (Green)............... 98, 493
Anti-lock Brake System (ABS) .................... 91
Auto High-Beam ....................................... 94
Automatic Brake Hold ....................... 84, 537
Automatic Brake Hold System ........... 84, 537
Deceleration Paddle Selector ..................... 88
ECON Mode ..................................... 96, 467
Electric Power Steering (EPS)
System ............................................ 91, 638
EV............................................................. 86
EV Mode................................................... 86
Fog Light .................................................. 94
High Beam ................................................ 94
Immobilizer System ................................... 95
Lane Keeping Assist System (LKAS) (Amber) .................................................. 98
Lane Keeping Assist System (LKAS) (Green) ........................................... 98, 512
Lights On .................................................. 94
Low Fuel ................................................... 90
Low Tire Pressure/TPMS ............ 93, 472, 475
Malfunction Indicator Lamp .............. 87, 635
Parking Brake and Brake System (Amber) .......................................... 82, 637
Parking Brake and Brake System
(Red) ....................................... 81, 636, 637
POWER SYSTEM ....................................... 85
READY ...................................................... 86 Safety Support (Amber) ............................. 99
Safety Support (Green/Gray) .................... 101
Seat Belt Reminder .............................. 45, 90
Security System Alarm ............................... 95
Shift Position ............................................. 88
SPORT Mode ..................................... 96, 463
Supplemental Restraint System ............ 61, 91
System Message ........................................ 96
Transmission System .................................. 89
Turn Signal and Haza
rd Warning ............... 94
Vehicle Stability Assist ® (VSA ®) OFF .... 92, 470
Vehicle Stability Assist ® (VSA ®)
System............................................. 92, 469
Information ............................................... 651
Instant Fuel Economy ............................... 136
Instrument Panel ........................................ 79
Brightness Control ................................... 203
Interior Lights ........................................... 215
Interior Rearview Mirror .......................... 205
Inverter Coolant ....................................... 571
iPad ............................................................ 338
iPhone ....................................................... 338
iPod ........................................... 250, 305, 338
J
Jack (Wheel Nut Wrench) ........................ 608
Jump Starting ........................................... 628
K
Key Number Tag ....................................... 167
Keyless Lockout Prevention ..................... 175
Keys ........................................................... 166
Lockout Prevention.................................. 175
Number Tag ............................................ 167
Rear Door Won’t Open............................ 178
Remote Transmitter ................................. 173
Types and Functions ................................ 166
L
Lane Keeping Assist System (LKAS) ......... 510
LaneWatchTM............................................ 478
Language (HFL) ........................................ 416
LATCH (Child Seats) .................................... 69
Left Selector Wheel .................................. 153
Lights ................................................. 193, 575
Automatic ............................................... 194
Bulb Replacement ................................... 575
Daytime Running Lights........................... 196
Fog Lights ............................................... 196
High Beam Indicator .................................. 94
Interior .................................................... 215
Light Switches ......................................... 193
Lights On Indicator .................................... 94
Turn Signals ............................................ 193
Load Limits ................................................ 445
20 INSIGHT-31TXM6100.book 667 ページ 2019年4月24日 水曜日 午後2時2分
