uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Turn the power system off.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
Malfunction indicator lamp comes on if th e system continues to detect a leak of
gasoline vapor. If this happens, check the fu el fill cap using the procedures described
above.
■Tighten Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
20 INSIGHT-31TXM6100.book 635 ページ ２０１９年４月２４日　水曜日　午後２時２分

641Continued
Handling the Unexpected

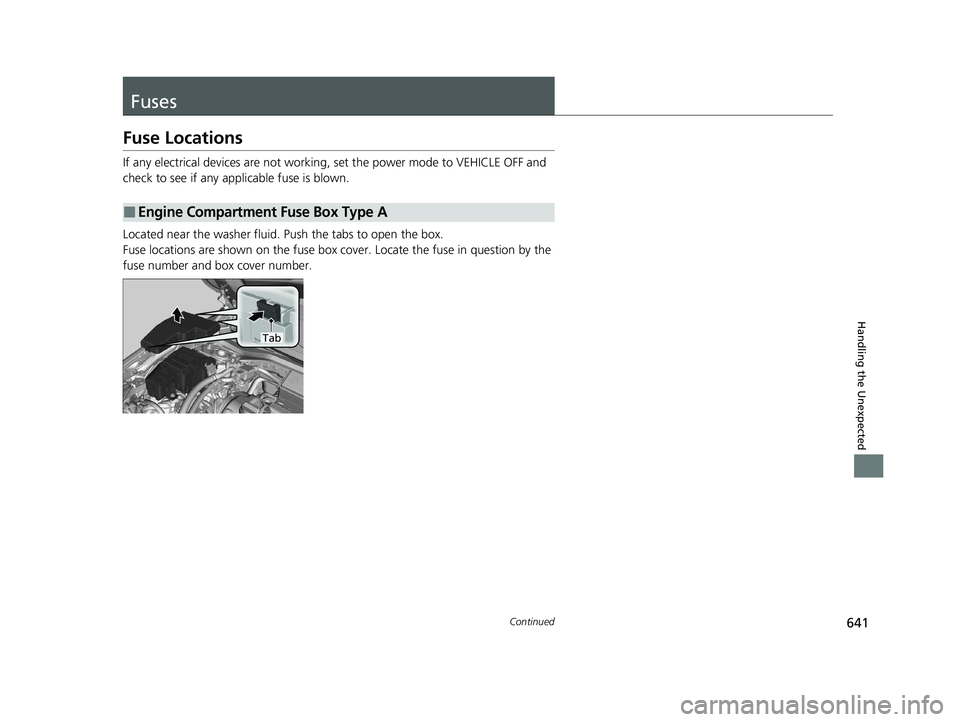

Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.
Located near the washer fluid. Push the tabs to open the box.
Fuse locations are shown on the fuse box cove r. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box Type A
Tab
20 INSIGHT-31TXM6100.book 641 ページ ２０１９年４月２４日　水曜日　午後２時２分

646
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
6. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 641
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
20 INSIGHT-31TXM6100.book 646 ページ ２０１９年４月２４日　水曜日　午後２時２分

648
Handling the Unexpected

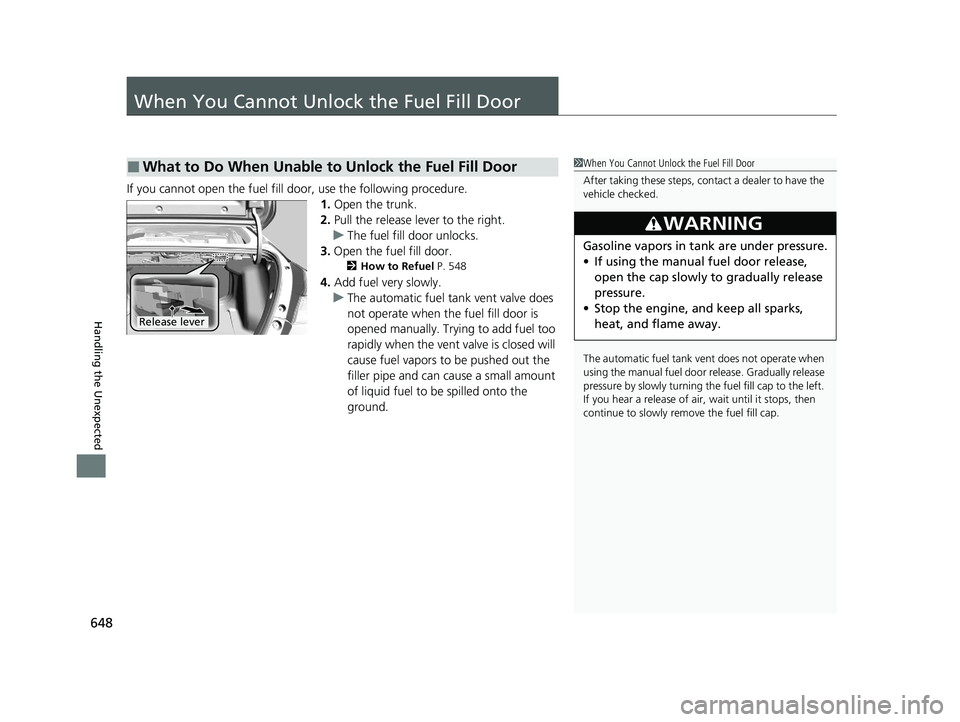

When You Cannot Unlock the Fuel Fill Door
If you cannot open the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release lever to the right.
u The fuel fill door unlocks.
3. Open the fuel fill door.
2 How to Refuel P. 548
4.Add fuel very slowly.
u The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground.
■What to Do When Unable to Unlock the Fuel Fill Door1 When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
The automatic fuel tank ve nt does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning th e fuel fill cap to the left.
If you hear a release of air, wait until it stops, then
continue to slowly remove the fuel fill cap.
3WARNING
Gasoline vapors in tank are under pressure.
• If using the manual fuel door release,
open the cap slowly to gradually release
pressure.
• Stop the engine, and keep all sparks,
heat, and flame away.
Release lever
20 INSIGHT-31TXM6100.book 648 ページ ２０１９年４月２４日　水曜日　午後２時２分

657
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
6. Drive in city/suburban traffic for at leas t 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for six hours.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 INSIGHT-31TXM6100.book 657 ページ ２０１９年４月２４日　水曜日　午後２時２分

Index
663
Index
Index
Numbers
12-Volt Battery................................... 10, 591
Charging System Indicator ................ 88, 634
High Voltage..................................... 10, 477
Jump Starting ......................................... 628
Maintenance (Checking the Battery) ....... 591
Maintenance (Replacing) ......................... 593
A
ABS (Anti-lock Brake System) .................. 540
Accessories and Modifications ................ 601
Accessory Power Socket ........................... 221
Acoustic Vehicle Alerting System ............ 468
Adaptive Cruise Control (ACC) ............ 97, 98
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 97, 98, 492
Additives
Coolant .................................................. 569
Engine Oil ............................................... 564
Washer ................................................... 574
Additives, Engine Oil ............................... 564
Adjusting Armrest .................................................. 214
Front Seats.............................................. 207
Head Restraints ....................................... 212
Mirrors.................................................... 205
Rear Seats ............................................... 210
Steering Wheel ....................................... 204
Adjusting the Sound ................................ 246
Agile Handling Assist ............................... 471 Air Conditioning System (Climate Control
System) .................................................... 225
Changing the Mode ................................ 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter ............................... 594
Recirculation/Fresh Air Mode ................... 227
Sensors .................................................... 231
Synchronized Mode ................................. 230
Using Automatic Climate Control ............ 225
Air Pressure ....................................... 583, 653
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 54
Indicator .............................................. 61, 91
Passenger Front Airbag Off Indicator ......... 62
Sensors ...................................................... 51
Side Airbags .............................................. 58
Side Curtain Airbags .................................. 60
AM/FM Radio .................................... 248, 290
Android Auto ............................................ 328
Anti-lock Brake System (ABS) .................. 540
Indicator .................................................... 91
Apple CarPlay ........................................... 325
Armrest ..................................................... 214
Audio Remote Controls ............................ 237
Audio System .................................... 234, 241
Adjusting the Sound ........................ 246, 284 AM/FM Radio .......................................... 248
Audio/Information Screen................ 242, 263
Display Setup .................................. 247, 285
Error Messages ........................................ 332
General Information ................................ 337
Home Screen........................................... 271
How to Update Wirelessly ....................... 278
How to Update with a USB Device........... 282
How to use Siri Eyes Free ................. 261, 324
iPod ................................................ 250, 305
Limitations for Manual Operation ............ 286
MP3/WMA/AAC .............................. 255, 308
Pandora
®............................................... 253
Playing Bluetooth ® Audio ........................ 258
Reactivating ............................................ 236
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 286
Status Area ............................................. 276
System Updates....................................... 278
Theft Protection ...................................... 236
USB Flash Drives ...................... 255, 308, 338
USB Ports ................................................ 235
Wallpaper Setup.............................. 244, 269
Audio/Information Screen ............... 242, 263
Authorized Manuals ................................ 660
Auto Door Locking/Unlocking ................. 179
Customize ....................................... 159, 383
Auto High-Beam ....................................... 197
Indicator.................................................... 94
20 INSIGHT-31TXM6100.book 663 ページ ２０１９年４月２４日　水曜日　午後２時２分

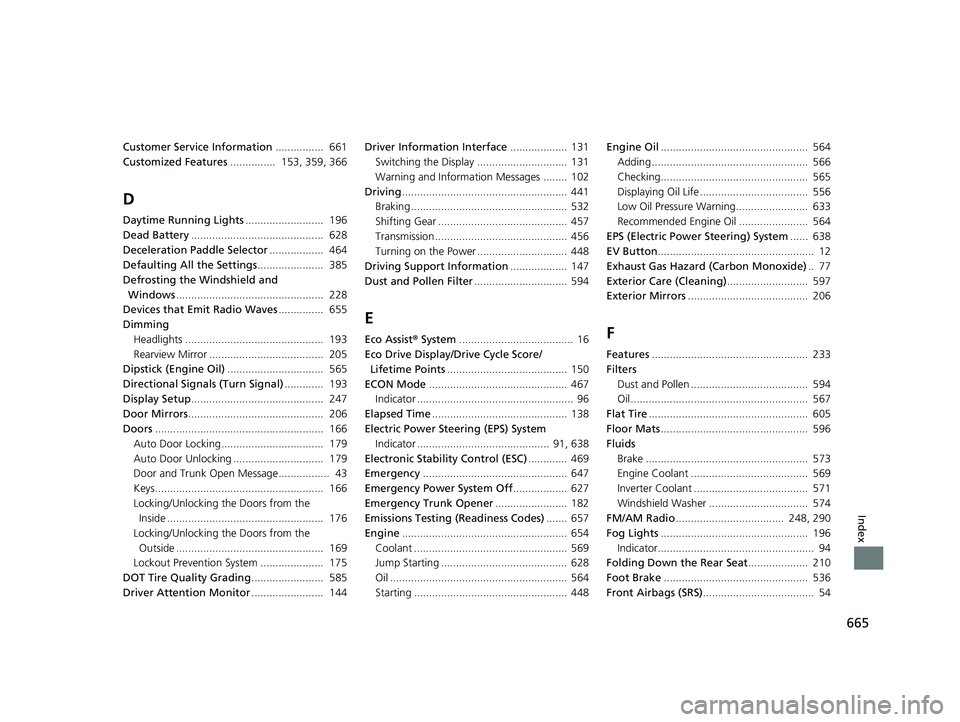

665
Index
Customer Service Information................ 661
Customized Features ............... 153, 359, 366
D
Daytime Running Lights .......................... 196
Dead Battery ............................................ 628
Deceleration Paddle Selector .................. 464
Defaulting All the Settings ...................... 385
Defrosting the Windshield and
Windows ................................................. 228
Devices that Emit Radio Waves ............... 655
Dimming
Headlights .............................................. 193
Rearview Mirror ...................................... 205
Dipstick (Engine Oil) ................................ 565
Directional Signals (Turn Signal) ............. 193
Display Setup ............................................ 247
Door Mirrors ............................................. 206
Doors ........................................................ 166
Auto Door Locking.................................. 179
Auto Door Unlocking .............................. 179
Door and Trunk Open Message................. 43
Keys........................................................ 166
Locking/Unlocking the Doors from the Inside .................................................... 176
Locking/Unlocking the Doors from the
Outside ................................................. 169
Lockout Prevention System ..................... 175
DOT Tire Quality Grading ........................ 585
Driver Attention Monitor ........................ 144Driver Information Interface
................... 131
Switching the Display .............................. 131
Warning and Information Messages ........ 102
Driving ....................................................... 441
Braking .................................................... 532
Shifting Gear ........................................... 457
Transmission ............................................ 456
Turning on the Power .............................. 448
Driving Support Information ................... 147
Dust and Pollen Filter ............................... 594
E
Eco Assist® System ...................................... 16
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 150
ECON Mode .............................................. 467
Indicator .................................................... 96
Elapsed Time ............................................. 138
Electric Power Steering (EPS) System Indicator ............................................ 91, 638
Electronic Stability Control (ESC) ............. 469
Emergency ................................................ 647
Emergency Power System Off .................. 627
Emergency Trunk Opener ........................ 182
Emissions Testing (Readiness Codes) ....... 657
Engine ....................................................... 654
Coolant ................................................... 569
Jump Starting .......................................... 628
Oil ........................................................... 564
Starting ................................................... 448 Engine Oil
................................................. 564
Adding .................................................... 566
Checking................................................. 565
Displaying Oil Life .................................... 556
Low Oil Pressure Warning........................ 633
Recommended Engine Oil ....................... 564
EPS (Electric Power Steering) System ...... 638
EV Button .................................................... 12
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) ........................... 597
Exterior Mirrors ........................................ 206F
Features.................................................... 233
Filters
Dust and Pollen ....................................... 594
Oil ........................................................... 567
Flat Tire ..................................................... 605
Floor Mats ................................................. 596
Fluids
Brake ...................................................... 573
Engine Coolant ....................................... 569
Inverter Coolant ...................................... 571
Windshield Washer ................................. 574
FM/AM Radio .................................... 248, 290
Fog Lights ................................................. 196
Indicator.................................................... 94
Folding Down the Rear Seat .................... 210
Foot Brake ................................................ 536
Front Airbags (SRS) ..................................... 54
20 INSIGHT-31TXM6100.book 665 ページ ２０１９年４月２４日　水曜日　午後２時２分

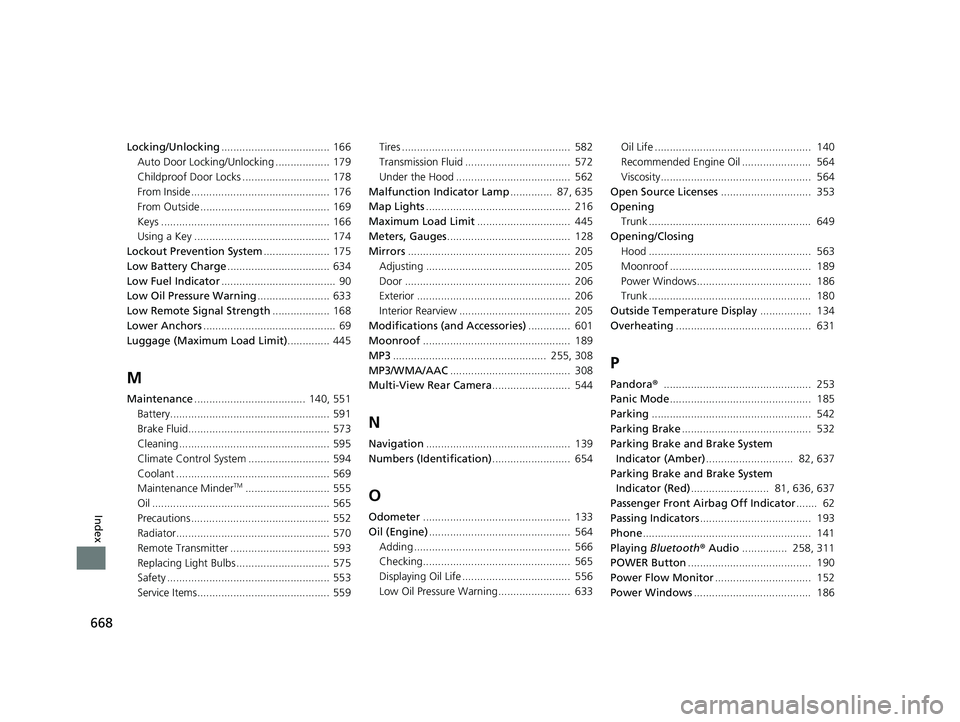

668
Index
Locking/Unlocking.................................... 166
Auto Door Locking/Unlocking .................. 179
Childproof Door Locks ............................. 178
From Inside .............................................. 176
From Outside ........................................... 169
Keys ........................................................ 166
Using a Key ............................................. 174
Lockout Prevention System ...................... 175
Low Battery Charge .................................. 634
Low Fuel Indicator ...................................... 90
Low Oil Pressure Warning ........................ 633
Low Remote Signal Strength ................... 168
Lower Anchors ............................................ 69
Luggage (Maximum Load Limit) .............. 445
M
Maintenance..................................... 140, 551
Battery..................................................... 591
Brake Fluid............................................... 573
Cleaning .................................................. 595
Climate Control System ........................... 594
Coolant ................................................... 569
Maintenance Minder
TM............................ 555
Oil ........................................................... 565
Precautions .............................................. 552
Radiator................................................... 570
Remote Transmitter ................................. 593
Replacing Light Bulbs ............................... 575
Safety ...................................................... 553
Service Items............................................ 559 Tires ........................................................ 582
Transmission Fluid ................................... 572
Under the Hood ...................................... 562
Malfunction Indicator Lamp .............. 87, 635
Map Lights ................................................ 216
Maximum Load Limit ............................... 445
Meters, Gauges ......................................... 128
Mirrors ...................................................... 205
Adjusting ................................................ 205
Door ....................................................... 206
Exterior ................................................... 206
Interior Rearview ..................................... 205
Modifications (and Accessories) .............. 601
Moonroof ................................................. 189
MP3 ................................................... 255, 308
MP3/WMA/AAC ........................................ 308
Multi-View Rear Camera .......................... 544
N
Navigation................................................ 139
Numbers (Identification) .......................... 654
O
Odometer................................................. 133
Oil (Engine) ............................................... 564
Adding .................................................... 566
Checking................................................. 565
Displaying Oil Life .................................... 556
Low Oil Pressure Warning........................ 633 Oil Life .................................................... 140
Recommended Engine Oil ....................... 564
Viscosity.................................................. 564
Open Source Licenses .............................. 353
Opening
Trunk ...................................................... 649
Opening/Closing Hood ...................................................... 563
Moonroof ............................................... 189
Power Windows...................................... 186
Trunk ...................................................... 180
Outside Temperature Display ................. 134
Overheating ............................................. 631
P
Pandora®................................................. 253
Panic Mode ............................................... 185
Parking ..................................................... 542
Parking Brake ........................................... 532
Parking Brake and Brake System
Indicator (Amber) ............................. 82, 637
Parking Brake and Brake System Indicator (Red) .......................... 81, 636, 637
Passenger Front Airbag Off Indicator ....... 62
Passing Indicators ..................................... 193
Phone ........................................................ 141
Playing Bluetooth ® Audio ............... 258, 311
POWER Button ......................................... 190
Power Flow Monitor ................................ 152
Power Windows ....................................... 186
20 INSIGHT-31TXM6100.book 668 ページ ２０１９年４月２４日　水曜日　午後２時２分

669
Index
POWER/CHARGE Gauge.......................... 130
Precautions While Driving ....................... 454
Rain ........................................................ 454
Pregnant Women ....................................... 49
Puncture (Tire) ......................................... 605
R
Radar Sensor............................................ 531
Radiator .................................................... 570
Radio (AM/FM) ......................................... 290
Radio (FM/AM) ......................................... 248
Radio (SiriusXM ®)..................................... 294
Radio Data System (RDS) ................. 249, 292
Range ........................................................ 136
RDS (Radio Data System) ................. 249, 292
Readiness Codes (Emissions Testing) ...... 657
Rear Defogger/Heated Door Mirror
Button ..................................................... 202
Rear Seat (Folding Down) ....................... 210
Rear Seat Heaters ..................................... 224
Rearview Mirror ....................................... 205
Refueling .................................................. 547
Fuel Gauge ............................................. 128
Gasoline ......................................... 547, 652
Low Fuel Indicator..................................... 90
Regulations .............................. 475, 585, 655
Remote Engine Start with Vehicle Feedback ................................................. 450
Remote Transmitter ................................. 173 Replacement
Battery .................................................... 593
Bulbs ....................................................... 575
Fuses ............................................... 641, 645
Tires ........................................................ 588
Wiper Blade Rubber ................................. 579
Reporting Safety Defects ......................... 656
Resetting a Trip Meter ..................... 134, 136
Road Departure Mitigation (RDM) .......... 518
On and Off .............................................. 520
S
Safe Driving ................................................ 39
Safety Check ............................................... 43
Safety Labels ............................................... 78
Safety Message ............................................. 1
Safety Support .......................................... 148
Seat Belts ..................................................... 44
Adjusting the Shoulder Anchor .................. 48
Automatic Seat Belt Tensioners .................. 46
Checking ................................................... 50
Fastening ................................................... 47
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 71
Pregnant Women ...................................... 49
Reminder ................................................... 45
Warning Indicator ................................ 45, 90
Seat Heaters ...................................... 223, 224
Seats .......................................................... 207
Adjusting ................................................. 207 Front Seats .............................................. 207
Rear Seats ............................................... 210
Seat Heaters .................................... 223, 224
Security System ......................................... 183
Immobilizer System Indicator ..................... 95
Security System Alarm Indicator................. 95
Selecting a Child Seat ................................. 68
Selector Knob (Audio) .............................. 241
Shift Buttons ....................................... 28, 457
Operation................................................ 459
Shift Position Indicator .............................. 88
Shifting (Transmission) ............................. 457
Shoulder Anchor ........................................ 48
Side Airbags ................................................ 58
Side Curtain Airbags .................................. 60
Siri Eyes Free ..................................... 261, 324
SiriusXM ® Radio ........................................ 294
Smart Entry with Push Button Start System ..................................................... 169
Snow Tires ................................................. 590
Spare Tire .......................................... 605, 653
Spark Plugs ............................................... 652
Specifications ............................................ 652
Specified Fuel ................................... 547, 652
Speedometer ............................................ 128
SPORT Mode ............................................. 463
Indicator.................................................... 96
SRS Airbags (Airbags) ................................. 54
Steering Wheel Adjusting ................................................ 204
Stopping ................................................... 542
20 INSIGHT-31TXM6100.book 669 ページ ２０１９年４月２４日　水曜日　午後２時２分
