engine HONDA INSIGHT 2020 (in English) Manual Online

643
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Engine Compartment
Fuse Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
PTC240 A
PTC440 A
−40 A
−40 A
−40 A
−30 A
2 BATT SNSR 7.5 A
3−(7.5 A)
4− −
5AUDIO SUB*(7.5 A)
6− −
7RR H/SEAT*(15 A)
Circuit ProtectedAmps
* Not available on all models
20 INSIGHT-31TXM6100.book 643 ページ ２０１９年４月２４日　水曜日　午後２時２分

646
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
6. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 641
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
20 INSIGHT-31TXM6100.book 646 ページ ２０１９年４月２４日　水曜日　午後２時２分

648
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot open the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release lever to the right.
u The fuel fill door unlocks.
3. Open the fuel fill door.
2 How to Refuel P. 548
4.Add fuel very slowly.
u The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground.
■What to Do When Unable to Unlock the Fuel Fill Door1 When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
The automatic fuel tank ve nt does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning th e fuel fill cap to the left.
If you hear a release of air, wait until it stops, then
continue to slowly remove the fuel fill cap.
3WARNING
Gasoline vapors in tank are under pressure.
• If using the manual fuel door release,
open the cap slowly to gradually release
pressure.
• Stop the engine, and keep all sparks,
heat, and flame away.
Release lever
20 INSIGHT-31TXM6100.book 648 ページ ２０１９年４月２４日　水曜日　午後２時２分

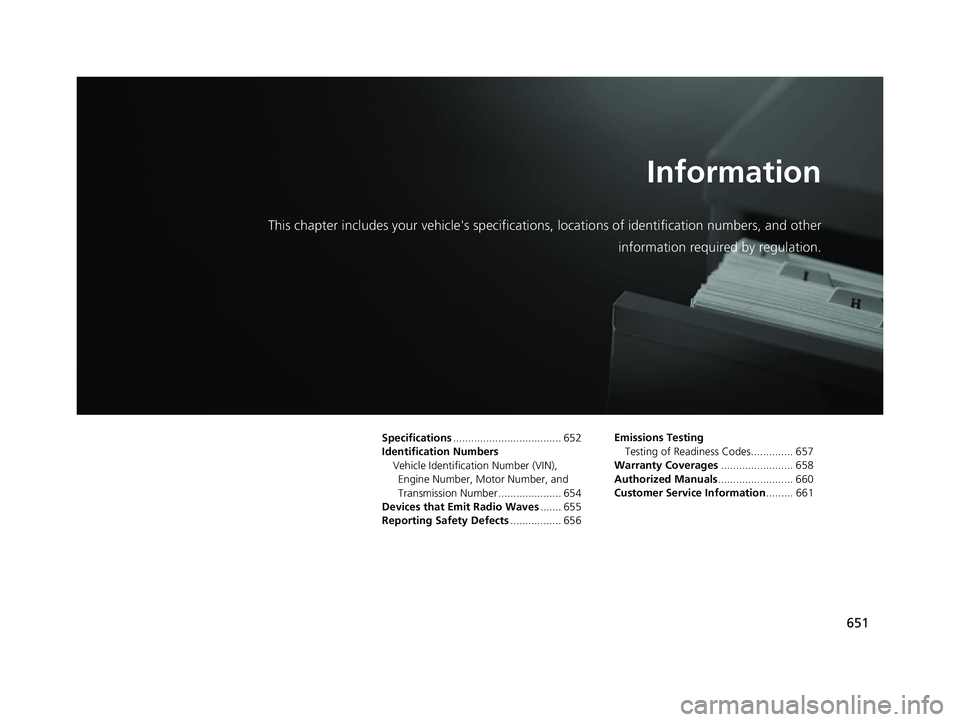

651
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 652
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number ..................... 654
Devices that Emit Radio Waves ....... 655
Reporting Safety Defects ................. 656Emissions Testing
Testing of Readiness Codes.............. 657
Warranty Coverages ........................ 658
Authorized Manuals ......................... 660
Customer Service Information ......... 661
20 INSIGHT-31TXM6100.book 651 ページ ２０１９年４月２４日　水曜日　午後２時２分

652
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelINSIGHT
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeND-OIL11 (POE)
Quantity 7.3 – 8.2 cu-in (120 – 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11H
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*LED
Parking/Daytime Running Lights LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
TaillightsLED
Back-Up Lights 16 W
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WAmbient LightsLEDVanity Mirror Lights2.3 WTrunk Light5 W
* Not available on all models
20 INSIGHT-31TXM6100.book 652 ページ ２０１９年４月２４日　水曜日　午後２時２分

653
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
Capacity Change 2.3 US qt (2.2 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1 L)
Change
including
filter
3.5 US qt (3.3 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.22 US gal (4.61 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Vehicles with optional spare tire
Regular
Size215/55R16 93V*1
215/50R17 91H*2
Pressure
psi (kPa [kgf/cm2])
Front35 (240 [2.4])
Rear33 (230 [2.3])*1
32 (220 [2.2])*2
Compact
Spare*3
Size T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
17 x 7J*2
Compact Spare*316 x 4T
20 INSIGHT-31TXM6100.book 653 ページ ２０１９年４月２４日　水曜日　午後２時２分

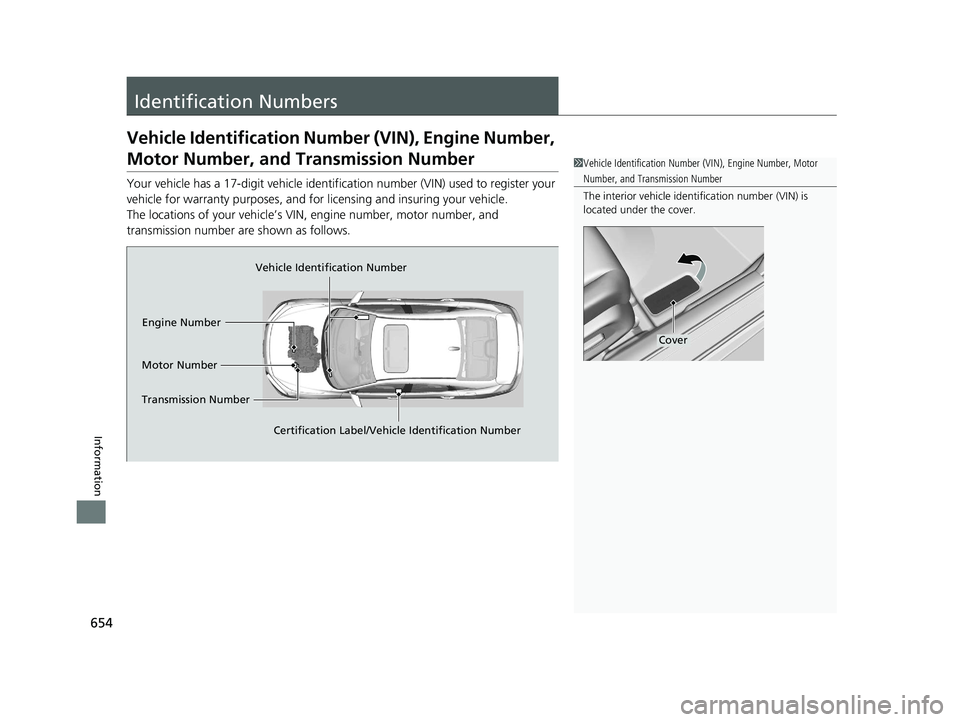

654
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Transmission Number Motor Number
20 INSIGHT-31TXM6100.book 654 ページ ２０１９年４月２４日　水曜日　午後２時２分

657
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
6. Drive in city/suburban traffic for at leas t 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for six hours.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 INSIGHT-31TXM6100.book 657 ページ ２０１９年４月２４日　水曜日　午後２時２分

661Continued
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico a nd the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number P. 654
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 INSIGHT-31TXM6100.book 661 ページ ２０１９年４月２４日　水曜日　午後２時２分

Index
663
Index
Index
Numbers
12-Volt Battery................................... 10, 591
Charging System Indicator ................ 88, 634
High Voltage..................................... 10, 477
Jump Starting ......................................... 628
Maintenance (Checking the Battery) ....... 591
Maintenance (Replacing) ......................... 593
A
ABS (Anti-lock Brake System) .................. 540
Accessories and Modifications ................ 601
Accessory Power Socket ........................... 221
Acoustic Vehicle Alerting System ............ 468
Adaptive Cruise Control (ACC) ............ 97, 98
Adaptive Cruise Control (ACC)
with Low Speed Follow ............. 97, 98, 492
Additives
Coolant .................................................. 569
Engine Oil ............................................... 564
Washer ................................................... 574
Additives, Engine Oil ............................... 564
Adjusting Armrest .................................................. 214
Front Seats.............................................. 207
Head Restraints ....................................... 212
Mirrors.................................................... 205
Rear Seats ............................................... 210
Steering Wheel ....................................... 204
Adjusting the Sound ................................ 246
Agile Handling Assist ............................... 471 Air Conditioning System (Climate Control
System) .................................................... 225
Changing the Mode ................................ 227
Defrosting the Windshield and Windows ............................................... 228
Dust and Pollen Filter ............................... 594
Recirculation/Fresh Air Mode ................... 227
Sensors .................................................... 231
Synchronized Mode ................................. 230
Using Automatic Climate Control ............ 225
Air Pressure ....................................... 583, 653
Airbags ........................................................ 51
Advanced Airbags ..................................... 57
After a Collision ......................................... 54
Airbag Care ............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 54
Indicator .............................................. 61, 91
Passenger Front Airbag Off Indicator ......... 62
Sensors ...................................................... 51
Side Airbags .............................................. 58
Side Curtain Airbags .................................. 60
AM/FM Radio .................................... 248, 290
Android Auto ............................................ 328
Anti-lock Brake System (ABS) .................. 540
Indicator .................................................... 91
Apple CarPlay ........................................... 325
Armrest ..................................................... 214
Audio Remote Controls ............................ 237
Audio System .................................... 234, 241
Adjusting the Sound ........................ 246, 284 AM/FM Radio .......................................... 248
Audio/Information Screen................ 242, 263
Display Setup .................................. 247, 285
Error Messages ........................................ 332
General Information ................................ 337
Home Screen........................................... 271
How to Update Wirelessly ....................... 278
How to Update with a USB Device........... 282
How to use Siri Eyes Free ................. 261, 324
iPod ................................................ 250, 305
Limitations for Manual Operation ............ 286
MP3/WMA/AAC .............................. 255, 308
Pandora
®............................................... 253
Playing Bluetooth ® Audio ........................ 258
Reactivating ............................................ 236
Remote Controls ..................................... 237
Security Code .......................................... 236
Selecting an Audio Source ....................... 286
Status Area ............................................. 276
System Updates....................................... 278
Theft Protection ...................................... 236
USB Flash Drives ...................... 255, 308, 338
USB Ports ................................................ 235
Wallpaper Setup.............................. 244, 269
Audio/Information Screen ............... 242, 263
Authorized Manuals ................................ 660
Auto Door Locking/Unlocking ................. 179
Customize ....................................... 159, 383
Auto High-Beam ....................................... 197
Indicator.................................................... 94
20 INSIGHT-31TXM6100.book 663 ページ ２０１９年４月２４日　水曜日　午後２時２分
